OO4-ILR-IB2NABeacon Tag

i-B2 S/NA User’s Guide Version 1.0 IDENTEC SOLUTIONS AG Millennium Park 2 A-6890 Lustenau Austria Tel: +43 (0) 5577 87387 - 0 Fax: +43 (0) 5577 87387 - 15 [email protected] www.identecsolutions.com i-B2 S – User’s Guide Version 1.0 03.08.2006 Page ii/12 Proprietary Notice This document contains confidential information proprietary to IDENTEC SOLUTIONS and may not be used or disclosed to other parties in whole or in part without prior written authorization from IDENTEC SOLUTIONS. Disclaimer and Limitation of Liability IDENTEC SOLUTIONS AG and its affiliates, subsidiaries, officers, directors, employees and agents provide the information contained in this Manual on an “as-is” basis and do not make any express or implied warranties or representations with respect to such information including, without limitation, warranties as to non-infringement, reliability, fitness for a particular purpose, usefulness, completeness, accuracy or currentness. IDENTEC SOLUTIONS AG shall not in any circumstances be liable to any person for any special, incidental, indirect or consequential damages, including without limitation, damages resulting from use of or reliance on information presented herein, or loss of profits or revenues or costs of replacement goods, even if informed in advance of the possibility of such damages. Trademarks “IDENTEC SOLUTIONS”, “Intelligent Long Range”, “ILR” and the stylized “i” are registered trademarks and “i-Q”, “i-D”, “i-CARD”, “i-PORT”, “i-LINKS”, “Solutions. It’s in our name.”, “Smarten up your assets.” are trademarks of IDENTEC SOLUTIONS, Inc. and/or IDENTEC SOLUTIONS AG. Copyright Notice Copyright © 2006 IDENTEC SOLUTIONS. All rights reserved. No part of this document may be reproduced or transmitted in any form by any means, photographic, electronic, mechanical or otherwise, or used in any information storage and retrieval system, without the prior written permission of IDENTEC SOLUTIONS. i-B2 S – User’s Guide Version 1.0 03.08.2006 Page iii/12 Radio Frequency Compliance Statement IDENTEC SOLUTIONS AG. is the responsible party for the compliance of the following devices: MODEL: i-B2 S i-CARD CF i-D TAGS i-Qxx TAGS FCC ID: OO4-ILR-IB2NA OO4-ILR-ICARDCF OO4-ILR-ID2 OO4-ILR-IQ8T or OO4-ILR-IQR CANADA: Pending Pending 3538A 12112 35381021756A or 35381021825 EUROPE: CE CE CE 0678(!) CE 0682(!) The user(s) of these products are cautioned to only use accessories and peripherals approved, in advance, by IDENTEC SOLUTIONS. The use of accessories and peripherals, other than those approved by IDENTEC SOLUTIONS, or unauthorized changes to approved products, may void the compliance of these products and may result in the loss of the user(s) authority to operate the equipment. Operation is subject to the following conditions: (1) these devices may not cause harmful interference, and (2) these devices must accept any interference, including interference that may cause undesired operation of the device. FCC Compliance (i-B2 S/NA) This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communication. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his/her own expense. Warning: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. Industry Canada Compliance (i-B2 S/NA) This Class A digital apparatus meets all requirements of the Canadian Interference-Causing Equipment Regulations. Cet appareil numérique de la classe A respecte toutes les exigences du Règlement sur le matériel brouilleur du Canada. To reduce potential radio interference to other users, the antenna type and its gain should be so chosen that the equivalent isotropically radiated power (EIRP) is not more than that required for successful communication. The installer of this radio equipment must ensure that the antenna is located or pointed such that it does not emit RF field in excess of Health Canada limits for the general population; consult Safety Code 6, obtainable from Health Canada. i-B2 S – User’s Guide Version 1.0 03.08.2006 Page iv/12 European Notification according R&TTE Directive (i-B2 S/EU) This equipment complies to Art. 6.4 of R&TTE Directive (1999/5/EC) and can be used in the following European countries: Austria, Belgium, Denmark, Finland, France, Germany, Greece, Iceland, Italy, Ireland, Luxembourg, Netherlands , Norway, Portugal, Switzerland, Sweden, Spain, United Kingdom, Czech Republic, Cyprus, Estonia, Hungary, Lithuania, Latvia, Malta, Poland, Slovenia. i-B2 S – User’s Guide Version 1.0 03.08.2006 Page v/12 Table of Contents 1.0 Overview __________________________________________6 2.0 Functionality________________________________________6 2.1 Telegram content __________________________________________ 6 2.2 Programming _____________________________________________ 6 Appendix A: Technical Specifications____________________________7 Appendix B: Battery lifetime__________________________________8 Appendix C: Tag mounting___________________________________9 C.1 Rivets______________________________________________9 C.2 Screws____________________________________________10 C.3 Taping (on metal surfaces) ___________________________11 C.4 Mounting with Suction Cups___________________________12 i-B2 S – User’s Guide Version 1.0 03.08.2006 Page 6/12 1.0 Overview This guide explains how to install and operate the beacon tag i-B2 S. 2.0 Functionality The i-B2 S/NA is a high performance maint…

Text truncated - open the document above for the full version.

Federal Communications Commission 445 12 th Street SW Washington, DC 20554 USA Request for Confidentiality in accordance with CFR 0.457 and 0.459 06 September 2006 EMCCert DR. RAŠEK - Certification Institute - Boelwiese 5 D-91320 Ebermannstadt RE: Certification Application FCC ID: 004-ILR-IB2NA Please be advised that the following information is to be held confidential on behalf of Identec Solutions AG: • Schematics • Parts List • Block Diagram • Technical Description The application contains technical information which Identec Solutions AG deems to be trade secrets and proprietary. If made public, the information might be used to the disadvantage of the applicant in the market place. Thank you for your attention to this matter.

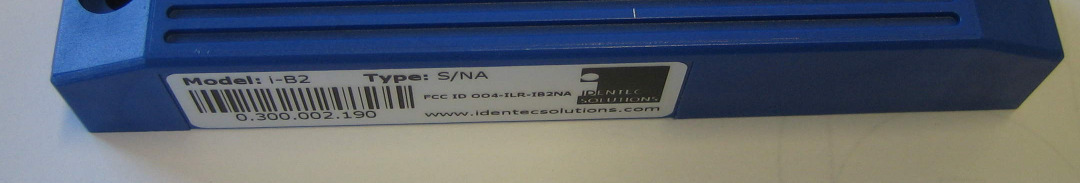

i-B2 S/NA - Photos 02.08.2006 IB2SNA-Photos.doc; Autor: Josef Vogel Seite 1/2 1 External Photos Top View Side View (showing label) Bottom View

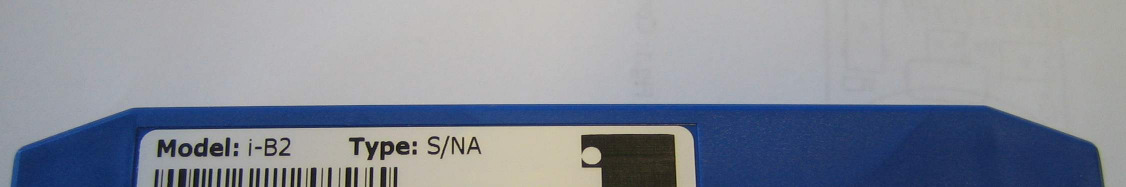

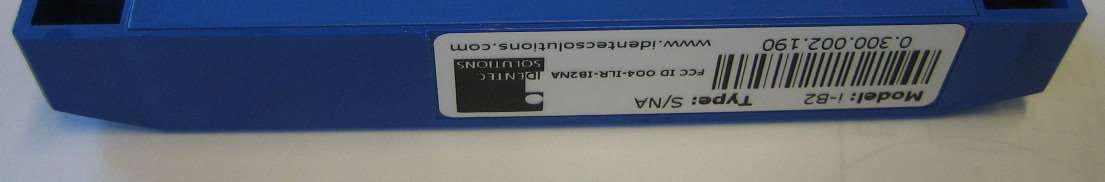

i-B2 S/NA – Type Label and Placement 02.08.2006 IB2SNA-LABEL.doc; Autor: Josef Vogel Seite 1/1 The label is placed on the side of the tag. As it is too small the FCC warning statement is written in the accompanying documentation.

i-B2 S/NA - Photos 02.08.2006 IB2SNA-Photos.doc; Autor: Josef Vogel Seite 2/2 2 Internal Photos Internal – Top View (showing battery and 13.56 MHz antenna) Internal – Bottom View (showing electronics) Internal – Close up of electronics

Senton GmbH Aeussere Fruehlingstrasse 45 D-94315 Straubing Note: The test data of this report is related only to the individual item which has been tested. This report shall not be reproduced except in full extent without the written approval of the testing laboratory. Test Report No. 55456-050446-2 (Edition 1) Page 1 of 32 Pages Straubing, September 1, 2005 T E S T - R E P O R T No. 55456-050446-2 (Edition 1) for i-B2 Transmitter Applicant: IDENTEC SOLUTIONS AG Test Specifications: FCC Code of Federal Regulations, CFR 47, Part 15, Sections 15.205, 15.215 and 15.249 Industry Canada Radio Standards Specification RSS-210 Issue 5, Sections 6.2.2 (m2) and 6.3 (Category I Equipment) Senton GmbH Aeussere Fruehlingstrasse 45 D-94315 Straubing Test Report No. 55456-050446-2 (Edition 1) Page 2 of 32 Pages Table of Contents 1 Description of the Equipment Under Test (EUT) ........................................................ 3 2 Administrative Data..................................................................................................... 4 3 Identification of the Test Laboratory ........................................................................... 5 4 Summary .................................................................................................................... 6 5 Operation Mode and Configuration of EUT................................................................. 7 6 Measurement Procedures........................................................................................... 8 6.1 Bandwidth Measurements .................................................................................... 8 6.2 Pulse Train Measurement .................................................................................... 9 6.3 Radiated Emission in Fully or Semi Anechoic Room.......................................... 10 6.4 Radiated Emission at Open Field Test Site........................................................ 12 7 Photographs Taken During Testing .......................................................................... 13 8 Test Results .............................................................................................................. 16 8.1 Occupied Bandwidth........................................................................................... 18 8.2 Emission Bandwidth ........................................................................................... 21 8.3 Designation of Emissions ................................................................................... 23 8.4 Pulse Train Measurement .................................................................................. 24 8.5 Restricted Bands of Operation ........................................................................... 27 8.6 Radiated Emission Measurement 30 MHz to 10 GHz ....................................... 29 8.7 Exposure of Humans to RF Fields...................................................................... 30 9 Referenced Regulations ........................................................................................... 31 10 Charts taken during testing ....................................................................................... 32 Senton GmbH Aeussere Fruehlingstrasse 45 D-94315 Straubing Test Report No. 55456-050446-2 (Edition 1) Page 3 of 32 Pages 1 Description of the Equipment Under Test (EUT) General data of EUT Type designation 1 : i-B2 Parts 2 : 1 Serial number(s): 0.300.002.002 Manufacturer: IDENTEC SOLUTIONS AG Type of equipment: Transmitter Version: With modification: R11 = 56kΩ FCC ID: Additional parts/accessories: Technical data of EUT Application frequency range: 902 - 928 MHz Frequency range: 902 - 928 MHz Operating frequency: 915 MHz Type of modulation: ASK Pulse train: 0.01 s Pulse width: 1.94 ms Number of RF-channels: 1 Channel spacing: Not Applicable Designation of emissions 3 : 10K0A1D Type of antenna: Internal Antenna Size/length of antenna: 6 cm Connection of antenna: detachable not detachable Type of power supply: Battery supply Specifications for power supply: nominal voltage: 3.00 V 1 Type designation of the system if EUT consists of more than one part. 2 Type designations of the parts of the system, if applicable. 3 Also known as "Class of Emission". Senton GmbH Aeussere Fruehlingstrasse 45 D-94315 Straubing Test Report No. 55456-050446-2 (Edition 1) Page 4 of 32 Pages 2 Administrative Data Application details Applicant (full address): IDENTEC SOLUTIONS AG Millenniumspark 2 A - 6890 Lustenau Contact person: Mr Vogel Contract identification: Order No. 45600294 Receipt of EUT: 21 July 2005 Date(s) of test: August / September 2005 Note(s): Report details Report number: 55456-050446-2 Edition: 1 Issue date: September 1, 2005 Senton GmbH Aeussere Fruehlingstrasse 45 D-94315 Straubing Test Report No. 55456-050446-2 (Edition 1) Page 5 of 32 Pages 3 Identification of the Test Laboratory Details of the Test Laboratory Company name: Senton GmbH EMI/EMC Test Center Address: Aeussere Fruehlingstrasse 45 D-94315 Straubing Germany Laboratory accreditation: DAR-Registration No. DAT-P-171/94-02 FCC test site registration number 90926 Industry Canada test site registration: IC 3050 Contact person: Mr. Johann Roidt Phone: (+49) (0)9421 5522-0 Fax: (+49) (0)9421 5522-99 Senton GmbH Aeussere Fruehlingstrasse 45 D-94315 Straubing Test Report No. 55456-050446-2 (Edition 1) Page 6 of 32 Pages 4 Summary Summary of test results The tested sample complies with the requirements set forth in the Code of Federal Regulations CFR 47, Part 15, Sections 15.205, 15.215 and 15.249 of the Federal Communication Commission (FCC) and the Standards Specification RSS-210 Issue 5, Sections 6.2.2 (m2) and 6.3 (Category I Equipment) of Industry Canada (IC). Personnel involved in this report Laboratory Manager: Mr. Johann Roidt Responsible for testing: Mr. Martin Steindl Responsible for test report: Mr. Martin Steindl Senton GmbH Aeussere Fruehlingstrasse 45 D-94315 St…

Text truncated - open the document above for the full version.

Senton GmbH Aeussere Fruehlingstrasse 45 D-94315 Straubing Test Report No. 55456-050446-2 (Edition 1) Page 14 of 32 Pages Test setup for radiated emission measurement (fully anechoic room) Senton GmbH Aeussere Fruehlingstrasse 45 D-94315 Straubing Test Report No. 55456-050446-2 (Edition 1) Page 15 of 32 Pages Test setup for radiated emission measurement (open field test site)
