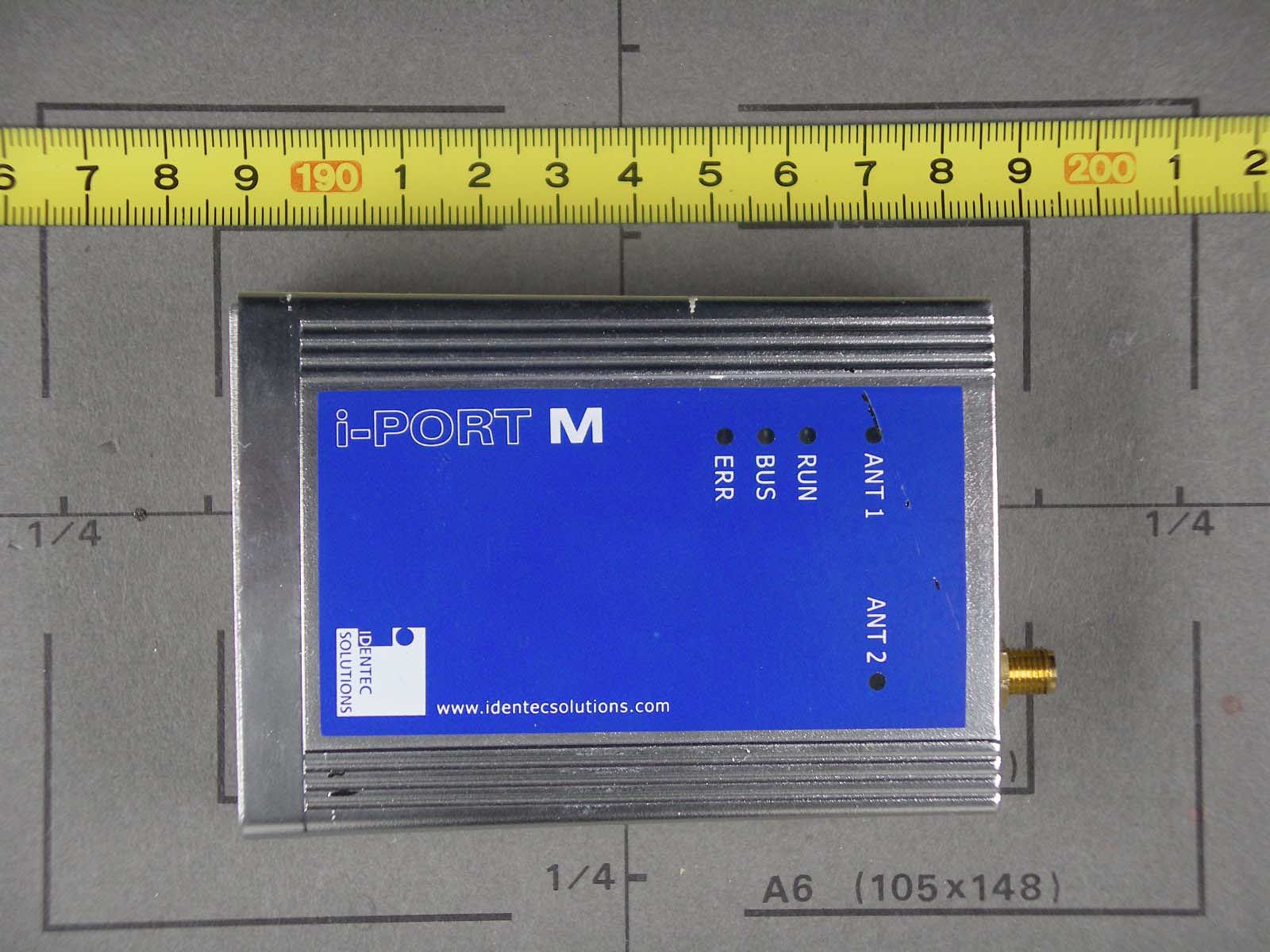

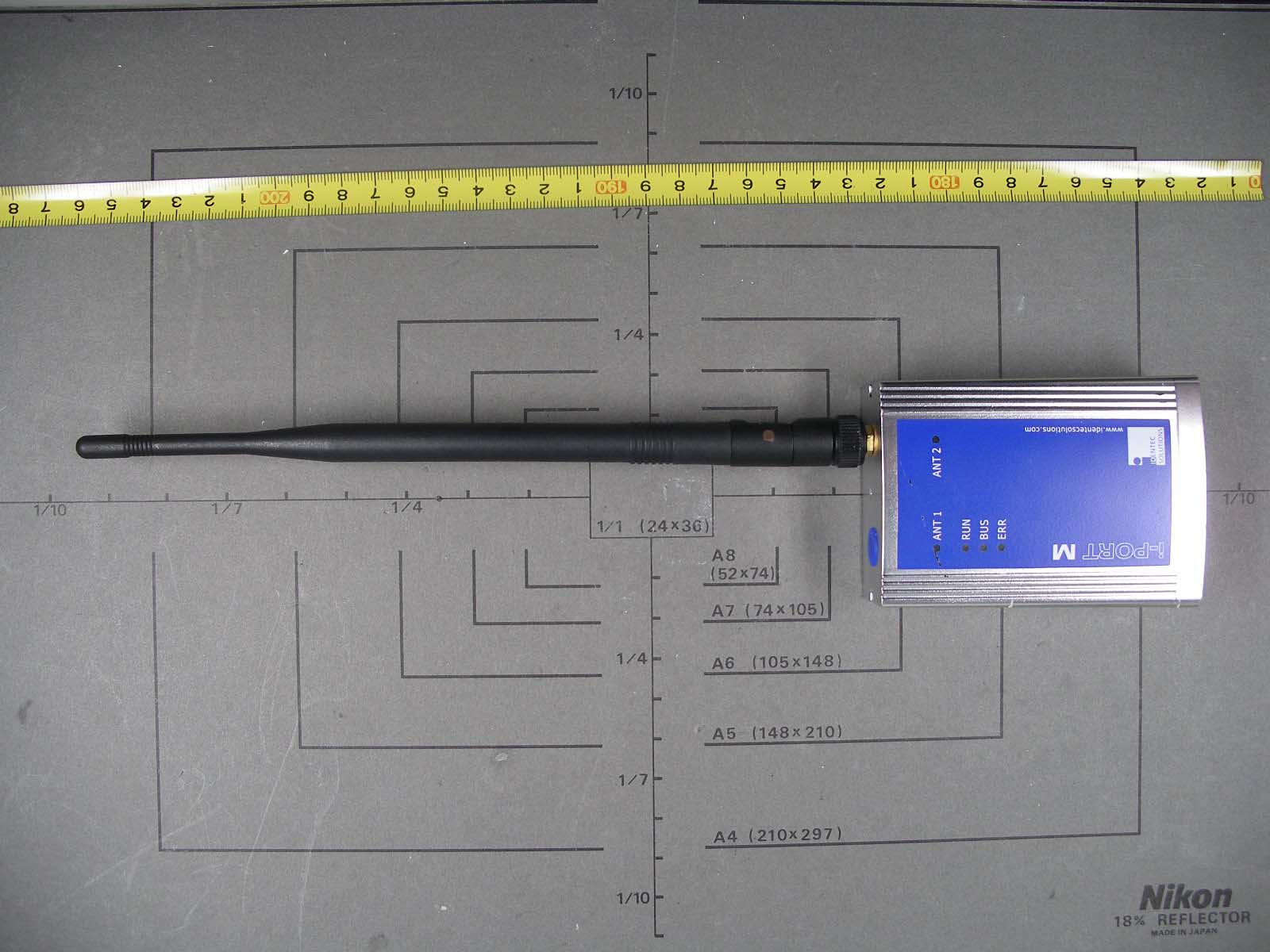

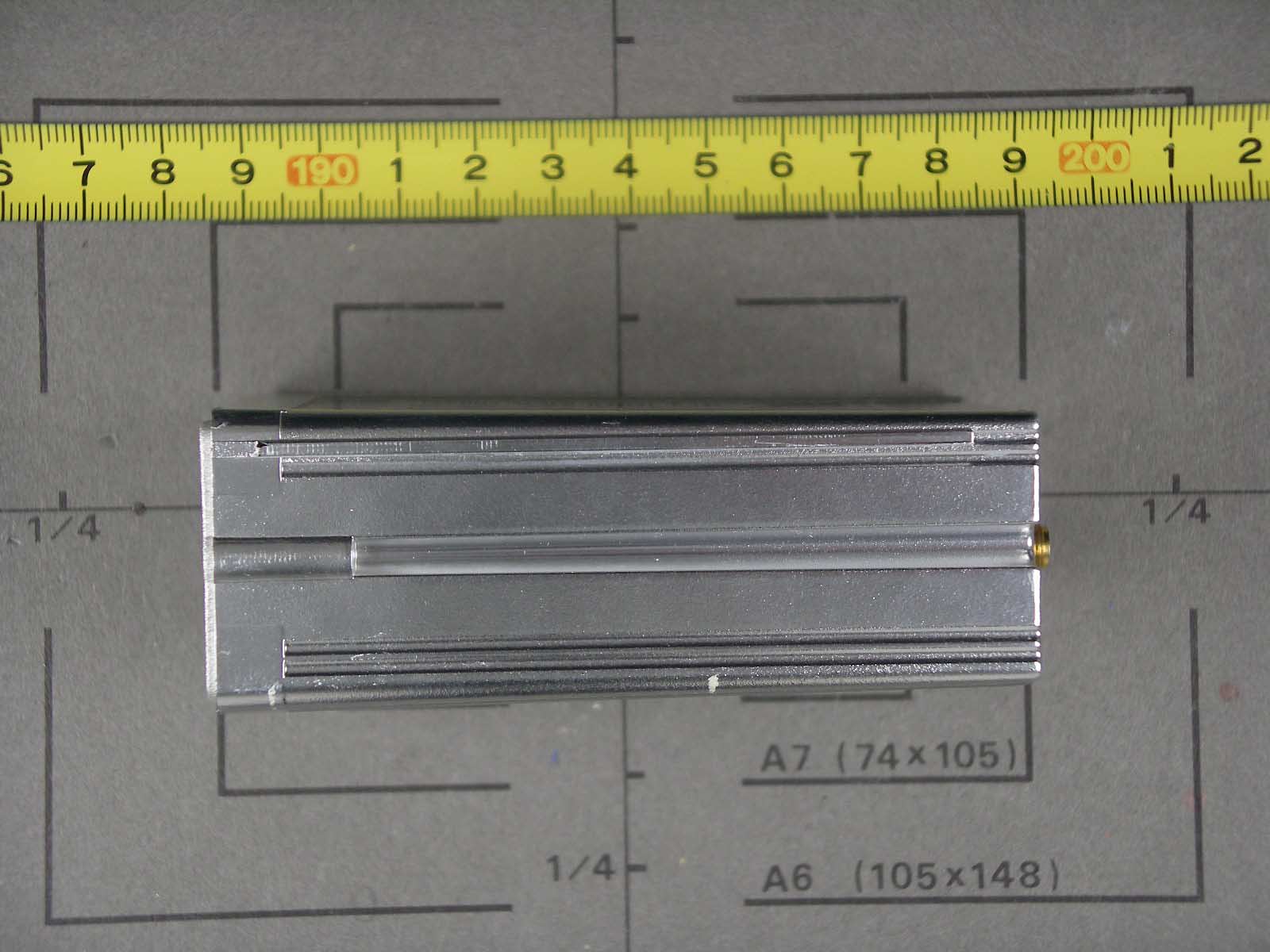

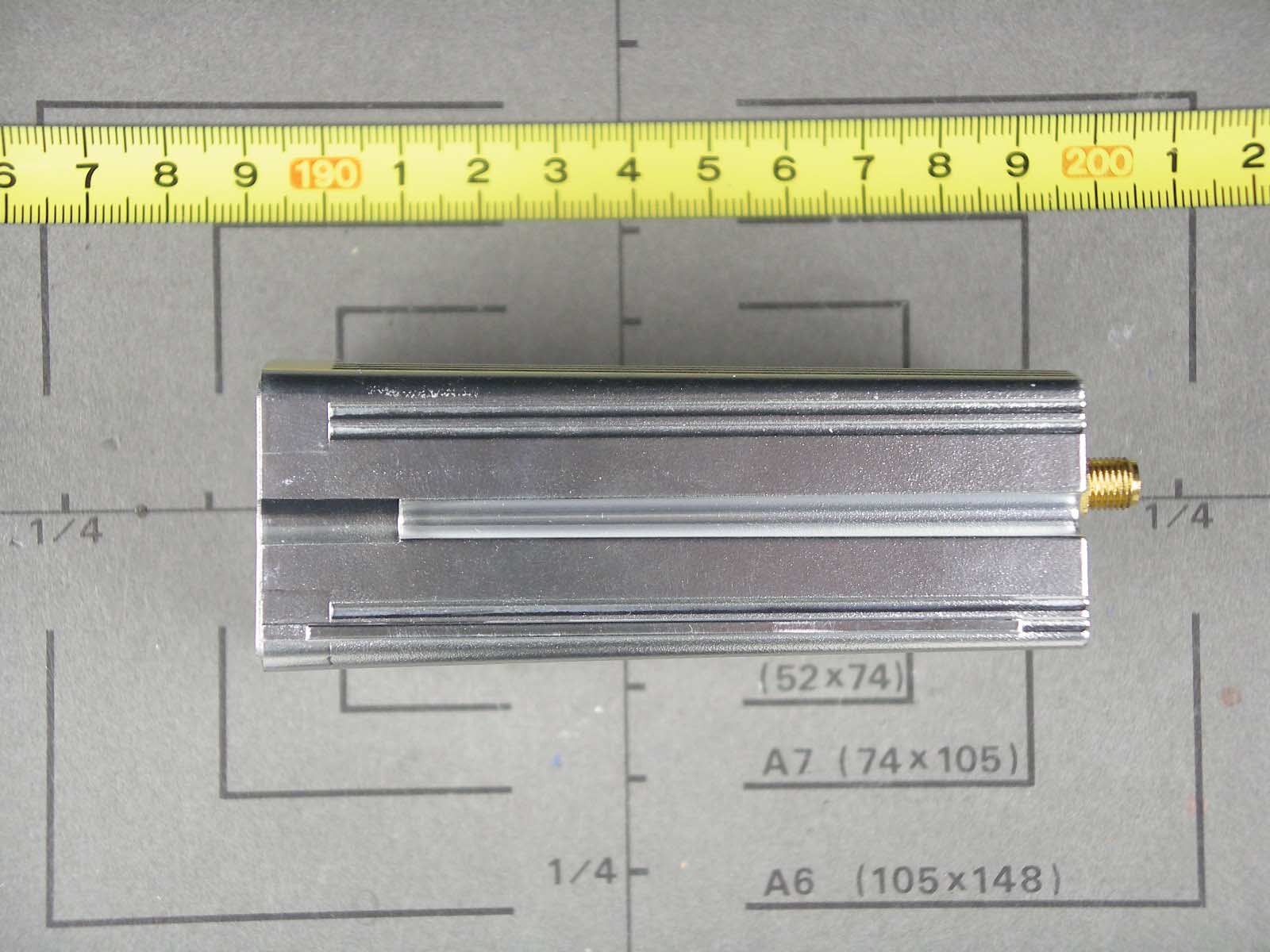

OO4-ILR-IPORTM350Active Transponder Tag

i-PORT M350 Installation and Hardware Manual Installation and Hardware Manual Page 2 of 30 Proprietary Notice This document contains confidential information proprietary to IDENTEC SOLUTIONS and may not be used or disclosed to other parties in whole or in part without prior written authorization from IDENTEC SOLUTIONS. Disclaimer and Limitation of Liability IDENTEC SOLUTIONS AG and its affiliates, subsidiaries, officers, directors, employees and agents provide the information contained in this Manual on an “as-is” basis and do not make any express or implied warranties or representations with respect to such information including, without limitation, warranties as to non-infringement, reliability, fitness for a particular purpose, usefulness, completeness, accuracy or up-to-dateness. IDENTEC SOLUTIONS shall not in any circumstances be liable to any person for any special, incidental, indirect or consequential damages, including without limitation, damages resulting from use of or reliance on information presented herein, or loss of profits or revenues or costs of replacement goods, even if informed in advance of the possibility of such damages. Trademarks “IDENTEC SOLUTIONS”, “Intelligent Long Range”, “ILR” and the stylized “i” are registered trademarks and “i-Q”, “i-D”, “i-B”, “i-CARD”, “i-PORT”, “i-LINKS”, “Solutions. It’s in our name.”, “Smarten up your assets” are trademarks of IDENTEC SOLUTIONS, Inc. and/or IDENTEC SOLUTIONS AG. Copyright Notice Copyright © 2007 IDENTEC SOLUTIONS. All rights reserved. No part of this document may be reproduced or transmitted in any form by any means, photographic, electronic, mechanical or otherwise, or used in any information storage and retrieval system, without the prior written permission of IDENTEC SOLUTIONS. Reg. No. IM.0740.EN Order Code: Issue 1 / November 2007 – 18. December 2007 – IDENTEC SOLUTIONS AG, Millenium Park 2, 6890 Lustenau, Austria Phone: +43 5577 87387- 0, Fax: +43 5577 87387-15 Email: [email protected] www.identecsolutions.com Subject to alteration without prior notice. © Copyright IDENTEC SOLUTIONS 2007 i-PORT M350 Page 3 of 30 Printed in Germany Radio Frequency Compliance Statement IDENTEC SOLUTIONS is the responsible party for the compliance of the following devices: MODEL: i-PORT M350 FCC ID: OO4-ILR-IPORTM350 CANADA: IC: 3538A-IPM350 EUROPE: The user(s) of these products are cautioned to only use accessories and peripherals approved, in advance, by IDENTEC SOLUTIONS. The use of accessories and peripherals, other than those approved by IDENTEC SOLUTIONS, or unauthorized changes to approved products, may void the compliance of these products and may result in the loss of the user(s) authority to operate the equipment. Operation is subject to the following conditions: (1) these devices may not cause harmful interference, and (2) these devices must accept any interference, including interference that may cause undesired operation of the device. European Notification according R&TTE Directive This equipment complies to Art. 6.4 of R&TTE Directive (1999/5/EC). It is tested for compliance with the following standards: EN 300 220-1 V1.3.1 (2000-09), EN 300 220-3 V1.3.1 (2000-09), ETSI EN 301 489 V1.4.1 (2002-08), ETSI EN 301 489 V1.4.1 (2002-08) Professional Installation Professional installation justification: To qualify for professional installation, the applicant must explain why the hardware cannot simply be purchased and installed by the average (technically inclined) person. 1) Marketing The device cannot be sold retail, to the general public or by mail order. It must be sold to dealers. 2) Requires professional installation; - installation must be controlled - installed by licensed professionals (EUT sold to dealer who hire installers) - installation requires special training (special programming, access to keypad, field strength measurements made) 3) Application The intended use is generally not for the general public. It is generally for industry/commercial use. Installation and Hardware Manual Page 4 of 30 USA Notification This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. FCC-NOTICE: To comply with FCC Part 15 Rules in the United States, the system must be professionally installed to ensure compliance with the FCC Part 15 certification. It is the responsibility of the operator and professional installer to ensure that only certified systems are deployed in the United States. The use of the system in any other combination (such as collocated antennas transmitting the same information) is expressly forbidden. INDUSTRY-CANADA-NOTICE: To comply with Industry Canada Radio Standard Specifications in Canada, the system must be professionally installed to ensure compliance with Industry Canada Radio Standard Specification certification. It is the responsibility of the operator and professional installer to ensure that only certified systems are deployed in Canada. The use of the system in any other combination (such as collocated antennas transmitting the same information) is expressly forbidden. CANADA: To reduce potential radio interference to other users, the antenna type and its gain should be so chosen that the equivalent isotropically radiated power (EIRP) is not more than that permitted for successful communication. This device has been designed to operate with the antennas mentioned in this document below, and having a maximum gain of 12 dBi. Antennas not included in this list or having a gain greater than 12 dBi are strictly prohibited for use with this device. The required antenna impedance is 50 ohms. The allowed setting for the transmit pow…

Text truncated - open the document above for the full version.

Ersteller: U. Rodemeier Revision: 03 Erstelldatum: 03.08.01 Datum: 4.10.2006 Seite 1 von 1 Request for Confidentiality PHOENIX TESTLAB GmbH Date: November 15, 2007 Product Certification Königswinkel 10 D 32825 Blomberg RE: Certification Application FCC ID: OO4-ILR-IPORTM350 Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rule, the applicant hereby requests confidential treatment of information accompanying this application as outlined below: • Schematics • Block Diagram • Technical Description • Parts List The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to rule 0.457, disclosure od this application and all accompanying documentation will not be made before the date of the GRANT for this application ́. Thank you for your attention in this matter. Applicant’s Company : Senton GmbH address : Auessere Fruehlingstrasse 45, D-94315 Straubing Signature : Johann Roidt Job Title and Dept. : Technical Director

FCC ID: OO4-ILR-IPORTM350 FCC ID: OO4-ILR-IPORTM350 FCC ID: OO4-ILR-IPORTM350 FCC ID: OO4-ILR-IPORTM350 FCC ID: OO4-ILR-IPORTM350 FCC ID: OO4-ILR-IPORTM350 FCC ID: OO4-ILR-IPORTM350

Label / Label Location i-PORT M-350 11/5/2007 iPORT350-Label and Label Location Simon Prior Page 1/1 1.1 Label 1.2 Label Location

FCC ID: OO4-ILR-IPORTM350 FCC ID: OO4-ILR-IPORTM350 FCC ID: OO4-ILR-IPORTM350 FCC ID: OO4-ILR-IPORTM350 FCC ID: OO4-ILR-IPORTM350 FCC ID: OO4-ILR-IPORTM350 FCC ID: OO4-ILR-IPORTM350

Test Equipment List for Test Report No. 55456-070771-1 / Page 1 of 1 Page(s) EMI/EMC-Testcenter EMV-Prüfzentrum Test Equipment List with Calibration Data / Test date: October 2007 No. Type Inv.-No. Model Serial Number Manufacturer Calibration Organization Date of last calibration Date of next calibration 1 1. Test receiver 1028 ESHS 10 860043/016 Rohde & Schwarz Rohde & Schwarz 04/2007 04/2008 2. Test receiver 1025 ESVP 881120/024 Rohde & Schwarz Rohde & Schwarz 10/2006 10/2007 3. Spectrum analyzer 1078 R 3271 05050023 Advantest Rohde & Schwarz 03/2006 03/2008 4. Spectrum analyzer 1666 FSP 30 100063 Rohde & Schwarz Rohde & Schwarz 02/2006 08/2007 5. EMI test receiver 1569 ESMI 839379/013 839587/006 Rohde & Schwarz Rohde & Schwarz 12/2005 12/2007 6. Preamplifier 1142 R14601 13120026 Advantest Rohde & Schwarz 11/2006 11/2007 Matrix RELAX consists: 1941 7. Preamplifier 1651 CPA9231A1 3393 Schaffner Schaffner 02/2007 02/2008 8. Preamplifier 1684 AFS3-00100800-32-LN 847743 Miteq Senton GmbH 06/2006 06/2007 9. V-network 1060 ESH 3-Z5 862770/021 B1060 Rohde & Schwarz Senton GmbH 01/2007 01/2010 10. V-network 1218 ESH 3-Z5 830952/025 B1218 Rohde & Schwarz Senton GmbH 05/2005 05/2008 11. Loop antenna 1016 HFH2-Z2 882964/0001 Rohde & Schwarz Rohde & Schwarz 12/2007 12/2008 12. Trilog wide band antenna Chamber 2 1722 VULB 9163 9163-188 A1722 Schwarzbeck Schwarzbeck 10/2006 10/2007 13. Trilog wide band antenna Chamber 3 1802 VULB 9163 9163-214 A1802 Schwarzbeck Schwarzbeck 01/2006 07/2007 14. Biconical antenna EG 1 1518 HK 116 842204/001 Rohde & Schwarz Rohde & Schwarz 02/2007 02/2008 15. Log. per. antenna EG 1 1519 HL 223 841516/023 Rohde & Schwarz Rohde & Schwarz 01/2007 01/2008 16. Horn Antenna 1516 3115 9508-4553 Emco ARC-Seibersdorf 05/2005 05/2008 1 Accepted tolerance is ± 6 months.

Senton GmbH Aeussere Fruehlingstrasse 45 D-94315 Straubing Note: The test data of this report is related only to the individual item which has been tested. This report shall not be reproduced except in full extent without the written approval of the testing laboratory. Test Report No. 55456-070771-1 (Edition 4) Page 1 of 74 Pages Straubing, December 21 2007 T E S T - R E P O R T No. 55456-070771-1 (Edition 4) for i-PORT M-350 Tag reader for active tags Applicant: IDENTEC Solutions AG Test Specifications: FCC Code of Federal Regulations, CFR 47, Part 15, Sections 15.107, 15.109, 15.111(a), 15.205, 15.207, 15.215 and 15.249 Industry Canada Radio Standards Specifications RSS-Gen Issue 2, Sections 7.2.2, 7.2.3 and RSS-210 Issue 7, Sections 2.2, A2.9 (Category I Equipment) Senton GmbH Aeussere Fruehlingstrasse 45 D-94315 Straubing Test Report No. 55456-070771-1 (Edition 4) Page 2 of 74 Pages Table of Contents 1 Description of the Equipment Under Test (EUT) ........................................................ 3 2 Administrative Data..................................................................................................... 5 3 Identification of the Test Laboratory ........................................................................... 6 4 Summary .................................................................................................................... 7 5 Operation Mode and Configuration of EUT................................................................. 8 6 Measurement Procedures......................................................................................... 10 6.1 Conducted Output Power ................................................................................... 10 6.2 Bandwidth Measurements .................................................................................. 12 6.3 Conducted AC Powerline Emission .................................................................... 14 6.4 Radiated Emission Measurement 9 kHz to 30 MHz ........................................... 16 6.5 Radiated Emission in Fully or Semi Anechoic Room.......................................... 18 6.6 Radiated Emission at Open Field Test Site........................................................ 20 6.7 Antenna Power Conduction Emission of Receivers ........................................... 21 7 Photographs Taken During Testing .......................................................................... 23 8 Test Results for Transmitter ..................................................................................... 34 8.1 Conducted Output Power ................................................................................... 36 8.2 Occupied Bandwidth........................................................................................... 37 8.3 Bandwidth of the Emission ................................................................................. 41 8.4 Designation of Emissions ................................................................................... 44 8.5 Restricted Bands of Operation ........................................................................... 45 8.6 Conducted Powerline Emission Measurement 150 kHz to 30 MHz................... 47 8.7 Radiated Emission Measurement 9 kHz to 30 MHz .......................................... 48 8.8 Radiated Emission Measurement 30 MHz to 10 GHz ....................................... 52 8.9 Exposure of Humans to RF Fields...................................................................... 63 9 Test Results for Receiver.......................................................................................... 67 9.1 Conducted Powerline Emission Measurement 150 kHz to 30 MHz................... 68 9.2 Radiated Emission Measurement 30 MHz to 5 GHz ......................................... 69 9.3 Antenna Power Conduction Emission of Receivers 9 kHz to 5 GHz ................. 71 10 Referenced Regulations ........................................................................................... 72 11 Revision History ........................................................................................................ 73 12 Charts taken during testing ....................................................................................... 74 Senton GmbH Aeussere Fruehlingstrasse 45 D-94315 Straubing Test Report No. 55456-070771-1 (Edition 4) Page 3 of 74 Pages 1 Description of the Equipment Under Test (EUT) General data of EUT Type designation 1 : i-PORT M-350 Parts 2 : Serial number(s): 07042M0191 Manufacturer: IDENTEC Solutions AG Type of equipment: Tag reader for active tags Version: as received FCC ID: Additional parts/accessories: 1 Type designation of the system if EUT consists of more than one part. 2 Type designations of the parts of the system, if applicable. Senton GmbH Aeussere Fruehlingstrasse 45 D-94315 Straubing Test Report No. 55456-070771-1 (Edition 4) Page 4 of 74 Pages Technical data of EUT Application frequency range: 902 - 928 MHz Frequency range: 920 - 921 MHz Operating frequency: 920 MHz 921 MHz Type of modulation: FSK Pulse train: --- Pulse width: --- Number of RF-channels: 2 Channel spacing: 1 MHz Designation of emissions 3 : 40K0F1D Type of antennas 4 : External rod antenna: HG903RD-RSP Elliptical polarized antenna: DH-8195 Linear polarized planar antenna: 900R Size/length of antennas: External rod antenna: 219 mm Elliptical polarized antenna: 130 x 130 x 180 mm Linear polarized planar antenna: 335 x 335 mm Connection of antenna: detachable not detachable Type of power supply: AC supply Specifications for power supply: nominal voltage: 110 V nominal frequency: 60 Hz 3 Also known as "Class of Emission". 4 For every antenna the applicant declares a maximum carrier power. The applicant is responsible that the carrier power is not more than the maximum allowed carrier power for each antenna. Please see 5 Operation Mode and Configuration of EUT for details. Senton GmbH Aeussere Frue…

Text truncated - open the document above for the full version.

Conducted Emission Test 150 kHz - 30 MHz according to FCC Part 15 Subpart C Model: i-Port M Serial no.: --- Applicant: IDENTEC SOLUTIONS AG Test site: Shielded room, cabin no. 4 Tested on: Linecord AC 115 V power supply Phase L1 Date of test: 10/10/2007 Operator: M. Steindl Test performed: semi automatically File name: Detector: Peak / Final Results: QP Final results: Selected by hand Mode: - with DELL Laptop and Serial-Interface-Convertor - transmittin g continously 0.15 11030 MHz dBμV 100 90 80 70 60 50 40 30 20 10 0 Limit1: FCC C / QP Limit2: FCC C / AV Result: Limit kept Project file: 55456-070771 Senton GmbH / EMI/EMC Laboratories / Aeussere Fruehlingsstrasse 45 / D-94315 Straubing / Tel. +49 9421 55220 Conducted Emission Test 150 kHz - 30 MHz according to FCC Part 15 Subpart C Model: i-Port M Serial no.: --- Applicant: IDENTEC SOLUTIONS AG Test site: Shielded room, cabin no. 4 Tested on: Linecord AC 115 V power supply Phase N Date of test: 10/10/2007 Operator: M. Steindl Test performed: semi automatically File name: Detector: Peak / Final Results: QP Final results: 20 dB Margin 25 Subranges Mode: - with DELL Laptop and Serial-Interface-Convertor - transmittin g continously 0.15 11030 MHz dBμV 100 90 80 70 60 50 40 30 20 10 0 Limit1: FCC C / QP Limit2: FCC C / AV Result: Limit kept Project file: 55456-070771 Senton GmbH / EMI/EMC Laboratories / Aeussere Fruehlingsstrasse 45 / D-94315 Straubing / Tel. +49 9421 55220 Radiated Emission Test 9 kHz - 30 MHz acc. to FCC Part 15 Subpart C (FAR) Model: i-Port M Serial no.: --- Applicant: IDENTEC SOLUTIONS GmbH Test site: Fully anechoic room, cabin no. 2 Tested on: Test distance 3 metres Date of test: 10/04/2007 Operator: M. Steindl Test performed: by hand File name: default.emi Detector: Peak Comment: - with DELL laptop and serial interface convertor - transmitting continously frequency: 920 MHz power level: -3 dBm List of values: 10 dB Margin 50 Subranges 0.0090.020.040.10.20.4124102030 MHz 0 10 20 30 40 50 60 70 80 90 100 110 120 130 140 dBμV/mLimit1: FCC Part 15 Transducer: HFH2-Z2 Result: Prescan Project file: 55456-70771-1 Senton GmbH / Aeussere Fruehlingstrasse 45 / D-94315 Straubing / Germany / Tel. +49 (0)9421 5522-0 / Fax +49 (0)9421 5522-99 Radiated Emission Test 30 MHz - 1 GHz acc. to FCC Part 15 Subpart C (FAR) Model: i-Port M Serial no.: --- Applicant: IDENTEC SOLUTIONS AG Test site: Fully anechoic room, cabin no. 2 Tested on: Test distance 3 metres Horizontal Polarization Date of test: 10/04/2007 Operator: M. Steindl Test performed: automatically File name: default.emi Detector: Peak Comment: - with DELL laptop and serial interface convertor - transmitting continously frequency: 920 MHz power level: -3 dBm List of values: Selected by hand 304050701002003004005007001000 MHz 0 5 10 15 20 25 30 35 40 45 50 55 60 dBμV/mLimit1: FCC 15.209 (3 m) Transducer: VULB 9163 Result: Prescan Project file: 55456-70771-1 Senton GmbH / Aeussere Fruehlingstrasse 45 / D-94315 Straubing / Germany / Tel. +49 (0)9421 5522-0 / Fax +49 (0)9421 5522-99 Radiated Emission Test 30 MHz - 1 GHz acc. to FCC Part 15 Subpart C (FAR) Model: i-Port M Serial no.: --- Applicant: IDENTEC SOLUTIONS AG Test site: Fully anechoic room, cabin no. 2 Tested on: Test distance 3 metres Vertical Polarization Date of test: 10/04/2007 Operator: M. Steindl Test performed: automatically File name: default.emi Detector: Peak Comment: - with DELL laptop and serial interface convertor - transmitting continously frequency: 920 MHz power level: -3 dBm List of values: 10 dB Margin 50 Subranges 304050701002003004005007001000 MHz 0 5 10 15 20 25 30 35 40 45 50 55 60 dBμV/mLimit1: FCC 15.209 (3 m) Transducer: VULB 9163 Result: Prescan Project file: 55456-70771-1 Senton GmbH / Aeussere Fruehlingstrasse 45 / D-94315 Straubing / Germany / Tel. +49 (0)9421 5522-0 / Fax +49 (0)9421 5522-99 Radiated Emission Test 1 GHz - 4 GHz acc. to FCC Part 15 Subpart C (FAR) Model: i-Port M Serial no.: --- Applicant: IDENTEC SOLUTIONS AG Test site: Fully anechoic room, cabin no. 2 Tested on: Test distance 3 metres Horizontal Polarization Date of test: 10/04/2007 Operator: M. Steindl Test performed: automatically File name: default.emi Detector: Peak Comment: - with DELL laptop and serial interface convertor - transmitting continously frequency: 920 MHz power level: -3 dBm List of values: Selected by hand 1000200030004000 MHz 0 5 10 15 20 25 30 35 40 45 50 55 60 65 70 75 80 dBμV/mLimit1: FCC 15.209 (3 m) Transducer: EMCO 3115 Result: Prescan Project file: 55456-70771-1 Senton GmbH / Aeussere Fruehlingstrasse 45 / D-94315 Straubing / Germany / Tel. +49 (0)9421 5522-0 / Fax +49 (0)9421 5522-99 Radiated Emission Test 1 GHz - 4 GHz acc. to FCC Part 15 Subpart C (FAR) Model: i-Port M Serial no.: --- Applicant: IDENTEC SOLUTIONS AG Test site: Fully anechoic room, cabin no. 2 Tested on: Test distance 3 metres Vertical Polarization Date of test: 10/04/2007 Operator: M. Steindl Test performed: automatically File name: default.emi Detector: Peak Comment: - with DELL laptop and serial interface convertor - transmitting continously frequency: 920 MHz power level: -3 dBm List of values: Selected by hand 1000200030004000 MHz 0 5 10 15 20 25 30 35 40 45 50 55 60 65 70 75 80 dBμV/mLimit1: FCC 15.209 (3 m) Transducer: EMCO 3115 Result: Prescan Project file: 55456-70771-1 Senton GmbH / Aeussere Fruehlingstrasse 45 / D-94315 Straubing / Germany / Tel. +49 (0)9421 5522-0 / Fax +49 (0)9421 5522-99 Radiated Emission Test 3.95 GHz - 5.85 GHz acc. to FCC Part 15 Subpart C (FAR) Model: i-Port M Serial no.: --- Applicant: IDENTEC SOLUTIONS AG Test site: Fully anechoic room, cabin no. 2 Tested on: Test distance 3 metres Horizontal Polarization Date of test: 10/04/2007 Operator: M. Steindl Test performed: automatically File name: default.emi Detector: Peak Comment: - with DELL laptop and serial interface convertor - transmitting continously frequency: 920 MHz power level: -3 dBm List of values: Selected by hand 395050005850 MHz 0 5 10…

Text truncated - open the document above for the full version.

Senton GmbH Aeussere Fruehlingstrasse 45 D-94315 Straubing Test Report No. 55456-070771-1 (Edition 3) Page 24 of 74 Pages Test setup for conducted AC powerline emission measurement Senton GmbH Aeussere Fruehlingstrasse 45 D-94315 Straubing Test Report No. 55456-070771-1 (Edition 3) Page 25 of 74 Pages Test setup for radiated emission measurement (fully anechoic room) Senton GmbH Aeussere Fruehlingstrasse 45 D-94315 Straubing Test Report No. 55456-070771-1 (Edition 3) Page 26 of 74 Pages Test setup for radiated emission measurement (fully anechoic room) - continued Senton GmbH Aeussere Fruehlingstrasse 45 D-94315 Straubing Test Report No. 55456-070771-1 (Edition 3) Page 27 of 74 Pages Test setup for radiated emission measurement (fully anechoic room) - continued Senton GmbH Aeussere Fruehlingstrasse 45 D-94315 Straubing Test Report No. 55456-070771-1 (Edition 3) Page 28 of 74 Pages Test setup for radiated emission measurement (open field test site) Senton GmbH Aeussere Fruehlingstrasse 45 D-94315 Straubing Test Report No. 55456-070771-1 (Edition 3) Page 29 of 74 Pages Test setup for radiated emission measurement (open field test site) - continued - Senton GmbH Aeussere Fruehlingstrasse 45 D-94315 Straubing Test Report No. 55456-070771-1 (Edition 3) Page 30 of 74 Pages Test setup for radiated emission measurement (open field test site) - continued - Senton GmbH Aeussere Fruehlingstrasse 45 D-94315 Straubing Test Report No. 55456-070771-1 (Edition 3) Page 31 of 74 Pages Test setup for radiated emission measurement (open field test site) - continued - Senton GmbH Aeussere Fruehlingstrasse 45 D-94315 Straubing Test Report No. 55456-070771-1 (Edition 3) Page 32 of 74 Pages Test setup for radiated emission measurement (open field test site) - continued - Senton GmbH Aeussere Fruehlingstrasse 45 D-94315 Straubing Test Report No. 55456-070771-1 (Edition 3) Page 33 of 74 Pages Test setup for radiated emission measurement (open field test site) - continued -
