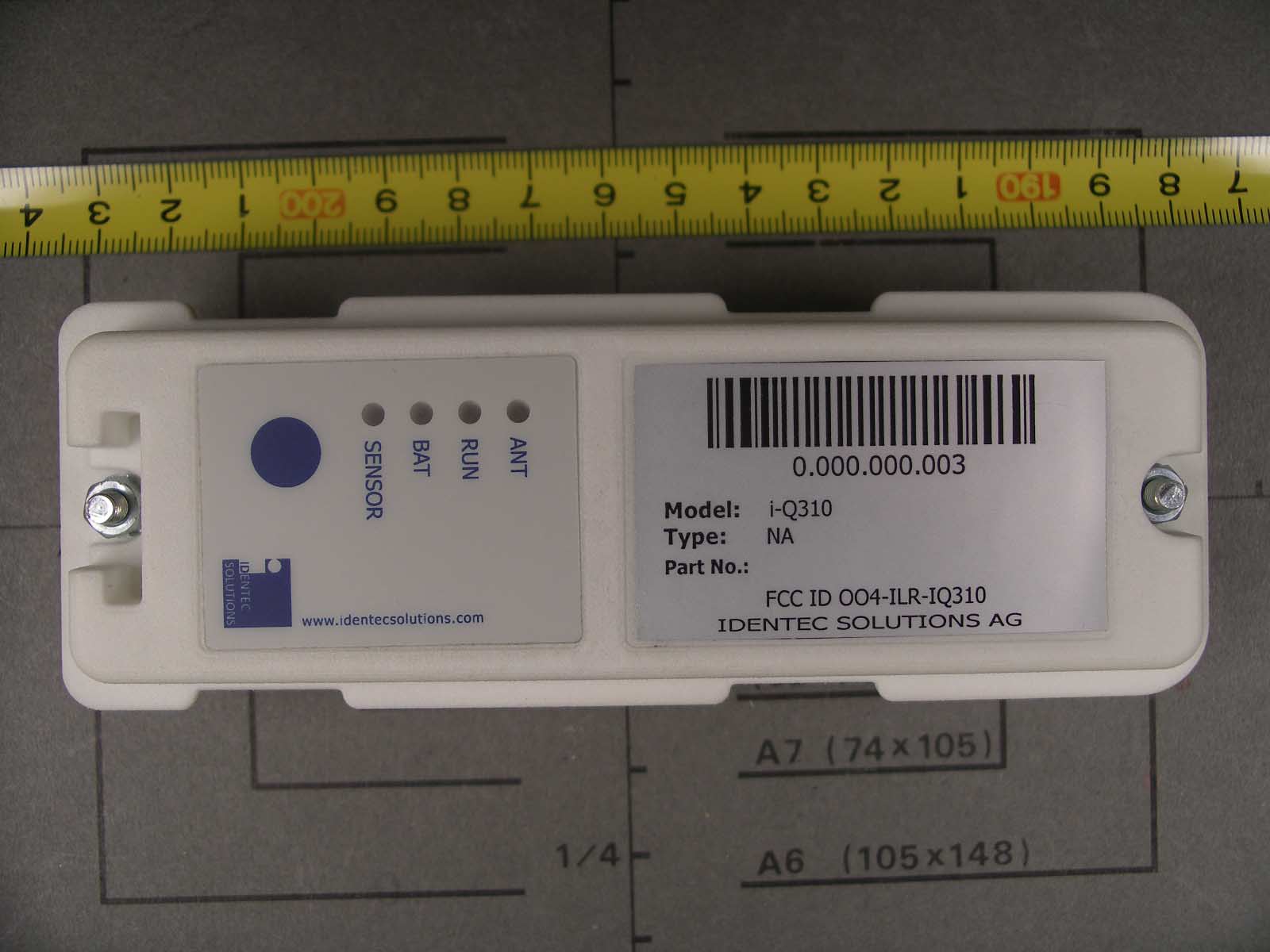

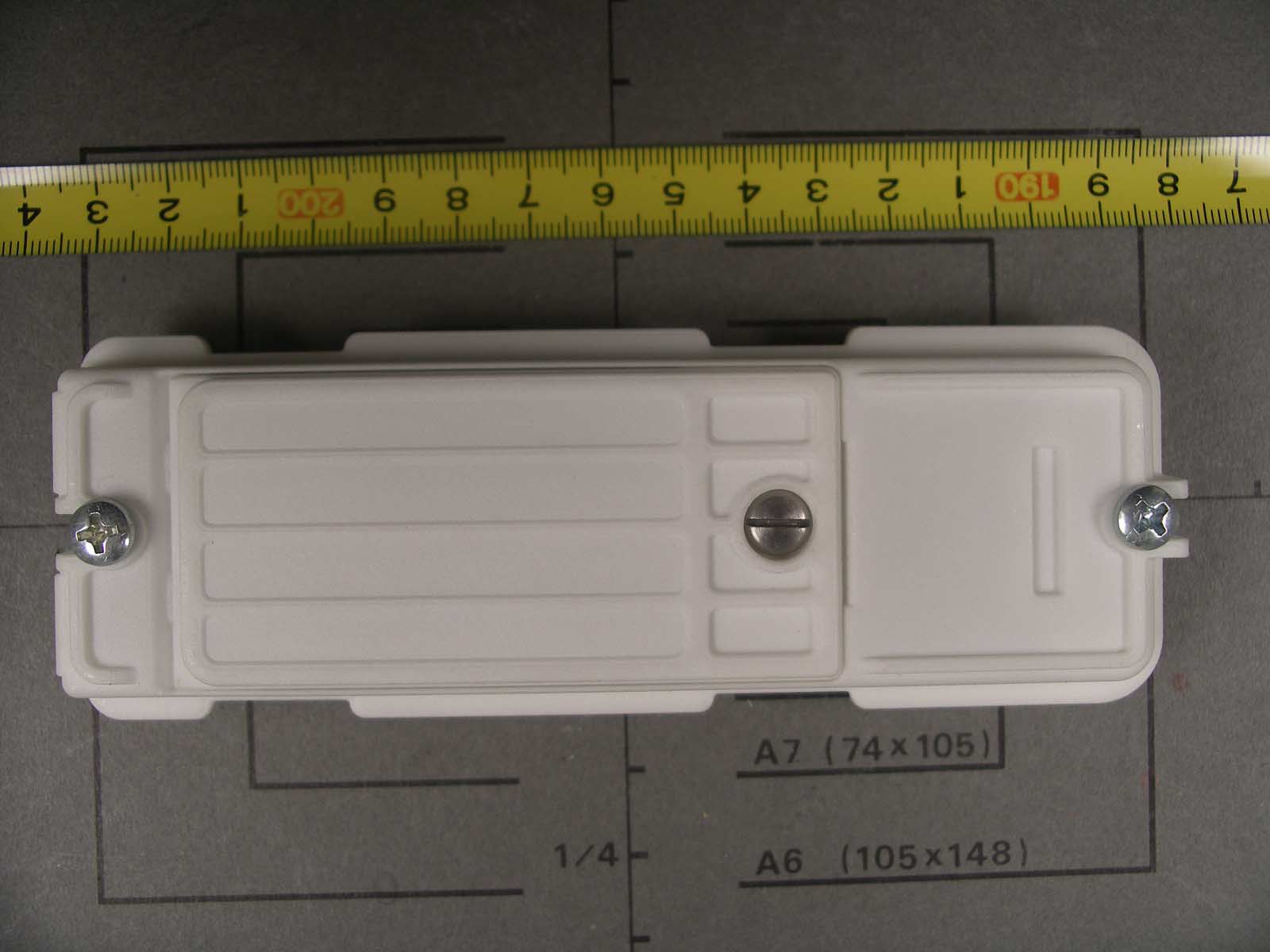

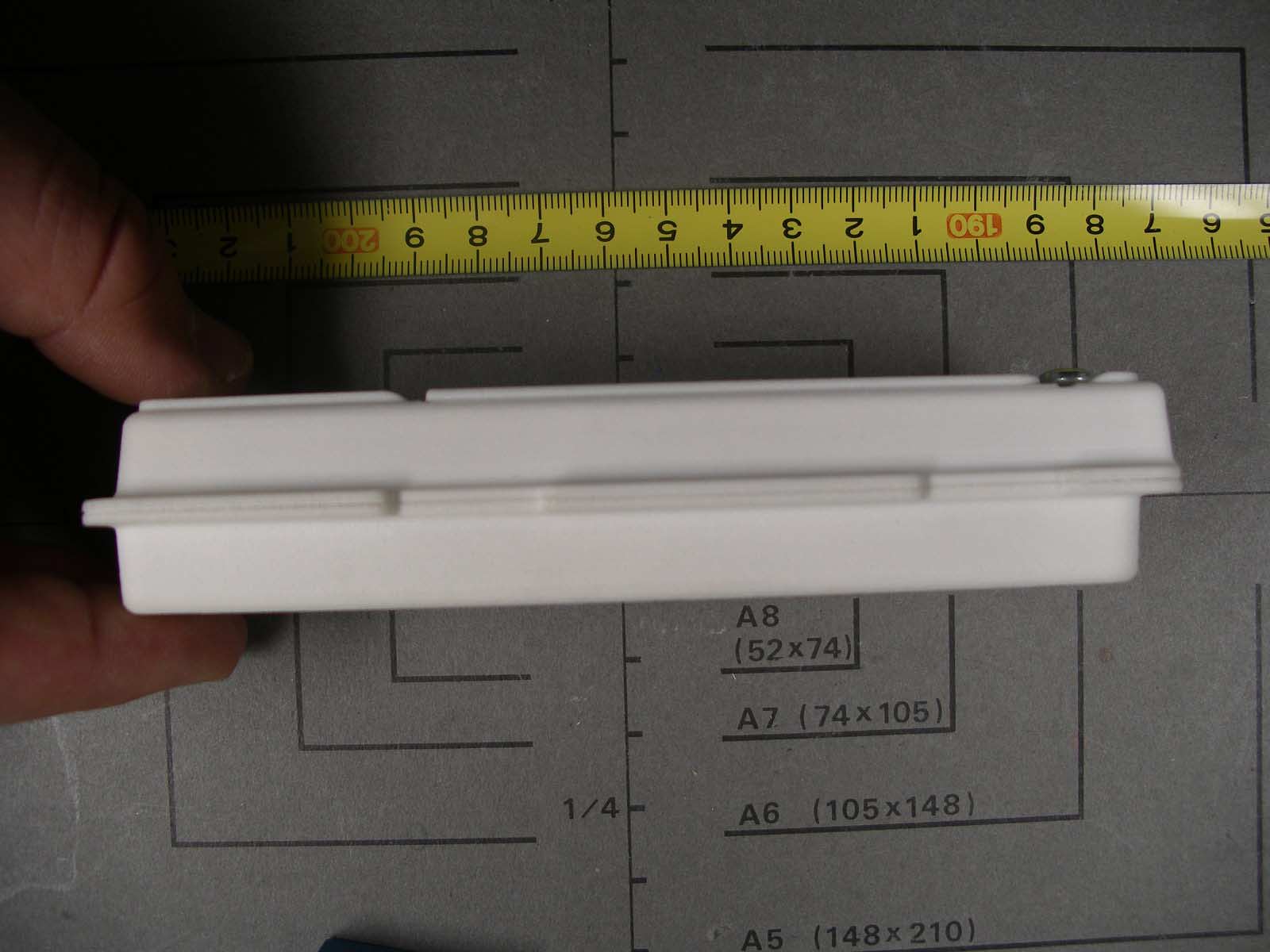

OO4-ILR-IQ350WAMActive Transponder Tag

Active UHF Tag i-Q350 WAM (Reefer) - Preliminary Beyond RFID. The i-Q350 series of tags is IDENTEC SOLUTIONS’ newest generation of Intelligent Long Range  (ILR  ) active RFID tags. ILR provides highly accurate, real-time data collection without human intervention in wireless applications such as:
identification
tracking and tracing
localization and
measurements monitoring. Using advanced UHF radio frequency technology, i-Q350 WAM tags transmit and receive data at distances of up to 30 meters (100 feet) from a handheld device or up to 500 meters (1,640 feet) from a fixed interrogator. The new tag includes a serial interface which communicates to container refrigeration units. The tag auto detects the type of the controller and monitors the status information. Also, LEDs support visual signalization during search, locate and alarms. The i-Q350 Reefer tag operates in the 850 – 928 MHz UHF band. Features Benefits
500 meters (1,650 ft) read/write range Allows automated identification, tracking and tracing of assets and people without human intervention.
32 kBytes memory Stores user and process information.
RS232 Interface Allows communication through a RS 232 interface.
UHF operating frequencies Allows low-power, long communication range and high data transmission rates with minimal interference due to local conditions.
Up to 4 bi-color LEDs Provides visual identification of an addressed tag (“pick by light”) and informs about tag’s status.
3 years typical battery lifetime Delivers long-time maintenance-free operation, without battery replacement.
Push Button Allows a status checking of the tag via LEDs.
Communication on demand only Eliminates RF flooding through software-controlled read/write operations.
Beacon capability Tags do not have to be “woken”—they transmit automatically the controller and status information at a configurable ping rate.
Non-line-of-sight data transmission Allows tags to be buried while transmitting for improved tracking/locating efficiency.
Low reader infrastructure cost Economical choice for tracking assets with active RFID technology. i-Q350 Series www.identecsolutions.com Europe: Austria: IDENTEC SOLUTIONS AG, Millennium Park 2, 6890 Lustenau / AUSTRIA Tel: +43 (0)5577 87387-0 Fax: +43 (0)5577 87387-15 Germany: IDENTEC SOLUTIONS Deutschland GmbH, Hertzstr. 10, 69469 Weinheim / GERMANY Tel.: +49 (0)6201 9957-0 Fax: +49 (0)6201 9957-99 North America: USA: IDENTEC SOLUTIONS INC., Liberty Plaza II, 5057 Keller Springs Rd. Suite 375, Addison, Texas 75001 Tel: +1(972) 535 4144 Fax: +1(469) 424 0404 IDENTEC SOLUTIONS IDENTEC SOLUTIONS is a leading global supplier of innovative RFID systems (Radio Frequency Identification) with communication ranges of up to 500 m. With its unique Intelligent Long Range  (ILR  ) technology, IDENTEC SOLUTIONS offers innovative and economical solutions for automated data gathering, identification, tracking and localization of objects. The product series OIS offers automatic ID-Systems of different technologies suitable for the demanding environment in industry and logistics. OIS tags have up to 32 kBytes of memory and are heat- resistant up to 235 °C. To learn more about how ILR  technology can increase efficiency of your business, contact IDENTEC SOLUTIONS or visit our website at www.identecsolutions.com. In Austria: +43 5577 87387-0, or [email protected] In Germany: +49 6201 9957-0, or [email protected] In North America: 1-866-402-4211 (toll free), or [email protected] Information in this document is subject to change without notice and becomes contractual only after written confirmation by IDENTEC SOLUTIONS. “IDENTEC SOLUTIONS”, “Intelligent Long Range”, “ILR”, “i-LINKS”, “i-Q”, “i-D”, i”-B”, “i-CARD”, “i-PORT”, “Solutions. It’s in our name.”, “Smarten up your assets.“ and the stylized “i” are trademarks or registered trademarks of IDENTEC SOLUTIONS, Inc. and/or IDENTEC SOLUTIONS AG. Copyright © 2005 by IDENTEC SOLUTIONS. All rights reserved. Version 1.0 05/07 This device complies with Part 15 of the FCC Rules and with RSS-210 of Industry Canada. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. Technical Specifications Performance Read rate Up to 100 tags/s (Collect Tag Identification Code only) Communication Read/write range to i-PORT M350 Up to 500 m (1,650 feet) @ free air Operating frequency 850 – 928 MHz Data rate 19,200 – 500,000 kbits/s Sensitivity -105 dBm, depending on data rate Maximum transmission power 10 mW, depending on national regulations Electrical Power source 1 × AA Lithium batteries (replaceable) Expected battery life Typical 3 years Battery monitoring Yes Data Data retention > 10 years without power Write cycles 100,000 writes to a tag Memory size 32 kBytes Identification code 48 bits fixed ID (32 bits user ID+ 8 bits tag type + 8 bits manufacturer ID) Environmental Operating temperature –40 to +85 °C (–40 to +185 ºF) Humidity 10 to 90 % relative humidity at 30 °C (+86 ºF) Shock 50 G, 3 times DIN IEC 68-2-27 Multiple drops to concrete from 1 m (3 ft) Vibration 5 G, 20 sine wave cycles, 5 to 150 Hz, DIN IEC 68-2-6 5 G, noise 5 to 1000 Hz, 30 minutes DIN IEC 68-2-64 Physical Dimensions 135 × 50 × 26 mm (5.3 × 1.9 × 1.0 in.) Enclosure Plastic (ASA/Luran ® S) Weight 110 g (3.88 ounces) Enclosure rating IP 65 WARNING: Changes or modifications not expressly approved by manufacturer could void the user’s authority to operate the equipment Contents subject to change without notice.

Ersteller: U. Rodemeier Revision: 03 Erstelldatum: 03.08.01 Datum: 4.10.2006 Seite 1 von 1 Request for Confidentiality PHOENIX TESTLAB GmbH Date: November 13, 2007 Product Certification Königswinkel 10 D 32825 Blomberg RE: Certification Application FCC ID: OO4-ILR-IQ350WAM Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rule, the applicant hereby requests confidential treatment of information accompanying this application as outlined below: • Schematics • Block Diagram • Technical Description • Parts List The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to rule 0.457, disclosure od this application and all accompanying documentation will not be made before the date of the GRANT for this application ́. Thank you for your attention in this matter. Applicant’s Company : Senton GmbH address : Auessere Fruehlingstrasse 45, D-94315 Straubing Signature : Johann Roidt Job Title and Dept. : Technical Director

FCC ID: OO4-ILR-IQ350WAM FCC ID: OO4-ILR-IQ350WAM FCC ID: OO4-ILR-IQ350WAM FCC ID: OO4-ILR-IQ350WAM FCC ID: OO4-ILR-IQ350WAM FCC ID: OO4-ILR-IQ350WAM

Label / Label Location iQ350 WAM 11/5/2007 iQ350WAM-Label and Label Location Simon Prior Page 1/2 1.1 Label 1.2 Label Location

FCC ID: OO4-ILR-IQ350WAM FCC ID: OO4-ILR-IQ350WAM

Test Equipment List for Test Report No. 55456-070771-2 / Page 1 of 1 Page(s) EMI/EMC-Testcenter EMV-Prüfzentrum Test Equipment List with Calibration Data / Test date: October 2007 No. Type Inv.-No. Model Serial Number Manufacturer Calibration Organization Date of last calibration Date of next calibration 1 1. Test receiver 1028 ESHS 10 860043/016 Rohde & Schwarz Rohde & Schwarz 01/2006 07/2007 2. Test receiver 1025 ESVP 881120/024 Rohde & Schwarz Rohde & Schwarz 10/2006 10/2007 3. Spectrum analyzer 1078 R 3271 05050023 Advantest Rohde & Schwarz 03/2006 03/2008 4. Spectrum analyzer 1666 FSP 30 100063 Rohde & Schwarz Rohde & Schwarz 02/2006 08/2007 5. EMI test receiver 1569 ESMI 839379/013 839587/006 Rohde & Schwarz Rohde & Schwarz 12/2005 12/2007 Matrix RELAX consist: 1941 6. Preamplifier 1142 R14601 13120026 Advantest Rohde & Schwarz 11/2006 11/2007 7. Preamplifier 1651 CPA9231A1 3393 Schaffner Schaffner 02/2007 02/2008 8. Preamplifier 1684 AFS3-00100800-32-LN 847743 Miteq Senton GmbH 06/2006 06/2007 9. V-network 1060 ESH 3-Z5 862770/021 B1060 Rohde & Schwarz Senton GmbH 01/2007 01/2010 10. V-network 1218 ESH 3-Z5 830952/025 B1218 Rohde & Schwarz Senton GmbH 05/2005 05/2008 11. Trilog wide band antenna Chamber 2 1722 VULB 9163 9163-188 A1722 Schwarzbeck Schwarzbeck 10/2006 10/2007 12. Trilog wide band antenna Chamber 3 1802 VULB 9163 9163-214 A1802 Schwarzbeck Schwarzbeck 01/2006 07/2007 13. Biconical antenna EG 1 1518 HK 116 842204/001 Rohde & Schwarz Rohde & Schwarz 02/2007 02/2008 14. Log. per. antenna EG 1 1519 HL 223 841516/023 Rohde & Schwarz Rohde & Schwarz 01/2007 01/2008 15. Horn Antenna 1516 3115 9508-4553 Emco ARC-Seibersdorf 05/2005 05/2008 1 Accepted tolerance is ± 6 months.

Senton GmbH Aeussere Fruehlingstrasse 45 D-94315 Straubing Note: The test data of this report is related only to the individual item which has been tested. This report shall not be reproduced except in full extent without the written approval of the testing laboratory. Test Report No. 50456-070771-2 (Edition 2) Page 1 of 40 Pages Straubing, November 13, 2007 T E S T - R E P O R T No. 50456-070771-2 (Edition 2) for i-Q350 WAM Active transponder tag Applicant: IDENTEC Solutions AG Test Specifications: FCC Code of Federal Regulations, CFR 47, Part 15, Sections 15.107, 15.109, 15.205, 15.207, 15.215 and 15.249 Industry Canada Radio Standards Specifications RSS-Gen Issue 2, Sections 7.2.2, 7.2.3 and RSS-210 Issue 7, Sections 2.2, A2.9 (Category I Equipment) Senton GmbH Aeussere Fruehlingstrasse 45 D-94315 Straubing Test Report No. 50456-070771-2 (Edition 2) Page 2 of 40 Pages Table of Contents 1 Description of the Equipment Under Test (EUT) ........................................................ 3 2 Administrative Data..................................................................................................... 4 3 Identification of the Test Laboratory ........................................................................... 5 4 Summary .................................................................................................................... 6 5 Operation Mode and Configuration of EUT................................................................. 7 6 Measurement Procedures........................................................................................... 8 6.1 Bandwidth Measurements .................................................................................... 8 6.2 Radiated Emission Measurement 9 kHz to 30 MHz ............................................. 9 6.3 Radiated Emission in Fully or Semi Anechoic Room.......................................... 11 6.4 Radiated Emission at Open Field Test Site........................................................ 13 7 Photographs Taken During Testing .......................................................................... 14 8 Test Results for Transmitter ..................................................................................... 18 8.1 Occupied Bandwidth........................................................................................... 20 8.2 Bandwidth of the Emission ................................................................................. 24 8.3 Designation of Emissions ................................................................................... 26 8.4 Restricted Bands of Operation ........................................................................... 27 8.5 Radiated Emission Measurement 9 kHz to 30 MHz .......................................... 29 8.6 Radiated Emission Measurement 30 MHz to 10 GHz ....................................... 30 8.7 Exposure of Humans to RF Fields...................................................................... 33 9 Test Results for Receiver.......................................................................................... 35 9.1 Radiated Emission Measurement 30 MHz to 5 GHz ......................................... 36 10 Referenced Regulations ........................................................................................... 38 11 Revision History ........................................................................................................ 39 12 Charts taken during testing ....................................................................................... 40 Senton GmbH Aeussere Fruehlingstrasse 45 D-94315 Straubing Test Report No. 50456-070771-2 (Edition 2) Page 3 of 40 Pages 1 Description of the Equipment Under Test (EUT) General data of EUT Type designation 1 : i-Q350 WAM Parts 2 : Serial number(s): 0.000.000.003 Manufacturer: IDENTEC Solutions AG Type of equipment: Active transponder tag Version: as received FCC ID: Additional parts/accessories: Technical data of EUT Application frequency range: 902 - 928 MHz Frequency range: 919 - 920 MHz Operating frequency: 919 MHz 920 MHz Type of modulation: FSK Pulse train: --- Pulse width: --- Number of RF-channels: 2 Channel spacing: 1 MHz Designation of emissions 3 : 40K0F1D Type of antenna: Integrated Size/length of antenna: Connection of antenna: detachable not detachable Type of power supply: Battery supply Specifications for power supply: nominal voltage: 3.6 V 1 Type designation of the system if EUT consists of more than one part. 2 Type designations of the parts of the system, if applicable. 3 Also known as "Class of Emission". Senton GmbH Aeussere Fruehlingstrasse 45 D-94315 Straubing Test Report No. 50456-070771-2 (Edition 2) Page 4 of 40 Pages 2 Administrative Data Application details Applicant (full address): IDENTEC Solutions AG Millennium Park 2 6890 Lustenau Austria Contact person: Mr. Adalgiso Castrignano Contract identification: Email August 29, 2007 Receipt of EUT: September 24, 2007 Date(s) of test: October 2007 Note(s): Report details Report number: 50456-070771-2 Edition: 2 Issue date: November 13, 2007 Senton GmbH Aeussere Fruehlingstrasse 45 D-94315 Straubing Test Report No. 50456-070771-2 (Edition 2) Page 5 of 40 Pages 3 Identification of the Test Laboratory Details of the Test Laboratory Company name: Senton GmbH EMI/EMC Test Center Address: Aeussere Fruehlingstrasse 45 D-94315 Straubing Germany Laboratory accreditation: DAR-Registration No. DAT-P-171/94-02 FCC test site registration number 90926 Industry Canada test site registration: IC 3050 Contact person: Mr. Johann Roidt Phone: (+49) (0)9421 5522-0 Fax: (+49) (0)9421 5522-99 Senton GmbH Aeussere Fruehlingstrasse 45 D-94315 Straubing Test Report No. 50456-070771-2 (Edition 2) Page 6 of 40 Pages 4 Summary Summary of test results The tested sample complies with the requirements set forth in the Code of Federal Regulations CFR 47, Part 15, Sections 15.109, 15.205, 15.215 and 15.249 of the F…

Text truncated - open the document above for the full version.

Senton GmbH Aeussere Fruehlingstrasse 45 D-94315 Straubing Test Report No. 50456-070771-2 (Edition 2) Page 15 of 40 Pages Test setup for radiated emission measurement (fully anechoic room) Senton GmbH Aeussere Fruehlingstrasse 45 D-94315 Straubing Test Report No. 50456-070771-2 (Edition 2) Page 16 of 40 Pages Test setup for radiated emission measurement (open field test site) Senton GmbH Aeussere Fruehlingstrasse 45 D-94315 Straubing Test Report No. 50456-070771-2 (Edition 2) Page 17 of 40 Pages Test setup for radiated emission measurement (open field test site) - continued -
