OO9MA105W2.4GHz Wireless Mouse

Package Contents Quick Starting Guide WirelessRFmouse WirelessRFkeyboard USBnanoreceiver 1xAAbatteries 1xAAAbattery Userguide (mouse) (keyboard) Thanks for buying products, please read this user guide carefully before use. Installation The 2.4GHz wireless combo(keyboard, mouse, and USB receiver) is pre-paired before packing. Users can use the wireless combo after installing the battery. Set Wireless Connection 1. Turn on the computer. 2. Plug the USB receiver into an available USB port on your computer. 3. Install the battery into the keyboard and mouse. Press any key to start. Keyboard Use Guide Multimedia keys 12 multimedia keys Technical data Switc h the On / Of f button to OFF and open the battery cover. Insert one A A batteries as the diagram on the battery tray indicates. Close the battery cover. Plug the USB receiver into an available USB port on your computer. Press any key to start. Gr USER GUIDE Mouse Sensor PAW3204LU-TJDU by Pixart，optical sensor Resolution 1000DPI±15% Operating Range 10 meter (Max). (No noise, at line of sight) Frequency Range 2402MHz~2479MHz Modulation GFSK Channel Total: 78 channels Channel Space: 1MHz (Remark: Center frequency gap between one consecutive channel) Report Frame Rate Max. 125rps, self-adjusting Maximum moving speed 30 Inch/Second Maximum acceleration Keys key key key Fn + F1 Fn + F2 Fn + F3 Fn + F4 Fn + F5 Fn + F6 Fn + F7 Fn + F8 Fn + F9 Fn + F10 Fn + F11 Fn + F12 1 2 3 4 5 6 7 8 9 10 11 12 mute Volume down Volume up Internet Email Favourite My computer Search Share Device Setting Previous track Next track Pause/play Stop Gr This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. This device and its antenna must not be co-located or operating in conjunction with any other antenna or transmitter. 2.4G wireless combo KB313W+MA105W+RG10-P Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. NOTE:THE MANUFACTURER IS NOT RESPONSIBLE FOR ANY RADIO OR TV INTERFERENCE CAUSED BY UNAUTHORIZED MODIFICATIONS TO THIS EQUIPMENT.SUCH MODIFICATIONS COULD VOID THE USER’S AUTHORITY TO OPERATE THE EQUIPMENT.

Confidentiality Letter Date: Apr, 29, 2015 Subject: Confidentiality Request for FCC ID: OO9MA105W and IC ID: Pursuant to FCC 47 CRF 0.457(d) and 0.459 and IC RSP-100, Section 10, the applicant requests that a part of the subject FCC/IC application be held confidential. Type of Confidentiality Requested Exhibit Short Term Permanent Block Diagrams Short Term Permanent Internal Photos Short Term Permanent Operation Description/Theory of Operation Short Term Permanent Part List/Tune-Up Procedure Short Term Permanent Schematics Short Term Permanent User’s Manual G.tech Technology Ltd._ has spent substantial effort in developing this product and it is one of the first of its kind in industry. Having the subject information easily available to "competition" would negate the advantage they have achieved by developing this product. Not protecting the details of the design will result in financial hardship. Permanent Confidentiality: The applicant requests the exhibits listed above as permanently confidential be permanently withheld from public review due to materials that contain trade secrets and proprietary information not customarily released to the public. Short-Term Confidentiality: The applicant requests the exhibits selected above as short term confidential be withheld from public view for a period of ___(specify number of days not to exceed 180) ___ days from the date of the Grant of Equipment Authorization and prior to marketing. This is to avoid premature release of sensitive information prior to marketing or release of the product to the public. Applicant is also aware that they are responsible to notify TUV Rheinland in the event information regarding the product or the product is made available to the public. TUV Rheinland will then release the documents listed above for public disclosure pursuant to FCC Public Notice DA 04-1705. Sincerely, By: _ Rex Lai _____ (Signature/Manager) (Print name)

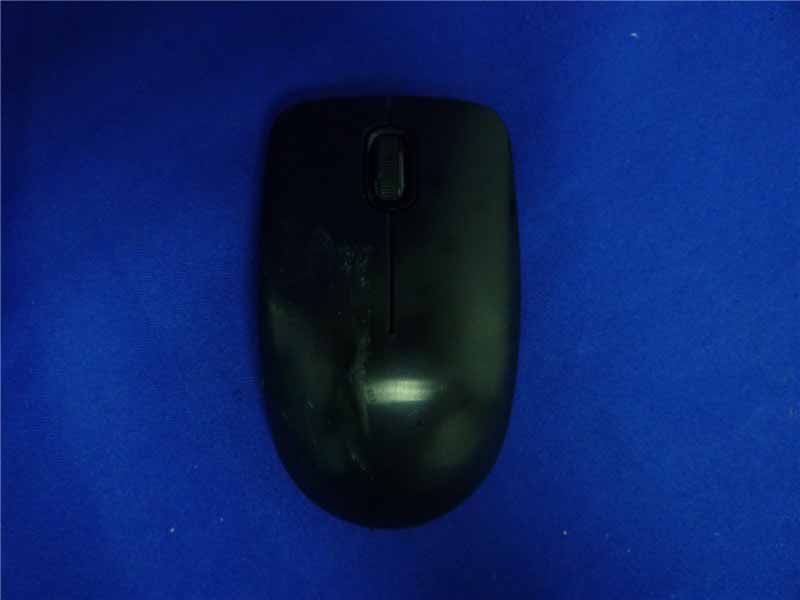

R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:OO9MA105W page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F15103 11-1 11. PHOTOGRAPH OF EUT Figure 1 General Appearance of the EUT Figure 2 General Appearance of the EUT

MA105W Rating label Power rating: DC1.5V 6mA Serial number: MA105WB15300001 Made in China by G.TECH N26968 Part no.: 20059490 FCC ID: OO9MA105W 2 3 m m 42 mm 2.4G wireless Mouse： MA105W Location

R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:OO9MA105W page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F15103 11-2 Figure 3 Inside of the EUT Figure 4 Inside of the EUT R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:OO9MA105W page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F15103 11-3 Figure 5 Inside of the EUT Figure 6 Component Side of the PCB R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:OO9MA105W page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F15103 11-4 Figure 7 Component Side of the PCB

R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:OO9MA105W page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F15103 8-1 8. RADIO FRREQUENCY EXPOSURE COMPLIANCE RESULT : PASS Test standard : FCC KDB Publication 447498 D01 V05 Since maximum peak output power of the transmitter is<10mW, i.e.0.009346mW<10mW, hence the EUT is excluded from SAR evaluation according to FCC KDB Publication 447498 D01:General RF Exposure Guidance V05.

R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:OO9MA105W Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F15103 FCC PART 15C TEST REPORT FOR CERTIFICATION On Behalf of G. tech Technology Ltd. 2.4GHz Wireless Mouse Model Number: MA105W FCC ID: OO9MA105W Prepared for : G. tech Technology Ltd. No.21, Jinding Industrial Park, West Jinfeng Road, Tangjiawan Town, Xiangzhou District Zhuhai Guangdong Prepared By : Audix Technology (Shenzhen) Co., Ltd. No. 6, Ke Feng Rd., 52 Block, Shenzhen Science & Industrial Park, Nantou, Shenzhen, Guangdong, China Tel: (0755) 26639496 Report Number ： ACS-F15103 Date of Test ： Mar.26~31, 2015 Date of Report ： Apr.29, 2015 R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:OO9MA105W Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F15103 TABLE OF CONTENTS Description Page 1. SUMMARY OF STANDARDS AND RESULTS.......................................................... 1-1 1.1. Description of Standards and Results .................................................................................. 1-1 2. GENERAL INFORMATION ......................................................................................... 2-1 2.1. Description of Device (EUT) ............................................................................................... 2-1 2.2. EUT Configuration and operation conditions for test.......................................................... 2-1 2.3. Test Facility ......................................................................................................................... 2-2 2.4. Measurement Uncertainty (95% confidence levels, k=2) .................................................... 2-2 3. POWER LINE CONDUCTED EMISSION TEST ....................................................... 3-1 4. RADIATED EMISSION TEST ...................................................................................... 4-1 4.1. Test Equipment .................................................................................................................... 4-1 4.2. Block Diagram of Test Setup ............................................................................................... 4-2 4.3. Radiated Emission Limit Standard: FCC 15.209 and 15.249 .............................................. 4-3 4.4. EUT Configuration on Test.................................................................................................. 4-3 4.5. Operating Condition of EUT................................................................................................ 4-3 4.6. Test Procedure...................................................................................................................... 4-3 4.7. Radiated Emission Test Results ........................................................................................... 4-4 5. 20 DB BANDWIDTH TEST ........................................................................................... 5-1 5.1. Test Equipment .................................................................................................................... 5-1 5.2. Limit..................................................................................................................................... 5-1 5.3. Test Results .......................................................................................................................... 5-1 6. BAND EDGE COMPLIANCE TEST ............................................................................ 6-1 6.1. Test Equipment .................................................................................................................... 6-1 6.2. Limit..................................................................................................................................... 6-1 6.3. Test Produce ......................................................................................................................... 6-1 6.4. Test Results .......................................................................................................................... 6-1 7. ANTENNA REQUIREMENT ........................................................................................ 7-1 8. RADIO FRREQUENCY EXPOSURE COMPLIANCE.............................................. 8-1 9. DEVIATION TO TEST SPECIFICATIONS................................................................ 9-1 10. PHOTOGRAPH OF TEST ........................................................................................... 10-1 10.1. Photos of Radiated Emission Test...................................................................................... 10-1 11. PHOTOGRAPH OF EUT ............................................................................................. 11-1 R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:OO9MA105W page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F15103 1-1 1. SUMMARY OF STANDARDS AND RESULTS 1.1. Description of Standards and Results The EUT have been tested according to the applicable standards as referenced below. EMISSION Description of Test Item Standard Results Power Line Conducted Emission Test FCC Part 15C: 15.207 ANSI C63.10-2009 N/A Radiated Emission Test FCC Part 15C: 15.209 FCC Part 15C: 15.249 ANSI C63.10-2009 PASS Band Edge Compliance Test FCC Part 15: 15.249 ANSI C63.10-2009 PASS 20dB Bandwidth Test FCC Part 15: 15.215 ANSI C63.10-2009 PASS N/A is an abbreviation for Not Applicable. R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:OO9MA105W page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F15103 2-1 2. GENERAL INFORMATION 2.1. Description of Device (EUT) EUT Description : 2.4GHz Wireless Mouse Model Number : MA105W FCC ID : OO9MA105W Operation frequency : 2402MHz-2479MHz Modulation : GFSK Antenna : Integrated PCB antenna, 0dBi gain Receiver Categories : Category 3, Standard reliable SRD communication media Applicant : G. tech Technology Ltd. No.21, Jinding Industrial Park, West Jinfeng Road, Tangjiawan Town, Xiangzhou District Zhuhai Guangdong Manufacture…

Text truncated - open the document above for the full version.

R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:OO9MA105W page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F15103 10-1 10. PHOTOGRAPH OF TEST 10.1. Photos of Radiated Emission Test (At Anechoic 3m Chamber Test 30-1000MHz) R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:OO9MA105W page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F15103 10-2 (At Anechoic 3m Chamber Test 1GHz –18GHz)
