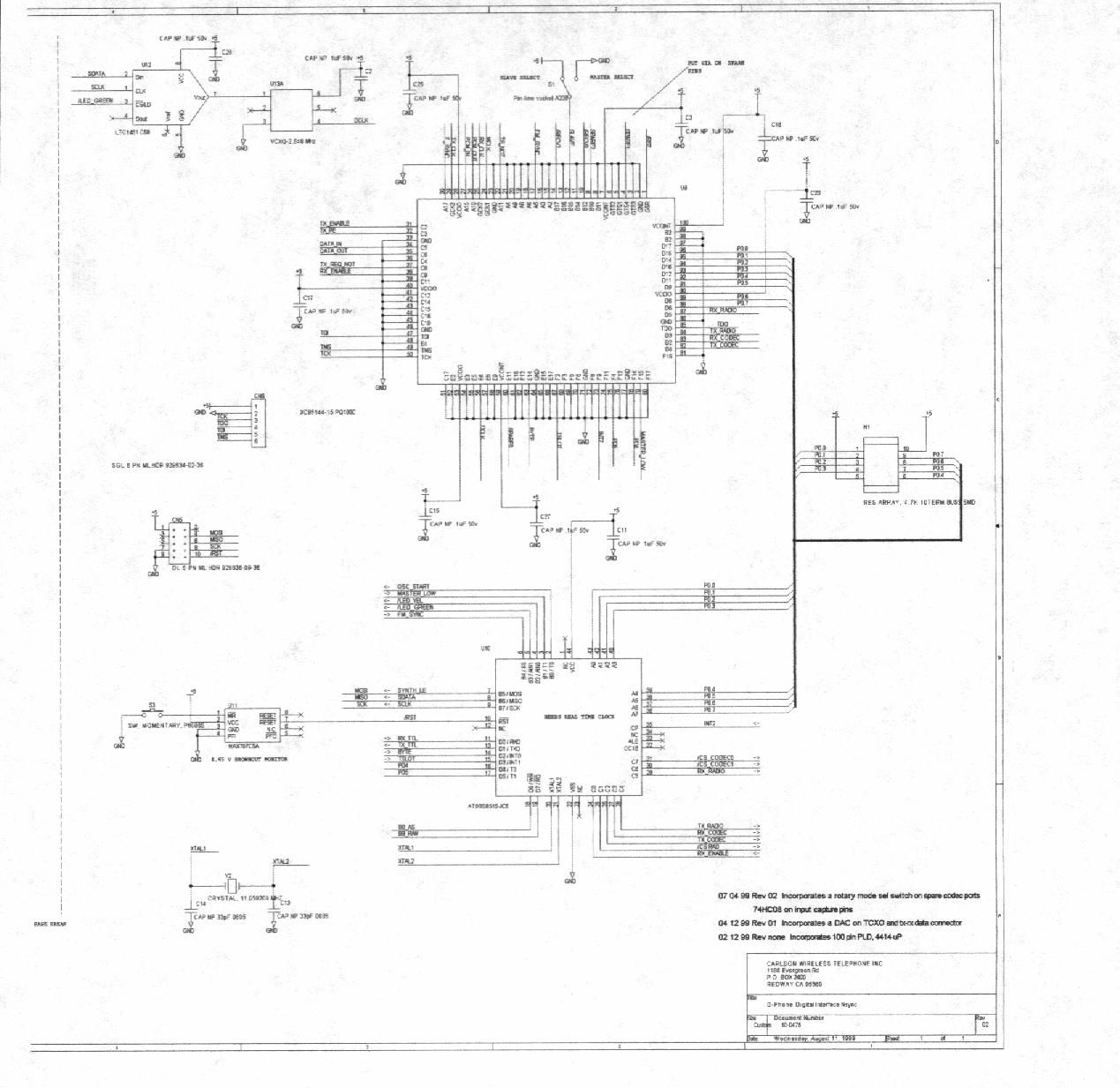

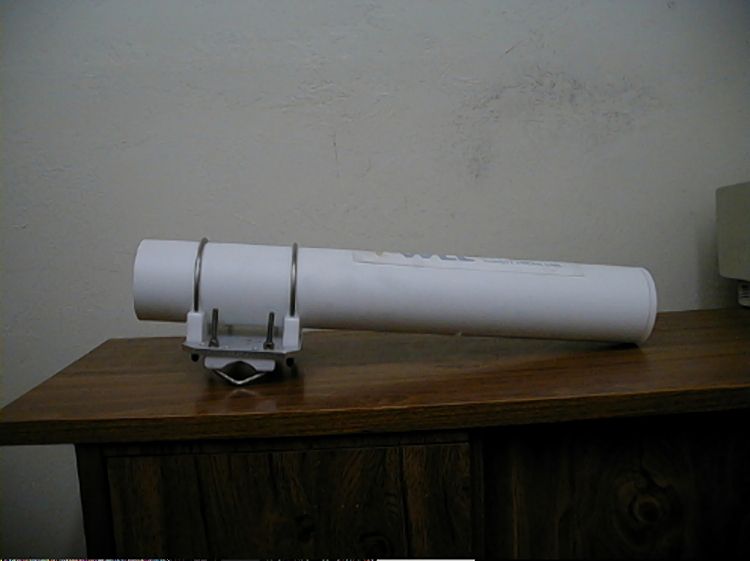

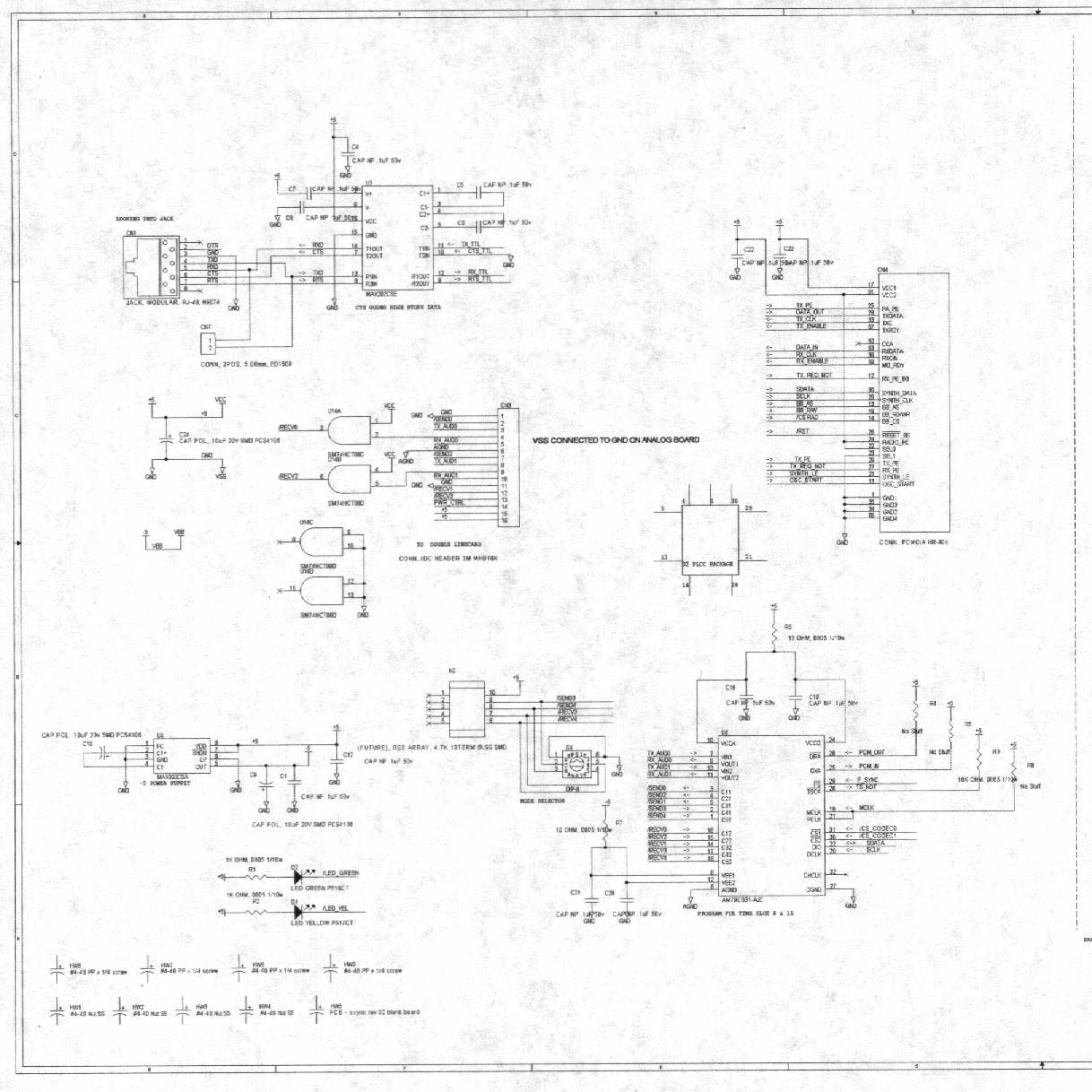

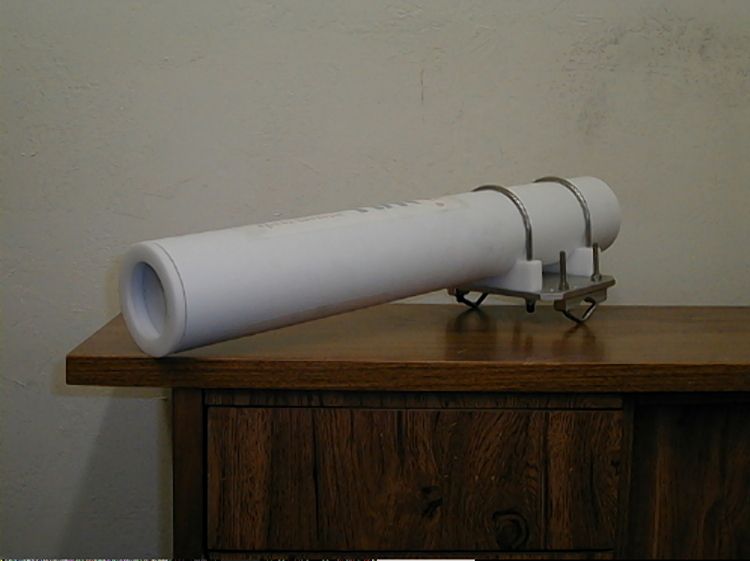

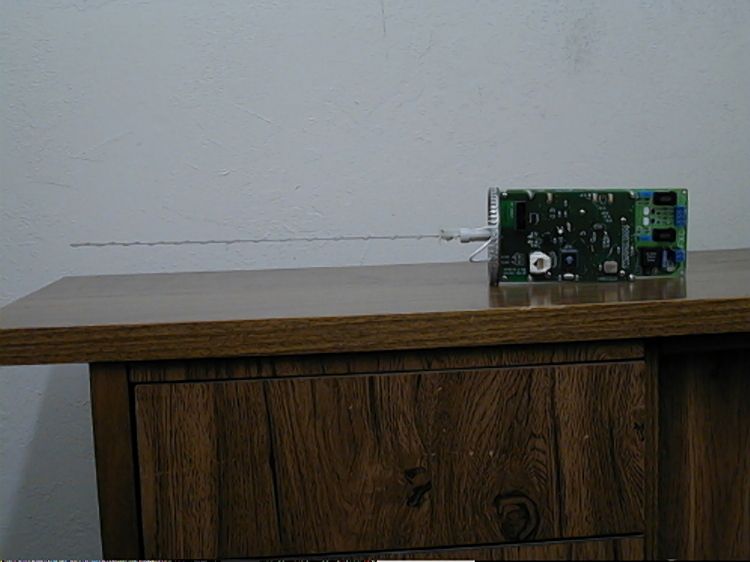

FCC PART 15 SUB-PART B & C EMI TEST REPORT on Wireless Local Loop Extender (Digital Remote Phone Link) model name i-WLL 15 provided for evaluation by Carlson Wireless Telephone, Incorporated 1150 Evergreen Road, Suite #1, PO Box 2400 Redway, California 95560-2400 USA evaluated and prepared by International Technology Company (ITC) 9959 Calaveras Road, Box 543 Sunol, California 94586-0543 Tel: (925) 862-2944 Fax: (925) 862-9013 Email: [email protected] Web Site: www.itcemc.com  EN45001 Accredited Compliance Laboratory (RES-GmbH) Registration number: TTI-P-G 159/98-00 (RES-GmbH) Applicant: Carlson Wireless Telephone, Incorporated File No. : 9909RS116-1/F Page 2 of 38 Prepared By: International Technology Company (ITC) Tel: (925) 862-2944 Fax: (925) 862-9013 Email: [email protected] Web: www.itcemc.com Wireless Local Loop Extender (Digital Remote Phone Link) Model i-WLL-15 FCC ID: OPA-I-WLL Rev. No 1.0 FCC Part 15 SubPart B & C TEST RESULT SUMMARY FCC PART 15 SUB-PART B & C General Information Product NameWireless Local Loop Extender (Digital Remote Phone Link) FCC IDOPA-I-WLL Model / Typei-WLL-15 Manufacturer’s Name: Manufacturer’s Address Carlson Wireless Telephone, Incorporated 1150 Evergreen Road, Suite #1, PO Box 2400 Redway, California 95560-2400 USA Tel: (707) 923-9593 • Fax: (707) 923-1913 http://www.wireless-telephone.com LaboratoryInternational Technology Company (ITC) 9959 Calaveras Road, PO Box 543 Sunol, CA 94586-0543 Tel: (925) 862-2944 • Fax: (925) 862-9013 Email: [email protected] • Web Site: www.itcemc.com Test Number1990916-1 Test Report Number9909RS116-1/F Test DateSeptember 22 through October 12, 1999 Project TechnicianBruce Gordon According to testing performed at International Technology Company (ITC); the above-mentioned unit is in compliance with the emissions requirements defined in FCC Part 15 B and C. It is the manufacturer's responsibility to assure that additional production units of this model are manufactured with identical electrical and mechanical characteristics. Any modifications necessary for compliance made during testing on the above mentioned date(s) must be implemented in all production units for compliance to be maintained. International Technology Company (ITC) as an independent testing laboratory, declares that the equipment tested as specified above conforms to the emissions requirements of FCC Part 15 B & C. AGENCY DECLARATION/DISCLAIMER All services undertaken are subject to the following general policy: Reports are submitted for exclusive use of the client to whom they are addressed. Their significance is subject to the adequacy and representative character of the samples and to the comprehensiveness of the tests, examinations or surveys made. No quotations from reports or use of ITC name or NVLAP or VCCI logo is permitted except as expressly authorized by ITC or NVLAP or VCCI in writing. It is agreed between ITC, NVLAP, VCCI and the client that no distribution in part of any test data herein or of this reports or analysis shall be made to any third party without the prior written consent of both parties. This report is not valid unless copied in full. All parties acknowledge that this report must not be used to claim product endorsement by ITC and/or NVLAP or VCCI. Reports are maintained on file for a period of five years. Additional copies of reports are available at a nominal fee. In correspondence concerning this report please refer to the date, manufacturer's name and the report number. Applicant: Carlson Wireless Telephone, Incorporated File No. : 9909RS116-1/F Page 3 of 38 Prepared By: International Technology Company (ITC) Tel: (925) 862-2944 Fax: (925) 862-9013 Email: [email protected] Web: www.itcemc.com Wireless Local Loop Extender (Digital Remote Phone Link) Model i-WLL-15 FCC ID: OPA-I-WLL Rev. No 1.0 FCC Part 15 SubPart B & C EMI Test Report Product Type Wireless Local Loop Extender (Digital Remote Phone Link) Model i-WLL-15 Applicant / Manufacturer Carlson Wireless Telephone, Incorporated Address 1150 Evergreen Road, Suite #1, PO Box 2400 Redway, California 95560-2400 USA Tel: (707) 923-9593 • Fax: (707) 923-1913 http://www.wireless-telephone.com Client Contact Mr. Jim Carlson Email: [email protected] Test Results Pass
Fail Total Number of Pages including Appendices 38 Pages Test Report File No. 9909RS116-1/F Date of Issue: Wednesday October 13, 1999 International Technology Company is: Accepted by the Federal Communications Commission (FCC) for FCC Methods, CISPR Methods and AUSTEL Technical Standards (Ref: NVLAP Lab Code 200172-0) Validated by the Chinese Taipei Bureau of Standards, Metrology, and Inspection (BSMI) under APEC MRA as a Conformity Assessment Body (CAB) under Appendix B, Phase 1 Procedures. BSMI # SL2-IN-E-024R Approved by the Industry Canada for Telecom Testing Certified by International Technology Company (ITC)GmbH for EMC Testing according to the European EMC Directive 89/336/EEC per EN45001 Certified by Reg. TP for EMC Testing according to the European EMC Directive 89/336/EEC per EN45001 for RES GmbH (DAR-Registration number: TTI-P-G 159/98-00) Certified by the Voluntary Control Council for Interference by Information Technology Equipment (VCCI) for EMC testing, in accordance with the Regulations for Voluntary Control Measures, Article 8, Registration Numbers- Site 1: C-714 & R-696 and Site 2: C-715 & R-697 Applicant: Carlson Wireless Telephone, Incorporated File No. : 9909RS116-1/F Page 4 of 38 Prepared By: International Technology Company (ITC) Tel: (925) 862-2944 Fax: (925) 862-9013 Email: [email protected] Web: www.itcemc.com Wireless Local Loop Extender (Digital Remote Phone Link) Model i-WLL-15 FCC ID: OPA-I-WLL Rev. No 1.0 FCC Part 15 SubPart B & C Engineering Services Offered by ITC 1) RELIABILITY CONSULTING AND SERVICES2) ENGINEERING EVALUATION & TESTING • Reliability Svcs. for Systems & Components• OSHA Third Party Evaluations • MTBF Calculations• SEMI S2 Reviews, 1993 • MTTF Calculations• USB Specificati…

Text truncated - open the document above for the full version.

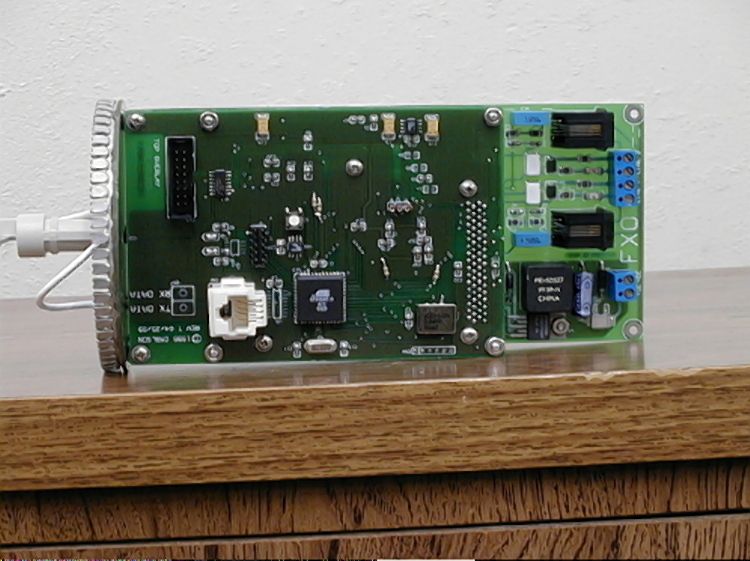

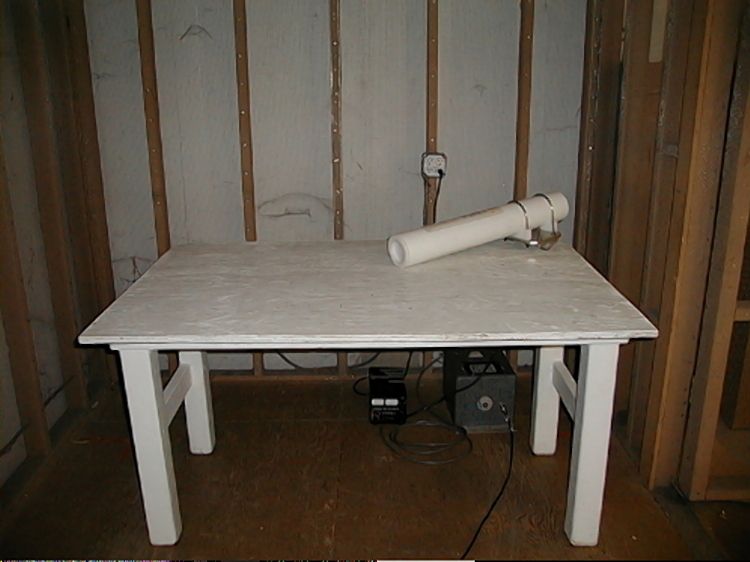

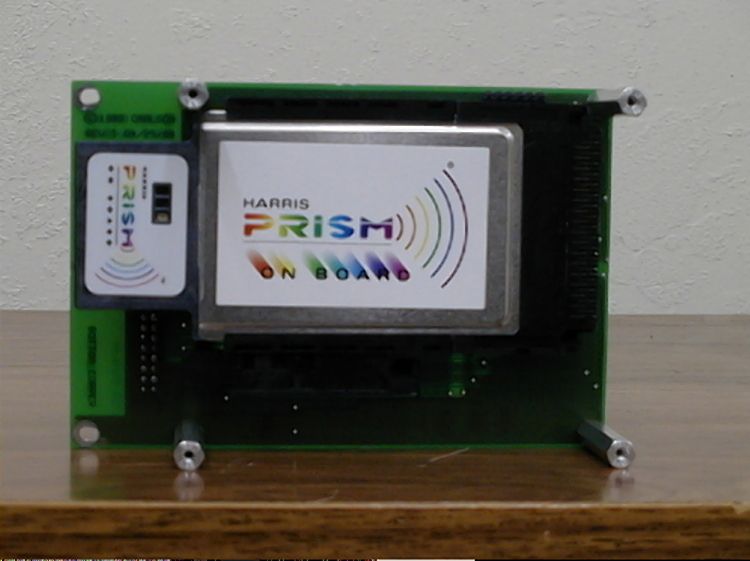

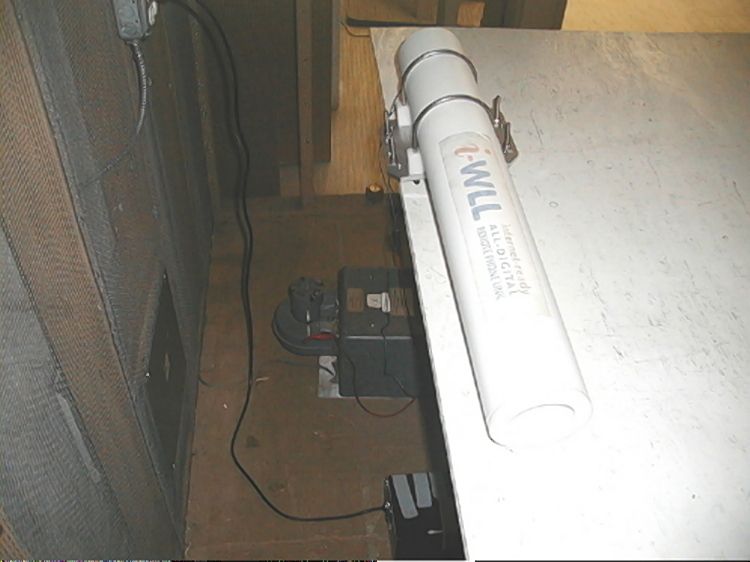

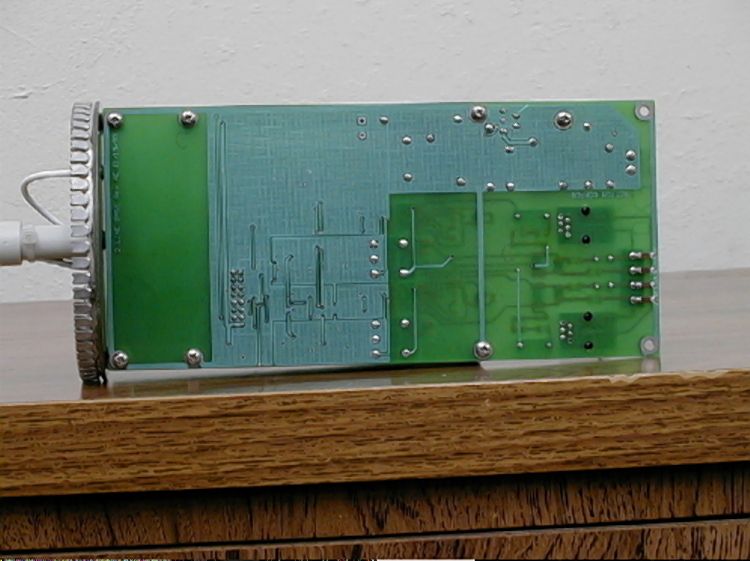

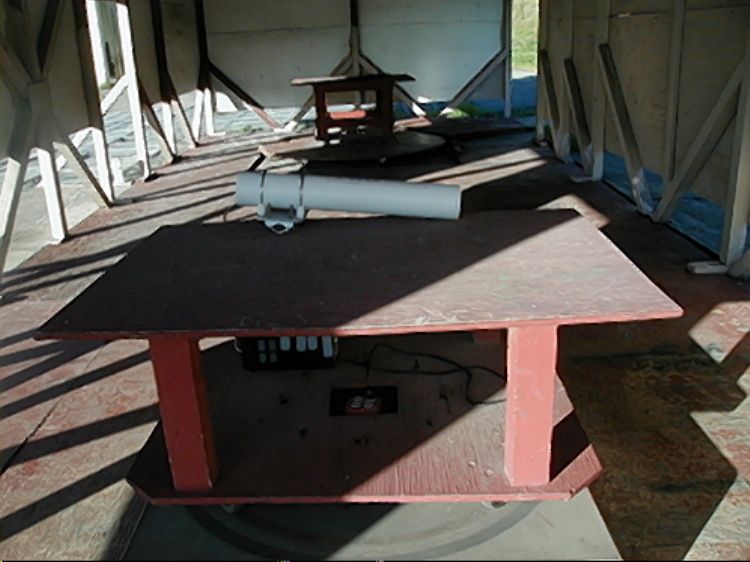

Applicant: Carlson Wireless Telephone, Incorporated File No. : 9909RS116-1/F Prepared By: International Technology Company (ITC) Tel: (925) 862-2944 Fax: (925) 862-9013 Email: [email protected] Web: www.itcemc.com Wireless Local Loop Extender (Digital Remote Phone Link) Model i-WLL-15 FCC ID: OPA-I-WLL Rev. No 1.0 FCC Part 15 SubPart B & C Applicant:Carlson Wireless Telephone, Inc. FCC ID:OPA-I-WLL 1.2.2 Support Equipment included in the Tests: The transmitter (FXO) was tested with the following peripherals: 1. Teledex Analog Telephone 2. Lambda Electronics Power Supply, model LM D48 3. BK Precision Power Supply, model 1688 DescriptionAnalog Telephone ManufacturerTeledex ModelNot Provided Serial NumberNot Provided Power Supply TypeN/A Power CordN/A Data CableUnshielded RJ-11, 4-Conductor Interface Cable, Detachable FCC IDNot Provided DescriptionDC Power Supply ManufacturerBK Precision Model1688 Serial NumberNot Provided Power Supply TypeClosed Frame Switching Power CordNon-Shielded, 1.0m long DescriptionDC Power Supply ManufacturerLambda Electronics, Inc. ModelLM D48 Serial NumberE38201 Power Supply TypeClosed Frame Switching Power CordNon-Shielded, 1.0m long Applicant: Carlson Wireless Telephone, Incorporated File No. : 9909RS116-1/F Prepared By: International Technology Company (ITC) Tel: (925) 862-2944 Fax: (925) 862-9013 Email: [email protected] Web: www.itcemc.com Wireless Local Loop Extender (Digital Remote Phone Link) Model i-WLL-15 FCC ID: OPA-I-WLL Rev. No 1.0 FCC Part 15 SubPart B & C 2.1.1 EUT Configuration per page 11 of Main Report Pre-scan measurements are first performed by collecting data with a spectrum analyzer. Significant peaks are marked and then quasi-peaked. Measurement range investigated was from 450KHz to 30MHz. The EUT was set up in accordance with the suggested configuration given in FCC Measurement Procedure ANSI C63.4-1992. The measurement instrumentation used was a receiver with bandwidth parameters as stipulated in ANSI C63.4-1992. The Transmitter (FXO) and Receiver (FXS) were set up on a wooden non conductive table top, 80 cm above the ground reference plane, in a shielded room. It was supported with peripherals as listed in 1.2.2 and transmitted continuously. The dimension of the table was 1.5m x 1.0m. EUT was powered by a +55 Vdc. 2.1.2 Test Procedure per page 11 of Main Report The EUT was set up as described above, in live functional modes. The Transmitter (FXO) was transmitting to the Receiver (FXS). The powerline conducted EMI tests were run on the +55 Vdc power supply current carrying conductors of the power cords of the EUT and peripherals. The highest emissions were also analyzed in detail by operating the spectrum analyzer in fixed tuned mode to determine the precise amplitude of the emissions. While doing so, interconnecting cables were moved around to maximize the emissions. 3.1.1 EUT Configuration per page 13 of main Report Pre-scan measurements are first performed by collecting data with a spectrum analyzer. Significant peaks are marked and then quasi-peaked. Measurement range investigated was from 30 MHz to 1 GHz. The EUT was set up in accordance with the suggested configuration given in FCC Measurement Procedure ANSI C63.4-1992. The measurement instrumentation used was a receiver with bandwidth parameters as stipulated in ANSI C63.4-1992. The Transmitter (FXO) and Receiver (FXS) were set up on a wooden non conductive table top, 80 cm above the ground reference plane, in an open field. It was supported with peripherals as listed in 1.2.2 and transmitted continuously. The dimension of the table was 1.5m x 1.0m. EUT was powered by a +55 Vdc adapter.

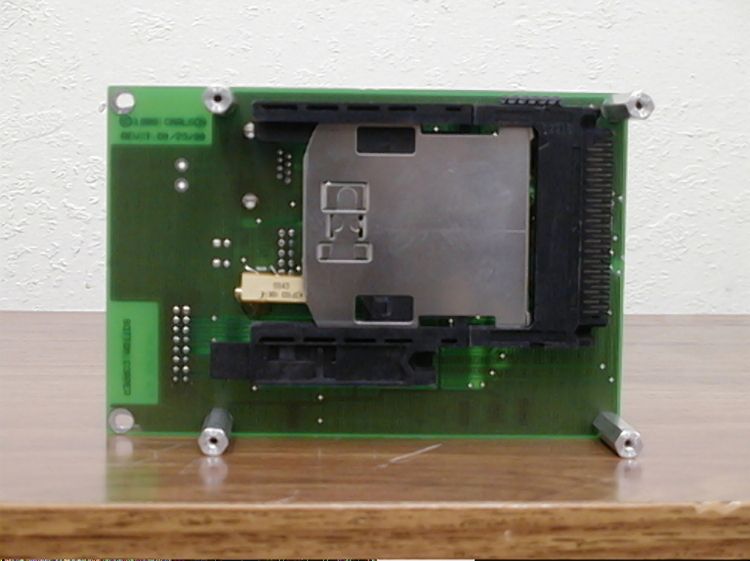

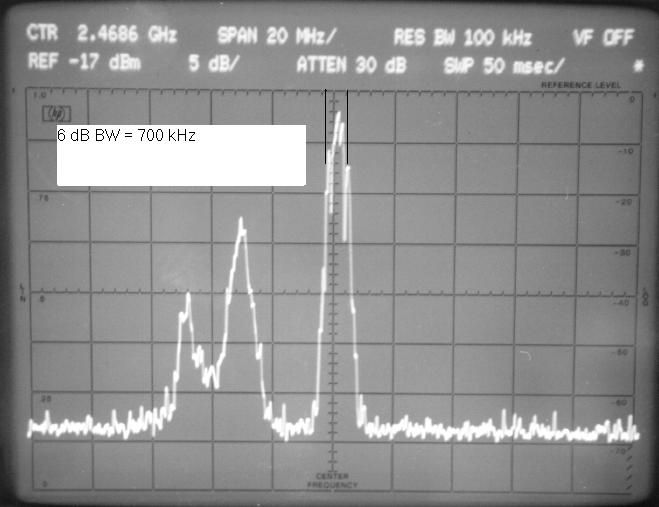

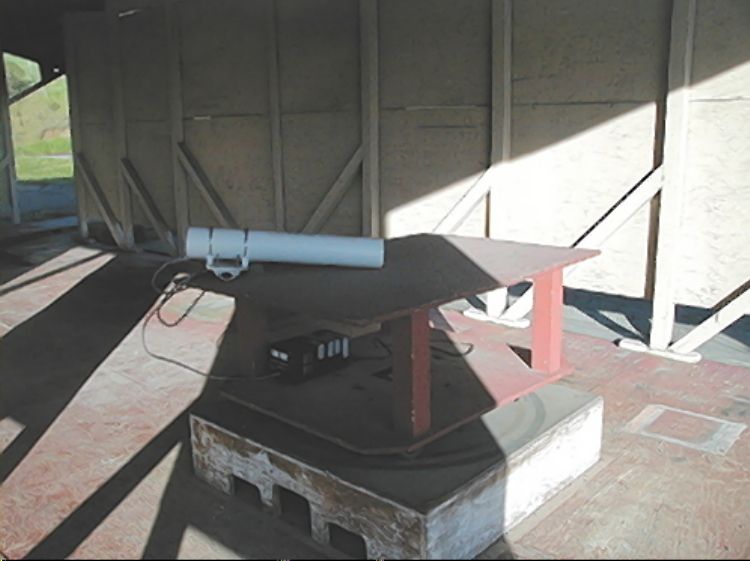

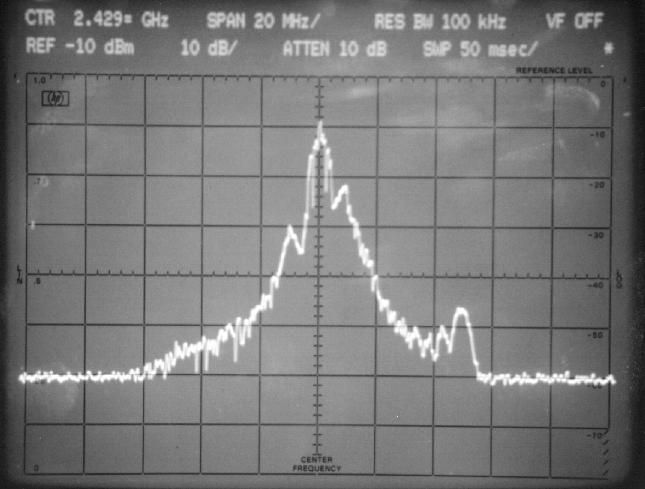

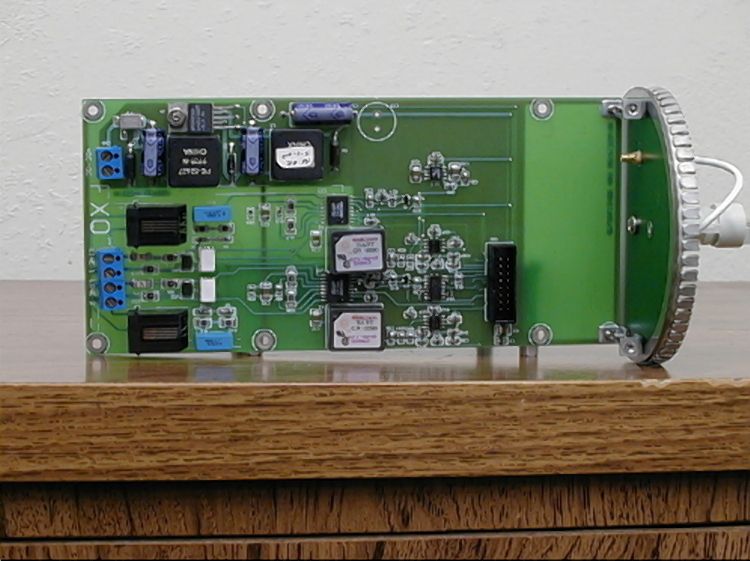

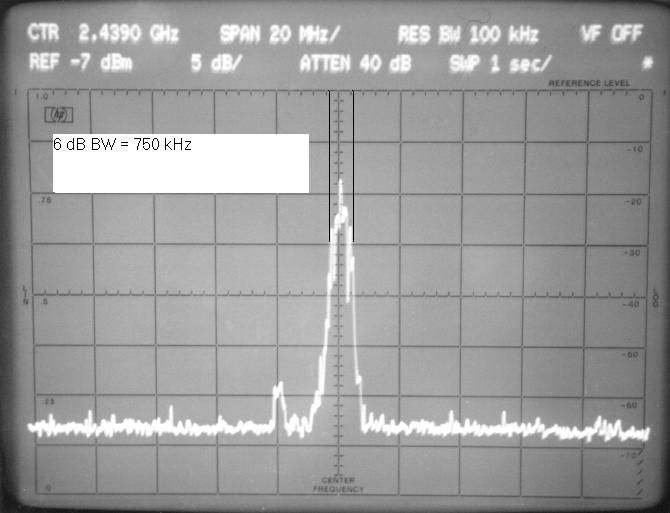

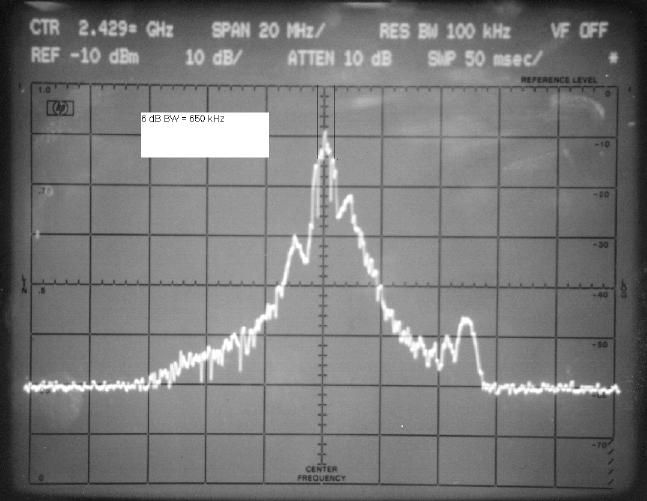

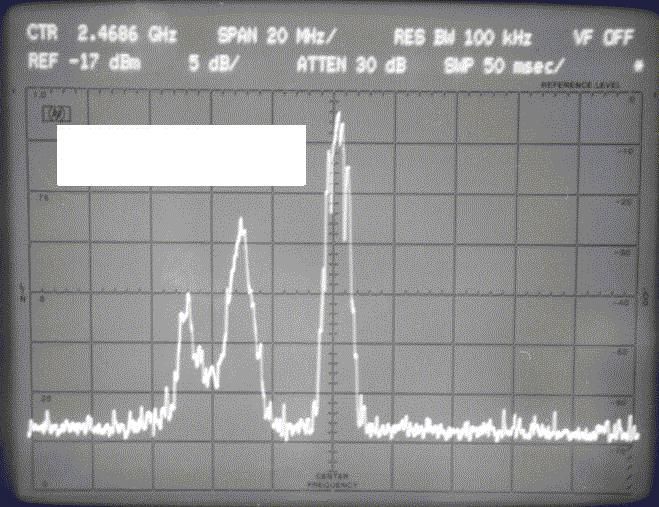

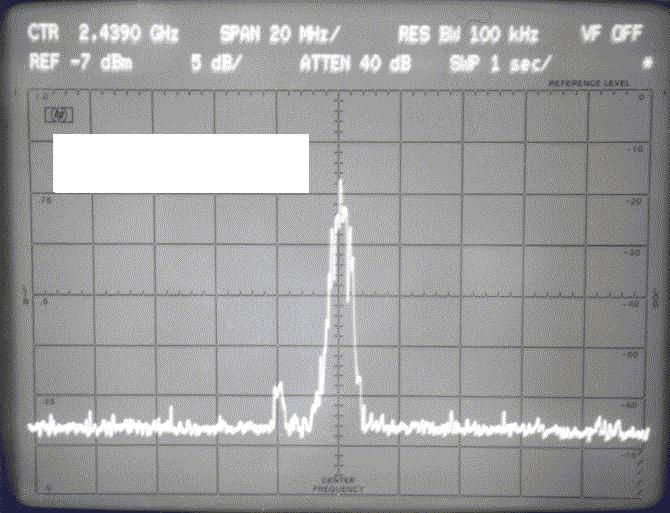

Response to FCC corespondence number 12516 confirmation number EA96404 The equipment meets rule 15.247 6 dB BW, 15.247(a)(2), is shown to be compliant by the information in section 4 of the report. Maximum peak output power,15.247(b)(1) is shown to be compliant by the information in section 6 of the report. Emissions outside the the frequency band of intentional radiation,15.247(c) is shown to be compliant by the information in sections 2 and 3 of the report. Peak power Spectral Density, 15.247(d) is shown to be compliant by the information in section 6 of the report. EA,15.247(b)(4) is not apllicable to this equipment. In addition, the equipment is shown to be compliant with the generic testing requirements for intentional radiators of 47 CFR 2.1047 by the information in section 8 of the report; 47 CFR 2.1055 by the information in section 5 of the report. ________________________________________________________________________ The processing gain, 15.247(e)(1) and (2), is 12.04 dB.
