OPA-TB49Trailblazer TB 4.9

Installation & User’s Manual Trailblazer Digital Radio 2005 TB 2.4-5.8 and TB 4.9 series Part Number 490-2000 Rev 1.02 Copyright 2006 Trailblazer Installation and User Manual version 1.02 ii Trademark Information Trailblazer, the Trailblazer logo, RuralConnect, and the RuralConnect logo are registered trademarks of Carlson Wireless Technologies Inc. Windows is a registered trademark of Microsoft Corporation. Copyright Copyright © 2002-2005 Carlson Wireless, Inc. All Rights Reserved. No part of this manual may be reproduced without permission from Carlson Wireless Technologies. The information contained in this publication is the latest available; however, Carlson Wireless Technologies reserves the right to make changes without notice. US Headquarters: 1180-B Evergreen Road Redway, CA 95560 USA Presales Inquires and Applications Support Please contact your local distributor or the Carlson Wireless sales department. Purchasers of Carlson Wireless Technologies products should make their own evaluations to determine the suitability of each such product for their specific application. Carlson Wireless Technologies obligations regarding the use or application of its products shall be limited to those commitments to the purchaser set forth in its Standard Terms and Conditions of Sale for a delivered product. The use of this manual is also limited to the terms and conditions stated in the contract between CWT and the purchaser. Tel: +1 707.923.3000 Fax: +1 707.923.1913 Email: [email protected] URL: http://www.carlsonwireless.com Repair and Return Carlson Wireless will replace or repair this product within one year from the date of shipment if it does not meet its published specification, or if it fails while in service. A return material authorization (RMA) is required prior to returning equipment to CWT. Customer Service Technical support is available Monday - Friday, 9:00 am to 4:30 pm, PDT. Tel: +1 707.923.3000 Email: [email protected] URL: http://www.carlsonwireless.com/support.html Training The Customer Service department offers training classes including overviews on: applications, engineering, in-house testing, configuration, field testing and maintenance. Please contact our Customer Service department for more specific details. Trailblazer Installation and User Manual version 1.02 iii SAFETY WARNING Potentially hazardous voltages exist on TELCO lines and associated equipment. Always observe standard safety precautions during installation, operation, and maintenance of these products. To avoid the possibility of electric shock, be sure to disconnect the power from the remote power source before you perform any line connections or repairs. Always disconnect all the cables connected to the system before disconnecting the grounding connection. After disconnecting the power allow a few seconds for the internal capacitances to discharge before accessing the boards. QUALIFIED PERSONNEL WARNING The installation procedures described in this manual must be performed by qualified personnel aware of the hazards involved. The personnel involved in equipment installation must be trained in the installation of telephone equipment and associated power systems; these personnel must strictly observe all the safety precautions related to the installation of communication equipment. Never install, remove, or adjust equipment and associated cables. Do not work on roofs, masts, or towers during a lightning storm. ATTENTION! STATIC SENSITIVE DEVICES PROPER HANDLING AND GROUNDING WARNING Components within the Trailblazer system are sensitive to electrostatic discharge (ESD). To avoid and prevent ESD damage and device failure maintain proper grounding during configuration, repair or maintenance. This is achieved through the use of an antistatic wrist strap securely connected to chassis ground. Do not use conductive tools for adjusting channel select switch. FCC, RF SAFETY HAZARD WARNING Due to the energy radiated from the antenna, this product must never be mounted such that the cabinet containing the antenna can be closer than 2 meters (6.7 feet) to any person. Refer to Section 4.2 for further restrictions. UL INSTALLATION SAFETY INSTRUCTIONS • Never install telephone wiring during a lightning storm. • Never install telephone jacks in a wet location unless the jack is specifically designed for wet locations. • Never touch telephone wires or terminals unless the telephone line has been disconnected at the network interface. • Use caution when installing or modifying telephone lines. Connection to the Telephone Network The equipment complies with Part 68 of the FCC rules. You will find the label located on the device. This label contains the FCC Registration Number and the Ringer Equivalence Number (REN) for this equipment. You must, upon request, provide this information to your telephone company. The REN is used to determine the quantity of devices that may be connected to the telephone line and still have all of those devices ring with an incoming call signal. In most areas the sum of the RENs of all devices connected to one line should not exceed five (5.0). Confirm the number of devices possible on the telephone line (in REN) by contacting the local telephone company who provides the service. Trailblazer Installation and User Manual version 1.02 iv Incidence of Harm If your telephone equipment causes harm to the telephone network, the telephone company may disconnect your service temporarily. When possible, the telephone company will notify you in advance. If advanced notice is not practical, you will be notified as soon as possible. You will also be informed of your right to file a compliant with the FCC. Rights of the Telephone Company Your telephone company may make changes in its facilities, equipment, operations or procedures that could affect the proper functioning of your equipment. In this case, you will be notified in advance to give you an opportunity to maintain uninterrupted tel…

Text truncated - open the document above for the full version.

To whom it may concern, I reviewed part 2.201 and all of the designator codes look correct. 16M6 - the 99% BW is 16.6 MHz D (4) Emission in which the main carrier is amplitude and angle modulated either simultaneously or in a pre-established sequence. 7 (5) Two or more channels containing quantized or digital information. D (5) Data transmission, telemetry, telecommand. Sincerely, James Carlson Carlson Wireless Technologies

Carlson Wireless Technologies, Inc. • 1180-B Evergreen Rd. • Redway, CA 95560 USA +1-707-923-3000 • fax +1-707-923-1913 • www.carlsonwireless.com • sales@ carlsonwireless.com Agent Authorization Letter 04 December 2005 Attn: Reviewing Engineer Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 RE: LETTER OF AGENT AUTHORIZATION To Whom It May Concern: We, the undersigned, hereby authorize MET Laboratories, Inc. to act on our behalf in all matters relating to application for equipment authorization, including the signing of all documents relating to these matters. We also hereby certify that no party to the application authorized hereunder is subject to the denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C.853(a). This agreement expires one year from the current date. Thank you for your attention to this matter. Signatory, James R. Carlson CEO and President Carlson Wireless Technologies Inc.

Carlson Wireless Technologies, Inc. • 1180-B Evergreen Rd. • Redway, CA 95560 USA +1-707-923-3000 • fax +1-707-923-1913 • www.carlsonwireless.com • sales@ carlsonwireless.com Request for Confidentiality 04 December 2005 Attn: Reviewing Engineer Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 RE: CONFIDENTIALITY REQUEST FOR Model Number TB 4.9 FCCID: OPA-TB49 To Whom It May Concern: This letter serves as an official request for confidentiality under FCC Rule Section 0.459. We have requested that the following information, required to be submitted with this application be withheld from public review. • Schematics • Block Diagram • Operational Description • Modulation Description • Parts List/ Bill of Materials The application contains technical information, which Carlson Wireless Technologies Inc deems to be trade secrets and proprietary. If made public, the information might be used to the disadvantage of the applicant in the market place. Please contact me if there is any information you may need. Thank you for your attention to this matter. Signatory, James R. Carlson CEO and President Carlson Wireless Technologies Inc.

1 Chris Harvey From:[email protected] Sent:Tuesday, January 17, 2006 12:01 PM To: [email protected] Subject:RE: Part 90 Carlson Wireless Carlson Wireless revised RF Ex... Here is the revised MPE Calculation. Shawn -----Original Message----- From: Chris Harvey [mailto:[email protected]] Sent: Tuesday, January 17, 2006 8:26 AM To: [email protected] Cc: [email protected] Subject: RE: Part 90 Carlson Wireless Shawn, the application documented a maximum of 18dBi antenna with a calculated MPE using that 18dBi antenna. Please provide an updated MPE calculation using the maximum allowed antenna gain of 26dBi for Fixed Operation, I will revise the Grant condition to a maximum antenna gain of 26dBi and the new separation distance per your calculation (I know the manual states a 2 meter separation so this should not need to be changed). Please note that the device will be restricted to Fixed and Temporary- Fixed Rapid Deployment operation with the 26dBi antenna as specified in 90.1215. The new note would be as follows: Power Output listed is Conducted. This device is approved for mobile or fixed operational conditions only. Maximum antenna gain is 25 dBi for mobile operation and 26dBi for Fixed operation. This transmitter must be installed to provide a separation distance of at least xx cm from all persons. This device must not be co-located or operating in conjunction with any other antenna or transmitter other than those specified in this application. Users and installers must be provided with appropriate antenna installation instructions and transmitter operating conditions, including antenna co-location requirements of §1.1307(b)(3), for satisfying RF exposure compliance. Please note that this device has a transmit power of 17dBm, and using an antenna gain of 26dB, which is 17dB above the 9dBi threshold and would calculate to 1dB over the allowed 33dBm limit for mobile operation. Please let me know if you have any questions. Chris Chris Harvey 2 Chris Harvey EMC Consultants, Inc. [email protected] cell 443-622-3300 -----Original Message----- From: [email protected] [mailto:[email protected]] Sent: Monday, January 16, 2006 6:33 PM To: [email protected] Cc: [email protected]; [email protected] Subject: Part 90 Carlson Wireless Hi Chris. Carlson wireless noticed on the grant notes that the antenna gain has been limited to 18dBi. From section 90.1215- Power Limits, the maximum antenna gain for point to point and point to multi point is 26dBi. Just wondering what has to transpire in order to change the limitation of the antenna to 26dBi. Thanks, Shawn

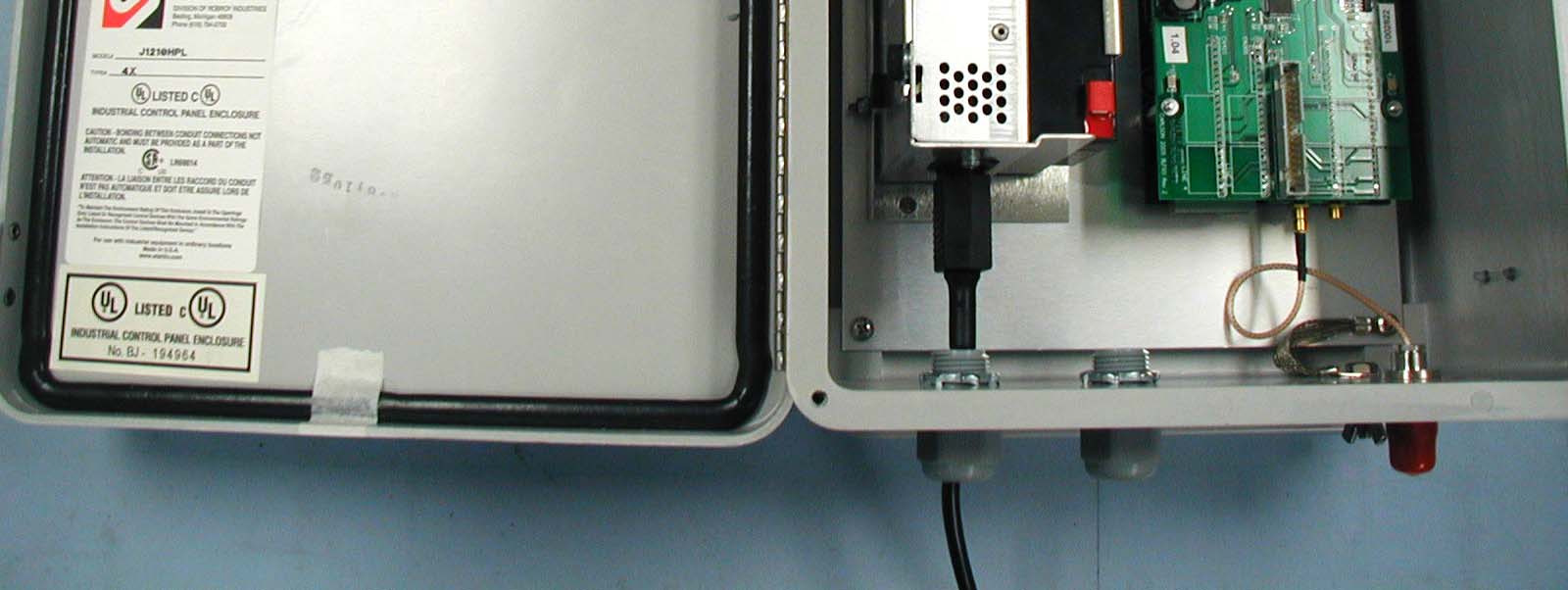

Figure 1: Front view Figure 2: Whole Assembly

Carlson Wireless Technologies, Inc. • 1180-B Evergreen Rd. • Redway, CA 95560 USA +1-707-923-3000 • fax +1-707-923-1913 • www.carlsonwireless.com • sales@ carlsonwireless.com TB 4.9 Internal Photos Figure 1: Top view power supply and DS0 interface ................................................................................................ 1 Figure 2: Botton view of power supply and DS0 interface....................................................................................... 2 Figure 3: Radio card with Shield .................................................................................................................................. 2 Figure 4: Radio top view no shield .............................................................................................................................. 3 Figure 5: Radio card bottom view ................................................................................................................................ 3 Figure 6: Top view of AC power supply..................................................................................................................... 4 Figure 7: Bottom view of AC power supply ............................................................................................................... 4 Figure 1: Top view power supply and DS0 interface Figure 2: Botton view of power supply and DS0 interface Figure 3: Radio card with Shield Figure 4: Radio top view no shield Figure 5: Radio card bottom view Figure 6: Top view of AC power supply Figure 7: Bottom view of AC power supply

Carlson Wireless Technologies, Inc. • 1180-B Evergreen Rd. • Redway, CA 95560 USA +1-707-923-3000 • fax +1-707-923-1913 • www.carlsonwireless.com • sales@ carlsonwireless.com Second TX connector on Radio Card 07 January 2006 To Whom It May Concern: This letter serves as an official statement regarding the RF ports located on the radio card. The second RF connector one the radio card is not utilized in this device and the only RF connector to be used is the one used during testing and accessible on the enclosure. Please contact me if there is any further information you may need. Signatory, James R. Carlson CEO and President Carlson Wireless Technologies Inc.

RF Exposure Requirements RF Exposure Requirements: §90.1217, §1.1307(b)(1) and §1.1307(b)(2): Systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess of the Commission’s guidelines. RF Radiation Exposure Limit: §1.1310: As specified in this section, the Maximum Permissible Exposure (MPE) Limit shall be used to evaluate the environmental impact of human exposure to radiofrequency (RF) radiation as specified in Sec. 1.1307(b), except in the case of portable devices which shall be evaluated according to the provisions of Sec. 2.1093 of this chapter. MPE Limit Calculation: EUT’s operating frequencies @ 4950-4980 MHz ; highest conducted power = 16.4dBm (peak) therefore, Limit for Uncontrolled exposure: 1 mW/cm 2 or 10 W/m 2 EUT maximum antenna gain = 26 dBi. Equation from page 18 of OET 65, Edition 97-01 S = PG / 4πR 2 or R = √PG / 4πS where, S = Power Density (1 mW/cm 2 ) P = Power Input to antenna (43.6mW) G = Antenna Gain (398.1 numeric) R = (43.6*398.1/ 4*3.14*1.0) 1/2 = (17357.1 / 12.56) 1/2 = 37.1cm

Carlson Wireless Technologies, Inc. • 1180-B Evergreen Rd. • Redway, CA 95560 USA +1-707-923-3000 • fax +1-707-923-1913 • www.carlsonwireless.com • sales@ carlsonwireless.com Field Tune-up Procedure 04 December 2005 Attn: Reviewing Engineer Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 RE: Field Tuning Procedures FCC part 15C: OPA-TB 24-58, and OPA-TB 49 FCC part 90Y: OPA-TB 49 The TB 24-58 and TB 49 radio with the above referenced FCC ID, have no field tunable adjustments. All configuration changes possible are made with a either two rotary selector switches and/or via a software serial port as described in the User Manual for this equipment. Therefore there are no separate tuning procedures to submit. Signatory, James R. Carlson CEO and President Carlson Wireless Technologies Inc.

MET Laboratories, Inc. Safety Certification - EMI - Telecom Environmental Simulation 33439 WESTERN AVENUE ! UNION CITY, CALIFORNIA 94587 ! PHONE (510) 489-6300 ! FAX (510) 489-6372 DOC-EMC700 7/9/04 Electromagnetic Compatibility Criteria Test Report For the Carlson Wireless Technologies, Inc. TB 4.9 Tested under The FCC Verification Rules Contained in Title 47 of the CFR, Part 90, Subpart Y for Private Land Mobile Radio Services MET Report: EMCS18723-FCC90 December 21, 2005 Prepared For: Carlson Wireless Technologies, Inc. 1180 Evergreen Rd., Suite B Redway, CA 95560 Prepared By: MET Laboratories, Inc. 33439 Western Ave. Union City, California 94587 Carlson Wireless Technologies, Inc. Electromagnetic Compatibility TB 4.9 CFR Title 47, Part 90, Subpart Y MET Report: EMCS18723-FCC90 © 2006, MET Laboratories, Inc. Page ii of vi DOC-EMC700 7/9/04 Electromagnetic Compatibility Criteria Test Report For the Carlson Wireless Technologies, Inc. TB 4.9 Tested under The FCC Verification Rules Contained in Title 47 of the CFR, Part 90, Subpart Y for Private Land Mobile Radio Services MET Report: EMCS18723-FCC90 Shawn McMillen Cheryl Anicete Electromagnetic Compatibility Lab Documentation Department Engineering Statement: The measurements shown in this report were made in accordance with the procedures indicated, and the emissions from this equipment were found to be within the limits applicable. I assume full responsibility for the accuracy and completeness of these measurements, and for the qualifications of all persons taking them. It is further stated that upon the basis of the measurements made, the equipment tested is / is not capable of operation in accordance with the requirements of Part 90, Subpart Y of the FCC Rules under normal use and maintenance. Tony Permsombut, Manager Electromagnetic Compatibility Lab Electromagnetic Compatibility Carlson Wireless Technologies, Inc. Report Status Sheet TB 4.9 CFR Title 47, Part 90, Subpart Y MET Report: EMCS18723-FCC90 © 2006, MET Laboratories, Inc. Page iii of vi DOC-EMC700 7/9/04 Report Status Sheet Revision Report Date Reason for Revision ∅ December 21, 2005 Initial Issue. Electromagnetic Compatibility Carlson Wireless Technologies, Inc. Testing Summary TB 4.9 CFR Title 47, Part 90, Subpart Y MET Report: EMCS18723-FCC90 © 2006, MET Laboratories, Inc. Page iv of vi DOC-EMC700 7/9/04 Table of Contents 1. Testing Summary ........................................................................................................................................................ 1 2. Equipment Configuration........................................................................................................................................... 2 2.1. Overview................................................................................................................................................................ 2 2.2. Test Site ................................................................................................................................................................. 2 2.3. Description of Test Sample .................................................................................................................................... 2 2.4. Equipment Configuration....................................................................................................................................... 3 2.5. Support Equipment ................................................................................................................................................ 3 2.6. Ports and Cabling Information ............................................................................................................................... 3 2.7. Mode of Operation ................................................................................................................................................. 5 2.8. Method of Monitoring EUT Operation .................................................................................................................. 5 2.9. Modifications ......................................................................................................................................................... 5 2.9.1. Modifications to EUT ......................................................................................................................... 5 2.9.2. Modifications to Test Standard ........................................................................................................... 5 2.10. Disposition of EUT .............................................................................................................................................. 5 3. Electromagnetic Compatibility RF Power Output Requirements .......................................................................... 6 3.1. Peak Power Output................................................................................................................................................. 7 4. Electromagnetic Compatibility Modulation Characteristics Requirements........................................................ 10 4.1. Modulation Characteristics .................................................................................................................................. 10 5. Electromagnetic Compatibility Occupied Bandwidth Requirements...................................................................11 5.1. Occupied Bandwidth (Emission Masks) .............................................................................................................. 11 6. Electromagnetic Compatibility Spurious Emissions at Antenna Terminal Requirements ................................ 14 6.1. Spurious Emissions at Antenna Terminals........................................................................................................... 14 7. Electromagnetic Compatibility Radiated Emissions Requirements ...........................................…
