OPA-I-WLL-TRooftop Fixed Direct Sequence WLL Transceiver

Carlson Wireless USA revision 2.12 PRO Page 4 Further, all installations of the Model I WLL Trailblazer System will require topographic analysis, site survey and link budget calculation. Therefore, the system will require a CWT trained professional to do the installation. Marketing and sales channels CWT DOES NOT sell the Trailblazer PRO direct to end users. I WLL Trail- blazer PRO System will be sold only to CWT's Authorized Resellers. Those authorized resellers are technically trained by CWT's Engineers periodically and must follow the rules set by CWT. The Trailblazer PRO system is designed for Long Range (15-35 miles) applications and it in- volves a complicated mandatory site survey, roof top mast installation, high gain antennas, accurate antenna alignment, etc. Those activities can be done ONLY by professional installers that are familiar with the FCC regulations. CWT does not sell the Trailblazer PRO in the consumer busi- ness at all. We have no resellers in this market and we do not advertise in consumers based publications or attend consumer oriented trade shows. The system will be advertised in technical trade shows and magazines. Conclusion CWT requires professional installation for the Model I WLL Trailblazer System in-order to provide the highest reliable system possible. We therefore fully support the mandate for professional installation of our complete system. Rough alignment. This is usually easier then it would seem. Since it is a prerequisite that you have line of sight between the two points, here are several ideas that have worked for installers: (1) If you can see the other unit, simply aim the units towards each other. (2) During midday, use a mirror or compact disk to create a reflection ap- proximately towards the other site while someone watches for the flash. (3) Plot out the path on a topography map and set the antennas using a compass. How close in alignment do they need to be? +/- 10 degrees will be adequate for most paths using the 14 dB gain antenna. Certain paths that have a low fade margin may require a more accurate setting. Final alignment. This is usually done by connecting a standard cordless phone to the FXS or FXO end, and then give a best guess to the direc- tion, establish a connection and rotating the antennas both right and left noting the points where the signal disappears, (assuming that it does) and then centering them between those cutoff points. Carlson Wireless USA revision 2.12 PRO Page 1 PROFESSIONAL INSTALLATION MANUAL ADDENDUM for Model i-WLL-Trailblazer Pro Caution! - Please read the sections on Unpacking, Planning, and Installation be- fore installing this equipment Using the Trailblazer Pro with the External Antenna Carlson Wireless USA revision 2.12 PRO Page 2 LEGAL i-WLL, the i-WLL logo , Trailblazer, the Trailblazer logo, Carlson Wireless USA, and the Carlson Wireless logo are registered trademarks of Carl- son Wireless Telephone Inc. Any trademarks, trade names, service marks, or service names owned or registered by any other company and used in this manual are the property of their respective companies. Copy- right 1999, 2000, Carlson Wireless Technologies Inc. All rights reserved. SCOPE OF ADDENDUM This addendum is designed to support the installation, operation and maintenance of the 24 dBi high gain parabolic grid antenna used in con- junction with the i-WLL–Trailblazer All-Digital Remote Wireless Tele- phone Link. To avoid harm to persons or damage to the product please ensure that you have read through the safety, unpacking and installation sections before proceeding. R.F. SAFETY HAZARD WARNING This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment when installed as directed. This equipment should be installed and operated with fix-mounted antennas that are installed with a minimum of 2 meters of separa- tion between the antenna and all persons body during normal opera- tion UNPACKING Please note any damage to the box and report to shipper before opening. The 24 dBi high gain parabolic grid antenna will arrive in one box approxi- mately 36 x 30 x 8 inches (92 x 76 x 20 cm). Small amounts of feed cable may also be included in this box if ordered. Upon opening the box one will find a N to N 36 inch long cable taped to the grid reflectors which are face down with corners padded. After remov- ing the reflectors there will be a remaining box taped to the bottom. Inside this box will be the mounting bracket, clamp and hardware, extension tube, and dipole. Carlson Wireless USA revision 2.12 PRO Page 3 INSTALLATION Warning: It is the responsibility of the professional installer to ensure that when using the outdoor antenna kits in the United States (or where FCC rules apply), only the antenna configurations shown in the table below is used. The use of any antenna other than those listed is expressly forbid- den in accordance to FCC rules part 15.204. Calculating the EIRP of an External antenna The output of the I-WLL Trailblazer radio is calibrated at the factory to +16 dBm +/- 2 dB. It is not adjustable in the field. The 36 inch LMR 400 “N” to “N” short cable allows the Trailblazer system to be located just behind the antenna with losses totaling approximately 2 dB. The external antenna sold by CWT has a gain throughout the 2.4 ISM band of 24 dBi. Using this as an example one can calculate the following: Given a radio maximum output power of 18 dBm - interconnecting cable losses of 2 dB = total power arriving to antenna of 16 dBm. Now adding the 24 dB Antenna gain of 24 dB = A total Effective Rated Power of 40 dBm. The “3 for 1” FCC rule states that for every 3 dB above 6 dB of antenna gain you must lower the maximum RF power available to the antenna from +30 dBm by 1 dB. In this example the antenna gain is (24 – 6) 18 dB above 6 or (18 / 3) or 6 times 3 dB above 6 dB. Checking to see if the transmit power meets the rule is done by subtracting 6 from +30 dB equal- ing +24 dBm. Follo…

Text truncated - open the document above for the full version.

Carlson Wireless USA revision 2.12 Page 16 CARLSON WIRELESS TECHNOLOGIES, Inc. CARLSON WIRELESS USA USA Headquarters: 1180-B Evergreen Road P.O. Box 2400 Redway, CA 95560 USA Tel: +1 707 923 3000 Fax: +1 707 923 1913 Email [email protected] URL http://www.wireless-telephone.com DISTRIBUTED BY: About Carlson Wireless Technologies Inc. Carlson Wireless Technologies, Inc. was formed in March 1999 as a privately held corporation based in Redway, Cali- fornia. Carlson Wireless Technologies (CWT) is dedicated to designing, manufacturing and marketing state-of-the-art digi- tal WLL (wireless local loop) telephone systems that provide high-quality voice and data for rural and remote telephone users worldwide. CWT was founded by James Carlson fol- lowing a 15-month product development by a team of engi- neers at Carlson Engineering Services (CES),. In 1999 CWT purchased the rights to the digital wireless telephone system designed by CES. CWT will market and manufacture the product, which has been named "The i-WLL Internet-Ready, All-Digital Wireless Remote Telephone Link." CWT is marketing the i-WLL product through established telecom and wireless equipment distributors. Please contact our sales department +1 707 923 3000, or sales@wireless- telephone.com for more information. Carlson Wireless USA revision 2.12 Page 1 INSTALLATION and USERS MANUAL for Model i-WLL– T Trailblazer 2 Line Caution! - Please read the sections on Unpacking, Planning, and Installation be- fore installing this equipment Trailblazer with Integral Antenna Carlson Wireless USA revision 2.12 Page 2 TABLE OF CONTENTS SCOPE OF MANUAL R.F. SAFETY HAZARD WARNING UNPACKING PRODUCT OVERVIEW SYSTEM PLANNING INSTALLATION TROUBLESHOOTING SPECIFICATIONS COMPLIANCE INFORMATION WARRANTY i-WLL, the i-WLL logo , Trailblazer, the Trailblazer logo, Carlson Wire- less USA, and the Carlson Wireless logo are registered trademarks of Carlson Wireless Telephone Inc. Any trademarks, trade names, ser- vice marks, or service names owned or registered by any other com- pany and used in this manual are the property of their respective companies. Copyright 1999, 2000, Carlson Wireless Technologies Inc. All rights reserved. 3 3 3 4 5 8 11 12 14 15 Carlson Wireless USA revision 2.12 Page 15 Carlson Wireless USA Limited Warranty Carlson Wireless Technologies (CWT) or Carlson Wireless USA, Col- lectively referred to as "Carlson“) will repair this product with new or rebuilt parts, free of charge, in the USA or Puerto Rico for two (2) years from the date of original purchase in the event of a defect in material or workmanship. Mail-in service in the USA can be obtained during the warranty period from a Carlson Factory Service center by calling +1- 707-923 4736, for a RMA (Return Materials Authorization) number and mail your product adequately packed, postage paid and insured to the address provided. This warranty is extended only to the original pur- chaser. A purchase receipt or other proof of date of original purchase will be required before warranty performance is rendered. This war- ranty only covers failures due to defects in materials or workmanship which occur during normal use. It does not cover damage which occurs in shipment or failures which are caused by products not supplied by Carlson or failures which result from accident, misuse, abuse, neglect, mishandling, misapplication, alteration. modification, lightning, line power surge, introduction of sand, dust, humidity and liquids or com- mercial use of the product, or service by anyone other than a Carlson Factory Service center or authorized Carlson Service center, or dam- age that is attributable to acts of God. Limits and Exclusions There are no express warranties except as listed above. CARLSON SHALL NOT BE LIABLE FOR INCIDENTAL OR CONSE- QUENTIAL DAMAGES RESULTING FROM THE USE OF THIS PRODUCT, OR ARISING OUT OF ANY BREACH OF THIS WAR- RANTY. ALL EXPRESS AND IMPLIED WARRANTIES, INCLUDING THE WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, ARE LIMITED TO THE APPLICABLE WARRANTY PERIOD SET FORTH ABOVE. Some states do not allow the exclusion or limitation of incidental or consequential damages, or limitations on how long an implied war- ranty lasts, so the above exclusions or limitations may not apply to you. This warranty gives you specific legal rights and you may also have other rights which vary from state to state. If a problem with this product develops during or after the warranty period you may contact your dealer or Service center. If the problem is not handled to your sat- isfaction, fax, phone, or write the company at the address indicated in the service section of this manual. Carlson Wireless USA revision 2.12 Page 14 Radio interference Carlson Wireless USA Model: i-WLL-Trailblazer This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful in- terference, and (2) This device must accept any interference received, including interference that may cause undesired operation. Changes of modification not expressly approved by the party responsible for compli- ance could void the user’s authority to operate the equipment. Compliance and US Regulatory Information Connection to the Telephone Network The equipment complies with Part 68 of the FCC rules. You will find the label located on the device. This label contains the FCC Registration Number and the Ringer Equivalence Number ((REN) for this equipment. You must, upon request, provide this information to your telephone com- pany. The REN is useful to determine the quantity of devices you may connect to your telephone line and still have all of those devices ring when you telephone number is called. In most, but not all, areas, the sum of the REN’s of all devices connected to one line should not exceed five (5.0). To be certain of the number of devices you may connect to your tele- phone line , as determined by the REN, you s…

Text truncated - open the document above for the full version.

Manufacturer’s Attestation 20 December, 2000 American Telecommunications Certification Body, Inc. 6731 Whittier Avenue Suite C110 McLean, VA 22101 RE: Certification Application FCC ID:OPA-I-WLL-T To Whom It May Concern: Ple ase be ad vised that the manufacturer will en sure that the above-referenced model will be installed by professional installers per FCC rules and regulations. Thank you for your attention to this matter. Signatory James R. Carlson

Letter Of Agency 22 October, 2000 American Telecommunications Certification Body, Inc. 6731 Whittier Avenue Suite C110 McLean, VA 22101 To Whom It May Concern: Please be advised that Carlson Wireless Technologies Inc. authorizes Rhein Tech Laboratories Inc. to act on our behalf, until otherwise notified, for applications submitted to American Telecommunications Certification Body, Inc. (ATCB). We certify that we are not subject to denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse ACT of 1988, U.S.C. 862. Further, no party, as defined in 47 CFR 1.2002(b), to the application is subject to denial of federal benefits, that includes FCC benefits. Thank you for your attention to this matter. Signatory James R. Carlson

Request for Confidentiality 22 October, 2000 American Telecommunications Certification Body, Inc. 6731 Whittier Avenue Suite C110 McLean, VA 22101 RE: Certification Application FCC ID:OPA-I-WLL-T Please be advised that the following information is to be held confidential and behalf of Carlson Wireless Technologies Inc.: • Schematics • Block Diagram The application contains technical information which Carlson Wireless Technologies Inc deems to be trade secrets and proprietary. If made public, the information might be used to the disadvantage of the applicant in the market place. Thank you for your attention to this matter. Signatory James R. Carlson

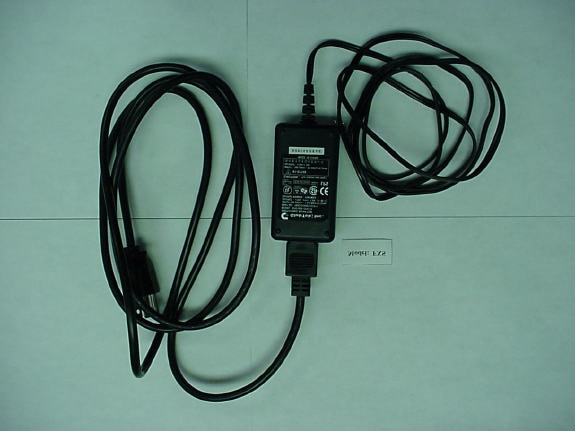

360 Herndon Parkway Carlson Wireless Technologies, Inc. Suite 1400 I-WLL-T Herndon, VA 20170 FCC ID: OPA-I-WLL-T http://www.rheintech.com Work Order: 2000422 Wireless Local Loop Certification Report Page 65 of 108 15 External Photographs 15.1 FXO 360 Herndon Parkway Carlson Wireless Technologies, Inc. Suite 1400 I-WLL-T Herndon, VA 20170 FCC ID: OPA-I-WLL-T http://www.rheintech.com Work Order: 2000422 Wireless Local Loop Certification Report Page 66 of 108 15.2 FXO 360 Herndon Parkway Carlson Wireless Technologies, Inc. Suite 1400 I-WLL-T Herndon, VA 20170 FCC ID: OPA-I-WLL-T http://www.rheintech.com Work Order: 2000422 Wireless Local Loop Certification Report Page 67 of 108 15.3 FXO 360 Herndon Parkway Carlson Wireless Technologies, Inc. Suite 1400 I-WLL-T Herndon, VA 20170 FCC ID: OPA-I-WLL-T http://www.rheintech.com Work Order: 2000422 Wireless Local Loop Certification Report Page 68 of 108 15.4 FXS 360 Herndon Parkway Carlson Wireless Technologies, Inc. Suite 1400 I-WLL-T Herndon, VA 20170 FCC ID: OPA-I-WLL-T http://www.rheintech.com Work Order: 2000422 Wireless Local Loop Certification Report Page 69 of 108 15.5 FXS 360 Herndon Parkway Carlson Wireless Technologies, Inc. Suite 1400 I-WLL-T Herndon, VA 20170 FCC ID: OPA-I-WLL-T http://www.rheintech.com Work Order: 2000422 Wireless Local Loop Certification Report Page 70 of 108 15.6 FXS 360 Herndon Parkway Carlson Wireless Technologies, Inc. Suite 1400 I-WLL-T Herndon, VA 20170 FCC ID: OPA-I-WLL-T http://www.rheintech.com Work Order: 2000422 Wireless Local Loop Certification Report Page 71 of 108 15.7 FXS 360 Herndon Parkway Carlson Wireless Technologies, Inc. Suite 1400 I-WLL-T Herndon, VA 20170 FCC ID: OPA-I-WLL-T http://www.rheintech.com Work Order: 2000422 Wireless Local Loop Certification Report Page 72 of 108 15.8 FXS

360 Herndon Parkway Carlson Wireless Technologies, Inc. Suite 1400 I-WLL-T Herndon, VA 20170 FCC ID: OPA-I-WLL-T http://www.rheintech.com Work Order: 2000422 Wireless Local Loop Certification Report Page 60 of 108 13 Label information 13.1 FCC ID LABEL Please see the following pages 13.2 LOCATION OF LABELS ON EUT FCC LABEL ARTWORK (FXO) 22 October, 2000 American Telecommunications Certification Body, Inc. 6731 Whittier Avenue Suite C110 McLean, VA 22101 RE: Certification Application FCC ID:OPA-I-WLL-T This is the label artwork we use for the FXO half of the I-WLL system: Part 15.247 OPA-I-WLL-T FCC Part 68: BMD USA – 27773-PT-E REN: 0.5 B IC RSS-210/139: 3448-391166A CS-03: 3448-10241A This device complies with Part 15 and Part 68 of the FCC Rules. Operation is subject to the two following conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operations. Carlson Wireless Technologies Inc. Model i-WLL-T Wire to CENTRAL OFFICE (FXO) Signatory James R. Carlson FCC LABEL ARTWORK (FXS) 22 October, 2000 American Telecommunications Certification Body, Inc. 6731 Whittier Avenue Suite C110 McLean, VA 22101 RE: Certification Application FCC ID:OPA-I-WLL-T This is the label artwork we use for the FXS half of the I-WLL system: Part 15.247 OPA-I-WLL-T FCC Part 68: BMD USA – 27773-PT-E REN: 0.5 B IC RSS-210/139: 3448-391166A CS-03: 3448-10241A This device complies with Part 15 and Part 68 of the FCC Rules. Operation is subject to the two following conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operations. Carlson Wireless Technologies Inc. Model i-WLL-T Wire to SUBSCRIBER telephone (FXS) Signatory James R. Carlson

360 Herndon Parkway Carlson Wireless Technologies, Inc. Suite 1400 I-WLL-T Herndon, VA 20170 FCC ID: OPA -I-WLL-T http://www.rheintech.com Work Order: 2000422 Wireless Local Loop Certification Report Page 73 of 108 16 INTERNAL PHOTOGRAPHS 16.1 FXO 360 Herndon Parkway Carlson Wireless Technologies, Inc. Suite 1400 I-WLL-T Herndon, VA 20170 FCC ID: OPA -I-WLL-T http://www.rheintech.com Work Order: 2000422 Wireless Local Loop Certification Report Page 74 of 108 16.2 FXO 360 Herndon Parkway Carlson Wireless Technologies, Inc. Suite 1400 I-WLL-T Herndon, VA 20170 FCC ID: OPA -I-WLL-T http://www.rheintech.com Work Order: 2000422 Wireless Local Loop Certification Report Page 75 of 108 16.3 FXO 360 Herndon Parkway Carlson Wireless Technologies, Inc. Suite 1400 I-WLL-T Herndon, VA 20170 FCC ID: OPA -I-WLL-T http://www.rheintech.com Work Order: 2000422 Wireless Local Loop Certification Report Page 76 of 108 16.4 FXO 360 Herndon Parkway Carlson Wireless Technologies, Inc. Suite 1400 I-WLL-T Herndon, VA 20170 FCC ID: OPA -I-WLL-T http://www.rheintech.com Work Order: 2000422 Wireless Local Loop Certification Report Page 77 of 108 16.5 FXO 360 Herndon Parkway Carlson Wireless Technologies, Inc. Suite 1400 I-WLL-T Herndon, VA 20170 FCC ID: OPA -I-WLL-T http://www.rheintech.com Work Order: 2000422 Wireless Local Loop Certification Report Page 78 of 108 16.6 FXO 360 Herndon Parkway Carlson Wireless Technologies, Inc. Suite 1400 I-WLL-T Herndon, VA 20170 FCC ID: OPA -I-WLL-T http://www.rheintech.com Work Order: 2000422 Wireless Local Loop Certification Report Page 79 of 108 16.7 FXO 360 Herndon Parkway Carlson Wireless Technologies, Inc. Suite 1400 I-WLL-T Herndon, VA 20170 FCC ID: OPA -I-WLL-T http://www.rheintech.com Work Order: 2000422 Wireless Local Loop Certification Report Page 80 of 108 16.8 FXO 360 Herndon Parkway Carlson Wireless Technologies, Inc. Suite 1400 I-WLL-T Herndon, VA 20170 FCC ID: OPA -I-WLL-T http://www.rheintech.com Work Order: 2000422 Wireless Local Loop Certification Report Page 81 of 108 16.9 FXO 360 Herndon Parkway Carlson Wireless Technologies, Inc. Suite 1400 I-WLL-T Herndon, VA 20170 FCC ID: OPA -I-WLL-T http://www.rheintech.com Work Order: 2000422 Wireless Local Loop Certification Report Page 82 of 108 16.10 FXO 360 Herndon Parkway Carlson Wireless Technologies, Inc. Suite 1400 I-WLL-T Herndon, VA 20170 FCC ID: OPA -I-WLL-T http://www.rheintech.com Work Order: 2000422 Wireless Local Loop Certification Report Page 83 of 108 16.11 FXO 360 Herndon Parkway Carlson Wireless Technologies, Inc. Suite 1400 I-WLL-T Herndon, VA 20170 FCC ID: OPA -I-WLL-T http://www.rheintech.com Work Order: 2000422 Wireless Local Loop Certification Report Page 84 of 108 16.12 FXO 360 Herndon Parkway Carlson Wireless Technologies, Inc. Suite 1400 I-WLL-T Herndon, VA 20170 FCC ID: OPA -I-WLL-T http://www.rheintech.com Work Order: 2000422 Wireless Local Loop Certification Report Page 85 of 108 16.13 FXO 360 Herndon Parkway Carlson Wireless Technologies, Inc. Suite 1400 I-WLL-T Herndon, VA 20170 FCC ID: OPA -I-WLL-T http://www.rheintech.com Work Order: 2000422 Wireless Local Loop Certification Report Page 86 of 108 16.14 FXS 360 Herndon Parkway Carlson Wireless Technologies, Inc. Suite 1400 I-WLL-T Herndon, VA 20170 FCC ID: OPA -I-WLL-T http://www.rheintech.com Work Order: 2000422 Wireless Local Loop Certification Report Page 87 of 108 16.15 FXS 360 Herndon Parkway Carlson Wireless Technologies, Inc. Suite 1400 I-WLL-T Herndon, VA 20170 FCC ID: OPA -I-WLL-T http://www.rheintech.com Work Order: 2000422 Wireless Local Loop Certification Report Page 88 of 108 16.16 FXS 360 Herndon Parkway Carlson Wireless Technologies, Inc. Suite 1400 I-WLL-T Herndon, VA 20170 FCC ID: OPA -I-WLL-T http://www.rheintech.com Work Order: 2000422 Wireless Local Loop Certification Report Page 89 of 108 16.17 FXS 360 Herndon Parkway Carlson Wireless Technologies, Inc. Suite 1400 I-WLL-T Herndon, VA 20170 FCC ID: OPA -I-WLL-T http://www.rheintech.com Work Order: 2000422 Wireless Local Loop Certification Report Page 90 of 108 16.18 FXS 360 Herndon Parkway Carlson Wireless Technologies, Inc. Suite 1400 I-WLL-T Herndon, VA 20170 FCC ID: OPA -I-WLL-T http://www.rheintech.com Work Order: 2000422 Wireless Local Loop Certification Report Page 91 of 108 16.19 FXS 360 Herndon Parkway Carlson Wireless Technologies, Inc. Suite 1400 I-WLL-T Herndon, VA 20170 FCC ID: OPA -I-WLL-T http://www.rheintech.com Work Order: 2000422 Wireless Local Loop Certification Report Page 92 of 108 16.20 FXS 360 Herndon Parkway Carlson Wireless Technologies, Inc. Suite 1400 I-WLL-T Herndon, VA 20170 FCC ID: OPA -I-WLL-T http://www.rheintech.com Work Order: 2000422 Wireless Local Loop Certification Report Page 93 of 108 16.21 FXS 360 Herndon Parkway Carlson Wireless Technologies, Inc. Suite 1400 I-WLL-T Herndon, VA 20170 FCC ID: OPA -I-WLL-T http://www.rheintech.com Work Order: 2000422 Wireless Local Loop Certification Report Page 94 of 108 16.22 FXS 360 Herndon Parkway Carlson Wireless Technologies, Inc. Suite 1400 I-WLL-T Herndon, VA 20170 FCC ID: OPA -I-WLL-T http://www.rheintech.com Work Order: 2000422 Wireless Local Loop Certification Report Page 95 of 108 16.23 FXS 360 Herndon Parkway Carlson Wireless Technologies, Inc. Suite 1400 I-WLL-T Herndon, VA 20170 FCC ID: OPA -I-WLL-T http://www.rheintech.com Work Order: 2000422 Wireless Local Loop Certification Report Page 96 of 108 16.24 FXS 360 Herndon Parkway Carlson Wireless Technologies, Inc. Suite 1400 I-WLL-T Herndon, VA 20170 FCC ID: OPA -I-WLL-T http://www.rheintech.com Work Order: 2000422 Wireless Local Loop Certification Report Page 97 of 108 16.25 FXS 360 Herndon Parkway Carlson Wireless Technologies, Inc. Suite 1400 I-WLL-T Herndon, VA 20170 FCC ID: OPA -I-WLL-T http://www.rheintech.com Work Order: 2000422 Wireless Local Loop Certification Report Page 98 of 108 16.26 FXS 360 Herndon Parkway Carlson Wireless Technologies, Inc. Suite 1400 I-WLL-T Herndon, VA 20170 FCC ID: OPA -I-WLL-T http://www.rheintech.…

Text truncated - open the document above for the full version.

360 Herndon Parkway Carlson Wireless Technologies, Inc. Suite 1400 I-WLL-T Herndon, VA 20170 FCC ID: OPA-I-WLL-T http://www.rheintech.com Work Order: 2000422 Wireless Local Loop Certification Report Page 59 of 108 12 Product Description The i-WLL-T Trailblazer All-Digital, Internet-Ready, Remote Phone Link is a dual line, point-to-point, spread spectrum telephone system that delivers v.34 data rates, providing email and Internet web surfing from your remote PC - as well as high-quality voice! And both lines are fully independent and will transmit either voice or data. The i-WLL-T Trailblazer breakthrough offers many advantages not found in the market today: • Never needs tuning because i-WLL-T is a 100% digital, self-configuring, eight channel system. This simplifies installation and greatly reduces the need for maintenance and service over time. • Complete privacy is assured by the fully encrypted, spread-spectrum modulation scheme. • Highly efficient spectrum use from a unique combination of FDMA and CDMA. • Seamless integration with the global telephone network assured by i-WLL-T’s worldwide ISDN system architecture with full 144 kbps bandwidth. • No individual license needed for operation - the i-WLL Trailblazer uses the globally license-exempt 2.4 GHz ISM frequency band. • Flexible voltage – low power usage - just 2 to 4 Watts at any DC voltage between 12 and 48V. • Small, lightweight, self-contained units make the Trailblazer easy to install. FXO (central office) and FXS (subscriber) units - include all electronics, antenna and RF cabling and are housed in a weatherproof enclosure just 8h x 10w x 5d inches (22h x 27w x 13d cm).

360 Herndon Parkway Carlson Wireless Technologies, Inc. Suite 1400 I-WLL-T Herndon, VA 20170 FCC ID: OPA-I-WLL-T http://www.rheintech.com Work Order: 2000422 Wireless Local Loop Certification Report Page 57 of 108 10 ANTENNA SPECIFICATIONS Patch antenna Electrical Specifications: Model No. Yagi Patch Frequency Range 2.400 –2.4835 GHz Gain 13.8 dBi 360 Herndon Parkway Carlson Wireless Technologies, Inc. Suite 1400 I- WLL-T Herndon, VA 20170 FCC ID: OPA-I - WLL-T http://www.rheintech.com Work Order: 2000422 Wireless Local Loop Certification Report Page 58 of 108 11 RF Exposure Calculations for High Gain Antennas From FCC 1.1310 table 1A, the maximum permissible RF exposure for an uncontrolled environment is 1mW/cm 2. The Electric field generated for a 1mW/cm 2 exposure (S) is calculated as follows: S = E 2 /Z where: S = Power density E = Electric field Z = Impedance. E = √S x Z 1mW/cm 2 = 10 W/m 2 The impedance of free space is 337 ohms, where E and H fields are perpendicular. Thus: E = √10 x 377 = 61.4 V/m which is equivalent to 1mW/cm 2 Using the relationship between Electric field E, Power in watts P, and distance in meters d, the corresponding Antenna numeric gain G and the transmitter output power and solving for d, d = √ P eak x 30 x G E 1. The Numeric gain G of antenna with a gain specified in dB is determined by: G = Log –1 (dB gain/10) G = Log –1 2.15 = 1.64 Notice in Installation Manual: WARNING: It is the responsibility of the professional installer to ensure that when using the outdoor antenna kits in the United States (or where FCC rules apply), only the antenna configurations shown in the table below is used. The use of any antenna other than those listed is expressly forbidden in accordance to FCC rules CFR47 part 15.204. Notice in Installation Manual: FCC Radiation Exposure Statement This equipment complies with FCC radiation exposure limits set forth for an Uncontrolled Environment when installed as directed. This equipment should be installed and operated with fix-mounted antennas that are installed with a minimum of 2 meters of separation distance between the antenna and all persons body during normal operation and the antennas as shown below: The table below identifies the distances where the 1mW/cm 2 exposure limits may be exceeded during continuous transmission using the antennas listed. Antenna Type Gain (dBi) Gain Numeric Peak output Power (mW) Calculated RF Exposure Separation Distance (cm) Minimum RF Exposure Separation Distance (m) Patch 13.8 24 55.710.32 Grid 24 251.2 55.733.42

Engineering and Testing for EMC and Safety Compliance 360 Herndon Parkway, Suite 1400 Herndon, VA 20170 Phone: 703-689-0368; Fax: 703-689-2056; Metro: 703-471-6441 APPLICATION FOR FCC CERTIFICATION DIRECT SEQUENCE SPREAD SPECTRUM TRANSMITTER Carlson Wireless Technologies, Inc. 1180-B Evergreen Road Redway, CA 95560 707-923-3000 Model: I-WLL-T FCC ID: OPA-I-WLL-T December 2, 2000 STANDARDS REFERENCED FOR THIS REPORT PART 2: 1999 FREQUENCY ALLOCATIONS AND RADIO TREATY MATTERS; GENERAL RULES AND REGULATIONS PART 15: 1999 RADIO FREQUENCY DEVICES FCC 97-114 GUIDANCE ON MEASUREMENTS FOR DIRECT SEQUENCE SPREAD SPECTRUM SYSTEMS ANSI C63.4-1992 STANDARD FORMAT MEASUREMENT/TECHNICAL REPORT PERSONAL COMPUTER AND PERIPHERALS RSS-210, Issue 3: 2000 LOW POWER LICENSE-EXEMPT RADIO COMMUNICATION DEVICES (ALL FREQUENCY BANDS) RSS-139, Issue 1: 1999 EVALUATION PROCEDURE FOR MOBILE AND PORTABLE RADIO TRANSMITTERS FCC Rules Parts Frequency Range MHz Output Power (W) Freq. Tolerance Emission Designator 15.247 2407-2468 0.0557 N/A N/A This report concerns (check one): Original Grant: X Class II Change: Equipment Type: Remote Phone Link Deferred grant requested per 47 CFR 0.457 (d) (1) (ii)? Yes: No: X If yes, defer until: Company name agrees to notify the Commission by: (date) of the intended date of announcement of the product so that the grant can be issued on that date. Transition Rules Request per 15.37? Yes: No: X If no, assumed Part 15, subpart B for unintentional radiators - the new 47 CFR. [10-1-90 Edition] provision. Document Number: 2000422 No part of this report may be reproduced without the full written approval of Rhein Tech Laboratories, Inc. 360 Herndon Parkway Carlson Wireless Technologies, Inc. Suite 1400 I-WLL-T Herndon, VA 20170 FCC ID: OPA-I-WLL-T http://www.rheintech.com Work Order: 2000422 Wireless Local Loop Certification Report Page 2 of 56 TABLE OF CONTENTS 1 GENERAL INFORMATION.................................................................................................................................3 1.1 RELATED SUBMITTAL(S)/GRANT(S...................................................................................................................3 1.2 TEST METHODOLOGY.................…

Text truncated - open the document above for the full version.
