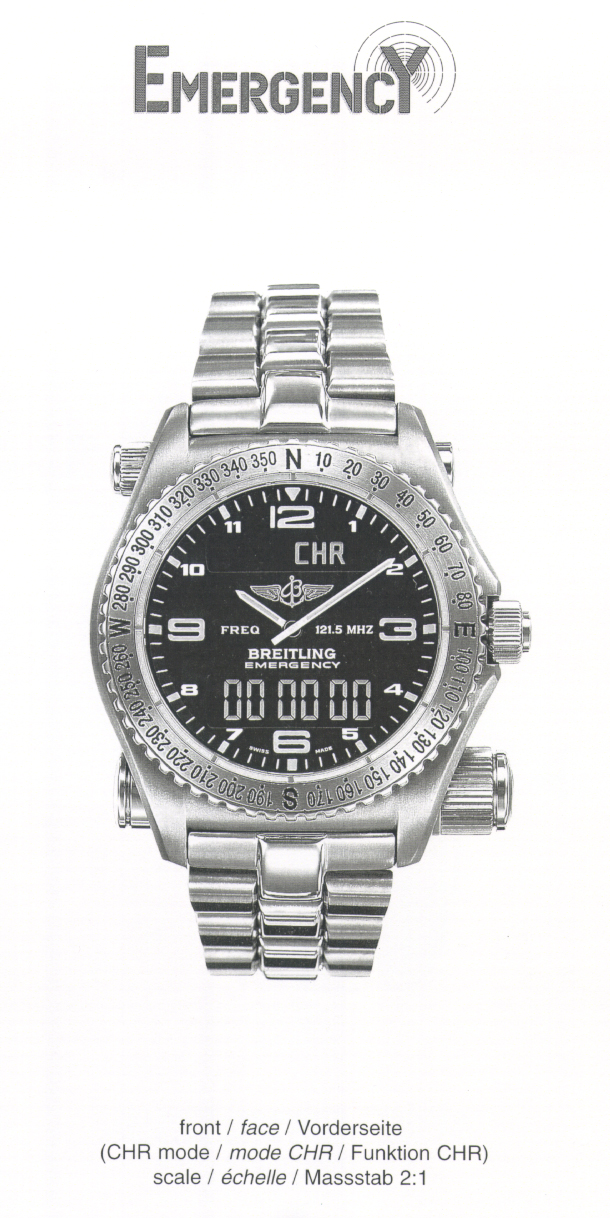

OPFE56X21-YBack-up survival instrument intended for use in the event of aviation accident.

Test Report This document and the information enclosed are INGECOM’s property. They cannot be reproduced, processed nor communicated to a third party without written authorization Date 13/06/00 Author O. Desjeux Page n° 1/5 Ref 0020 Rev 0 Update Sheet Vers. Chap. Description Date 0 Initial version 13 Jun 00 E.U.T. : Breitling Emergency watch P/N E56121.1 S/N 0019 Standard : 47CFR87.139 Diffusion Company Breitling SA Adress PO Box 1132 – 2540 Grenchen – Switzerland Name J.-P. Girardin Distribution authorization Date 13 June 2000 Name O. Desjeux Signature Test Report This document and the information enclosed are INGECOM’s property. They cannot be reproduced, processed nor communicated to a third party without written authorization Date 13/06/00 Author O. Desjeux Page n° 2/5 Ref 0020 Rev 0 Table of Contents 1. SCOPE ............................................................................................................................................ 3 2. DEFINITIONS.................................................................................................................................. 3 3. ACRONYMS ................................................................................................................................... 3 4. DETAILS OF APPLICANT ............................................................................................................. 3 5. EQUIPMENT UNDER TEST ...........................................................................................................3 6. TEST PROCEDURE ....................................................................................................................... 4 7. TEST REPORT ............................................................................................................................... 4 7.1. SUMMARY................................................................................................................................. 4 7.2. INSTRUMENTATION AND EQUIPMENT........................................................................................... 4 7.3. MEASUREMENTS....................................................................................................................... 5 7.3.1. 87.139(h) Emissions Limitations................................................................................... 5 Tests performed by : Olivier Desjeux Date : 13 June 2000 Test Site : INGECOM rue du Jura 35 2525 Le Landeron – Switzerland Test Report This document and the information enclosed are INGECOM’s property. They cannot be reproduced, processed nor communicated to a third party without written authorization Date 13/06/00 Author O. Desjeux Page n° 3/5 Ref 0020 Rev 0 1 1 . . S S c c o o p p e e Test of the Breitling Emergency watch against 47CFR87.139 The test results of this report relate exclusively to the EUT as described in chapter 5. 2 2 . . D D e e f f i i n n i i t t i i o o n n s s The Breitling Emergency watch is considered as an ELT. As such, all further references and measurement results are against ELT characteristics. 3 3 . . A A c c r r o o n n y y m m s s EUT Equipment Under Test ELT Emergency Locator Transmitter 4 4 . . D D e e t t a a i i l l s s o o f f a a p p p p l l i i c c a a n n t t Name Breitling SA Address PO Box 1132 Zip, Town 2540 Grenchen Country Switzerland Tel. +41 32 654 5454 Fax. +41 32 654 5401 Contact J.-P. Girardin e-mail [email protected] 5 5 . . E E q q u u i i p p m m e e n n t t U U n n d d e e r r T T e e s s t t Equipment type Multifunction watch with a miniature distress transmitter Part Number E56121 / E56121.1 / E56321.1 Manufacturer Breitling SA Serial Number 0019 Frequency 121.500 MHz / 70K0A3X Number of channels 1 Antenna Embedded dipole type. Radiating antenna 43cm, counterpoise 58cm Power supply 2 x 3V Lithium batteries Test Report This document and the information enclosed are INGECOM’s property. They cannot be reproduced, processed nor communicated to a third party without written authorization Date 13/06/00 Author O. Desjeux Page n° 4/5 Ref 0020 Rev 0 6 6 . . T T e e s s t t p p r r o o c c e e d d u u r r e e Test procedure : 47CFR2 Subpart N--FCC Procedure for Testing Class A, B and S Emergency Position Indicating Radiobeacons (EPIRBs) Sec. 2.1515(b) Spectral measurements. 7 7 . . T T e e s s t t r r e e p p o o r r t t 7.1. Summary No deviations from the technical specifications were ascertained in the course of the tests performed. As such, the EUT is compliant with 47CFR87.139. 7.2. Instrumentation and equipment Description Reference Serial Number Spectrum Analyzer HP141T - HP 8555A - HP8552B 120055 Frequencymeter HP5340A 1724A04553 RF Generator HP8657A 2750U00161 RX Antenna Dipole 121.5 MHz 2dBi SWR1.2 Ant121.5M Test Report This document and the information enclosed are INGECOM’s property. They cannot be reproduced, processed nor communicated to a third party without written authorization Date 13/06/00 Author O. Desjeux Page n° 5/5 Ref 0020 Rev 0 7.3. Measurements 7.3.1. 87.139(h) Emissions Limitations Test conditions Temperature Nominal (23°C) Power Supply Nominal (batteries) Antenna Nominal (embedded dipole) Authorized bandwidth : ± 25 KHz Fo Fo + (BW x 50%) Fo - (BW x 50%) Fo + (BW x 100%) Fo - (BW x 100%) Measured - 41 dBc - 45 dBc - 54 dBc - 54 dBc Required - 25 dBc - 25 dBc - 30 dBc - 30 dBc I.F. 100 Hz Video Filter Off Scan Time 100 msec./div. Amplitude 10dB/div. Scan width 20 KHz/div. Frequency 121.3751 MHz I.F. 100 KHz Video Filter Off Scan Time 5 msec./div. Amplitude 10dB/div. Scan width 200 KHz/div. Frequency 121.3751 MHz
