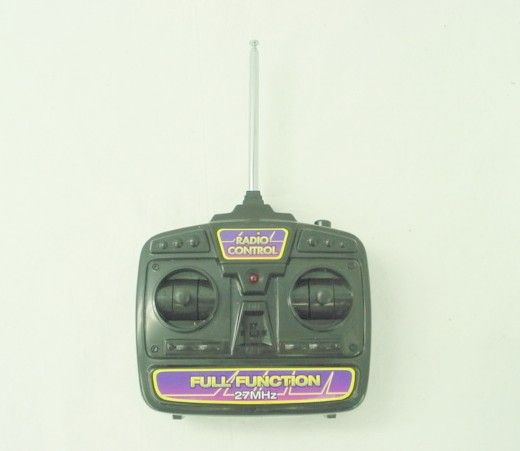

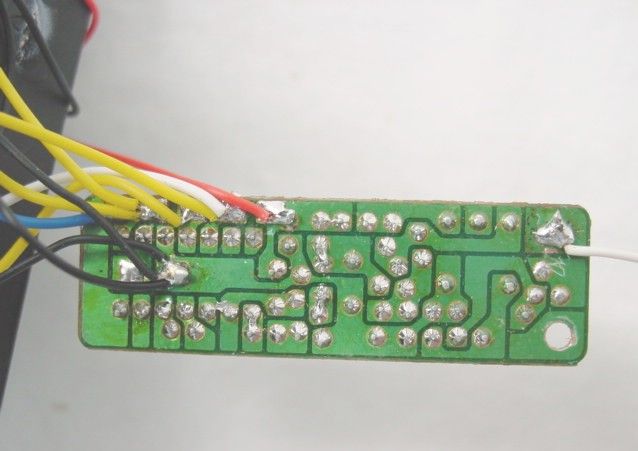

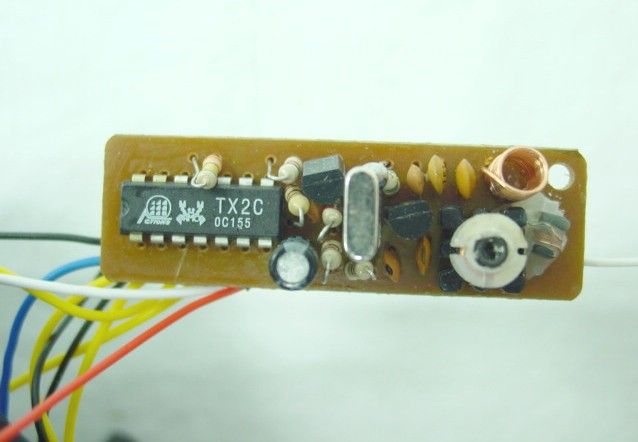

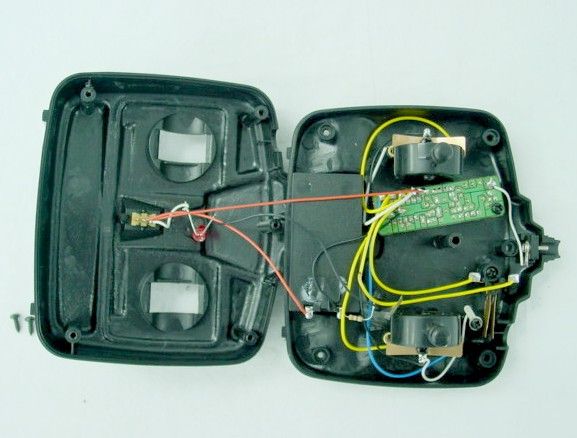

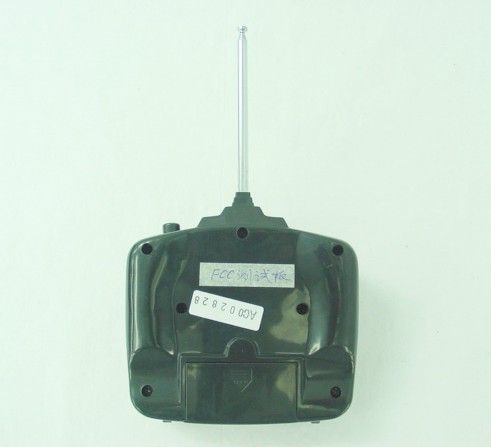

Operation Description of transmitter for remote control toy car The transmitter for remote control toy car is operating at 27.145 MHz which is controlled by a crystal. It is powered a 9V battery. There is an ON/OFF switch, a pair of control levers on its left and right side to control the forward as well as backward moving and circular path respectively. It also has a button on the right side featuring a jumping function. Refer to the circuit design, the circuit description is listed as follows : - IC1 and associated circuit act as encoding - Q1 and associated circuit act as modulation - X1, Q2 and associated circuit act as oscillation and amplification

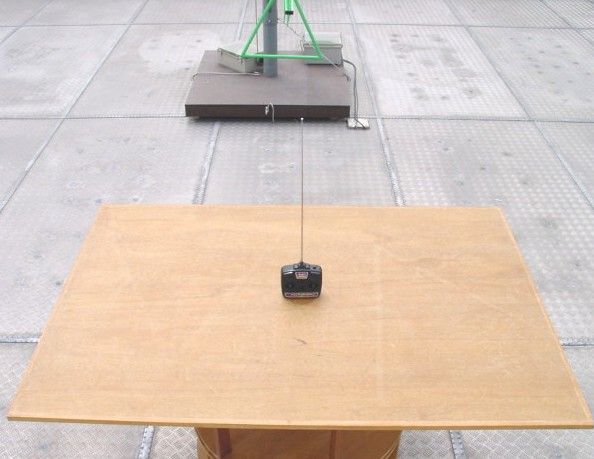

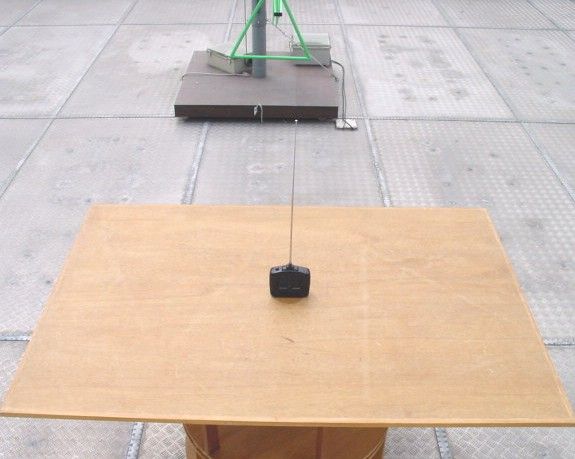

TEST REPORT This document shall not be reproduced either in full or in part except with written approval by the Authorized Representative of CMA Testing. Room 1401-3, Yan Hing Centre, 9-13 Wong Chuk Yeung St.., Fo Tan, Shatin, Hong Kong. Tel: (852) 2698 8198 Fax: (852) 2695 4177 E-mail: [email protected] Web Site: http://www.cmatcl.com This report is restricted by the Terms and Conditions as stated on the back page of the application form or it can be provided on request. Report No. : AC002828 Date : 2002 March 19 Client : High Champion Limited Room 1901, 19/F., Block A, Kailey Ind. Ctr., 12 Fung Yip Street, Chai Wan, Hong Kong. Sample Description : Sample stated to be : Description : Radio Control Toys Model No. : 3003, 3006, 3007, 3008, 3009, 8610, 8620, 8630, 8640 and 8650 Rating : 1 x 9V battery No. of sample(s) : One(1) piece *** Date Received : 2002 March 05. Test Period : 2002 March 05 – 2002 March 11. Test Requested : FCC Part 15 Certification Test Method : FCC Rules and Regulations Part 15 – May 2001 ANSI C63.4 – 1992 Test Result : See attached sheet(s) from page 2 to 10. Conclusion : The submitted sample was found to comply with requirement of FCC Part 15 Subpart C. Remark : All nine models are the same in circuitry and components and construction, and therefore model 3003 was chosen to be the representative of the test sample. For and on behalf of CMA Testing and Certification Laboratories Authorized Signature : Page 1 of 10 Danny Chui EMC Engineer - EL. Division FCC ID : OPMHC20023006 TEST REPORT This document shall not be reproduced either in full or in part except with written approval by the Authorized Representative of CMA Testing. Room 1401-3, Yan Hing Centre, 9-13 Wong Chuk Yeung St.., Fo Tan, Shatin, Hong Kong. Tel: (852) 2698 8198 Fax: (852) 2695 4177 E-mail: [email protected] Web Site: http://www.cmatcl.com This report is restricted by the Terms and Conditions as stated on the back page of the application form or it can be provided on request. Report No. : AC002828 Date : 2002 March 19 Table of Contents 1 General Information ..................................................................................................................... 3 1.1 General Description ................................................................................................................ 3 1.2 Related Submittal Grants ........................................................................................................ 3 1.3 Location of the test site ........................................................................................................... 4 1.4 List of measuring equipment .................................................................................................. 5 2 Description of the radiated emission test ..................................................................................... 6 2.1 Test Procedure ........................................................................................................................ 6 2.2 Test Result .............................................................................................................................. 6 2.3 Radiated Emission Measurement Data ................................................................................... 7 3 Description of the Line-conducted Test .......................................................................................8 3.1 Test Procedure ........................................................................................................................ 8 3.2 Test Result .............................................................................................................................. 8 3.3 Graph and Table of Conducted Emission Measurement Data................................................ 8 4 Photograph.................................................................................................................................... 9 4.1 Photographs of the Test Setup for Radiated Emission and Conduction Emission ................. 9 4.2 Photographs of the External and Internal Configurations of the EUT.................................... 9 5 Supplementary document ............................................................................................................. 9 5.1 Bandwidth............................................................................................................................... 9 6 Appendices ................................................................................................................................. 10 Page 2 of 10 FCC ID : OPMHC20023006 TEST REPORT This document shall not be reproduced either in full or in part except with written approval by the Authorized Representative of CMA Testing. Room 1401-3, Yan Hing Centre, 9-13 Wong Chuk Yeung St.., Fo Tan, Shatin, Hong Kong. Tel: (852) 2698 8198 Fax: (852) 2695 4177 E-mail: [email protected] Web Site: http://www.cmatcl.com This report is restricted by the Terms and Conditions as stated on the back page of the application form or it can be provided on request. Report No. : AC002828 Date : 2002 March 19 1 General Information The equipment under test (EUT) is a transmitter for remote control toy car operating at 27.145 MHz which is controlled by a crystal. The EUT is powered a 9V battery. The EUT has an ON/OFF switch, a pair of control levers on its left and right side to control the forward as well as backward moving and circular path respectively. It also has a button on the right side featuring a jumping function. The brief circuit description is listed as follows : - IC1 and associated circuit act as encoding - Q1 and associated circuit act as modulation - X1, Q2 and associated circuit act as oscillation and amplification The models 3006, 3007, 3008, 3009, 3610, 8620, 8630, 8640 and 8650 are the same as model 3003 in hardware aspect. The difference in model numbers serves as marketing strategy. 1.1 General Description 1.2 Related Su…
