DATASHEET PAC INTERNATIONAL LTD, 1 Park Gate Close, Bredbury, Stockport, SK6 2SZ, England Tel: +44 (0) 161 406 3400. Fax: +44 (0) 161 430 8658 www.pac.co.uk Easikey Readers Mullion, Vandal Resistant and Panel Mount 17063 Ver 1.6 DRAFT B January 2003 ‰20377Mullion Reader-Black ‰20387Mullion Reader-White ‰20378Vandal Resistant Reader-Steel ‰20388Vandal Resistant Reader-Brass ‰20421Panel Mount Reader CAUTION These readers are suitable for connection to Easikey and Easikey 1000 only. They should not be connected to any other type of equipment (e.g. PAC 2100/2200 series). 1. Introduction MullionVandal Resistant *Panel Mount * Items Enclosed Mullion readerVandal resistant readerPanel mount reader and head 4 terminal screws4 terminal screws4 terminal screws MOVMOVMOV Mounting backplate4 x 1¼" No. 8 VR screwsLexan window and backplate Label 2 x 1" No.6 self-tapping screws A special screwdriver (available separately) is required for the Vandal Resistant (VR) screws. Note The readers come with a 6-wire suppression lead that should be installed as described in this datasheet. This cable must be installed to comply with CE regulations. Dimensions H x W x D mm 83 x 3.38 x 12 H x W x D mm 100 x 100 x 12 H x W x D mm 92 x 62 x 15 Reader 60 x 60 x 12 Head Maximum Reading Range 25mm8mm8mm Introduction 17063 Ver 1.6 DRAFT B 2Easikey Readers Specification for all readers Operating Temperature:-40C to +50C Current: 90mA (maximum) Supply Voltage: 9-16v DC (supplied by the controller) Cable Type: 4 or 6-conductor, multi-stranded, unscreened Cable Distances: Up to 100m from controller using 7/0.2 (0.22mm²) RFID Devices As similar RFID technology is now widely used in a number of other industries, for example automotive immobilisers, it is possible that interaction between your access control ID and other devices may cause one or the other to function incorrectly. Should you suspect that you have experienced such a problem the solution is to separate your access control ID from other RFID devices. FCC Notice This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Mullion ReaderFCC ID OQL-EK-MUL Vandal Resistant ReaderFCC ID OQL-EK-VN Panel Mount ReaderFCC ID OQL-EK-PNL Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. Installation 17063 Ver 1.6 DRAFT B 3Easikey Readers 2. Installation 2.1 Mullion Reader - Installation 84 10 3 60 38 12 12 4 A B This reader comes in two parts, the reader itself (A) with 4 terminals and the backplate (B). The backplate has a 3mm rubber spacer at the rear. 2.1.1 Fixing the Reader 1. The cable from the controller should be routed through the aperture in the backplate. Leave enough cable exposed to allow easy wiring of the reader (at least 20mm). Note There is limited room between the reader and backplate. You should ensure there is a void large enough behind the backplate to accommodate any excess on the suppression cable. 2. Fix the backplate to a flat surface using the No.6 screws provided - or a fixing suitable for the material to which the reader is being mounted. The two holes are 60mm apart. Use the top (round) hole first, and the lower (oval) hole to ensure the reader is straight. 3. Ensure that the reader cable is not connected to the controller. Wire the reader to the cable as described in the documentation supplied with the controller. 4. Push the reader, with the green LED to the top, onto the backplate, the fixing tabs on each side should snap into place. 5. 5. Place label on front of reader. 2.2 Removing the Reader The reader can be removed from the backplate by placing a small flat-bladed screwdriver into the apertures on each side of the backplate. Take care not to damage the reader or backplate. Vandal Resistant Reader - Installation 17063 Ver 1.6 DRAFT B 4Easikey Readers 3. Vandal Resistant Reader - Installation 12 100 100 70 705 5 This reader should be mounted using the Vandal Resistant screws provided. Note A special screwdriver (not supplied) is required to use these screws. 3.1 Fixing the Reader The cable from the controller should come to the rear of the reader. Leave enough cable exposed to allow easy wiring of the reader (at least 20mm). Note The terminals protrude 5mm from the rear of the reader. You should ensure there is a void large enough (about 40mm square and 20mm deep) behind the reader to accommodate the terminals and excess suppression cable. 1. Ensure that the reader cable is not connected to the controller. Wire the reader to the cable as described in the documentation supplied witrh the controller. 2. Apply a silicone sealant to the terminals to protect against moisture if the reader is mounted outside. 3. Fix the reader to as flat and even a surface as possible. This will reduce the possibility of it being levered from the wall. Either use the Vandal Resistant screws provided, or other suitable fixings. The LED should be to the top. Panel Mount Reader - Installation 17063 Ver 1.6 DRAFT B 5Easikey Readers 4. Panel Mount Reader - Installation 9070 60 42 14 60 48 40 60 4 60 ABCD E F G 15 This reader is designed to be mounted in a steel panel (E), such as used in a door-entry system. There are two main units; the main module, a black rectangular unit, connected by a fixed length of cable to a reading head. The cable between the two parts is fixed, 60mm long and should not be cut, extended or shortened. 4.1 Panel Aperture The reading head is designed to fit a 40mm square hole. Holes on the reading head, 48mm between centres, accept M3 fixing studs (F). The studs should be at least 15mm long. The front cover (A) protrudes 2.5mm through the aperture. 4.2 Locating the Main Module Mount the module in a convenient place behind the panel. The hole…

Text truncated - open the document above for the full version.

Covering letter for FCC Form 731 Attachments 0.459 Request that submitted material be withheld from Public Inspection FCC ID OQL-EK-MUL It is requested that the following exhibits be withheld from Public Inspection: • Operational Description • Schematic Diagram • Block Diagram • Internal Photos This information is considered to be PAC International proprietary and confidential. The unit is supplied fully encapsulated in hard potting - the design features are not evident from inspection hence reverse engineering is extremely problematic. This unit is believed to have a commercial advantage over our competition – revealing details of the design to our competitors would put us at a disadvantage. We therefore request that the above-listed items are withheld from public inspection. Shaun Byrne Principal Engineer PAC International Ltd

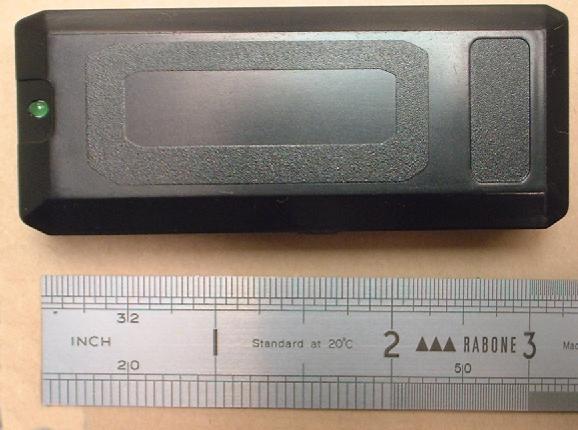

EXTERNAL PHOTOS

IDENTIFICATION LABELS The labels below are fitted as shown in the photo. The unit is marketed under the model numbers 20391, 20391/2 (white finish) and 20382, 20382/2 (black finish). The labels are made of polycarbonate. The adhesive is 3M468 (or equivalent). The label quality and adhesion satisfies UL requirements. FCC ID: OQL-EK-MUL cause undesired operation. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may 708/2

Page 1 of 15 Member of the SGS Group (Société Générale de Surveillance) Registered in England No. 1193985. Registered Office: Inward Way, Rossmore Business Park, Ellesmere Port, Cheshire, CH65 3EN. SGS United Kingdom Ltd. International Electrical Approvals abc South Industrial Estate Bowburn Co. Durham DH6 5AD United Kingdom Tel: +44 (0) 191 377 2000 Fax: +44 (0) 191 377 2020 email: [email protected] Electromagnetic Compatibility Test of: RF Card Entry System Model Number: Refer to page 5 Applicant: PAC International Ltd Test Type: Compliance Test Specification: Test Result: FCC CFR47, parts 15.107, 15.109, 15.207 and 15.209 Complied SGS Serial Number: DUR 24095.1/EMC/LS/02 Date of Receipt: 10 th June 2002 Date of Test(s): 10 th June 2002 – 20 th June 2002 Date of Issue: 10 th January 2003 Issue Number: 4 This report refers only to the sample submitted for test. This report shall not be reproduced except in full without the written approval of the testing laboratory. Test EngineerAuthorised Signatory L.SteelA. Reynard Technical Manager abc TEST REPORT Page 2 of 15 Issue Date:10 th January 2003 SGS Serial Number:DUR24095.1/EMC/LS/02 Issue Number: 4 CONTENTSPage Number 1. Client Information ........................................................................................................................... 3 2. Details Of Test Laboratory............................................................................................................. 3 3. Equipment Under Test (EUT) ........................................................................................................ 4 3.1 Identification Of EUT...................................................................................................................................................... 4 4. Test Specification, Methods and Procedures ............................................................................. 5 4.1 Test Specification(s) ...................................................................................................................................................... 5 4.2 Purpose Of Test............................................................................................................................................................. 5 4.3 Methods and Procedures............................................................................................................................................... 5 EUT System Diagram............................................................................................................................ 6 5. Deviations or Exclusions from the Test Specifications ............................................................. 7 6. Operation of the EUT During Testing / Configuration and Peripherals .................................... 7 6.1 Operation of EUT during testing. ................................................................................................................................... 7 6.2 Configuration and Peripherals ........................................................................................................................................ 7 7. Test Results .................................................................................................................................... 8 7.1 General Comments........................................................................................................................................................ 8 7.2 Modifications Made to the EUT...................................................................................................................................... 8 7.3 Summary of Test Results .............................................................................................................................................. 8 7.4Conducted Emissions Test Results – 15.107/15.207 ............................................................. 9 7.5Radiated Emissions Test Results – 15.109.......................................................................... 12 7.6Radiated Emissions Test Results – 15.209.......................................................................... 14 abc TEST REPORT Page 3 of 15 Issue Date:10 th January 2003 SGS Serial Number:DUR24095.1/EMC/LS/02 Issue Number: 4 1. Client Information Company Name: PAC International Ltd Address: 1 Park Gate Close, Bredbury, Stockport, SK6 2SZ. Contact Person: Shaun Byrne Telephone: 0161 406 3400 Facsimile: 0161 430 8658 2. Details Of Test Laboratory Company Name: SGS International Electrical Approvals UKAS Accreditation Number: 1116 Address: South Industrial Estate, Bowburn, Co. Durham, DH6 5AD. Contact Persons: Mr Alan Reynard Telephone: 0191 377 2000 Facsimile: 0191 377 2020 abc TEST REPORT Page 4 of 15 Issue Date:10 th January 2003 SGS Serial Number:DUR24095.1/EMC/LS/02 Issue Number: 4 3. Equipment Under Test (EUT) 3.1Identification Of EUT Model Number: Refer to page 5. Unique Identifier: Refer to page 5 Description of EUT: RF Card Entry System Internal Clock Frequencies: Refer to page 5. Supply Voltage: (To Controller) 12 or 15v dc via ac/dc adapter (see page 5) NOTE: All other parts of the system obtain their power via the controller. Classification: Refer to page 5. Accessories Supplied: Refer to page 5. abc TEST REPORT Page 5 of 15 Issue Date:10 th January 2003 SGS Serial Number:DUR24095.1/EMC/LS/02 Issue Number: 4 4. Test Specification, Methods and Procedures 4.1Test Specification(s) Specification(s)Title FCC CFR 47 : October 1999 Parts 15.107/15.207, 15.109 and 15.209 Code Of Federal Regulations 4.2Purpose Of Test 1) To test the whole system to clauses 15.107/15.207 and 15.109 2) To test the 20373 front panel card reader only, to the requirements of 15.209 (Upto 30 MHz only). 4.3Methods and Procedures The standard listed above refers to the following tests: - CFR 47 ClauseTest 15.107/15.207Conducted Emissions (Intentional and Unintentional Radiators) 15.109 (30-1000 MHz) Radiated Emis…

Text truncated - open the document above for the full version.

Page 1 of 10 Member of the SGS Group (Société Générale de Surveillance) Registered in England No. 1193985. Registered Office: Inward Way, Rossmore Business Park, Ellesmere Port, Cheshire, CH65 3EN. SGS United Kingdom Ltd. International Electrical Approvals abc South Industrial Estate Bowburn Co. Durham DH6 5AD United Kingdom Tel: +44 (0) 191 377 2000 Fax: +44 (0) 191 377 2020 email: [email protected] Electromagnetic Compatibility Test of: RF Card Entry Reader Model Number: 20382 Applicant: PAC International Ltd Test Type: Compliance Test Specification: Test Result: FCC CFR47, part 15.209 (up-to 30 MHz) only. Complied SGS Serial Number: DUR 24095.4/EMC/LS/02 Date of Receipt: 20 th June 2002 Date of Test(s): 20 th June 2002 Date of Issue: 10 th January 2003 Issue Number: 3 This report refers only to the sample submitted for test. This report shall not be reproduced except in full without the written approval of the testing laboratory. Test EngineerAuthorised Signatory L.SteelA. Reynard Technical Manager abc TEST REPORT Page 2 of 10 Issue Date:10 th January 2003 SGS Serial Number:DUR24095.4/EMC/LS/02 Issue Number: 3 CONTENTSPage Number 1. Client Information ........................................................................................................................... 3 2. Details Of Test Laboratory............................................................................................................. 3 3. Equipment Under Test (EUT) ........................................................................................................ 4 3.1 Identification Of EUT...................................................................................................................................................... 4 4. Test Specification, Methods and Procedures ............................................................................. 5 4.1 Test Specification(s) ...................................................................................................................................................... 5 4.2 Purpose Of Test............................................................................................................................................................. 5 4.3 Methods and Procedures............................................................................................................................................... 5 5. Deviations or Exclusions from the Test Specifications ............................................................. 6 6. Operation of the EUT During Testing / Configuration and Peripherals .................................... 7 6.1 Operation of EUT during testing. ................................................................................................................................... 7 6.2 Configuration and Peripherals ........................................................................................................................................ 7 7. Test Results .................................................................................................................................... 8 7.1 General Comments........................................................................................................................................................ 8 7.2 Modifications Made to the EUT...................................................................................................................................... 8 7.3 Summary of Test Results ............................................................................................................................................... 8 7.4Radiated Emissions Test Results – 15.209............................................................................ 9 abc TEST REPORT Page 3 of 10 Issue Date:10 th January 2003 SGS Serial Number:DUR24095.4/EMC/LS/02 Issue Number: 3 1. Client Information Company Name: PAC International Ltd Address: 1 Park Gate Close, Bredbury, Stockport, SK6 2SZ. Contact Person: Shaun Byrne Telephone: 0161 406 3400 Facsimile: 0161 430 8658 2. Details Of Test Laboratory Company Name: SGS International Electrical Approvals UKAS Accreditation Number: 1116 Address: South Industrial Estate, Bowburn, Co. Durham, DH6 5AD. Contact Persons: Mr Alan Reynard Telephone: 0191 377 2000 Facsimile: 0191 377 2020 abc TEST REPORT Page 4 of 10 Issue Date:10 th January 2003 SGS Serial Number:DUR24095.4/EMC/LS/02 Issue Number: 3 3. Equipment Under Test (EUT) 3.1Identification Of EUT Model Number: 20382 Unique Identifier: 1973947 Description of EUT: RF Card Entry Reader Internal Clock Frequencies: (Maximum) 614 kHz Supply Voltage: 12V DC from a Controller (Controller supply = 120 V AC, 60 Hz) Classification: Intentional and Unintentional Radiator Accessories Supplied: 21446/2 Easikey 1000+ Controller (Manufactured by PAC International) abc TEST REPORT Page 5 of 10 Issue Date:10 th January 2003 SGS Serial Number:DUR24095.4/EMC/LS/02 Issue Number: 3 4. Test Specification, Methods and Procedures 4.1Test Specification(s) Specification(s)Title FCC CFR 47 : October 1999 Part 15.209 only Code Of Federal Regulations 4.2Purpose Of Test To perform the radiated emissions test to the above specification in the frequency range 9 kHz to 30 MHz only, as requested by the client. 4.3Methods and Procedures The standard listed above refers to the following tests: - CFR 47 ClauseTest 15.209Radiated Emissions abc TEST REPORT Page 6 of 10 Issue Date:10 th January 2003 SGS Serial Number:DUR24095.4/EMC/LS/02 Issue Number: 3 5. Deviations or Exclusions from the Test Specifications There were no deviations from the test specifications. abc TEST REPORT Page 7 of 10 Issue Date:10 th January 2003 SGS Serial Number:DUR24095.4/EMC/LS/02 Issue Number: 3 6.Operation of the EUT During Testing / Configuration and Peripherals 6.1Operation of EUT during testing. Refer to individual test results sections for details of EUT operation during testing. 6.2Configuration and Periphera…

Text truncated - open the document above for the full version.

abc TEST REPORT Page 10 of 10 Issue Date:14th November 02 SGS Serial Number:DUR24095.4/EMC/LS/02 Issue Number: 1 Radiated Emissions Test Configuration Radiated Emissions Environmental Conditions Power Supply (to controller) 120V AC, 60 Hz Temperature 13°C Relative Humidity 59% Barometric Pressure 976mb Radiated Emissions Measurement Uncertainties Frequency ± 200kHz Amplitude ± 4.6dB The uncertainties stated are calculated in accordance with the requirements of UKAS with a confidence level of 95%. Test Equipment Used Equipment TypeModel Number Loop AntennaEMCO 6502 Spectrum AnalyserHP8563E
