Designer and Vandal-Resistant Readers Installation Guide Designer und Vandal-Resistant Lesers Installationsanleitung Designer et Vandal-Resistant Lecteurs Guide d'installation Designer y Vandal-Resistant Lectores GuĂa de instalaciĂłn Designer och Vandal-Resistant Läsare Installationsanvisningar Designer en Vandal-Resistant Lezers Installatiehandleiding T81153v2.2 14104 Mar 05 2 T81153v2.2 Reader Part Numbers / Leser Teilnummern / NumĂ©ros de pièces du lecteur / NĂşmeros de pieza del lector / Läsarens Artikelnummer/ Lezer Productnummers black/ schwarz/ noir/ negro/ svart/ zwart grey/ grave/ grise/ grid white/ weiĂź/ blanc/ blanco/ vit/ wit Mullion Designer 21N-MPR- BLACK 21N-MPR- GREY 21N-MPR- WHITE Standard Designer 21N-SPR- BLACK 21N-SPR- GREY 21N-SPR- WHITE Vandal-Resistant 21N-VPR-SS Card/Token Part Numbers / Karten/Token Teilnummern / NumĂ©ros de pièces de carte/fiche / NĂşmeros de pieza de la tarjeta/ficha / Kort/Nyckel Artikelnummer / Passen/Penningen Productnummers Card/Karten/Kort/Passen x10 11N-PT-10 With Magstripe//Mit Magnetstreifen/avec bande magnĂ©tique/ Con banda magnĂ©tica/med magnetremsa x10 11N-MPT-10 Token/Nyckel /Penningen x10 11N-FPT-10 Specification / Spezifikation / SpĂ©cification / Especificaciones / Specifikation / Specificaties / ćŠ€ćśŻč§„ć Ľ Card Range Token Range Power Current Mullion Designer up to 3.5in/90mm up to 1.9in/50mm +10.5 to +28V <100mA Standard Designer up to 7.8in/200mm up to 1.9in/50mm +10.5 to +28V <100mA Vandal-Resistant up to 1.9in/50mm up to 1.9in/50mm +10.5 to +20V <85mA Temperature / Temperatur / TempĂ©rature / Temperatura / Temperatur / Temperatuur Operating -3 to 130ÂşF/-20 to +55ÂşC; Storage -35 to175ÂşF/-30 to +80ÂşC Humidity / Feuchtigkeit / HumiditĂ© / Humedad / Luftfuktighet / Vochtigheid Operating 10 to 85% RH at 85 ± 4ÂşF/30 ± 2ÂşC for 24 hours Ingress Protection / Eindringschutz / Protection contre l'entrĂ©e / ProtecciĂłn de acceso / Kapsling / Stofbescherming IP 66 FCC Mullion Designer FCC ID OQL-R-DM Standard Designer FCC ID OQL-R-DS Vandal-Resistant FCC ID OQL-R-VN This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. In compliance with FCC requirement 15.27 no special accessories are required in order to comply with part 15 of the FCC regulations. Changes or modifications not expressly approved by Stanley Security Solutions could void the user's authority to operate the equipment. T81153v2.2 3 Connections/ AnschlĂĽsse / Connexions / Conexiones / Anslutningar / Voedingsaansluitingen All dimensions ins/mm / Alle AusmaĂźe in zoll/mm / Toutes dimensions en pce/mm / Todas las dimensiones en pulg./mm /Alla mĂĄtt i tum/mm / Alle afmetingen inch/mm Mullion Designer A 10.5-28V (10.5-20V for Vandal-Resistant) B SIG/D1/DATA/SIGNAL C LED D GND/0V E D0/CLK F Tamper/Sabotage/Effraction/Manip.fraud./Manip/Tamper G Sounder/Signaltongeber/ Alarme sonore/Sonido/Ljudsignal/Alarm H Not used/Nicht verwendet/N'est pas utilisĂ©/ No se utiliza/Används inte/Niet gebruikt Standard Designer Vandal-Resistant A Red/Rot/Rouge/Rojo/Röd/Rood B White/WeiĂź/Blanc/Blanco/Vit/Wi C Brown/Braun/Marron/MarrĂłn/Brun/Bruin D Black/Schwarz/Noir/Negro /Svart/Zwart E Green/GrĂĽn/Vert/Verde/Grön/Groen F Blue/Blau/Bleu/Azul/BlĂĄ/Blauw G Yellow/Gelb/Jaune/Amarillo/Gul/Geel Output Format Selection / Wahl des Ausgabeformats / SĂ©lection de format de sortie / SelecciĂłn de formato de salida / Val av utdataformat / Selectie van uitvoerformaat Connections/AnschlĂĽsse/ Verbindingen/Conexiones/ Anslutningar/ Connexions No. of flashes/ Zahl der Blinkvorgänge/ Nb. de clignotements/ NĂşm. de destellos/Aantal flitsen/ Antal blinkningar Stanley (default/vorgabe/ standaard/por defecto) C-B - 0 Wiegand 26-bit C-E - 1 Wiegand 34-bit C-B G-E 2 Magstripe/gnetstreifen/ magnetremsa - G-E 4 Barcode C-E G-B 5 4 T81153v2.2 Installation 1. Ensure your product comes with the items indicated on page 2; if not please contact your dealer. 2. Mounting on metal surfaces will reduce the reader range. 3. Mount readers >3ft/1m apart. 4. For outside readers, use corrosion-resistant fasteners and silicone sealant on terminals. 5. The Metal Oxide Varistor (MOV) should be fitted across the power terminals of the lock. 6. After installation of a Designer Reader, fill the connector well with silicone to seal it. Stanley recommend a high-quality sealant like Dow Corning Type 732. Output Format Selection 1. Short together the connections indicated in the table on page 3. 2. Apply power for 2 seconds 3. Separate all connections. 4. Re-apply power. 5. LED flashes to indicate ouput format set in the table on page 3. Installation 1. ĂśberprĂĽfen Sie, ob Ihr Produkt die einzelteile angezeigt auf Seite 2. Wenn nicht, wenden Sie sich bitte an Ihren Händler. 2. Die Befestigung an den Metalloberflächen verringert die Leserstrecke. 3. Leser im Abstand von > 3 FuĂź/1 m anbringen. 4. FĂĽr Leser im Freien korrosionsbeständige Befestigungselemente und Silikondichtungsmittel an den AnschlĂĽssen verwenden. 5. Der MOV sollte ĂĽber die StromanschlĂĽsse des Schlosses angebracht werden. 6. Nach der Installation von einnem Designer Leser, den Stecker vollständig mit Silikon fĂĽllen, um ihn zu versiegeln. Stanley empfehlen ein hochwertiges Dichtungsmittel wie Dow Corning Art 732. Wahl des Ausgabeformats 1. Die AnschlĂĽsse wie auf der nachfolgenden Tabelle angegeben auf Seite 3 miteinander kurzschlieĂźen. 2. 2 Sekunden lang Strom anlegen. 3. Alle AnschlĂĽsse trennen. 4. Nochmals Strom anlegen. 5. Die LED Blitze, zum des ouput Formats anzuzeigen stellten in die Tabelle auf Seite 3 ein. Installation 1. VĂ©rifiez que votre produit contient toutes les articles indiquĂ©s Ă la page 2. En cas de pièce manquante , contactez votre distributeur 2. Le montage sur des surfaces en mĂ©tal rĂ©duira la gamme de lecteur. 3. Monter les lecteurs Ă de telle sorte qu'ils soient espacĂ©s d'1 m…
Text truncated - open the document above for the full version.
SSS - Europe TRL 51F047 iss02B LETTER OF AGENCY 08/11/2007 TRL Compliance Ltd Long Green Forthampton Gloucester GL19 4QH UK To Whom It May Concern: We certify that we are not subject to denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse ACT of 1988, U.S.C. 862. Further, no party, as defined in 47 CFR 1.2002(b), to the application, is subject to denial of federal benefits, that includes FCC benefits. Thank you for your attention to this matter. Thank you for your attention to these matters. Yours faithfully Stanley Security Solutions, - Europe Limited 1 Park Gate Close Bredbury Stockport, SK6 2SZ Naseer Nazar Software Hardware Engineer (Stockport) Phone: +44 (0)161 406 3474 Fax: +44 (0)161 430 8658
SSS - Europe TRL 51F050 iss02B REQUEST FOR CONFIDENTIALITY I N ACCORDANCE WITH FCC RULE 0.459 13/11/07 TRL Compliance Ltd Long Green Forthampton Gloucester GL19 4QH UK RE: Certification Application FCC ID: OQL-R-VN To Whom It May Concern: Please be advised that the following information is to be held confidential on behalf of Stanley Security Solutions. • Bill of Materials • Operational Description • Schematic Diagram • Block Diagram • Internal Photos The application contains technical information which Stanley Security Solutions deems to be trade secrets and propriety. If made public, the information might be used to the disadvantage of the applicant in the market place. Thank you for your attention to this matter. Yours faithfully Stanley Security Solutions, - Europe Limited 1 Park Gate Close Bredbury Stockport, SK6 2SZ Naseer Nazar Software Hardware Engineer (Stockport) Phone: +44 (0)161 406 3474 Fax: +44 (0)161 430 8658

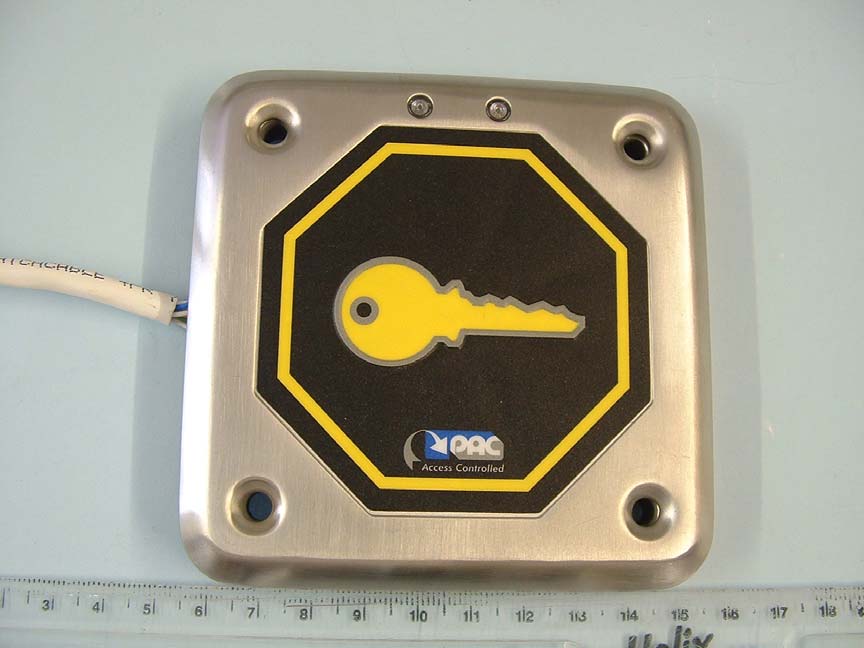

Front Of EUT Rear Of EUT
SSS - Europe IDENTIFICATION LABELS The labels below are fitted as shown in the photo. The unit is marketed under various part numbers, all having common hardware and firmware but differing in cosmetic aspects such as color, housing style etc. All units bearing the Model Number “PR006” covered by the scope of this submission. The labels are made of polycarbonate. The adhesive is 3M468 (or equivalent). The label quality and adhesion satisfies UL requirements. Label UL approval will be sought. Once the unit is approved, the UL logo and details will also be added to the label. The label is made of polycarbonate. The adhesive is 3M468 (or equivalent). The label quality and adhesion satisfies UL requirements. Rear Label
REPORT ON THE CERTIFICATION TESTING OF A STANLEY SECURITY SOLUTIONS EUROPE Ltd VANDAL RESISTANT READER WITH RESPECT TO THE FCC RULES CFR 47, PART 15.209 May 2007 INTENTIONAL RADIATOR SPECIFICATION TEST REPORT NO: RU1357/7980 COPY NO: 2 ISSUE NO: 1 FCC ID: OQL-R-VN REPORT ON THE CERTIFICATION TESTING OF A STANLEY SECURITY SOLUTIONS EUROPE Ltd VANDAL RESISTANT READER WITH RESPECT TO THE FCC RULES CFR 47, PART 15.209 May 2007 INTENTIONAL RADIATOR SPECIFICATION TEST DATE: 21 st – 25 th June 2007 TESTED BY: D. WINSTANLEY APPROVED BY: J CHARTERS RADIO SECTION LEADER DATE: 26 th November 2007 Distribution: Copy Nos: 1. Stanley Security Solutions Europe Limited 2. FCC EVALUATION LABORATORIES 3. TRL Compliance Ltd THIS DOCUMENT MAY BE REPRODUCED ONLY IN ITS ENTIRETY AND WITHOUT CHANGE RF335U iss03B RU1357/7980 Page 3 of 28 CONTENTS PAGE CERTIFICATE OF CONFORMITY & COMPLIANCE 3 APPLICANT’S SUMMARY 4 EQUIPMENT TEST CONDITIONS 5 TESTS REQUIRED 6 TEST RESULTS 7-11 ANNEX PHOTOGRAPHS A PHOTOGRAPH No. 1: Test setup PHOTOGRAPH No. 2: Transmitter front view PHOTOGRAPH No. 3: Transmitter rear view potted APPLICANT’S SUBMISSION OF DOCUMENTATION LIST B MEASUREMENT UNCERTAINTY C TEST EQUIPMENT CALIBRATION D BAND OCCUPANCY PLOT E EMISSION GRAPH(s) F AC POWERLINE CONDUCTION GRAPH(s) G Notes: 1. Component failure during test YES NO [X] [ ] 2. If Yes, details of failure: 3. The facilities used for the testing of the product contain in this report are FCC Listed. 4. The contents of the attached applicants declarations and other supplied information are not covered by the scope of this laboratory’s UKAS or FCC accreditations’ and is provided in good faith. RF335U iss03B RU1357/7980 FCC IDENTITY: OQL-R-VN PURPOSE OF TEST: Certification TEST SPECIFICATION: FCC RULES CFR 47, Part 15.209 May 2007 TEST RESULT: Compliant to Specification EQUIPMENT UNDER TEST: Vandal Resistant Reader EQUIPMENT SERIAL No: 2466969 ITU: EMISSION CODE: 32kA1D EQUIPMENT TYPE: Inductive Reader PRODUCT USE: Access Control CARRIER EMISSION: 0.207 μV/m @ 300m ANTENNA TYPE: Integral ALTERNATIVE ANTENNA: Not applicable FREQUENCY OF OPERATION: 133 kHz CHANNEL SPACING: Wideband NUMBER OF CHANNELS: 1 FREQUENCY GENERATION: SAW Resonator [ ] Crystal [X] Synthesiser [ ] MODULATION METHOD: Amplitude [X] Digital [ ] Angle [ ] POWER SOURCE(s): +110 Vac TEST DATE(s): 21 st – 25 th June 2007 ORDER No(s): 4500000500 APPLICANT: Stanley Security Solutions Europe Limited ADDRESS: 1 Park Gate Close Bredbury Stockport SK6 2SZ TESTED BY: D. WINSTANLEY APPROVED BY: J. CHARTERS RADIO SECTION LEADER CERTIFICATE OF CONFORMITY & COMPLIANCE RF335U iss03B RU1357/7980 Page 5 of 28 APPLICANT’S SUMMARY EQUIPMENT UNDER TEST (EUT): Vandal Resistant Reader EQUIPMENT TYPE: Inductive Reader SERIAL NUMBER OF EUT: 2466969 PURPOSE OF TEST: Certification TEST SPECIFICATION(s): FCC RULES CFR 47, Part 15.209 May 2007 TEST RESULT: COMPLIANT Yes No [X] [ ] APPLICANT’S CATEGORY: MANUFACTURER IMPORTER DISTRIBUTOR TEST HOUSE AGENT [X] [ ] [ ] [ ] [ ] APPLICANT’S ORDER No(s): 4500000500 APPLICANT’S CONTACT PERSON(s): Mr M Cook E-mail address: [email protected] APPLICANT: Stanley Security Solutions Europe Limited ADDRESS: 1 Park Gate Close Bredbury Stockport SK6 2SZ TEL: +44 (0) 161 406 3418 FAX: +44 (0) 161 406 9957 EUT(s) COUNTRY OF ORIGIN: United kingdom TEST LABORATORY: TRL Compliance Ltd UKAS ACCREDITATION No: 0728 TEST DATE(s): 21 st – 25 th June 2007 TEST REPORT No: RU1357/7980 RF335U iss03B RU1357/7980 Page 6 of 28 EQUIPMENT TEST / EXAMINATIONS REQUIRED 1. TEST/EXAMINATION RULE PART DETECTOR APPLICABILITY Intentional Emission Frequency: 15.209(a) Average Yes Intentional Emission Field Strength: 15.209(a) Average Yes Intentional Emission Band Occupancy: 15.215(c) Peak Yes Intentional Emission ERP (mW): - - No Spurious Emissions – Conducted: 15.207 Quasi Peak Average Yes Spurious Emissions – Radiated <1000MHz: 15.209 Quasi Peak Average Yes Spurious Emissions – Radiated >1000MHz: - - No Maximum Frequency of Search: 15.33 - Yes Antenna Arrangements Integral: 15.203 - Yes Antenna Arrangements External Connector: 15.204 - Yes Restricted Bands: 15.205 - Yes Extrapolation Factor: 15.31(f) - Yes 2. Product Use: Access Control 3. Emission Designator: 32kA1D 4. Duty Cycle: <100% 5. Transmitter bit or pulse rate and level: bps 6. Temperatures: Ambient (Tnom) 13 o C 7. Supply Voltages: Vnom +110 Vac Note: Vnom voltages are as stated above unless otherwise shown on the test report page Single channel [X] Two channel [ ] 8. Equipment Category: Multi-channel [ ] Narrowband [ ] Wideband [X] 9. Channel spacing: RF335U iss03B RU1357/7980 Page 7 of 28 TRANSMITTER TESTS TRANSMITTER SPURIOUS EMISSIONS – RADIATED – PART 15.209 Ambient temperature = 18 o C(<1GHz) 1m measurements <30MHz [X] Relative humidity = 69 (<1GHz), 3m measurements <30MHz [X] Conditions = Open Area Test Site (OATS) 30m extrapolated from 1m [X] Supply voltage = +110 Vac 30m extrapolated from 3m [X] Channel number = 1 300m extrapolated from 1m [X] 300m extrapolated from 3m [X] 3m measurements >1GHz [X] FREQ. (MHz) MEAS. Rx. (dBμ) CABLE LOSS (dB) ANT FACT. (dB/m) FIELD STRENGTH (dBμV/m) EXTRAP. FACTOR (dB) FIELD STRENGTH (μV/m) LIMIT (μV/m) 0.009MHz - 0.49MHz Note 11 0.49MHz - 1.705MHz Note 11 1.705MHz - 30MHz Note 11 30MHz - 88MHz 30.40 31.50 32.25 33.25 33.40 35.20 37.35 38.95 39.75 62.95 65.70 73.80 77.70 81.65 83.75 86.15 13.67 15.16 16.96 16.55 17.48 13.98 23.47 19.81 19.51 25.77 20.57 18.26 16.94 13.88 15.95 13.23 0.93 0.94 0.94 0.95 0.95 0.97 0.98 0.99 0.99 1.18 1.23 1.24 1.26 1.32 1.35 1.37 18.40 17.50 17.10 16.50 16.55 16.65 14.55 13.50 13.00 5.05 5.00 5.80 6.60 7.30 7.70 8.00 33.0 33.6 35.0 34.0 35.0 31.6 39.0 34.3 33.5 32.0 26.8 25.3 24.8 22.5 25.0 22.6 - - - - - - - - - - - - - - - - 44.67 47.86 56.23 50.12 56.23 38.02 89.12 51.88 47.32 39.81 21.87 18.40 17.37 13.33 17.78 13.48 100 100 100 100 100 100 100 100 100 100 100 100 100 100 100 100 88MHz - 216MHz Note 11 216MHz - 960MHz Note 11 960MHz - 1GHz Note 11 0.009 MHz to 0.4…
Text truncated - open the document above for the full version.
E-Field E-Field Close up H-Field H-Field Close up
