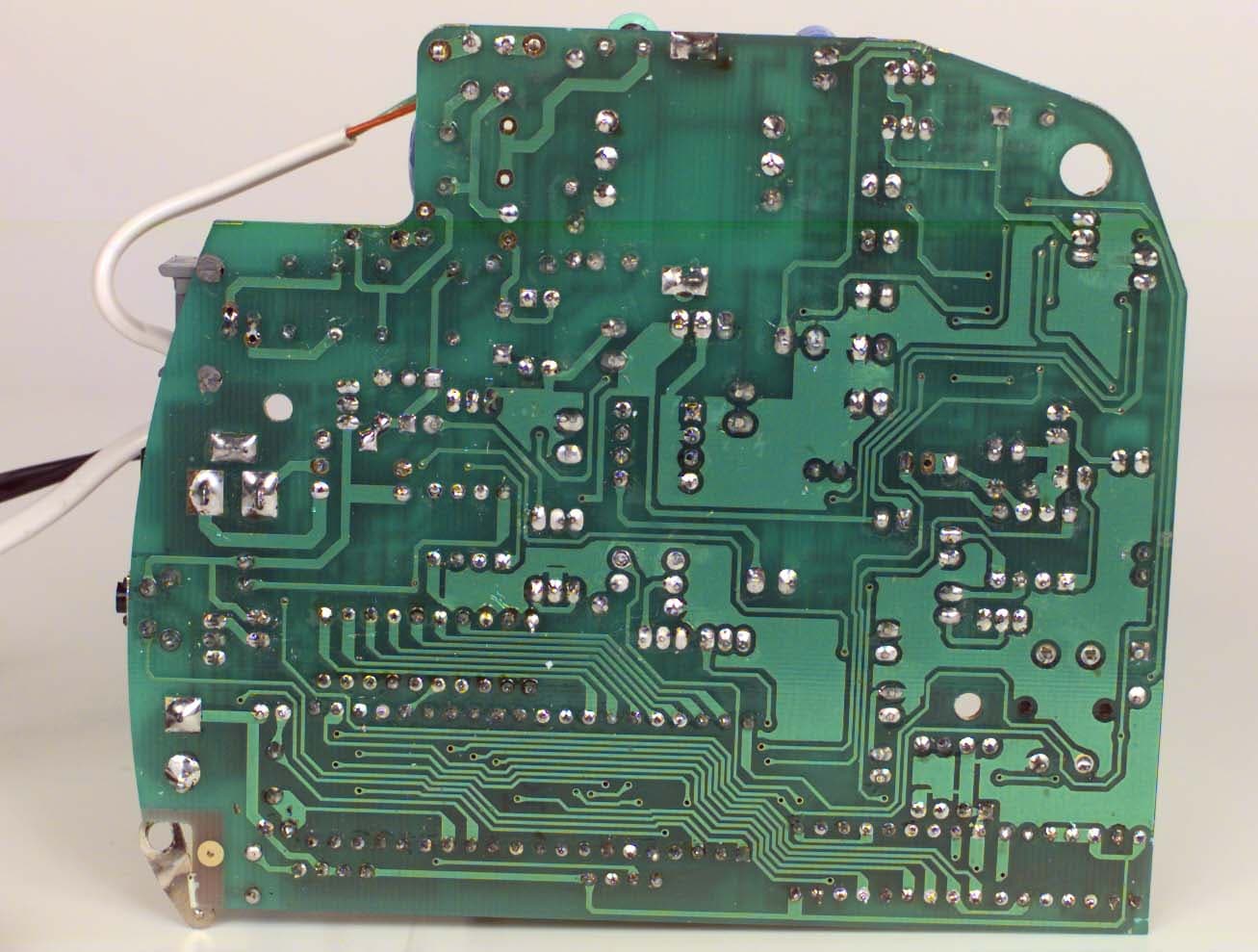

OQNEMU1000EMU-1000

INTERNET SECURITY LIFEGUARD INC. USER GUIDE SECURITY LIFEGUARD UNIT (EMU) MODÈLE 1000 2 USER GUIDE SECURITY LIFEGUARD UNIT (EMU-1000) TABLE OF CONTENT • About the EMU-1000 page 2 • Standard function for the EMU-1000 page 3 • Automated programming system (APS) page 3 • Accessories and their function page 4 • Set-up for the EMU-1000 page 4 • Satellite units set-up page 4 • Warranty page 5 • Special warnings page 6 • Diagram page 8 ABOUT THE EMU-1000The security Lifeguard unit (EMU-1000) is an inte lligent and compact microcomputer based wireless system that integrates to your existing phone line(no additional phone line required) to give you twenty-four hours personal healthand safety assistance and total peace of mind.Copyright © 2000Internet Security LifeguardAll rights ReservedSTANDARD FUNCTIONS FOR THE EMU- 1000 3The standard functions of your EMU are explained in this user guide for yourbenefit. Your Lifeguard dealer is trained to answer any questions you may have onyour EMU system and its accessories.Me dical Eme rge ncyPress the EMU button and a medical related emergency will be communicated tothe control center, and the Two way HFM * session will be activated. AUTOMATED PROGRAMMING SYSTEME (APS)The automated programming system (APS) is designed to customize your EMUfeatures and functions to your requirements. To access the APS, lift the handset onyour telephone connected to your EMU, and dial your local APS number. (Contactyour dealer for assistance if needed).Once you are connected to the automated system (APS), you will receive step-by-step instructions to complete the programming process.Note: When accessing the APS, you will be asked for your contract number.Please ensure that you have your contract number available.Note: HFM* = Hand Free Mode.THE EMU-1000 BASIC KIT ACCESSORIES AND THEIR FUNCTIONS 4 • • • • ONE SECURITY LIFEGUARD UNIT Micro-controller based EMU model 1000. • ONE BASIC OPTIONAL SATELLITE UNIT This accessory is used as an extension of the EMU. HFM* function, andwill establish a two-way communication in areas beyond the EMU audiorange. All satellite units will be remotely controlled from the controlcenter. • ONE WRIST ALERT TRANSMITTER This accessory is water resistance and can be worn at all times. Whenevera medical emergency arises, simply press the wrist alert transmitter buttonand the EMU will immediately communicate a medical related emergencyto the control center, and a two-way HFM* session will be automaticallyactivated. (Optional programming available) • HFM* PHONE ANSWERINGWhen you are within audio range of the EMU, an incoming phone call maybe answered by simply pressing the wrist alert transmitter button after thefirst ring, and the EMU will act as a standard speaker-phone and a two-wayvoice communication will be automatically engaged with the caller.Pressing the wrist alert transmitter button a second time will hang up thephone and terminate the call. SET-UP OF THE EMU-1000(1) Insert the battery in the EMU battery compartment under the unit, (2) connect the phone cord to the phone jack on the wall near an electrical outlet and connectyour telephone in the telephone jack on the EMU, (3) Plug the provided AC/DC adapter to the back of the EMU and the other end to the electrical outlet( unswitche d e le ctrical outle t re quire d ), (4) To insure that the unit operates properly make a test with the control center.SET-UP OF SATELLITE(S)The satellite(s) must be positioned away from the line of sight of the EMU toavoid feedback. (1) Connect the satellite battery pack then (2) connect one end of the phone cord provided to the back of the satellite and the other end to an existingphone jack near an electrical outlet. (3) Plug the provided AC/DC adapter to the back of the satellite and the other end to the electrical outlet ( unswitche d electrical outlet required ). Note: HFM* = Hand Free Mode. INTERNET SECURITY LIFEGUARD 5 Subscribe r Warranty Please complete all sections of this warranty card and return to yourdealer/distributor.The Internet Security Lifeguard (EMU) is a precision electronic systemmanufactured to the highest standards. The EMU is w arranted for life against anymanufacturing defects as long as the initial purchaser subscribes uninterruptedlyto Internet Security Lifeguard monitoring services.The Warranty is only valid if full particulars are filled in by the distributor at thetime of purchase and does not cover damage caused by misuse, or neglect or useof non-approved accessories. This warranty shall be void if the unit has beenopened and/or repaired by any unauthorized person. The warranty does notinclude shipping or packaging costs.This warranty is in addition to your statutory rights and does not affect them.Please complete the sections below at the time of purchase in block letters.Name___________________________Model_________________Address_________________________Serial ________________________________________________ PurchaseDate__________________________________________Tel. No.________________Signature_______________________ Post/Zip Code___________Distributor No.___________________Date___________________Distributor Name_________________A ccessories_____________ Signature______________________________________________In the event of a fault occurring in the system, please return it to the address belowenclosing this completed w arranty card:Distributor/Dealer Address (stamp): INDUSTRY CANADA WARRINGS 6 NOTICE:The Industry Canada Label identifies certified equipment. This certificationmeans that the equipment meets telecommunications network protective,operational and safety requirements as prescribed in the appropriate TerminalEquipment technical requirements document(s). The department does notguarantee the equipment will operate to the user’s satisfaction.Before installing this equipment, users should ensure that it is permissible to beconnected to the facilities of the local telecommunications company. Theequipment must also be instal…

Text truncated - open the document above for the full version.

tel: (514) 633-0886 fax: (514) 633-9305 Internet Security Lifeguard Inc. 2505 Louis A. Amos Lachine, Quebec H8T 1C3 06/28/00 Mr. Gilles Philion KTL 3325 River Road, RR#5 Ottawa, Ont K1V 1H2 Dear Gilles, Internet Security Lifeguard hereby authorizes KTL to apply to, on our behalf, the Federal Communications Commission for certification of our model EMU-1000, in accordance with FCC Part 15 and FCC Part 68, as specified in your Quote No. 02169. Sincerely, Ralph Schwartz President

Internet Security LifeguardModel No.: EMU-1000 Complies with part 68, FCC RULESRegistration No.: IC REN:Type of Jack: CANADA:FCC REN: FCC ID: OQNEMU1000 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two rules: (1) This device may not cause harmful Interference, and (2) This device must accept any interference received, including Interference that may cause undesired operation. Distributed Exclusively by Internet Security Lifeguard Medical Equipment Made in China Dimension of the label are 6cm width and 3cm of height LR XXXXX [CSA C22.2] [ANSI/UL 1637] Dimension of the label are 2cm width and 2.75cm of height

Bill Of Materials for EMU_1000.sch on Mon Jun 12 13:35:28 2000 ----------------------------------------------------------------------- Item Qty Reference Part Name Description VALUE ----------------------------------------------------------------------- 1 1 U7 2501 2501 PHOTOCOUPLER IC 2 1 U12 7805 3 1 Q4 8550 PNP Transistor 8550 4 1 Q5 8550 PNP Transistor 8550 5 1 D1 1N4001 1N4001 6 1 D13 1N4001 1N4001 7 1 D3 1N4004 1N4004 8 1 D4 1N4004 1N4004 9 1 D7 1N4004 1N4004 10 1 D8 1N4004 1N4004 11 1 D2 1N4148 1N4148 12 1 D5 1N4148 1N4148 13 1 D6 1N4148 1N4148 14 1 D11 1N4148 1N4148 15 1 U5 24C04 16 1 Q1 2SC945 NPN Small signal Transistor 2SC945 17 1 Q2 2SC945 NPN Small signal Transistor 2SC945 18 1 Q3 2SC945 NPN Small signal Transistor 2SC945 19 1 Q7 2SC945 NPN Small signal Transistor 2SC945 20 1 Q10 2SC945 NPN Small signal Transistor 2SC945 21 1 Q11 2SC945 NPN Small signal Transistor 2SC945 22 1 Q12 2SC945 NPN Small signal Transistor 2SC945 23 1 Q13 2SC945 NPN Small signal Transistor 2SC945 24 1 Q14 2SC945 NPN Small signal Transistor 2SC945 25 1 Q15 2SC945 NPN Small signal Transistor 2SC945 26 1 Q6 9012G PNP Small signal Transistor 9012G 27 1 Q8 9012G PNP Small signal Transistor 9012G 28 1 Q9 9012G PNP Small signal Transistor 9012G 29 1 J4 ANT 30 1 J3 BATTERY ??? 31 1 BZ1 BUZZ BUZZ 32 1 C2 CAP 104 33 1 C3 CAP 223 34 1 C4 CAP 103 35 1 C5 CAP 472 36 1 C6 CAP 22P 37 1 C7 CAP 104 38 1 C8 CAP 104 39 1 C9 CAP 103 40 1 C10 CAP 103 41 1 C11 CAP 104 42 1 C12 CAP 270P 43 1 C14 CAP 104 44 1 C20 CAP 104 45 1 C21 CAP 473 46 1 C22 CAP 104 47 1 C23 CAP 104 48 1 C25 CAP 4700P 49 1 C26 CAP 104 50 1 C29 CAP 4700P 51 1 C33 CAP 223 52 1 C34 CAP 103 53 1 C35 CAP 104 54 1 C36 CAP 104 55 1 C37 CAP 683 56 1 C38 CAP 104 57 1 C40 CAP 104 58 1 C41 CAP 104 59 1 C42 CAP 104 60 1 C45 CAP 102 61 1 C46 CAP 392 62 1 C47 CAP 104 63 1 C49 CAP 104 64 1 C51 CAP 104 65 1 C54 CAP 104 66 1 C55 CAP 22P 67 1 C56 CAP 22P 68 1 C57 CAP 104 69 1 C58 CAP 104 70 1 C60 CAP 104 71 1 C61 CAP 104 72 1 C62 CAP 104 73 1 C63 CAP 104 74 1 C64 CAP 470p 75 1 C65 CAP 104 76 1 C68 CAP 223 77 1 C70 CAP 473 78 1 C71 CAP 224 79 1 C72 CAP 104 80 1 C73 CAP 224 81 1 C74 CAP 104 82 1 C75 CAP 104 83 1 C1 CAPM (M) 474 250V 84 1 J2 DCJACK 85 1 C13 ECAP25 22u 86 1 C15 ECAP25 2.2u 87 1 C16 ECAP25 2.2u 88 1 C17 ECAP25 47u 89 1 C18 ECAP25 4.7u 90 1 C19 ECAP25 220u 91 1 C24 ECAP25 47u 92 1 C27 ECAP25 2.2u 93 1 C28 ECAP25 2.2u 94 1 C31 ECAP25 470u 95 1 C39 ECAP25 3.3u 96 1 C43 ECAP25 10u 97 1 C50 ECAP25 1u 98 1 C59 ECAP25 47u 99 1 C66 ECAP25 22u 100 1 C67 ECAP25 22u 101 1 C30 ECAP35 100u 102 1 C32 ECAP35 47u 103 1 C44 ECAP35 220u 104 1 C48 ECAP35 220u 105 1 C52 ECAP35 220u 106 1 C53 ECAP35 1000u 107 1 C69 ECAP35 220u 108 1 U2 HT605L 109 1 U3 HT9170A 110 1 U4 HT9200B 111 1 U15 JL-HB AF TRANSFOMER HBA-001 ANNET HBA-00 1 112 1 L1 L 100uH 113 1 L2 L 100uH 114 1 L3 L 100uH 115 1 L4 L 100uH 116 1 L5 L 70mhH 117 1 D9 LED LIGHT EMITTING DIODE 118 1 D10 LED LIGHT EMITTING DIODE 119 1 D12 LED LIGHT EMITTING DIODE 120 1 U10 LM358 Dual Op Amp 8 pin 121 1 U8 LM386 122 1 U11 LM431 123 1 U9 LM567 124 1 U6 MC34118 125 1 M2 MIC MIC 126 1 U1 PIC16C65B 127 1 F1 PTC TR250- 120U 128 1 F2 PTC TR250- 120U 129 1 R1 R1/4W RES BODY:100 CENTERS:500 30K 130 1 R2 R1/4W RES BODY:100 CENTERS:500 680 131 1 R3 R1/4W RES BODY:100 CENTERS:500 33K 132 1 R4 R1/4W RES BODY:100 CENTERS:500 47K 133 1 R5 R1/4W RES BODY:100 CENTERS:500 100K 134 1 R6 R1/4W RES BODY:100 CENTERS:500 100K 135 1 R7 R1/4W RES BODY:100 CENTERS:500 3K3 136 1 R8 R1/4W RES BODY:100 CENTERS:500 33K 137 1 R9 R1/4W RES BODY:100 CENTERS:500 4.7K 138 1 R10 R1/4W RES BODY:100 CENTERS:500 20K 139 1 R11 R1/4W RES BODY:100 CENTERS:500 120 140 1 R12 R1/4W RES BODY:100 CENTERS:500 10K 141 1 R13 R1/4W RES BODY:100 CENTERS:500 100K 142 1 R14 R1/4W RES BODY:100 CENTERS:500 56K 143 1 R15 R1/4W RES BODY:100 CENTERS:500 220K 144 1 R16 R1/4W RES BODY:100 CENTERS:500 56K 145 1 R17 R1/4W RES BODY:100 CENTERS:500 1.2k 146 1 R18 R1/4W RES BODY:100 CENTERS:500 82R 147 1 R19 R1/4W RES BODY:100 CENTERS:500 120K 148 1 R20 R1/4W RES BODY:100 CENTERS:500 100K 149 1 R21 R1/4W RES BODY:100 CENTERS:500 1K 150 1 R22 R1/4W RES BODY:100 CENTERS:500 620 151 1 R23 R1/4W RES BODY:100 CENTERS:500 1K 152 1 R24 R1/4W RES BODY:100 CENTERS:500 20K 153 1 R25 R1/4W RES BODY:100 CENTERS:500 20K 154 1 R26 R1/4W RES BODY:100 CENTERS:500 180K 155 1 R27 R1/4W RES BODY:100 CENTERS:500 33K 156 1 R28 R1/4W RES BODY:100 CENTERS:500 180K 157 1 R29 R1/4W RES BODY:100 CENTERS:500 10K 158 1 R30 R1/4W RES BODY:100 CENTERS:500 10K 159 1 R31 R1/4W RES BODY:100 CENTERS:500 100K 160 1 R32 R1/4W RES BODY:100 CENTERS:500 820 161 1 R33 R1/4W RES BODY:100 CENTERS:500 10R 162 1 R34 R1/4W RES BODY:100 CENTERS:500 2k7 163 1 R35 R1/4W RES BODY:100 CENTERS:500 20K 164 1 R36 R1/4W RES BODY:100 CENTERS:500 10K 165 1 R37 R1/4W RES BODY:100 CENTERS:500 390K 166 1 R38 R1/4W RES BODY:100 CENTERS:500 100K 167 1 R39 R1/4W RES BODY:100 CENTERS:500 10 168 1 R40 R1/4W RES BODY:100 CENTERS:500 20K 169 1 R41 R1/4W RES BODY:100 CENTERS:500 2.4K 170 1 R42 R1/4W RES BODY:100 CENTERS:500 4.7M 171 1 R43 R1/4W RES BODY:100 CENTERS:500 200k 172 1 R44 R1/4W RES BODY:100 CENTERS:500 180k 173 1 R45 R1/4W RES BODY:100 CENTERS:500 180k* 174 1 R46 R1/4W RES BODY:100 CENTERS:500 130k* 175 1 R47 R1/4W RES BODY:100 CENTERS:500 82k 176 1 R48 R1/4W RES BODY:100 CENTERS:500 470k 177 1 R49 R1/4W RES BODY:100 CENTERS:500 2.2M 178 1 R50 R1/4W RES BODY:100 CENTERS:500 4.7k 179 1 R51 R1/4W RES BODY:100 CENTERS:500 4.7K 180 1 R52 R1/4W RES BODY:100 CENTERS:500 200K 181 1 R53 R1/4W RES BODY:100 CENTERS:500 4.7K 182 1 R54 R1/4W RES BODY:100 CENTERS:500 10 183 1 R55 R1/4W RES BODY:100 CENTERS:500 3K9 184 1 R56 R1/4W RES BODY:100 CENTERS:500 1 185 1 R57 R1/4W RES BODY:100 CENTERS:500 10K 186 1 R58 R1/4W RES BODY:100 CENTERS:500 47K 187 1 R59 R1/4W RES BODY:100 CENTERS:500 10K 188 1 R60 R1/4W RES BODY:100 CENTERS:500 100K 189 1 R62 R1/4W RES BODY:100 CENTERS:500 100K 190 1 R63 R1/4W RES BODY:100 CENTERS:500 100K 191 1 R64 R1/4W RES BODY:100 CENTERS…

Text truncated - open the document above for the full version.

Master: ktlPT15BR Date: April 6, 2000 KTL Test Report:0R02169 Applicant:Internet Security Lifeguard Inc. 2005, 3 rd Avenue Lachine, Quebec H8T 1X1 Equipment Under Test:EMU 1000 (E.U.T.) FCC ID:OQNEMU1000 In Accordance With:FCC Part 15, Subpart B Radio Receivers Tested By:KTL Ottawa Inc. 3325 River Road, R.R. 5 Ottawa, Ontario K1V 1H2 Authorized By: R. Grant, Wireless Group Manager Date: Total Number of Pages:15 KTL Ottawa FCC PART 15, SUBPART B RADIO RECEIVERS PROJECT NO.: 0R02169 EQUIPMENT: EMU 1000 FCC ID: OQNEMU1000 Page 2 of 15 Table Of Contents Section 1. Summary of Test Results.......................................................................................... 3 Section 2. General Equipment Specification ........................................................................... 5 Section 3. Radiated Emissions...................................................................................................6 Section 4. Powerline Conducted Emissions............................................................................. 9 Section 5. Block Diagrams.......................................................................................................13 Section 6. Test Equipment List ............................................................................................... 15 KTL Ottawa FCC PART 15, SUBPART B RADIO RECEIVERS PROJECT NO.: 0R02169 EQUIPMENT: EMU 1000 FCC ID: OQNEMU1000 Page 3 of 15 Section 1.Summary of Test Results General All measurements are traceable to national standards. These tests were conducted on a sample of the equipment for the purpose of demonstrating compliance with FCC Part 15, Subpart B. Measurement procedure ANSI C63.4-1992 was used for all tests. Radiated Emissions were measured on an open area test site. New SubmissionProduction Unit Class II Permissive ChangePre-Production Unit CRR Equipment Code THIS TEST REPORT RELATES ONLY TO THE ITEM(S) TESTED. THE FOLLOWING DEVIATIONS FROM, ADDITIONS TO, OR EXCLUSIONS FROM THE TEST SPECIFICATIONS HAVE BEEN MADE. See “ Summary of Test Data”. NVLAP LAB CODE: 100351-0 TESTED BY: _____________________________________ DATE: ___________________ Kevin Carr, Technologist KTL Ottawa Inc. authorizes the above named company to reproduce this report provided it is reproduced in its entirety and for use by the company’s employees only. Any use which a third party makes of this report, or any reliance on or decisions to be made based on it, are the responsibility of such third parties. KTL Ottawa Inc. accepts no responsibility for damages, if any, suffered by any third party as a result of decisions made or actions based on this report. This report applies only to the items tested. KTL Ottawa FCC PART 15, SUBPART B RADIO RECEIVERS PROJECT NO.: 0R02169 EQUIPMENT: EMU 1000 FCC ID: OQNEMU1000 Page 4 of 15 Summary Of Test Data Name Of TestPara. No.Results Antenna Conducted Emissions15.111Not Applicable Radiated Emissions15.109Complies Powerline Conducted Emissions15.107Complies Footnotes For N/A’s: Test Conditions: Indoor Temperature: 24 °C Humidity:40 % Outdoor Temperature: 24 °C Humidity:40 % KTL Ottawa FCC PART 15, SUBPART B RADIO RECEIVERS PROJECT NO.: 0R02169 EQUIPMENT: EMU 1000 FCC ID: OQNEMU1000 Page 5 of 15 Section 2.General Equipment Specification Manufacturer: Internet Security Lifeguard Model No.: EMU 1000 Serial No.: 3 Date Received In Laboratory: June 6, 2000 KTL Identification No.: Item #2 Frequency Range: 303 MHz Fixed Number of Channels: 1 Operating Frequency(ies) of Sample: 303 MHz Primary Power Requirement: 120 VAC, 60 Hz to 12 Vdc Power Cube In addition the E.U.T. contains a non-rechargeable 12 Vdc Battery KTL Ottawa FCC PART 15, SUBPART B RADIO RECEIVERS PROJECT NO.: 0R02169 EQUIPMENT: EMU 1000 FCC ID: OQNEMU1000 Page 6 of 15 Section 3.Radiated Emissions Para. No.: 15.109(a) Test Performed By: Kevin Carr Date of Test: June 7, 2000 Minimum Standard: Frequency(MHz)Field Strength (dB μ μμ μ V/m @ 3m) 30 - 8840.0 88 - 21643.5 216 - 96046.0 Above 96054.0 Test Results: Complies. The worst-case emission level is 35.0 dBμV/m @ 3m at 290.6 MHz. This is 11.0 dB below the specification limit. Measurement Data: See attached table. For super-regenerative receivers the receiver is cohered using a signal generator and dipole antenna. Handheld equipment and equipment not designed to be mounted in any fixed orientation, the E.U.T. is tested in three orthogonal axis to obtain worst case results. KTL Ottawa FCC PART 15, SUBPART B RADIO RECEIVERS PROJECT NO.: 0R02169 EQUIPMENT: EMU 1000 FCC ID: OQNEMU1000 Page 7 of 15 Test Data - Radiated Emissions Test Distance (meters) : 3 Range : A Towe r Re ce ive r: ESVP RBW(kHz ): 120 Detector: Q-Peak Fre q. (M Hz) Ant. * Pol. (V/H) RCVD Signal (dB μ μμ μ V/m) Ant. Factor (dB)** Amp. Gain (dB)*** Dist. Corr. (dB) Fie ld Strength (dB μ μμ μ V/m) Limit (dB μ μμ μ V/m) Margin (dB) 291.9B/C1V4.822.126.946.019.1 291.9B/C1H8.922.131.046.015.0 295.1B/C1V6.022.428.446.017.6 295.1B/C1H4.022.426.446.019.6 290.6B/C1V13.022.035.046.011.0 290.6B/C1H7.222.029.246.016.8 297.3B/C1V10.022.632.646.013.4 297.3B/C1H10.822.633.446.012.6 298.2B/C1V1.222.723.946.022.1 298.2B/C1H1.522.724.246.021.8 301.2L/PV2.018.520.546.025.5 301.2L/PH-3.818.514.746.031.3 303.846L/PV6.018.524.546.021.5 303.846L/PH10.418.528.946.017.1 308.232L/PV-1.018.517.546.028.5 308.1L/PH12.018.530.546.015.5 314.0L/PV2.818.521.346.024.7 314.0L/PH8.618.527.146.018.9 607.692L/PV-3.324.421.146.024.9 607.692L/PH-3.424.421.046.025.0 607.7L/PV-3.024.421.446.024.6 607.7L/PH-3.424.421.046.025.0 911.538L/PV-3.329.626.346.019.7 911.538L/PH-3.429.626.246.019.8 983.7L/PV-1.031.330.354.023.7 983.7L/PH-2.531.328.854.025.2 998.8L/PV-1.031.530.554.023.5 998.8L/PH-1.131.530.454.023.6 Note s: B/C =Biconical, B/L = Biconilog, L/P = Log-Periodic, H = Horn, D/P = Dipole The spectrum was searched up to 2000 MHz and all emissions within 20 dB of the specification limit were measured and reported. KTL Ottawa FCC PART 15, SUBPART B RADIO RECEIVERS PROJEC…
