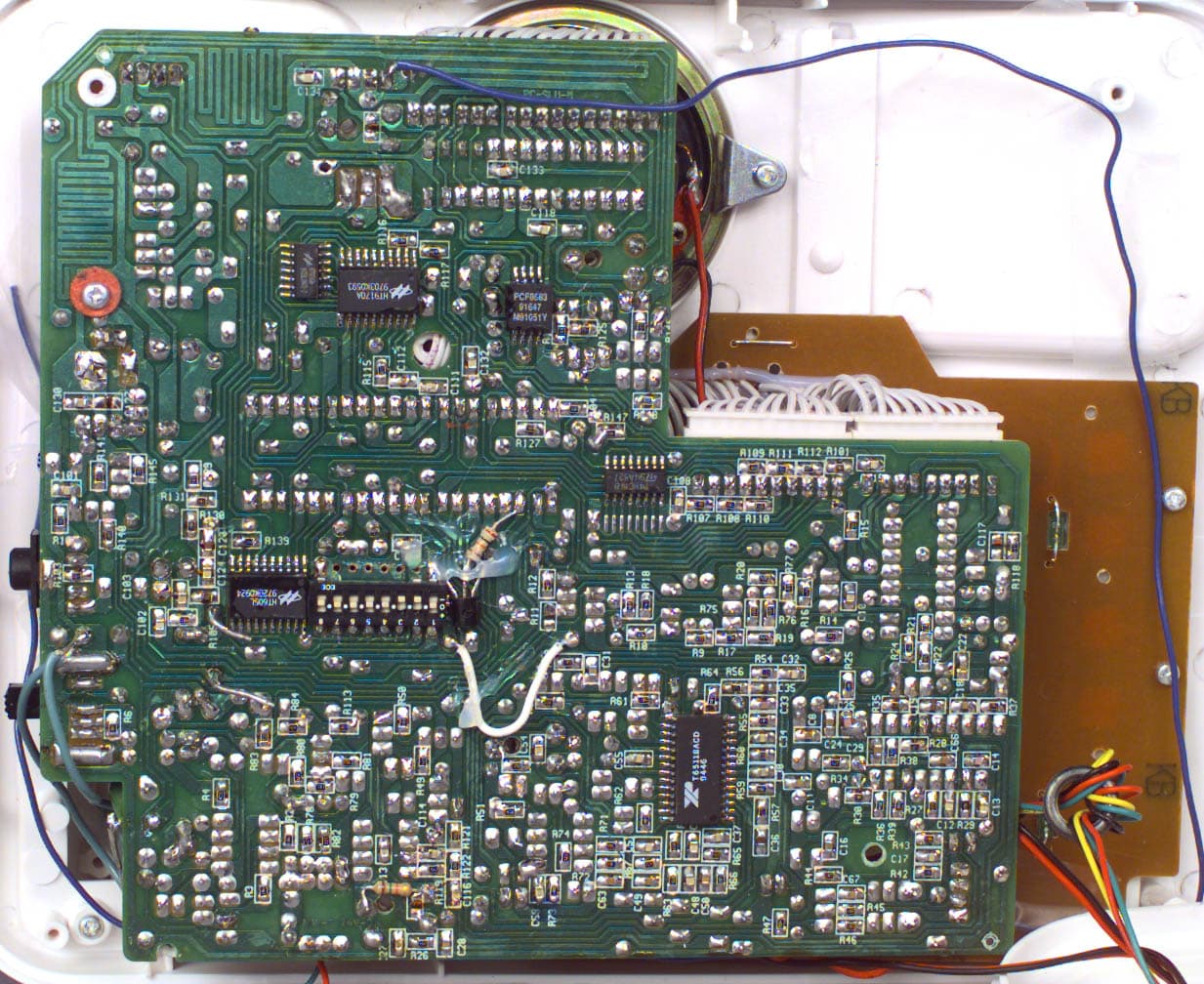

OQNSLU100SLU 100 Receiver

INFORMATION TO USERS • This equipment has been tested and found to comply with the limits for Class A Digital Device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user is required to correct the interference at his own expense Any changes or modifications not expressly approved by Internet Security Lifeguard Inc. could void the user’s authority to operate the equipment.

tel: (514) 633-0886 fax: (514) 633-9305 INTERNET SECURITY LIFEGUARD Description and Specifications for the SLU-100 The Security Lifeguard Unit SLU-100 is a telephone receiver with 2-way handsfree voice capability incorporating features of burglar and medical alarm devices. Internal components include: Telephone interface circuitry with speakerphone MicroController Unit (MCU) Display circuitry with 2-line 16 characters/line LCD Wireless receiver unit (frequency 303.875 MHz) with external telescopic antenna Features include: Separate Fire, Panic and Medic hardwire buttons Arm/Disarm button Remote answering capability Last number redial and flash keys Medication reminder feature - stores info to 250 bytes eeprom Capable of monitoring up to 16 different devices and battery status thereof Built-in interface for cardiac monitor (ECG) Rechargeable battery backup capacity 4 hrs. Power requirements 12V DC tel: (514) 633-0886 fax: (514) 633-9305

PARTNOUNITQTYPOSITIONDESCRIP ANT-0041.0000BASE ANTENNAKP 24.5CM BT-GP15F8K1.0000GP NI-CO BATTERY GP15F8K BZA-02A1.0000BUZZER CR-358M1.0000 Y1CERAMIC RESONATOR 3.58MHZ CY-32768K1.0000 X2CRYSTAL 32.768K CY-358M1.0000 X1CRYSTAL 3.58MHZ DP-3003JD1.0000LCD MODULE UMS-3003JD-JY ER-FG103B-D1.0000 R114FINE TUNING SEMI-FIXED RESISTOR 10K OHM ER-PG103C-D1.0000 R124SEMI-FIXED RESISTOR 10KOHN ER-PG202C-D1.0000 R68SEMI-FIXED RESISTOR 2 OHN ER-PG501C-D1.0000 R128SEMI-FIXED RESISTOR 500 OHN ET-DL03R2.0000 LED2(ECG IN USE)LED RED D=3MM ET-DL2X5GN6.0000 D106-111LED GREEN D2*5MM EW-BATTERY U1.0000BATTERY HOLDER (9V) UL EW-DA10BKU L2.0000 JA,JC#26 WIRE UL BLACK 10CM EW-DA12GNU L1.0000 JB#26 WIRE GREEN UL 12CM EW-DA4BKUL1.0000#26 WIRE BLACK 4CM UL FT-2606PA15.0000 KEY PCB*11,LCD PANEL*4S/T/SCREW T2.6*6 P/H (A TYPE) FT-2608PA10.0000 MAIN PCB*2,SPK*2,BUZZER*2,LCD MODULE *S/T/SCREW T2.6*8P/A (A TYPE) FT-2610FA1.0000 BATT.DOORS/T/SCREW T2.6*10 F/H (F TYPE) FT-3006B1.0000 WEIGHTERS/T/SCREW T3.0*6 B/H FT-3010B2.0000 HANDSETS/T/SCREW T3.0*10 B/H FT-3010PA1.0000 BOTTOM CASES/T/SCREW T3.0*10 P/H (A TYPE) FT-3013PA4.0000 BOTTOM CASES/T/SCREW T3.0*13 P/H (A TYPE) HC-007-*1.0000 *(WE)COIL CORD 2PLUG 4CON 9FT J-0011.0000POWER JACK J-0221.00003.5MM STEREO PHONE JACK J-616E-DUL1.0000616E MODULAR JACK UL 2CON 9CM 2CON 25C M J-616ELUL1.0000616E MODULAR JACK UL 23CM J-623KUL1.0000623K MODULAR JACK UL 2 CON FOR LINE CO R J-DIP28N1.0000DIP28 IC SOCKET 2.54MM W=7.62MM J-DIP40W1.0000DIP40 IC SOCKET 2.54MM W=15.24 J-DIP8N1.0000DIP8 IC SOCKET 2.54MM W=7.62MM J-IA10TJC315- U1.0000 FOR KBPLUG 10CON TJC3 RIPPCE CABLE 15CM J-IA16TJC320- U1.0000 FOR LCDPLUG 16CM TJC3 RIPPLE CABLE 20CM J-IA2TJC320-U L2.0000 SPEAKER MICPLUG 2CON TJC3 RIPPLE CABLE 20CM J-IA9TJC315-U L1.0000 FOR KBPLUG 9CON TJC3 RIPPLE CABLE 15CM PAR J-Q10TJC3-V1.0000CONNECT SOCKET 10CON TJC3 VERT J-Q16TJC3-V1.0000CONNECT SOCKET 16CON TJC3 VERT J-Q2TJC3-H1.0000 BUZZERCONNECT SOCKET 2CON TJC3 HOR J-Q2TJC3-V2.0000CONNECT SOCKET 2CON TJC3 VERT J-Q9TJC3-V1.0000CONNECT SOCKET 9CON TJC3 VERT LC-003-*1.0000 *(WE)LINE CORD 2PLUG 2CON 7FT M-001H2.0000CONDENSER MICROPHONE M1-0052.0000SPEAKER CLIP M1-0071.0000 HANDSET WEIGHTERWEIGHTER M1-0171.0000METAL WASHER D3.3*9.5*0.5T/MM ME-11.0000 ́Å»· r*R*H=7.5*13*5 OT1-0041.0000MIC WASHER D13.5*7.5T/MM OT1-0051.0000MIC FILTER D13*0.3T/MM OT1-0071.0000MIC HOLDER D=13.5MM OT1-0131.0000MIC HOLDER D11.7*9.4*12T/MM OT1-022A1.0000PHONE NO. PVC LENS(48*8.2MM) OT1-0241.0000PHONE NO. PAPER (8*48/MM) OT1-025-11.0000RUBBER KEY PAD 8PTSD OT1-0271.0000SPONGE D38*22*2T/MM OT1-0291.0000SW COVER PLATE OT1-031A4.0000RUBBER FOOT OT1-0381.0000SPEAKER FILTER D50*0.5T/MM OT1-0671.0000FIBRE WASHER D6*2*0.8T/MM OT1-266-*2.0000 *(WE)HOLE RUBBER COVER OT1-3011.0000SPONG P1-001S3-1-*1.0000TOP CASE FOR SLU 61061 1 / 4 PARTNOUNITQTYPOSITIONDESCRIP P1-002S-3-*1.0000 *(WE)BOTTOM CASE FOR SLU P1-003-2-*1.0000 *(WE)HANDSET FRONT CASE FOR IS & PO P1-004-2-*1.0000 *(WE)HANDSET BACK CASE FOR IS & PO P1-005-1-*1.0000HOOK KNOB FOR (I) &(VIII) P1-008S-21.0000DIAL KEY 0-9,*,# P1-009-22.0000 FLASH,REDIALFUNC.KEY P1-010-21.0000FUNC. KEY 6 KEY P1-014-11.0000HOOK SW CAP FOR (I)&(VIII) P1-016-2-*1.0000BATTERY DOOR PC-SLU-KUL1.0000KEY BOARD UL PSLU-015S-*1.0000 *(WE)LCD PANEL RE-0011.0000DYNAMIC RECEIVER RF-3711.0000RF RECEIVER MODULE 303.875MHZ SP-0031.0000SPEAKER 2 1/4" 8 OHM SW-220431.0000 HOOK SWSLIDE SWITCH 2P2T SW-230081.0000 RINGER SWSLIDE SWITCH SW-830011.00008BIT 3STATE DIP SWITCH TC-023A0.0020NAMPO ADHENSIVE TC-026A0.0050SOLDERING WIRE 63:37 D=1.2MM TC-1010.0012ADHESIVE TR250-120V2.0000PTC FUSE POLYSWITCH 250V 61061 2 / 4 M RD 61061 3 / 4 61061 4 / 4

PARTNOUNITQTY POSITION BZA-PIEZO1.0000 PIEZO C-H101F2.0000 L101,102 C-H422F2.0000 L1,L2 EC-C103HRM1.0000 C5 EC-C22HRJ-N4.0000 C106,107,120,121 EC-C30HRJ-N2.0000 C6,7 EC-C471TRZ1.0000 EC-C472NRZ1.0000 C4 EC-C47HRJ-N1.0000 C58 EC-E104HRM1.0000 C109 EC-E105HRZ1.0000 C21 EC-E106ERM1.0000 C23 EC-E106GRM2.0000 C2,65 EC-E107ERM3.0000 C57,60,61 EC-E108CRM1.0000 C41 EC-E108FRZ1.0000 C122 EC-E226ERM1.0000 C30 EC-E227CRM2.0000 C9,47 EC-E227ERM2.0000 C129,56 EC-E227FRM1.0000 C15 EC-E334HRM1.0000 C26 EC-E335FRT1.0000 C110 EC-E474HRM2.0000 C20,3 EC-E475HRM1.0000 C46 EC-E476ERM3.0000 C39,40,62 EC-M105KRK1.0000 C1 EC-SA101HTK1.0000 C19 EC-SA102HTK3.0000 C49,63,66 EC-SA103HTK6.0000 C11,18,27,28,50,67 EC-SA104HTK15.0000 C10,12,13,17,29,32,34,37,38,48,51,52,54,55,59 EC-SA104HTK16.0000 101-104,108,111,113-116,118,124,130-133 EC-SA222HTK3.0000 C16,22,24 EC-SA223HTK2.0000 C8,31 EC-SA271HTK1.0000 C33 EC-SA681HTK2.0000 C14,25 EC-SA682HTK1.0000 C36 EC-SA683HTK1.0000 C35 EC-SB22HTK2.0000 C123,112 ER-101BUB1.0000 R120 ER-102BUB1.0000 R40 ER-103BUB1.0000 R150 ER-104BUB1.0000 R88 ER-105BUB1.0000 R137 ER-10BUB1.0000 R70 ER-10DUB2.0000 R7,149 ER-124BUB1.0000 R143 ER-153CUA1.0000 R133 ER-18CUB1.0000 R33 ER-203CUB2.0000 R48,150 ER-206BUB1.0000 R8 ER-222DUB1.0000 R1 ER-223BUB1.0000 R85 ER-224BUB2.0000 R135,136 ER-273BUB1.0000 R5 ER-301BUB1.0000 R144 ER-330VUL-HX2.0000 RV1 ER-331BUB1.0000 R123 ER-471BUB1.0000 R32 ER-471CUB1.0000 R132 ER-472BUB1.0000 R138 ER-823BUB1.0000 R41 ER-82BUB1.0000 R31 ER-912CUA1.0000 R142 61062 1/6 PARTNOUNITQTY POSITION ER-SA101ATB2.0000 R77,102 ER-SA102ATB2.0000 R52,131 ER-SA103ATB15.0000 R44,46,50,63,66,72,103,104,122,129,130,140,141, 145 ER-SA103ATB13.0000 R107-113,125-127,147,24,118 ER-SA104ATB8.0000 R12,13,61,62,64,105,116,117 ER-SA105ATB2.0000 R22,79 ER-SA121ATB1.0000 R74 ER-SA122ATB1.0000 R82 ER-SA123ATB1.0000 R54 ER-SA134ATB1.0000 R28 ER-SA152ATB3.0000 R38,58,69 ER-SA153ATB2.0000 R60,83 ER-SA182ATB1.0000 R29 ER-SA184ATB3.0000 R2,3,55 ER-SA1ATB1.0000 R73 ER-SA201ATB1.0000 R39 ER-SA202ATB2.0000 R42,101 ER-SA203ATB3.0000 R9,75,76 ER-SA204ATB3.0000 R47,59,121 ER-SA205ATB1.0000 R148 ER-SA206ATB1.0000 R11 ER-SA221ATB1.0000 R80 ER-SA223ATB1.0000 R57 ER-SA224ATB2.0000 R65,146 ER-SA244ATB1.0000 R36 ER-SA272ATB1.0000 R14 ER-SA273ATB1.0000 R34 ER-SA303ATB1.0000 R106 ER-SA304ATB2.0000 R20,10 ER-SA332ATB2.0000 R15,25 ER-SA333ATB2.0000 R81,26 ER-SA392ATB1.0000 R37 ER-SA394ATB1.0000 R139 ER-SA472ATB4.0000 R49,56,67,115 ER-SA473ATB3.0000 R27,78,35 ER-SA474ATB3.0000 R16,84,19 ER-SA511ATB1.0000 R43 ER-SA512ATB1.0000 R21 ER-SA561ATB1.0000 R53 ER-SA562ATB3.0000 R18,119,71 ER-SA56ATB1.0000 R51 ER-SA681ATB1.0000 R30 ER-SA682ATB1.0000 R6 ER-SA821ATB1.0000 R4 ET-D41489.0000 D6,7,12-15,20-22 ET-DR40014.0000 D5,101-103 ET-DR400412.0000 D1-4,16-19,8-11 ET-DZ180-101.0000 ZD4 ET-DZ270-101.0000 ZD5 ET-DZ3001.0000 ZD2 ET-DZ391.0000 ZD1 ET-DZ471.0000 ZD3 ET-I74HC148-SOP1.0000 U10 ET-IH605L-SOP1.0000 U7 ET-IH9170A-SOP1.0000 U12 ET-IH9200B-SOP1.0000 U13 ET-IK24101.0000 U1 ET-IL5671.0000 U11 ET-IL7805CV1.0000 U18 ET-IM34118DW1.0000 U4 ET-IP8583T-SOP1.0000 U15 ET-IT10621.0000 U3 61062 2/6 PARTNOUNITQTY POSITION ET-IT5211.0000 U6 ET-IT820M1.0000 U5 ET-IW913121.0000 U2 ET-T8550D1.0000 Q19 ET-T9012G2.0000 Q15,23 ET-T9012H1.0000 Q17 ET-T9013G1.0000 Q20 ET-TC380A1.0000 Q16 ET-TC945P12.0000 Q0,1,5-11,18,22,21 ET-TK441.0000 Q4 ET-TK921.0000 Q12 ET-TK941.0000 Q2 PC-SLU-MUL1.0000 61062 3/6 DESCRIP PIEZO 5V INDUCTOR 100uH F-TYPE INDUCTOR 4.2mH CAP.CERAMIC 0.01UF 50V +-20% CAP.CERAMIC NPO 22pF 50V +-5% CAP CERAMIC 30PF 50V +-5% CAP.CERAMIC 470pF 4000V +80% -20% CAP.CERAMIC 4700pF 400V +80% -20% CAP.CERAMIC.NPO 47pF 50V +-5% CAP ELECT 0.1UF 50V +-20% CAP.ELECT 1uF 50V +80% -20% CAP ELECT 10uF 16V +-20% CAP.ELECT 10UF 35V +-20% CAP.ELECT 100uF 16V +-20% CAP.ELECT 1000uF 10V +-20% CAP.ELECT 1000uF 25V +80% -20% CAP.ELECT 22uF 16V +-20% CAP ELECT 220UF 10V +-20% CAP.ELECT 220uF 16V +-20% CAP.ELECT 220uF 25V +-20% CAP.ELECT 0.33uF 50V +-20% CAP.ELECT 3.3UF 25V +50% -10% CAP.ELECT 0.47uF 50V +-20% CAP ELECT 4.7uF 50V +-20% CAP.ELECT 47uF 16V +-20% CAP.METALLIZED 1UF 250V +-10% SMT 0805 C-CAP 100P +-10% SMT 0805 C-CAP 1000P +-10% SMT 0805 C-CAP 0.01uF +-10% SMT 0805 C-CAP 0.1uF +-10% SMT 0805 C-CAP 0.1uF +-10% SMT 0805 C-CAP 2200P +-10% SMT 0805 C-CAP 0.022uF +-10% SMT 0805 C-CAP 270P +-10% SMT 0805 C-CAP 680P +-10% SMT 0805 C-CAP 6800P +-10% SMT 0805 C-CAP 0.068uF +-10% SMT 0805 NPO 22P +-10% RESISTOR 100 OHM 1/8W +-5% RESISTOR 1K OHM 1/8W +-5% RESISTOR 10K OHM 1/8W +-5% RESISTOR 100K OHM 1/8W +-5% RESISTOR 1M OHM 1/8W +-5% RESISTOR 10 OHM 1/8W +-5% RESISTOR 10 OHM 1/2W +-5% RESISTOR 120K OHM 1/8W +-5% RESISTOR 15K OHM 1/4W +-1% RESISTOR 18 OHM 1/4W (+,-5%) RESISTOR 20K OHM 1/4W +-5% RESISTOR 20M OHM 1/8W +-5% RESISTOR 2.2K OHM 1/2W +-5% RESISTOR 22K OHM 1/8W +-5% RESISTOR 220K OHM 1/8W +-5% RESISTOR 27K OHM 1/8W +-5% RESISTOR 300 OHM 1/8W +-5% VARISTOR UL MYG05K331(»ªÐÇ) RESISTOR 330 OHM 1/8W +-5% RESISTOR 470 OHM 1/8W +-5% RESISTOR 470 OHM 1/4W +-5% RESISTOR 4.7K OHM 1/8W +-5% RESISTOR 82K OHM 1/8W +-5% RESISTOR 82 OHM 1/8W +-5% RESISTOR 9.1K 1/4W +-1% 61062 4/6 DESCRIP SMT 0805 RESISTOR 100 1/16W +-5% SMT 0805 RESISTOR 1K 1/16W +-5% SMT 0805 RESISTOR 10K 1/16W +-5% SMT 0805 RESISTOR 10K 1/16W +-5% SMT 0805 RESISTOR 100K 1/16W +-5% SMT 0805 RESISTOR 1M 1/16W +-5% SMT 0805 RESISTOR 120 1/16W +-5% SMT 0805 RESISTOR 1.2K 1/16W +-5% SMT 0805 RESISTOR 12K 1/16W +-5% SMT 0805 RESISTOR 130K 1/16W +-5% SMT 0805 RESISTOR 1.5K 1/16W +-5% SMT 0805 RESISTOR 15K 1/16W +-5% SMT 0805 RESISTOR 1.8K 1/16W +-5% SMT 0805 RESISTOR 180K 1/16W +-5% SMT 0805 RESISTOR 1 OHM 1/16W +-5% SMT 0805 RESISTOR 200 1/16W +-5% SMT 0805 RESISTOR 2K 1/16W +-5% SMT 0805 RESISTOR 20K 1/16W +-5% SMT 0805 RESISTOR 200K 1/16W +-5% SMT 0805 RESISTOR 2M 1/16W +-5% SMT 0805 RESISTOR 20M 1/16W +-5% SMT 0805 RESISTOR 220 1/16W +-5% SMT 0805 RESISTOR 22K 1/16W +-5% SMT 0805 RESISTOR 220K 1/16W +-5% SMT 0805 RESISTOR 240K 1/16W +-5% SMT 0805 RESISTOR 2.7K 1/16W +-5% SMT 0805 RESISTOR 2…

Text truncated - open the document above for the full version.

PARTNOUNITQTYPOSITION PK2-0371.0000 FOR HANDSET PK2-0401.0000 FOR BASE PPSLU-0031.0000 PPSLU-0041.0000 PPSLU-0010.1250 TC-0290.3500 TC-0300.4000 PK2-0181.0000 CORDS PK2-0191.0000 ADAPTOR OT1-1591.0000 PPSLU-0051.0000 PPSLU-0111.0000 TR-316UL-WE1.0000 OT1-3022.0000 OT1-3031.0000 610631/2 DESCRIP FORM BAG 260*115/MM FORM BAG 280*300/MM SLU WHITE BOX USER MANUAL SLU MASTER CARTON CARTON SEALING TAPE (CLEAR) PACKING STRAP HS/LC/HC POLYBAG 90*290/MM POLY BAG 130*350MM LABEL "MADE IN CHINA" 25*5MM APPROVAL LABEL BATTERY LABEL ADAPTOR UL 120V 60HZ/12VDC 300mA SERIAL AND CODE LABEL PROTECTION CARD 610632/2

Master: ktlPT15BR Date: April 19, 1999 KTL Test Report:9R05094 Applicant:Internet Security Lifeguard Inc. 2005 23 rd Avenue Lachine, Quebec H8T 1X1 Equipment Under Test:S.L.U. 100 Receiver (E.U.T.)With Satellite 102 Remote Unit FCC ID:OQNSLU100 In Accordance With:FCC Part 15, Subpart B Radio Receivers Tested By:KTL Ottawa Inc. 3325 River Road, R.R. 5 Ottawa, Ontario K1V 1H2 Authorized By: R. Grant, Senior RF Specialist Date: Total Number of Pages:32 KTL OttawaFCC PART 15, SUBPART B RADIO RECEIVERS PROJECT NO.: 9R05094 EQUIPMENT: S.L.U. 100 Receiver With Satellite 102 Remote Unit FCC ID: OQNSLU100 Page 2 of 32 TABLE OF CONTENTS Section 1. Summary of Test Results General Summary of Tests Section 2. Equipment Under Test (E.U.T.) Equipment Details Description of E.U.T. Modifications Incorporated in E.U.T. Theory of Operation Justification Exercise Program Section 3. Equipment Configuration Equipment Configuration List Inter-connection Cables Configuration of the Equipment Under Test (E.U.T.) Block Diagram Section 4. Receiver Antenna Conducted Emissions Test Conditions Test Results Receiver Antenna Conducted Plots Section 5. Radiated Emissions Test Conditions Test Results Test Data-Radiated Emissions Radiated Photographs Radiated Emissions Plots Section 6. Powerline Conducted Emissions Test Conditions Test Results Powerline Conducted Photographs Powerline Conducted Plots KTL OttawaFCC PART 15, SUBPART B RADIO RECEIVERS PROJECT NO.: 9R05094 EQUIPMENT: S.L.U. 100 Receiver With Satellite 102 Remote Unit FCC ID: OQNSLU100 Page 3 of 32 TABLE OF CONTENTS, continued Section 7. Sample Calculations Conducted Emissions Radiated Emissions Section 8. Block Diagrams Conducted Emissions Radiated Emissions Section 9. Test Equipment List Equipment List - Powerline Conducted Emissions Equipment List - Radiated Emissions KTL OttawaFCC PART 15, SUBPART B RADIO RECEIVERS PROJECT NO.: 9R05094 EQUIPMENT: S.L.U. 100 Receiver With Satellite 102 Remote Unit FCC ID: OQNSLU100 Page 4 of 32 Section 1.Summary of Test Results General: All measurements are traceable to national standards. These tests were conducted on a sample of the equipment for the purpose of demonstrating compliance with FCC Part 15, Subpart B. Measurement procedure ANSI C63.4-1992 was used for all tests. Radiated Emissions were measured on an open area test site. New SubmissionProduction Unit Class II Permissive ChangePre-Production Unit CRR Equipment Code THIS TEST REPORT RELATES ONLY TO THE ITEM(S) TESTED. THE FOLLOWING DEVIATIONS FROM, ADDITIONS TO, OR EXCLUSIONS FROM THE TEST SPECIFICATIONS HAVE BEEN MADE. See “ Summary of Test Data”. NVLAP LAB CODE: 100351-0 TESTED BY: _____________________________________ DATE: ___________________ Kevin Carr, Technologist KTL Ottawa Inc. authorizes the above named company to reproduce this report provided it is reproduced in its entirety and for use by the company’s employees only. Any use which a third party makes of this report, or any reliance on or decisions to be made based on it, are the responsibility of such third parties. KTL Ottawa Inc. accepts no responsibility for damages, if any, suffered by any third party as a result of decisions made or actions based on this report. This report applies only to the items tested. KTL OttawaFCC PART 15, SUBPART B RADIO RECEIVERS PROJECT NO.: 9R05094 EQUIPMENT: S.L.U. 100 Receiver With Satellite 102 Remote Unit FCC ID: OQNSLU100 Page 5 of 32 Summary Of Test Data Name Of TestPara. No.Results Antenna Conducted Emissions15.111Not Applicable Radiated Emissions15.109Complies Powerline Conducted Emissions15.107Complies Footnotes For N/A’s:The E.U.T. has an integral antenna. Test Conditions: IndoorTemperature: 25 °C Humidity:50 % OutdoorTemperature: 25 °C Humidity:50 % KTL OttawaFCC PART 15, SUBPART B RADIO RECEIVERS PROJECT NO.: 9R05094 EQUIPMENT: S.L.U. 100 Receiver With Satellite 102 Remote Unit FCC ID: OQNSLU100 Page 6 of 32 Section 2.Equipment Under Test (E.U.T.) Manufacturer:Internet Security Lifeguard Inc. Model No.:S.L.U. 100 Serial No.:None Equipment Details Frequency Range:303 MHz Fixed Number of Channels:One Operating Frequency(ies) of Sample:303 MHz Crystal Frequency(ies):Not Applicable Primary Power Requirement:120 VAC, 60 Hz Intermediate Frequency(ies):Not Applicable KTL OttawaFCC PART 15, SUBPART B RADIO RECEIVERS PROJECT NO.: 9R05094 EQUIPMENT: S.L.U. 100 Receiver With Satellite 102 Remote Unit FCC ID: OQNSLU100 Page 7 of 32 Description of E.U.T. The E.U.T. is a telephone / wireless receiver emergency monitoring unit that contains a 303 MHz super-regenerative receiver. Modifications Incorporated in E.U.T. The EUT has not been modified from what is described by the brand name and unique type identification stated above. KTL OttawaFCC PART 15, SUBPART B RADIO RECEIVERS PROJECT NO.: 9R05094 EQUIPMENT: S.L.U. 100 Receiver With Satellite 102 Remote Unit FCC ID: OQNSLU100 Page 8 of 32 Theory of Operation Security Lifeguard Unit (S.L.U.) The S.L.U. is a telephone / alarm monitor that includes a wireless alarm receiver that receives messages from various alarm transmitters operating at 303 MHz. Remote Satellite Unit The R.S.U. connects directly to the S.L.U. to provide hands-free voice communication with monitoring station via the S.L.U. KTL OttawaFCC PART 15, SUBPART B RADIO RECEIVERS PROJECT NO.: 9R05094 EQUIPMENT: S.L.U. 100 Receiver With Satellite 102 Remote Unit FCC ID: OQNSLU100 Page 9 of 32 Justification The E.U.T. was configured for testing as per typical installation. Position and bundling of cables were investigated to establish maximum amplitude of emissions. The following combinations were investigated to establish worst case configuration: (1) R.S.U. connected to S.L.U. with S.L.U. receiver cohered using a CW signal. Exercise Program The E.U.T. exercise program used during radiated and conducted testing was designed to exercise the various system components in a manner similar to typical use. Exercise Mode: (1) Normal operation. KTL OttawaFCC PART 15, S…
