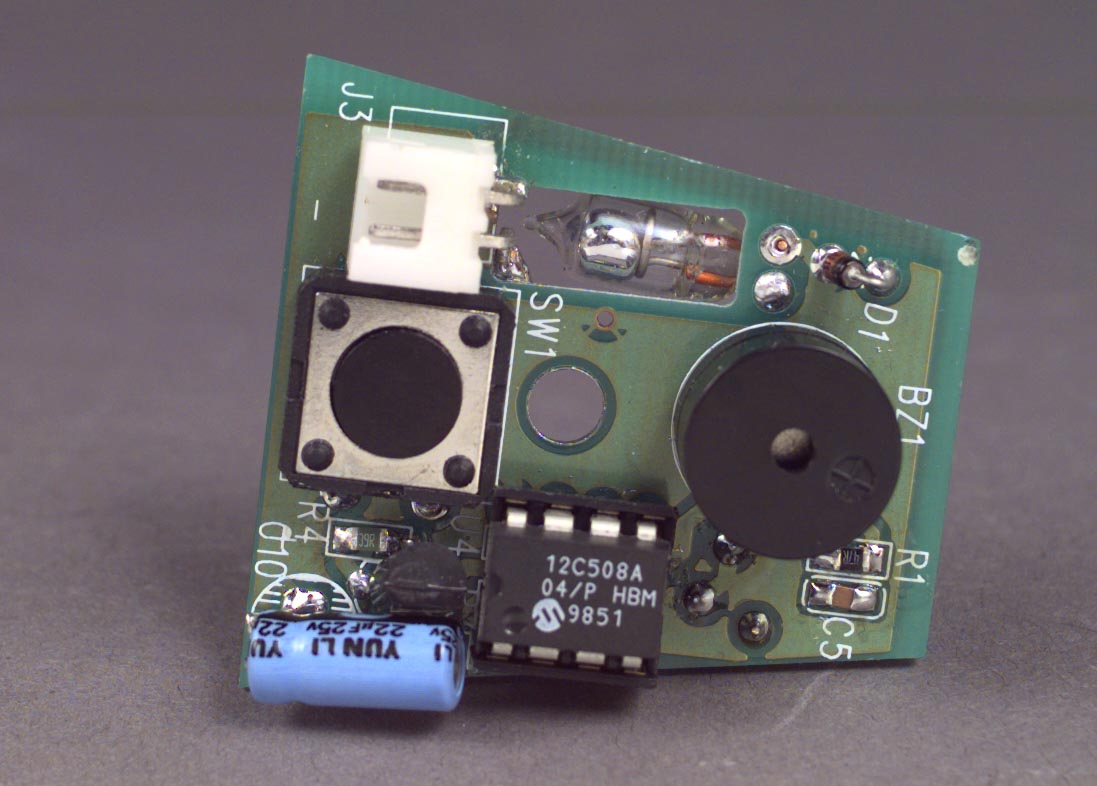

OQNTX234Man Down Transmitter Model TX-234

INTERNET SECURITY LIFEGUARD INC. USER GUIDE SECURITY LIFEGUARD UNIT ( TRANSMITTER ) MODÈLE TX-234 2 USER GUIDE SECURITY LIFEGUARD UNIT (TX-234) TABLE OF CONTENT • About the transmitter TX-234 page 3 • The function Man down page 3 • The function Tether page 3 • Low Battery page 3 • Warranty page 4 Copyright © 2000 Internet Security LifeguardAll rights ReservedABOUT THE TRANSMITTER TX 234 : 3 This accessory can be worn at all times. Whenever an emergency arises, thetransmitter will send an alarm to the SLU and then immediately communicate thatemergency to the control center, and a two-way HFM* session will beautomatically activated.THE MAN DOWN:This man down operates by the position of the unit. Whether the client wears theunit on his belt or as a pendant, should this unit not be in a vertical position for aperiod of 10 sec it will begin to beep for another 10 sec before transmitting asignal to the control center. The client can abort the transmission during this timeby pressing the button on the transmitter.THE TETHER:This unit is worn as a pendant or clipped on to a belt. It transmits a signal to theSLU every 15 seconds. Should the client wonder outside the perimeter, the SLUwill transmit this info to the control center advising that client has wondered off.This unit doesn’t require away installation.They maximum rage of this unit is 100Ft (31Meters) open air.It is important that the receiver (SLU) is located on a non-metallic surface.LOW BATTERY:In the event of a low battery condition this unit will transmit to the control center alow battery signal approximate every 11 hours or until the battery is replace in thetransmitter.Note: HFM* = Hand Free Mode INTERNET SECURITY LIFEGUARD 4 Subscribe r Warranty Please complete all sections of this warranty card and return to yourdealer/distributor.The Internet Security Lifeguard is a precision electronic system manufactured tothe highest standards. This w arranted for life against any manufacturing defects aslong as the initial purchaser subscribes uninterruptedly to Internet SecurityLifeguard monitoring services.The Warranty is only valid if full particulars are filled in by the distributor at thetime of purchase and does not cover damage caused by misuse, or neglect or useof non-approved accessories. This warranty shall be void if the unit has beenopened and/or repaired by any unauthorized person. The warranty does notinclude shipping or packaging costs.This warranty is in addition to your statutory rights and does not affect them.Please complete the sections below at the time of purchase in block letters.Name___________________________Model_________________Address_________________________Serial ________________________________________________ PurchaseDate__________________________________________Tel. No.________________Signature_______________________ Post/Zip Code___________Distributor No.___________________Date___________________Distributor Name_________________A ccessories_____________ Signature______________________________________________In the event of a fault occurring in the system, please return it to the address belowenclosing this completed w arranty card:Distributor/ De ale r Addre ss (stamp):NOTE: 5 ________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________ INDUSTRY CANADA WARRINGS 6NOTICE:The Industry Canada Label identifies certified equipment. This certificationmeans that the equipment meets telecommunications network protective,operational and safety requirements as prescribed in the appropriate TerminalEquipment technical requirements document(s). The department does notguarantee the equipment will operate to the user’s satisfaction.Before installing this equipment, users should ensure that it is permissible to beconnected to the facilities of the local telecommunications company. Thee…

Text truncated - open the document above for the full version.

tel: (514) 633-0886 fax: (514) 633-9305 Internet Security Lifeguard Inc. 2505 Louis A. Amos Lachine, Quebec H8T 1C3 06/28/00 Mr. Gilles Philion KTL 3325 River Road, RR#5 Ottawa, Ont K1V 1H2 Dear Gilles, Internet Security Lifeguard hereby authorizes KTL to apply to, on our behalf, the Federal Communications Commission for certification of our “Man Down Transmitter” , in accordance with FCC Part 15 , as specified in your Quote No. 02570. Sincerely, Ralph Schwartz President

Internet Security LifeguardModel No.: TX-234 CANADA:FCC ID: OQNTX234 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two rules: (1) This device may not cause harmful Interference, and (2) This device must accept any interference received, including Interference that may cause undesired operation. Distributed Exclusively by Internet Security Lifeguard Medical Equipment Made in China Dimension of the label are 6cm width and 3cm of height

Master: ktlPT15231 Date: April 5, 2000 KTL Test Report:0R02570 Applicant:Internet Security Lifeguard Inc. 2005, 3 rd Avenue Lachine, Quebec H8T 1X1 Equipment Under Test:Man Down Transmitter (E.U.T.) FCC ID:OQNTX234 In Accordance With:FCC Part 15, Subpart C For Low Power Transmitters Operating Periodically In The Band 40.66 - 40.77 MHz And Above 70 MHz Tested By:KTL Ottawa Inc. 3325 River Road, R.R. 5 Ottawa, Ontario K1V 1H2 Authorized By: R. Grant, Wireless Group Manager Date: Total Number of Pages:24 KTL Ottawa FCC PART 15, SUBPART C FOR LOW POWER TRANSMITTERS PROJECT NO.: 0R02570 EQUIPMENT: Man Down Transmitter FCC ID: OQNTX234 Page 2 of 22 Table of Contents Section 1. Summary of Test Results.......................................................................................... 3 Section 2. Equipment Under Test (E.U.T.) .............................................................................. 5 Section 3. Transmission Requirements .................................................................................... 6 Section 4. Radiated Emissions................................................................................................. 14 Section 5. Occupied Bandwidth.............................................................................................. 17 Section 6. Block Diagrams.......................................................................................................20 Section 7. Test Equipment List ............................................................................................... 22 Annex A Restricted Bands.................................................................................................... A1 KTL Ottawa FCC PART 15, SUBPART C FOR LOW POWER TRANSMITTERS PROJECT NO.: 0R02570 EQUIPMENT: Man Down Transmitter FCC ID: OQNTX234 Page 3 of 22 Section 1.Summary of Test Results General All measurements are traceable to national standards. These tests were conducted on a sample of the equipment for the purpose of demonstrating compliance with Part 15, Subpart C, Paragraph 15.231. All tests were conducted using measurement procedure ANSI C63.4-1992. Radiated emissions are made on an open area test site. A description of the test facility is on file with the FCC. New SubmissionProduction Unit Class II Permissive ChangePre-Production Unit DS C Equipment Code THIS TEST REPORT RELATES ONLY TO THE ITEM(S) TESTED. THE FOLLOWING DEVIATIONS FROM, ADDITIONS TO, OR EXCLUSIONS FROM THE TEST SPECIFICATIONS HAVE BEEN MADE. See “ Summary of Test Data”. NVLAP LAB CODE: 100351-0 TESTED BY: _____________________________________ DATE: ___________________ Kevin Carr, Technologist KTL Ottawa Inc. authorizes the above named company to reproduce this report provided it is reproduced in its entirety and for use by the company’s employees only. Any use which a third party makes of this report, or any reliance on or decisions to be made based on it, are the responsibility of such third parties. KTL Ottawa Inc. accepts no responsibility for damages, if any, suffered by any third party as a result of decisions made or actions based on this report. This report applies only to the items tested. KTL Ottawa FCC PART 15, SUBPART C FOR LOW POWER TRANSMITTERS PROJECT NO.: 0R02570 EQUIPMENT: Man Down Transmitter FCC ID: OQNTX234 Page 4 of 22 Summary Of Test Data Name of TestPara. NumberResults Transmission Requirements15.231(a)Complies Radiated Emissions15.231(b)Complies Occupied Bandwidth15.231(c)Complies Frequency Tolerance15.231(d)Not Applicable Periodic Alternate Field Strength Requirements15.231(e)Not Applicable Powerline Conducted Emissions15.207Not Applicable Footnotes For N/A’s: Test Conditions: Indoor Temperature: 20 °C Humidity:40 % Outdoor Temperature: 20 °C Humidity:40 % KTL Ottawa FCC PART 15, SUBPART C FOR LOW POWER TRANSMITTERS PROJECT NO.: 0R02570 EQUIPMENT: Man Down Transmitter FCC ID: OQNTX234 Page 5 of 22 Section 2.Equipment Under Test (E.U.T.) General Equipment Information Manufacturer: Internet Security Lifeguard Model No.: Man Down Serial No.: None Date Received In Laboratory: June 6, 2000 KTL Identification No.: Item #1 Frequency Range: 303 MHz Operating Frequency(ies) of Sample: 303.87 MHz Type of Emission: PWM Emission Designator: 55K0L1D Supply Power Requirement: Battery, 3.6 Vdc Duty Cycle Calculation: 20 Log ms x       100 6.082 = -6.2 dB KTL Ottawa FCC PART 15, SUBPART C FOR LOW POWER TRANSMITTERS PROJECT NO.: 0R02570 EQUIPMENT: Man Down Transmitter FCC ID: OQNTX234 Page 6 of 22 Section 3.Transmission Requirements Para. No.: 15.231(a) Test Performed By: Kevin Carr Date of Test: June 8, 2000 Minimum Standard: 15.231(a) Continuous transmissions such as voice, video or data transmissions are not permitted. 15.231(a)(1) A manually operated transmitter shall employ a switch that will automatically deactivate the transmitter within not more than 5 seconds after being released. 15.231(a)(2) A transmitter activated automatically shall cease transmission within 5 seconds of activation. 15.231(a)(3) Periodic transmissions at regular pre-determined intervals are not permitted. However polling or supervisory transmissions to determine system integrity of transmitters used in security or safety applications are allowed if the periodic rate of transmission does not exceed one transmission of not more than one second duration per hour for each transmitter. 15.231(a)(4) Intentional radiators which are employed for radio control purposes during emergencies involving fire, security, and safety of life, when activated to signal an alarm, may operate during the pendency of the alarm. Test Results: Complies. Test Data: Compliance was determined by verification of technical specifications and a functional test on the equipment. KTL Ottawa FCC PART 15, SUBPART C FOR LOW POWER TRANSMITTERS PROJECT NO.: 0R02570 EQUIPMENT: Man Down Transmitter FCC ID: OQNTX234 Page 7 of 22 Rationale for Compliance with Transmission Requirements 15.231(a)(1) : There is no prov…

Text truncated - open the document above for the full version.

Master: ktlPT15231 Date: April 5, 2000 KTL Test Report:0R02570 Issue: 2.0 Applicant:Internet Security Lifeguard Inc. 2505 Louis A. Amos Lachine, Quebec H8T 1C3 Equipment Under Test:Man Down Transmitter (E.U.T.) FCC ID:OQNTX234 In Accordance With:FCC Part 15, Subpart C For Low Power Transmitters Operating Periodically In The Band 40.66 - 40.77 MHz And Above 70 MHz Tested By:KTL Ottawa Inc. 3325 River Road, R.R. 5 Ottawa, Ontario K1V 1H2 Authorized By: R. Grant, Wireless Group Manager Date: Total Number of Pages:25 KTL Ottawa FCC PART 15, SUBPART C FOR LOW POWER TRANSMITTERS PROJECT NO.: 0R02570 EQUIPMENT: Man Down Transmitter FCC ID: OQNTX234, ISSUE: 2.0 Page 2 of 23 Table of Contents Section 1. Summary of Test Results.......................................................................................... 3 Section 2. Equipment Under Test (E.U.T.) .............................................................................. 5 Section 3. Transmission Requirements .................................................................................... 6 Section 4. Radiated Emissions................................................................................................. 15 Section 5. Occupied Bandwidth.............................................................................................. 18 Section 6. Block Diagrams.......................................................................................................21 Section 7. Test Equipment List ............................................................................................... 23 Annex A Restricted Bands.................................................................................................... A1 KTL Ottawa FCC PART 15, SUBPART C FOR LOW POWER TRANSMITTERS PROJECT NO.: 0R02570 EQUIPMENT: Man Down Transmitter FCC ID: OQNTX234, ISSUE: 2.0 Page 3 of 23 Section 1.Summary of Test Results General All measurements are traceable to national standards. These tests were conducted on a sample of the equipment for the purpose of demonstrating compliance with Part 15, Subpart C, Paragraph 15.231. All tests were conducted using measurement procedure ANSI C63.4-1992. Radiated emissions are made on an open area test site. A description of the test facility is on file with the FCC. New SubmissionProduction Unit Class II Permissive ChangePre-Production Unit DS C Equipment Code THIS TEST REPORT RELATES ONLY TO THE ITEM(S) TESTED. THE FOLLOWING DEVIATIONS FROM, ADDITIONS TO, OR EXCLUSIONS FROM THE TEST SPECIFICATIONS HAVE BEEN MADE. See “ Summary of Test Data”. NVLAP LAB CODE: 100351-0 TESTED BY: Kevin Carr, Technologist KTL Ottawa Inc. authorizes the above named company to reproduce this report provided it is reproduced in its entirety and for use by the company’s employees only. Any use which a third party makes of this report, or any reliance on or decisions to be made based on it, are the responsibility of such third parties. KTL Ottawa Inc. accepts no responsibility for damages, if any, suffered by any third party as a result of decisions made or actions based on this report. This report applies only to the items tested. KTL Ottawa FCC PART 15, SUBPART C FOR LOW POWER TRANSMITTERS PROJECT NO.: 0R02570 EQUIPMENT: Man Down Transmitter FCC ID: OQNTX234, ISSUE: 2.0 Page 4 of 23 Summary Of Test Data Name of TestPara. NumberResults Transmission Requirements15.231(a)Complies Radiated Emissions15.231(e)Complies Occupied Bandwidth15.231(c)Complies Frequency Tolerance15.231(d)Not Applicable Powerline Conducted Emissions15.207Not Applicable Footnotes For N/A’s: Test Conditions: Indoor Temperature: 20 °C Humidity:40 % Outdoor Temperature: 20 °C Humidity:40 % KTL Ottawa FCC PART 15, SUBPART C FOR LOW POWER TRANSMITTERS PROJECT NO.: 0R02570 EQUIPMENT: Man Down Transmitter FCC ID: OQNTX234, ISSUE: 2.0 Page 5 of 23 Section 2.Equipment Under Test (E.U.T.) General Equipment Information Manufacturer: Internet Security Lifeguard Model No.: Man Down Serial No.: None Date Received In Laboratory: June 6, 2000 KTL Identification No.: Item #1 Frequency Range: 303 MHz Operating Frequency(ies) of Sample: 303.87 MHz Type of Emission: PWM Emission Designator: 55K0L1D Supply Power Requirement: Battery, 3.6 Vdc Duty Cycle Calculation: 20 Log ms x       100 6.082 = -6.2 dB KTL Ottawa FCC PART 15, SUBPART C FOR LOW POWER TRANSMITTERS PROJECT NO.: 0R02570 EQUIPMENT: Man Down Transmitter FCC ID: OQNTX234, ISSUE: 2.0 Page 6 of 23 Section 3.Transmission Requirements Para. No.: 15.231(a) Test Performed By: Kevin Carr Date of Test: June 8, 2000 Minimum Standard: 15.231(a) Continuous transmissions such as voice, video or data transmissions are not permitted. 15.231(a)(1) A manually operated transmitter shall employ a switch that will automatically deactivate the transmitter within not more than 5 seconds after being released. 15.231(a)(2) A transmitter activated automatically shall cease transmission within 5 seconds of activation. 15.231(a)(3) Periodic transmissions at regular pre-determined intervals are not permitted. However polling or supervisory transmissions to determine system integrity of transmitters used in security or safety applications are allowed if the periodic rate of transmission does not exceed one transmission of not more than one second duration per hour for each transmitter. 15.231(a)(4) Intentional radiators which are employed for radio control purposes during emergencies involving fire, security, and safety of life, when activated to signal an alarm, may operate during the pendency of the alarm. Test Results: Complies. Test Data: Compliance was determined by verification of technical specifications and a functional test on the equipment. KTL Ottawa FCC PART 15, SUBPART C FOR LOW POWER TRANSMITTERS PROJECT NO.: 0R02570 EQUIPMENT: Man Down Transmitter FCC ID: OQNTX234, ISSUE: 2.0 Page 7 of 23 Rationale for Compliance with Transmission Requirements 15.231(a)(1) : There is no provision for manual operation. 15.231(a)(2) : The tra…

Text truncated - open the document above for the full version.
