OQT28SNP-03-0228 GHz SONET Wireless Transceiver

Invisible Fiber TM Unit Installation Guide for 28 GHz SONET OC-3 Applications Part No. 5228002-0001 Release No. 1.0, February 2000 © 1999 Triton Network Systems, Inc. All Rights Reserved. Notice of Disclaimer The information and specifications provided in this document are subject to change without notice. The Warranty(s) that accompany Triton Network Systems, Inc., products are set forth in the sales agreement/contract between Triton Network Systems, Inc., and its customer. Please consult the sales agreement for the terms and conditions of the Warranty(s) provided by Triton Network Systems, Inc. To obtain a copy of the Warranty(s), contact Triton Network Systems, Inc., the Marketing Group at +1-407-903-0975 or +1-407-903-0997 (FAX). The information provided in this Triton Network Systems, Inc., document is provided “as is” without warranty of any kind, either expressed or implied, including, but not limited to, the implied warranties of merchantability, fitness for a particular purpose, or non-infringement. Some jurisdictions do not allow the exclusion of implied warranties, so the above exclusion may not apply to you. In no event shall any Triton Network Systems, Inc., company be liable for any damages whatsoever— including special, indirect, consequential or incidental damages or damages for loss of profits, revenue, use, or data whether brought in contract or tort, arising out of or connected with any Triton Network Systems, Inc., Document or the use, reliance upon or performance of any material contained in or accessed from this Triton Network Systems, Inc. document. Triton Network Systems’ license agreement may be provided upon request. Additional Terms and Conditions will be finalized upon negotiation of a purchase. Trademark Information Invisible Fiber™ is a trademark of Triton Network Systems, Inc. All other brand or product names are trademarks or registered trademarks of their respective companies or organizations. Part Number: 5228002-0001 28 GHz SONET OC-3 IFU Installation - R1.0iii Contents List of Figures ................................................................................... vii List of Tables ..................................................................................... ix About This Book ............................................................................... xi Purpose of This Book .................................................................................... xi Intended Audience ......................................................................................... xi Format of This Book ..................................................................................... xii Conventions Used in This Book ................................................................... xii Contacting Triton Network Systems, Inc. ...................................................xiii Warnings and Safety Guidelines .....................................................xv Conventions .................................................................................................. xv Risk of Personal Injury from Electrical Shock ............................................ xvi Risk of Personal Injury from Fiber Optics ................................................... xvi Risk of Personal Injury from Radio Frequency Energy Exposure .............. xvi Other Risks of Personal Injury .................................................................... xvii Risk of Service Interruption .......................................................................xviii Other Precautions ......................................................................................... xix Avertissements et consignes de sécurité ........................................ xxi Conventions ................................................................................................. xxi Risque de lésions corporelles provoquées par la décharge électrique ........ xxii Risque de lésions cor porelles provoquées par les câb les à fibres optiques..xxii iv© 1999 Triton Network Systems, Inc. All Rights Reserved. Risque de lésions corporelles provoquées par l’exposition de l’énergie radiofréquences ..........................................................................................xxiii Autres risques des lésions corporelles .......................................................xxiii Risque d’interruption de service ................................................................ xxiv Autres mises en garde ................................................................................. xxv Chapter 1 — Installation Overview .............................................. 1-1 Installation Overview ...................................................................................1-1 Site Engineering Folder .........................................................................1-1 IFU Link Manager .......................................................................................1-2 Power Source ...............................................................................................1-2 Cabling .........................................................................................................1-2 Power Cable ..........................................................................................1-2 Fiber Optic Cable ..................................................................................1-2 System Grounding and Surge Protection .....................................................1-3 Earth Ground .........................................................................................1-3 Surge Protection ....................................................................................1-3 Chapter 2 — Staging Procedure .................................................... 2-1 Configuring IFUs .........................................................................................2-1 Chapter 3 — Installation Procedures ...............................…

Text truncated - open the document above for the full version.

Letter of Agency I, an officer of Triton Network Systems, Inc. do hereby authorize Intertek Testing Services to act on our behalf in front of the Federal Communication Commission with respect to all matters relating to certification of equipment under Part 101 of the FCC Rules until further notice. The application certifies that, in case of an individual applicant, he or she is not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a), or, in the case of a non-individual applicant (e.g. corporation, partnership or other unincorporated association), no party to the application is subject to a denial of federal benefits, that includes FCC benefits, pursuant to that section. Michael Clark Vice President, Engineering Triton Network Systems, Inc. 8529 SouthPark Circle, 4 th Floor Orlando, FL 32819 August 20, 1999

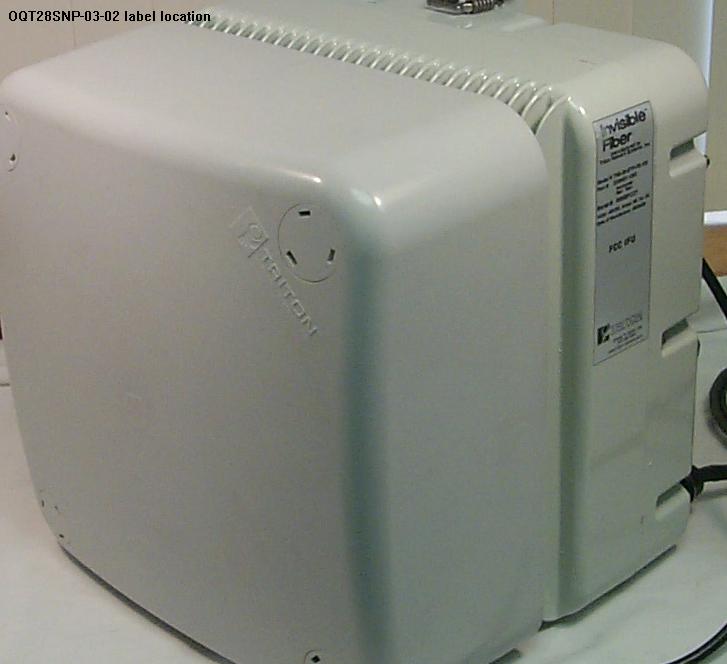

Orlando, FL 32819, USA 407 – 903 – 0900 Model #: TNS-28-SNP-03-XXX Part #: Serial #: XXXXXXXXX Rev: Volts: -48 VDC Amps: 5 A Hz: DC Date of Manufacture: XX/XX/XX FCC ID: OQT-28-SNP-03-02 This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This device complies with the FCC Parts 101, 15B. Conforms to UL Std 50 (NEMA 4X), UL Std 1950. 9901046 www.triton-network.com

This information is furnished under the confidentiality request. 2.1033(c)(8) DC voltage/currents of final RF stage DC voltage/currents of final RF stage - both radios (FE and SONET) it is 6VDC @ 3.5A.

2.1033(c)(13) Digital Modulation Description SONET - The combined payload data and control data are modulated using 32-QAM modulation. 155 Mbps OC-3 IFU uses a 32-level Quadrature Amplitude Modulation (32- QAM) modulation scheme. In 32-QAM modulation, both the phase and the amplitude of the RF carrier is modulated such that each point of the constellation represents a particular phase and amplitude of the RF carrier. The spectrum of the modulated waveforms fit within the spectral masks defined by the FCC at 28 GHz.

Tune -up Info rmat io n System tune-up and alignment information is found in the Installation (Users) Manual, as follows: page Chapter 4Alignment Procedures4-1 Setup4-2 Before starting4-2 Preparing for Installation4-2 Coarse Aligning the IFU4-3 Fine Aligning the IFU4-4

(Excerpt from Test Report) 5.8. RF Safety evaluation The Wireless Consecutive Point to Point Millimeter-Wave Transceiver models TNS-28-SNP-03-100, -200, -300, -400, -500 and -600 are stationary, fixed-mounted units with a maximum EIRP of 36 dBW or 3981 Watt effective radiated power in the main lobe of the antenna. This is more than the 1640 W EIRP threshold established by the FCC for RF safety evaluation, therefore the transmitter is not categorically excluded from MPE evaluation. Based on the following physical characteristics: Conducted antenna power 1 Watt Antenna Gain 3981.1 Maximum antenna dimension 34.5 cm and the theoretical for mulas FCCC OET 65, the following RF safety parameters can be calculated for operation on 28 GHz: 1. Transition between near and far field; 0.5D^2 /. is 5.55 meters 2. Maximum near field power; 4P/A is 42.79 W/m^2 3. Power density at the far field transition point; S=PG/(4pi .R^2) is 10.28 W/m^2 4. Distance for power density to equal 10 W/m^ 2; PG/(4pi .R^2 ) is 5.63 meters. Experimentally we determined that the field strength as measured with a broadband E-field probe closely followed the theoretical predictions. The results are tabulated below: Distance(m) E-field (V/m) Calculated EIRP (W/m^2) Theoretical far field (W/m^2) 5.0 71 13.37 na 5.3 63 10.52 na 6.8 50 6.63 6.85 From the above, the following conclusions can be reached: • The Triton TNS 28 series transceivers comply with the 50 W/m^ 2 RF safety limits for occupational RF workers. • A safety zone in front of the unit of at least 6 meters for the protection of the general public needs to be established. • A RF safety-warning label needs to be present on the transceiver. The user/installation manual needs to provide information on the proper mounting such that the safety zone is maintained. • When multiple antennas are installed in the same location, a RF exposure assessment will have to be made at the time of installation.

Report J20021364A August 25, 2000 Page: 1 of 19 All services undertaken are subject to the following general policy: Reports are submitted for exclusive use of the client to whom they are addressed. Their significance is subject to the adequacy and representative character of the samples and to the comprehensiveness of the tests, examinations or surveys made. This report shall not be reproduced except in full, without written consent of Intertek testing Services, NA Inc. This report must not be used to claim product endorsement by NVLAP, NIST nor any other agency of the U.S. Government. Report written Peter Boers Report reviewed Candy Campbell Function Contractor Function ITS Team leader Report date August 25, 2000 Review date Signature Signature FCC Part 101 Certification for Triton Network Systems, Inc. FCC ID: OQT28SNP-03-02 28 GHz SONET OC-3 Wireless Consecutive Point to Point Millimeter-Wave Transceiver Models: TNS-28-SNP-03-100, -200, -300, -400, -500, -600 Intertek Testing Services NA, Inc. FCC ID: OQT28SNP-03-02 Boxborough, MA ITS Report J20021364A August 25, 2000 Page 2 of 19 None of this report may be duplicated except in full without the written authorization of Intertek testing Services Table of Contents 1. Introduction................................................................................................................................. 3 2. Product Description .................................................................................................................... 3 2.1. Multiple list/ Family information.........................................................................................3 2.2. Frequency Availability......................................................................................................... 4 2.3. Block Diagram of the product..............................................................................................4 3. Summary of Tests and results ..................................................................................................... 4 4. Test plan...................................................................................................................................... 5 4.1. General ................................................................................................................................ 5 4.2. Frequency stability.............................................................................................................. 5 4.3. Output power ....................................................................................................................... 5 4.4. Bandwidth ............................................................................................................................ 5 4.5. Emission Limitation (Mask) ................................................................................................5 4.6. Spurious emissions............................................................................................................... 6 4.7. Incidental radiation .............................................................................................................. 6 4.8. Receiver verification ............................................................................................................ 6 4.9. RF Safety evaluation............................................................................................................ 6 5. Test results .................................................................................................................................. 7 5.1. General ................................................................................................................................. 7 5.2. Frequency Tolerance and Frequency Stability .................................................................... 7 5.3. Output power ....................................................................................................................... 8 5.4. Bandwidth ............................................................................................................................ 9 5.5. Emission Designator ............................................................................................................ 9 5.6. Emission Limitation (Mask) .............................................................................................. 10 5.7. Spurious emissions............................................................................................................. 14 5.8. Incidental radiation ............................................................................................................ 16 5.9. RF Safety evaluation.......................................................................................................... 16 5.10. Equipment list .................................................................................................................. 17 6. Photos of the EUT..................................................................................................................... 18 7. Additional Materials ................................................................................................................. 19 7.1. Final RF amplifier diagram................................................................................................19 7.2. Bill of Materials ................................................................................................................ 19 Intertek Testing Services NA, Inc. FCC ID: OQT28SNP-03-02 Boxborough, MA ITS Report J20021364A August 25, 2000 Page 3 of 19 None of this report may be duplicated except in full without the written authorization of Intertek testing Services 1. Introduction On August 21 to 24, 2000, we tested the 28 GHz SONET OC-3 Wireless Consecutive Point to Point Millimeter Wave Transmitter System, Models: TNS-28-SNP-03-100, TNS-28-SNP-03-200, TNS-28-SNP-03-300, TNS-28-SNP-03-400, TNS-28-SNP-03-500, TNS-…

Text truncated - open the document above for the full version.

2.1053 Field strength of spurious emissions See section 5.7 for report J20021364A, page 14 and 15, OQT28SNP-03-02 Radiated spurious emissions were measured at a distance of 1, 3 and 10 meters from the product, up to a frequency of 200 MHz. Measurements from 30 – 2000 MHz were made as part of the FCC part 15 tests with a biconolog antenna at 10 meters, from 1 - 40 GHz with a EMCO 3115 and 3116 ridge guided at 3 meters and with Millitech mixers at 1 meter from the EUT from 40 - 200 GHz. No spurious emissions could be found, which is technically understandable if one considers that the final RF output connects with a waveguide filter to the antenna. 2.1057 Range of antenna conducted spurious emissions and field strength Conducted spurious emissions were made up to 40 GHz with a direct connect between the output of the RF amplifier (after the waveguide filter). Figures 6, 7 and 8 show examples of the data obtained. Only the emission from the carrier could be found within the dynamic range of the measurement system. Conducted antenna measurements over 40 GHz could not be made directly because of the incompatibility of the waveguide flanges and the potential overloading of the Millitech mixers with the 1 Watt output of the RF amplifier. In lieu of this, radiated measurements were made with the coupling provided by the transmit antenna on the radio facing directly into the receive horn antenna's of the Millitech mixers, with a reference set at the actual transmit antenna. Again, no spurious emissions could be found within the dynamic range of this measurement setup. The same measurement process was followed for FCC ID: OQT28ETP-FE-02, report J20019792A. Figures 5,6,7,8 and 9 show the conducted spurious scans up to 40 GHz. Similar to the SONET product detailed above, no radiated spurious emissions could be found within the dynamic range of the measurement system.
