OR7GM323Wireless Free Wheel Mouse

User’s manual W W i i r r e e l l e e s s s s F F r r e e e e W W h h e e e e l l M M o o u u s s e e Utilizing Globlink patented technology deliver better precision RF optical mouse. It offers 360-degree scrolling capability on Website and documents. Convenient for office and home use. Specifications - 2.4GHz ISM band radio frequency - Patented optical trackball - Mouse left and right keys - 4-Directions easier read - Multi-Media function keys - Scroll, Web and E-mail buttons - Rechargeable - Smart receiver storage - Windows ME/2000/XP/Vista compatible - Mac OS X 10.2 and above - Resolution 1000cpi - Maximum precision and control - Comfortable and simple to use - Dimension: 120(L) x 63.5(W) x 38.5(H) mm Package Contents - Optical mouse - USB receiver - USB extension cable - 2 AAA Rechargeable batteries - Driver - User’s manual - 1 - Installation method 1. Battery Installation: open the battery cover (Fig. 1). Please assure to install the batteries correctly in place and replace the cover of battery. 2. Plug the receiver into an available USB port on your computer which automatically detects and installs it. 3. Press the Setup button on the receiver to turn off the LED light. (Fig.2) 4. Hold the mouse close to the receiver. Press the Connect button of the mouse (Fig. 1). The receiver’s LED light blinks indicating that the set-up has been completed. - 2 - Fig. 1 Connect button Battery Cover Receiver Cover Functions - 3 - Mouse Right Key Mouse Left Key Internet button E-mail button Scroll Wheel ball Middle button LED light Setup button Fig. 2 Rechargeable function Please plug USB receiver to USB female port of Y-cable and plug USB male of Y-cable to Notebook or PC’s USB port, and then insert recharging male to the mouse. - 4 - Page Up Page down Volume + Volume - Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: z Reorient or relocate the receiving antenna. z Increase the separation between the equipment and receiver. z Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. z Consult the dealer or an experienced radio/TV technician for help. FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This device and its antenna(s) must not be co-located or operating in conjunction with any other antenna or transmitter. 6MNUM323000US-A0 - 5 -

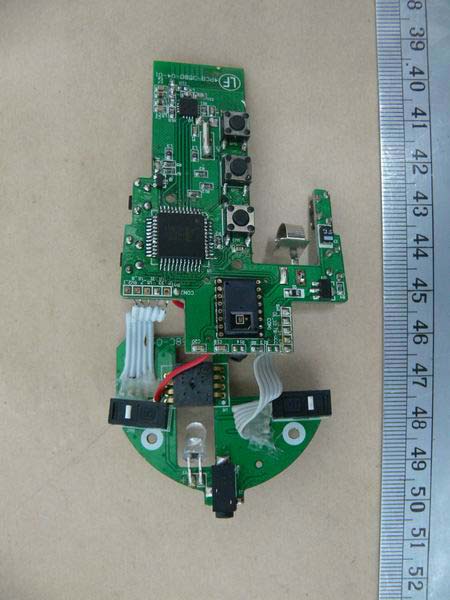

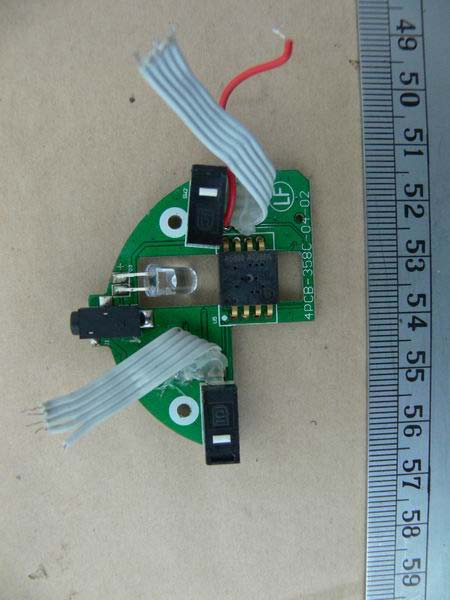

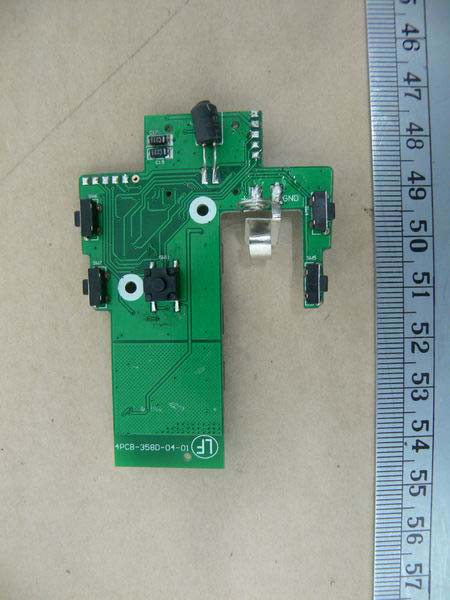

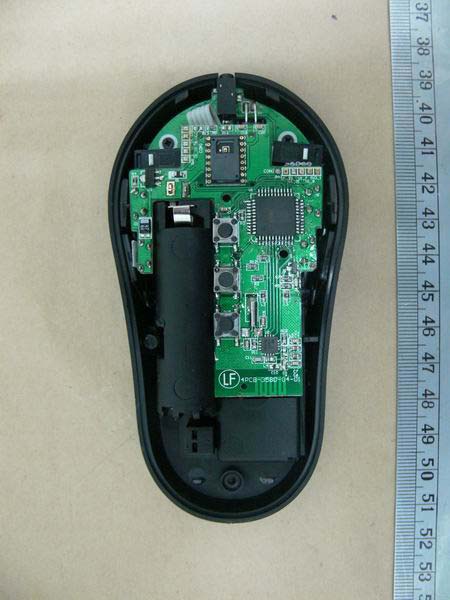

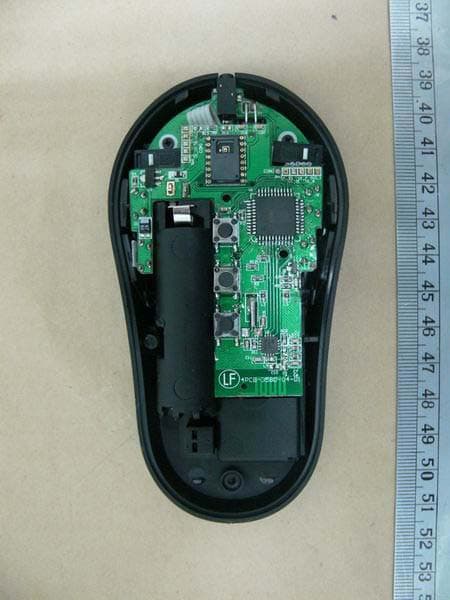

Registration number: W6M20708-8468-P-15 FCC ID: OR7GM323 ETS Product Service (Taiwan) Co., Ltd. Appendix page27 of 40 External Photos External Photos Registration number: W6M20708-8468-P-15 FCC ID: OR7GM323 ETS Product Service (Taiwan) Co., Ltd. Appendix page28 of 40 Registration number: W6M20708-8468-P-15 FCC ID: OR7GM323 ETS Product Service (Taiwan) Co., Ltd. Appendix page29 of 40 Registration number: W6M20708-8468-P-15 FCC ID: OR7GM323 ETS Product Service (Taiwan) Co., Ltd. Appendix page30 of 40 Registration number: W6M20708-8468-P-15 FCC ID: OR7GM323 ETS Product Service (Taiwan) Co., Ltd. Appendix page31 of 40 Registration number: W6M20708-8468-P-15 FCC ID: OR7GM323 ETS Product Service (Taiwan) Co., Ltd. Appendix page32 of 40 Internal photos Registration number: W6M20708-8468-P-15 FCC ID: OR7GM323 ETS Product Service (Taiwan) Co., Ltd. Appendix page33 of 40 Registration number: W6M20708-8468-P-15 FCC ID: OR7GM323 ETS Product Service (Taiwan) Co., Ltd. Appendix page34 of 40 Registration number: W6M20708-8468-P-15 FCC ID: OR7GM323 ETS Product Service (Taiwan) Co., Ltd. Appendix page35 of 40 Registration number: W6M20708-8468-P-15 FCC ID: OR7GM323 ETS Product Service (Taiwan) Co., Ltd. Appendix page36 of 40 Registration number: W6M20708-8468-P-15 FCC ID: OR7GM323 ETS Product Service (Taiwan) Co., Ltd. Appendix page37 of 40 Registration number: W6M20708-8468-P-15 FCC ID: OR7GM323 ETS Product Service (Taiwan) Co., Ltd. Appendix page38 of 40 Registration number: W6M20708-8468-P-15 FCC ID: OR7GM323 ETS Product Service (Taiwan) Co., Ltd. Appendix page39 of 40 Set Up Photo of Radiated Emission EMI mode Registration number: W6M20708-8468-P-15 FCC ID: OR7GM323 ETS Product Service (Taiwan) Co., Ltd. Appendix page40 of 40 RF mode

Registration number: W6M20708-8468-P-15 FCC ID: OR7GM323 ETS Product Service (Taiwan) Co., Ltd. Appendix page32 of 40 Internal photos Registration number: W6M20708-8468-P-15 FCC ID: OR7GM323 ETS Product Service (Taiwan) Co., Ltd. Appendix page33 of 40 Registration number: W6M20708-8468-P-15 FCC ID: OR7GM323 ETS Product Service (Taiwan) Co., Ltd. Appendix page34 of 40 Registration number: W6M20708-8468-P-15 FCC ID: OR7GM323 ETS Product Service (Taiwan) Co., Ltd. Appendix page35 of 40 Registration number: W6M20708-8468-P-15 FCC ID: OR7GM323 ETS Product Service (Taiwan) Co., Ltd. Appendix page36 of 40 Registration number: W6M20708-8468-P-15 FCC ID: OR7GM323 ETS Product Service (Taiwan) Co., Ltd. Appendix page37 of 40 Registration number: W6M20708-8468-P-15 FCC ID: OR7GM323 ETS Product Service (Taiwan) Co., Ltd. Appendix page38 of 40

of Applicant: Globlink Technology Inc. Address:2F, No.101, Rui-Hu St, Nei-Hu 114 TAIPEI, TAIWAN Tested and Prepared by ETS Product Service (Taiwan) Co., Ltd. FCC Registration No.: 930600 Industry Canada filed test laboratory Reg. No. IC 5679 A2LA Accredited No.: 2300.01 PTCRB Accredited Type Certification Test House FCC ID: OR7GM323 Report No.: W6M20708-8468-P-15 6F, NO. 58, LANE 188, RUEY-KUANG RD., NEIHU TAIPEI 114, TAIWAN, R.O.C. TEL: 886-2-66068877 FAX: 886-2-66068879 E-mail: [email protected] FCC TESTREPORT for Wireless Free Wheel Mouse Model No.: GM-323 Registration number: W6M20708-8468-P-15 FCC ID: OR7GM323 ETS Product Service (Taiwan) Co., Ltd. page 1 of 20 TABLE OF CONTENTS 1GENERAL INFORMATION ..........................................................................................................2 1.1 N OTES..........................................................................................................................................2 1.2 T ESTING LABORATORY................................................................................................................3 1.2.1Location ..............................................................................................................................3 1.2.2Details of accreditation status ............................................................................................3 1.3 D ETAILS OF APPROVAL HOLDER...................................................................................................3 1.4 APPLICATION DETAILS..................................................................................................................4 1.5 G ENERAL INFORMATION OF TEST ITEM........................................................................................4 1.6 T EST STANDARDS.........................................................................................................................5 2TECHNICAL TEST .........................................................................................................................6 2.1 S UMMARY OF TEST RESULTS........................................................................................................6 2.2 TEST ENVIRONMENT....................................................................................................................6 2.3 TESTEQUIPMENT LIST.................................................................................................................7 2.4 GENERAL TESTPROCEDURE........................................................................................................9 3TEST RESULTS (ENCLOSURE) ................................................................................................10 3.1 P EAKOUTPUT POWER (TRANSMITTER) ......................................................................................11 3.2 EQUIVALENT ISOTROPIC RADIATED POWER................................................................................13 3.2.1Transmitter........................................................................................................................13 3.3 RF EXPOSURE COMPLIANCE REQUIREMENTS............................................................................13 3.4 O UT OF BAND RADIATED EMISSIONS.........................................................................................13 3.5 SPURIOUS EMISSION (TX) ...........................................................................................................14 3.6 RADIATEDEMISSIONS FROM DIGITALPART..............................................................................17 3.7 R ADIATEDEMISSION ON THE BAND EDGE..................................................................................18 3.8 POWER LINE CONDUCTED EMISSION.........................................................................................19 APPENDIX ..............................................................................................................................................20 Registration number: W6M20708-8468-P-15 FCC ID: OR7GM323 ETS Product Service (Taiwan) Co., Ltd. page 2 of 20 1 General Information 1.1 Notes The purpose of conformity testing is to increase the probability of adherence to the essential requirements or conformity specifications, as appropriate. The complexity of the technical specifications, however, means that full and thorough testing is impractical for both technical and economic reasons. Furthermore, there is no guarantee that a test sample which has Passed all the relevant tests conforms to a specification. Neither is there any guarantee that such a test sample will interwork with other genuinely open systems. The existence of the tests nevertheless provides the confidence that the test sample possesses the qualities as maintained and that is performance generally conforms to representative cases of communications equipment. The test results of this test report relate exclusively to the item tested as specified in 1.5. The test report may only be reproduced or published in full. Reproduction or publication of extracts from the report requires the prior written approval of the ETS Product Service ( Taiwan )CO., LTD. Tester: Sep 10, 2007 Jay Chaing Date ETS-Lab. Name Signature Technical responsibility for area of testing: Sep 10, 2007 Steven Chuang Date ETS Name Signature Registration number: W6M20708-8468-P-15 FCC ID: OR7GM323 ETS Product Service (Taiwan) Co., Ltd. page 3 of 20 1.2 Testing laboratory 1.2.1 Location OATS No.5-1, Shuang Sing Village, LiShuei Rd., Wanli Township, Taipei County 207, Taiwan (R.O.C.) Company ETS Product Service ( Taiwan ) CO., LTD 6F, NO. 58, LANE 188, RUEY-KUANG RD. NEIHU, TAIPEI 114, TAIWAN R.O.C. Tel : 886-2-66068877 Fax : 886-2-66068879 1.2.2 Details of accreditation status Accredited testing laboratory A2LA accredited number: 2300.01 FCC filed test laboratory Reg. No. 930600 Industry Canada filed test laboratory Reg. No. IC 5679 PTCRB Accredited Type Certification …
