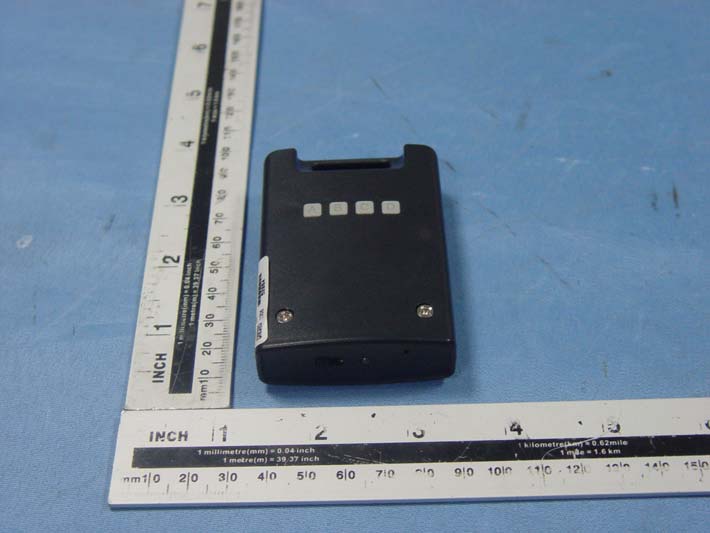

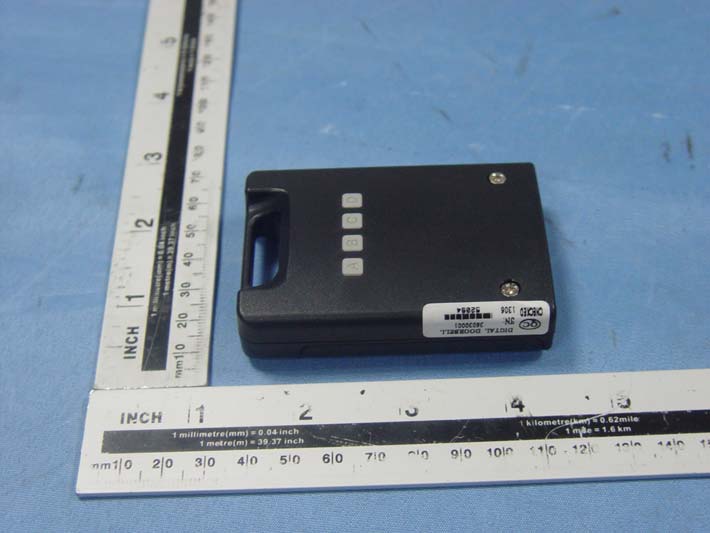

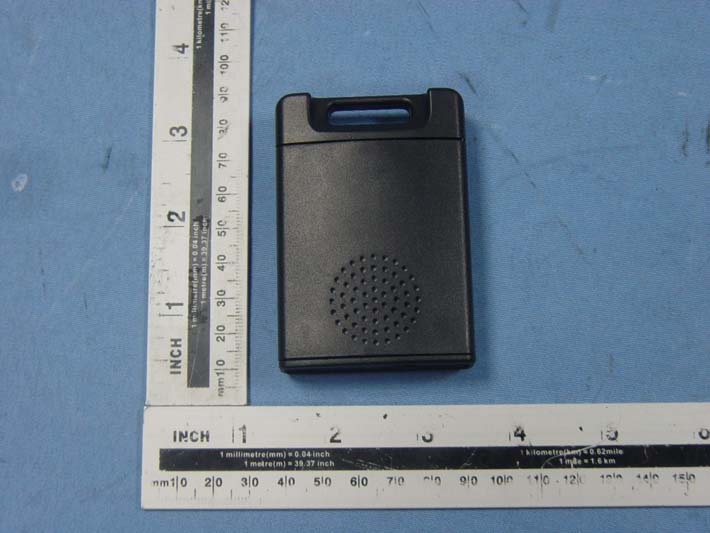

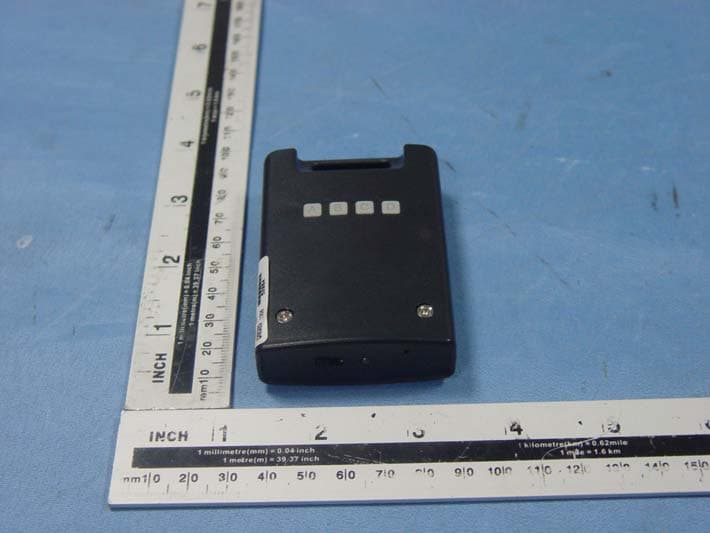

ORH13071RPersonal Recorder

Microphone On/Off Red LED A B C D 6" x 9" folds to 2" x 1.5" Personal Recorder Recorder Battery Replacement 1. Loosen captive screws (they remain in recorder). Remove battery cover. 2. Remove old batteries. 3. Replace with 2 new A A A batteries, position positive (+) ends as shown. 4. Replace battery cover. Tighten screws gently. Remote Control Battery Replacement 1. Loosen captive screws (they remain in back cover). Remove back cover. 2. Slide out old batteries. 3. Replace with 3 new CR2016 3V lithium batteries or equivalent with positive (+) sides up. 4. Replace back cover. Tighten screws gently. Recording: There are four (4) channels (A, B, C, D) corresponding to the four (4) Recorder and Remote buttons. Each can record a separate message for up to five (5) seconds. • NOTE microphone location! • To record, press and hold one of the Recorder buttons for three (3) seconds. • Red LED will light. • Release button and record message for five(5) seconds. • Red LED will turn off. • Unit will automatically play back recording. All four (4) channels may be re-recorded with a new message at any time. Operation: Press the appropriate button on the Remote Control. If the Recorder has been turned on, the recorded message plays. The corresponding buttons on the Recorder and Remote Control are marked A, B, C and D for easy reference. For best results, record 12 inches from microphone, speak loudly and clearly. NOTE: Range of remote is up to 100'. Range can be affected by a variety of shielding factors including walls, windows and external radio interferences. Power On Recorder: • To turn on, slide On/Off switch on end of unit to “On” position. • Unit beeps twice. • To turn off, slide recessed On/Off switch to Off position. ENGLISH ST00000 Limited LIFETIME Warranty This product is cover ed by a Limited Lifetime Warranty to t he original purchaser in that this product is free from defects in wor kmanship and mater ials. During the warranty period, this product will either be repaired or replaced with a product of equal or greater value, excluding any custom engraving or printing. Damage through normal wear and tear (including battery expiration and surface coatings), repair or alteration, misuse, abuse, neglect, accident, improper storage and handling, fire, negligence, improper cleaning, circumstances not directly attributable to manufacturing defects, or act of God is not included. THIS WARRANTY IS IN LIEU OF ALL OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO, IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR USE. This warranty gives you specific legal rights, and you may also have other rights which vary from state to state. Simply return your SWISS + TECH ® brand product postpaid and insured to: Swiss + Tech Products 30725 Solon Industrial Pkwy Solon, OH 44139 USA Made in China. MMMMMMMMI ™ and MI ® are trademarks of Swiss + Tech Products. Specifications are subject to change without notice. ©2014 Swiss + Tech Products, Solon, OH 44139 USA Back Cover Captive Screws CR2016 Batteries (3) A B C D Attach to Key Ring Install 2 AAA Batteries in Recorder & Pull Remote Tab Before Use! This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. WARNING: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. AAA Batteries ( 2 ) Recorder Remote "On" Position swisstechtools.com 1-800-414-8799 This product contains button batteries. IF SWALLOWED, batteries could cause severe injury or death in just 2 hours. SEEK MEDICAL ATTENTION IMMEDIATELY. • Always purchase the correct size and grade of battery most suitable for the intended use. • Clean the battery contacts and also those of the device prior to battery installation. • Ensure the batteries are installed correctly with regard to polarity (+ and -). • Remove batteries if they are spent or if product is unused for long periods of time. • Always replace the whole set of batteries at one time. DO NOT mix old and new. • DO NOT MIX batteries of different types, such as Alkaline, Standard (carbon-zinc) and/or Rechargeable (nickel-cadmium). • Do not dispose of batteries in fire. • Batteries should be recycled or disposed of as per state and local guidelines. BATTERY WARNINGS: Loosen Captive Screws To Change Batteries

Swiss Tech Acquisitions, LLC January 26, 2014 To: SIEMIC, INC. 775 Montague Expressway Milpitas , CA 95035 USA Dear Sir/Madam, Re: Project and Product Certification Representative Authorization Letter We , Swiss Tech Acquisitions, LLC hereby authorize SIEMIC, INC. to act as a Certification Body for certifying for the following project(s): Product Description: Personal Recorder Model name: 13071R FCC ID: ORH13071R We affirm that between SIEMIC and Swiss Tech Acquisitions, LLC , any difference in understanding, including test plan, measurement methods, applicable standards and relevant procedures and processes have been resolved prior to commencement of testing activities. Sincerely, Client’s signature: Client’s name / title: Bennett Rubin / Vice President Contact information / address: 30725 Solon Industrial Parkway, Solon, Ohio, United States, 44139

SCS-F19: Confidentiality Request Letter Page 1 of 1 Rev 2.0 Swiss Tech Acquisitions, LLC January 26, 2014 To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD Confidentiality Request regarding application for certification of FCC ID: ORH13071R We hereby request confidential treatment of information accompanying this application as outlined below: - Block Diagram - Operational Description - Schematic The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 & 0.459 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Client’s signature: Client’s name / title: Bennett Rubin / Vice President Contact information / address: 30725 Solon Industrial Parkway, Solon, Ohio, United States, 44139

FCC Certification label location Sample Label location

Antenna

FCC ID: ORH13071R ACCURATE TECHNOLOGY CO., LTD REPORT NO.: ATE20140062 APPLICATION CERTIFICATION On Behalf of Swiss Tech Acquisitions, LLC Personal Recorder Model No.: 13071R FCC ID: ORH13071R Prepared for : Swiss Tech Acquisitions, LLC Address : 30725 Solon Industrial Parkway, Solon, Ohio, United States, 44139 Prepared by : Accurate Technology Co., Ltd. Address : F1, Bldg. A&D, Changyuan New Material Port, Keyuan Rd., Science & Industry Park, Nanshan District, Shenzhen 518057, P.R. China Tel: +86-755-26503290 Fax: +86-755-26503396 Report No. : ATE20140062 Date of Test : January 20, 2014 Date of Report : January 26, 2014 FCC ID: ORH13071R ACCURATE TECHNOLOGY CO., LTD REPORT NO.: ATE20140062 TABLE OF CONTENTS Description Page Test Report 1. TEST RESULTS SUMMARY................................................................................................... 4 2. GENERAL INFORMATION...................................................................................................... 5 2.1. Description of Device (EUT)..........................................................................................................5 2.2. Description of Test Facility.............................................................................................................6 2.3. Measurement Uncertainty..............................................................................................................6 3. MEASURING DEVICE AND TEST EQUIPMENT................................................................ 7 3.1. For Radiated Emission Measurement..........................................................................................7 4. RADIATED EMISSION MEASUREMENT............................................................................. 8 4.1. Block Diagram of Test.....................................................................................................................8 4.2. Radiated Emission Limit (Class B)................................................................................................9 4.3. EUT Configuration on Test.............................................................................................................9 4.4. Operating Condition of EUT...........................................................................................................9 4.5. Test Procedure.................................................................................................................................9 4.6. The Field Strength of Radiation Emission.................................................................................10 5. ANTENNA REQUIREMENT ................................................................................................. 11 5.1. The Requirement ..............................................................................................................................11 5.2. Antenna Construction.......................................................................................................................11 FCC ID: ORH13071R ACCURATE TECHNOLOGY CO., LTD REPORT NO.: ATE20140062 Test Report Certification Applicant : Swiss Tech Acquisitions, LLC Manufacturer : Provide Ltd. EUT Description : Personal Recorder (A) MODEL NO.: 13071R (B) SERIAL NO.: N/A (C) POWER SUPPLY: DC 3V Measurement Procedure Used: FCC Rules and Regulations Part 15 Subpart B Class B ANSI C63.4: 2009 The device described above is tested by Accurate Technology Co., Ltd. to determine the maximum emission levels emanating from the device. The maximum emission levels are compared to the FCC Part 15 Subpart B Class B limits both radiated and conducted emissions. The measurement results are contained in this test report and Accurate Technology Co., Ltd. is assumed full responsibility for the accuracy and completeness of these measurements. Also, this report shows that the Equipment Under Test (EUT) is to be technically compliant with the FCC requirements. This report applies to above tested sample only. This report shall not be reproduced in part without written approval of Accurate Technology Co., Ltd. Date of Test : January 20, 2014 Prepared by : (Engineer ) Approved & Authorized Signer : Manager) FCC ID: ORH13071R ACCURATE TECHNOLOGY CO., LTD REPORT NO.: ATE20140062 1. TEST RESULTS SUMMARY Test Items Test Standard Test Results Power Line Conducted Emission FCC Part 15 Subpart B N/A Radiated Emission FCC Part 15 Subpart B Pass Remark: “N/A” means “Not applicable” FCC ID: ORH13071R ACCURATE TECHNOLOGY CO., LTD REPORT NO.: ATE20140062 2. GENERAL INFORMATION 2.1.Description of Device (EUT) EUT : Personal Recorder Model Number : 13071R Power Supply : DC 3V Operation Frequency : 315MHz Trade Name : Applicant : Swiss Tech Acquisitions, LLC Address : 30725 Solon Industrial Parkway, Solon, Ohio, United States, 44139 Manufacturer : Provide Ltd. Address : 3D, Florida Mansion, 9-11 Cleveland Street, Causeway Bay, Hong Kong Date of sample received : January 17, 2014 Date of Test : January 20, 2014 FCC ID: ORH13071R ACCURATE TECHNOLOGY CO., LTD REPORT NO.: ATE20140062 2.2.Description of Test Facility EMC Lab : Accredited by TUV Rheinland Shenzhen Listed by FCC The Registration Number is 253065 Listed by FCC The Registration Number is 752051 Listed by Industry Canada The Registration Number is 5077A-1 Listed by Industry Canada The Registration Number is 5077A-2 Accredited by China National Accreditation Committee for Laboratories The Certificate Registration Number is L3193 Name of Firm : Accurate Technology Co., Ltd. Site Location : F1, Bldg. A&D, Changyuan New Material Port, Keyuan Rd. Science & Industry Park, Nanshan District, Shenzhen 518057, P.R. China 2.3.Measurement Uncertainty Conducted Emission Expanded Uncertainty = 2.23dB, k=2 Power Disturbance Expanded Uncertainty = 2.92 dB, k=2 Radiated emission expanded uncertainty (9kHz-30MHz) = 3.08dB, k=2 Radiated emission expanded uncertainty (30MHz-1000MHz) = 4.42dB, k=2 Radiated emission expanded uncertainty (Above 1G…

Text truncated - open the document above for the full version.

Radiated emissions test 30MHz- 1GHz Radiated emissions test > 1GHz
