SPES2 Installation Guide IT Converged LED Lighting Document Revision – V0.71_E ⏏ SPES2
  Safety precautions 1. Electrical work must be performed by a qualified licensed electrician. 2. Disconnect or turn off power before installation or servicing. 3. Do not take apart or modify the product. 4. Do not drop the product or apply a strong impact to it. 5. The manufacturer or the seller do not bear liability for damage caused by inappropriate use or application. 6. Contact the manufacturer or the seller for inquiry when there is a problem with the product. If the external flexible cable or cord of this luminaire is damaged, it shall be exclusively replaced by the manufacturer or his service agent or a similar qualified person in order to avoid a hazard. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. ! CAUTION : Any Changes or modifications not expressly approved by the manufacturer could void the user's authority to operate the equipment.
  Installation Guide SPES2 IT Converged LED Lighting KMW INC. 183-6, Yeongcheon-ro, Dongtan-myeon, Hwaseong-si, Gyeonggi-do, South Korea Tel : +82-31-370-8866 / E-Mail : [email protected] / Homepage : www.gigateraled.com Product Dimension

  674.5 x 403.5 x 212.4 (mm) / 26.6 x 15.9 x 8.4 (inch) 13.0 Kg / 28.7 lb Note


  Master SPES : AC Cable / LAN Cable *For the Master SPES, wire both the AC power line and LAN cable.
  Slave SPES : AC Cable * For the Slave SPES, wire only the AC power line.
  Installation Guide SPES2 IT Converged LED Lighting KMW INC. 183-6, Yeongcheon-ro, Dongtan-myeon, Hwaseong-si, Gyeonggi-do, South Korea Tel : +82-31-370-8866 / E-Mail : [email protected] / Homepage : www.gigateraled.com Diagram



  AC Power Connect Wire Range : AWG12 ~ AWG28 AC –L : Black or Brown AC – N : White or Blue FG : Green + Yellow


  WAN Connect Connector : RJ45 male Do not connect the WAN cable when installing the slave SPES
  1. SMPS to AP 2. CAM IF to CAM IF 3. AC to SMPS AC_IN 4. Mot. Sensor to Node 5. AP to CAM IF (LAN2) 6. LED OF to LED IF 7. CAM to CAM IF 8. AP to CAM IF (LAN1) 9. AC_IN to SPD
  Installation Guide SPES2 IT Converged LED Lighting KMW INC. 183-6, Yeongcheon-ro, Dongtan-myeon, Hwaseong-si, Gyeonggi-do, South Korea Tel : +82-31-370-8866 / E-Mail : [email protected] / Homepage : www.gigateraled.com Installation Instruction
  1

  2

  Shut off the main power before installing the product. Make sure that the dimension of the light pole is correct. (diameter should be Ø60.5 mm or less) Insert the AC power line and the LAN cable into the light pole. *Do not connect the WAN cable when installing the slave SPES. Remove the pole cover using a 2.5mm hex wrench. Separate the pole clamp by releasing the M10 hexagonal headed bolts. 3
  4
  Release the latch-fixing bolts and open the base cover. Remove the caps of the AC power line and the LAN cable glands. Insert the AC power line and the LAN cable from the bottom. *Do not connect the WAN cable when installing the slave SPES. Installation Guide SPES2 IT Converged LED Lighting KMW INC. 183-6, Yeongcheon-ro, Dongtan-myeon, Hwaseong-si, Gyeonggi-do, South Korea Tel : +82-31-370-8866 / E-Mail : [email protected] / Homepage : www.gigateraled.com Installation Instruction
  5

  6

  Install the caps of the AC power line and LAN cable glands. *Do not connect the WAN cable when installing the slave SPES. Refer to the wiring diagram A and B to wire the AC power line And the LAN cables. *Do not connect the WAN cable when installing the slave SPES. 7

  8

  After wiring, close the base cover and fix it using the latch and
  latch-fixing bolts. When closing the cover, make sure that no wire is crushed at the joint. After connecting the SPES2 with the light pole, fix the pole clamp and close the pole cover. Installation Guide SPES2 IT Converged LED Lighting KMW INC. 183-6, Yeongcheon-ro, Dongtan-myeon, Hwaseong-si, Gyeonggi-do, South Korea Tel : +82-31-370-8866 / E-Mail : [email protected] / Homepage : www.gigateraled.com Installation Instruction
  9

  10

  When the installation is complete, adjust the LED and camera modules to the desired positions. Camera module turning radius : 350° Used : 36mm Spanner, 5.0mm Hex wrench Connect the product to the main power supply and check whether it operates correctly. (Refer to the S/W manual to check camera operation procedures.) Contact the manufacturer or the seller for inquiry when there is a problem with the product. Copyright © 2014 KMW INC. All rights reserved. / www.kmw.co.kr The information in this document is subject to change without notice. / Document Revision V 0.71 2014.12.12

183-6 Youngchun-ro, Dongtan-myun, Hwasung-si, Kyungki-do, Republic of Korea Tel No : +82-31-370-8621 Fax No : +82-31-370-0443 December 19, 2014 Federal Communications Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 In re : KMW INC. FCC ID : ORI-SEPS2-080-E This device will not transmit in the 5.15-5.25 GHz frequency band. Sincerely, Sung Seok / Principal Research Engineer KMW INC.

Rev 11/20/07 183-6 Youngchun-ro, Dongtan-myun, Hwasung-si, Kyungki-do, Republic of Korea Tel No : +82-31-370-8621 Fax No : +82-31-370-0443 Federal Communications Commission Authorization and Evaluation Division Confidentiality Request regarding application for certification of FCC ID: ORI-SPES2-080-E Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: Exhibit Type File Name Block Diagram Schematics Parts List Operational description Block Diagram (ORI-SPES2-080-E).pdf Schematics (ORI-SPES2-080-E).pdf Part List (ORI-SPES2-080-E).pdf Operational Description (ORI-SPES2-080- E).pdf The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Pursuant to DA04-1705 June 15, 2004 of the Commission’s public notice, we also request temporary confidential treatment of information accompanying this application as outlined below: Exhibit Type File Name - - Sincerely, Sung Seok / Principal Research Engineer KMW INC.

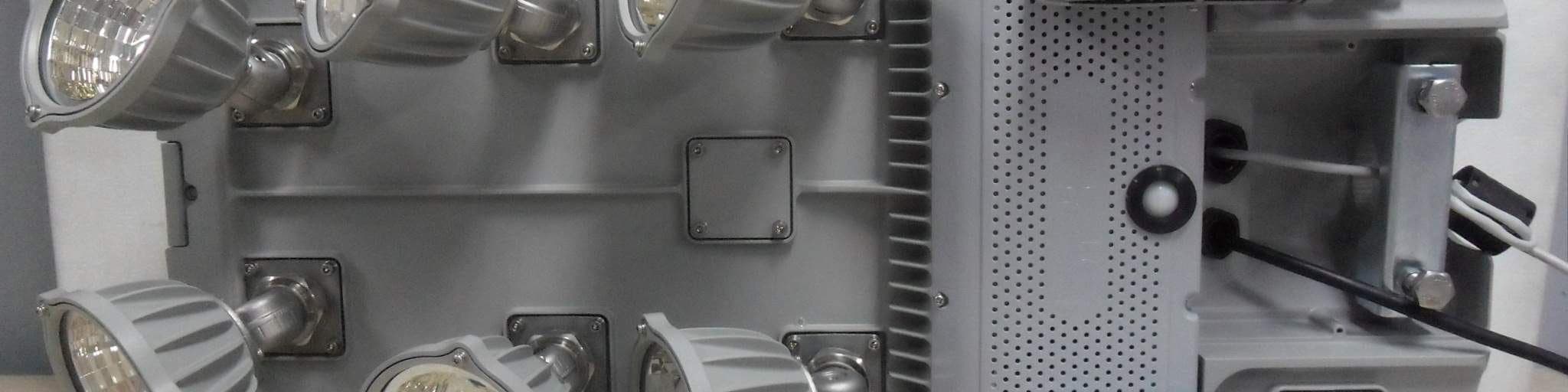

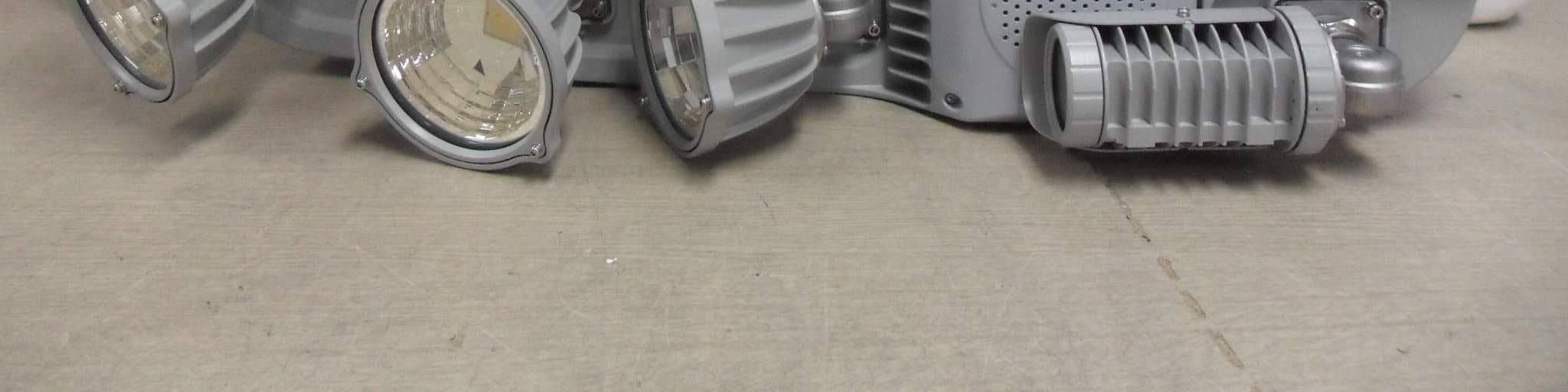

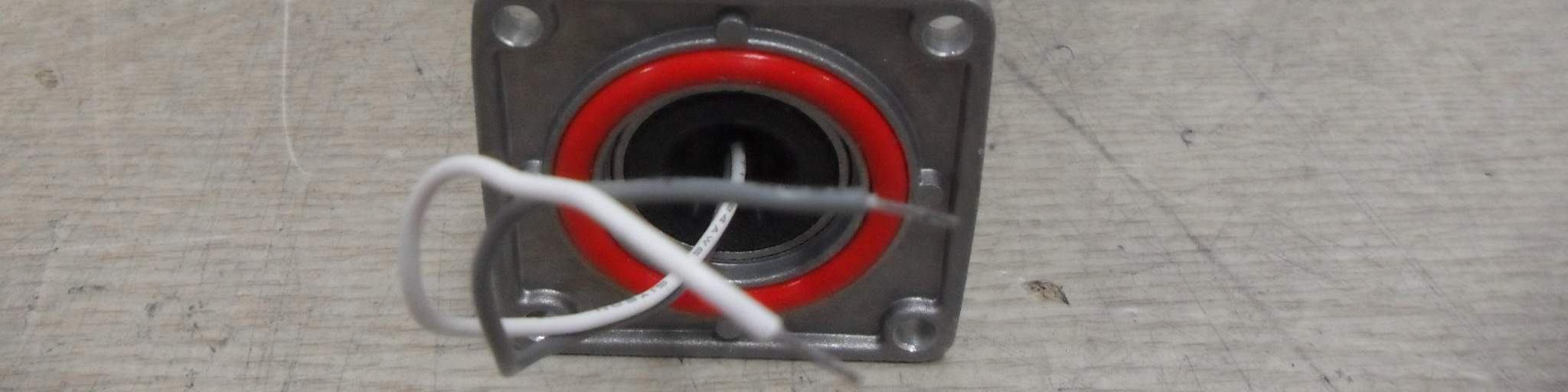

CTK Co., Ltd. (Ho-dong), 113, Yejik-ro, Cheoin-gu, Yongin-si, Gyeonggi-do, Korea Tel: +82-31-339-9970 Fax: +82-31-624-9501 www.e-ctk.com EUT External Photographs CTK Co., Ltd. (Ho-dong), 113, Yejik-ro, Cheoin-gu, Yongin-si, Gyeonggi-do, Korea Tel: +82-31-339-9970 Fax: +82-31-624-9501 www.e-ctk.com LED CTK Co., Ltd. (Ho-dong), 113, Yejik-ro, Cheoin-gu, Yongin-si, Gyeonggi-do, Korea Tel: +82-31-339-9970 Fax: +82-31-624-9501 www.e-ctk.com CAMERA
