ORI-ZBNODEZB Node

Document NO. Revision NO. 0.1 Page 1 / 4 Project Code Revised Date 2013-09-30 Prepared by S.J Byun Project Name K-LCS [NODE ] Checked by Subject Manual Approved by S.Seok 결 재 작 성 검 토 승 인 / / / 2013. 09. 30 LED 연구1그룹 연구3팀 K-LCS [NODE] MANUAL Document NO. Revision NO. 0.1 Page 2 / 4 Project Code Revised Date 2013-09-30 Prepared by S.J Byun Project Name K-LCS [NODE ] Checked by Subject Manual Approved by S.Seok 1. General Description K-LCS [Node] is a specification for a suite of high level communication protocols using small, low-power digital radios based on an IEEE 802 standard for personal area networks. K-LCS [Node] is often used in mesh network form to transmit data over longer distances, passing data through intermediate devices to reach more distant ones. This allows K-LCS [Node] networks to be formed ad-hoc, with no centralized control or high- power transmitter/receiver able to reach all of the devices. Any K-LCS [Node] can be tasked with running the network. K-LCS [Node] is targeted at applications that require a low data rate, long battery life, and secure networking. K-LCS [Node] has a defined rate of 250 kbit/s, best suited for periodic or intermittent data or a single signal transmission from a sensor or input device. Applications include wireless light switches, electrical meters with in-home-displays, traffic management systems, and other consumer and industrial equipment that requires short-range wireless transfer of data at relatively low rates. The technology defined by the K-LCS [Node] specification is intended to be simpler and less expensive than other WPANs, such as Bluetooth. 1.1 Features  IEEE 802.15.4 Standard Compatible Wireless Networking  Dimming (1 – 10 V), dimming range (10% ~ 100)  Power on/off  Power consumption, Current detection, Voltage detection  Data report (voltage/Current)  Power Consumption : < 2.5W  Independent RTC IC  Remote program update / Hardware Reset  Compact design 30mm × 40mm × 4.8mm  Distance Outdoor: approx. 100m 1.2 Applications  BEMS Applications  Street Lamp Applications  High-bay Lamp Applications  Parking Lamp Application Document NO. Revision NO. 0.1 Page 3 / 4 Project Code Revised Date 2013-09-30 Prepared by S.J Byun Project Name K-LCS [NODE ] Checked by Subject Manual Approved by S.Seok 1.3 Notice This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. A label must be affixed to the outside of the host product with the following statements: This device contains FCCID: ORI-ZBNODE 1.4 Caution Statement for Modifications CAUTION : Any Changes or modifications not expressly approved by the manufacturer could void the user's authority to operate the equipment. 1.5 Mobile Device RF Exposure Statement RF Exposure - This device is only authorized for use in a mobile application. At least 20 cm of separation distance between the transmitting antenna device and the user's body must be maintained at all times. 1.6 Mobile Device RF Exposure Statement The module is limited to OEM installation only. OEM integrators must ensure that the end-user has no manual instructions to remove or install the module.. OEM's must comply with FCC marking regulation part 15 declaration of conformity (Section 2.925(e)). This module is to be installed only in mobile or fixed applications (Please refer to FCC CFR 47 Part 2.1091(b) for a definition of mobile and fixed devices). The separate approval is required for all operating configurations, including portable configurations with respect to FCC CFR 47 Part 2.1093 and different antenna configurations. The K-LCS [Node] module has been designed to operate with the following antenna and gains. Use with other antenna types or with these antenna types at higher gains is strictly prohibited. Type of Antenna Gain (dB) Type of Connector Planar Inverted F antenna 2.59 dBi MCX(F) type Document NO. Revision NO. 0.1 Page 4 / 4 Project Code Revised Date 2013-09-30 Prepared by S.J Byun Project Name K-LCS [NODE ] Checked by Subject Manual Approved by S.Seok 2. Specification 2-1. Electrical Specification Type No. Description Zigbee chip RP-S2450, embedded 8051 with 96kB flash memory (Tx:43mA, Rx:36mA, Sleep: 25uA) Memory 128kB Serial Flash Clock 16MHz Crystal for System Clock 32.768kHz Crystal for Sleep Timer RF Tx Power +8dBm RF Rx sensitivity -96dBm Data rate 250kbps Dimmer Level PWM, 0 ~ 100% ADC 입력Level 0 ~ 3V Power consumption < 2.5W (5V, 500mA) Interface UART0(DMX512), UART1(Debug & Download) Dimensions (W x L) 76.2 x 51.4 mm 2-2. Environmental Specification Storage Temperature –40 °C~ +85 °C Operating Temperature –30 °C~ +70 °C Humidity (Operating) 5% ~ 95% (No dew condensation) 2-3. EMS Specification PORT PROTECT MODE ANT Port Common ( 0 – 1 kV / 8/20 s) 2-4. ESD Specification EN55024 (Transient / BURST) Contact discharging ±4KV Air discharging ±8KV 2-5. EMI Specification EN 55022 (Emission) Class B

183-6 Youngchun-ro, Dongtan-myun, Hwasung-si, Kyungki-do, Republic of Korea Tel No : +82-31-370-8621 Fax No : +82-31-370-0443 MODULAR APPROVAL LETTER October 28, 2013 Applicant : KMW INC. FCC ID : ORI-ZBNODE We would like to answer for limited Single Modular Approval in accordance with the requirement of rule part 15.212 as described below No. Requirements Comment Comply (Y/N) 1 The radio element of the modular transmitter has its own shielding Refer to the external photo Y 2 The modular transmitter must have buffered modulation data/inputs (if such inputs are provided) All input to the modules are buffered through microprocessor inputs. Y 3 The modular transmitter must have its own power supply regulation. Internal power regulators The regulator operates within the + 3.3 Vdc Refer to the Block-diagram Y 4 The modular transmitter must comply with the antenna requirements of Section 15.203 and 15.204(c). Refer to the internal photo Y 5 The modular transmitter must be tested in a stand-alone configuration, i.e., the module must not be inside another device during testing. The EUT was tested in a standalone configuration via a UART port(J2). Refer to the test setup photo Y 6 The modular transmitter must be labeled with its own FCC ID. If the FCC ID is not visible when the module is installed inside another device, then the outside of the device into which the module is installed must also display a label referring to the enclosed module Refer to the user manual Y 7 The modular transmitter must comply with any specific rules or operating requirements that ordinarily apply to a complete transmitter and the manufacturer must provide adequate instructions along with the module to explain any such requirements Refer to the user manual Y 8 The modular transmitter must comply with any applicable RF exposure requirements Refer to the RF exposure statement for more details. Y Sincerely, Sung Seok / Principal Research Engineer KMW INC.

Date : October 28, 2013 UL VS Certification Division 47173 Benicia Street Fremont, CA 94538, USA To whom it may concern: I, the undersigned, hereby authorize CTK Co., Ltd., to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by CTK Co., Ltd. on our behalf shall have the same effect as acts of our own. I, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). In authorizing UL VS as our agent, we still recognize that we are responsible to: a) comply with the relevant provisions of the certification program; b) make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c) make claims regarding certification only in respect of the scope for which certification has been granted; d) do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; e) upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; f) use certification only to indicate the products are certified as being in conformity with specified standards; g) endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; h) ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; i) keep a record of all complaints made known to the us relating to the product’s compliance with requirements of the relevant standard and to make these records available to the Certification Division when requested; j) take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; k) document the actions taken. This authorization is valid until further written notice from the applicant. Sincerely Yours, Sung Seok / Principal Research Engineer

183-6 Youngchun-ro, Dongtan-myun, Hwasung-si, Kyungki-do, Republic of Korea Tel No : +82-31-370-8621 Fax No : +82-31-370-0443 October 28, 2013 Federal Communications Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 In re : KMW INC. FCC ID : ORI-ZBNODE Request for Confidentiality Gentlemen: Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: Schematics, Block diagram, Part list and Operational description. The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely Yours, Sung Seok / Principal Research Engineer

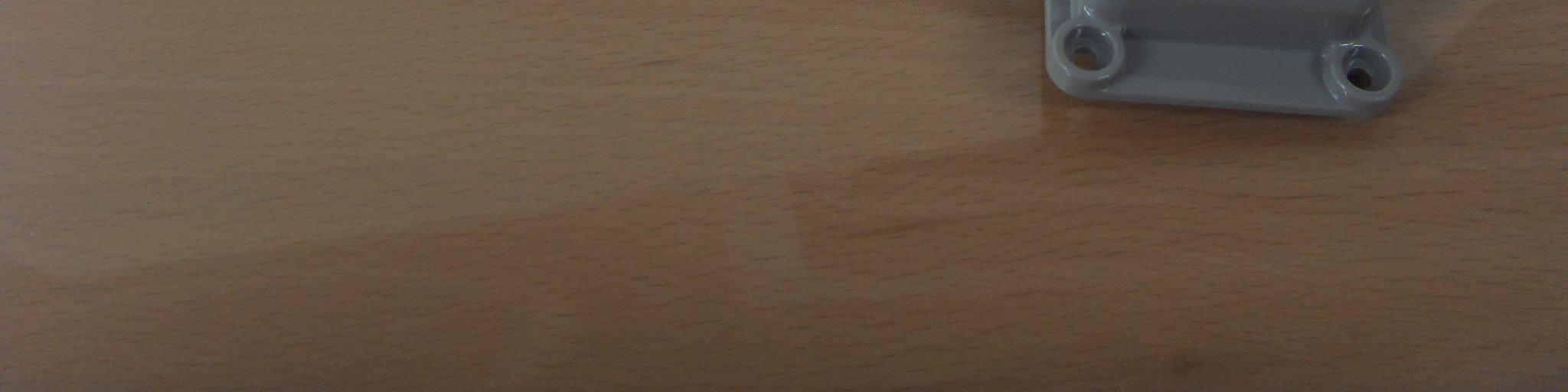

CTK Co., Ltd. 386-1, Ho-dong, Cheoin-gu, Yongin-si, Gyeonggi-do, 449-100, Korea Tel: +82-31-339-9970 Fax: +82-31-339-9855 www.e-ctk.com EUT External Photographs CTK Co., Ltd. 386-1, Ho-dong, Cheoin-gu, Yongin-si, Gyeonggi-do, 449-100, Korea Tel: +82-31-339-9970 Fax: +82-31-339-9855 www.e-ctk.com

CTK Co., Ltd. 386-1, Ho-dong, Cheoin-gu, Yongin-si, Gyeonggi-do, 449-100, Korea Tel: +82-31-339-9970 Fax: +82-31-339-9855 www.e-ctk.com Label and Location

CTK Co., Ltd. 386-1, Ho-dong, Cheoin-gu, Yongin-si, Gyeonggi-do, 449-100, Korea Tel: +82-31-339-9970 Fax: +82-31-339-9855 www.e-ctk.com EUT Internal Photographs CTK Co., Ltd. 386-1, Ho-dong, Cheoin-gu, Yongin-si, Gyeonggi-do, 449-100, Korea Tel: +82-31-339-9970 Fax: +82-31-339-9855 www.e-ctk.com Antenna

CTK Co., Ltd. 386-1, Ho-dong, Cheoin-gu, Yongin-si, Gyeonggi-do, 449-100, Korea Tel: +82-31-339-9970 Fax: +82-31-339-9855 www.e-ctk.com Page 1 of 2 RF EXPOSURE EVALUATION Applicant : KMW INC. Applicant Address : 183-6 Youngchun-ro, Dongtan-myun, Hwasung- si, Kyungki-do, Republic of Korea FCC ID : ORI-ZBNODE Kind of Product : ZB Node Equipment model name : K-LCS [Node] RF power : 8 dBm Antenna type : Planar Inverted F antenna Antenna Gain : 2.59 dBi Frequency Range : 2405 MHz - 2480 MHz Number of channels : 16 CH CTK Co., Ltd. 386-1, Ho-dong, Cheoin-gu, Yongin-si, Gyeonggi-do, 449-100, Korea Tel: +82-31-339-9970 Fax: +82-31-339-9855 www.e-ctk.com Page 2 of 2 ** MPE Calculations ** The EUT will only be used with a separation of 20 centimeters or greater between the antenna and the body of the user. The MPE calculation for this exposure is shown below. The peak radiated output power (EIRP) is calculated as follows: EIRP = P + G Where, P = Power input to the antenna (mW) G = Power gain of the antenna (dBi) EIRP = 8 + 2.59 = 10.59 dBm => 11.455 The numeric gain(G) of the antenna with a gain specified in dB is determined by: G = Log -1 (dB antenna gain / 10) G = Log -1 (2.59 / 10) G = 1.82 Power density at the specific separation: S = PG/(4R 2 π) Where, S = Maximum power density (mW/cm 2 ) P = Power input to the antenna (mW) G = Numeric power gain of the antenna R = Distance to the center of the radiation of the antenna (20cm = limit for MPE) S = (11.455)/(4 * 20 2 * π) S =0.0023 mW/cm 2 The Maximum permissible exposure (MPE) for the general population is 1 mW/cm 2 . The power density at 20cm does not exceed the 1 mW/cm 2 limit. Estimated safe separation: R = √(PG / 4π) Where, P = Power input to the antenna (mW) G = Numeric power gain of the antenna R = Distance to the center of the radiation of the antenna (20cm = limit for MPE) R = √(11.455 / 4π) R = 0.95 cm

CTK Co., Ltd. 386-1, Ho-dong, Cheoin-gu, Yongin-si, Gyeonggi-do, 449-100, Korea Tel: +82-31-339-9970 Fax: +82-31-339-9855 www.e-ctk.com Test Report No.: CTK-2013-01652 Date: October 26, 2013 Page 1 of 34 This Report shall not be reproduced except in full without the written approval of CTK Form No.: CTK-RF-EF-Part15 Subpart C(Rev.2) TEST REPORT According to : FCC 47CFR part 15 subpart C § 15.247 Test Report No. : CTK-2013-01652 Date of Issue : October 26, 2013 FCC ID : ORI-ZBNODE Model/Type No. : K-LCS [Node] Kind of Product : ZB Node Applicant : KMW INC. Applicant Address : 183-6 Youngchun-ro, Dongtan-myun, Hwasung-si, Kyungki-do, Republic of Korea Manufacturer : KMW INC. Manufacturer Address : 183-6 Youngchun-ro, Dongtan-myun, Hwasung-si, Kyungki-do, Republic of Korea Contact Person : Sung Seok / Principal Research Engineer Telephone : +82–31-370-8621 Received Date : August 21, 2013 Test period : Start : September 7, 2013 End : October 26, 2013 Test Results : In Compliance Not in Compliance The test results presented in this report relate only to the object tested. Tested by Reviewed by Young-taek Lee Test Engineer Young-Joon, Park Technical Manager Date: October 26, 2013 Date: October 26, 2013 CTK Co., Ltd. 386-1, Ho-dong, Cheoin-gu, Yongin-si, Gyeonggi-do, 449-100, Korea Tel: +82-31-339-9970 Fax: +82-31-339-9855 www.e-ctk.com Test Report No.: CTK-2013-01652 Date: October 26, 2013 Page 2 of 34 This Report shall not be reproduced except in full without the written approval of CTK Form No.: CTK-RF-EF-Part15 Subpart C(Rev.2) REPORT REVISION HISTORY Date Revision Page No October 26, 2013 Issued (CTK-2013-01652) All December 27, 2013 Add items to Duty Cycle Page 5 This report shall not be reproduced except in full, without the written approval of CTK Co., Ltd. This document may be altered or revised by CTK Co., Ltd. personnel only, and shall be noted in the revision section of the document. Any alteration of this document not carried out by CTK Co., Ltd. will constitute fraud and shall nullify the document. CTK Co., Ltd. 386-1, Ho-dong, Cheoin-gu, Yongin-si, Gyeonggi-do, 449-100, Korea Tel: +82-31-339-9970 Fax: +82-31-339-9855 www.e-ctk.com Test Report No.: CTK-2013-01652 Date: October 26, 2013 Page 3 of 34 This Report shall not be reproduced except in full without the written approval of CTK Form No.: CTK-RF-EF-Part15 Subpart C(Rev.2) TABLE OF CONTENTS REPORT REVISION HISTORY ........................................................................................... 2 1.0 General Product Description ................................................................................ 4 1.1 Tested Frequency ............................................................................................... 4 1.2 Duty Cycle ........................................................................................................ 5 1.3 Model Differences .............................................................................................. 5 1.4 Device Modifications ........................................................................................... 5 1.5 Peripheral Devices ............................................................................................. 5 1.6 Calibration Details of Equipment Used for Measurement ......................................... 6 1.7 Test Facility ....................................................................................................... 6 1.8 Laboratory Accreditations and Listings .................................................................. 6 2.0 Summary of tests .............................................................................................. 7 2.1 Technical Characteristic Test ...................................................................................... 8 2.1.1 6dB Bandwidth ............................................................................................ 8 2.1.2 Maximum peak Conducted Output Power ...................................................... 11 2.1.3 Power Spectral Density ............................................................................... 14 2.1.4 Band - edge .............................................................................................. 17 2.1.5 Field Strength of Emissions ......................................................................... 22 2.1.6 AC Conducted Emissions ............................................................................. 31 APPENDIX A – Test Equipment Used For Tests ................................................................. 34 CTK Co., Ltd. 386-1, Ho-dong, Cheoin-gu, Yongin-si, Gyeonggi-do, 449-100, Korea Tel: +82-31-339-9970 Fax: +82-31-339-9855 www.e-ctk.com Test Report No.: CTK-2013-01652 Date: October 26, 2013 Page 4 of 34 This Report shall not be reproduced except in full without the written approval of CTK Form No.: CTK-RF-EF-Part15 Subpart C(Rev.2) 1.0 General Product Description Equipment model name : K-LCS [Node] Serial number : Prototype EUT condition : Pre-production, not damaged Antenna type : Planar Inverted F antenna Gain 2.59 dBi Frequency Range : 2405 MHz – 2480 MHz (DSSS) RF output power : 6.25 dBm Peak Conducted Number of channels : 16 Type of Modulation : OQPSK Rated Channel spacing : 5 MHz Power Source : DC 15 V 1.1 Tested Frequency LOW MID HIGH Frequency (MHz) 2405 2445 2480 CTK Co., Ltd. 386-1, Ho-dong, Cheoin-gu, Yongin-si, Gyeonggi-do, 449-100, Korea Tel: +82-31-339-9970 Fax: +82-31-339-9855 www.e-ctk.com Test Report No.: CTK-2013-01652 Date: October 26, 2013 Page 5 of 34 This Report shall not be reproduced except in full without the written approval of CTK Form No.: CTK-RF-EF-Part15 Subpart C(Rev.2) 1.2 Duty Cycle Duty Cycle 100 % 1.3 Model Differences Not applicable 1.4 Device Modifications The following modifications were necessary for compliance: Not applicable 1.5 Peripheral Devices Device Manufacturer Model No. Serial No. Notebook Computer TOSHIBA CORPORATION PSL48K-00L00K Z7037782R AC/DC A…

Text truncated - open the document above for the full version.

CTK Co., Ltd. 386-1, Ho-dong, Cheoin-gu, Yongin-si, Gyeonggi-do, 449-100, Korea Tel: +82-31-339-9970 Fax: +82-31-339-9855 www.e-ctk.com Test Setup Photographs and Configuration Conducted Voltage Emissions CTK Co., Ltd. 386-1, Ho-dong, Cheoin-gu, Yongin-si, Gyeonggi-do, 449-100, Korea Tel: +82-31-339-9970 Fax: +82-31-339-9855 www.e-ctk.com Radiated Electric Field Emissions CTK Co., Ltd. 386-1, Ho-dong, Cheoin-gu, Yongin-si, Gyeonggi-do, 449-100, Korea Tel: +82-31-339-9970 Fax: +82-31-339-9855 www.e-ctk.com CTK Co., Ltd. 386-1, Ho-dong, Cheoin-gu, Yongin-si, Gyeonggi-do, 449-100, Korea Tel: +82-31-339-9970 Fax: +82-31-339-9855 www.e-ctk.com
