ORK-TR33CUT018NFC Reader Module (FFC Type)

TR33CUT018 NFC Contactless Card Reader/Writer (PR533 NFC Reader/Writer for Toppan Forms) User Manual Version: 1.0 Toppan Forms Co. Ltd TR33CUT018 User Manual ii July 19,2012/v 1.0 TABLE OF CONTENTS 1About this Document .......................................................................................................... 1 1.1Purpose and Contents ............................................................................................................. 1 2TR33CUT018 NFC Reader/Writer module description ...................................................... 1 2.1Description .............................................................................................................................. 1 2.2How to use this product ........................................................................................................... 2 3Application testing using APDU command ........................................................................ 3 3.1RF ON mode with no modulation ............................................................................................ 4 3.2RF field OFF ........................................................................................................................... 5 4PCBA TR33MUT014 PCB and Antenna Dimension overview ........................................... 5 5Regulatory information ....................................................................................................... 6 TR33CUT018 User Manual 1 July 19,2012/v 1.0 1About this Document 1.1Purpose and Contents This document describes the setup and use of TR33CUT018 NFC Reader/Writer Module. It includes the pcba information (TR33MUT014 pcba) on board layout, the antenna size and the interface to the host. 2TR33CUT018 NFC Reader/Writer module description The interface with the host controller is USB 2.0 full speed using USB cable. 2.1Description On the product, 2 parts are easily visible from external x Mini USB connector x LED window for indicating status Fig 1. TR33CUT018 NFC Reader/Writer LED Window Mini USB TR33CUT018 User Manual 2 July 19,2012/v 1.0 2.2How to use this product This product has to be connected through USB interface to a PC with CCID driver embedded. This driver is available in most of the OS. The product should be recognized and installed automatically as soon as it is plugged. STYL’s Toolkit application software will be provided for read/write application.. For read/write application tests, below are application example using STYL’s Toolkit software. STYL’s Toolkit application software used for communication test Case of smart card presented and detected in polling Case of connecting to card to read card information When Contactless card is present and detected, “Connect” tab is highlighted. PR533 reader detected TR33CUT018 User Manual 3 July 19,2012/v 1.0 3Application testing using APDU command By default upon power-up, the product is in ATD state. This mode is used to activate a card or check its presence automatically. In application tests whereby manual control is needed, for example switching the RF field off or modulation control is required; it is possible to control using the APDU command. The list of APDUs are available from NXP’S PR533 User Manual (page41). Please follow the following steps to do get to the APDU command window: a) Place a card on the reader. b) Select “Connect”, then place the following set parameter command on the APDU command window, press “SEND”. Response will be without error Example of getting card information APDU command APDU command window TR33CUT018 User Manual 4 July 19,2012/v 1.0 The following are some APDU commands that are need for testing in EMC. 3.1RF ON mode with no modulation This is basically to set the set to manual mode and turn on the RF carier only(no modulation) manually. To set back to ATD mode, send the APDU command below: FF E1 04 01 01 01 Response will be without error TR33CUT018 User Manual 5 July 19,2012/v 1.0 3.2RF field OFF The APDU command to do this: FF E1 04 01 01 00 4PCBA TR33MUT014 PCB and Antenna Dimension overview The pcba used in TR33CUT018 product is TR33MUE014 Ver 1.2 as shown below. TR33CUT018 User Manual 6 July 19,2012/v 1.0 5Regulatory information TR33MUE014 Ver 1.2 PCBA and Antenna dimension TR33CUT018 User Manual 7 July 19,2012/v 1.0 Regulatory Information Federal Communication Commission Notice FCC Identifier: ORK-TR33CUT018 This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: —Reorient or relocate the receiving antenna. —Increase the separation between the equipment and receiver. —Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. —Consult the dealer or an experienced radio/TV technician for help. Caution: Any changes or modifications not expressly approved by the party responsible for compliance to this equipment would v oid the user’s authority to operate this device. Note : 1. This module is intended for end device installati…

Text truncated - open the document above for the full version.

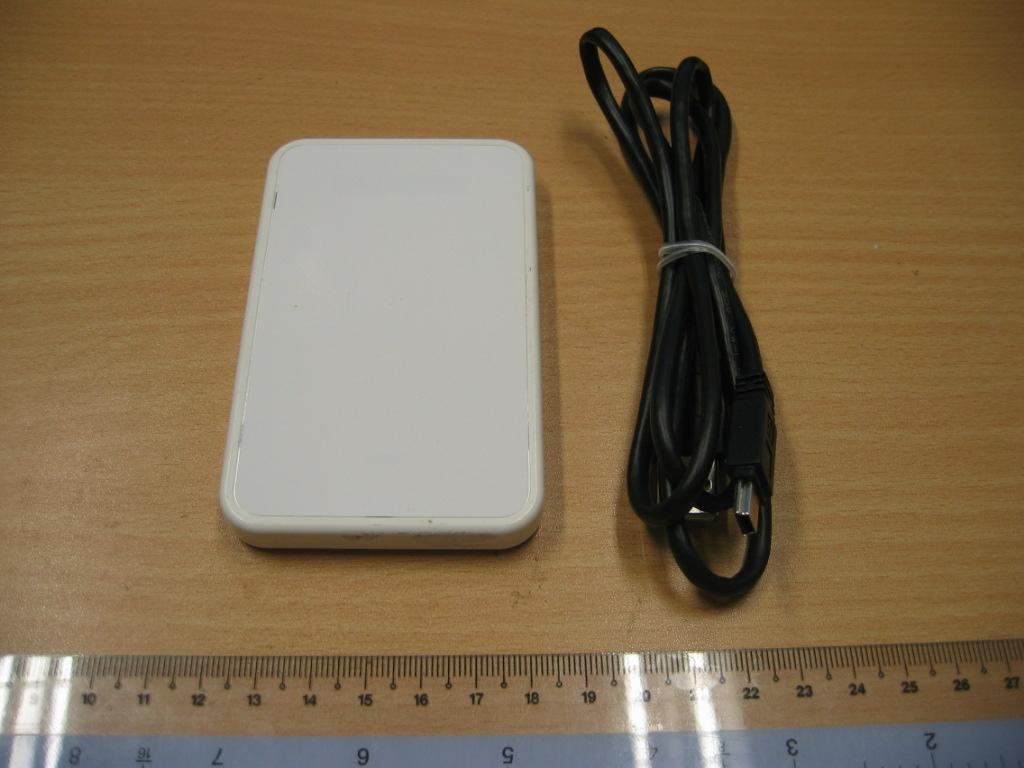

Model: TR33CUT018 FCC ID: ORK-TR33CUT018 External Photos EUT PHOTOGRAPHS Front View Rear View

Model: TR33CUT018 FCC ID: ORK-TR33CUT018 Internal Photos EUT PHOTOGRAPHS EUT Housing Internal View Model: TR33CUT018 FCC ID: ORK-TR33CUT018 Internal Photos EUT PHOTOGRAPHS EUT PCB Component Side RF Antenna RF Module Model: TR33CUT018 FCC ID: ORK-TR33CUT018 Internal Photos EUT PHOTOGRAPHS EUT PCB Trace Side

Test Report No. 7191032547-EEC12/01 dated 22 Jan 2013 Note: This report is issued subject to the Testing and Certification Regulations of the TÜV SÜD Group and the General Terms and Conditions of Business of TÜV SÜD PSB Pte Ltd. In addition, this report is governed by the terms set out within this report. LA-2007-0380-A LA-2007-0381-F LA-2007-0382-B LA-2007-0383-G LA-2007-0384-G LA-2007-0385-E LA-2007-0386-C LA-2010-0464-D The results reported herein have been performed in accor dance with the laboratory’s terms of accreditation under the Singapore Accreditation Council - Singapore Laboratory Accreditation Scheme. Tests/Calibrations marked "Not SAC-SINGLAS Accredited" in this Report are not included in the SAC- SINGLAS Accreditation Schedule for our laboratory. Laboratory: TÜV SÜD PSB Pte. Ltd. No.1 Science Park Drive Singapore 118221 Phone : +65-6885 1333 Fax : +65-6776 8670 E-mail: [email protected] www.tuv-sud-psb.sg Co. Reg : 199002667R Regional Head Office: TÜV SÜD Asia Pacific Pte. Ltd. 3 Science Park Drive, #04-01/05 The Franklin, Singapore 118223 Page 1 of 35 FORMAL REPORT ON TESTING IN ACCORDANCE WITH 47 CFR FCC Parts 15B & C : 2011 OF A CONTACTLESS CARD READER [ Model : TR33CUT018 ] [ FCC ID : ORK-TR33CUT018 ] TEST FACILITY TÜV SÜD PSB Pte Ltd, Electrical & Electronics Centre (EEC), Product Services, No. 1 Science Park Drive, Singapore 118221 FCC REG. NO. 99142 (3m and 10m Semi-Anechoic Chamber, Science Park) 871638 (3m Semi-Anechoic Chamber, Science Park) IND.CANADA REG. NO. 2932I-1 (3m and 10m Semi-Anechoic Chamber, Science Park) PREPARED FOR STYL Solutions Pte. Ltd. 38A Jalan Pemimpin #03-03, Wisdom Industrial Building Singapore 577179 Tel : +65 62588551Fax : +65 6258 0771 QUOTATION NUMBER 219150418 JOB NUMBER 7191032547 TEST PERIOD 28 Apr 2012 – 21 Jan 2013 PREPARED BYAPPROVED BY ____________________ Quek Keng Huat Higher Associate Engineer ____________________ Lim Cher Hwee Assistant Vice President STYL Solutions Pte. Ltd.Page 2 of 35 Contactless Card Reader [ Model : TR33CUT014 ] [ FCC ID : ORK-TR33CUT018 ] Test Report No. 7191032547-EEC12/01 dated 22 Jan 2013 TABLE OF CONTENTS TEST SUMMARY ........................................................................................................................................ 3 PRODUCT DESCRIPTION .......................................................................................................................... 4 SUPPORTING EQUIPMENT DESCRIPTION ............................................................................................... 5 EUT OPERATING CONDITIONS ................................................................................................................. 6 CONDUCTED EMISSION TEST .................................................................................................................. 7 RADIATED EMISSION TEST ..................................................................................................................... 11 RADIATED EMISSION (FUNDAMENTAL) TEST ....................................................................................... 17 FREQUENCY STABILITY VERSUS TEMPERATURE TEST ...................................................................... 21 FREQUENCY STABILITY VERSUS INPUT VOLTAGE TEST .................................................................... 24 ANNEX A EUT PHOTOGRAPHS / DIAGRAMS ......................................................................................... 28 ANNEX B USER MANUALTECHNICAL DESCRIPTION BLOCK & CIRCUIT DIAGRAMS .......................... 33 ANNEX C FCC LABEL & POSITION .......................................................................................................... 34 STYL Solutions Pte. Ltd.Page 3 of 35 Contactless Card Reader [ Model : TR33CUT014 ] [ FCC ID : ORK-TR33CUT018 ] Test Report No. 7191032547-EEC12/01 dated 22 Jan 2013 TEST SUMMARY The product was tested in accordance with the customer's specifications. Test Results Summary Test StandardDescriptionPass / Fail 47 CFR FCC Part 15: 2011 15.107(a), 15.207Conducted EmissionsPass 15.109(a), 15.205, 15.209, 15.225(d) Radiated Emissions (Spurious Emissions inclusive Restricted Bands Requirement) Pass 15.225(a)Radiated Emissions (Fundamental)Pass 15.225(b)Radiated Emissions (Fundamental)Not Applicable * See Note 2 15.225(c)Radiated Emissions (Fundamental)Not Applicable * See Note 2 15.225(e)Frequency Stability Versus Temperature Pass 15.225(e)Frequency Stability Versus Input Voltage Pass Notes 1. The EUT was configured to operate in the test mode at 13.56MHz. 2. The EUT's carrier is in 13.553 -13.567MHz band. 3. The EUT is a Class B device when in non-transmitting state and meets the 47 CFR FCC Part15B Class B requirements. 4. All test measurement procedures are according to ANSI C63.4: 2003. 5. The maximum measured RF power of the Equipment Under Test is -36.57dBm. Modifications No modifications were made. STYL Solutions Pte. Ltd.Page 4 of 35 Contactless Card Reader [ Model : TR33CUT014 ] [ FCC ID : ORK-TR33CUT018 ] Test Report No. 7191032547-EEC12/01 dated 22 Jan 2013 PRODUCT DESCRIPTION Description: The Equipment Under Test (EUT) isaNFC CONTACTLESS CARD READER. Applicant: STYL Solutions Pte. Ltd. 38A Jalan Pemimpin #03-03, Wisdom Industrial Building Singapore 577179 Manufacturer: STYL Solutions Pte. Ltd. 38A Jalan Pemimpin #03-03, Wisdom Industrial Building Singapore 577179 Factor (ies): P- PLUS 1807, Jalan Industri2, Bukit Panchor Industrial Park, 14300 Nibong Tebal, Penang, Malaysia Brand: I-ODATA Model Number: TR33CUT018 FCC ID: ORK-TR33CUT018 Serial Number: Nil Microprocessor: NXP Semiconductor device PR5331C3HN Operating / Transmitting Frequency : 13.56 MHz Clock / Oscillator Frequency : 27.12MHz Modulation: ASK 10%/100% Selectable Port / Connectors: USB connector Rated Input Power: 110V 60Hz Accessories: Nil STYL Solutions Pte. Ltd.Page 5 of 35 Contactless Card Reader [ Model : TR33CUT014 ] [ FCC ID : ORK-TR33CUT018 ] Test Report No. 7191032547-…

Text truncated - open the document above for the full version.

Model: TR33CUT018 FCC ID: ORK-TR33CUT018 Test Setup Photographs Conducted Emissions Test Setup (Front View) Conducted Emissions Test Setup (Rear View) Model: TR33CUT018 FCC ID: ORK-TR33CUT018 Test Setup Photographs 9kHz – 30MHz Radiated Emissions Test Setup (Front View) Radiated Emissions Test Setup (Rear View) Model: TR33CUT018 FCC ID: ORK-TR33CUT018 Test Setup Photographs 30MHz – 1GHz Radiated Emissions Test Setup (Front View) Radiated Emissions Test Setup (Rear View) Model: TR33CUT018 FCC ID: ORK-TR33CUT018 Test Setup Photographs RADIATED EMISSION (FUNDAMENTAL) TEST Radiated EmissionsTest Setup (Front View) Radiated Emissions Test Setup (Rear View) Model: TR33CUT018 FCC ID: ORK-TR33CUT018 Test Setup Photographs Frequency Stability Versus TemperatureTest Setup Frequency Stability Versus Input VoltageTest Setup
