ORK-TR33MUE013NFC Reader Module (FFC Type)

TR33MUE013 NFC Reader Module (FFC Type) (PR533 NFC Reader/Writer for Toppan Forms) User Manual Version: 1.0 Toppan Forms Co. Ltd TR33MUE013 User Manual ii July 19,2012/v 1.0 TABLE OF CONTENTS 1About this Document .......................................................................................................... 1 1.1Purpose and Contents ............................................................................................................. 1 2TR33MUE013 NFC Reader/Writer module description ..................................................... 1 2.1Description .............................................................................................................................. 1 2.2How to use this product ........................................................................................................... 1 3TR33MUE013 PCB and Antenna Dimension overview ...................................................... 3 4Regulatory information ....................................................................................................... 4 TR33MUE013 User Manual 1 July 19,2012/v 1.0 1About this Document 1.1Purpose and Contents This document describes the setup and use of TR33MUE013 NFC Reader/Writer Module. It includes the board layout, the antenna size and the interface to the host. 2TR33MUE013 NFC Reader/Writer module description The interface with the host controller is USB 2.0 full speed via FFC cable. 2.1Description On the product, the 6-way FFC connector is easily visible from external. The host controller will connect to this module via a FFC cable using USB interface. Refer to Fig 4 on the pinning definition of the FFc connector. 2.2How to use this product For testing this product using a PC/laptop , an additional converter is needed to bridge the USB interface to the FFC connector of the module. The product should be recognized and installed with CCID driver automatically as soon as it is plugged. For read/write application tests, below are application example using STYL’s Toolkit software. Fig 3. TR33MUE013 NFC Reader/Writer Module FFC connector Host Interface via FFC cable TR33MUE013 User Manual 2 July 19,2012/v 1.0 STYL’s Toolkit application software used for communication test Case of smart card presented and detected in polling Case of connecting to card to read card information When Contactless card is present and detected, “Connect” tab is highlighted. PR533 reader detected Example of getting card information TR33MUE013 User Manual 3 July 19,2012/v 1.0 3TR33MUE013 PCB and Antenna Dimension overview Fig 4. TR33MUE013 PCB and Antenna dimension TR33MUE013 User Manual 4 July 19,2012/v 1.0 4Regulatory information Regulatory Information Federal Communication Commission Notice FCC Identifier: ORK-TR33MUE013 This dev ice complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: —Reorient or relocate the receiving antenna. —Increase the separation between the equipment and receiver. —Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. —Consult the dealer or an experienced radio/TV technician for help. Caution: Any changes or modifications not expressly approved by the party responsible for compliance to this equipment would v oid the user’s authority to operate this device. Note : 1. This module is intended for end device installation. The installer is still responsible for the FCC compliance requirement of the end product, which integrates this module. The host end product must also pass the FCC Part 15 unintentional emission testing requirement and be properly authorized per FCC Part 15. The host end product must include a user manual that clearly defines operating requirements and conditions that must be observed to ensure compliance with current FCC RF exposure guidelines. 2. The built-in antenna is integrated to the module and no other antenna should be used. 3. This module must not be co-located or jointly operated with any other antenna or transmitter within host. 4. A label should be attached to the host end product in a visible area with the following statement: “Contains Transmitter Module FCC ID: ORK-TR33MUE013” or “Contains FCC ID: ORK-TR33MUE013”. EC R&TTE directive: We, hereby declare that the above named module is in conformity to all the essential requirements of Directive 1999/5/EC. The Conformity Assessment procedure referred to Article 10 and detailed in Annex [III] or [IV] of Directive 1999/5/EC has been followed with involvement of the following notified body: TIMCO ENGINEERING, INC., P.O BOX 370, NEW BERRY, FLORIDA 32669. Identification mark: 1177 (Notified Body number) The technical documentation relevant to the above equipment is held at: • Toppan Forms Co. Ltd, 1-7-3 Higashi Shimbashi, Minato-Ku, Tokyo 105-8311, Japan

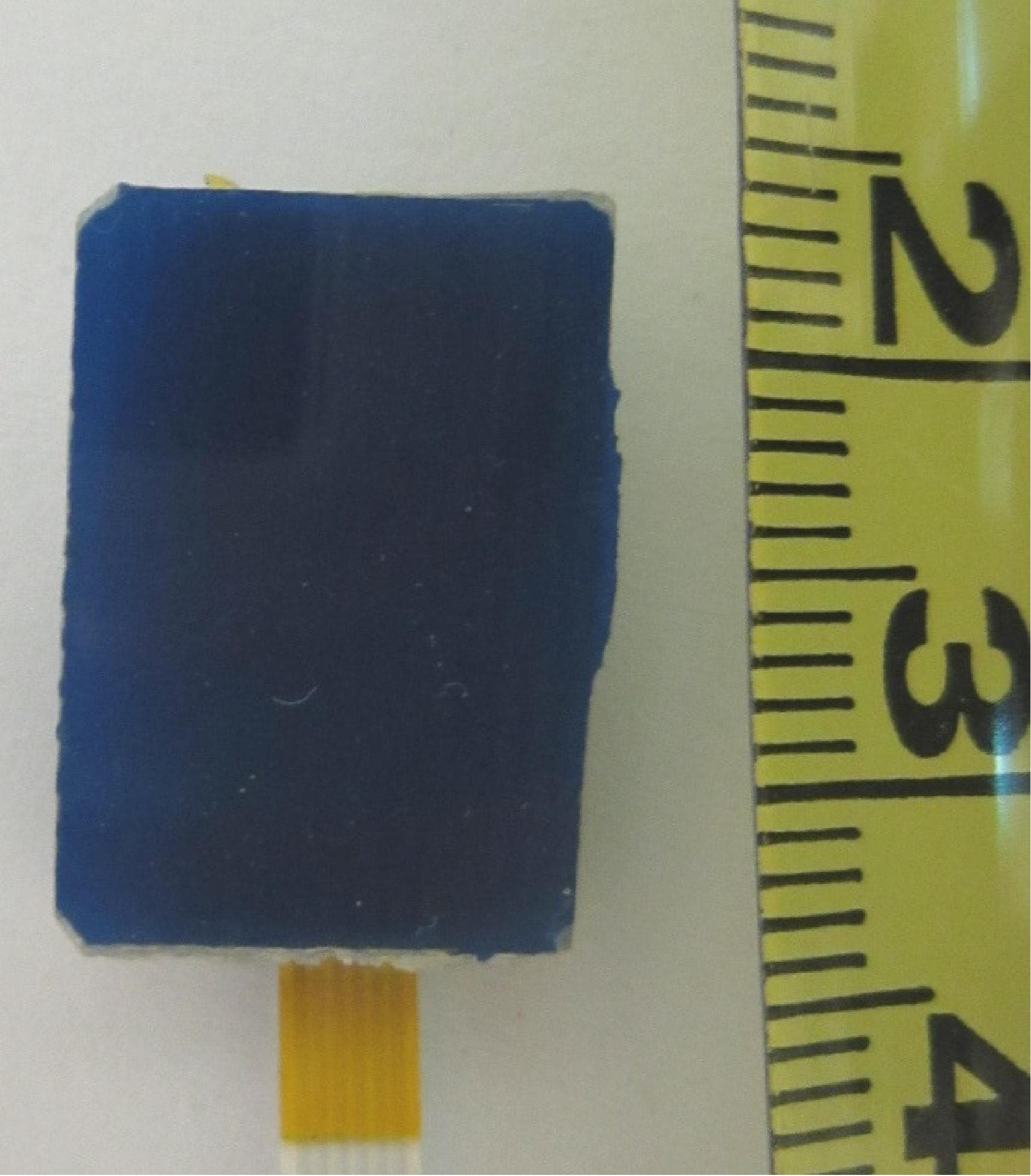

Model: TR33MUE013 FCC ID: ORK-TR33MUE013 Exterior Photographs error in the silkscreen and the final product silkscreen shall bear the correct product number: TR33MUE013 Main-BoardPCB Component Side Model: TR33MUE013 FCC ID: ORK-TR33MUE013 Ma in-BoardPCB Trace Side Model: TR33MUE013 FCC ID: ORK-TR33MUE013 Sub-BoardPCB Component Side Model: TR33MUE013 FCC ID: ORK-TR33MUE013 Sub-BoardPCB Trace Side

Model: TR33MUE013 FCC ID: ORK-TR33MUE013 Label and location PCB silkscreen bottom side : PCB silkscreen bottom side mirror: PCB label is silkscreen layer on PCB bottom.

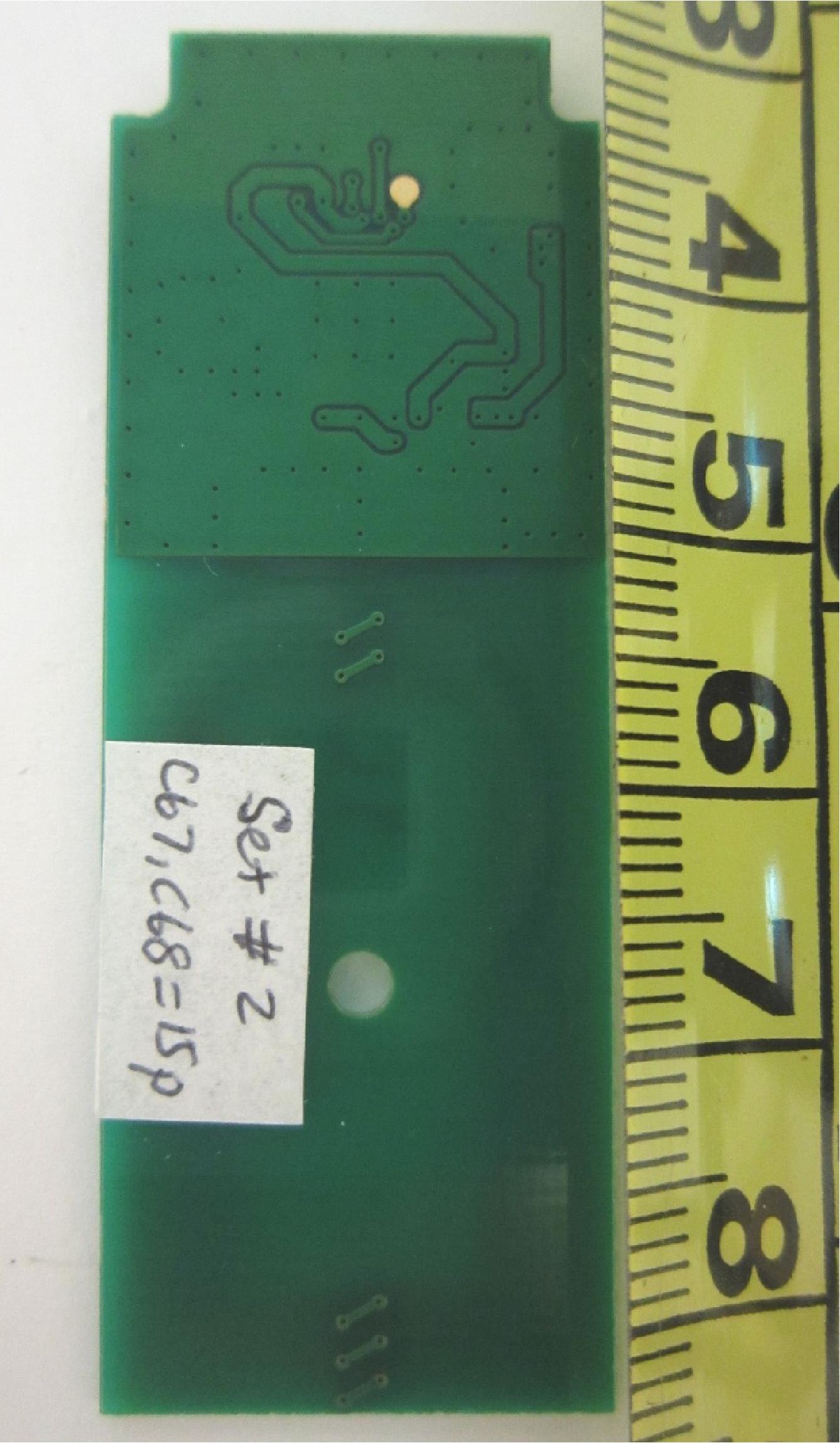

Model: TR33MUE013 FCC ID: ORK-TR33MUE013 Interior Photographs error in the silkscreen and the final product silkscreen shall bear the correct product number: TR33MUE013 Main-BoardPCB Component Side Model: TR33MUE013 FCC ID: ORK-TR33MUE013 Ma in-BoardPCB Trace Side Model: TR33MUE013 FCC ID: ORK-TR33MUE013 Sub-BoardPCB Component Side Model: TR33MUE013 FCC ID: ORK-TR33MUE013 Sub-BoardPCB Trace Side

Test Report No. 7191034619-EEC12/03 dated 23 Jul 2012 Note: This report is issued subject to the Testing and Certification Regulations of the TÜV SÜD Group and the General Terms and Conditions of Business of TÜV SÜD PSB Pte Ltd. In addition, this report is governed by the terms set out within this report. LA-2007-0380-A LA-2007-0381-F LA-2007-0382-B LA-2007-0383-G LA-2007-0384-G LA-2007-0385-E LA-2007-0386-C LA-2010-0464-D The results reported herein have been performed in accor dance with the laboratory’s terms of accreditation under the Singapore Accreditation Council - Singapore Laboratory Accreditation Scheme. Tests/Calibrations marked "Not SAC-SINGLAS Accredited" in this Report are not included in the SAC- SINGLAS Accreditation Schedule for our laboratory. Laboratory: TÜV SÜD PSB Pte. Ltd. No.1 Science Park Drive Singapore 118221 Phone : +65-6885 1333 Fax : +65-6776 8670 E-mail: [email protected] www.tuv-sud-psb.sg Co. Reg : 199002667R Regional Head Office: TÜV SÜD Asia Pacific Pte. Ltd. 3 Science Park Drive, #04-01/05 The Franklin, Singapore 118223 Page 1 of 35 FORMAL REPORT ON TESTING IN ACCORDANCE WITH 47 CFR FCC Parts 15B & C : 2011 OF A NFC READER MODULE (FFC TYPE) [ Model : TR33MUE013 ] [ FCC ID : ORK-TR33MUE013 ] TEST FACILITY TÜV SÜD PSB Pte Ltd, Electrical & Electronics Centre (EEC), Product Services, No. 1 Science Park Drive, Singapore 118221 FCC REG. NO. 99142 (3m and 10m Semi-Anechoic Chamber, Science Park) 871638 (3m Semi-Anechoic Chamber, Science Park) IND. CANADA REG. NO. 2932I-1 (3m and 10m Semi-Anechoic Chamber, Science Park) PREPARED FOR STYL Solutions Pte. Ltd. UB One #05-07, 81 Ubi Avenue 4 Singapore 408830 Tel : +65 6258 8551Fax : +65 6258 0771 QUOTATION NUMBER 219151844 JOB NUMBER 7191034619 TEST PERIOD 29 May 2012 – 24 Jul 2012 PREPARED BYAPPROVED BY ____________________ Quek Keng Huat Higher Associate Engineer ____________________ Lim Cher Hwee Assistant Vice President STYL Solutions Pte. Ltd.Page 2 of 35 NFC Reader Module (FFC Type) [ Model : TR33MUE013 ] [ FCC ID ORK-TR33MUE013 ] Test Report No. 7191034619-EEC12/03 dated 23 Jul 2012 TABLE OF CONTENTS TEST SUMMARY ........................................................................................................................................ 3 PRODUCT DESCRIPTION .......................................................................................................................... 4 SUPPORTING EQUIPMENT DESCRIPTION ............................................................................................... 5 EUT OPERATING CONDITIONS ................................................................................................................. 6 CONDUCTED EMISSION TEST .................................................................................................................. 7 RADIATED EMISSION TEST ..................................................................................................................... 11 RADIATED EMISSION (FUNDAMENTAL) TEST ....................................................................................... 17 FREQUENCY STABILITY VERSUS TEMPERATURE TEST ...................................................................... 21 FREQUENCY STABILITY VERSUS INPUT VOLTAGE TEST .................................................................... 24 ANNEX A EUT PHOTOGRAPHS / DIAGRAMS ......................................................................................... 28 ANNEX B USER MANUALTECHNICAL DESCRIPTION BLOCK & CIRCUIT DIAGRAMS .......................... 33 ANNEX C FCC LABEL & POSITION .......................................................................................................... 34 STYL Solutions Pte. Ltd.Page 3 of 35 NFC Reader Module (FFC Type) [ Model : TR33MUE013 ] [ FCC ID ORK-TR33MUE013 ] Test Report No. 7191034619-EEC12/03 dated 23 Jul 2012 TEST SUMMARY The product was tested in accordance with the customer's specifications. Test Results Summary Test StandardDescriptionPass / Fail 47 CFR FCC Part 15: 2011 15.107(a), 15.207Conducted EmissionsPass 15.109(a), 15.205, 15.209, 15.225(d) Radiated Emissions (Spurious Emissions inclusive Restricted Bands Requirement) Pass 15.225(a)Radiated Emissions (Fundamental)Pass 15.225(e)Frequency Stability Versus TemperaturePass 15.225(e)Frequency Stability Versus Input VoltagePass Notes 1. The EUT was configured to operate in the test mode at 13.56MHz. 2. The EUT is a Class B device when in non-transmitting state and meets the 47 CFR FCC Part15B Class B requirements. 3. All test measurement procedures are according to ANSI C63.4: 2003. 4. The maximum measured RF power of the Equipment Under Test is -34.9dBm. Modifications The NFC Reader Module (FFC Type)was brought to compliance Radiated Emissions test by the following modifications: 1.The value of capacitors C67 and C68 were changed to 15pF to ensure the oscillator frequency stays within 50ppm. 2.Card type: ToppanForms Felica card was used. Suica Felica card was not a standard Felica card. 3.USB interface to the FFC cable via a USB cable with ferrite core 4.HMU108C EMC Test Tool (version 2.0.0) software was used for EMC testing purposes. STYL Solutions Pte. Ltd.Page 4 of 35 NFC Reader Module (FFC Type) [ Model : TR33MUE013 ] [ FCC ID ORK-TR33MUE013 ] Test Report No. 7191034619-EEC12/03 dated 23 Jul 2012 PRODUCT DESCRIPTION Description: The Equipment Under Test (EUT) is aNFC READER MODULE (FFC TYPE). Manufacturer: Toppan Forms Co. Ltd 1-7-3 Higashi Shimbashi, Minato-Ku, Tokyo 105-8311, Japan Model Number(s): TR33MUE013 FCC ID: ORK-TR33MUE013 Serial Number(s): Nil Microprocessor(s): NXP PR533 Contactless Interface Controller Operating Frequency: 13.56MHz Clock / Oscillator Frequency : 27.12MHz Modulation: ASK 10%/100% Selectable Port / Connectors: FFC connector Rated Input Power: 110V 60Hz Accessories: Nil STYL Solutions Pte. Ltd.Page 5 of 35 NFC Reader Module (FFC Type) [ Model : TR33MUE013 ] [ FCC ID ORK-TR33MUE013 ] Test Report No. 7191034619…

Text truncated - open the document above for the full version.

Model: TR33MUE013 FCC ID: ORK-TR33MUE013 Test Setup Photographs 47 CFR FCC Parts 15.107(a) and 15.207 Conducted Emission Limits Conducted EmissionsTest Setup (Front View) Conducted Emissions Test Setup (Rear View) Model: TR33MUE013 FCC ID: ORK-TR33MUE013 Test Setup Photographs 47 CFR FCC Parts 15.109(a), 15.209 and 15.225(d) Radiated Emission Test Setup 9kHz - 30MHz Radiated Emissions Test Setup (Front View) Radiated Emissions Test Setup (Rear View) Model: TR33MUE013 FCC ID: ORK-TR33MUE013 Test Setup Photographs 30MHz – 1GHz Radiated Emissions Test Setup (Front View) Radiated Emissions Test Setup (Rear View) Model: TR33MUE013 FCC ID: ORK-TR33MUE013 Test Setup Photographs 7 CFR FCC Parts 15.225(a) Radiated Emission (Fundamental) Limits Radiated Emissions Test Setup (Front View) Radiated Emissions Test Setup (RearView) Model: TR33MUE013 FCC ID: ORK-TR33MUE013 Test Setup Photographs Frequency Stability Versus Input VoltageTest Setup
