ORMF5U0107 Port USB Hub

 -3 (1271x1751x256 jpeg)
 -4 (1226x1385x256 jpeg)
 -5 (1076x1584x256 jpeg) 6 (1043x1616x256 jpeg) 7 (1140x1608x256 jpeg) 8 (1118x1618x256 jpeg) 9 (1088x1625x256 jpeg)

Page 1 - 2 7 Port USB Hub User’s Manual Introduction This product confirms to USB Specification Rev. 1.1 and HID class definition Rev.1.0.The HUB topology supports up to 127 physical devices in a tired-star configuration. Features ! Confirms to USB Specification Revision 1.1 and HID Class Definition Rev.1.0. ! Plug and play compatible. ! A maximum of 127 devices can be supported. ! A maximum 5 meter connection cable can be used between two hubs. ! Powered by self-powered or Bus powered. ! All downstream ports are supported with over current protection. ! Both low speed and high speed devices are supported. ! LED displays indicate power on and connection to each port. System Requirement ! IBM PC Compatible ! Supports Windows 95 OSR 2.1, 98, 98 SE and 2000 Professional Installation ! When connecting this unit for the first time a message box will display : “Searching for unknown hardware device, searching software for installation” ! Your computer will then start up the Device Driver Wizard, and will install the unit. This product is recognized as “generic USB Hub” ! Once your computer has confirmed installation, you can then connect any USB devices you wish to the Hub. Packing List ! USB HUB ! Power ! USB Cable (1.8m , Connector Type-A to Connector Type-B) ! This manual Specification Page 2 - 2 StandardUSB Spec Rev.1.1 and HID class definition Rev 1.0 TopologyStar type Transmission speed 12Mbps Transmission mediaUSB cable InterfaceUp stream port (type B): 1 port Down stream port (type A): 7 ports Power Self-powered or Bus-powered Operating Environment0 C to 40 C Operating humidity5%~90% RH (non-condensing) Storage temp-5C to 70 C Dimension165 x 90 x 28 mm Weight 970 g Notice: For a Class B digital device or peripheral. The instructions furnished the user shall include the following or similar statement, placed in a prominent location in the text of the manual: Note; This equipment has bean tested and found to comply with the limits for a Class B digital device, pursuant to part 16 of the FCC Rules, These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio/TV technician for help.




               !
  "     #  $!    "   #   "












         ! "!  # #  #    $      !! !  % &  '(  ) % &  '(    ( ((  1 (1228x1673x256 jpeg)
 -2 (1185x1494x256 jpeg) REPORT NO:00E8314 DATE:JUNE 5, 2000 EUT:7 PORTS USB HUB FCC ID:ORMF5U010 0 OF 15








   !"#$ %
                  . TABLE OF CONTENTS PAGE 1. VERIFICATION OF COMPLIANCE..............................................1 2. PRODUCT DESCRIPTION.....................................................2 3. TESTED SYSTEM DETAILS...................................................2 4. TEST FACILITY...........................................................3 5. ACCREDITATION AND LISTING...............................................3 6. MEASUREMENT INSTRUMENTATION.............................................3 7. MEASURING INSTRUMENT CALIBRATION........................................3 8. UNITS OF MEASUREMENT....................................................4 9. ANTENNAS................................................................4 10. CLASSIFICATION OF DIGITAL DEVICE........................................4 11. RADIATED EMISSION LIMITS................................................5 12. CONDUCTED EMISSION LIMITS...............................................6 13. CONDUCTED EMISSION TEST PROCEDURE.......................................6 14. RADIATED EMISSION TEST PROCEDURE........................................7 15. AMBIENT CONDITIONS......................................................7 16. SYSTEM TEST CONFIGURATION...............................................8 17. EQUIPMENT MODIFICATIONS.................................................8 18. EUT SETUP PHOTOS........................................................9 19. TEST EQUIPMENT LIST....................................................11 20. CORRECTION FACTOR......................................................12 21. TEST RESULT SUMMARY....................................................13 APPENDICES ..................................................................15 .EXTERNAL I/O CABLE CONSTRUCTION DESCRIPTION .CONFIGURATION BLOCK DIAGRAM .CONDUCTED EMISSION PLOT .RADIATED EMISSION DATA .EUT PHOTOGRAPHS REPORT NO:00E8314 DATE:JUNE 5, 2000 EUT:7 PORTS USB HUB FCC ID:ORMF5U010 2 OF 15








   !"#$ %

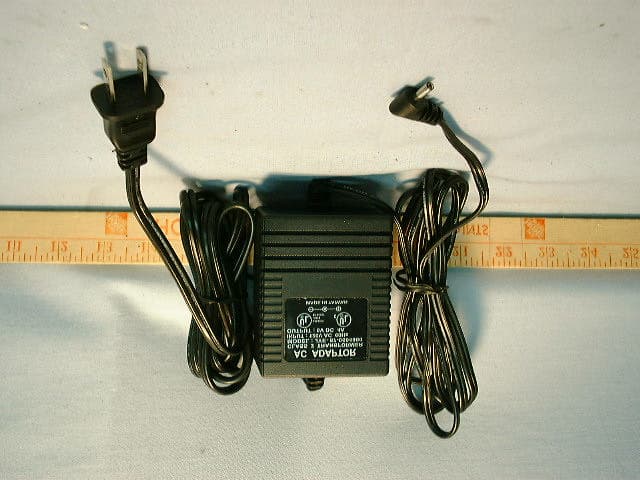

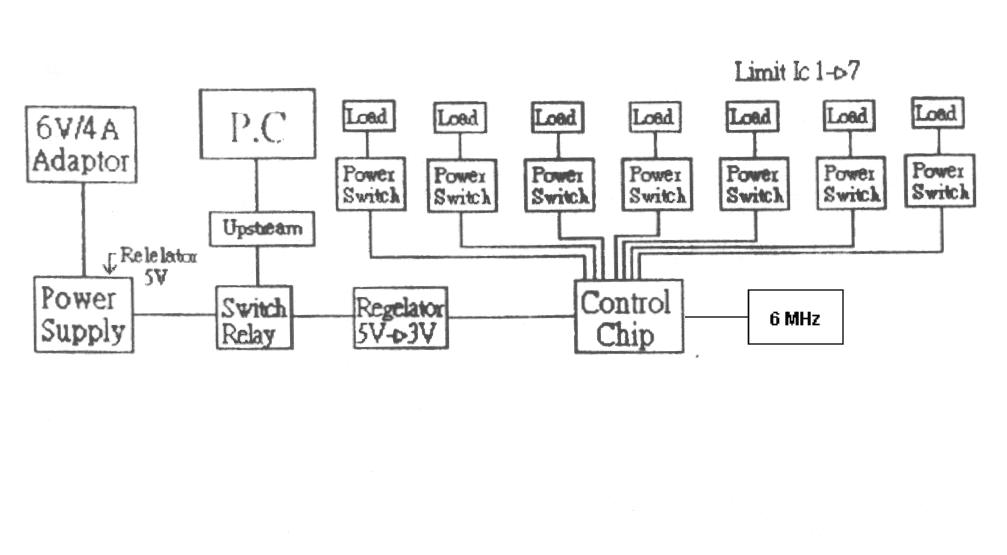

                  . 2. PRODUCT DESCRIPTION CHASSIS TYPE PLASTIC LIST OF EACH OSC. OR XTAL. FREQ. (FREQ.>=1 MHz) Y1 = 6.0 MHz CHIPSET BRAND AND PART NO. TUSB 2077A NUMBER OF PCB LAYERS 2 LAYERS BOARD REVISION NO. VER 5.2 POWER REQUIREMENTS DC 6V AC ADAPTOR/NAME/MODEL/S.N. JYE-57-060 4000 MKD-064000GS NO. OF EXTERNAL I/O CONNECTORS 8 3. TESTED SYSTEM DETAILS The Model names for all equipment, plus descriptions of all cables used in the tested system (including inserted cards) are: External Peripheral Devices Device Type ManufacturerModel NumberSerial No.FCC ID / DoC USB MOUSE x2 LOGITECH M-BB48 ME-17 N/A MONITOR SAMSUNG 550b N/A N/A KEYBOARD ACER 6311-TW4C N/A N/A MOUSE LOGITECH M-S34 LZE01308115 DEL211029 MODEM DISCOVERY 2496CF MD-04 I972496AF PRINTER MATSUSHITA KX-P1080 i PRN-01 ACJ5Z6KX-P1080I USB JOYSTICK Microsoft SideWinder Precision Pro JOY-12 DOC HOST COMPUTER VIVA VIVA 686-350 HS-12 DOC MOUSE LOGITECH M-S34 ME-14 DZL211029 REPORT NO:00E8314 DATE:JUNE 5, 2000 EUT:7 PORTS USB HUB FCC ID:ORMF5U010 3 OF 15








   !"#$ %
                  . 4. TEST FACILITY The open area test sites and conducted measurement facilities used to collect the radiated data are located at No. 199, Chung Sheng Road, Hsin Tien City, Taipei, Taiwan R.O.C. The sites are constructed in conformance with the requirements of ANSI C63.7, ANSI C63.4 and CISPR Publication 22. 5. ACCREDITATION AND LISTING The test facilities used to perform radiated and conducted emissions tests are accredited by National Voluntary Laboratory Accreditation Program for the specific scope of accreditation under Lab Code:SL2-IN-E-0005 to perform Electromagnetic Interference tests according to FCC PART 15 AND CISPR 22 requirements. No part of this report may be used to claim or imply product endorsement by NVLAP or any agency of the US Government. In addition, the test facilities are listed with Federal Communications Commission (reference no: 31040/SIT(1300F2)) 6. MEASUREMENT INSTRUMENTATION Radiated emissions were measured with one or more of the following types of linearly polarized antennas: tuned dipole, biconical, log periodic, bi-log, ridged waveguide, liner horn. EMI receivers were used for line conducted readings, spectrum analyzers with pre- selectors and quasi-peak detectors were used to perform radiated measurements. Receiving equipment (i.e., receiver, analyzer, quasi-peak adapter, pre-selector) and LISNs conform to CISPR specification for “Radio Interference Measuring Apparatus and Measurement Methods,” Publication 16. Calibrated wideband preamplifiers, coaxial cables, and coaxial attenuators are also used for making measurements. 7. MEASURING INSTRUMENT CALIBRATION The measuring equipment which was utilized in performing the tests documented herein has been calibrated in accordance with the manufacturer's recommendations for utilizing calibration equipment which is traceable to recognized national standards. REPORT NO:00E8314 DATE…

Text truncated - open the document above for the full version.

REPORT NO:00E8314 DATE:JUNE 5, 2000 EUT:7 PORTS USB HUB FCC ID:ORMF5U010 13 OF 15








   !"#$ %
                  . 21. TEST RESULT SUMMARY Preliminary Radiated Emission Tests were performed at the 10 meter open area test site. CCS test procedure no:CCSUE2001B and the procedure listed in ANSI C63.4 /1992 section 8.3.1.1. were used. The following preliminary tests were conducted to determine the worst mode of operation and configuration. Preliminary Radiated Emission Test Frequency Range Investigated30 MHz TO 1000 MHz Mode of operationDateData Report No.Worst Mode Normal Mode 05/19/00 8314F# (02, 03) Final Radiated Emission Test was conducted by operating the worst mode as indicated above. OATS No: E / 10 M Data Report No. 8314F# (02, 03) Date 05/19/00 Tested By: VINCE CHIANG Six Highest Radiated Emission Readings Frequency Range Investigated30 MHz TO 1000 MHz Freq (MHz) Meter Reading (dBuV) C.F. (dB/m) Corrected Reading (dBuV/m) Limits (dBuV/m) Margin (dB) Reading Type P/Q/A Pol. H/V 110.650 35.60 -12.09 23.51 30.00 -6.49 P V 133.280 35.60 -10.92 24.58 30.00 -5.42 P V 268.520 41.10 -7.82 33.28 37.00 -3.72 P V 288.390 40.10 -7.50 32.60 37.00 -4.40 P V 367.940 37.90 -5.01 32.89 37.00 -4.11 P V 387.860 37.30 -4.37 32.93 37.00 -4.07 P V C.F.(Correction Factor)=Antenna Factor + Cable Loss + Attenuator(3dB) - Amplifier Gain Corrected Reading = Metering Reading + C.F. Margin=Corrected Reading - Limits P=Peak Reading H=Horizontal Polarization/Antenna Q=Quasi-peak V=Vertical Polarization/Antenna A=Average Reading Comments: N/A











         ! "!  # #  #    $      !! !  % &  '(  ) % &  '(    ( ((  1 (1228x1673x256 jpeg)
 -2 (1185x1494x256 jpeg) REPORT NO:00E8314 DATE:JUNE 5, 2000 EUT:7 PORTS USB HUB FCC ID:ORMF5U010 0 OF 15








   !"#$ %
                  . TABLE OF CONTENTS PAGE 1. VERIFICATION OF COMPLIANCE..............................................1 2. PRODUCT DESCRIPTION.....................................................2 3. TESTED SYSTEM DETAILS...................................................2 4. TEST FACILITY...........................................................3 5. ACCREDITATION AND LISTING...............................................3 6. MEASUREMENT INSTRUMENTATION.............................................3 7. MEASURING INSTRUMENT CALIBRATION........................................3 8. UNITS OF MEASUREMENT....................................................4 9. ANTENNAS................................................................4 10. CLASSIFICATION OF DIGITAL DEVICE........................................4 11. RADIATED EMISSION LIMITS................................................5 12. CONDUCTED EMISSION LIMITS...............................................6 13. CONDUCTED EMISSION TEST PROCEDURE.......................................6 14. RADIATED EMISSION TEST PROCEDURE........................................7 15. AMBIENT CONDITIONS......................................................7 16. SYSTEM TEST CONFIGURATION...............................................8 17. EQUIPMENT MODIFICATIONS.................................................8 18. EUT SETUP PHOTOS........................................................9 19. TEST EQUIPMENT LIST....................................................11 20. CORRECTION FACTOR......................................................12 21. TEST RESULT SUMMARY....................................................13 APPENDICES ..................................................................15 .EXTERNAL I/O CABLE CONSTRUCTION DESCRIPTION .CONFIGURATION BLOCK DIAGRAM .CONDUCTED EMISSION PLOT .RADIATED EMISSION DATA .EUT PHOTOGRAPHS REPORT NO:00E8314 DATE:JUNE 5, 2000 EUT:7 PORTS USB HUB FCC ID:ORMF5U010 2 OF 15








   !"#$ %
                  . 2. PRODUCT DESCRIPTION CHASSIS TYPE PLASTIC LIST OF EACH OSC. OR XTAL. FREQ. (FREQ.>=1 MHz) Y1 = 6.0 MHz CHIPSET BRAND AND PART NO. TUSB 2077A NUMBER OF PCB LAYERS 2 LAYERS BOARD REVISION NO. VER 5.2 POWER REQUIREMENTS DC 6V AC ADAPTOR/NAME/MODEL/S.N. JYE-57-060 4000 MKD-064000GS NO. OF EXTERNAL I/O CONNECTORS 8 3. TESTED SYSTEM DETAILS The Model names for all equipment, plus descriptions of all cables used in the tested system (including inserted cards) are: External Peripheral Devices Device Type ManufacturerModel NumberSerial No.FCC ID / DoC USB MOUSE x2 LOGITECH M-BB48 ME-17 N/A MONITOR SAMSUNG 550b N/A N/A KEYBOARD ACER 6311-TW4C N/A N/A MOUSE LOGITECH M-S34 LZE01308115 DEL211029 MODEM DISCOVERY 2496CF MD-04 I972496AF PRINTER MATSUSHITA KX-P1080 i PRN-01 ACJ5Z6KX-P1080I USB JOYSTICK Microsoft SideWinder Precision Pro JOY-12 DOC HOST COMPUTER VIVA VIVA 686-350 HS-12 DOC MOUSE LOGITECH M-S34 ME-14 DZL211029 REPORT NO:00E8314 DATE:JUNE 5, 2000 EUT:7 PORTS USB HUB FCC ID:ORMF5U010 3 OF 15








   !"#$ %
                  . 4. TEST FACILITY The open area test sites and conducted measurement facilities used to collect the radiated data are located at No. 199, Chung Sheng Road, Hsin Tien City, Taipei, Taiwan R.O.C. The sites are constructed in conformance with the requirements of ANSI C63.7, ANSI C63.4 and CISPR Publication 22. 5. ACCREDITATION AND LISTING The test facilities used to perform radiated and conducted emissions tests are accredited by National Voluntary Laboratory Accreditation Program for the specific scope of accreditation under Lab Code:SL2-IN-E-0005 to perform Electromagnetic Interference tests according to FCC PART 15 AND CISPR 22 requirements. No part of this report may be used to claim or imply product endorsement by NVLAP or any agency of the US Government. In addition, the test facilities are listed with Federal Communications Commission (reference no: 31040/SIT(1300F2)) 6. MEASUREMENT INSTRUMENTATION Radiated emissions were measured with one or more of the following types of linearly polarized antennas: tuned dipole, biconical, log periodic, bi-log, ridged waveguide, liner horn. EMI receivers were used for line conducted readings, spectrum analyzers with pre- selectors and quasi-peak detectors were used to perform radiated measurements. Receiving equipment (i.e., receiver, analyzer, quasi-peak adapter, pre-selector) and LISNs conform to CISPR specification for “Radio Interference Measuring Apparatus and Measurement Methods,” Publication 16. Calibrated wideband preamplifiers, coaxial cables, and coaxial attenuators are also used for making measurements. 7. MEASURING INSTRUMENT CALIBRATION The measuring equipment which was utilized in performing the tests documented herein has been calibrated in accordance with the manufacturer's recommendations for utilizing calibration equipment which is traceable to recognized national standards. REPORT NO:00E8314 DATE…
