ORP-IBT-03BLUETOOTH MODULE

iBT-03 Bluetooth Module for Audio Application 0.3.01 1 / 7 2012-07-30 iBT-03 Bluetooth Module for Audio Application ( Qualified QDID : B019566 ) Doc. Name : iBT-03-Rev0.3.01 Date : 2012-07-30 Revision : 0.3.01 This module is limited to OEM Installation only. Copyright ©, 2012 by Engineering Department, Valence Semiconductor Design Limited. All rights reserved. No part of this document may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language, in any form or by any means without the prior written permission of Valence Semiconductor Design Limited. iBT-03 Bluetooth Module for Audio Application 0.3.01 2 / 7 2012-07-30 1. Overview iBT-03 is a Class 2 Bluetooth module supporting Bluetooth V2.1 + EDR specification. It is implemented by using the CSR BlueCore5-Multimedia ROM chip. iBT-03 is designed for receiving audio data transmitting from a mobile device. It can also be used to control the audio playing function of the remote device 2. Features
A single chip radio and baseband IC for Bluetooth applications
Fully Qualified Bluetooth v2.1+EDR (Enhanced Data Rate)
Class 2 power output (10 Meter minimum)
Support for 802.11 co-existence
High quality 95dB SNR DAC playback
LED drivers and faders
Supporting profiles : A2DP, AVRCP
Build-in PCB antenna
Supply voltage : 3.0V to 3.6V
RoHS compliant
Dimension: 31.0mm (L) x 12mm (W) x 2.6mm (H) 3. Applications
Wireless speakers
Stereo headset
Hands-free car kit
VoIP handsets
Docking Stations 4. Pin Drawing 27 SPI_CSB22 GND24 SPI_CLK36 GND35 NC28 PIO1229 PIO1130 PIO531 PIO332 PIO233 PIO023 RESETB25 SPI_MISO26 SPI_MOSI34 PIO1 3.3V 9 MIC_BP 10 PIO13 8 MIC_BN 11 SPK_LP 5 SPK_LN 4 SPK_RP 7 SPK_RN 6 MIC_AP 2 MIC_AN 3 PIO9 14PIO4 15 PIO14 13 GND 1 GND 12 Figure 1 iBT-03 Pin Diagram iBT-03 Bluetooth Module for Audio Application 0.3.01 3 / 7 2012-07-30 5. Pin Description Pin No. Pin Name Application Usage Pin Type Pin Descriptions 1 GND GND Ground 2 MIC_AP AI Microphone A Positive Input 3 MIC_AN AI Microphone A Negative Input 4 SPK_LN SPK_LN AO Negative Output of Left Speaker 5 SPK_LP SPK_LP AO Positive Output of Left Speaker 6 SPK_RN SPK_RN AO Negative Output of Right Speaker 7 SPK_RP SPK_RP AO Positive Output of Right Speaker 8 PIO13 STBY / ON I Active High Input for ON / OFF control When iBT-03 is OFF, a high pulse in this pin will turn it ON. When iBT-03 is in ON, a high pulse in this pin will turn in OFF 9 3.3V 3.3V 3.3V Supply Input 10 MIC_BP AI Microphone B Positive Input 11 MIC_BN AI Microphone B Negative Input 12 GND GND Ground 13 PIO14 REV I Active High Input for Reverse Control 14 PIO9 PAIR I Perform Pair function 15 PIO4 AMP_SDB O4 Active Low signal for shutting down the external Amplifier 16 GND GND Ground 17 BT_TX O4, PU UART Data Output 18 BT_RX IS, PD UART Data Input 19 AIO1 A, B Analog / Programmable I/O 20 LED0 LED0 OD4 Open Drain LED Driver Output 21 LED1 LED1 OD4 Open Drain LED Driver Output 22 GND GND Ground 23 RESETB RESETB IS, PU Active Low Module Reset. Must be low for > 5mS 24 SPI_CLK SPI_CLK IS, PD Serial Peripheral Interface Clock 25 SPI_MISO SPI_MISO O4, PD Serial Peripheral Output Data 26 SPI_MOSI SPI_MOSI IS, PD Serial Peripheral Input Data 27 SPI_CSB SPI_CSB IS, PU Active Low Chip Select for Serial Peripheral Interface 28 PIO12 FWD I Active High Input for Forward Control 29 PIO11 PLAY/PAUSE I Active High Input for Play / Pause Control 30 PIO5 VOL_DOWN I Active High Input for Volume Down Control 31 PIO3 CONNECT I Active High Input to activate the Bluetooth connection process 32 PIO2 VOL_UP I Active High Input for Volume Up Control 33 PIO0 B Programmable I/O pin 34 PIO1 B Programmable I/O pin 35 NC Not Connect 36 GND GND Ground 37 MIC_BIAS A Microphone Bias 38 AIO0 A, B Analog Input / Programmable I/O O4 4mA output pad OD Open drain output pad I Input IS Schmidt Trigger Input B Bidirectional SPU Strong Pull-up SPD Strong Pull-down WPU Weak Pull-up WPD Weak Pull-down A Analog Table 1 iBT-03 Pin Description Table iBT-03 Bluetooth Module for Audio Application 0.3.01 4 / 7 2012-07-30 6. Electrical Specification 6.1. Absolute Maximum Rating Item Symbol Rating Unit Power Supply Voltage VDD -0.4 to 3.7 V Peak Current Ipk 0 - 70 mA Storage Temperature T STG -20 to 85 °C 6.2. Recommended Operating Condition Item Symbol Miin Typ Max Unit Power Supply Voltage VDD 3.0 3.3 3.6 V RF Operating Temperature 0 25 80 °C Operating Temperature 0 25 55 °C 6.3. Digital Input / Output Port Characteristics VDD=3.3V, operating temperature = 25 °C unless specified otherwise Symbol Parameter Condition Min. Typ. Max. Unit Input Voltage Levels V IL Input low voltage -0.3 0.25*VDD V V IH Input high voltage 0.625*VDD VDD+0.3 V V sch Schmitt voltage level 0.25*VDD 0.625*VDD V Output Voltage Levels V OL Output low voltage I OL = -4mA 0.125 V V OH Output high voltage I OH = 4mA 0.75*VDD VDD V Input and Tri-state Current with Strong pull-up -100 -40 -10 uA Strong pull-down 10 40 100 uA Weak pull-up -5 -1 -0.2 uA Weak pull-down 0.2 1 5 uA I/O Pad leakage current -1 0 1 uA Input Capacitance 1 5 pF 6.4. Operating Current VDD=3.3V, operating temperature = 25 °C unless specified otherwise Item Symbol Miin Typ Max Unit Standby Mode 0.5 2 mA Pairing Mode iBT-03 is discoverable by other devices 1.0 10.0 mA Idle Mode iBT-03 is connectable with devices in the connected list 1.0 10.0 mA Audio Streaming Mode 40 80.0 mA iBT-03 Bluetooth Module for Audio Application 0.3.01 5 / 7 2012-07-30 6.5. RF Characteristics VDD=3.3V, operating temperature = 20 °C unless specified otherwise Receiver Units Miin Typ Max Bluetooth Spec Sensitivity at 0.1% BER dBm -85 ≦ -70 Maximum Receiver Signal at 0.1% BER dBm -6 ≧-20 C/I Co-Channel dB 10 11 ≦ 11 Adjacent Channel Selectivity C/I – +/-1MHz dB -4 0 ≦ 0 2 nd Adjacent Channel Selectivity C/I – +2Mhz dB -35 -30 ≦ -30 2 nd Adjacent Channel Selectivity C/I – -2Mhz dB -21 -20 ≦ -20 3 rd Adjacent Channel Selectivity C/I – +/-3Mhz dB -45 ≦ -40 VDD=3.3V, operating temperature = …

Text truncated - open the document above for the full version.

Block Diagram LC Filter PCB Antenna 2400 to 2483.5 MHz

PART15UNLICENSEDMODULARTRANSMITTERAPPROVAL COVERLETTER: ProductName:BluetoothModule BrandName:/ ModelNumber:iBT-03 Applicant:ValenceTechLimited Unit1,20/F.,APECPlaza,49HoiYuenRoad,KwunTong,Kowloon,HK HostSpecificationduringtesting: Model:IBT03BLUETOOTHSPEAKERSYSTEM BrandName:ValenceTech Manufacturer:ValenceTechLimited TestInstitutionShenzhenCTLElectromagneticTechnologyCo.,Ltd. We,ShenzhenCTLElectromagneticTechnologyCo.,Ltd.,wereauthorizedby ApplicanttotestBluetoothModuleincompliancewithPART15UNLICENSED MODULARTRANSMITTERAPPROVAL8requirementsofDA00-1407statedas follow: 1.ThemodulartransmittermusthaveitsownRFshielding.Thisisintendedto ensurethatthemoduledoesnothavetorelyupontheshieldingprovidedbythe deviceintowhichitisinstalledinorderforallmodulartransmitteremissionsto complywithPart15limits.ItisalsointendedtopreventcouplingbetweentheRF circuitryofthemoduleandanywiresorcircuitsinthedeviceintowhichthe moduleisinstalled.Suchcouplingmayresultinnon-compliantoperation. PleaseseetheInternalphotoofEUT,thedevicenocoveredwithshield,itisLimited ModularApproval. 2.Themodulartransmittermusthavebufferedmodulation/datainputs(ifsuch inputsareprovided)toensurethatthemodulewillcomplywithPart15 requirementsunderconditionsofexcessivedataratesorover-modulation. PleaseseetheblockdiagramandschematictheapplicantuseGFSK(FHSS)buffered modulation/datainputsonintegratedcircuitforcomplyingwithPart15requirements 3.Themodulartransmittermusthaveitsownpowersupplyregulation.Thisis intendedtoensurethatthemodulewillcomplywithPart15requirements regardlessofthedesignofthepowersupplyingcircuitryinthedeviceintowhich themoduleisinstalled. Pleaseseethecircuitrytheapplicantdesignedownpowersupplyregulationwithpower supplyintegratedcircuitinthedevice. 4.ThemodulartransmittermustcomplywiththeantennarequirementsofSection 15.203and15.204(c).Theantennamusteitherbepermanentlyattachedor employa“unique”antennacoupler(atallconnectionsbetweenthemoduleand theantenna,includingthecable).Anyantennausedwiththemodulemustbe approvedwiththemodule,eitheratthetimeofinitialauthorizationorthrougha ClassIIpermissivechange.The“professionalinstallation”provisionofSection 15.203maynotbeappliedtomodules. PleaseseetheinternalphotoofEUTandtestreport4.9onpage41of46.Theantennais printedantennaonPCBandnoconsiderationofreplacement. 5.Themodulartransmittermustbetestedinahostconfiguration.Thisisintendedto demonstratethatthemoduleiscapableofcomplyingwithPart15emissionlimits regardlessofthedeviceintowhichitiseventuallyinstalled.Unlessthe transmittermodulewillbebatterypowered,itmustcomplywiththeACline conductedrequirementsfoundinSection15.207.ACorDCpowerlinesand datainput/outputlinesconnectedtothemodulemustnotcontainferrites,unless theywillbemarketedwiththemodule(seeSection15.27(a)).Thelengthof theselinesshallbelengthtypicalofactualuseor,ifthatlengthisunknown,at least10centimeterstoinsurethatthereisnocouplingbetweenthecaseofthe moduleandsupportingequipment.Anyaccessories,peripherals,orsupport equipmentconnectedtothemoduleduringtestingshallbeunmodifiedor commerciallyavailable(seeSection15.31(i)). PleaseseethetestingphotoandphotoofEUT.Theapplicanthassuppliedahost configurationtothemoduletransmitterduringthetest.Pleaseseethetopofpage1 statementfortheHOST. 6.ThemodulartransmittermustbelabeledwithitsownFCCIDnumber,and,ifthe FCCIDisnotvisiblewhenthemoduleisinstalledinsideanotherdevice,thenthe outsideofthedeviceintowhichthemoduleisinstalledmustalsodisplayalabel referringtotheenclosedmodule.Thisexteriorlabelcanusewordingsuchas thefollowing:“ContainsTransmitterModuleFCCID:XYZMODEL1”or“Contains FCCID:XYZMODEL1.”Anysimilarwordingthatexpressesthesamemeaning maybeused.TheGranteemayeitherprovidesuchalabel,anexampleof whichmustbeincludedintheapplicationforequipmentauthorization,or,must provideadequateinstructionsalongwiththemodulewhichexplainthis requirement.Inthelattercase,acopyoftheseinstructionsmustbeincludedin theapplicationforequipmentauthorization. PleaseseetheFCCStatementinusermanual. 7.Themodulartransmittermustcomplywithanyspecificruleoroperating requirementsapplicabletothetransmitterandthemanufacturermustprovide adequateinstructionsalongwiththemoduletoexplainanysuchrequirements. Acopyoftheseinstructionsmustbeincludedintheapplicationforequipment authorization.Forexample,thereareverystrictoperationalandtiming requirementsthatmustbemetbeforeatransmitterisauthorizedforoperation underSection15.247.Compliancewiththeserequirementsmustbe assured. PleaseseetheUserManualformoredetailsinwhichtheuserandtheinstallerhad installationstep-by-stepinstructionsonwhichtolearnhowtoinstallandverifyoperation. 8.ThemodulartransmittermustcomplywithanyapplicableRFexposure requirements.Forexample,FCCRulesinSections2.1091,2.1093andspecific SectionsofPart15,including15.319(i),15.407(f),15.253(f)and15.255(g), requirethatUnlicensedPCS,UNIIandmillimeterwavedevicesperformroutine environmentalevaluationforRFExposuretodemonstratecompliance.In addition,spreadspectrumtransmittersoperatingunderSection15.247are requiredtoaddressRFExposurecomplianceinaccordancewithSection 15.247(b)(4).ModulartransmittersapprovedunderotherSectionsofPart15, whennecessary,mayalsoneedtoaddresscertainRFExposureconcerns, typicallybyprovidingspecificinstallationandoperatinginstructionsforusers, installersandotherinterestedpartiestoensurecompliance. PleaseseetheFCCStatementinusermanualformoredetailsprovidedspecific installationandoperatedinstructionsforusers,installersandotherinterested partiestoensurecompliance.Thismoduleismeanttobeinstalledandoperated20cm fromtheuser.Pleaserefertosection4.11 “ RFexposure ” resultsontestreport.

ValenceTechLimited Unit 1,20/F., APEC Plaza, 49Hoi Yuen Road, Kwun Tong,Kowloon,HK Tel: +852-27973288 Fax:+852-2776 7770 AGENCYAUTHORIZATIONLETTER FCC ID:ORP-IBT-03Date: July 19, 2012 FederalCommunicationsCommission Authorizationand EvaluationDivision 7435OaklandMillsRoad Columbia,MD 21046 To whomit may concern: We, the undersigned,herebyauthorizeShenzhenCTL ElectromagneticTechnologyCo., Ltd .(MR.TracyQi ) on our behalf,to applyto the FederalCommunicationsCommission on our equipment.Any and all actscarriedout by ShenzhenCTL Electromagnetic TechnologyCo.,Ltd . (MR.TracyQi ) on our behalfshallhavethe sameeffectas actsof our own.Thisauthorizationexpireson July18 , 20 13. Thisis to advisethatwe are in fullcompliancewiththe Anti-DrugAbuseAct. We,ValenceTechLimitedare not subjectto a denialof federalbenefitspursuant to Section5301of the Anti-DrugAct of 1988,21 USC853a,and no partyto the applicationis subjectto a denialof federalbenefitspursuantto thatsection. Sincerely, --------------------------------------- H.W.Poon/VP of Engineering ValenceTechLimited

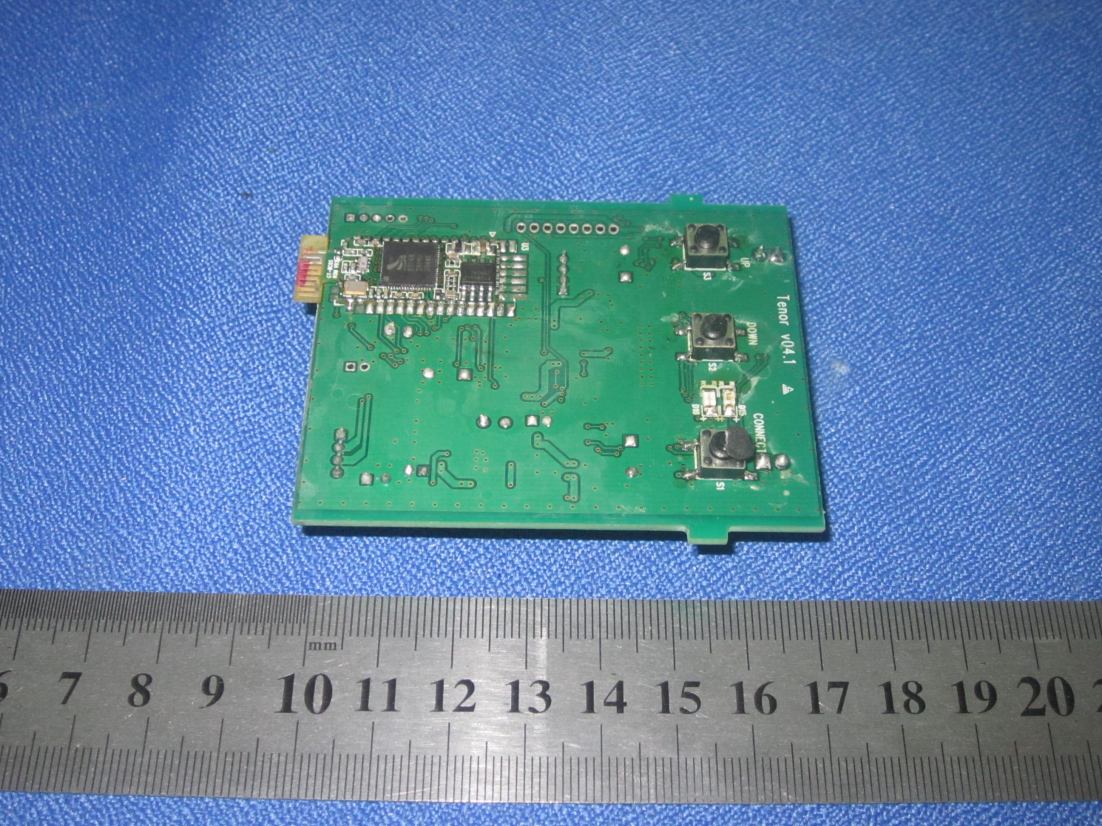

V1.0Page63of70ReportNo.:CTL1210111194-WB 6.Ex t e rna lan dInt e rn alPh ot osoftheEU T ExternalPhotosofEUT Host V1.0Page64of70ReportNo.:CTL1210111194-WB V1.0Page65of70ReportNo.:CTL1210111194-WB ModulewithMotherBoard

ExteriorFCCIDLabelSampleforFCCID:ORP-IBT-03 ContainsTransmitterModuleFCCID:ORP-IBT-03 ThisdevicecomplieswithPart15oftheFCCRules. Operationissubjecttothefollowingtwoconditions: (1)thisdevicemaynotcauseharmfulinterference, and(2)thisdevicemustacceptanyinterference received,includinginterferencethatmaycause undesiredoperation.

V1.0Page66of69ReportNo.:CTL1210111194-WB InternalPhotosofEUT V1.0Page67of69ReportNo.:CTL1210111194-WB V1.0Page68of69ReportNo.:CTL1210111194-WB V1.0Page69of69ReportNo.:CTL1210111194-WB ......................EndofReport.......................

Operation Description iBT-03 is a Class 2 Bluetooth sub-system using BlueCore5 –Multimedia ROM chipset from leading Bluetooth chipset supplier Cambrige Silicon Radio. It interfaces to a 32-kbit EEPROM using I2C interface. The software stack running on the BlueCore5 ROM chipset is fully compliant to Bluetooth Specification v2.1 + EDR. iBT-03 also has necessary balun and bandpass filters to interface with a build-in PCB antenna, which forms a very cost effective radio subsystem.

A B C D 6 5 4 3 2 1 D C B A Date: Sheet: of SIZE: Rev: 1 1 3 Nov 2011 02 A3 iBT-03 Bluetooth Module ValenceTech Limited. Changes 1. U1 pin 13 VDD_UART powered from 3.3V (old design is 1.8V) 2. U1 pin 16 VDD_PADS powered from 3.3V (old design is 1.8V) 3. U1 pin 62 VDD_PIO powered from 3.3V (old design is 1.8V) 4. U2 pin 8 powered from 3.3V (old design is 1.8V) 5. L2 pin 2 powered from 1.5V (old design is 1.8V) 64 RF_P 65 RF_N 3 XTAL_IN 4 XTAL_OUT 5 LO_REF 28 SPI_MOSI 30 SPI_CS 29 SPI_CLK 31 SPI_MISO 9 UART_TX 10 UART_RX 12 UART_RTS 11 UART_CTS 20 PIO_14 19 PIO_13 18 PIO_12 15 PIO_11 14 PIO_9 21 PIO_8 22 PIO_7 23 PIO_6 24 PIO_5 25 PIO_4 58 PIO_3 59 PIO_2 60 PIO_1 61 PIO_0 6 AIO_1 7 AIO_0 56 SPKR_A_N 57 SPKR_A_P 53 SPKR_B_N 54 SPKR_B_P 52 MIC_A_N 51 MIC_A_P 50 MIC_B_N 48 MIC_B_P 45 MIC_BIAS 55 AU_REF_DCPL 33 LED_1 32 LED_0 26 RST 27 TEST_EN 68 VREGENABLE_L 1 VREGIN_L 35 VREGENABLE_H 46 VREGIN_AUDIO 47 VDD_AUDIO 37 LX 2 VDD_ANA 62 VDD_PIO 16 VDD_PADS 17 VDD_CORE 34 VDD_CORE 63 VDD_RADIO 66 VDD_RADIO 13 VDD_UART 67 VDD_LO 38 BAT_P 39 VDD_CHG 36 VDD_SMP_CORE 49 NC 44 NC 43 NC 42 NC 41 NC 40 NC 8 NC U1 BC57F687A05 X1 26MHz C1 10pF C2 27pF 1 A0 2 A1 3 A2 4 GND 5 SDA 6 SCL 7 WP 8 VCC U2 AT24C64 R1 2K2 R2 R3 C3 0.1μF C4 0.047μF C5 2.2μF R4 10K L1 22μH C6 4.7μF C7 0.022μF C8 0.022μF C9 15pF R5 2R2 C10 2.2μF C11 0.022μF 1 2 3 5 6 7 T1 2450FB15K0005 C12 15pF L2 6.2nH C13 1.5pF C14 1.5pF L3 5.6nH T2 1 GND 2 MIC-AP 3 MIC-AN 4 SPK-LN 5 SPK-LP 6 SPK-RN 7 SPK-RP 8 PIO-13 9 3.3V 10 MIC-BP 11 MIC-BN 12 GND 13 PIO-14 14 PIO-9 15 PIO-4 J1-A 16 GND 17 TX 18 RX 19 AIO-1 20 LED-0 21 LED-1 J1-B 22 GND 23 RESETB 24 SPI-CLK 25 SPI-MISO 26 SPI-MOSI 27 SPI-CSB 28 PIO-12 29 PIO-11 30 PIO-5 31 PIO-3 32 PIO-2 33 PIO-0 34 PIO-1 35 VDD-CHG 36 GND J1-C 37 MIC-BIAS 38 AIO-0 J1-D C15 0.022μF 3.3V 1.8V 1.5V 3.3V 3.3V 1.5V

ShenzhenCTLElectromagneticTechnologyCo.,Ltd. Tel:+86-755-89486194Fax:+86-755-89486194-805 FCCPART15SUBPARTCTESTREPORT FCCPART15.247 ReportReferenceNo.........................:CTL120814802-WF Compiledby (position+printedname+signature)..:Fileadministrators JackyChen Nameoftheorganizationperforming thetests (position+printedname+signature)..: TestEngineerTracyQi Approvedby (position+printedname+signature)..: ManagerTracyQi Dateofissue..........................................:Oct.20,2012 RepresentativeLaboratoryName.:ShenzhenCTLElectromagneticTechnologyCo.,Ltd. Address...................................................:ZoneB,4/F,Block20,GuangqianIndustrialPark,LongzhuRoad, Nanshan,Shenzhen518055China. TestFirm................................................:BontekComplianceTestingLaboratoryLtd Address ................................................... :1/F,BlockEastH-3,OCTEasternInd.Zone,QiaochengEast Road,Nanshan,Shenzhen,China Applicant’sname ................................ :ValenceTechLimited Address...................................................: Unit1,20/F.,APECPlaza,49HoiYuenRoad,KwunTong, Kowloon,HK Testspecification: Standard..................................................:FCCPart15.247:Operationwithinthebands902-928MHz,2400- 2483.5MHzand5725-5850MHzDirectSequenceSystem MasterTRF.............................................:Dated2011-01 ShenzhenCTLElectromagneticTechnologyCo.,Ltd.Allrightsreserved. Thispublicationmaybereproducedinwholeorinpartfornon-commercialpurposesaslongasthe ShenzhenCTLElectromagneticTechnologyCo.,Ltd.isacknowledgedascopyrightownerandsourceof thematerial.ShenzhenCTLElectromagneticTechnologyCo.,Ltd.takesnoresponsibilityforandwillnot assumeliabilityfordamagesresultingfromthereader'sinterpretationofthereproducedmaterialduetoits placementandcontext. Testitemdescription.........................:BluetoothModule FCCID.......................................:ORP-IBT-03 TradeMark.............................................:/ Model/Typereference..........................:iBT-03 OpeationFrequency ............................. :From2400MHzto2483.5MHz Modulation.............................................: GFSK,π/4-DQPSK,8-DPSK AntennaType..............................:PCBAntenna Result.......................................................:Positive V1.0Page2of70ReportNo.:CTL120814802-WF TESTREPORT TestReportNo.: CTL120814802-WF Oct.20,2012 ______________________________________________________________________________________________ Dateofissue EquipmentunderTest:BluetoothModule Model/Type:iBT-03 ListedModels:/ Applicant:ValenceTechLimited Address: Unit1,20/F.,APECPlaza,49HoiYuenRoad,Kwun Tong,Kowloon,HK Manufacturer :ValenceTechLimited Address: Unit1,20/F.,APECPlaza,49HoiYuenRoad,Kwun Tong,Kowloon,HK TestResultaccordingtothe standardsonpage4: Positive Thetestreportmerelycorrespondstothetestsample. Itisnotpermittedtocopyextractsofthesetestresultwithoutthewrittenpermissionofthetest laboratory. V1.0Page3of70ReportNo.:CTL120814802-WF Contents 1 .TE S TST A N D A R D S.............................................................................................................................................4 2 .SU MM A R Y....................................................................................................................................................................5 2.1.GeneralRemarks..............................................................................................................................................................5 2.2.EquipmentUnderTest....................................................................................................................................................5 2.3.ShortdescriptionoftheEquipmentunderTest(EUT)........................................................................................5 2.4.EUToperationmode.......................................................................................................................................................5 2.5.EUTconfiguration............................................................................................................................................................6 2.6.ConfigurationofTestedSystem.................................................................................................................................6 2.7.RelatedSubmittal(s)/Grant(s)...................................................................................................................................6 2.8.Modifications.....................................................................................................................................................................6 2.9.NOTE.....................................................................................................................................................................................6 2.10.FrequencyHoppingSystemRequirements..........................................................................................................7 3 .TE S TEN V IR ON M E N T .................................................................................................................................... 10 3.1.Addressofthetestlaboratory...................................................................................................................................10 3.2.TestFacility......................................................................................................................................................................10 3.3.Environmentalconditions...........................................................................................................................................10 3.4.Statementofthemeasurementuncertainty.........................................................................................................10 3.5.TestDescription.................................................................................................…

Text truncated - open the document above for the full version.

ShenzhenCTLElectromagneticTechnologyCo.,Ltd. Tel:+86-755-89486194Fax:+86-755-89486194-805 MPETestReport FCCPer47CFR2.1091(b) ReportReferenceNo.......................:CTL120814802-WM Compiledby (position+printedname+signature) .. :FileadministratorsAndyZhang Nameoftheorganizationperforming thetests (position+printedname+signature)..: TestEngineerTracyQi Approvedby (position+printedname+signature)..: ManagerTracyQi Dateofissue.......................................:Sept.15,2012 TestingLaboratoryName...............:ShenzhenCTLElectromagneticTechnologyCo.,Ltd. Address...............................................: ZoneB,4/F,Block20,GuangqianIndustrialPark,LongzhuRoad, Nanshan,Shenzhen518055China Applicant’sname ............................. :ValenceTechLimited Address...............................................: Unit1,20/F.,APECPlaza,49HoiYuenRoad,KwunTong, Kowloon,HK Testspecification: Standard ............................................. : FCCPer47CFR2.1091(b) OETBulletin65SupplementC[June2001] TRFOriginator....................................:ShenzhenCTLElectromagneticTechnologyCo.,Ltd. MasterTRF.........................................:Dated2011-01 ShenzhenCTLElectromagneticTechnologyCo.,Ltd.Allrightsreserved. Thispublicationmaybereproducedinwholeorinpartfornon-commercialpurposesaslongasthe ShenzhenCTLElectromagneticTechnologyCo.,Ltd.isacknowledgedascopyrightownerandsourceof thematerial.ShenzhenCTLElectromagneticTechnologyCo.,Ltd.takesnoresponsibilityforandwillnot assumeliabilityfordamagesresultingfromthereader'sinterpretationofthereproducedmaterialduetoits placementandcontext. Testitemdescription ...................... :BluetoothModule TradeMark ......................................... :/ Model/Typereference........................:iBT-03 Modulation..................................:FHSS PowerSupply..............................:DC12.5V OperatingFrequencyRange............:From2400MHzto2483.5MHz Result..................................................:Positive V1.0Page2of7ReportNo.:CTL120814802-WM TESTREPORT TestReportNo.: CTL120814802-WM Sept.15,2012 ______________________________________________________________________________________________ Dateofissue EquipmentunderTest: BluetoothModule Model/Type: iBT-03 ListedModels: / Applicant : ValenceTechLimited Address: Unit1,20/F.,APECPlaza,49HoiYuenRoad,KwunTong, Kowloon,HK Manufacture : ValenceTechLimited Address: Unit1,20/F.,APECPlaza,49HoiYuenRoad,KwunTong, Kowloon,HK TestResult accordingtothe standardsonpage4: Positive Thetestreportmerelycorrespondstothetestsample. Itisnotpermittedtocopyextractsofthesetestresultwithoutthewrittenpermissionofthetest laboratory. V1.0Page3of7ReportNo.:CTL120814802-WM Contents 1 .SUMMARY.....................................................................................................................................................4 1.1.EUTconfiguration..............................................................................................................................................4 1.2.EquipmentUnderTest......................................................................................................................................4 1.3.ShortdescriptionoftheEquipmentunderTest(EUT)................................................................................4 1.4.Note......................................................................................................................................................................4 2 .TESTENVIRONMENT ........................................................................................................................... 5 2.1.Addressofthetestlaboratory ......................................................................................................................... 5 2.2.TestFacility ......................................................................................................................................................... 5 2.3.Environmentalconditions................................................................................................................................5 2.4.Statementofthemeasurementuncertainty..................................................................................................5 3 .METHODOFMEASUREMENT........................................................................................................6 3.1.ApplicableStandard..........................................................................................................................................6 3.2.Limit......................................................................................................................................................................6 3.3.MPECalculationMethod...................................................................................................................................6 4 .CONCLUSION.............................................................................................................................................7 V1.0Page4of7ReportNo.:CTL120814802-WM 1.SU M M AR Y 1.1.EUTconfiguration Thefollowingperipheraldevicesandinterfacecableswereconnectedduringthemeasurement: ●-suppliedbythemanufacturer ○-suppliedbythelab ○ PowerCableLength(m):/ Shield:/ Detachable:/ ○ MultimeterManufacturer:/ ModelNo.:/ 1.2.EquipmentUnderTest Powersupplysystemutilised Powersupplyvoltage: ○ 120V/60Hz ○ 115V/60Hz ○ 12VDC ○ 24VDC ● Other(specifiedinblankbelow) DC5VfromUSB 1.3.ShortdescriptionoftheEquipmentunderTest(EUT) TheValenceTechLimited‘sModel:iBT-03orthe“EUT”asreferredtointhisreport;moregeneral informationasfollows,formoredetails,refertotheuser’smanualoftheEUT. NameofEUTBluetoothModule ModelNumberiBT-03 FCCIDORP-IBT-03 RatedOutputPower0.000573Watts(-2.42dBm) 1.4.Note TheEUTisisa2.4Gfrequencyband(2400-2483.5MHz)BluetoothModule,ThefunctionsoftheEUTlistedas below: TestStandardsReferenceReport RadioFCCPart90CTL120814802-WF MPEOET65CTL120814802-WM V1.0Page5of7ReportNo.:CTL1…

Text truncated - open the document above for the full version.

V1.0Page61of67ReportNo.:CTL1210111194-WB 5.Te s tSe t upPhot osofth eEU T V1.0Page62of67ReportNo.:CTL1210111194-WB
