ORP-IBT0602SBluetooth Module

iBT-06-02S Bluetooth Module with HCI Interface 0.5.02 1 / 11 2013-11-21 iBT-06-02S Bluetooth Module with HCI Interface ( Qualified QDID : B021756 ) Doc. Name : iBT-06-02S-Rev0.5.02.doc Date : 2013-11-21 Revision : 0.5.02 Copyright ©, 2013 by Engineering Department, Valence Semiconductor Design Limited. All rights reserved. No part of this document may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language, in any form or by any means without the prior written permission of Valence Semiconductor Design Limited. FCC ID:ORP-IBT0602S IC:11691A-IBT0602S iBT-06-02S Bluetooth Module with HCI Interface 0.5.02 2 / 11 2013-11-21 1. Overview iBT-06-02S is a Class 2 Bluetooth module supporting Bluetooth v2.1 + EDR specification. It is implemented by using the RDA5876a chip. iBT-06-02S is designed to interface with an external MCU with HCI command control for supporting audio or data applications. 2. Features
A single chip radio and baseband module for Bluetooth applications
Fully Qualified Bluetooth v2.1+EDR
Class 2 power output (10 meter minimum)
Support for 2-wires / 3-wires 802.11 co-existence
HCI Interface to external MCU
Build-in PCB antenna
Supply voltage : 3.3V to 4.2V
RoHS compliant
Dimension:  iBT-06-02S :21.5mm (L) x 14mm (W) x 2.2mm (H) 3. Applications
Wireless speakers
Stereo headset
Hands-free car kit
VoIP handsets
Data Transfer
Docking Stations 4. Pin Drawing Figure 1 iBT-06-02S Pin Diagram iBT-06-02S Bluetooth Module with HCI Interface 0.5.02 3 / 11 2013-11-21 5. Block Diagram PCM_DIN PCM_DOUT PCM_SYNC PCM_CLK GND Figure 2 iBT-06-02S Block Diagram 6. Pin Description Pin No Pin Name Pin Type Pin Descriptions 1 BT_ACTIVE O A “1” indicates that BT is active transmitting data 2 BT_PRIORITY O A “1” indicates that BT request to have priority over WLAN 3 WLAN_ACTIVE I A “1” indicates that WLAN is active transmitting data 4 BT_EINT O Active high signal to interrupt external MCU 5 BT_TX O Bluetooth UART Data Output 6 BT_RX I Bluetooth UART Data Input 7 PCM_SYNC I PCM data sync 8 PCM_CLK I PCM data clock 9 PCM_DIN I PCM data input 10 PCM_DOUT O PCM data output 11 VIO I/O Supply Voltage 12 VDD Module Supply Voltage 13 GND Module Ground 14 CLK_32K I External 32kHz Clock input 15 I2C_SDA B I2C Data Signal 16 I2C_SCL I I2C Clock Signal 17 LDO_ON I Control signal to enable/disable the internal LDO that provide power to the internal core. This control signal will also reset the internal core logic. ‘1’ Enable LDO ‘0’ LDO disable O output pad I Input IA Analog Input OA Analog Output iBT-06-02S Bluetooth Module with HCI Interface 0.5.02 4 / 11 2013-11-21 7. Electrical Specification 7.1. Absolute Maximum Rating Item Symbol Rating Unit Module Supply Voltage VDD -0.4 to 4.5 V I/O Supply Voltage VIO -0.4 – 4.0 V Peak Current Ipk 0 - 70 mA Storage Temperature T STG -20 to 85 °C 7.2. Recommended Operating Condition Item Symbol Miin Typ Max Unit Module Supply Voltage VDD 3.3 4.2 V I/O Supply Voltage VIO 1.8 3.3 V RF Operating Temperature 0 25 60 °C Operating Temperature 0 25 55 °C 7.3. Digital Input / Output Port Characteristics VDD=3.3V, VIO=3.3V, operating temperature = 25 °C unless specified otherwise Symbol Parameter Condition Min. Typ. Max. Unit Input Voltage Levels V IL Input low voltage -0.3 0.25*VIO V V IH Input high voltage 0.7*VIO VIO+0.3 V V sch Schmitt voltage level 0.3*VIO 0.7*VIO V Output Voltage Levels V OL Output low voltage I OL = -4mA 0.125 V V OH Output high voltage I OH = 4mA 0.75*VIO VIO V Current Consumption Operating Current Depends on profiles 25 mA Standby Current 0.5 mA iBT-06-02S Bluetooth Module with HCI Interface 0.5.02 5 / 11 2013-11-21 7.4. RF Characteristics VDD=4.0V, operating temperature = 27 °C unless specified otherwise Receiver Units Miin Typ Max Bluetooth Spec Sensitivity at 0.1% BER dBm -85 ≦ -70 Maximum Receiver Signal at 0.1% BER dBm 0 ≧-20 C/I Co-Channel dB 10 ≦ 11 Adjacent Channel Selectivity C/I +1MHz dB -5 ≦ 0 Adjacent Channel Selectivity C/I -1MHz dB 0 ≦ 0 2 nd Adjacent Channel Selectivity C/I +2Mhz dB -33 ≦ -30 2 nd Adjacent Channel Selectivity C/I -2Mhz dB -30 ≦ -20 3 rd Adjacent Channel Selectivity C/I +3Mhz dB -45 ≦ -40 3 rd Adjacent Channel Selectivity C/I -3Mhz dB -40 ≦ -40 VDD=4.0V, operating temperature = 27 °C unless specified otherwise Transmitter Units Miin Typ Max Bluetooth Spec RF Output Power dBm 1.6 -6 to +4 RF Power Control Range dBm -28 2.4 > 16 20dB Bandwidth for modulated Carrier kHz 760 < 1000 Basic Data Rate Adjacent Channel Power 2 nd Adjacent Channel (+/- 2Mhz) dBm -35 ≦ -20 3 rd Adjacent Channel (+/- 3Mhz) dBm -40 ≦ -40 Enhance Data Rate Adjacent Channel Power 1 st Adjacent Channel (+/- 1MHz) dBm -37 ≦ -29 2 nd Adjacent Channel (+/- 2Mhz) dBm -32 ≦ -20 3 rd Adjacent Channel (+/- 3Mhz) dBm -40 ≦ -40 Initial Carrier Frequency Tolerance kHz -0.25 4 -75 to +75 iBT-06-02S Bluetooth Module with HCI Interface 0.5.02 6 / 11 2013-11-21 8. Module Dimension 8.1. iBT-06-02S Module Dimension iBT-06-02S Bluetooth Module with HCI Interface 0.5.02 7 / 11 2013-11-21 9. PCB Layout Guidelines 9.1. iBT-06-02S Antenna Clearance 9.2. iBT-06-02S PCB Landing Pattern allows the (OEM) Integator to integrate the RN52 module in iBT-06-02S Bluetooth Module with HCI Interface 0.5.02 8 / 11 2013-11-21 10. Regulatory Approval This section outlines the regulatory information for the iBT-06-02S module for the following countries:
United States
Canada
Japan 10.1. United States The iBT-06-02S module has received Federal Communications Commission (FCC) CFR47 Telecommunications, Part 15 Subpart C “Intentional Radiators” modular approval in accordance with Part 15.212 Modular Transmitter approval. Modular approval to a finished product without obtaining subsequent and separate FCC approvals for intentional radiation, provided no changes or modifications are made to the module circuitry. Changes or modifications could void the user’s authority to operate the equipment. The end user must comply wi…

Text truncated - open the document above for the full version.

Valence Tech Limited Unit 2001, 20/F., APEC Plaza, 49 Hoi Yuen Road, Kwun Tong, Kowloon,Hongkong Tel: +852‐27973288 Fax: +852‐27767770 Explanation of differences between product types Model Number: iBT-06-02S, iBT-06-04S To Whom It May Concern: We, The Valence Tech Limited, hereby declare that the model : iBT-06-04S is identical with the model : iBT-06-02S except the model name. Except for the different above, no other modification is performed. Sincerely, Valence Tech Limited Signature: Name, Job Title and Dept.: HW Poon / Manager

Feb.17, 2014 Federal Communication Commission Authorization and Evaluation Division FCC ID: ORP-IBT0602S Re: Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the applicant hereby requests confidential treatment of information applied this application as outlined below: 1: Block Diagram 2: Circuit Diagram 3: Parts List 4.Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rules 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, ValenceTech Limited Contact person: H.W. Poon Title: VP of Engineering

Applicant ValenceTech Limited FCC ID: ORP-IBT0602S Section 15.212 Modular Transmitters Request for Modular Approval Y Request for Limited Modular Approval Requirements EUT Conditions Comply (Y/N) Single Modular Approval Requirements 1 The radio elements of the modular transmitter must have their own shielding. The physical crystal and tuning capacitors may be located external to the shielded radio elements. The metal shielding as shown on external photo, and the crystal and tuning capacitors is also located external to the shielded radio elements. Y 2 The modular transmitter must have buffered modulation/data inputs (if such inputs are provided) to ensure that the module will comply with Part 15 requirements under conditions of excessive data rates or over-modulation. Please refer the Schematic, The modular transmitter have buffered modulation/data inputs U1 Y 3 The modular transmitter must have its own power supply regulation. The modular has it’s own power supply regulation, refer to U1(RDA5876A) with integrated LDO regulator Y 4 The modular transmitter must comply with the antenna and transmission system requirements of Sections 15.203, 15.204(b) and 15.204(c). The antenna must either be permanently attached or employ a “unique” antenna coupler (at all connections between the module and the antenna, including the cable). The “professional installation” provision of Section 15.203 is not applicable to modules but can apply to limited modular approvals under paragraph (b) of this section. Referring to onboard PCB antenna Y 5 The modular transmitter must be tested in a stand-alone configuration, i.e., the module must not be inside another device during testing for compliance with Part 15 requirements. Unless the transmitter module will be battery powered, it must comply with the AC line conducted requirements found in Section 15.207. AC or DC power lines and data input/output lines connected to the module must not contain ferrites, unless they will be marketed with the module (see Section 15.27(a)). The length of these lines shall be the length typical of actual use or, if that length is unknown, at least 10 centimeters to insure that there is no coupling between the case of the module and supporting equipment. Any accessories, peripherals, or support equipment connected to the module during testing shall be unmodified and commercially available equipment. Any accessories, peripherals, or support equipment connected to the module during testing shall be unmodified and commercially available (see Section 15.31(i)). Referring to the test setup photos. This module is tested on the test board in a stand-alone configuration. Y 6 The modular transmitter must be equipped with either a permanently affixed label or must be capable of electronically displaying its FCC identification number. (A) If using a permanently affixed label, the modular transmitter must be labeled with its own FCC identification number, and, if the FCC identification number is not visible when the module is installed inside another device, then the outside of the device into which the module is installed must also display a label referring to the enclosed module. This exterior label can use wording such as the following: “Contains Transmitter Module FCC ID: XYZMODEL1” or “Contains FCC ID: XYZMODEL1.” Any similar wording that expresses the same meaning may be used. The Grantee may either provide such a label, an example of which must The modular was labeled with its own FCC ID. The outside of device in to which the module is installed will labeled ‘Contains TX FCC ID:ORP-IBT0602S, Please refer to User Manual Y be included in the application for equipment authorization, or, must provide adequate instructions along with the module which explain this requirement. In the latter case, a copy of these instructions must be included in the application for equipment authorization. (B) If the modular transmitter uses an electronic display of the FCC identification number, the information must be readily accessible and visible on the modular transmitter or on the device in which it is installed. If the module is installed inside another device, then the outside of the device into which the module is installed must display a label referring to the enclosed module. This exterior label can use wording such as the following: “Contains FCC certified transmitter module(s).” Any similar wording that expresses the same meaning may be used. The user manual must include instructions on how to access the electronic display. A copy of these instructions must be included in the application for equipment authorization. 7 The modular transmitter must comply with any specific rules or operating requirements that ordinarily apply to a complete transmitter and the manufacturer must provide adequate instructions along with the module to explain any such requirements. A copy of these instructions must be included in the application for equipment authorization. The modular is comply with all applicable FCC rules. Any modifications, not expressly approved by the manufacturer could void the authority to operate in these regions. Y 8 The modular transmitter must comply with any applicable RF exposure requirements in its final configuration. With the documented max output power this RF Module meets the FCC SAR Exemption - so it can be integrated in any host device (portable/mobile/fixed) with further restrictions. Y A limited modular approval may be granted for single or split modular transmitters that do not comply with all of the above requirements, e.g., shielding, minimum signaling amplitude, buffered modulation/data inputs, or power supply regulation, if the manufacturer can demonstrate by alternative means in the application for equipment authorization that the modular transmitter meets all the applicable Part 15 requirements under the operating conditions in which the transmitter will be used. Limited modular approval also may be granted in those instan…

Text truncated - open the document above for the full version.

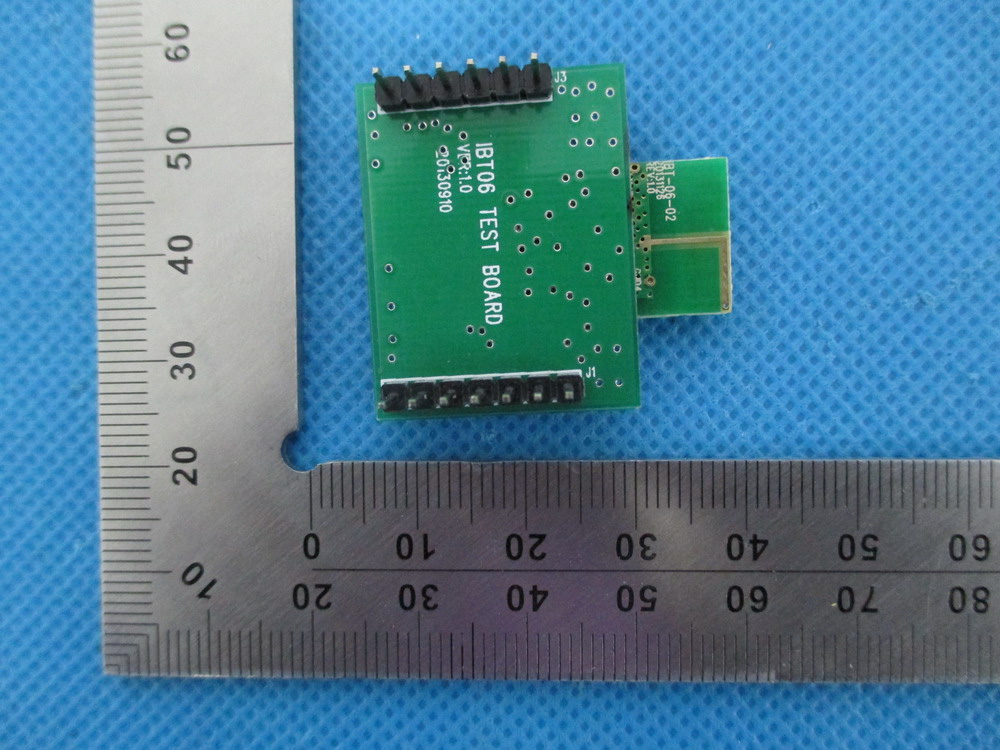

External Photos PHOTOS OF EUT-1 PHOTOS OF EUT -2 BT Antenna

FCC ID/IC Label Location Model Name:iBT-06-02S FCC ID: ORP-IBT0602S IC: 11691A-IBT0602S iBT‐06‐04S

Internal Photos PHOTOS OF EUT -1 PHOTOS OF EUT -2 PHOTOS OF EUT -3

Report No.: AGC00770140101FE03 Page 1 of 55 FCC Test Report Report No.: AGC00770140101FE03 FCC ID : ORP‐IBT0602S APPLICATION PURPOSE : Original Equipment PRODUCT DESIGNATION : Bluetooth Module with HCI Interface BRAND NAME : VALENCETECH MODEL NAME : iBT‐06‐02S,iBT‐06‐04S CLIENT : Valence Tech Limited DATE OF ISSUE : Jan.20, 2014 STANDARD(S) : FCC Part 15 Rules REPORT VERSION : V1.0 Attestation of Global Compliance (Shenzhen) Co., Ltd CAUTION: This report shall not be reproduced except in full without the written permission of the test laboratory and shall not be quoted out of context. Report No.: AGC00770140101FE03 Page 2 of 55 Report Revise Record Report Version Revise Time Issued Date Valid VersionNotes V1.0 / Jan.20, 2014Valid Original Report Report No.: AGC00770140101FE03 Page 3 of 55 TABLE OF CONTENTS 1. VERIFICATION OF CONFORMITY ...................................................................................... 5 2. GENERAL INFORMATION .................................................................................................. 6 2.1. PRODUCT DESCRIPTION ........................................................................................................... 6 2.2. TABLE OF CARRIER FREQUENCYS .......................................................................................... 6 2.3. RECEIVER INPUT BANDWIDTH ................................................................................................. 7 2.4. EXAMPLE OF A HOPPING SEQUENCY IN DATA MODE ........................................................... 7 2.5. EQUALLY AVERAGE USE OF FREQUENCIES AND BEHAVIOUR ............................................ 7 2.6. RELATED SUBMITTAL(S) / GRANT (S) ....................................................................................... 8 2.7. TEST METHODOLOGY................................................................................................................ 8 2.8. SPECIAL ACCESSORIES ............................................................................................................ 8 2.9. EQUIPMENT MODIFICATIONS ................................................................................................... 8 3. MEASUREMENT UNCERTAINTY........................................................................................ 9 4. DESCRIPTION OF TEST MODES ........................................................................................ 9 5. SYSTEM TEST CONFIGURATION .................................................................................... 10 5.1. CONFIGURATION OF EUT SYSTEM ........................................................................................ 10 5.2. EQUIPMENT USED IN EUT SYSTEM ....................................................................................... 10 5.3. SUMMARY OF TEST RESULTS ................................................................................................ 10 6. TEST FACILITY .................................................................................................................. 11 7. PEAK OUTPUT POWER .................................................................................................... 12 7.1. MEASUREMENT PROCEDURE ................................................................................................ 12 7.2. TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) ....................................................... 12 7.3. LIMITS AND MEASUREMENT RESULT .................................................................................... 13 8. 20DB BANDWIDTH ............................................................................................................ 19 8.1. MEASUREMENT PROCEDURE ................................................................................................ 19 8.2. TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) ....................................................... 19 8.3. LIMITS AND MEASUREMENT RESULTS .................................................................................. 19 9. CONDUCTED SPURIOUS EMISSION ............................................................................... 26 9.1. MEASUREMENT PROCEDURE ................................................................................................ 26 9.2. TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) ....................................................... 26 9.3. MEASUREMENT EQUIPMENT USED ....................................................................................... 26 9.4. LIMITS AND MEASUREMENT RESULT .................................................................................... 26 10. RADIATED EMISSION ..................................................................................................... 30 10.1. MEASUREMENT PROCEDURE .............................................................................................. 30 10.2. TEST SETUP ............................................................................................................................ 32 Report No.: AGC00770140101FE03 Page 4 of 55 10.3. TEST RESULT .......................................................................................................................... 33 11. BAND EDGE EMISSION .................................................................................................. 37 11.1. MEASUREMENT PROCEDURE .............................................................................................. 37 11.2. TEST SET-UP ........................................................................................................................... 37 11.3. TEST RESULT .......................................................................................................................... 38 12. NUMBER OF HOPPING FREQUENCY ............................................................................ 42 12.1. MEASUREMENT PROCEDURE .............................................................................................. 42 12.2. …

Text truncated - open the document above for the full version.

APPENDIX IV PHOTOGRAPHS OF TEST SETUP FCC LINE CONDUCTED EMISSION TEST SETUP FCC RADIATED EMISSION TEST SETUP
