ORP-IBT-0405BLUETOOTH MODULE FOR AUDIO APPLICATION

User Manual iBT04, iBT05 Bluetooth Module (This module is limited to OEM Installation only) Features  Class 2 module with printed PCB antenna  8Mbit (optional 16Mbit) Flash  Fully Qualified Bluetooth 2.1 + EDR  CSR BC5MM-EXT chip  Low current consumption  3.3V operation  High quality 95db SNR on DAC playback  PCM digital audio input/output (IBT04 only)  Support single/dual-mic input  Interface: PIOs, UART, SPI for programming  Built-in DSP Co-Processor for audio signal processing  Support of noise and echo cancellation  Configurable 5-band EQ  802.11 Co-existence  A2DP, AVRCP, HSP, HFP profile support  Optional iAP, SPP profile support for app communication  Optional AAC, MP3 direct streaming and SRS WoWHD  Optional NFC pairing support  RoHS compliant  Dimension: 34.0 x 12.0 x 2.2 mm Applications  High Quality Mono/Stereo Wireless Headsets  Hands-Free Car Kits  Wireless Speakers  Home-theater Sound Bar  Bluetooth-Enabled Wireless Gateways Block Diagram IBT05(C) is a Class 2 Bluetooth sub-system using BlueCore5 –Multimedia Ext Flash chipset from leading Bluetooth chipset supplier Cambridge Silicon Radio. .It interfaces to a 8/16 MBit parallel Flash. The software stack running on the BlueCore5 MM Ext chipset is fully compliant to Bluetooth Specification v2.1 + EDR. iBT04(5) also has necessary balun and bandpass filters to interface with a build-in PCB antenna, which forms a very cost effective radio subsystem. Applications Example The above schematic shows a typical application of IBT05 (C) module. Double click on the diagram to see the detail drawings. Power supply The whole module shall be supplied with a clean 3.3v at its 3V3 power port (pin #9). A coupling capacitor should be placed as close to this pin as possible. All others PIO pins (including VREG), SPI programming port and UART port will run at this power rail. Differential Audio Outputs The output stage digital circuitry converts the signal from 16-bit per sample, linear PCM of variable sampling frequency to bit stream, which is fed into the analogue output circuitry. The output stage circuit comprises a DAC with gain setting and class AB output stage amplifier. The output is available as a differential signal between SPK_LN and SPK_LP for the left channel, as the schematic shows, and between SPK_RN and SPK_RP for the right channel. The output stage is capable of driving a speaker directly when its impedance is at least 8Ω. PCM Interface (IBT04 only) The audio PCM interface supports continuous transmission and reception of PCM encoded audio data over Bluetooth. PCM is a standard method used to digitise audio, particularly voice, for transmission over digital communication channels. Through ts PCM interface, BlueCore5‑Multimedia External has hardware support for continual transmission and reception of PCM data, so reducing processor overhead. BlueCore5‑Multimedia External offers a bidirectional digital audio interface that routes directly into the baseband layer of the on-chip firmware. It does not pass through the HCI protocol layer. Hardware on BlueCore5‑Multimedia External allows the data to be sent to and received from a SCO connection. Up to 3 SCO connections can be supported by the PCM interface at any one time. BlueCore5‑Multimedia External can operate as the PCM interface master generating PCM_SYNC and PCM_CLK or as a PCM interface slave accepting externally generated PCM_SYNC and PCM_CLK. BlueCore5‑Multimedia External is compatible with various clock formats, including Long Frame Sync, Short Frame Sync and GCI timing environments. Host Information This module was defined to be used for specific host only. The designated host for this module was: Company: ValenceTech Limited. Host Model Name: BTSPK Host brand name: ValenceTech UART Port IBT05 (C) has a standard UART serial interface that provides a simple mechanism for communicating with other serial devices using the RS232 protocol. When IBT05 (C) is connected to another digital device, RX and TX transfer data between the 2 devices. UART configuration parameters, such as baud rate and packet format, are set using BlueCore5‑Multimedia External firmware. To communicate with the UART at its maximum data rate using a standard PC, an accelerated serial port adapter card is required for the PC. Possible UART Settings Parameter Possible values Baud rate Minimum 1200 baud (≤2%Error) Maximum 9600 baud (≤1%Error) Parity None, Odd or Even Number of stop bits 1 or 2 Bits per byte 8 SPI Programming Port The SPI is used to program and configuration, and debug the BlueCore5‑Multimedia External. It is required in production. Ensure the 4 SPI signals are brought out to either test points or a header. Note that these four signals are run at 3.3v power rail. Mic Inputs The microphone bias, MIC_BIAS, derives its power from the 3V3 power port and requires a 4.7μF capacitor on its output. The MIC_BIAS is like any voltage regulator and requires a minimum load to maintain regulation. The MIC_BIAS maintains regulation within the limits 0.200mA to 1.230mA. The input impedance at MIC_A_N, MIC_A_P, MIC_B_N and MIC_B_P is typically 6.0kΩ . LED Drivers IBT05 (C) includes 2 pads dedicated to driving LED indicators. Both terminals can be controlled by firmware, The terminals are open-drain outputs, so the LED must be connected from a positive supply rail to the pad in series with a current limiting resistor. It is recommended that the LED pad, LED[0] or LED[1] pins, operate with a pad voltage below 0.5V. In this case, the pad is like a resistor, RON . The resistance together with the external series resistor sets the current in the LED. Buttons The example application has assigned the following functions to each PIO pins: PIN NAME Function Descriptions 13 PIO14 REV Select previous song, fast rewind. 32 PIO12 FWD Select next song, fast forward 33 PIO11 PLAY_PAUSE Play / pause toggle 34 PIO5 VOL- Volume increase 35 PIO3 CONNECT Switch to next connected device 36 PIO2 VOL+ Volume d…

Text truncated - open the document above for the full version.

Date: 24 December, 2012 To: Federal Communications Commission, Authorization & Evaluation Division, 7435 Oakland Mills Road, Columbia, MD 21046 To Whom It May Concern: The ValenceTech Limited , the undersigned, hereby authorizes Mr. Wu Xuewen from Shenzhen Morlab Communications Technology Co., Ltd., to act on the behalf of the ValenceTech Limited solely in matters relating to the application for an FCC equipment authorization for FCC ID ORP-IBT-0405 including the signing of documents in connection with this Application. Necessary acts carried out by ValenceTech Limited on our behalf of the ValenceTech Limited in connection with the Application shall have the same effect as acts of the ValenceTech Limited. The ValenceTech Limited also hereby certify that no party to this application is subject to a denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). Thank you for your attention to this matter. Yours Sincerely, H.W. Poon Vice President of Engineering

公司抬头. Date: Jan. 7, 2013 To: Federal Communications Commission, Authorization & Evaluation Division, 7435 Oakland Mills Road, Columbia, MD 21046 Re: ValenceTech Limited FCC ID: ORP-IBT-0405 FCC Certification Confidentiality Request Gentlemen: This letter is to comply with 47 CFR 0.457 and 0.459 pertaining to confidentiality material. ValenceTech Limited requests that the following documents regarding this submission for FCC ID: ORP-IBT-0405 be kept confidential: Exhibit Type File Name Block Diagram CONF APPENDIX ORP-IBT-0405_Block Diagram.pdf Schematics CONF APPENDIX ORP-IBT-0405_Schematics.pdf Operational Description CONF APPENDIX ORP-IBT-0405_Operational Description.pdf Part list CONF APPENDIX ORP-IBT-0405_BOM.pdf Those documents contain detailed system and equipment description and related information about the product which ValenceTech Limited considers to be confidential proprietary, a custom design and, otherwise, not releasable to the general public. Since this design is a basis form which future technological products will evolve, ValenceTech Limited considers this information would be of benefit to its competitors, and that the disclosure of the information in these documents would give competitors an unfair advantage in the market. Yours Sincerely, Hw Poon Vice President of Engineering ValenceTech Limited

Company headletter Request for Modular Approval FCC ID: ORP-IBT-0405 Item Requirements EUT 1 Have its own RF shielding No. The shielding is not fully covered the RF part. Apply for Limited Modular Approval. The module was limited to be installed into the specified host. The host manufacturer is: ValenceTech Limited Host Brand name is: ValenceTech Limited Host model number is: IBT0405 BLUETOOTH SPEAKER SYSTEM. 2 Have buffered modulation/data inputs (if such inputs are provided) All inputs to the modules are buffered through logic and microprocessor inputs 3 Have its own power supply regulation Module has no own power supply. It must be connected with host while working. 4 Meet the antenna requirements of section 15.203 The device contains a PCB antenna, and the maximum antenna gain is 0dBi. 5 Demonstrate compliance in a stand-alone configuration Device is tested in a test fixture in a standalone configuration 6 The licensed module must have a FCC ID label on the module itself. That FCC ID label must be visible through a window on the final device or it must be visible when an access panel, door or cover is easily removed. If not, a second label must be placed on the outside of the final device that contains the following text: Contains “FCC ID: ORP-IBT-0405” FCC ID label format will be included in the filling. Host ID label will be displayed on the host system. 7 The module must comply with all specific rules applicable to the transmitter. The grantee must provide comprehensive instructions to explain compliance requirements. Please refer to “User Manual” Exhibit 8 The module must comply with RF exposure requirements. See FCC Rules. Spread Spectrum transmitters RF exposure evaluation is exempted because of low output power (EIRP: 2.6mW). Company headletter must comply with RF exposure limits in 15.247. Thank you for your attention to this matter. Yours Sincerely, Name ：Hw Poon Position: Vice President of Engineering

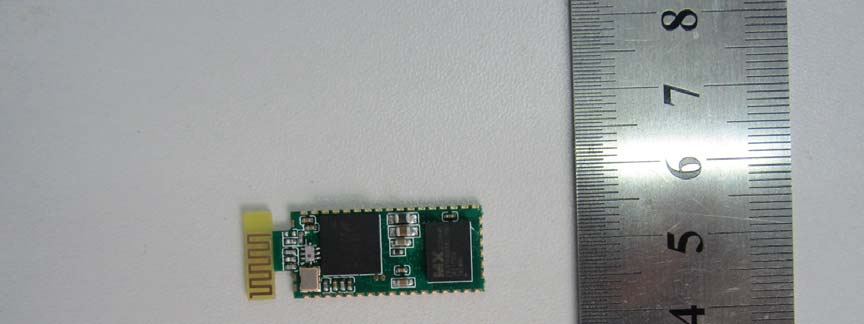

External Photos

External Photos

FCC ID: ORP-IBT-0405 Label Size: 12mm*4mm Label Location FCC ID LABEL LOCATION

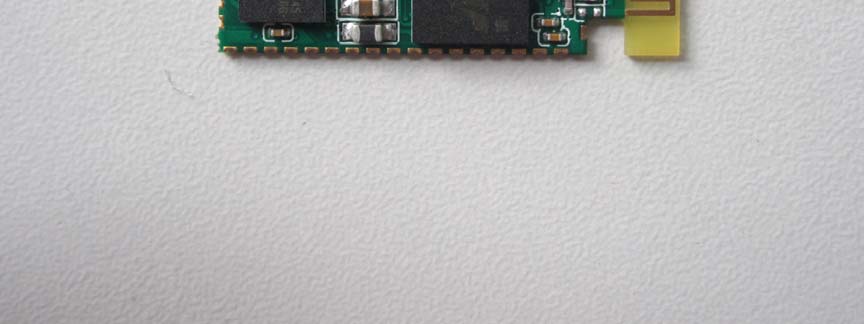

Internal Photos

SZ12060182W02 Page 2 of 77 DIRECTORY 1. GENERAL INFORMATION .................................................................................................... 3 1.1. EUT Description ....................................................................................................................... 3 1.2. Test Standards and Results ........................................................................................................ 4 1.3. Facilities and Accreditations ..................................................................................................... 5 2. 47 CFR PART 15C REQUIREMENTS .................................................................................... 6 2.1. Number of Hopping Frequency ................................................................................................ 6 2.2. Peak Output Power.................................................................................................................. 10 2.3. 20dB Bandwidth ..................................................................................................................... 12 2.4. Carried Frequency Separation ................................................................................................. 19 2.5. Time of Occupancy (Dwell time) ........................................................................................... 21 2.6. Conducted Spurious Emissions ............................................................................................... 28 2.7. Band Edge ............................................................................................................................... 39 2.8. Conducted Emission ............................................................................................................... 56 2.9. Radiated Emission................................................................................................................... 59 Change History Issue Date Reason for change 1.0 Aug 31, 2012 First edition SZ12060182W02 Page 3 of 77 1. General Information 1.1. EUT Description EUT Type ............................. : Bluetooth Module for Audio Applicaiton Serial No. .............................. : (n.a, marked #1 by test site) Hardware Version ................. : 1.0 Software Version .................. : Applicant .............................. : Manufacturer ........................ : 1.0 ValenceTech Limited Unit 1, 20/F., APEC Plaza, 49 Hoi Yuen Road, Kwun Tong, Kowloon, Hong Kong ValenceTech Limited Unit 1, 20/F., APEC Plaza, 49 Hoi Yuen Road, Kwun Tong, Kowloon, Hong Kong Frequency Range .................. : The frequency range used is 2402MHz - 2480MHz (79 channels, at intervals of 1MHz); The frequency block is 2400MHz to 2483.5MHz. Modulation Type .................. : Bluetooth: FHSS (GFSK(1Mbps), ∏/4-DQPSK(EDR 2Mbps), 8-DPSK(EDR 3Mbps)) Antenna Type ........................ : PCB Antenna Antenna Gain ........................ : 0dBi Note 1: The EUT is a Bluetooth Module for Audio Applicaiton, it contains Bluetooth Module operating at 2.4GHz ISM band; the frequencies allocated for the Bluetooth Module is F(MHz)=2402+1*n (0<=n<=78). The lowest, middle, highest channel numbers of the Bluetooth Module used and tested in this report are separately 0 (2402MHz), 39 (2441MHz) and 78 (2480MHz). Note 2: For a more detailed description, please refer to Specification or User’s Manual supplied by the applicant and/or manufacturer. Note 3: a. When power on, the EUT will scan the whole frequency until a Connection command from the other BT devices. b. When receiving the signal from the other BT devices, The EUT transmit aresponse signal. c. The other devices receive the response signal and recognize it, then send a connection command to establish the connection. d. After the connection establish successfully, the data transmission is beginning. At the same time, the both devices will shift frequencies in synchronization per a same pseudo randomly ordered list of hopping frequencies, the hopping rate is1600 times per second. This device conforms to the criteria in FCC Public Notice DA 00-705. e. The bandwidth of the receiver, which is set to a fixed width by the software. SZ12060182W02 Page 4 of 77 1.2. Test Standards and Results The objective of the report is to perform testing according to 47 CFR Part 15 Subpart C (Bluetooth, 2.4GHz ISM band radiators) for the EUT FCC ID Certification: No. Identity Document Title 1 47 CFR Part 15 (10-1-09 Edition) Radio Frequency Devices Test detailed items/section required by FCC rules and results are as below: No. Section in CFR 47Description Result 1 15.247(a) Number of Hopping Frequency PASS 2 15.247(b) Peak Output Power PASS 3 15.247(a) 20dB Bandwidth PASS 4 15.247(a) Carrier Frequency Separation PASS 5 15.247(a) Time of Occupancy (Dwell time) PASS 6 15.247(c) Conducted Spurious Emission PASS 7 15.247(c) Band Edge PASS 8 15.207 Conducted Emission PASS 9 15.209 15.247(c) Radiated Emission PASS NOTE: The tests were performed according to the method of measurements prescribed in DA-00-705. SZ12060182W02 Page 5 of 77 1.3. Facilities and Accreditations 1.3.1. Facilities Shenzhen Morlab Communications Technology Co., Ltd. Morlab Laboratory is a testing organization accredited by China National Accreditation Service for Conformity Assessment (CNAS) according to ISO/IEC 17025. The accreditation certificate number is L3572. All measurement facilities used to collect the measurement data are located at 3/F, Electronic Testing Building, Shahe Road, Xili, Nanshan District, Shenzhen, 518055 P. R. China. The test site is constructed in conformance with the requirements of ANSI C63.7, ANSI C63.4 and CISPR Publication 22; the FCC registration number is 741109. 1.3.2. Test Environment Conditions During the measurement, the environmental conditions were within the listed ranges: Temperature (°C): 15 - 35 Relative Humidity (%): 30 -60 Atmospheric Pressure (kPa): 86-106 SZ12060182W02 Page 6 of 77 2. 47…

Text truncated - open the document above for the full version.

Test Setup Photos 1. CE 2.RE 3. CSE
