Topcat User Manual Classroom Audio System 2 Table of Contents OPTIONAL ACCESSORIES 22 Sharemike Controls and Connections 23 Sharemike: Charging 24 Sharemike: Initial Set-Up 25 Optional PageFirst Kit 26 Activate System with Pods MAINTENANCE & TROUBLESHOOTING 27 Flexmike Battery Replacement 28 Sharemike Battery Replacement 29 Troubleshooting WARRANTY, SAFETY & SPECIFICATIONS 30 Five-Year Limited Warranty 31 Safety Warnings and Certifications 37 System Components 38 System Specifications OVERVIEW 3 Important Safety Instructions 5 System Components and Unpacking 6 Optional Components 7 Topcat Side Panel Connections 8 Topcat Controls (Inside Speaker Door) 9 Flexmike Controls and Connections 10 Microphone Cradle Charger 11 Media Connector Controls and Indicators SET- UP 13 Turn Power On 14 Set Up and Charging the Flexmike 15 Pairing Microphones to Topcat 16 Pairing Topcat to Media Connector 17 Optional Media Connector: Initial Set Up 18 Media Connector: Audio Integration DAILY OPERATION 19 Operating the Flexmike 20 Using Your Microphone as a Wireless Audio Link 21 Using the Media Connector 3 OVERVIEW Important Safety Instructions OVERVIEW 1. Do not use the apparatus near water. 2. Clean only with dry cloth. 3. Do not block any ventilation openings. 4. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat. 5. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding- type plug has two blades and a third grounding prong. The wide blade or the third prong is provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the outlet. 6. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus. 7. Unplug this apparatus during lightning storms or when unused for long periods of time. 8. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped. 9. When the mains plug or appliance coupler is used as the disconnect device, it shall remain readily operable. 10. Please keep the unit in a good ventilation environment. 11. WARNING: To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture. 12. Apparatus shall not be exposed to dripping or splashing and no objects filled with liquids, such as vases, shall be placed on the apparatus. 13. WARNING: Battery pack shall not be exposed to excessive heat such as sunshine, fire or the like. 4 To avoid potential equipment damage and/or serious injury, READ AND FOLLOW all safety precautions when installing the TOPCAT. WARNINGS are included throughout the procedural steps in this guide, and are repeated below for emphasis. • USE A LICENSED ELECTRICIAN FOR POWER CONNECTIONS. The TOPCAT system uses standard 100 – 240VAC power. Obtain the services of a licensed electrician when supplying and connecting power to the ceiling enclosure. BE SURE electrical installation complies with local building codes. Improperly installing and/or connecting power to the system may result in EQUIPMENT DAMAGE, serious INJURY and/or DEATH. • DO NOT INSTALL ALONE. The ceiling enclosure weighs approximately 20 lbs (9 kg), and requires at least two people to install. DO NOT install alone. • USE SUITABLE LADDERS. use proper ladders or support platforms when installing the TOPCAT enclosure. DO NOT stand on chairs, tables, or other unsuitable surfaces. • SUPPORT THE CEILING ENCLOSURE PROPERLY. DO NOT allow the full weight of the ceiling enclosure to rest on the tile grid of the ceiling. The ceiling enclosure is designed to be suspended at TWO POINTS by suspension wires (secured to rafters or other suitable building structure) and to rest LIGHTLY on the tile grid. The lightning flash with arrowhead symbol within an equilateral triangle is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure, that may be sufficient magnitude to constitute a risk of electric shock. The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (ser vicing) instructions in the literature accompanying the appliance. Important Safety Instructions (cont.) OVERVIEW 5 System Components and Unpacking The standard configuration of the Topcat system includes: Microphone Cradle Charger and Power Supply Flexmike Teacher Microphone Topcat Access Classsroom Audio System and Power Supply OVERVIEW NOTE ON PAIRING: The Topcat and any wireless components (microphones, Activate Station, Media Connector) are pre-paired at the Lightspeed factory as required for proper operation. If paired components are separated and swapped during the installation process, they must be re-paired. Lightspeed recommends that the microphone(s), Activate System, Media Connector and/or the accessory box be labeled with the room number of the Topcat for which the components are paired. OVERVIEW 6 Optional Components Optional equipment which may be part of your Topcat system DC Extension CableActivate System Group Learning Pods Media Connector and Power Adapter Sharemike Student Microphone (Optional) PowerLink InputOutputMic OVERVIEW Audio Input Audio Output Tone Level Push StatusPower Media Connector 7 Power 24v/2.5a InputOutput Audio analog input Topcat audio link Program Fire Mute Page First Contact Closure Topcat Side Panel Connections OVERVIEW 167524 3 1. AUX POWER INPUT CONNECTOR (optional): For use during installations where AC power is not available in the ceiling. Accepts 24VDC, 2.5A connector…

Text truncated - open the document above for the full version.

Lightspeed Technologies Inc. QA-FR-171-A FCC Confidential Authorization 2021/03/10 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Subject: Confidentiality Request regarding application for certification of FCC ID: ORV-LSTCN In accordance with Sections 0.457 and 0.459 of the Commission’s Rules, Lightspeed Technologies Inc. hereby requests long-term confidential treatment of information accompanying this application as outlined below: • Block Diagram • Schematics • Operation Description The above materials contain proprietary and confidential information not customarily released to the public. The public disclosure of these materials provides unjustified benefits to its competitors in the market. Sincerely, Mike Frost Lightspeed Technologies Inc. 11509 SW Herman Road, Tualatin, OR 97062 USA TEL: 503-684-5538 FAX: 503-684-3197

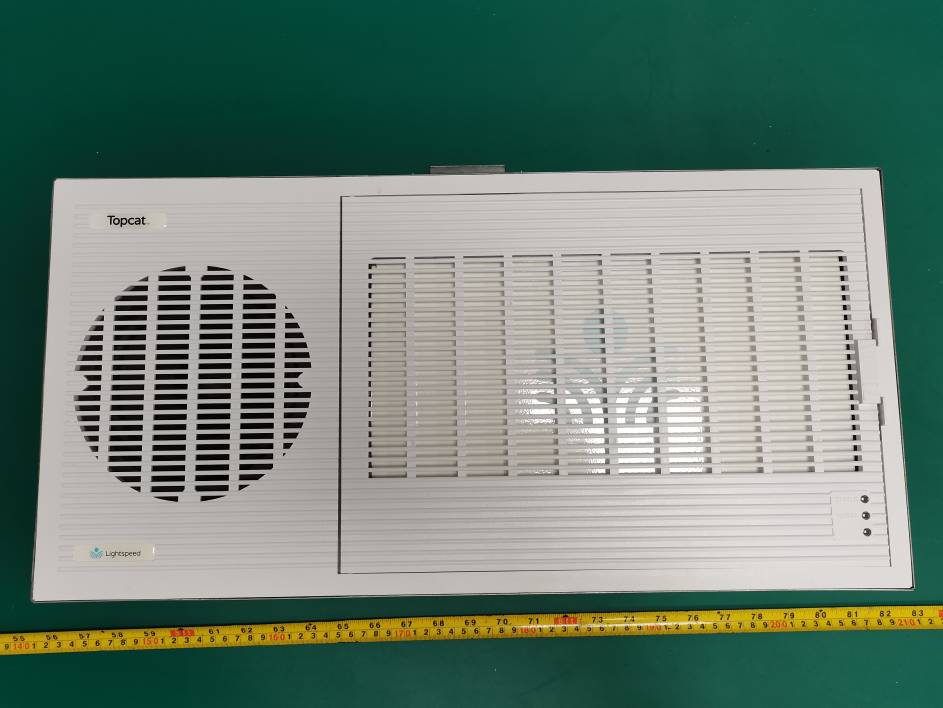

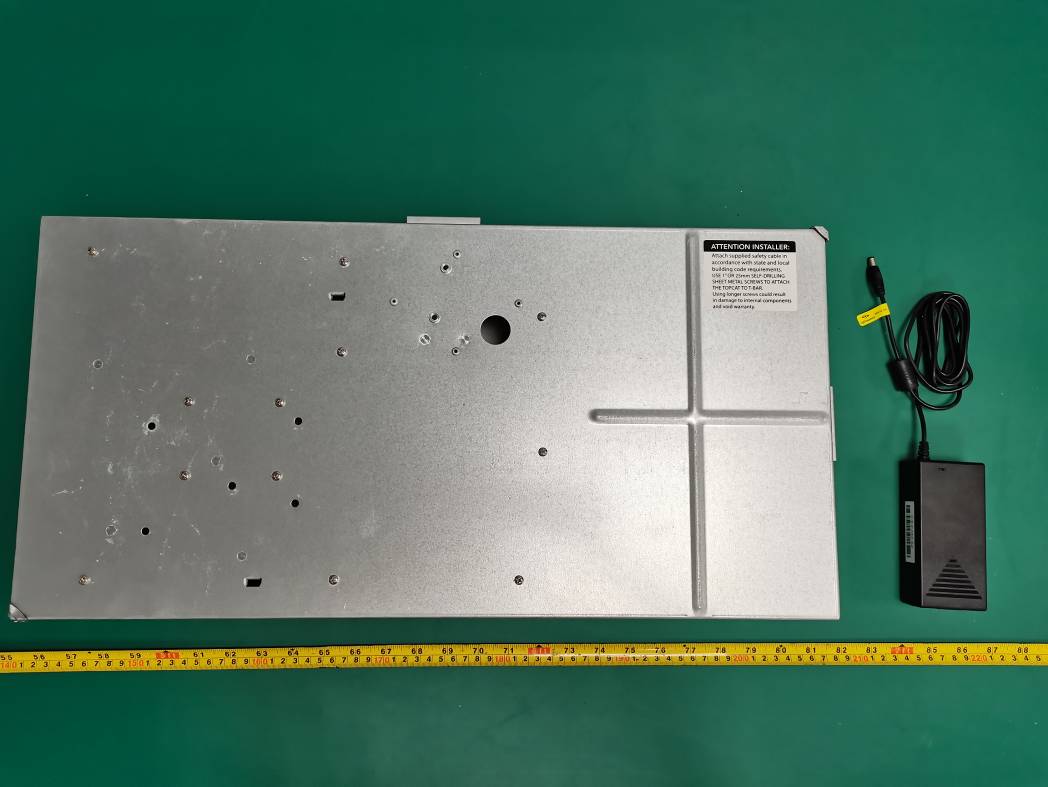

Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: RXZ201014003-RF Page 1 of 4 EXHIBIT B - EUT EXTERNAL PHOTOGRAPHS Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: RXZ201014003-RF Page 2 of 4 Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: RXZ201014003-RF Page 3 of 4 Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: RXZ201014003-RF Page 4 of 4
