OTM-8316122-24GTXRemote Control Toy Transmitter (2.4GHz)

5+ NO. 83151 / 83161 ASSEMBLY X Adjust the distorted joints before joining tracks. Do not join the tracks together if the joints are distorted. Hold and join tracks together as shown. CHALLENGE LEVEL - 660CM / 21.6FT SLOT CAR TRACK SET - INSTRUCTION MANUAL CONTENTS TOTAL: 85 PIECES ASSEMBLY Attach the guardrail to the side of the track as shown. x 1 x 1 x 16 x 4 x 16 x 6 x 8 x 4 x 1 x 1 x 1 x 2 x 2x 2 x 12 x 2 x 2 Assemble the track support x 2 Z x 2 Z Y D x 4 D x 4 D x 4 D x 4 K Z Z L L F F O H H H H L L L L L L L L L L LAYOUT #83151 BATTERY REQUIREMENTS #83161 BATTERY REQUIREMENTS 6 X AA For Control Box (Not Included) 4 X AAA For Transmitter x2 (Not Included) 4 X AAA For Transmitter x2 (Not Included) Transformer For Control Box (Included only for #83161) INPUT: 100-125VAC 60Hz 0.4/0.5A OUTPUT: DC9V 1.5A Recommend to play by adaptor OR INPUT: 100V-125VAC 60Hz 0.4/0.5A 2021 TM TO PLAY 3. Insert new 6 x AA (1.5V) batteries into the battery compartment of the control box with the correct polarity (+/—). 4. Close the battery cover. Make sure that the wheel tyres are located as shown. Make sure that the brushes are adjusted to the correct position as indicated. 1. Unscrew the screw on the battery cover. 2. Open the battery cover. 5. Tighten the screw on the battery cover. Guide pin Guide pin must be in the slot as shown. Check the brushes of the car are in the correct position. Place the car on the track and make sure it has good contacts with the track. ON (USE AA BATTERIES) DC (USE Transformer) OFF NO. 83151 / 83161 Transformer For Control Box (Included only for #83161) KT-HW-27/05/21 EN MAINTENANCE PRODUCT: SLOT CAR TRACK SET AGE GRADE: For ages over 5 years. CONTENTS: All contents listed here. The packaging and instruction manual contain important information. Please keep them for future reference. We reserve the right to improve/amend specifications and colors without notice. Conforms to the safety requirements of ASTM F963 SAFETY PRODUCT MUST BE ASSEMBLED BY ADULT ONLY. Environmental notes: Disposal of batteries Batteries should not be disposed of in the household waste. As the consumer you are legally obliged to return batteries containing harmful substances and all other used batteries. You can hand in your old batteries at public collection points in your area or wherever batteries are sold.You will find these chemical abbreviations along with a crossed-out refuse bin on batteries containing harmful substances: Pb=Battery contains lead Cd=Battery contains cadmium Hg=Battery contains mercury The whole product also does not belong to household waste at the end of the product life. You can return it at collection points for the recycling of electronic and electronical instruments The symbol on the item, instruction manual, hangtag or packing is showing this clearly. Materials should be recycled according to their respective markings. Recycling of old devices or other re-use of materials contained therein represents an important contribution to environmental protection. Please ask at your local community for the correct collection point. 8. Be sure to insert batteries with correct polarities and always follow the battery manufacturer’s instructions 9. Remove all batteries when not in use 10. Exhausted batteries are to be removed from the product 11. The supply terminals are not to be short-circuited 12. Dispose of batteries properly. Do not dispose the batteries in fire – it may cause them to explode or leak causing injury or damage 13. Battery installation and removal must only be done by adult 1. Alkaline batteries are recommended to be used (For B/O Version) 2. Only batteries of the same or equivalent type as recommended are to be used 3. Do not mix alkaline, standard or rechargeable batteries 4. Do not mix old and new batteries or different type of batteries 5. Non-rechargeable batteries are not to be charged 6. Rechargeable batteries for adult charging only 7. Rechargeable batteries are to be removed from the product before they are charged BRUSHES The instructions for battery toys with replaceable batteries shall contain the substance of the following, as applicable: Control box : AA batteries x 6 should be used. Transmitter : AAA batteries x 4 (2 for each Transmitter) should be used. Speed Control 1. Unscrew the screw on the battery cover. 2. Open the battery cover. 3. Insert new 2 x AAA (1.5V) batteries into the battery compartment of each transmitter with the correct polarity (+/—). 4. Close the battery cover. 5. Tighten the screw on the battery cover. FCC label compliance statement: This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: 1. This device may not cause harmful interference, and 2. This device must accept any interference received, including interference that may cause undesired operation. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna - Increase the separation between the equipment and receiver - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected - Consult the dealer or an experienced radio/TV technician for help Warning: Changes or modifications to this unit not expressly approved by …

Text truncated - open the document above for the full version.

TCB Authority to Act as Agent Number: MS-0045317 Revision: 0 Effective date: Oct 8, 2021 Page 1 of 1 The following is a sample Agency Request letter, which needs to be completed on company letterhead, signed by an authorized Applicant/Agent, and submitted to TÜ V Rheinland. Authority to Act as Agent Date: 9-Aug, 2022 TUV Rheinland of North America, Inc. 1279 Quarry Lane., Suite. A Pleasanton, CA 94566 To Whom It May Concern: I appoint _ TUV Rheinland (Shenzhen) Co., Ltd._ to act as our agent in the preparation of this application for equipment certification. I certify that submitted documents properly describe the device or system for which equipment certification is sought. I also certify that each unit manufactured, imported or marketed, as defined in the FCC or Industry Canada’s regulations will have affixed to it a label identical to that submitted for approval with this application. For instances where our authorized agent signs the application for certification on our behalf, I acknowledge that all responsibility for complying with the terms and conditions for Certification, as specified by TUV Rheinland Group, still resides with Kidztech Toys Manufacturing Ltd. / Rm 802 Inter- Continental Plaza, 94 Granville Rd, TST East, HK. For TCB applications, We certify that we are not subject to denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. Further, no party, as defined in 47 CFR 1.2002 (b), to the application is subject to denial of federal benefits, that includes FCC benefits. Thank you, Agency Agreement Date: 9-Aug, 2022 Agreement is valid for 12 months from the above date. By: Eric Ho (Signature) (Print name) QA Manager 852 2721 8868 (Title) (Telephone) On behalf of: Kidztech Toys Manufacturing Ltd. (Company Name)

Page 1 / 2 C:\Users\kwanem\Desktop\New folder (36)\83161\Confidentiality letter_FCC.DOCX Applicant Name: Kidztech Toys Manufacturing Ltd. Address: Rm 802 Inter- Continental Plaza, 94 Granville Rd, TST East, HK City: Hong Kong Country: China Federal Communications Commission Authorization and Evaluation Division Confidentiality Request Pursuant to 47 CFR Section 0.457 and 0.459, the applicant hereby requests non-disclosure and confidential treatment of the following materials submitted in support of FCC certification application for FCC ID: OTM-8316122-24GTX Bill(s) of Material Block Diagrams Operational Description Schematic Diagrams The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Signature: Name: Lonson Cheung Title: QA Manager Date: 9-Aug, 2022

Declaration Of Equivalence We, the undersigned, hereby declare that the product, 83161, is identical in construction including schematics, PCB layout and electronic components to the model 83151 / 83152 / 83162 / 83153 / 83163 / 83154 / 83164 / 83155 / 83165 / 83156 / 83166 / 83157 / 83167 / 83158 / 83168 / 83159 / 83169 / 83160 / 83170 except a change in housing design. The differences between the modified equipment and original equipment are listed below: Main EUT Multiple models License Holder Product name 1/43 Hot Wheels 2.4G Anti- Gravity Track Set 1/43 Hot Wheels 2.4G Anti- Gravity Track Set Identification (Model Number) 83161 83151 / 83152 / 83162 / 83153 / 83163 / 83154 / 83164 / 83155 / 83165 / 83156 / 83166 / 83157 / 83167 / 83158 / 83168 / 83159 / 83169 / 83160 / 83170 Manufacturer Kidztech Toys Manufacturing Ltd. Kidztech Toys Manufacturing Ltd. Difference of modified equipment - Non conductive outer casing Kidztech Toys Manufacturing Ltd. Company Name Representative Signature Lonson Cheung / QA Manager Printed name and title

Electrical Specifications Frequency Range: 2400 ~ 2500 MHz Impedance: 50 Ω VSWR: <1.5 Gain: 0 dBi Polarization: Verticall Radiation: Omni Materials: PE + Cu Size: Internal PCB trace, width 1.5mm, total length 64mm 23 7 4 4

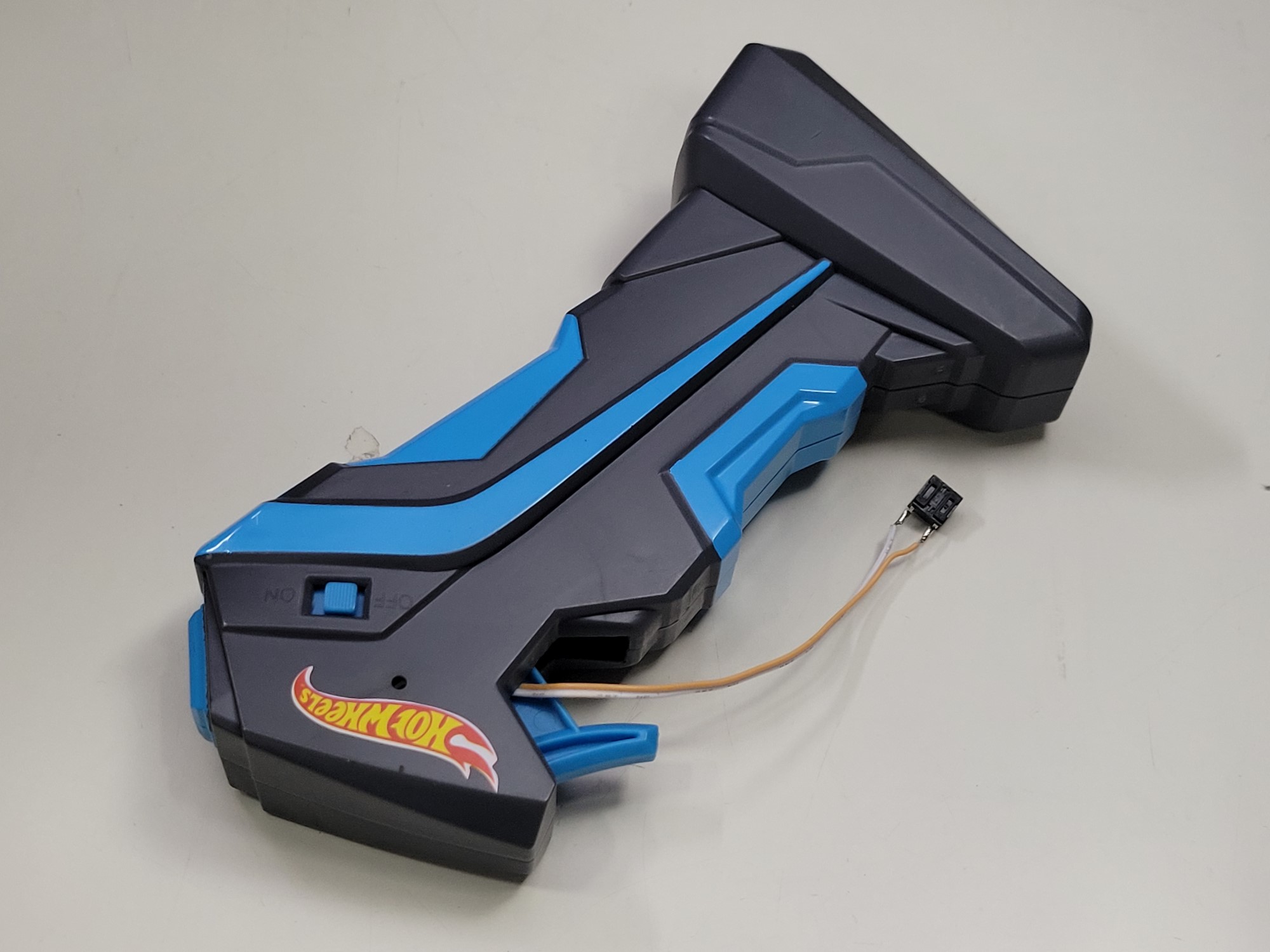

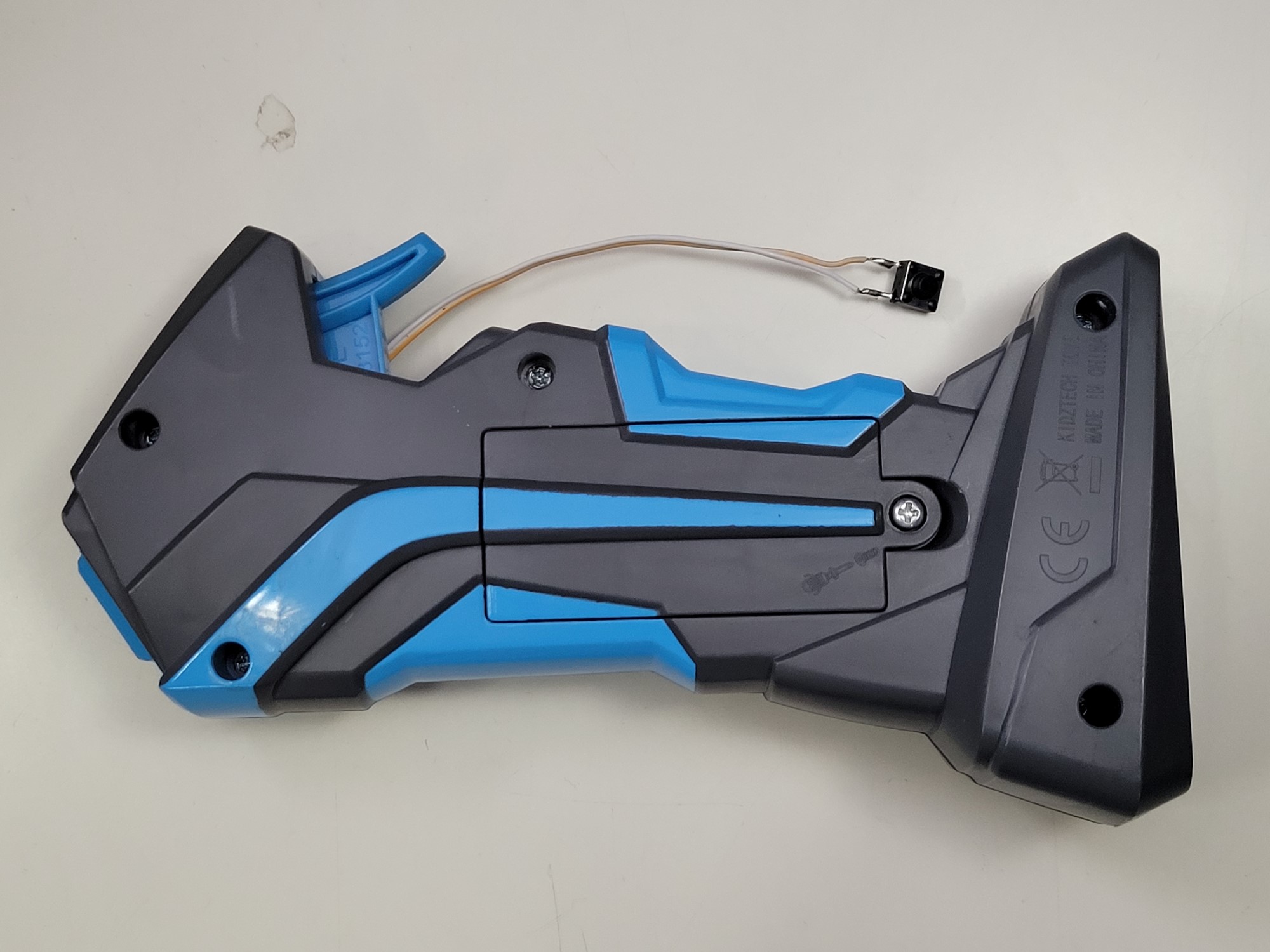

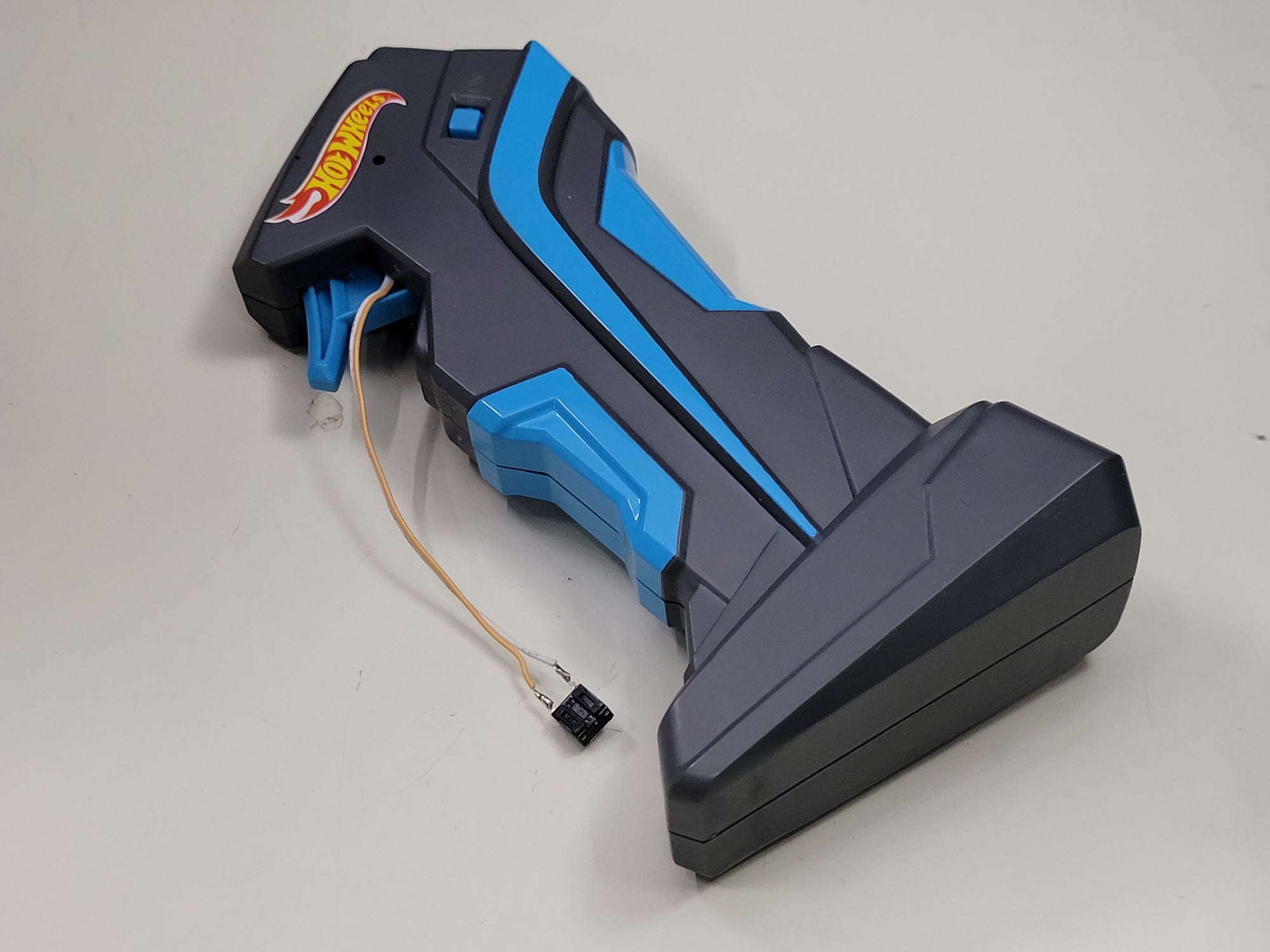

FCC_15.249_v2.0 Test Report No.: CN22WKX1 001 Appendix 3 Page 1 of 4 Appendix 3 EUT External Photos FCC ID: OTM-8316122-24GTX FCC_15.249_v2.0 Test Report No.: CN22WKX1 001 Appendix 3 Page 2 of 4 External View External View FCC_15.249_v2.0 Test Report No.: CN22WKX1 001 Appendix 3 Page 3 of 4 External View External View FCC_15.249_v2.0 Test Report No.: CN22WKX1 001 Appendix 3 Page 4 of 4 External View External View

FCC_15.249_v2.0 Test Report No.: CN22WKX1 001 Appendix 4 Page 1 of 4 Appendix 4 EUT Internal Photos FCC ID: OTM-8316122-24GTX FCC_15.249_v2.0 Test Report No.: CN22WKX1 001 Appendix 4 Page 2 of 4 Internal View Internal View FCC_15.249_v2.0 Test Report No.: CN22WKX1 001 Appendix 4 Page 3 of 4 Internal View Internal View FCC_15.249_v2.0 Test Report No.: CN22WKX1 001 Appendix 4 Page 4 of 4 Internal View Internal View

FCC_15.249_v2.0 Test Report No.: CN22WKX1 001 Appendix 5 Page 1 of 2 Appendix 5 RF Exposure Information FCC ID: OTM-8316122-24GTX FCC_15.249_v2.0 Test Report No.: CN22WKX1 001 Appendix 5 Page 2 of 2 Maximum transmitter power: Frequency (MHz) Maximum peak output power (dBm) Output power (mW) 2420 -3.63 0.434 2442 -5.13 0.307 2465 -5.33 0.293 Note: The maximum peak field strength was taken from table of “Subclause 15.249(a) – Field Strength of Fundamental and Harmonics”. For FCC According to KDB 447498 D01: The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤5 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] · [√f(GHz)] ≤3.0 for 1-g SAR and ≤7.5 for 10-g extremity SAR, where • f(GHz) is the RF channel transmit frequency in GHz • Power and distance are rounded to the nearest mW and mm before calculation • The result is rounded to one decimal place for comparison • 3.0 and 7.5 are referred to as the numeric thresholds in the step 2 below Result: (0.434/5)*√2420 = 0.135 <3.0 (0.307/5)*√2442 = 0.096 <3.0 (0.293/5)*√2465 = 0.092 <3.0 Conclusion: No SAR is required.

Produkte Products TÜV Rheinland Hong Kong Ltd. 3-4/F., Fou Wah Industrial Building, 10-16 Pun Shan Street, Tsuen Wan, N.T., Hong Kong Tel.: +852 2192 1000  Fax: +852 2192 1001  Email [email protected]  Web: www.tuv.com Prüfbericht-Nr.: Test Report No.: CN22WKX1 001 Auftrags-Nr.: Order No.: 158257671 Seite 1 von 15 Page 1 of 15 Kunden-Referenz-Nr.: Client Reference No.: N/A Auftragsdatum: Order date: 08.08.2022 Auftraggeber: Client: Kidztech Toys Manufacturing Ltd. Rm 802 Inter-Continental Plaza, 94 Granville Rd, TST East, HK Prüfgegenstand: Test item: Short Range Device - Remote Control Toy Transmitter (2.4GHz) Bezeichnung / Typ-Nr.: Identification / Type No.: 83151 / 83161 / 83152 / 83162 / 83153 / 83163 / 83154 / 83164 / 83155 / 83165 / 83156 / 83166 / 83157 / 83167 / 83158 / 83168 / 83159 / 83169 / 83160 / 83170 Auftrags-Inhalt: Order content: FCC Certification Prüfgrundlage: Test specification: FCC Part 15 Subpart C, ANSI C63.10-2013 Wareneingangsdatum: Date of receipt: 28.08.2022 Prüfmuster-Nr.: Test sample No.: A003331649-001 Prüfzeitraum: Testing period: 09.09.2022 - 14.09.2022 Ort der Prüfung: Place of testing: Hong Kong Prüflaboratorium: Testing laboratory: TÜV Rheinland Hong Kong Ltd. Prüfergebnis*: Test result*: Pass geprüft von / tested by: 16.09.2022 Eddy Tsang / Engineer kontrolliert von / reviewed by: 16.09.2022 Sharon Li / Unit Senior Manager Datum Date Name / Stellung Name / Position Unterschrift Signature Datum Date Name / Stellung Name / Position Unterschrift Signature Sonstiges / Other: FCC ID: OTM-8316122-24GTX “Decision Rule” document announced in our website (https://www.tuv.com/landingpage/en/qm-gcn/) describes the statement of conformity and its rule of enforcement for test results are applicable throughout this test report. Zustand des Prüfgegenstandes bei Anlieferung: Condition of the test item at delivery: Prüfmuster vollständig und unbeschädigt Test item complete and undamaged Dieser Prüfbericht bezieht sich nur auf das o.g. Prüfmuster und darf ohne Genehmigung der Prüfstelle nicht auszugsweise vervielfältigt werden. Dieser Bericht berechtigt nicht zur Verwendung eines Prüfzeichens. This test report only relates to the a. m. test sample. Without permission of the test center this test report is not permitted to be duplicated in extracts. This test report does not entitle to carry any test mark. * Legende: 1 = sehr gut 2 = gut 3 = befriedigend 4 = ausreichend 5 = mangelhaft P(ass) = entspricht o.g. Prüfgrundlage(n) F(ail) = entspricht nicht o.g. Prüfgrundlage(n) N/A = nicht anwendbar N/T = nicht getestet Legend: 1 = very good 2 = good 3 = satisfactory 4 = sufficient 5 = poor P(ass) = passed a.m. test specification(s) F(ail) = failed a.m. test specification(s) N/A = not applicable N/T = not tested FCC_15.249_v2.0 Test Report No.: CN22WKX1 001 Date: 16.09.2022 Page 2 of 15 Table of Content Page Cover Page ..................................................................................................................... 1 Table of Content ............................................................................................................ 2 Product information ...................................................................................................... 3 Manufacturers declarations ....................................................................................................................... 3 Product function and intended use ........................................................................................................... 3 Submitted documents ................................................................................................................................. 3 Independent Operation Modes .................................................................................................................. 3 Related Submittal(s) Grants ....................................................................................................................... 3 Remark ......................................................................................................................................................... 3 Test Set-up and Operation Mode ................................................................................. 4 Principle of Configuration Selection ......................................................................................................... 4 Test Operation and Test Software ............................................................................................................. 4 Special Accessories and Auxiliary Equipment ........................................................................................ 4 Test Methodology .......................................................................................................... 5 Radiated Emission ...................................................................................................................................... 5 Field Strength Calculation .......................................................................................................................... 5 Test Setup Diagram ....................................................................................................... 6 Test Facility .................................................................................................................... 7 Test Laboratory Information ...................................................................................................................... 7 List of Test and Measurement Instruments................................................................. 8 Measurement Uncertainty ............................................................................................. 9 Results FCC Part 15 – Subpart C ............................................................................... 10 FCC 15.203 – Antenna Requirement 1 ............................................................................ …

Text truncated - open the document above for the full version.

FCC_15.249_v2.0 Test Report No.: CN22WKX1 001 Appendix 2 Page 1 of 3 Appendix 2 Test Setup Photos FCC_15.249_v2.0 Test Report No.: CN22WKX1 001 Appendix 2 Page 2 of 3 Set-up for Radiated Emission (9k-30MHz) Set-up for Radiated Emission (30-200MHz) FCC_15.249_v2.0 Test Report No.: CN22WKX1 001 Appendix 2 Page 3 of 3 Set-up for Radiated Emission (200-1000MHz) Set-up for Radiated Emission (1GHz above)
