OTM-8405221-27MTX1/6 R/C Yamaha Raptor 700R

15m(49ft) 2014/53/EU Frequency band : 26.957 - 27.283MHz Maximum radio frequency power transmitted : <0 dBm Frequency band : 40.66 - 40.70 MHz Maximum radio frequency power transmitted : <0 dBm KIDZTECH TOYS MANUFACTURING LTD. Room 802, 8/F, Inter-Continental Plaza, 94 Granville Road, TST East, Hong Kong. Tel: (852) 27218868 [email protected] Made in China http://www.kidztech.net

1 1 2 2 3 3 4 4 DD CC BB AA Title Nu mb erRevisionSize A 4 Date:2013-4-29Sheet of File:D:\\..\1-12 27M.S chDrawn By: A NTENNA Regulator circuit Encoding circuit IC1 Oscillation circuit RF power amplitier and modulator YAMAHA V CC+9 V 27 TX1/Y1 27.145MHz .145M HZ Filt er Antenna matching

Letter of Agency "I, an officer of Kidztech Toys Manufacturing Ltd. do hereby authorize Intertek Testing Services (Mr. Terry Chan / Koo Wai Ip / Kenneth Wong) to act on our behalf in front of the Federal Communications Commission with respect to all matters relating to certification of equipment under Part 15 and Part 18 of the FCC Rules until further notice." I further certify that no party (as defined in §1.2002(b) of CFR 47, 2004) to this application, including myself, is subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C.,862. Dated this day of 20 By Signature Printed Name Title Remark: The person who signs this authorization letter must be the grantee contact of record in the Grantee Code data base. Dec 2013 Eric Ho Senior Manager 1Jun 21

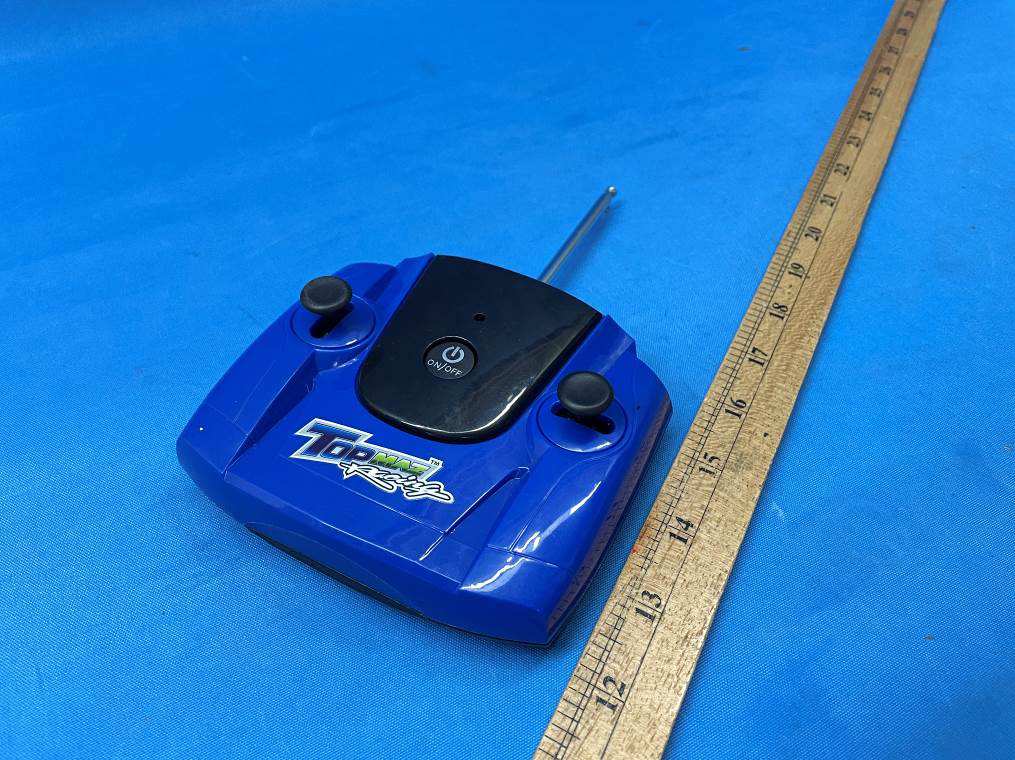

INTERTEK TESTING SERVICE FCC ID: OTM-8405221-27MTX Equipment Photographs (External) INTERTEK TESTING SERVICE FCC ID: OTM-8405221-27MTX Equipment Photographs (External)

INTERTEK TESTING SERVICE FCC ID: OTM-8405221-27MTX Equipment Photographs (Internal) INTERTEK TESTING SERVICE FCC ID: OTM-8405221-27MTX Equipment Photographs (Internal) INTERTEK TESTING SERVICE FCC ID: OTM-8405221-27MTX Equipment Photographs (Internal) INTERTEK TESTING SERVICE FCC ID: OTM-8405221-27MTX Equipment Photographs (Internal)

Technical Description The Equipment Under Test (EUT) is a portable transmitter of a RC Car operating at 27.145 MHz as dictated by a crystal. The EUT is powered by a 9.0 V DC source (1 x 9.0V battery). The EUT has a left / right control lever and a forward / backward control lever. After switching ON the EUT and the receiver of the RC Car, activating the control levers on the EUT can control the receiver moving forward, backward left and right directions. Antenna Type: External, Telescope type Antenna Antenna Gain: 0dBi Nominal rated field strength: 55.9dBμV/m at 3m Maximum allowed field strength of production tolerance: +/- 3dB The brief circuit description is listed as below: 1) IC1 (977) acts as MCU 2) L3 and T1 act as an Antenna Circuit. 2) TX1 acts as 27.145MHz oscillator. 3) Q1 & Q2 acts as Modulator and Amplifier.

Analysis Report The Equipment Under Test (EUT) is a portable transmitter of a RC Car operating at 27.145 MHz as dictated by a crystal. The EUT is powered by a 9.0 V DC source (1 x 9.0V battery). The EUT has a left / right control lever and a forward / backward control lever. After switching ON the EUT and the receiver of the RC Car, activating the control levers on the EUT can control the receiver moving forward, backward left and right directions. Antenna Type: External, Telescope type Antenna Antenna Gain: 0dBi Nominal rated field strength: 55.9dBμV/m at 3m Maximum allowed field strength of production tolerance: +/- 3dB According to the KDB 447498: Based on the Maximum allowed field strength of production tolerance was 58.9dBμV/m at 3m in frequency 27.145MHz, thus; The worst case of SAR Exclusion Threshold Level for 27.145MHz when the minimum test separation distance is < 50mm: = [474 * (1 + log100/f(MHz))]/2 = 371.2mW According to the KDB 412172 D01: EIRP = [(FS*D) ^2*1000 / 30] Calculated Field Strength for 371.2mW is 120.9dBuV/m @3m Since maximum field strength plus production tolerance < = 120.9dBuV/m @3m and antenna gain is > = 0.0dBi, it is concluded that maximum Conducted Power and Field Strength are well below the SAR Exclusion threshold level, so the EUT is considered to comply with SAR requirement without testing.

1 1 2 2 3 3 4 4 DD CC BB AA A NTENNA C1 68P C2 47P C3 201 C6 47P Q1 C94 5P Q2 C94 5P L3 6.8uH L2 2.2uH L1 2.2uH R4 22K R1 100 R3 150K TX1 27.145MHz LED 9V R 1 NC 2 GND 3 B 4 F 5 T 6 SC 7 SO 8 V DD 9 PC 10 OS CO 11 OS CI 12 NC 13 L 14 IC1977 R6 220K R5 330 C4 103 C9 104P C7 68P ZD1 3.3V K1 SW SPST R7 3.9K T1 15.5T C8 68P R2 100 C5 103 C10 104

2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong SAR, China. Telephone: (852) 2173 8888 Facsimile: (852) 2785 5487 www.intertek.com Intertek’s standard Terms and Conditions can be obtained at our website http://www.intertek.com/terms/. The test report only allows to be revised within the retention period unless further standard or the requirement was noticed. This report is for the exclusive use of Intertek's Client and is provided pursuant to the agreement between Intertek and its Client. Intertek's responsibility and liability are limited to the terms and conditions of the agreement. Intertek assumes no liability to any party, other than to the Client in accordance with the agreement, for any loss, expense or damage occasioned by the use of this report. Only the Client is authorized to permit copying or distribution of this report and then only in its entirety. Any use of the Intertek name or one of its marks for the sale or advertisement of the tested material, product or service must first be approved in writing by Intertek. The observations and test results in this report are relevant only to the sample tested. This report by itself does not imply that the material, product, or service is or has ever been under an Intertek certification program. © 2017 Intertek Page 1 of 15 TEST REPORT Report No.: 21060838HKG‐001 Kidztech Toys Manufacturing Ltd. Application For Certification (Original Grant) FCC ID: OTM‐8405221‐27MTX Transmitter Prepared and Checked by: Approved by: Signed On File Lee For Yiu, Florey Assistant Engineer Wong Kwok Yeung, Kenneth Assistant Supervisor Date: June 30, 2021 TEST REPORT Kidztech Toys Manufacturing Ltd. Intertek Report No: 21060838HKG‐001 Page 2 of 15 GENERAL INFORMATION Grantee: Kidztech Toys Manufacturing Ltd. Grantee Address: Rm 802 Inter‐Continental Plaza, 94 Granville Road, Tsim Sha Tsui East, Kowloon, Hong Kong Contact Person: Eric Ho Tel: (852) 2721 8868 Fax: (852) 2721 8838 e‐mail: N/A Manufacturer: Kidztech Intelligent Technology Co., Ltd. Manufacturer Address: Chengyang Gang Road, Ancheng Road, Liangxia Town, Chenghai District, Shantou City, 515800, Guangdong, China. Brand Name: Kidztech Toys Model : 84052 Additional Model: 5F633E3, 119426 Type of EUT: Transmitter Description of EUT: 1/6 R/C Yamaha Raptor 700R Serial Number: N/A FCC ID: OTM‐8405221‐27MTX Date of Sample Submitted: June 15, 2021 Date of Test: June 15, 2021 to June 30, 2021 Report No.: 21060838HKG‐001 Report Date: June 30, 2021 Environmental Conditions: Temperature: +10 to 40°C Humidity: 10 to 90% Conclusion: Test was conducted by client submitted sample. The submitted sample as received complied with the 47 CFR Part 15 Certification. TEST REPORT Kidztech Toys Manufacturing Ltd. Intertek Report No: 21060838HKG‐001 Page 3 of 15 SUMMARY OF TEST RESULT Test Specification Reference Results Radiated Emission Radiated Emission on the Bandedge 15.227, 15.209 Pass Radiated Emission in Restricted Bands 15.205 Pass The equipment under test is found to be complying with the following standards: FCC Part 15, October 1, 2020 Edition Note: 1. The EUT uses a permanently attached antenna which, in accordance to section 15.203, is considered sufficient to comply with the pervisions of this section. 2. Pursuant to FCC part 15 Section 15.215(c), the 20 dB bandwidth of the emission was contained within the frequency band designated (mentioned as above) which the EUT operated. The effects, if any, from frequency sweeping, frequency hopping, other modulation techniques and frequency stability over excepted variations in temperature and supply voltage were considered. TEST REPORT Kidztech Toys Manufacturing Ltd. Intertek Report No: 21060838HKG‐001 Page 4 of 15 TABLE OF CONTENTS 1.0 GENERAL DESCRIPTION ................................................................................................5 1.1 Product Description .................................................................................................5 1.2 Related Submittal(s) Grants......................................................................................5 1.3 Test Methodology....................................................................................................5 1.4 Test Facility ..............................................................................................................5 2.0 SYSTEM TEST CONFIGURATION.....................................................................................6 2.1 Justification..............................................................................................................6 2.2 EUT Exercising Software...........................................................................................6 2.3 Special Accessories...................................................................................................6 2.4 Measurement Uncertainty.......................................................................................6 2.5 Support Equipment List and Description ..................................................................6 3.0 EMISSION RESULTS.......................................................................................................7 3.1 Field Strength Calculation.........................................................................................7 3.2 Radiated Emission Configuration Photograph...........................................................8 3.3 Radiated Emission Data............................................................................................8 4.0 EQUIPMENT PHOTOGRAPHS ......................................................................................10 5.0 PRODUCT LABELLING..................................................................................................10 6.0 TECHNICAL SPECIFICATIONS .......................................................................................10 7.0 INSTRUCTION MANUAL............................................................................…

Text truncated - open the document above for the full version.

INTERTEK TESTING SERVICE FCC ID: OTM-8405221-27MTX Configuration Photographs Worst-Case Radiated Emissions (Front View) INTERTEK TESTING SERVICE FCC ID: OTM-8405221-27MTX Configuration Photographs Worst-Case Radiated Emissions (Back View)
