OU9BS-801-BTBluetooth Body Scale

version:1.0 User Manual Bluetooth Body Scale BS-801-BT Please do read the user manual carefully and thoroughly so as to ensure the safe usage of this product, and keep the manual well for further reference in case you have problems. Thank you very much for selecting the Transtek Bluetooth Body Scale BS-801-BT. GUANGDONG TRANSTEK MEDICAL ELECTRONICS CO., LTD Zone A, No.105, Dongli Road, Torch Development District, Zhongshan, Guangdong, 528437, China TEL:86-760-88282982 www.transtek.cn 1 Table of Contents Table of Contents Overview Device Components LCD Display Initial Start-Up General Instructions Insert the Batteries Install App and Pair-up Start Measuring Daily Measurement Data Management Data Transmission Troubleshooting Error Prompt When Measuring When Data Transmitting Specifications Maintenance Warranty 4 5 4 6 7 8 9 10 11 11 12 13 13 ................................................................................................................. ................................................................................................................. ................................................................................................................... ............................................................................................................................. .................................................................................................................... .................................................................................................................. ........................................................................................................ ............................................................................................................................ ............................................................................................................................... ...................................................................................................................................... .......................................................................................................... .............................................................................................................................. ................................................................................................................... . Select Measurement Unit 8 Safety Information Your Scale and Its Environment 3 ............................................................................................. Efficient Use of Your Scale 3 ............................................................................................. ........................................................................................................... Symbol Meaning Symbol Meaning 2 ...................................................................................................................... ......................................................................................................................... 14FCC Regulations 23 To ensure your safety as well as the service life of your scale, please avoid using the scale under the following circumstances: Slippery floor such as tile floor Jumping onto the platform immediately after bath or with wet hands Near a cell phone or microwave oven Avoid storage in the following locations: Where there is water Where the device may be exposed to extreme temperatures, humidity, moisture, direct sunlight, dust, or salt air Where there is risk of shock or drop Where you store chemicals or full of corrosive gases Where in reach of the infants or children Your Scale and Its Environment Efficient Use of Your Scale To ensure the accuracy of measurement, please follow below instructions when you start measurement. Place the scale on a flat, hard surface. Soft surface such as carpet will affect the performance of the scale. Start measurement at least two hours after Getting up or Dinning. Avoid measurement immediately after strenuous exercise, sauna or bath, drinking, and dinning. Always start measurement in the same time slot and on the same scale located on the same flat, hard surface. Symbol Meaning The warning signs and symbols are essential to ensure your correct and safe use of this product and protect you and others from injury. Please kindly find the meanings of the warning signs and symbols, which you may encounter in the label and user manual, as follows: Symbol Meaning Symbol for “THE OPERATION GUIDE MUST BE READ” Symbol for “MANUFACTURER” Symbol for “ENVIRONMENT PROTECTION – Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with your local authority or retailer for recycling advice” The Bluetooth Combination Mark Symbol for “SERIAL NUMBER” Symbol for “DIRECT CURRENT” Safety Information Symbol for “COMPLIES WITH EU REQUIREMENTS” Symbol for “MANUFACTURE DATE” In order to ensure the accuracy of weighing, when you moved the scale or haven’t used the scale for a long time, please turn on the scale first, wait until it turns off, then you can stand on the platform again and measure your weight. When you don’t use the scale, please place it stable. Do not put anything on it. 5 4 List 1. Bluetooth Body Scale BS-801-BT 2. Four AAA-size Batteries (1.5V each) 3. User Manual Device Components Pound Kilogram Data transmitting Pending to transmit to wireless system Low Battery LCD Display Overview General Instructions Stone Overview LCD Display Battery Compartment UNIT and Activation Button Battery Compartment Transtek Bluetooth Body Scale BS-801-BT applies SENSE ON technology. It’s not necessary to turn on or turn off the scale, just stand on the scale for measurement. It is delicate and trendy, convenience for using. 7 6 Insert the Batteries Open the battery door in the back of the scale. Insert the batteries (4 x 1.5V AAA) into the battery compartment according to the polarit…

Text truncated - open the document above for the full version.

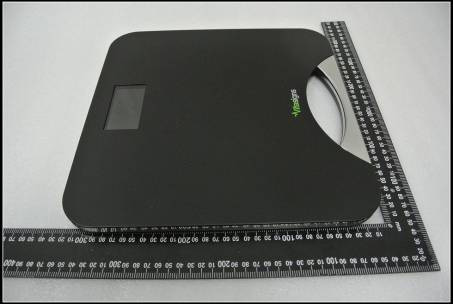

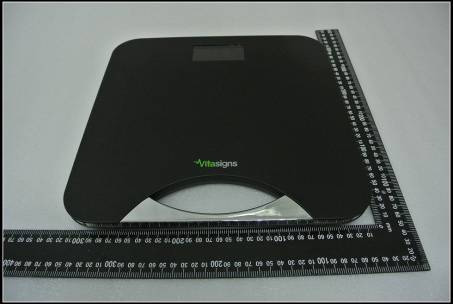

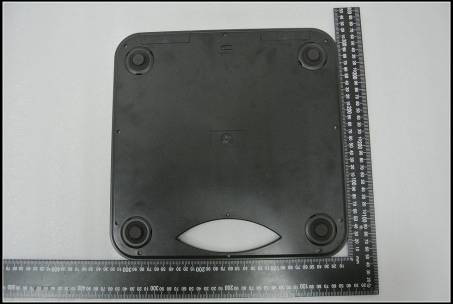

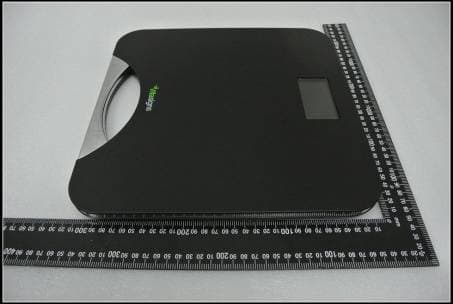

External Photo

Bluetooth Body Scale Model: BS-801-BT Capacity: 180 kg / 397 lb / 28 st : 5 lb Power Supply: 4 x AAA Batteries 6V GUANGDONG TRANSTEK MEDICAL ELECTRONICS CO., LTD Zone A, No.105, Dongli Road, Torch Development District, Zhongshan, Guangdong, 528437, China FCC ID: OU9BS-801-BT 2015-03 1:1 BLACK letters and Silver background Size: (Label) 43*23mm; This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Internal Photo

SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Application No..: GZEM1503000995CR Page: 1 of 1 FCC ID: OU9BS-801-BT This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at http://www.sgs.com/en/Terms-and-Conditions.aspxand,for electronic format documents, subject to Terms and Conditions for Electronic Documents at http://www.sgs.com/en/Terms-and-Conditions/Terms-e-Document.aspx. Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 30 days only. RF Exposure Compliance Requirement The product belongs to standalone portable device base the FCC rule part 2.1091&2.1093. The transmission frequencies of the device are between 100 MHz and 6 GHz. The worst case test separation distance is 5mm. The Max Conducted Output Power and SAR Test Exclusion Threshold (mW) are listed below: Transmit frequency (GHz) Max Conducted Output Power (mW) SAR Test Exclusion Threshold (mW) 2.402 -10.49 9.7 2.440 -9.40 9.6 2.480 -9.12 9.5 The SAR Test Exclusion Threshold for 100 MHz to 6 GHz is calculated from: 1) The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] · [√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where  f(GHz) is the RF channel transmit frequency in GHz  Power and distance are rounded to the nearest mW and mm before calculation The result is rounded to one decimal place for comparison The test exclusions are applicable only when the minimum test separation distance is ≤ 50 mm and for transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm is applied to determine SAR test exclusion. According to SAR Exclusion Threshold in KDB 447498 (D01) General RF Exposure Guidance v05r02, the SAR report is not required.

SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch 198 Kezhu Road, Scientech Park, Guangzhou Economic & Technological Development District, Guangzhou, China 510663 Telephone: +86 (0) 20 82155555 Fax: +86 (0) 20 82075059 Email: [email protected] Report No.: GZEM150300099501 Page: 1 of 52 FCC ID: OU9BS-801-BT Authorized Signature: Jerry Chan Manager The manufacturer should ensure that all products in series production are in conformity with the product sample detailed in this report. If the product in this report is used in any configuration other than that detailed in the report, the manufacturer must ensure the new system complies with all relevant standards. The report must not be used by the client to claim product certification, approval, or endorsement by NVLAP, NIST, or any agency of the federal government. All test results in this report can be traceable to National or International Standards. This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at http://www.sgs.com/en/Terms-and-Conditions.aspxand,for electronic format documents, subject to Terms and Conditions for Electronic Documents at http://www.sgs.com/en/Terms-and-Conditions/Terms-e-Document.aspx. Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 30 days only. 1 Cover Page TEST REPORT Application No.: GZEM1503000995CR Applicant: Guangdong Transtek Medical Electronics Co.,Ltd Manufacturer: The same as applicant FCC ID: OU9BS-801-BT Product Name: Bluetooth Body Scale Product Description: Bluetooth scale with 2.4 GHz as carrier. Model No.: BS-801-BT Standards: CFR 47 FCC PART 15 Subpart C: 2014 section 15.247 Date of Receipt: 2015-03-16 Date of Test: 2015-03-19 to 2015-04-08 Date of Issue: 2015-04-14 Test Result : Pass* * In the configuration tested, the EUT detailed in this report complied with the standards specified above. Please refer to section 3 of this report for further detail. SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Report No.: GZEM150300099501 Page: 2 of 52 This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at http://www.sgs.com/en/Terms-and-Conditions.aspxand,for electronic format documents, subject to Terms and Conditions for Electronic Documents at http://www.sgs.com/en/Terms-and-Conditions/Terms-e-Document.aspx. Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 30 days only. 2 Version Revision Record Version Chapter Date Modifier Remark 00 2015-04-14 Original Authorized for issue by: Tested By 2015-03-19 to 2015-04-08 (Jack Liang) / Project Engineer Date Prepared By 2015-04-09 (June Chen) / Clerk Date Checked By 2015-04-09 (Jerry Chan) / Reviewer Date SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Report No.: GZEM150300099501 Page: 3 of 52 This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at http://www.sgs.com/en/Terms-and-Conditions.aspxand,for electronic format documents, subject to Terms and Conditions for Electronic Documents at http://www.sgs.com/en/Terms-and-Conditions/Terms-e-Document.aspx. Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 30 days only. 3 Test Summary Test Test Requirement Test method Result Antenna Requirement FCC PART 15 C section 15.247 (c) and Se…

Text truncated - open the document above for the full version.

Test Setup Photo 1.1 RADI ATE D SP URI OU S EM ISSIO N TE ST SETUP Below 1GHz: Above 1GHz: (full anechoic chamber)
