OU9LS802GAM2Blood pressure monitor

Guan gd on g Tran ste k Medical El ectr on ics Co. , Ltd. 广 东乐心医疗电子股份有限公司 Doc um ent Name: 文件名称： User manua l Doc um ent No 文件编号： LS-IFU-LS802- Ga Rev.: 版本号： A/0 Page : 页码： 共28页 Prepa red编制Revi ewed审核Appr ove d批准 ◆Re vision History修订 履历 NO. Date 日期 Upda te Descript ion 变更描述 Prepa red 编制 Revi ewed 审核 Appr ove d 批准 A/0 2024/04/ 17Ini tial release 李鑫 CeliaLi 梁桂英 AdaLiang 范佳龙 JerryFan version: A/0 Guangdong Transtek Medical Electronics Co., Ltd. Zone A, No.105, Dongli Road, Torch Development District, 528437 Zhongshan, Guangdong, China User Manual Blood Pressure Monitor LS802-Ga TeleCuff Gen 1 5BF00204B-LS802-Ga说明书-A0 The Choice of Power Supply Installing and Replacing the Batteries TABLE OF CONTENTS 2 1 0 1 2 1 5 1 7 20 2 1 22 22 27 General Description Indications for Use Measurement Principle Safety Information Display and Symbols Name of Each Part Contents/Product Includes 3 INTRODUCTION What are systolic pressure and diastolic pressure? What is the standard blood pressure classication? Irregular heartbeat detector Why does my blood pressure uctuate throughout the day? Is the result the same if measuring on the righe arm? ABOUT BLOOD PRESSURE TROUBLESHOOTING SPECIFICATIONS AUTHORIZED COMPONENT CONTACT INFORMATION SPECIFICATIONS FOR 4G 23 EMC GUIDANCE BEFORE YOU START Taking a Measurement Applying the cu MEASUREMENT Tips for measurement Maintenances INFORMATION FOR USER Why do l get a dierent blood pressure at home compared to the hospital 28 FCC STATEMENT INTRODUCTIONINTRODUCTION General Description Indications for Use Measurement Principle Safety Information One-Click Operation Irregular Heartbeat detection Large 4.5-inch LCD display Remote care, any time, anywhere AC Adaptor available (not included) 43 This product uses the Oscillometric Measuring method to detect blood pressure. Before every measurement, the unit establishes a “zero pressure” equivalent to the atmospheric pressure. Then it starts inating the arm cu, meanwhile, the unit detects pressure oscillations generated by beat-to-beat pulsatile, which is used to determine the systolic and diastolic pressure, and also pulse rate. Thank you for choosing this arm type Blood Pressure Monitor (LS802-Ga). It is equipped with the following key features. Please read this manual to know how to use your Blood Pressure Monitor safely and correctly. Keep the manual well for future reference. The symbols below might be in the user manual, labeling or other component. They are the requirement of standard and using. Manufacturer Polarity of d.c. power connector Serial Number Consult instructions for use or consult electronic instructions for use Type BF applied part Direct Current Batch code Date of manufacture General symbol for recovery/recyclable Humidity limitation Temperature limit Atmospheric pressure limitation Class II EquipmentFor indoor use only MR Unsafe To identify an item which poses unacceptable risks to the patient, medical staff or other persons within the MR environment. Caution Indicates that caution is necessary when operating the device or control close to where the symbol is placed, or that the current situation needs operator awareness or operator action in order to avoid undesirable consequences. The symbol indicates that the product should not be discarded as unsorted waste but must be sent to separate collection facilities for recovery and recycling. Refer to instruction manual/booklet To signify that the instruction manual/ booklet must be read. Real-time Data Transmission This Blood Pressure Monitor is intended for use in measuring blood pressure and pulse rate in patients with arm circumferences from 16 ~ 36 cm (6 ¹⁄3 ~ 14 ¹⁄5 inch), 22 ~ 42 cm (8 ¾ ~ 16 ½ inch), 22 ~ 45 cm (8 ¾ ~ 17 ¾ inch) or 40 ~ 52cm (15 ¾ 20 ½ inch). Cu model AC1636-01, arm circumference range is 16 ~ 36cm (6 ¹⁄3 ~14 ¹⁄5 inch), which is intended for children older than 3 years old or adults without conditions of diabetes, pregnancy, or pre-eclampsia. Cu model AC2245-021, arm circumference range is 22 ~ 45cm (8 ¾ ~ 17 ¾ inch) , which is intended for adult population or those who with conditions of diabetes, pregnancy, or pre-eclampsia. Cu model AC2242-41 and cu model AC4052-04, arm circumference range are 22 ~ 42cm (8 ¾ ~ 16 ½ inch), and 40 ~ 52cm (15 ¾ ~ 20 ½ inch) respectively, which are intended for adults without conditions of diabetes, pregnancy, or pre-eclampsia. It is intended indoor use only. 65 INTRODUCTIONINTRODUCTION Precaution * This device is intended for indoor, home use and is not intended for self-use in public areas. * This device is portable, but it is not intended for use during patient transport. * This device is not suitable for continuous monitoring during medical emergencies or operations. * This device is intended for non-invasive measuring and monitoring of arterial blood pressure. It is not intended for use on extremities other than the arm, or for any purpose other than obtaining a blood pressure measurement. * This device is for patients who are at or over 3 years old. Do not use this device on neonates or infants. * Consult with your physician before using this monitor if you suffer from the following conditions: common arrhythmias such as premature ventricular beats or atrial fibrillation; peripheral arterial disease, implantation with electrical devices; undergoing intravascular therapy; arteriovenous shunt or mastectomy. Please note that any of these conditions may affect measurement readings, in addition to patient motion, trembling or shivering. * If you are taking medication, consult your physician to determine the proper time to measure your blood pressure. * This device may be used only for the intended use described in this manual, the manufacturer shall have no liability for any incidental, consequential, or special damages caused by misuse or abuse. * Please use the device under the environment which is provided in the user manual. Otherwise, the performance and lifetime of the device will be impa…

Text truncated - open the document above for the full version.

Applicant Declaration QSF27-14-04 Rev 1.1 Jan 17, 2024 Page 1 of 1 Original Issue: Jan. 4, 2021 SGS North America Inc. 620 Old Peachtree Road SUITE 100 Suwanee, Georgia 30024 United States Applicant Legal Business Name Guangdong Transtek Medical Electronics Co.,Ltd Address Zone A, No.105 ,Dongli Road Torch Development District, Zhongshan , Guangdong, 528437, China FRN 0021999248 Grantee Code OU9 FCC ID OU9LS802GAM2 Authorized Contact Name Jerry Fan Contact Email [email protected] Contact Phone +86-760-85166220 I, the undersigned, certify that I am an authorized signatory for the Applicant and therefore declare; a) in accordance with 47CFR2.911(d), all of the statements herein and the exhibits attached hereto are true and correct to the best of my knowledge and belief. b) in accepting a Grant of Equipment Authorization issued by a TCB, under the authority of the FCC, as a result of the representations made in this application, the Applicant is responsible for: (1) labeling the equipment with the exact FCC ID as specified in this application, (2) compliance statement labeling pursuant to the applicable rules, (3) compliance of the equipment with the applicable technical rules, c) if the Applicant is not the actual manufacturer of the equipment, appropriate arrangements have been made with the manufacturer to ensure that production units of this equipment will continue to comply with the FCC’s technical requirements. d) in accordance with 47 CFR 2.909 and KDB394321, the Applicant has read, understood and agrees to accept that they are the responsible party and agree to abide by their responsibilities as specified under 47 CFR 2.909 and KDB394321. e) in accordance with ISO 17065, FCC KDB641163, FCC KDB610077, KDB394321 and RSP-100, the Applicant has read, understood, accepts and agrees to abide by the post market surveillance requirements. (1) the Applicant understands, accepts and agrees that a sample may be requested for surveillance testing. (2) the Applicant shall make provisions to always have a production sample available upon request by SGS, FCC and/or ISED. (3) the Applicant shall, upon request by SGS, at the Applicant’s expense, provide a production sample of the requested product to SGS, FCC and/or ISED as instructed. The sample shall include all support devices, cables, software, accessories or other hardware or software required for evaluation, review, certification and audit surveillance of products certified by SGS. f) neither the Applicant nor any party to the application is subject to a denial of Federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. §862 because of a conviction for possession or distribution of a controlled substance. See 47CFR 1.2002(b) for the definition of a “party” for these purposes. g) the Applicant has read, understood, accepts and agrees to abide by the SGS North America, Inc.(TCB) terms and conditions. Link to CFRs: https://www.fcc.gov/wireless/bureau-divisions/technologies-systems-and-innovation-division/rules-regulations-title-47 Link to KDBs: https://apps.fcc.gov/oetcf/kdb/index.cfm Link to RSP-100: https://www.ic.gc.ca/eic/site/smt-gst.nsf/eng/sf01130.html Link to the Covered List: Covered List Guangdong Transtek Medical Electronics Co.,Ltd (“the applicant”) certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. Guangdong Transtek Medical Electronics Co.,Ltd (“the applicant”) certifies that, as of the date of the filing of the application, the applicant [ is not] identified on the Covered list, established pursuant to §1.50002, as an entity producing “covered” equipment. Applicant Signature: Date: Date: 2024/4/2 Print Name: Jerry Fan Title: RA Manager *NOTE: This declaration cannot be signed by an Agent, it shall be signed by an authorized person listed in the FCC database

UNITED STATES DESIGNATED AGENT LETTER Date: 2024/4/2 TO: Federal Communication Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MID 21046 Applicant U.S. designated agent Company Name: Guangdong Transtek Medical Electronics Co.,Ltd Company Name: MIO LABS INC. FRN: 0021999248 FRN: 0032569972 Grantee Code: OU9 Contact Name: Jerry Fan Contact Name Susu Address: Zone A, No.105 ,Dongli Road Torch Development District Address: KCH, 575 Lexington Ave 14F New York, City/Province/Zip: Zhongshan , Guangdong, -, 528437 City/Province/Zip: NY 10022 Telephone: +86-760-85166220Telephone: 301-910-0529 Fax: +86-760-86742877Fax: / Email: [email protected] Email: [email protected] Applicable Equipment: FCC ID: OU9LS802GAM2 ATTN: Director of Certification: We, Guangdong Transtek Medical Electronics Co.,Ltd and MIO LABS INC. understand and acknowledge the applicants consent and the designated agent’s obligation to accept service of process in the United States for matters related to the applicable equipment, and at the physical U.S. address and e-mail of the designated agent listed above. We, Guangdong Transtek Medical Electronics Co.,Ltd and MIO LABS INC. acknowledge the applicant’s acceptance of its obligation to maintain an agent for service of process in the United States for no less than one year after either the grantee has permanently terminated all marketing and importation of the applicable equipment within the U.S., or the conclusion of any Commission-related administrative or judicial proceeding involving the equipment, whichever is later. Applicant U.S. designated agent Name (Printed): Jerry Fan Name (Printed):Susu Title: RA Manager Title:Sales Manager Signature: Signature: Susu

Guangdong Transtek Medical Electronics Co.,Ltd Authority letter FCC Date: 2024/4/2 TO: Federal Communication Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MID 21046 Regarding: FCC ID: OU9LS802GAM2 To whom it may concern: We, the undersigned, hereby authorize SGS-CSTC Standards Technical Services Co., Ltd. (SGS) Guangzhou branch and Bonnie Liao in SGS-CSTC Standards Technical Services Co., Ltd. (SGS) Guangzhou branch to act on our behalf in all manners relating to application for equipment authorization with respect to the FCC ID above, including signing of all documents relating to these matters. Any and all acts carried out by the agent on our behalf shall have the same effect as acts of our own. We, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). Where our agent signs the application for certification on our behalf, I acknowledge that all responsibility for complying with the terms and conditions for Certification, as specified by SGS North America, Inc., still resides with applicant company FCC. This authorization is valid until further written notice from the applicant. Name (Printed): Jerry Fan Title: RA Manager Signature: On behalf of Company: Guangdong Transtek Medical Electronics Co.,Ltd

Guangdong Transtek Medical Electronics Co.,Ltd Confidential letter FCC To: SGS North America Inc. 620 Old Peachtree Road SUITE 100 Suwanee, Georgia United States From: Guangdong Transtek Medical Electronics Co.,Ltd Zone A, No.105 , Dongli Road Torch Development District, Zhongshan , Guangdong 528437, China Regarding: Confidentiality Request regarding application for FCC ID: OU9LS802GAM2 LONG TERM CONFIDENTIALITY Pursuant to 47 CFR Section 0.459 and 0.457 of the commission’s rules, the applicant hereby request confidential treatment of the documents listed below, associated with the certification application referenced above. Schematic(s) Block Diagrams Operational Descriptions Tune Up The documents above contain proprietary information not released to the public. Public disclosure of this information may prove harmful to the business of the applicant. Sincerely, Name (Printed): Jerry Fan Title: RA Manager Signature: On behalf of Company: Guangdong Transtek Medical Electronics Co.,Ltd

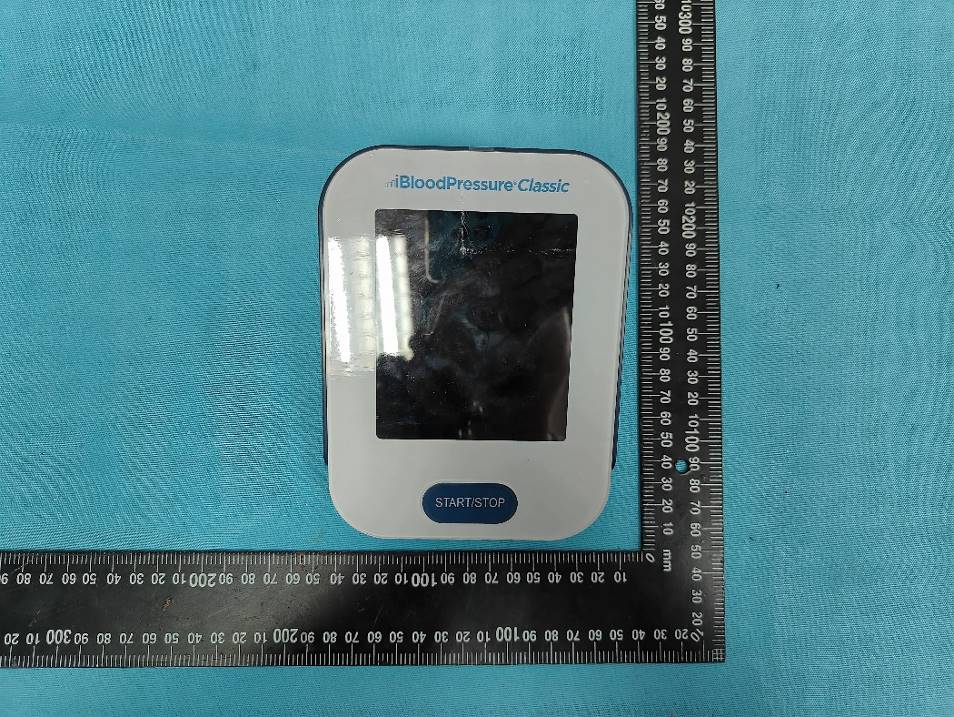

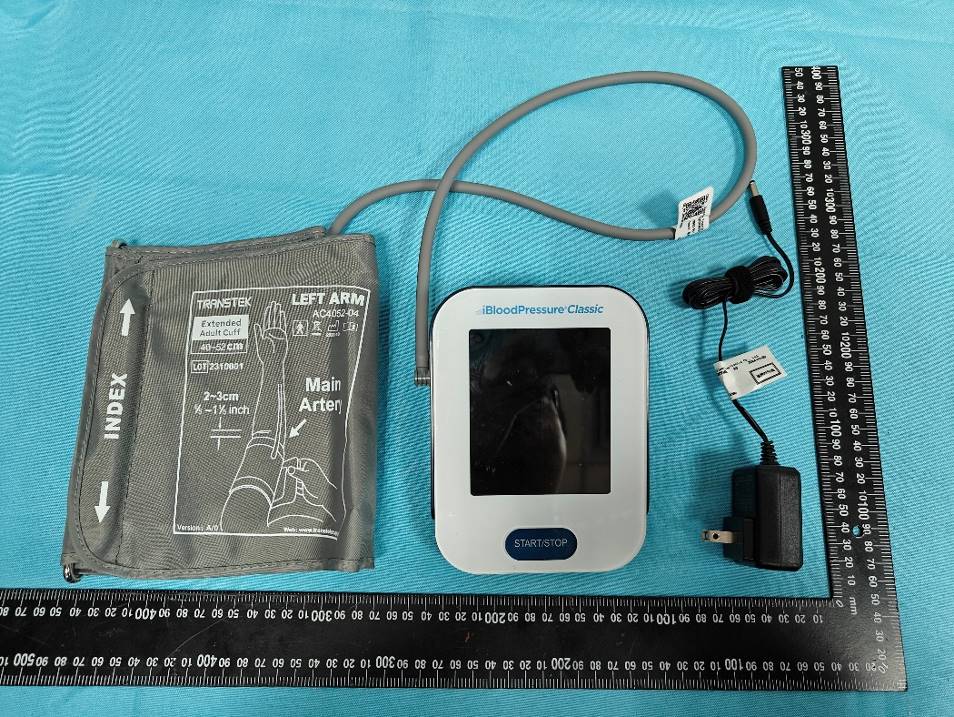

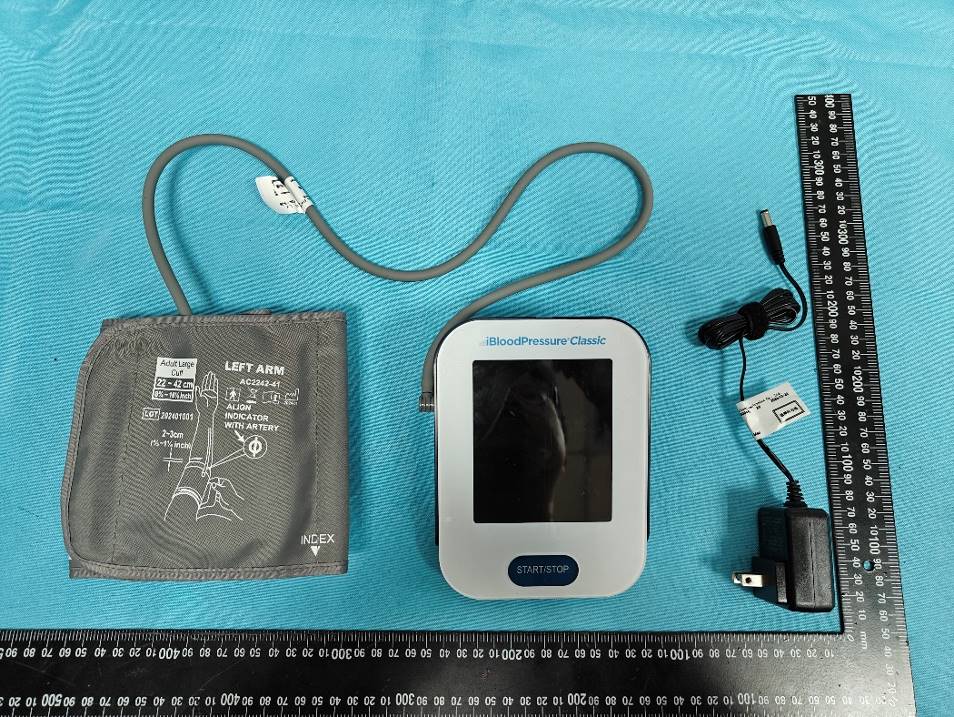

SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch EMC-ARF-02 Rev 1.1 Page: 1 of 9 Appendix - External Photos for GZCR2403000309ME SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch EMC-ARF-02 Rev 1.1 Page: 2 of 9 EUT Constructional Details (EUT Photos) SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch EMC-ARF-02 Rev 1.1 Page: 3 of 9 SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch EMC-ARF-02 Rev 1.1 Page: 4 of 9 Model: LS802-Ga SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch EMC-ARF-02 Rev 1.1 Page: 5 of 9 SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch EMC-ARF-02 Rev 1.1 Page: 6 of 9 SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch EMC-ARF-02 Rev 1.1 Page: 7 of 9 Model: LS802-Gb SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch EMC-ARF-02 Rev 1.1 Page: 8 of 9 SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch EMC-ARF-02 Rev 1.1 Page: 9 of 9 - End of the Appendix -

注：贴纸右侧空白区域需内部打印条码等内容，印刷时不 能随意挪动贴纸内容，要求位置尺寸公差±0.2mm 垃圾桶及CE标志尺寸按照国标标准 材质 尺寸 50#格底耐高温亮白PET带涂层,卷装来料 61.5*29.5 mm 黑色+Pantone Reflex Blue C - 2BF002450R-LS802-GP-015-GB-11-背贴-A0 对应结构图纸 印色 -表面处理 IP Degree: IP21 Model: LS802-Ga AC adapter powered mode: 6V 1A (Not included) Rating: Battery powered mode: 4x AA batteries, 6V FCC ID: OU9LS802GAM2 (Please use the AC adapter authorized by the manufacturer!) Product: Blood Pressure Monitor Guangdong Transtek Medical Electronics Co., Ltd. Zone A, No.105, Dongli Road, Torch Development District, 528437 Zhongshan, Guangdong, China 2024-01 IMEI: 860112041454475 (01)16932825325000 (21)101202300001 SN

SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch EMC-ARF-03 Rev 1.1 Page: 1 of 10 Appendix - Internal Photos for GZCR2403000309ME SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch EMC-ARF-03 Rev 1.1 Page: 2 of 10 EUT Constructional Details (EUT Photos) Model:LS802-Ga SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch EMC-ARF-03 Rev 1.1 Page: 3 of 10 SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch EMC-ARF-03 Rev 1.1 Page: 4 of 10 RF ANT SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch EMC-ARF-03 Rev 1.1 Page: 5 of 10 Model:LS802-Gb SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch EMC-ARF-03 Rev 1.1 Page: 6 of 10 SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch EMC-ARF-03 Rev 1.1 Page: 7 of 10 RF ANT SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch EMC-ARF-03 Rev 1.1 Page: 8 of 10 SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch EMC-ARF-03 Rev 1.1 Page: 9 of 10 SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch EMC-ARF-03 Rev 1.1 Page: 10 of 10 - End of the Appendix -

SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch EMC-TRF-03 Rev 1.1 Report No.: GZCR240300030902 Page: 1 of 9 FCC ID: OU9LS802GAM2 Jerry Chan Manager RF EXPOSURE EVALUATION REPORT Application No.: GZCR2403000309ME Applicant:Guangdong Transtek Medical Electronics Co., Ltd. Address of Applicant:Zone A, No.105, Dongli Road, Torch Development District, 528437 Zhongshan, Guangdong, China Manufacturer:Guangdong Transtek Medical Electronics Co., Ltd. Address of Manufacturer:Zone A, No.105, Dongli Road, Torch Development District, 528437 Zhongshan, Guangdong, China Factory:Guangdong Transtek Medical Electronics Co., Ltd. Address of Factory:Zone A, No.105, Dongli Road, Torch Development District, 528437 Zhongshan, Guangdong, China Product Name:Blood pressure monitor Model No.: LS802-Ga, LS802-Gb Standard(s) : 47 CFR Part 2.1091 47 CFR Part 1.1310 47 CFR Part 1.1307 Date of Receipt: 2024-03-29 Date of Evaluation: 2024-04-27 Date of Issue: 2024-04-28 Evaluation Result: Pass* * In the configuration evaluated, the EUT complied with the standards specified above. SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch EMC-TRF-03 Rev 1.1 Report No.: GZCR240300030902 Page: 2 of 9 Revision Record VersionReport No.DateRemark 01GZCR2403000309022024-04-28Original Authorized for issue by: Jim Li/Project Engineer Ricky Liu/Reviewer SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch EMC-TRF-03 Rev 1.1 Report No.: GZCR240300030902 Page: 3 of 9 2Evaluation Summary ItemStandardMethodRequirementResult RF Exposure 47 CFR Part 2.1091 47 CFR Part 1.1307 47 CFR Part 2.1091 47 CFR Part 1.1307 47 CFR Part 1.1310Pass Note: E.U.T./EUT means Equipment Under Test. Pass means the test result passed the test standard requirement, please find the detailed decision rule in the report relative section. SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch EMC-TRF-03 Rev 1.1 Report No.: GZCR240300030902 Page: 4 of 9 3Contents Page 1Cover Page...............................................................................................................................................1 2Evaluation Summary................................................................................................................................3 3Contents....................................................................................................................................................4 4General Information.................................................................................................................................5 4.1Details of E.U.T.................................................................................................................................5 4.2Evaluating Location...........................................................................................................................5 4.3Facility...............................................................................................................................................6 4.4Deviation from Standards..................................................................................................................6 4.5Abnormalities from Standard Conditions...........................................................................................6 5Technical Requirements Specification..................................................................................................7 5.1RF Exposure Evaluation....................................................................................................................7 5.1.1Requirement..................................................................................................................................7 5.1.2Method..........................................................................................................................................7 5.1.3Conclusion....................................................................................................................................8 6EUT Constructional Details (EUT Photos).............................................................................................9 SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch EMC-TRF-03 Rev 1.1 Report No.: GZCR240300030902 Page: 5 of 9 4General Information 4.1Details of E.U.T. Power supply:AC Adapter Model: BLJ06L060100P-U Input: 100-240V, 50/60Hz, 0.2A Max Output: 6.0V, 1.0A DC 6 V = Size "AA" battery 1.5V x 4pcs Cable(s):Adapter DC output cable, 2 wires, 1.5m, unshielded. Operation Frequency:LTE CatM1 Band 2, 4, 12 Modulation Type:QPSK, 16QAM Antenna Type:PIFA Antenna Antenna Gain: CatM1 Band 2: 2.81 dBi CatM1 Band 4: 0.66 dBi CatM1 Band 12: -1.89 dBi (Declared by antenna specifications) Extreme temp. Tolerance: -30°C to +50°C Sample Type:Fixed device. Remark: The information in this section is provided by the applicant or manufacturer, SGS is not liable to the accuracy, suitability, reliability or/and integrity of the information. 4.2Evaluating Location All tests were performed at: SGS-CSTC Standards Technical Services Co., Ltd., Guangzhou Branch EMC Laboratory, No.198, Kezhu Road, Science City, Economic & Technological Development Area, Guangzhou, Guangdong, China 510663 Tel: +86 20 82155555 No tests were sub-contracted. SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch EMC-TRF-03 Rev 1.1 Report No.: GZCR240300030902 Page: 6 of 9 4.3Facility The facility is recognized, certified, or accredited by the following organizations: ● ACMA SGS-CSTC Standards Technical Services Co., Ltd., EMC Laboratory can also perform testing for the Australian/New Zealand Regulatory Compliance Mark (RCM). ● SGS UK(Certificate No.: 32), SGS-TUV SAARLAND and SGS-FIMKO Have approved SGS-CSTC Standards Technical Services Co., Ltd., EMC Laboratory as a supplier of EMC TESTING SERVICES and SAFETY TESTING SERVICES. ● FCC Recognized Accredited Test Firm(Registration No.: 486818) SGS-CSTC Standards Technical S…
