OU9LS206-E01BODY FAT ANALYZER

User Manual Glass Body Fat Analyzer LS206-E version:1.0 To assure the correct use of the monitor, please read this manual carefully and thoroughly. Thank you very much for purchasing TRANSTEK Glass Body Fat Analyzer LS206-E Please well keep this manualfor future reference. ZHONGSHAN TRANSTEK ELECTRONICS CO.,LTD Jin'an Road, Minzhong, Zhongshan, 528441, Guangdong, China TEL:86-760-88282982 www.transtek.cn 1 Any information provided by this device is in no way meant to treat, cure or prevent any disease or illness from happening. This device should not be used by anyone who is acutely or chronically ill, suffering from a disease or taking medications that affect your water levels. The accuracy of readings for these patients has not been verified. Specific medical advice should be obtained from a physician. Portable and mobile RF communications equipment can affect LS206-E. Warning that the use of accessories, transducers and cables other than those specified with the exception of transducers and cables sold by the manufacturer of the LS206-E as replacement parts for internal components, may result in increased EMISSIONS or decreased IMMUNITY of the LS206-E. Warning that the LS206-E should not be used adjacent to or stacked with other equipment. HOW DOES TRANSTEK'S BODY FAT ANALYZER WORK? This Glass body fat analyzer uses BIA (Bio Impedance Analysis) technology which passes an electrical current through the body to estimate body fat mass, lean mass, total body water and bone mass. The electrical current is small and may not be felt. Contact with the body is made via stainless steel pads on the platform of the scale. NOTE: This device is a personal monitor and should be used in a consistent manner for the most accurate reading. While readings of this analyzer might be different with that of others (hydro-densitometry or hand held calipers), your changes in body fat percentage shown by this device will be reflected accurately. While this analyzer will work accurately as a scale for anyone and give accurate body fat readings for a majority of people, it is not intended for being used by pregnant women or children under the age of 18. BODY FAT-WHAT DOES IT MEAN? Human body is made up of, amongst other things, a percentage of fat. Body fat is vital for a healthy, functioning body, protects vital organs, helps regulate body temperature, stores vitamins and helps the body sustain itself when food is scarce. However, too much body fat or indeed too little body fat will damage to your health. It is difficult to gauge how much body fat we have in our bodies simply by looking at ourselves in the mirror. This is why it is important to measure and monitor your body fat percentage. Body fat percentage gives you a better measure of fitness than weight alone–the composition of your weight loss could mean you are losing muscle mass rather than fat-you could still have a high percentage of fat even when a scale indicates‘normal weight’. Caution:Consult accompanying documents CE Mark: conforms to essential requirements of the Medical Device Directive 93/42/EEC. Manufacturer Specifies serial number Type B applied part DISPOSAL: Do not dispose this product as unsorted municipal waste. Use separate collection faculties. Contact you local government for information regarding the collection systems available. If electrical appliances are disposed of in landfills or dumps, hazardous substances can leak into the groundwater and get into the food chain, damaging your health and well-being. The below signs might be in the user manual, labeling or other component. they are the requirement of standard and using. Safety information Manufacturer will make available on request circuit 23 BATTERY INFORMATION AND GENERAL SET-UP PROCEDURE BASAL METABOLISM- WHY SHOULD I KNOW IT? Basal metabolism refers to the life activities do not exercise at a quiet state of the body maintains its own life activities required energy consumption.We recommend that the general energy consumption by basal metabolism + diet process + the required energy of growth or development children or pregnant women+ physical activity. Among them, the basal metabolism accounts for a large part (about 60% -75%).Excessive intake of energy,excess energy will be converted to fat accumulation in the body.Therefore measure your basal metabolism, you can estimate your daily energy consumption is about how much. The normal daily intake of energy, at least not lower than the basal metabolic energy, otherwise there will be life-threatening. Tapto initialize This scale operates on 4*AAA batteries (installed). Please remove any plastic strips from the battery compartment before continuing with these instructions. Some models have a static cling label on the lens to prevent scratching. Please remove it before use. When the LCD displays “ ”, replace the batteries with the “+” signs up. Replace both worn batteries at the same time; do not combine old and new batteries. The scale needs to be initialized before first use or after battery replacement. Press firmly on the scale platform. The display will show a running zeros pattern and automatically turn off. Your scale is now ready for use. Remove batteries if the device is not likely to be used for some time. The old battery is harmful to the environment, so please disposal with other daily trash. Remove the old battery from the device and follow your local recycling guidelines. 45 USING YOUR ANALYZER SCALE You m u sth av e feet baredt o u set h e an al y zer f u n ct i on . In order to measure body fat, you must first enter your height, age, gender and activity level selection. The analyzer uses these parameter to calculate your measurement results. Remove your shoes and socks before beginning measurement. In order to get the most accurate and consistent reading, wipe your feet with a damp cloth, leaving them slightly damp before stepping on to the scale. REMINDER: The scale needs to be initialized after battery installati…

Text truncated - open the document above for the full version.

Zhongshan Transtek Electronics Co., Ltd. Jin’an Road, Minzhong, Zhongshan 528441, Guangdong, China Federal Communications Commission Authorization and Evaluation Division Confidentiality Request regarding application for certification of FCC ID: OU9LS206-E01. Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: Exhibit Type File Name Block Diagram OU9LS206-E01 Block Diagram.pdf Schematics OU9LS206-E01 Schematics.pdf Operational Description OU9LS206-E01 Operational Description.pdf BOM OU9LS206-E01 BOM.pdf PCB Layout OU9LS206-E01 PCB Layout.pdf The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, ----------------------------------------------- Terry Chen / Compliance Engineer Company Name: Zhongshan Transtek Electronics Co., Ltd. Tel: +86-760-8828 2982-8 Fax: +86-760-85339231 Email: [email protected]

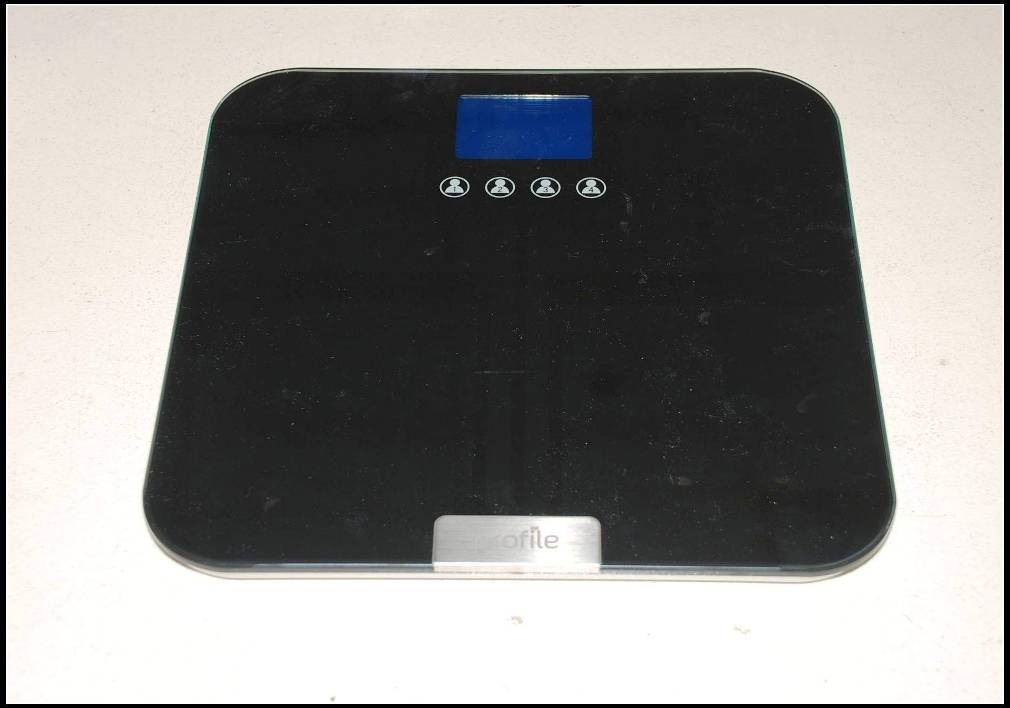

External Photos

MATERIAL = WATER-RESISTANT PAPER WITH SELF ADHESIVE BACKING COLOUR = BLACK GRAPHICS ON SILVER BACKGROUND SCALE: 1:1 Size: 44.5 x 34.5 mm Glass Body Analyzer Type: LS206-E Capacity: 180 kg /397 lb/28 st: 5 lb Power:4XAAA batteries ZHONGSHAN TRANSTEK ELECTRONICS CO.,LTD Jin’an Road, Minzhong, Zhongshan,528441,Guangdong, China FCC ID: OU9LS206-E01 SN This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

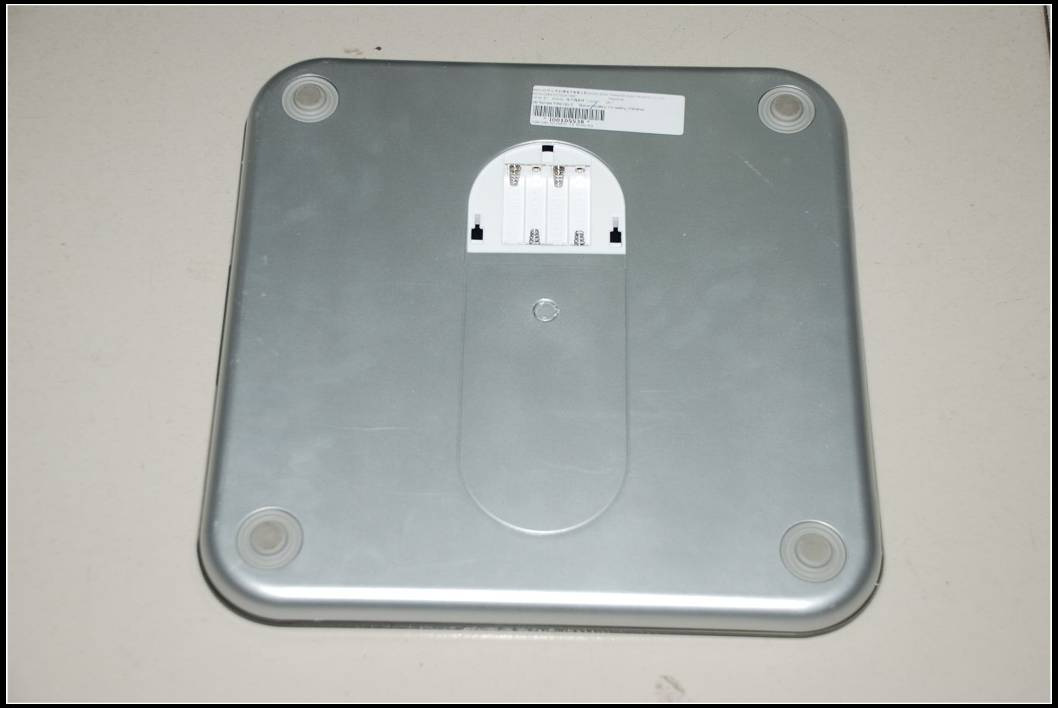

External Photos

SGS-CSTC Standards Technical Services Co., Ltd. 198 Kezhu Road, Scientech Park, Guangzhou Economic & Technological Development District, Guangzhou, China 510663 Telephone: +86 (0) 20 82155555 Fax: +86 (0) 20 82075059 Email: [email protected] Report No.: GZEM120700301001 Page: 1 of 28 FCC ID: OU9LS206-E01 Strong Yao Manager The manufacturer should ensure that all products in series production are in conformity with the product sample detailed in this report. If the product in this report is used in any configuration other than that detailed in the report, the manufacturer must ensure the new system complies with all relevant standards. The report must not be used by the client to claim product certification, approval, or endorsement by NVLAP, NIST, or any agency of the federal government. All test results in this report can be traceable to National or International Standards. This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at www.sgs.com/terms_and_conditions.htm and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at www.sgs.com/terms_e-document.htm. Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only 1 Cover Page TEST REPORT Application No.: GZEM1207003010RF Applicant: Zhongshan Transtek Electronics Co., Ltd FCC ID: OU9LS206-E01 Product Name: Body fat analyzer Product Description: Wireless Body fat analyzer with 915MHz as carrier Model No.: LS206-E Standards: 47 CFR PART 15 Subpart C: 2011 section 15.249 Date of Receipt: 2012-08-10 Date of Test: 2012-08-12 to 2012-08-22 Date of Issue: 2012-10-05 Test Result : Pass* * In the configuration tested, the EUT complied with the standards specified above. SGS-CSTC Standards Technical Services Co., Ltd. Report No.: GZEM120700301001 Page: 2 of 28 FCC ID: OU9LS206-E01 This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at www.sgs.com/terms_and_conditions.htm and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at www.sgs.com/terms_e-document.htm. Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only. 2 Version Revision Record Version Chapter Date Modifier Remark 00 2012-10-05 Original Authorized for issue by: Tested By 2012-08-12 to 2012-08-22 (Storm Shu) / Project Engineer Date Prepared By 2012-09-30 (Storm Shu) / Project Engineer Date Checked By 2012-10-05 Strong Yao/ Reviewer Date SGS-CSTC Standards Technical Services Co., Ltd. Report No.: GZEM120700301001 Page: 3 of 28 FCC ID: OU9LS206-E01 This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at www.sgs.com/terms_and_conditions.htm and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at www.sgs.com/terms_e-document.htm. Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only. 3 Test Summary TEST TEST REQUIREMENT TEST METHOD RESULT Field Strength of Fundamental FCC PART 15 C section 15.249 (a) ANSI C63.10: Clause 6.6 PASS Field Strength of Unwanted Emissions FCC PART 15 C section 15.249 (a) section 15.249 (d) ANSI C63.10: Clause 6.4, 6.6 and 6.7 PASS Band Edges FCC PART 15 C section 15.249 (d) ANSI C63.10: Clause 6.9.2 PASS Occupied Bandwidth FCC PART 15 C sect…

Text truncated - open the document above for the full version.

Test Setup Photos Radiated Emission Test Setup Below 1G Above 1G: (full anechoic chamber)
