OU9LS208-B06Bluetooth Body Fat Analyzer

version:1.0 GUANGDONG TRANSTEK MEDICAL ELECTRONICS CO., LTD Zone A, 5/F., Investment Building, No. 12, Huizhan East Rd., Torch Development District, Zhongshan, Guangdong, 528437, China TEL:86-760-88282982 www.transtek.cn User Manual Body Fat Analyzer LS208-B6 Please do read the user manual carefully and thoroughly so as to ensure the safe usage of this product, and keep the manual well for further reference in case you have problems. Thank you very much for selecting the Transtek Body Fat Analyzer LS208-B6. Contains FCC ID: XXXXXXXXXX 1 Table of Contents Table of Contents Safety Information Overview Device Components LED Display Initial Start-Up General Instructions Insert the Batteries Install App and Pair-up Start Measuring Daily Measurement Manage Your Health Data Transmission Troubleshooting Error Prompt When Measuring ... When Data Transmitting... Specifications Maintenance Warranty FCC Regulations Appendix Health Tips – About Body Fat EMC Guidance 4 5 6 6 7 8 9 10 10-11 12 13 14 14 15 17-20 ................................................................................................................. ................................................................................................................. ............................................................................................................................. .................................................................................................................... .................................................................................................................. .................................................................................................................. ........................................................................................................ ............................................................................................................................ ............................................................................................................................... ...................................................................................................................................... ............................................................................................................ ................................................................................................. ......................................................................................................................... .............................................................................................................................. ................................................................................................................... ........................................................................................................................ Tips 3 Safety and Usage Information 2 ................................................................................................... ......................................................................................................................................... List 4 ........................................................................................................................................... 16 Select Measurement Unit 8 .......................................................................................................... Power Supply 6 .......................................................................................................................... 23 Safety InformationSafety Information The warning signs and symbols are essential to ensure your correct and safe use of this product and protect you and others from injury. Please kindly find the meanings of the warning signs and symbols, which you may encounter in the label and user manual, as follows: Safety and Usage Information INDICATIONS FOR USE The Transtek Body Fat Analyzer measures weight and uses bio-electrical impedance analysis (BIA) technology to estimate body fat, total body water percentage, bone mass, and muscle mass in generally healthy children 10-17 years old and healthy adults. It is intended for use in the domestic setting only. Transtek’s Body Fat Analyzer LS208-B6 offers you a seamless way to manage your health. Please be aware that this device is designed for healthy population over 10 years old self-measuring and self-monitoring body compositions. Any information provided by this device is in no way meant to treat, cure or prevent any disease or illness from happening. If in doubt, contact your physician. This device is contraindicated for any female subject who may be suspected of, or is pregnant. Otherwise, the effects of this device on the fetus are unknown. This device is contraindicated for any person who is connected to a wearable or implantable electronic device or instrument such as a pacemaker or defibrillator. This device should not be used for anyone who is acutely or chronically ill because of suffering from a disease or taking medications that affect your water levels. The accuracy of readings for these patients has not been verified. Specific medical advice should be obtained from a physician. LS208-B6 is equipped with data transmission function. It may emit electromagnetic energy so as to perform its intended function. Nearby portable and mobile RF communications equipment can affect the performance of LS208-B6. And the device can interfere vicinity electrical equipment. Manufacturer will make available on request circuit diagrams, component parts list,etc. WARNING:No modifications of this equipment is allowed. This may result in increased EMISSIONS or decreased IMMUNITY of LS208-B6. Please use the device according to the user manual. Any misuse can cause electric shock, burns, fire and other unexpected hazards. Please use and storage the device under the environment which was provided in the user manual. Don’t expose t…

Text truncated - open the document above for the full version.

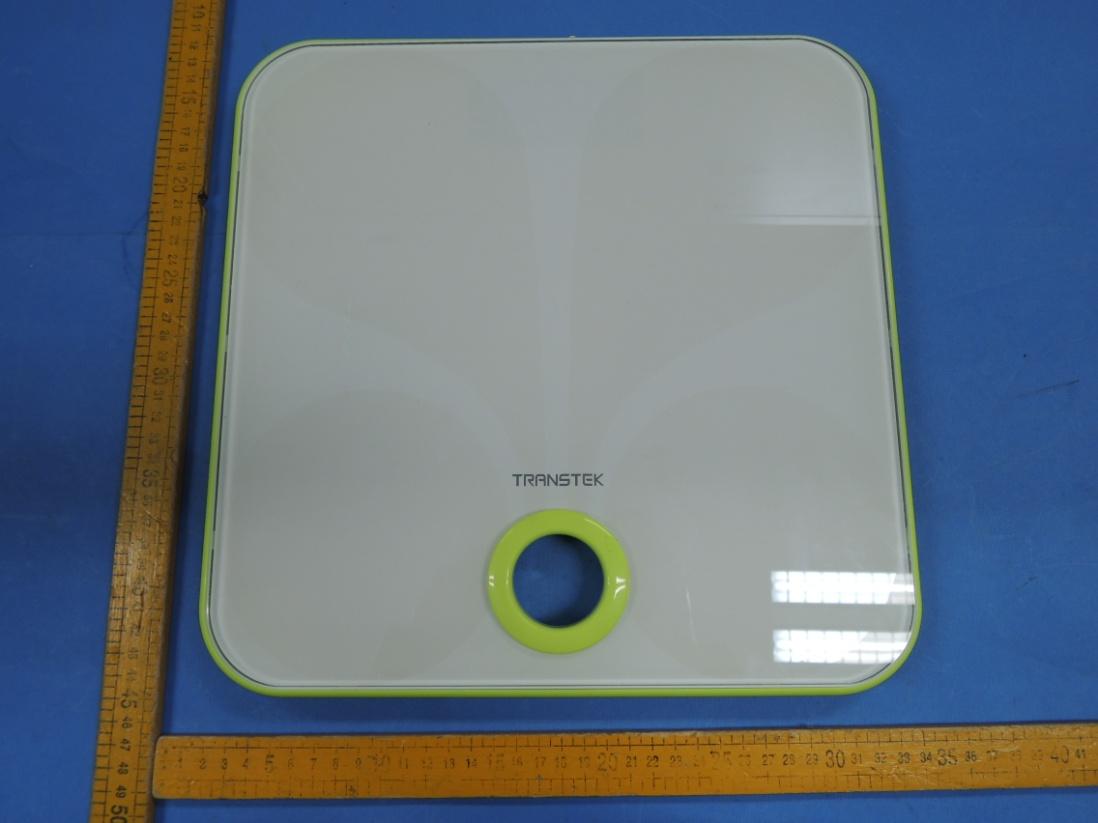

External Photo of LS208-B6

Body Fat Analyzer Model: LS208-B6 Capacity: 180 kg / 397 lb / 28 st : 5 lb Power Supply: 4 x AAA Batteries 6V GUANGDONG TRANSTEK MEDICAL ELECTRONICS CO., LTD SN Zone A, 5/F., Investment Building, No. 12 Huizhan East Rd., Torch Development District, Zhongshan, Guangdong, 528437, China FCC ID: OU9LS208-B06 2014-12 1:1 BLACK letters and Silver background Size: (Label) 43*23mm; This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. IP Classification:IP21

Internal Photo of LS208-B6 BT Antenna

Jiangsu TÜV Product Service Ltd. – Shenzhen Branch 6 floor, H Hall, Culture Creative Park, No. 4001, Fuqiang Road, Futian District, Shenzhen 518048, P. R. China, Tel. +86 755 8828 6998, Fax: +86 755 8828 5299 RF exposure Estimation 1. Introduction The EUT is Bluetooth body fat analyzer, which contain Bluetooth function inside. 2. Limit and Guidelines on Exposure to Electromagnetic Fields According to§15.247(e)(i) and §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensure that the public is not exposed to radio frequency energy level in excess of the Commission’s guideline. According to KDB 447498 D01 Mobile Portable RF Exposure v05r01, no SAR required if power is lower than the flowing threshold: The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] [√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where • f(GHz) is the RF channel transmit frequency in GHz • Power and distance are rounded to the nearest mW and mm before calculation25 • The result is rounded to one decimal place for comparison • 3.0 and 7.5 are referred to as the numeric thresholds in the step 2 below The test exclusions are applicable only when the minimum test separation distance is ≤ 50 mm and for transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm according to 5) in section 4.1 is applied to determine SAR test exclusion. 3. Calculation method [(max. power of` channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] ·[√f(GHz)] ≤ 3.0 BT4.0： Conducted Power + tune up tolerance = -2.31dBm=0.59 mW Distance = 5 mm f = 2.480 GHz [0.59/5] * SQRT(2.480) =0.19 0.19 ≤ 3.0 Therefore, excluded from SAR testing. TÜV SÜD Certification and Testing (China) Co., Ltd. Shenzhen Branch eviewed by: Prepared By: Phoebe Hu/EMC Project Manager Felix Li/EMC Project Engineer Date: 2015-01-16 Date: 2015-01-16

Report Number: 68.930.14.004.01 EMC_SZ_FR_21.00 FCC Release 2014-03-20 TÜV SÜD Certification and Testing (China) Co., Ltd. Shenzhen Branch Building 12&13, Zhiheng Wisdomland Business Park, Nantou Checkpoint Road 2, Nanshan District, Shenzhen City, 518052, P. R. China Tel. +86 755 8828 6998, Fax: +86 755 8828 5299 Page 1 of 23 FCC - TEST REPORT Report Number : 68.930.14.004.01 Date of Issue: December 25, 2014 Model : LS208-B6 Product Type : Body Fat Analyzer Applicant : Guangdong Transtek Medical Electronics Co., Ltd Address : Zone A, 5/F., Investment Building, No. 12 Huizhan East Rd., Torch Development District, Zhongshan, Guangdong, China 528437 Production Facility : Guangdong Transtek Medical Electronics Co., Ltd Address : Zone A, 5/F., Investment Building, No. 12 Huizhan East Rd., Torch Development District, Zhongshan, Guangdong, China 528437 Test Result :  Positive  Negative Total pages including Appendices : 23 TÜV SÜD Certification and Testing (China) Co., Ltd. Shenzhen Branch is a subcontractor to TÜV SÜD Product Service GmbH according to the principles outlined in ISO 17025. TÜV SÜD Certification and Testing (China) Co., Ltd. Shenzhen Branch reports apply only to the specific samples tested under stated test conditions. Construction of the actual test samples has been documented. It is the manufacturer's responsibility to assure that additional production units of this model are manufactured with identical electrical and mechanical components. The manufacturer/importer is responsible to the Competent Authorities in Europe for any modifications made to the production units which result in non-compliance to the relevant regulations. TÜV SÜD Certification and Testing (China) Co., Ltd. Shenzhen Branch shall have no liability for any deductions, inferences or generalizations drawn by the client or others from TÜV SÜD Certification and Testing (China) Co., Ltd. Shenzhen Branch issued reports. This report is the confidential property of the client. As a mutual protection to our clients, the public and ourselves, extracts from the test report shall not be reproduced except in full without our written approval Report Number: 68.930.14.004.01 EMC_SZ_FR_21.00 FCC Release 2014-03-20 TÜV SÜD Certification and Testing (China) Co., Ltd. Shenzhen Branch Building 12&13, Zhiheng Wisdomland Business Park, Nantou Checkpoint Road 2, Nanshan District, Shenzhen City, 518052, P. R. China Tel. +86 755 8828 6998, Fax: +86 755 8828 5299 Page 2 of 23 1 Table of Contents 1 Table of Contents ................................................................................................................................................................... 2 2 Details about the Test Laboratory .......................................................................................................................................... 3 3 Description of the Equipment Under Test ............................................................................................................................. 4 4 Summary of Test Standards ................................................................................................................................................... 5 5 Summary of Test Results ....................................................................................................................................................... 6 6 General Remarks .................................................................................................................................................................... 7 7 Test Setups ............................................................................................................................................................................. 8 8 Systems test configuration ..................................................................................................................................................... 9 9 Technical Requirement ........................................................................................................................................................ 10 9.1 Conducted peak output power ..................................................................................................................................... 10 9.2 Power spectral density ................................................................................................................................................. 11 9.3 6 dB Bandwidth .......................................................................................................................................................... 12 9.4 Spurious RF conducted emissions ............................................................................................................................... 14 9.5 Band edge testing ........................................................................................................................................................ 18 9.6 Spurious radiated emissions for transmitter ................................................................................................................ 20 10 Test Equipment List ............................................................................................................................................................. 22 11 System Measurement Uncertainty ....................................................................................................................................... 23 Report Number: 68.930.14.004.01 EMC_SZ_FR_21.00 FCC Release 2014-03-20 TÜV SÜD Certification and Testing (China) Co., Ltd. Shenzhen Branch Building 12&13, Zhiheng Wisdomland Business Park, Nantou Checkpoint Road 2, Nanshan District, Shenzhen City, 518052, P. R. China Tel. +86 755 8828 6998, Fax: +86 755 8828 5299 Page 3 of 23 2 Details about the Test Laboratory Details about the Test Laboratory Test Site 1 Company name: TÜV SÜD Certification and Testing (China) Co., Ltd. Shenzhen Bra…

Text truncated - open the document above for the full version.

Page 1 of 1 Test setup photos Transmitting spurious emission (below 1GHz) Transmitting spurious emission (Above 1GHz)
