OU9LS410-B01Activity Tracker

version:1.0 TEL:86-760-88282982 www.transtek.cn User Manual Activity TrackerLS410-B Please do read the user manual carefully and thoroughly so as to ensure the safe usage of this product, and keep the manual well for further reference in case you have problems. Thank you very much for selecting the Transtek Activity Tracker LS410-B. Guangdong Transtek Medical Electronics Co., Ltd. Zone A, No.105 ,Dongli Road, Torch Development District, Zhongshan,528437,Guangdong,China 1 Table of Contents Table of Contents Overview Device Components Initial Start-Up General Instructions How to Wear the Activity Tracker Start Measuring How to Use Specifications Maintenance Warranty 3 3 7 9 11 12 12 ................................................................................................................. ................................................................................................................. ................................................................................................................... ............................................................................................................................ ............................................................................................................................... ...................................................................................................................................... ............................................................................................... Install the APP and Pair up 6 ..................................................................................................... How to Light it up Recall the Data on the APP10...................................................................................................... Symbol Meaning Symbol Meaning 2 ................................................................................................................. Installing and Replacing the Battery 4-5 .......................................................................................... Warning 13 ...................................................................................................................................... Activity Tracker Care 13 .................................................................................................................. Health Disclaimer 13 ....................................................................................................................... Other Notes 13 ................................................................................................................................ FCC Statement 14 ............................................................................................................................ View the Data Recall the Data on Activity Tracker 10 ........................................................................................... 8 ................................................................................................................... 23 List 1. Activity Tracker LS410-B 2. One CR2032 battery 3. One Screwdriver 4. User Manual OverviewSymbol Meaning General Instructions Device Components Symbol Meaning LED lights Wrist Band (Indicate the time or the completed amount of the goal) 12 o’clock direction indicator light Screwdriver Transtek Activity Tracker LS410-B is designed to measure the walked steps, walked distance and the burned calories.It also can display the time. This device has Bluetooth 4.0 technology, the user can set the personal information,such as height, weight, etc,through the bluetooth device. And then download the information to Activity Tracker. The data in the Activity Tracker also can be uploaded to the device which supports the Bluetooth 4.0 technology. So the user can check it at anytime. Main Features: a. support the Bluetooth 4.0 technology b. 12 pcs yellow LED display the time and completed amount of the goal, 1 pcs red LED indicate low battery c. keep a record of the measuring data during 7 days d. can connect with the app, set the daily goal steps, and keep a record of steps, walked distance and burned calories through the APP. e. track the quality of sleeping (this function can be set on the appand will be judged by the APP server. If the app doesn’t has sleep module, this function won’t be shown on the Activity Tracker.) The warning signs and symbols are essential to ensure your correct and safe use of this product and protect you and others from injury. Please kindly find the meanings of the warning signs and symbols, which you may encounter in the label and user manual, as follows: Caution: These notes must be observed to prevent any damage to the device. Symbol for “MANUFACTURER” Symbol for “ENVIRONMENT PROTECTION – Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with your local authority or retailer for recycling advice” Symbol for “DIRECT CURRENT” The Bluetooth Combination Mark Symbol for “COMPLIES WITH EU REQUIREMENTS” 5 4 Initial Start-UpInitial Start-Up Installing and Replacing the Battery When you use the Activity Tracker for the first time, please install the battery (1×CR2032) first. Remove the battery if the device is not likely to be used for some time. The old battery is harmful to the environment, do not dispose with other daily trash. Remove the old battery from the device and follow your local recycling guidelines. CAUTION Replace the batteries whenever the below happen The red LED light blinks The LED display does not light up Do not dispose of battery in fire. Battery may explode or leak. • Insert the matched screwdriver into the notch of the main unit, use it to pry the bottom case of the Activity Tracker open. • Install the battery by matching the correct polarity, as shown. (Always select the authorized / specified battery : One CR2032 Lithium Battery) • Close the bottom case. Buckle the place which the bot…

Text truncated - open the document above for the full version.

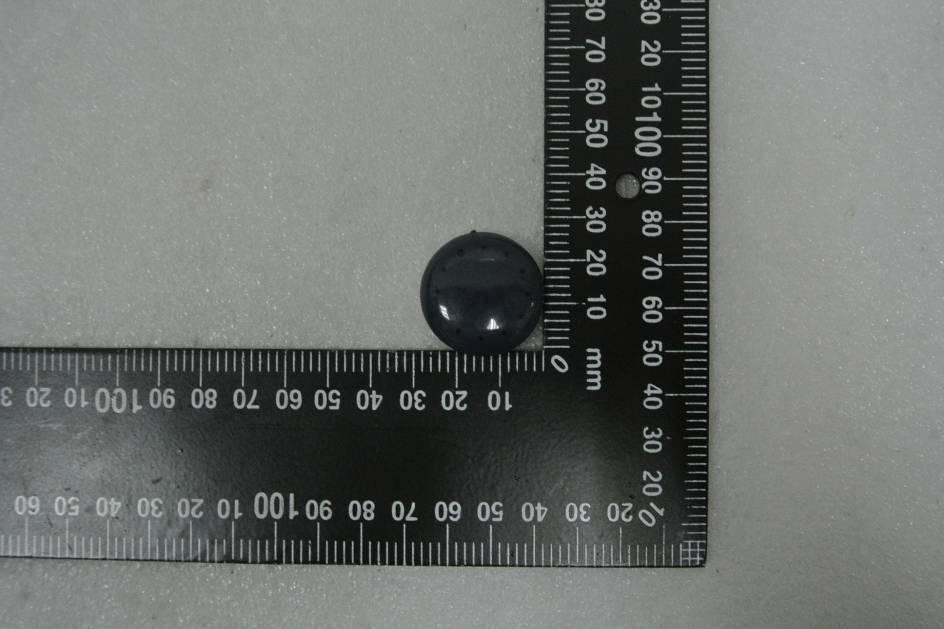

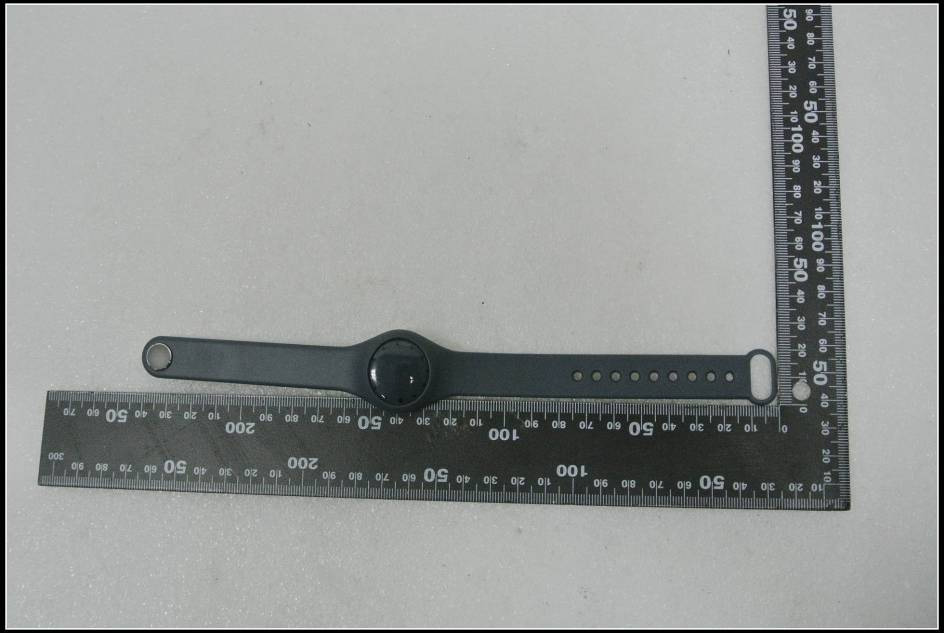

External Photo

贴纸尺寸： 21.9mm 颜色：黑底白字 材质：不可移不干胶贴纸 过光胶 1:1 LS410-B 2015-7-3 PO# 背贴 ref: 示意图： Rating : 1xCR2032,3V Made in China TRANSTEK Activity Tracker LS410-B Rating : 1xCR2032,3V Made in China TRANSTEK Activity Tracker LS410-B FCC ID: OU9LS410-B01 FCC ID: OU9LS410-B01

Internal Photo

SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Application No..: GZEM150700336301 Page: 1 of 1 FCC ID: OU9LS410-B01 This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at http://www.sgs.com/en/Terms-and-Conditions.aspxand,for electronic format documents, subject to Terms and Conditions for Electronic Documents at http://www.sgs.com/en/Terms-and-Conditions/Terms-e-Document.aspx. Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 30 days only. RF Exposure Compliance Requirement The product belongs to standalone portable device base the FCC rule part 2.1091&2.1093. The transmission frequencies of the device are between 100 MHz and 6 GHz. The worst case test separation distance is 5mm. The Max Radiated Output Power and SAR Test Exclusion Threshold (mW) are listed below: Transmit frequency (GHz) Max Radiated Output Power (dBm) Max Radiated Output Power (mW) SAR Test Exclusion Threshold (mW) 2.402 -0.82 0.83 9.7 2.440 -1.71 0.67 9.6 2.480 -3.96 0.32 9.5 The SAR Test Exclusion Threshold for 100 MHz to 6 GHz is calculated from: 1) The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] · [√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where  f(GHz) is the RF channel transmit frequency in GHz  Power and distance are rounded to the nearest mW and mm before calculation The result is rounded to one decimal place for comparison The test exclusions are applicable only when the minimum test separation distance is ≤ 50 mm and for transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm is applied to determine SAR test exclusion. According to SAR Exclusion Threshold in KDB 447498 (D01) General RF Exposure Guidance v05r02, the SAR report is not required.

SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch 198 Kezhu Road, Scientech Park, Guangzhou Economic & Technological Development District, Guangzhou, China 510663 Telephone: +86 (0) 20 82155555 Fax: +86 (0) 20 82075059 Email: [email protected] Report No.: GZEM150700336301 Page: 1 of 43 FCC ID: OU9LS410-B01 Authorized Signature: Jerry Chan Manager The manufacturer should ensure that all products in series production are in conformity with the product sample detailed in this report. If the product in this report is used in any configuration other than that detailed in the report, the manufacturer must ensure the new system complies with all relevant standards. The report must not be used by the client to claim product certification, approval, or endorsement by NVLAP, NIST, or any agency of the federal government. All test results in this report can be traceable to National or International Standards. This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at http://www.sgs.com/en/Terms-and-Conditions.aspxand,for electronic format documents, subject to Terms and Conditions for Electronic Documents at http://www.sgs.com/en/Terms-and-Conditions/Terms-e-Document.aspx. Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 30 days only. 1 Cover Page TEST REPORT The following sample(s) was/were submitted and identified on behalf of the client as: Application No.: GZEM1507003363CR Applicant: Guangdong Transtek Medical Electronics Co., Ltd. Manufacturer: Same as the applicant. FCC ID: OU9LS410-B01 Product Description: Activity Tracker Model No.: LS410-B Trade Mark: Lifesense Standards: CFR 47 FCC PART 15 Subpart C: 2014 section 15.247 Date of Receipt: 2015-07-13 Date of Test: 2015-07-21 to 2015-07-30 Date of Issue: 2015-08-07 Test Result : Pass* * In the configuration tested, the EUT detailed in this report complied with the standards specified above. Please refer to section 3 of this report for further detail. SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Report No.: GZEM150700336301 Page: 2 of 43 This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at http://www.sgs.com/en/Terms-and-Conditions.aspxand,for electronic format documents, subject to Terms and Conditions for Electronic Documents at http://www.sgs.com/en/Terms-and-Conditions/Terms-e-Document.aspx. Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 30 days only. 2 Version Revision Record Version Chapter Date Modifier Remark 00 2015-08-07 Original Report Authorized for issue by: Tested By 2015-07-21 to 2015-07-30 (Curry Wu) / Project Engineer Date Prepared By 2015-08-07 (June Chen) / Clerk Date Checked By 2015-08-07 (Little Xiang) / Reviewer Date SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Report No.: GZEM150700336301 Page: 3 of 43 This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at http://www.sgs.com/en/Terms-and-Conditions.aspxand,for electronic format documents, subject to Terms and Conditions for Electronic Documents at http://www.sgs.com/en/Terms-and-Conditions/Terms-e-Document.aspx. Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 30 days only. 3 Test Summary Test Test Requirement Test method Result An…

Text truncated - open the document above for the full version.

Test Setup Photo 1.1 RADI ATE D SP URI OU S EM ISSIO N TE ST SETUP Below 1GHz: Above 1GHz: (full anechoic chamber)
