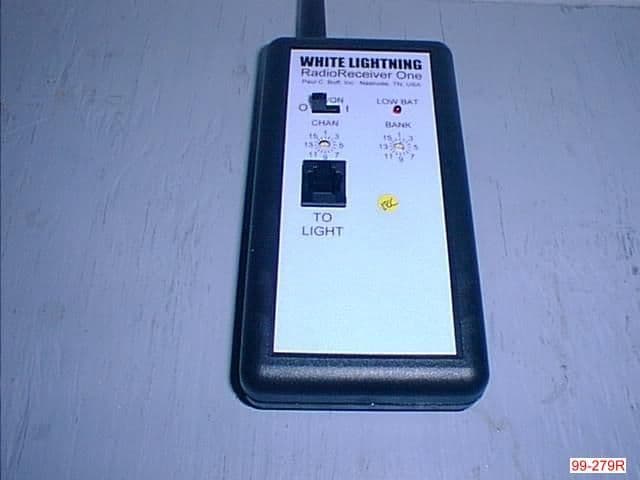

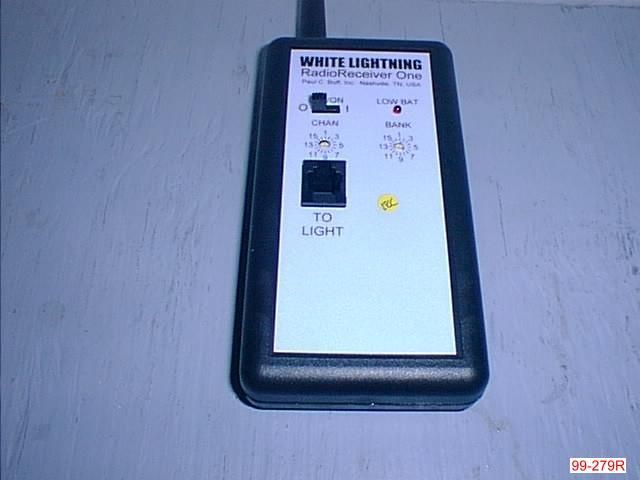

OUERR1RXWhite Lighting RadioReceiver One

The channel ONand OFF buttons set each individual channel state.If a channel is set to OFF,it is taken out of the bracketing (ALL)mode,it is not firedby camera sync and all commands are ignored except ON. Backlit Liquid Crystal Display (LCD) indicates exact settings of flashpower, bank / channel information,as well as specific model lamp status. Bargraphindicator shows channel flashpower settings at a glance. Pressing a FLASHPOWERbut- ton raises or lowers flashpow- er.Increments in 1 f-stop (double-arrow)units or in 1/10 f-stop (single-arrow) units. Pressing and holding BANK while pressing up/down arrowCHANNELbuttons selects from Bank 1 to 16. Pressing the up/down arrow CHANNELbutton selects 1 of 16 possible channels. The MODELselect button scrolls through the three possible model lamp states - ON,OFF or TRACKING mode. The current MODEL status is indicated by the Model Lamp iconin the LCDwindow. WHITE LIGHTNING RadioRemote One Wireless Remote Control System (Includes Instructions for RadioRemote One Transmitter and RadioReciever One) 10 / 1999 Paul C.Buff,Inc./ WHITE LIGHTNING / 800-443-5542 2725 BransfordAve.• Nashville,TN 37204 • USA fax:615-383-0676 • website:http://www.white-lightning.com F-VALUEis a two-digit display showing channel flashpower in 1/10 f-stop units.Range is from +0.0 to -6.2 f-stops. BANK/CHANdisplay shows current channel.While pressing BANKbutton,display shows currently assigned bank. When using (ALL) mode,dis- play shows if a channel is over or under range by indicating lowest numbered channel out- of-range. ALLchannel mode indicator becomes active when pressing and holding the ALLbutton. Used for bracketing scenes while maintaining lighting ratios. The MODELlamp icon indi- cates one of three states - ON= blank,OFF= dark,and TRACKING= half-bulb. Pressing the ALLbutton once sends the current settings to all lights.Pressing and holding the ALL button together with anyFLASHPOWERbutton,rais- es or lowers all channels’ flash- power (unless a channel is out- of-range - see text) Pressing FIREtest flashes the channel number currently displayed in the CHAN window.Pressing ALL before,either once or holding,then pressing FIRE test flashes all lights in system. TRANSMITTER POWER ON/OFF switch controls either battery or DC power supply (if connected). CHANNELselect switch sets 1 of 16 receiver oper- ating channels in selected Bank. White Lightning remote jack con- nects here with RJ- 11 type modular type phone cable. Model lamp blinks when receiver is addressed letting you know system is working. DC POWER connector is located on top apron for easy access.Use onlyPaul C.Buff,Inc.approved DC power supplies. Auxiliary sync con- nector is located next to AC power connector.Used for flash units not equipped with White Lightning remote jack. LOW BATled blinks four (4) times on power up and when battery power has depleted to 1/3 level - about 100 hours.Blinks once each time a command is received from the transmitter. BANKselect switch sets system bank (1 of 16).All chan- nels are inclusive in this selected bank. Equipment Supplied: Each RadioRemote One Transmitter comes supplied with the following items: • Two "AA" batteries • Velcro strap • Peel-off Velcro adhesive mounting pad • Stereo mini-plug to 2-prong sync connector • Instruction manual Each RadioRemote One Receiver comes supplied with the following items: • DC power supply • Bank and Channel selection screwdriver• Velcro mounting strap • Peel-off Velcro adhesive mounting pad • 6 ft.modular telephone cable • Instruction manual © Copyright 1999 Paul C.Buff,Inc.,Nashville,TN,USA Ref # 112299RR1M R E C E I V E R Overview The RadioRemote One system provides full wireless remote control of all Paul C.Buff,Inc.White Lightning Ultra,UltraZap and X-Series flash units via the "To Light" jack.Most flash units from other manufacturers may be fired,but not adjusted,from the receiver's auxiliary sync jack via a suitable cable to fit the specific flash unit. C a u t i o n :The RR1 re c e i ver is designed for modern flash units with low current,low voltage (50V max) sync.Some older flash units have volt- ages as high as 400 volts at the sync terminals and could damage the unit. Setup In a typical lightning setup,the transmitter and all receivers should be assigned the same Bank number, with each receiver set to a different one of the 16 Channels.If there is more than one lighting setup in the same area,assigning a different Bank number to each lighting setup elimi- nates any interaction between the setups.Thus,as many as 16 photog- raphers can each operate up to 16 light units in the same area without i n t e r a c t i o n .It is important to remember that flash units with built in slave trippers will fire one another, re g a rdless of Bank and Channel assignments,if the slave function is not disabled.This is accomplished in White Lightning units by inserting an unconnected sync cord or a blank "1/4" Stereo Phone Plug" (available at Radio Shack stores) into the sync jack of the White Lightning unit. If you are operating in a studio environment you might choose to not disable the built in slaves.This will assure that if one receiver hap- pens to miss a fire command its light will fire anyhow via the flash received from the other flashes.This method will,however,not allow you to test fire individual light units from the RR1 transmitter. Camera Sync The transmitter should be con- nected to the camera sync jack via the cable supplied.Cameras with focal plane shutters should be set to 1/60" or slower shutter speed,while leaf shutter cameras may be set to 1/125" or slower.(An optional hot shoe adaptor may be required for cameras lacking a sync output jack). Operating Range Typical operating range should be from about 100' up to 400' or more and may be affected by a number of factors,including buildings,vegeta- tion,bodies of water and interfer- ence from other radio transmitters. Antennas should be kept vertical and the receivers should be mount-…

Text truncated - open the document above for the full version.

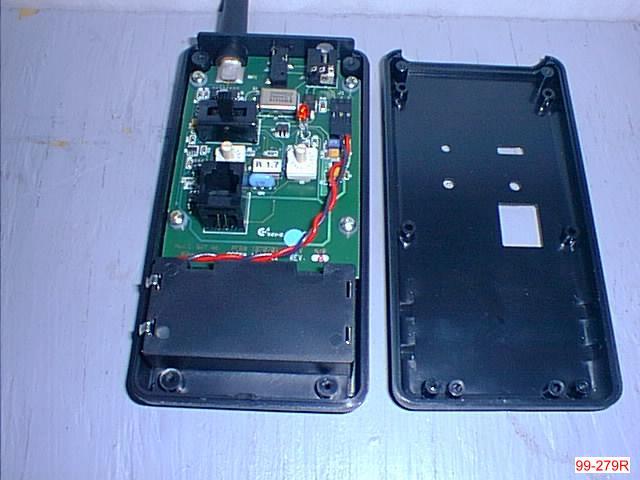

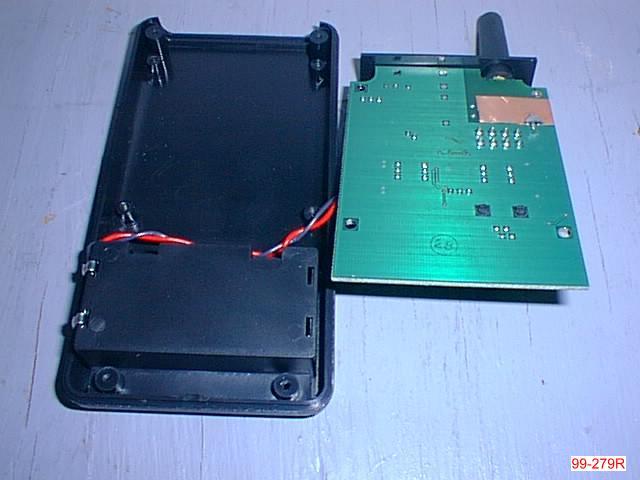

RISC Microcontroller 16.0 MHz Crystal 7.1240 MHz Antenna Switching Power Supply AC Adapter MICRF003 Monolithic Receiver 916.5 MHz Dual Digital to Analog Converter "Bank" Switch 1 of 16 "Channel." Switch 1 of 16 Optoisolated Transistor Sync Output Jack White Lightning Output Jack Status Lamp 3 Volt Battery I2C Figure 1 RR1RX Block Diagram

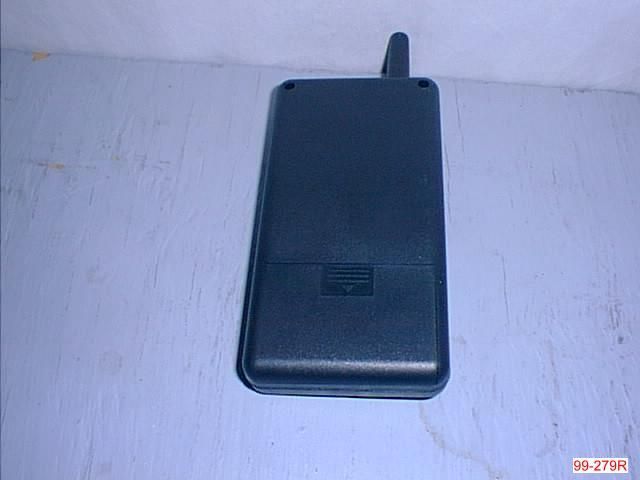

RadioRemoteOne Transmitter Label Quick Reference BANK + FLASH BANK + FLASH BANK + ON ALL then FIRE Press BANK Once Sync delay is 2.5 milliseconds See manual for details. FCC ID YYYRR1TX This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. = Save Scene = Restore Scene = Factory Defaults = Fire All Lights = Backlight On Note: Label to be place on the rear of the RR1TX just above the battery door. RadioRemoteOne Receiver label Note: Label to be place on the rear of the RR1RX just above the battery door. FCC ID YYYRR1RX This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

RadioRemoteOne Transmitter Label Quick Reference BANK + FLASH BANK + FLASH BANK + ON ALL then FIRE Pr e s s BA NK On ce Sy nc de lay is 2 .5 millis e c on d s See manual f or details. FCC ID OUERR1TX T his devi ce com pl ies w ith par t 15 of th e FC C R ul es . Oper ati on i s su bj ec t t o t he fol low i ng tw o conditions: ( 1) thi s d evi ce m ay n ot c aus e harm ful i nt er fer e nce, and (2) t his device must ac cep t any in terfere nc e rec eived, i nclu din g i n ter fer enc e t hat m ay c aus e u ndesired operati on. = Save Scene = Re s tor e Sc ene = Factory Defaults = Fire A ll Lights = Bac klight On Note: Label to be place on the rear of the RR1TX just above the battery door. RadioRemoteOne Receiver label Note: Label to be place on the rear of the RR1RX just above the battery door. FCC ID YYYRR1RX This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Theory of Operation RadioRemoteONE Receiver Paul C. Buff Inc. 2725 Bransford Ave. Nashville, TN 37204 November 30, 1999 1 Introduction The RadioRemoteOne Receiver (RR1RX) is used in conjunction with The RadioRemoteOne Transmitter (RR1TX) to remotely control via wireless short range radio Photographic Flash units designed by Paul C. Buff Inc. All communication uses digital encoding so that up to 16 flash unit can be controlled from one transmitter. Each flash unit requires a separate receiver. Theory of Operation Figure 1 shows the RR1RX block diagram. The intelligence is provided by software running on the PIC16C63A from Microchip Inc. The actual receiver function is centered around the Micrel MICRF003 monolithic receiver chip and an assortment of passive components. The carrier frequency for the RF link is 916.5 MHz. This is set in the receiver circuit by the 7.1240 MHz crystal. Any other frequencies are internal to the MICRF003. The data sheet for the MICRF003 is attached as MICRF003.pdf. Each receiver listens only to data grams addressed to a single BANK address and a single CHANNEL address. For broadcast (ALL) commands the receiver ignores the channel address. Which BANK and CHANNEL address the receiver responds to is determined by rotary hex encoded switches. The MICRF003 produces a steam of ONEs and ZEROs to an input on the PIC microcontroller. Software in the microcontroller decodes each data-gram looking for valid sync codes, BANK addresses and CHANNEL addresses. Each data-gram has a checksum attached witch is also validated. If these codes are valid the command/data section of the data-gram is decoded and the appropriate action is taken. 2 RISC Microcontroller 16.0 MHz Crystal 7.1240 MHz Antenna Switching Power Supply AC Adapter MICRF003 Monolithic Receiver 916.5 MHz Dual Digital to Analog Converter "Bank" Switch 1 of 16 "Channel." Switch 1 of 16 Optoisolated Transistor Sync Output Jack White Lightning Output Jack Status Lamp 3 Volt Battery I2C Figure 1 RR1RX Block Diagram Outputs from the RR1RX include the Sync Output, Status Lamp, and White Lightning Remote Output Jack. The Sync Output is an opto-isolated output used to fire lights that do not have a remote jack. The status LED is used to indicate low battery condition at power up and valid data receipt during normal operation. The Remote Jack included the Sync signal sent out the Sync Output as well as two analog output from the I2C serial A/D converter controlled by the microcontroller. The values ouput from the A/D are determined by command codes sent from the transmitter. The RR1RX has the same power supply design as the RR1TX with two exceptions. It does not have a 3.0 V output and it has a external 3.0 V input from a “wall power supply” when A/C power is available.

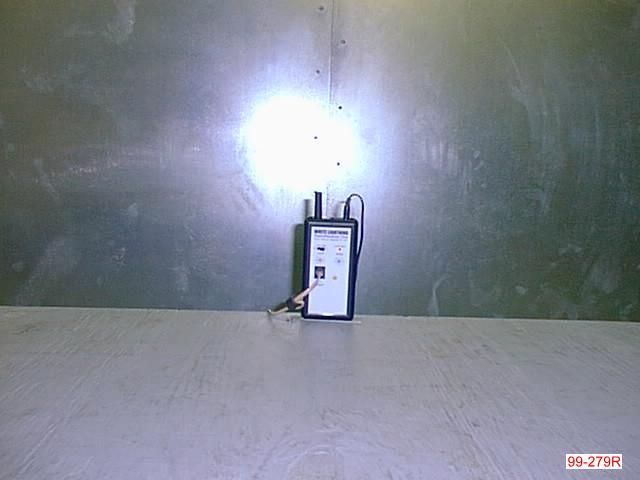

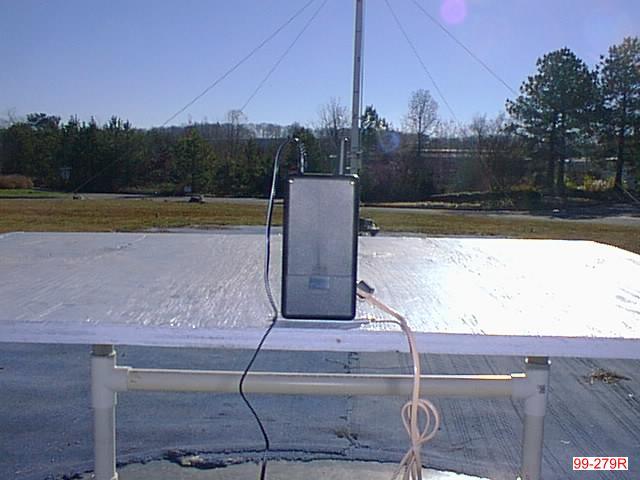

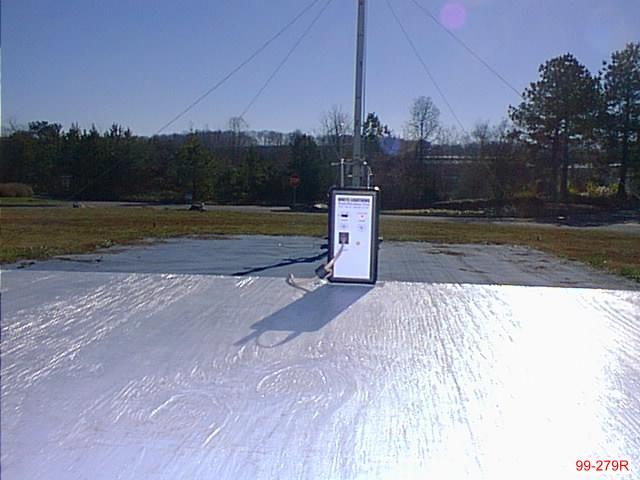

RF Emissions Test Report To Determine Compliance With: FCC, Part 15 Rules and Regulations Model numbers: RR1-RX December 9, 1999 Manufacturer:Paul C Buff 2725 Bransford Ave. Nashville, TN 37204 EMC Testing Laboratories, Inc. authorizes the above company to reproduce this report provided it is reproduced in its entirety EMC Testing Lab. (770) 781-9228 Test report no. 99-279R Page 2 of 1 1 6 6 Contents Section General Information .......................................................................1 Test Summary..................................................................................2 Standard Reference ........................................................................3 Test Method ..........................................................................4 Radiated Emissions Measurements ..................................................5 Conducted Emissions Measurements ..............................................6 Configuration ...........................................................................7 EMC Testing Lab. (770) 781-9228 Test report no. 99-279R Page 3 of 1 1 6 6 Section 1 General Information Applicant/ Manufacturer:Paul C Buff 2725 Bransford Ave. Nashville, TN 37204 Applicant representative:Mr. David Mundie Equipment covered by this report:Model no. RR1-RX Options covered by this report:None Equipment serial no.Engineering sample Test specifications:To determine compliance with: FCC, Part 15, Subpart B Rules and Regulations, Class B Test report number:99-279R Test commenced:November 11, 1999 Test completed:December 7, 1999 Test engineer:Kent Stewart Test Facility:The test facility used to perform these tests is on file with the FCC under file 31040/SIT, 1300F2 and located at: EMC Testing Laboratories, Inc. 2420 Oak Street West Cumming, GA. 30041-6456 EMC Testing Lab. (770) 781-9228 Test report no. 99-279R Page 4 of 1 1 6 6 Section 2 Test report summary sheet 1 of 2 Summary: TestsResults FCC, Part 15, Class B, Radiated Emissions: Pass FCC, Part 15, Class B, Conducted Emissions: Pass 1- The product(s) covered by this report was found to comply with the class B radiated and conducted emission limits of the FCC, Part 15, Subpart B Rules and Regulations. 2- The minimum margin of compliance was –17.1 dBμv at 15.5 Mhz followed by 18.5 dBμv at 28.0 Mhz Product description: The product(s) covered by this report consisted of a model RR1-RX , remote for use in receiving data sent to the receiver to adjust lighting equipment during photography. The received data is then interpreted by the receiver and then output to the lighting equipment via a RJ-11 cable. The receiver is designed to receive a 916.5 MHz radio signal from a hand held remote control and utilizes an IF of 2.494 MHz. Additionally, the unit may be powered from two double AA batteries or from a direct plug-in power supply. Emissions measurements were taken with the unit powered from both power types and it was found that all radiated emissions were 20dBuV below the indicated limits. Test configuration: The equipment under test was set-up and configured as specified by the manufacturer. 1- The EUT was connected to the following support peripherals. A) A direct plug-in power supply, manufactured by Strong World, Model CH-33001-N, input rated 120Vac, 60Hz, 4W, output rated 3Vdc, 300mA. 2- The EUT utilized the following cables and were connected as indicated below: A) An unshielded, RJ-11 cable was connected to the EUT’s, TO LIGHT port. The RJ-11 cable was provided with a ferrite and the cable was double looped through the ferrite, which was located 5.6 cm from the RJ-11 connector end that connects to the EUT. EMC Testing Lab. (770) 781-9228 Test report no. 99-279R Page 5 of 1 1 6 6 Test report summary sheet 2 of 2 Test operation: For all measurements, the equipment under test was and caused to function in a continuous mode of operation for maximum electrical activity as specified by the manufacturer. Specifically, the EUT was powered on. Modifications: The following modifications, were required to comply with the indicated limits: 1- None Conclusion: With the above indicated modifications, the product(s) covered by this report has been tested and found to comply with the radiated and conducted emission limits for a class B device in accordance with the FCC, Part 15, Subpart B Rules and Regulations. Tested by: Kent StewartGene Bailey Laboratory ManagerEngineering Manager EMC Testing Laboratories, Inc.EMC Testing Laboratories December 9, 1999 December 9, 1999 EMC Testing Lab. (770) 781-9228 Test report no. 99-279R Page 6 of 1 1 6 6 Section 2 cont... This page intentionally left blank. (Reserved for future use) EMC Testing Lab. (770) 781-9228 Test report no. 99-279R Page 7 of 1 1 6 6 Section 3 STANDARD REFERENCE The following primary standards were used for this test: 1)ANSI C63.4-1992: Method of Measurements of Radio-Noise Emissions from Low- Voltage Electrical and Electronic Equipment in the 9 Khz to 40 Ghz. 2)US Code of Federal Regulations (CFR) - 1998: Title 47, Part 15, Radio Frequency Devices, Subpart B, Unintentional Radiators. EMC Testing Lab. (770) 781-9228 Test report no. 99-279R Page 8 of 1 1 6 6 Section 4 TEST METHOD INTRODUCTION: The product(s) covered by this report was subjected to electromagnetic interference emissions measurements to determine compliance with the FCC, Part 15 requirements. Radiated emissions and conducted emissions were measured in accordance with Methods of Measurement of Radio-Noise Emissions from Low-Voltage Electrical and Electronic Equipment in the Range of 9 Khz to 40 Ghz, C63.4. RADIATED EMISSIONS MEASUREMENT: Radiated emissions measurements are performed at an open field test site. The receiving antennas were positioned 3 meters from the equipment under test along the center axis of the test site. Measurements were made with broadband antennas and if necessary, detected emissions were verified with dipole antennas. The dipole antenna was manually tuned to the signal fre…

Text truncated - open the document above for the full version.
