OUS117B20-Watt VHF High-band Translator

INSTRUCTION MANUAL 117B 20 WATT VHF HIGH BAND TRANSLATOR AXCERA, LLC 103 FREEDOM DRIVE P.O. BOX 525 LAWRENCE, PA 15055-0525 USA (724) 873-8100 • FAX (724) 873-8105 www.axcera.com • [email protected] 117B 20 Watt VHF High Band TranslatorTable of Contents - Page 1 of 1 - Table of Contents 1.Introduction: 2.System – 117B: .................................................................................... 1175-1000 a.System Description b.Specifications c.Installation Procedure d.System Check Out and Operation Procedure e.Switch Position and Status for Normal Operation f.System Alignment Procedure g.Remote Control Interface Connections h.Drawings: 1.Block Diagram .......................................................................... 1175-3000 2.Interconnect ........................................................................... 1175-8000 3. VHF Low Band Receiver Tray: a.Circuit Description b.Detailed Alignment Procedure c.Drawings: 1.Block Diagram .......................................................................... 1265-3100 2.Interconnect ........................................................................... 1265-8100 4.20 Watt VHF High Band Upconverter/Amplifier Tray: a.Circuit Description b.Detailed Alignment Procedure c.Drawings: 1.Block Diagram .......................................................................... 1174-3100 2.Interconnect ........................................................................... 1174-8100 5.Subassemblies: Refer to the subassembly section for the schematics of the boards and subassemblies that make up the 117B. A drawing list showing the order in which the drawings appear in the subassembly section is found at the beginning of that section. 6.Maintenance and Harnesses: This section contains information on proper operation and maintenance of the 117B. 117B 20 Watt VHF High Band TranslatorSystem Description The 117B is a 20 Watt High Band VHF Television Translator which operates at a nominal Internally Diplexed output power of 20 Watts Peak Sync Visual with typically 2 Watts Aural at a -10 dB Aural/Visual Ratio. Functionally, it is comprised of a VHF Low Band Receiver Tray (1265-1100) and a 20 Watt VHF High Band Upconverter/Amplifier Tray {1355-1010 (Low Band), 1355-1011 (Mid Band) or 1355-1012 (High Band)}. The Receiver Tray receives the Low Band VHF Channel Input at Jack (J1) and converts it to an Internally Diplexed Visual + Aural IF Output (+0 dBm) at J4. The Visual + Aural IF output of the Receiver Tray at J4 is fed to J2 the IF Input Jack for the 20 Watt VHF High Band Upconverter/Amplifier Tray. The Upconverter Section of the Tray mixes the IF with an internally generated L.O. to produce the VHF High Band Channel Frequency Output. The signal is amplified and filtered in the Amplifier Section and directed to J4 the RF Output of the Tray. This output connects to the Antenna for your System. Jack J7 located on the back of the Upconverter/Amplifier Tray is a 37 Position "D" Remote Interface Connector which provides the Operator with a connection for Remote Monitoring and Operation of the Translator. This manual provides the Technical Specifications of the Translator, along with the Circuit Description, Alignment Procedure and the Schematics, Block Diagrams, Interconnects and Replacement Parts Lists necessary for the proper operation and maintenance of the 117B. VHF Solid State Transmitter / Translator 110A / 110B / 112B / 113B / 114B / 115A / 115B / 117B / 118B / 119B
Completely Solid State
Designed for unattended operation with built-in remote control interface
Small size – ideal where space is limited
Class A amplification up to 20W for excellent linearity
Extensive front panel status and metering
Slide out tray assemblies for ease of maintenance with no extenders
BTSC Stereo Ready VHF Solid State Transmitter / Translator Visual Performance Power Output (Peak)10 / 20 / 50 watts Output Impedance50 ohms Output ConnectorType “N” Frequency Range (low band)54 to 88 MHz Frequency Range (high band)174 to 216 MHz Carrier Stability (Transmitters or Translators with FCR)±250 Hz Frequency Translation Stability (Translators)±250 Hz Regulation of RF Output Power 3% Output Variation (over 1 frame) 2% Sideband Response -1.25 MHz and below-20 dB -0.75 to -0.5 MHz+0.5, -2.0 dB -0.5 to +3.58 MHz±0.5 dB 3.58 MHz to 4.18 MHz+0.5, -1.0 dB Freq Response vs. Brightness±0.5 dB Visual Modulation Capability1% (Transmitters) Differential Gain5% Incidental Phase Modulation±3° Linearity (Low Frequency)5% Differential Phase±3° Signal-to-Noise Ratio55 dB 2t K-Factor2% Envelope Delay TransmittersPer FCC Standard Translators±40 ns Video Input (Transmitters)75 ohms Harmonic Radiation-60 dB Intermodulation Products-52 dB (red field) Spurious-50 dB (>3 MHz from channel edge) Noise Figure w/input Preamp6 dB (max.) (Translators) Input Dynamic Range-76 to -25 dBm (Translators) Aural Performance Power Output (Average)1 / 2 / 5 watts Distortion0.5% FM Noise-60 dB AM Noise-53 dB Aural to Visual Separation4.5 MHz, ±100 Hz (Transmitters) Composite Audio Input (Transmitters) Input Level1V peak, nominal Input Impedance75 ohms, unbalanced Freq (±0.5 dB response)30 Hz to 120 kHz Monaural Audio Input (Transmitters) Input Level0 to +10 dBm Input Impedence600 ohms, balanced Freq Range (±0.5 dB resp)30 Hz to 15 kHz Pre-emphasis75μs Subcarrier Input (Transmitters) Input Level1V peak, nominal Input Impedance75 ohms, unbalanced Freq Range (±0.5 dB resp)20 kHz to 120 kHz General Operational Temperature Range -30°C to +50°C Operational Humidity Range0% to 95% Altitudeup to 8,500 feet Size (H x W x D) 110A / 115A7” x 19” x 21” Transmitters8.75” x 19” x 21” (exc 110A / 115A) Translators10.5” x 19” x 21” Weight30 lbs. Line Voltage115/230VAC, ±10%, 1 phase, 50/60 Hz Power Consumption 250 / 350 / 350 watts B0001 1101R1-E 117B 20 Watt VHF High Band TranslatorInstallation Procedure - Page 1 of 2 - UNPACKING Please inspect all material thoroughly upon arrival. Axcera certifies that upon …

Text truncated - open the document above for the full version.

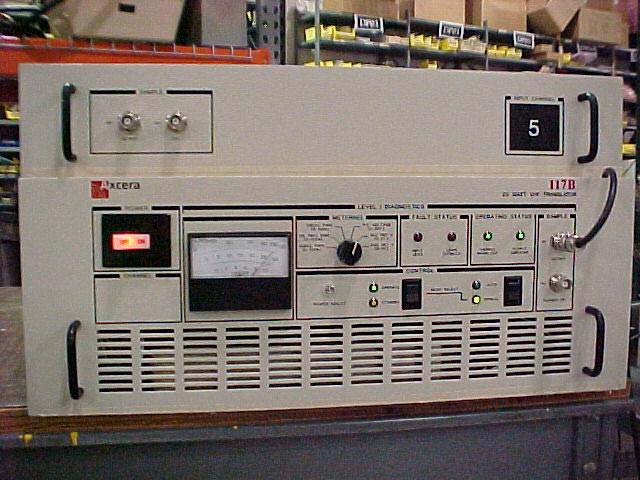

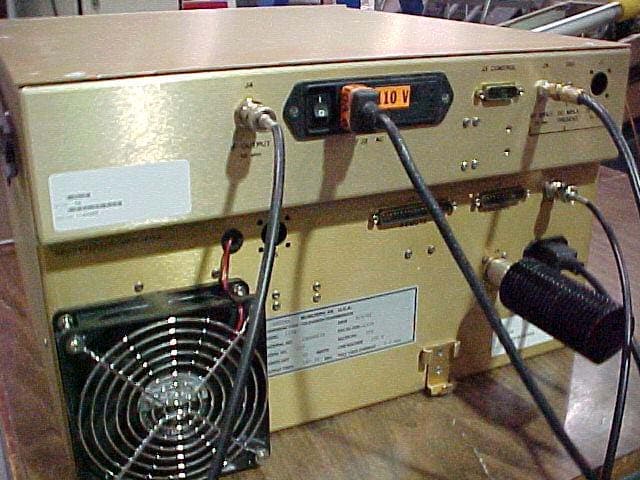

Axcera-117B FCC Type Acceptance Report External Photos September 2002 2-1 2. EXTERNAL PHOTOS 2.1 Front view, complete Axcera-117B Translator Axcera-117B FCC Type Acceptance Report External Photos September 2002 2-2 2.2 Rear view, complete Axcera-117B Translator

Axcera-117B FCC Type Acceptance Report ID Label/Location Info September 2002 1-1 1. ID LABEL/LOCATION INFO 1.1 Rear Panel FCC Label (Upconverter/Amplifier) 1.2 Rear Panel Manufacturer’s Label (Receiver) Axcera-117B FCC Type Acceptance Report ID Label/Location Info September 2002 1-2 1.3 Front view, complete Axcera-117B Translator 1.4 Rear view, complete Axcera-117B Translator with Manufacturer’s Label

Axcera-117B FCC Type Acceptance Report ID Label/Location Info September 2002 1-1 1. ID LABEL/LOCATION INFO 1.1 Rear Panel FCC Label (Upconverter/Amplifier) 1.2 Rear Panel Manufacturer’s Label (Receiver) Axcera-117B FCC Type Acceptance Report ID Label/Location Info September 2002 1-2 1.3 Front view, complete Axcera-117B Translator 1.4 Rear view, complete Axcera-117B Translator with Manufacturer’s Label

Axcera-117B FCC Type Acceptance Report Internal Photos September 2002 6-1 6. INTERNAL PHOTOS 6.1 Top view, Upconverter/Amplifier Tray (top of flip-plate) Axcera-117B FCC Type Acceptance Report Internal Photos September 2002 6-2 6.2 Top view, Upconverter/Amplifier Tray (under flip-plate) Axcera-117B FCC Type Acceptance Report Internal Photos September 2002 6-3 6.3 Top view, Receiver Tray

Axcera-117B FCC Type Acceptance Report Operational Description September 2002 8-1 8. OPERATIONAL DESCRIPTION - MODEL Axcera-117B 8.1 General Description The 117B is a complete 20-watt high-band VHF solid-state, internally diplexed television translator. It operates at a nominal visual output power of 20 watts peak sync and an average aural output power of 2 watts, at an A/V ratio of 10 dB, 10% sound. 8.2 Technical Specifications Type of Emissions: Visual .......................................................................... 5M75C3F Aural ............................................................................250KF3E Frequency Range....................... 174 MHz to 216 MHz (any 6-MHz channel) Output Power Visual ............................................................ 20 watts peak sync Aural ..................................................................2 watts average Maximum Power Rating Visual .......................................................... 20 watts peak visual Aural ..........................................................2 watts average aural Power Consumption ................................................................ 350 watts 8.3 Performance Specifications Visual Performance Operating Frequency Range ...................................... 174 MHz to 216 MHz RF output - Nominal: Power ............................................................ 20 watts peak sync Impedance .................................................................... 50 ohms Connector ....................................................................... Type N Visual Sideband Response: -1.25 MHz and below ........................................................... -20B -0.75 to -0.5 MHz..................................................... +0.5, -2.0dB -0.5 MHz to +3.58 MHz....................................................±0.5 dB 3.58 MHz to 4.18 MHz.............................................. +0.5, -1.0 dB Variation of Frequency Response with Brightness...........................±0.5 dB Differential Phase ............................................................................ ±3° Incidental Phase Modulation.............................................................. ±3° Differential Gain .............................................................................. 5% Low Frequency Linearity ................................................................... 5% Intermodulation Products .............................................. -52 dB (red field) Output Variation (Over 1 Frame) ....................................................... 2% Regulation of Output........................................................................ 3% Axcera-117B FCC Type Acceptance Report Operational Description September 2002 8-2 Signal-to-Noise Ratio ................................................................. 55 dB 2t K-Factor.................................................................................. 2% Harmonic Radiation .....................................................................-60 dB Spurious (>3 MHz from channel edge) ...........................................-50 dB Carrier Frequency Stability......................................................... ±250 Hz Noise Figure w/Input Preamp .................................................6 dB (Max.) Input Dynamic Range (no Preamp) .................................. --61 to -25 dBm Aural Performance RF Output – Nominal Power .............................................................................2 watts Impedance .................................................................... 50 ohms Connector ....................................................................... Type N Electrical Requirements Power Line Voltage .............................................115/230 volts, 50/60 Hz Power Consumption ................................................................ 350 watts Environmental Maximum Altitude ..................................................................8,500 feet Operational Temperature Range ........................................-30°C to +50°C Mechanical Dimensions: Width ..........................................................................19 inches Depth ..........................................................................21 inches Height....................................................................... 10.5 inches Weight ..............................................................................30 lbs 8.4. System Overview The 117B (1175-1000) is made up of the (2) trays listed in Table 8-1. Table 8-1. 117B Major Trays and Assemblies MAJOR ASSEMBLY DESIGNATOR TRAY/ASSEMBLY NAME DRAWING NUMBER A1 VHF Low-band Receiver 1265-1100 A2 VHF Upconverter/Amplifier 1174-1100 The (A2) VHF Upconverter/Amplifier can operate using a 45.75 MHz IF carrier from either the (A1) Receiver tray’s output, or that from a Modulator try. Both of these carriers must be diplexed with a 41.25 MHz aural carrier, at an A/V ratio not to exceed –10dB. Axcera-117B FCC Type Acceptance Report Operational Description September 2002 8-3 8.4.1 Receiver Tray The RF Input to the Tray, (-61 dBm to -26 dBm in Level), is fed through J1 to the input 50Ω Filter or through J5 to the 75Ω input Filter, which are of a double tuned design that is adjusted to the desired Input UHF or VHF Channel Frequency. Note: If the input signal is greater then -25dBm, an attenuator should be used to limit the level to -25dBm. +12 VDC, for use by an (Optional) external Preamplifier Assembly, connects to the filter through F1 a 1 Amp Fuse. This +12 VDC is DC Multiplexed onto the input signal cable from the Preamplifier. DS1 a Red LED located on TB1 in the Tray will be lit if the +12 VDC is present on the input cable. If a Preamplifier is not used, F1 should be removed and DS1 should not be lit. The signal is next amplified +12 dB to approximately the -49 to -4 dBm level by a low noise amplifier located on the Dual Stage Amp…

Text truncated - open the document above for the full version.

Axcera-117B FCC Type Acceptance Report Parts List/Tune-up Info September 2002 7-1 7. PARTS LIST/TUNE-UP INFO 7.1 Parts List The translator, can be subdivided as follows: Receiver Tray: -VHF filter -Dual stage amplifier board -Channel oscillator Assembly -Channel oscillator multiplier board -Downconverter/amplifier board -IF filter/ALC board -SAW filter amplifier board -Power supply board 20-Watt Upconverter/Ampliifier Tray: -Channel oscillator assembly -Channel oscillator multiplier board -Filter/mixer board -ALC/AGC board -Linearity corrector board -Filter amplifier board -VHF high-band driver board -VHF high-band amplifier board -Low pass filter -Trap filter board -High-band VHF coupler board -Visual/aural metering board -Transmitter control board -AGC control board -Power supply board -Switching power supply 7.2 Tune-up Information The 117B translator was aligned at the factory and should not require additional alignments to achieve normal operation. The UHF/VHF Receiver Tray w/(Optional) Frequency Correction selects the desired UHF or VHF On Channel Input Signal and converts it to a Combined IF Signal of 45.75 MHz Visual + 41.25 MHz Aural. The Tray also has provisions for a Frequency Correction Option that consists of a VCXO Channel Oscillator Assembly with a PLL Circuit which maintains an exact IF Output Frequency, over the capture range of the PLL circuit, even if the Input UHF or VHF Frequency may vary. 7.2.1 RF Input Signal Path (Receiver) The RF Input to the Tray, (-61 dBm to -16 dBm in Level), is fed through J1 for 50Ω to (A7) the input 50Ω Filter, DC Multiplexed (1035-1204 UHF, 1035-1902 VHF LB or 2065-1024 VHF HB) or through J5 for 75Ω to (A7) the 75Ω input Filter, DC Multiplexed (1035-1207 UHF, 1035-1903 VHF LB or 2065-1023 VHF HB), which is of a double tuned design that is adjusted to the desired Input UHF or VHF Channel Frequency. Note: If the input signal is Axcera-117B FCC Type Acceptance Report Parts List/Tune-up Info September 2002 7-2 greater then -25dBm, an attenuator should be used to limit the level to -25dBm. +12 VDC, for use by an (Optional) external Preamplifier Assembly, connects to the filter through F1 a 1 Amp Fuse. This +12 VDC is DC Multiplexed onto the input signal cable from the Preamplifier. DS1 a Red LED located on TB1 in the Tray will be lit if the +12 VDC is present on the input cable. If a Preamplifier is not used, F1 should be removed and DS1 should not be lit. The signal is next amplified +12 dB to approximately the -49 to -4 dBm level by a low noise amplifier located on (A8-A1) the Dual Stage Amplifier Board (1227-1501) that is contained in (A8) the Dual Stage Amplifier Assembly (1227-1503). The board has approximately +13 dB or +26 dB of gain, depending on whether Jumper W1 on J5 is in place. The signal is then filtered in (A9) a Channel Filter (1007-1101 UHF, 1034-1202 VHF LB or 2065-1000 VHF HB) and then applied back to (A8-A1) the Dual Stage Board where the same amplification takes place. Jumper W1 on J7, located on the Dual Stage Board, should be removed if the Receiver Input level is greater than -40dBm. The output is connected to (A10) the Downconverter Amplifier Assembly (1227-1505) that contains (A10-A1) the Downconverter Amplifier Board (1227-1502). The RF, at the -47 dBm to -2 dBm Level, connects to the "R" Input Jack of the Mixer Z1 located on the Downconverter Amplifier Board. 7.2.2 Local Oscillator Signal Path (Receiver) The Local Oscillator Signal is derived from a cut to channel crystal mounted in an oven that is factory set at 45° C. The Oscillator operates at 1/8 for UHF, 1/4 for VHF High Band or 1/2 for VHF Low Band of the desired local oscillator frequency. The crystal is mounted on (A4-A1) the Channel Oscillator Board, Dual Oven (1145-1201), that is part of the Channel Oscillator Assembly (1145-1202). The oscillator circuitry is a modified Colpitts design operating in a separate oven set at 50° C. for improved stability. If the Frequency Correction Option is purchased, the VCXO Channel Oscillator Assembly (1145-1206), which contains the VCXO Channel Oscillator Board (1145-1204), is used in place of the standard Channel Oscillator Assembly, and an AFC voltage from the PLL circuit maintains the frequency of the VCXO. The output of the Channel Oscillator is connected to the (A5-A1) the x8 Multiplier Board (1227-1002) for UHF, the x4 Multiplier Board (1227-1525) for VHF HB or the x2 Multiplier Board (1227-1524) for VHF LB, which is located in (A5) the Multiplier Enclosure (1265- 1125). The proper multiplier board takes the output of the Channel Oscillator (+3 dBm) and multiplies it eight, four or two times by a series of three, two or one x2 Broadband Doublers (2x2x2 = x8), which produces the L.O. signal on the desired frequency needed for the upconversion process. The signal is then amplified to the +16 dBm level. A sample of the multiplied L.O. Signal is fed to a detector circuit which lights the Green LED DS1 that indicates that the L.O. is present at the Output Jack J2 of the Multiplier Board. This Green LED is seen through a hole the lid of the Multiplier Assembly and is an indication, when lit, that there is a signal present at the output of the Multiplier Board. The L.O. signal is filtered in (A6) a L.O. Filter 1007-1101 UHF, 2065-1000 VHF HB or 1034-1211 VHF LB) and then sent (+15 dBm) to J2 on (A10-A1) the Downconverter Amplifier Board. The L.O. Input to the Downconverter Amplifier Board is connected thru a 3 dB matching pad to the "L" Input of the Mixer (Z1) at a +12 dBm level. 7.2.3 Combined IF Signal Path (Receiver) The L.O. and the RF signals are mixed in the Mixer Stage of the Downconverter Amplifier Board to produce the desired IF difference frequency at -55 dBm to -10 dBm in level, depending on the RF Input Level. The Combined IF Signal is routed to (A11-A1) the IF Axcera-117B FCC Type Acceptance Report Parts List/Tune-up Info September 2002 7-3 Filter/ALC Board (1227-1504), which is mounted in (A11) the IF Filter/…

Text truncated - open the document above for the full version.

FCC TYPE ACCEPTANCE REPORT 117B 20 WATT VHF HIGH BAND TRANSLATOR AXCERA, LLC 103 FREEDOM DRIVE P.O. BOX 525 LAWRENCE, PA 15055-0525 USA (724) 873-8100 • FAX (724) 873-8105 www.axcera.com • [email protected]

Axcera-117B Type Acceptance Report Test Report September 2002 4-1 4. TEST REPORT 4.1 RF Power Measurements Figure 4-1 shows the test equipment setup for the RF power measurements. Figure 4-1. Test Equipment Setup for RF Power Measurements The video modulation was adjusted for 25% with sync and blanking video signals and the aural power was turned off. The power was then adjusted to obtain 12 watts of average visual RF output (20 watts peak sync at the output connector). This level was used to establish a reference on the spectrum analyzer. Next, the aural power was turned on and adjusted to 10 dB below the visual power. The following operating parameters were recorded: Peak Visual Power/100%=20 Watts Aural Power:/100%=2 Watts continuous wave (CW) Reflected Power: <1% LO Tektronix TSG95 Video Generator Bird 50 Ohm Termination Video Input RF Output Splitter Tektronix 1450 Demodulator IF Input Tektronix VM700A Video Measurement Test Set Video Directional Coupler TEK Sideband Adapter TEK Spectrum Analyzer HP 8594E Spectrum Analyzer RF Simulated Transmitter Receiver Tray Attenuators Translator Under Test Bird Model 43 Power Meter Axcera-117B Type Acceptance Report Test Report September 2002 4-2 4.2 Modulation Characteristics 4.2.1 Video Modulation The test setup shown in Figure 4-1 was used to adjust the video signal to obtain a white picture level. Using the Tektronix 1450 demodulator chopper function, the modulation was accurately measured to be 87.5% while maintaining a depth of modulation at blanking. Next, the video was adjusted for modulated staircase and the differential phase and gain were measured and recorded as follows: • Differential phase: +/- 2.0° • Differential gain : 1.9% Figure 4-2 shows the substantially linear transfer characteristics of the transmitter as a demodulated video waveform. Figure 4-2. Substantially Linear Transfer Characteristics of the Transmitter as a Demodulated Video Waveform Axcera-117B Type Acceptance Report Test Report September 2002 4-3 4.2.2 Video Envelope Delay Not Applicable - Unit under test is a translator. 4.2.3 Video Noise Not Applicable - Unit under test is a translator. 4.2.4 Video Frequency Response The test setup shown in Figure 4-1 was used to record the detected video frequency response; the results are shown in Table 4-2 and Figure 4-3. Note: For this test, the video signal was adjusted to provide a 50% average picture level and the video sweep signal level was set to cover the range from black to white picture. Axcera-117B Type Acceptance Report Test Report September 2002 4-4 Table 4-2. Detected Video Frequency Response VIDEO FREQUENCY RELATIVE RESPONSE 200 kHz +2 dB 500 kHz 0 dB 750 kHz 0 dB 1.0 MHz +.4 dB 1.25 MHz 0 dB 1.5 MHz +.1 dB 2.0 MHz 0 dB 2.5 MHz +.5 dB 3.0 MHz 0 dB 3.5 MHz +.4 dB 3.58 MHz +.3 dB 4.0 MHz +.4 dB 4.18 MHz +.2 dB 4.5 MHz -6 dB 4.75 MHz -35 dB 5.0 MHz -42 dB Figure 4-3. Graph of Detected Video Frequency Response 4.2.5 RF Sideband Response The RF sideband response was recorded using the test setup shown in Figure 4-1. With the output power set to 20 watts peak of sync, the Tektronix TSG95 video generator was adjusted to provide a cable sweep test signal and the RF sideband response was recorded. Data from this test is provided in Table 4-3. Photographs of the spectrum analyzer results are shown in Figure 4-4. Axcera-117B Type Acceptance Report Test Report September 2002 4-5 Table 4-3. RF Sideband Response OUTPUT FREQUENCY (MHz) VIDEO FREQUENCY RESPONSES 187.00 Carrier -- 187.00 +200 kHz 0 (reference) 187.00 +250 -0.5 187.00 +500 -4.0 188.00 +750 -4.0 188.00 +1000 -3.8 189.00 +2000 -4.2 190.00 +3000 -4.1 191.00 +4000 -4.4 191.00 +4500 -13.0 192.00 +4750 -34.0 192.00 +5000 -50.0 187.00 -250 -1.0 186.00 -500 -2.0 186.00 -750 -4.0 186.00 -1000 -8.0 186.00 -1250 -27.0 185.00 -1500 -32.0 185.00 -1750 -37.0 185.00 -2000 -40.0 184.00 -3000 -42.0 183.00 -3580 -43.0 183.00 -4000 -45.0 182.00 -5000 -45.0 193.00 +5750 -45.0 Figure 4-4. Spectrum Analyzer Results Axcera-117B Type Acceptance Report Test Report September 2002 4-6 4.2.6 Audio Modulation Not Applicable - Unit under test is a translator. Axcera-117B Type Acceptance Report Test Report September 2002 4-7 4.2.7 AM and FM Noise Not Applicable - Unit under test is a translator. 4.3 Occupied Bandwidth Using the test setup in Figure 4-6, with the transmitter operating at maximum power, photographs of the translator-occupied bandwidth spectrum were taken and are shown in Figures 4-7 and 4-8. Figure 4-6. Test Setup for Occupied Bandwidth Spectrum Analysis Note: Using the test setup shown in Figure 4-1, the visual modulation was adjusted to 87.5% at white with the modulated staircase waveform and the aural deviation adjusted to ±25 kHz (100%) with the 400-Hz audio tone. LO TEK S/B Adp. Translator Under Test 50 Ohm Termination TEK Spectrum Analyzer Amber 3501 Audio Signal Generator VIDEO Audio Input 15 kHz Audio 20 dB Attenuator Simulated Transmitter Coupler Receiver Tray Axcera-117B Type Acceptance Report Test Report September 2002 4-8 Figure 4-7. Channel-Occupied Bandwidth Figure 4-8. Aural Carrier-Occupied Bandwidth Axcera-117B Type Acceptance Report Test Report September 2002 4-9 4.4 Conducted Spurious Emissions Using the test setup shown in Figure 4.1, the spectrum outside of the specified channel was observed and the data was recorded on all products above the 70-dB noise floor of the spectrum analyzer. This data is shown in Table 4-6 and is presented as graphs in Figures 4-9 and 4-10. Table 4-6. Products Above the 70-dB Noise Floor of the Spectrum Analyzer FREQUENCY (MHz) SOURCE PEAK LEVEL OBSERVED (dB) 278.75 Image Visual Carrier None observed 274.75 Image Aural Carrier None observed 233.00 Local Oscillator None observed 178.25 -9-MHz Product -54 182.75 -4.5-MHz Product -58 191.75 Aural Carrier -10 187.25 Visual Carrier 0 194.45 +7.2-MHz Product -58 198.05 +10.8-MHz Product None observed 196.25 +9-MHz Product -60 195.33 +8.08-MHz Product -52 192.67 +5.42-MHz Product -50 1…

Text truncated - open the document above for the full version.

Axcera-117B FCC Type Acceptance Report Table of Contents September 2002 TABLE OF CONTENTS CHAPTER 1 ID LABEL/LOCATION INFO 1.1 Rear Panel FCC Label (Upconverter/Amplifier) ......................................... 1-1 1.2 Rear Panel Manufacturer's Label (Receiver) ............................................ 1-1 1.3 Front view, complete Axcera-117B Translator ......................................... 1-2 1.4 Rear view, complete Axcera-117B Translator w/Manuf. / FCC ID Label ....... 1-2 CHAPTER 2 EXTERNAL PHOTOS 2.1 Front view, complete Axcera-117B ........................................................ 2-1 2.2 Rear view, complete Axcera-117B Translator .......................................... 2-2 CHAPTER 3 Schematics CHAPTER 4 TEST REPORT 4.1 RF Power Measurements ...................................................................... 4-1 4.2 Modulation Characteristics .................................................................... 4-2 4.2.1 Video Modulation........................................................................ 4-2 4.2.2 Video Envelope Delay.................................................................. 4-3 4.2.3 Video Noise ............................................................................... 4-3 4.2.4 Video Frequency Response .......................................................... 4-3 4.2.5 RF Sideband Response ................................................................ 4-4 4.2.6 Audio Modulation........................................................................ 4-6 4.2.7 AM and FM Noise........................................................................ 4-7 4.3 Occupied Bandwidth ............................................................................ 4-7 4.4 Conducted Spurious Emissions .............................................................. 4-9 4.5 Radiated Emissions.............................................................................4-10 4.6 Frequency Stability .............................................................................4-12 4.7 Automatic Level Control Test ...............................................................4-14 4.8 Test Equipment ..................................................................................4-15 CHAPTER 5 USER'S MANUAL CHAPTER 6 INTERNAL PHOTOS 6.1 Top view, Upconverter/Amplifier (top of flip-plate) .................................. 6-1 6.2 Top view, Upconverter/Amplifier (under flip-plate) .................................. 6-2 6.3 Top view, Receiver Tray ...................................................................... 6-3 CHAPTER 7 PARTS LIST/TUNE-UP INFO 7.1 Parts List ........................................................................................... 7-1 7.2 Tune-up Information ........................................................................... 7-1 7.2.1 RF Input Signal Path (Receiver).................................................... 7-2 7.2.2 Local Oscillator Signal Path (Receiver)........................................... 7-2 7.2.3 Combined IF Signal Path (Receiver) .............................................. 7-2 7.2.4 Frequency Correction Option (Receiver) ........................................ 7-3 7.2.5 Voltages for Operation of the Tray (Receiver)................................. 7-4 7.2.6 +12VDC for External Preamplifier (Receiver).................................. 7-4 7.2.6.1 UHF/VHF Filter, DC Multiplexed ........................................... 7-4 7.2.6.2 Dual Stage Amplifier Board ................................................. 7-4 7.2.6.3 UHF/VHF High-band/VHF Low-band Filter ............................. 7-5 Axcera-117B FCC Type Acceptance Report Table of Contents September 2002 7.2.6.4 Channel Oscillator Assembly, Dual Oven............................... 7-5 7.2.6.5 x8/x4/x2 Multiplier Board ................................................... 7-5 7.2.6.6 UHF/VHF High-band/VHF Low-band Filter ............................. 7-6 7.2.6.7 Downconverter/Amplifier Board........................................... 7-6 7.2.6.8 IF Filter/ALC Board ............................................................ 7-7 7.2.6.9 SAW Filter/Amplifier Board ................................................. 7-7 7.2.6.10 ±12 VDC Power Supply Board ........................................... 7-7 7.2.7 I…
