OUSHU5000BTD5000-Watt UHF Digital Transmitter

INSTRUCTION MANUAL Axciter Digital Modulator/Upconverter System AXCERA, LLC 103 FREEDOM DRIVE P.O. BOX 525 LAWRENCE, PA 15055-0525 USA (724) 873-8100 • FAX (724) 873-8105 www.axcera.com • [email protected] Digital ATSC Exciter-Modulator System Table of Contents Axcera Axciter, Rev. 0 i March 22, 2007 CHAPTER 1: INTRODUCTION......................................................................................................................1 MANUAL OVERVIEW..........................................................................................................................................1 AXCITER OVERVIEW..........................................................................................................................................1 SAFETY...............................................................................................................................................................2 Read All Instructions.....................................................................................................................................2 Retain Manuals..............................................................................................................................................2 Heed Notes, Warnings, and Cautions............................................................................................................2 Follow Instructions........................................................................................................................................2 Cleaning........................................................................................................................................................2 Ventilation.....................................................................................................................................................2 Replacement Parts.........................................................................................................................................3 RETURN MATERIAL PROCEDURE........................................................................................................................3 WARRANTY FOR BROADCAST PRODUCTS...........................................................................................................4 Limited One-year Warranty...........................................................................................................................4 CHAPTER 2: INSTALLATION AND OPERATING INSTRUCTIONS......................................................5 INSTALLATION....................................................................................................................................................5 SETUP AND OPERATION PROCEDURES..............................................................................................................10 MODULATOR OPERATIONAL OVERVIEW..........................................................................................................10 USER INTERFACE..............................................................................................................................................11 Navigating the User Interface.....................................................................................................................11 User Interface Conventions.........................................................................................................................13 SCREEN DISPLAYS AND DETAILS......................................................................................................................15 Axciter Main Screen....................................................................................................................................15 Control and Status Screen...........................................................................................................................16 Signals Status Screen...................................................................................................................................17 Channel Offset Example..............................................................................................................................18 AXACT Equalizers.......................................................................................................................................19 Clock and Power Status Screen...................................................................................................................21 LED Status Screen.......................................................................................................................................22 History.........................................................................................................................................................24 DTVISION LINEAR - OPTIONAL.......................................................................................................................25 DTVision Linear Home/ Spectrum Screen...................................................................................................26 DTVision Constellation Screen....................................................................................................................27 DTVision Eye Screen...................................................................................................................................28 Linear Equalizer Graph...............................................................................................................................29 Linear Quad Display Screen.......................................................................................................................30 DTVISION NON-LINEAR - OPTIONAL...............................................................................................................31 DTVision Non-Linear Home/Spectrum Screen.........................................................................................…

Text truncated - open the document above for the full version.

Digital ATSC Exciter-Modulator System Chapter 2, Installation and Operating Instructions Axcera Axciter, Rev. 0 28 DTVision Eye Screen I-Signal Eye Display Graphic display of the eight data amplitude levels. This can be used to monitor the demodulated 8VSB signal. When signal is precise, the seven vertical "eyes" will appear (this display shows two sets). Linear or non-linear distortion in the modulator process will cause incorrect I-signal amplitude at center of "eye" pattern. Transmitter distortion such as group delay, frequency tilt, or ripple will cause the "eye" to close and result in receiver data errors. . Digital ATSC Exciter-Modulator System Chapter 2, Installation and Operating Instructions Axcera Axciter, Rev. 0 29 Linear Equalizer Graph Linear Equalizer Display: This display shows the characteristics of the linear adaptive equalizer. The horizontal axis is frequency (0 to 5.38 MHz). There are two traces on this display. One shows the amplitude of the equalizer's response in decibels, and the other shows the group delay of the equalizer in nanoseconds. The vertical scale for the amplitude display is along the left side of the display. The range is always –3 to +3 decibels. The group delay scale automatically scales itself to the equalizer data, and the minimum and maximum values appear along the right side of the scale. Since this display shows the equalizer characteristics, the channel (transmitter) characteristics, which are being corrected, will be the inverse of the equalizer. For example, if the equalizer shows a rising amplitude response with increasing frequency, then the transmitter has a falling amplitude response with increasing frequency. The same inverse relationship also holds with respect to group delay. In normal operation, the amplitude response will be generally flat, and the group delay curve will drop off at the frequency extremes (near 0 and 5.38 MHz) because of the channel filter's group delay. Digital ATSC Exciter-Modulator System Chapter 2, Installation and Operating Instructions Axcera Axciter, Rev. 0 30 Linear Quad Display Screen Digital ATSC Exciter-Modulator System Chapter 2, Installation and Operating Instructions Axcera Axciter, Rev. 0 31 DTVision Non-Linear - Optional This section contains information regarding the DTVision Screens. These screens are optional diagnostic screens. They are not necessary for the operation of the Axciter. However, they greatly enhance the experience. These graphs provide the same type of views as an EFA. All of the Nonlinear screens have the following reference values displayed EVM The error vector magnitude (EVM) value indicates quality of the digital modulation. EVM is defined as the RMS error at the sampling instants divided by the RMS of the ideal symbols. The error is expressed as a percentage. As signal quality increases, this value decreases. S/N The transmitted signal quality is also expressed as an in-band signal to noise ratio, expressed in dB. As signal quality increases, this value will increase (logarithmically). DAC Headroom ever negative, then there is clipping in the IF modulator, nonlinear equalizer, and/or the DAC. If this happens, lower the unity gain reference point for the nonlinear equalizer. EVM The error vector magnitude (EVM) value indicates quality of the digital modulation. EVM is defined as the RMS error at the sampling instants divided by the RMS of the ideal symbols. The error is expressed as a percentage. As signal quality increases, this value decreases. S/N The transmitted signal quality is also expressed as an in-band signal to noise ratio, expressed in dB. As signal quality increases, this value will increase (logarithmically). Digital to Analog Converter (DAC) Headroom This parameter shows the amplitude (in dB) of the equalized IF signal with respect to the maximum output from the digital to analog converter (DAC). A positive value indicates normal operation and no clipping. If this value is ever negative, then there is clipping occurring in the IF modulator, nonlinear equalizer, and/or the DAC. If this happens, lower the unity gain reference point for the nonlinear equalizer. Peak to Average Ratio This value shows the peak to average ratio of the transmitted signal. This value is typically 6 to 8 dB for a perfect signal. A value significantly lower will indicate peak compression. A small amount of peak compression is normal. Digital ATSC Exciter-Modulator System Chapter 2, Installation and Operating Instructions Axcera Axciter, Rev. 0 32 This parameter shows the amplitude (in dB) of the equalized IF signal with respect to the maximum output from the digital to analog converter (DAC). A positive value indicates normal operation and no clipping. DTVision Non-Linear Home/Spectrum Screen Digital ATSC Exciter-Modulator System Chapter 2, Installation and Operating Instructions Axcera Axciter, Rev. 0 33 DTVision Peak to Average Screen Peak to Average Ratio Display: This screen shows the peak to average ratio in a statistical fashion. The red trace shows the ideal signal's peak to average ratio statistics, and the yellow trace shows the statistics of the transmitter's output. The curves show the cumulative distribution function of the peak to average ratio's probability density. The horizontal scale shows the peak to average ratio measured in decibels. The vertical scale shows the percentage of the time that the peak to average ratio exceeds the value on the horizontal scale. The vertical scale is logarithmic. When the transmitter is clipping signal peaks, the low probability, high peak to average portion of the (yellow) curve for the transmitter's output will appear to the right of the (red) curve indicating the ideal signal. Digital ATSC Exciter-Modulator System Chapter 2, Installation and Operating Instructions Axcera Axciter, Rev. 0 34 Nonlinear Phase Amplitude Display Digital ATSC Exciter-Modulator System Chapter 2, Installation and Operating Instructions Axcera Axciter, Rev. 0 35 Non…

Text truncated - open the document above for the full version.

Instruction Manual Innovator  HXB Series Digital UHF Solid State Transmitter Volume 1 System and Exciter/Control Axcera, LLC 103 Freedom Drive • P.O. Box 525 • Lawrence, PA 15055-0525 USA 1-724-873-8100 • Fax: 1-724-873-8105 www.axcera.com • [email protected] RESTRICTIONS ON USE, DUPLICATION OR DISCLOSURE OF PROPRIETARY INFORMATION This document contains information proprietary to Axcera, to its affiliates or to a third party to which Axcera may have a legal obligation to protect such information from unauthorized disclosure, use or duplication. Any disclosure, use or duplication of this document or any of the information herein for other than the specific purpose for which it was disclosed by Axcera is expressly prohibited, except as Axcera may otherwise agree in writing. Recipient by accepting this document agrees to the above stated conditional use of this document and this information disclosed herein. Copyright © 2009, Axcera Innovator  HXB Series Digital Table of Contents UHF Transmitter Volume 1, Rev. 0 i November 16, 2009 TABLE OF CONTENTS CHAPTER 1: INTRODUCTION SECTION PAGE 1.1: Manual Overview .................................................................................1-1 1.2: Assembly Designators ..........................................................................1-1 1.3: Safety.................................................................................................1-1 1.4: Contact Information .............................................................................1-2 1.5: Material Return Procedure.....................................................................1-2 1.6: Limited One-Year Warranty for Axcera Products......................................1-3 CHAPTER 2: SYSTEM DESCRIPTION AND REMOTE CONTROL CONNECTIONS 2.0: System Overview.................................................................................2-1 2.1: HXB Exciter Description ........................................................................2-1 2.1.1: Pre Filter Sample ........................................................................2-2 2.1.2: Post Filter Sample.......................................................................2-2 2.2: UHF Amplifier Cabinet Assembly............................................................2-2 2.3: RF Output Assemblies...........................................................................2-3 2.4: Driver Amplifier Chassis Assembly .........................................................2-4 2.4.1: Downconverter Module................................................................2-4 2.4.2: Upconverter Module....................................................................2-4 2.4.3: Control & Monitoring/Power Supply Module....................................2-5 2.4.4: Exciter Power Amplifier Module.....................................................2-6 2.5: Control and Status ...............................................................................2-7 2.5.1: Front Panel LCD Display Screens ..................................................2-7 2.6: System Operation ................................................................................2-7 2.6.1: Principles of Operation.................................................................2-7 2.7: Maintenance........................................................................................2-8 2.8: Customer Remote Connections........................................................ 2-9 CHAPTER 3: SITE CONSIDERATIONS, INSTALLATION AND SETUP PROCEDURES 3.1: Site Considerations ..............................................................................3-1 3.2: Unpacking the Control/Exciter and Amplifier Cabinets ..............................3-4 3.3: Installing of the Cabinets ......................................................................3-5 3.3.1: Exciter/Control Cabinet................................................................3-6 3.3.2: Placement and Assembling of the UHF Amplifier Cabinets................3-6 3.3.3: Blower Connections to TB1 ..........................................................3-6 3.4: AC Input .............................................................................................3-6 3.4.1: Main AC Connection to the Control/Exciter Cabinet.........................3-7 3.4.2: Main AC Connections to each of the Amplifier Cabinets ...................3-7 3.5: Setup and Operation ............................................................................3-8 3.5.1: Input Connections.......................................................................3-8 3.6: Initial Turn On .....................................................................................3-9 3.6.1: Driver Amplifier Front Panel LED Indicators....................................3-9 3.6.1.1: Upconverter Module LEDs on Front Panel .............................3-9 3.6.1.2: Controller Module LEDs on Front Panel...............................3-10 3.6.1.3: Power Amplifier Module LEDs on Front Panel.......................3-10 3.6.2: Front Panel Screens for the Driver Amplifier Chassis Assembly ......3-10 3.6.3: Front Panel Touch Screens for the UHF Transmitter ......................3-18 3.6.4: Operation Procedure .................................................................3-24 Innovator  HXB Series Digital Table of Contents UHF Transmitter Volume 1, Rev. 0 ii November 16, 2009 TABLE OF CONTENTS (continued) SECTION PAGE CHAPTER 4: CIRCUIT DESCRIPTIONS 4.1: (R1) Control/Exciter Cabinet Assembly...................................................4-1 4.1.1: Dual Peak Detector Board............................................................4-1 4.1.2: Serial Loop-Thru Board................................................................4-1 4.2: Driver/Amplifier Chassis Assembly.........................................................4-1 4.2.1: Downconverter Module Assembly, Axciter......................................4-2 4.2.1.1: Downconverter Board......…

Text truncated - open the document above for the full version.

Instruction Manual Innovator  HXB Series Digital UHF Solid State Transmitter Volume 2 UHF Amplifier Cabinet Axcera , LLC 103 Freedom Drive • P.O. Box 525 • Lawrence, PA 15055-0525 USA 1-724-873-8100 • FAX: 1-724-873-8105 www.axcera.com • [email protected] RESTRICTIONS ON USE, DUPLICATION OR DISCLOSURE OF PROPRIETARY INFORMATION This document contains information proprietary to Axcera, to its affiliates or to a third party to which Axcera may have a legal obligation to protect such information from unauthorized disclosure, use or duplication. Any disclosure, use or duplication of this document or any of the information herein for other than the specific purpose for which it was disclosed by Axcera is expressly prohibited, except as Axcera may otherwise agree in writing. Recipient by accepting this document agrees to the above stated conditional use of this document and this information disclosed herein. Copyright © 2009, Axcera Innovator ® HXB Series, Digital, Table of Contents UHF Transmitter Volume 2, Rev. 0 i November 16, 2009 TABLE OF CONTENTS CHAPTER 1: INTRODUCTION SECTION PAGE 1.1: Manual Overview .................................................................................1-1 1.2: Safety.................................................................................................1-1 1.3: Assembly Designators ..........................................................................1-2 1.4: Material Return Procedure.....................................................................1-2 1.5: Limited One-Year Warranty for Axcera Products......................................1-3 CHAPTER 2: UHF AMPLIFIER CABINET 2.1: Cabinet Overview.................................................................................2-1 2.2: Description of the UHF Amplifier Cabinet ................................................2-2 2.2.1: 5 kW Amplifier Cabinet with 8 Amplifier Assemblies........................2-3 2.2.2: 3.7 kW Amplifier Cabinet with 6 Amplifier Assemblies .....................2-3 2.2.3: 2.5 kW Amplifier Cabinet with 4 Amplifier Assemblies .....................2-3 2.2.4: 1.8 kW Amplifier Cabinet with 3 Amplifier Assemblies .....................2-4 2.3: Description of the UHF Amplifier Tray.....................................................2-7 2.3.1: Description of the 8 Way Combiner Assembly (5 kW) .....................2-7 2.3.1.1: Description of the 6 Way Combiner Assembly (3.7 kW)..........2-9 2.3.1.2: Description of the 4 Way Combiner Assembly (2.5 kW)..........2-9 2.3.1.3: Description of the 3 Way Combiner Assembly (1.8 kW)..........2-9 2.3.2: Removal of an Amplifier Tray Assembly.........................................2-9 2.3.3: Amplifier Cabinet Power Supply Assemblies .................................2-10 2.3.4: Control and Monitoring ..............................................................2-10 2.3.5: Cabinet Cooling ........................................................................2-10 2.4: Cabinet Controller Assembly................................................................2-12 2.4.1: Controller Connections to the Transmitter’s System Controller.......2-13 2.4.2: Controller Connections to the Amplifier Cabinet Components.........2-14 2.4.2.1: Power Amplifiers..............................................................2-14 2.4.2.2: High Power Voltage Supply Controllers...............................2-14 2.4.2.3: Low Power Voltage Supply and AC Line Monitoring..............2-15 2.4.2.4: Air Temperature and Amplifier Temperature Monitoring .......2-15 2.4.2.5: RF Power Monitoring ........................................................2-15 2.4.2.6: Reject Load Monitoring.....................................................2-16 2.4.3: Cabinet Controller Settings ........................................................2-16 2.4.4: Cooling Blower Control ..............................................................2-17 2.4.5: Cabinet Controller Problem Resolution Guide ...............................2-17 2.5: Functional Description of Amplifier Cabinet ...........................................2-19 2.5.1: Signal Path...............................................................................2-19 2.5.2: Test Signal Evaluation ...............................................................2-19 2.5.3: Regulation of Transmitter Output Power......................................2-19 2.5.4: Fault Protection Circuitry ...........................................................2-19 2.5.5: Capture of Operating Values in the Amplifiers ..............................2-20 2.5.6: Amplifier Cabinet Connections....................................................2-20 2.6: Service .............................................................................................2-21 2.6.1: Safety Information....................................................................2-21 2.6.1.1: Labeling of Dangerous Substances ....................................2-21 2.6.2: Test point Evaluation.................................................................2-21 2.6.3: Display of Operating Values .......................................................2-21 2.7: Exchange of an Amplifier Module .........................................................2-22 Innovator ® HXB Series, Digital, Table of Contents UHF Transmitter Volume 2, Rev. 0 ii November 16, 2009 TABLE OF CONTENTS (continued) CHAPTER 3: UHF AMPLIFIER TRAY ASSEMBLY & CABINET ASSEMBLIES CIRCUIT DESCRIPTIONS SECTION PAGE 3.1: Amplifier Overview...............................................................................3-1 3.2: Design of the UHF Amplifier Tray ...........................................................3-2 3.2.1: Capture of Test Values in the UHF Amplifier Tray............................3-5 3.2.2: Functional Description of the Boards in the Amplifier Assembly........3-6 3.2.2.1: Phase/Gain Board..............................................................3-6 3.2.2.2: Dual BLF871 Amplifier Module Assem…

Text truncated - open the document above for the full version.

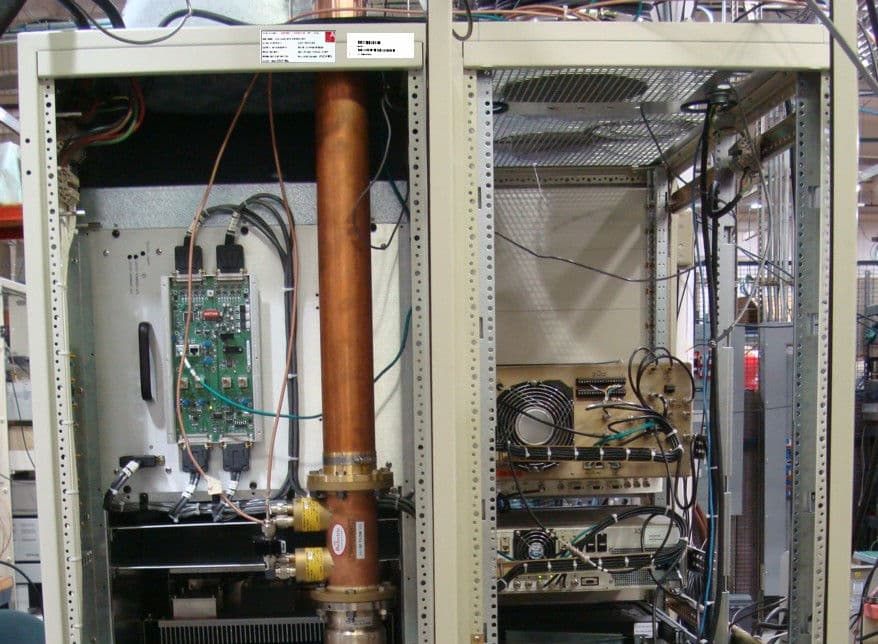

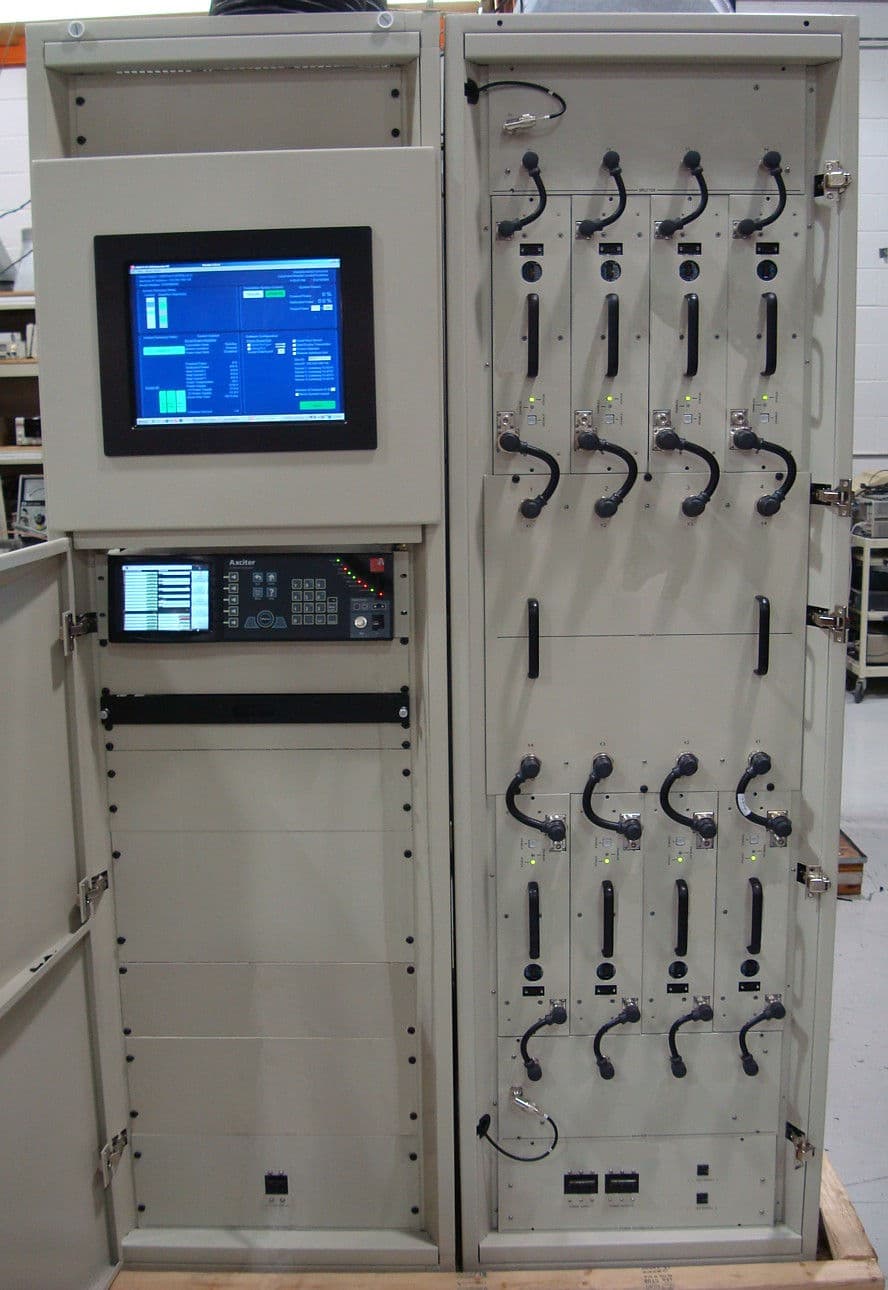

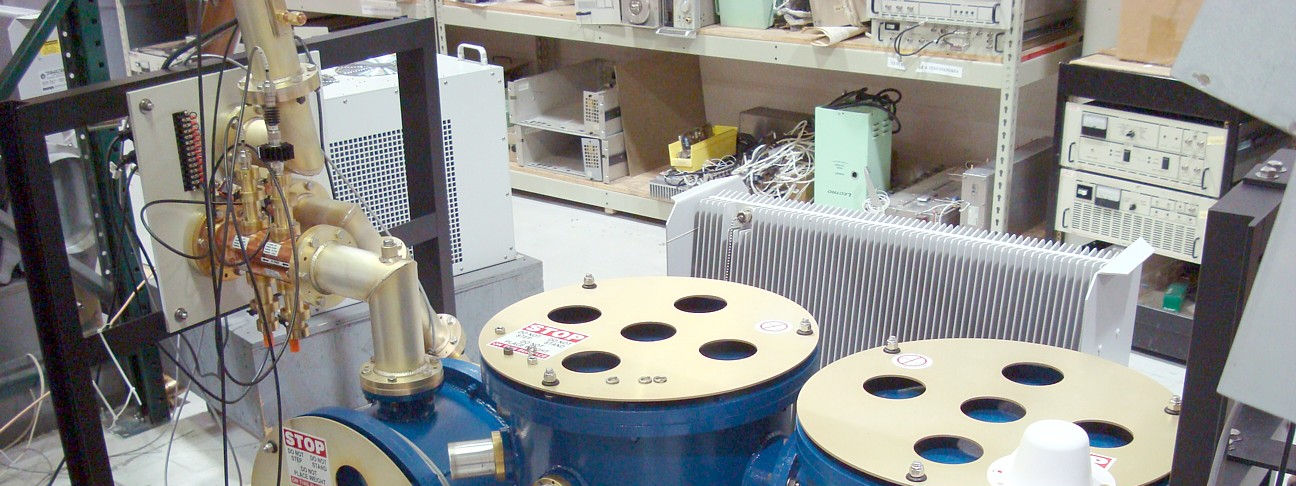

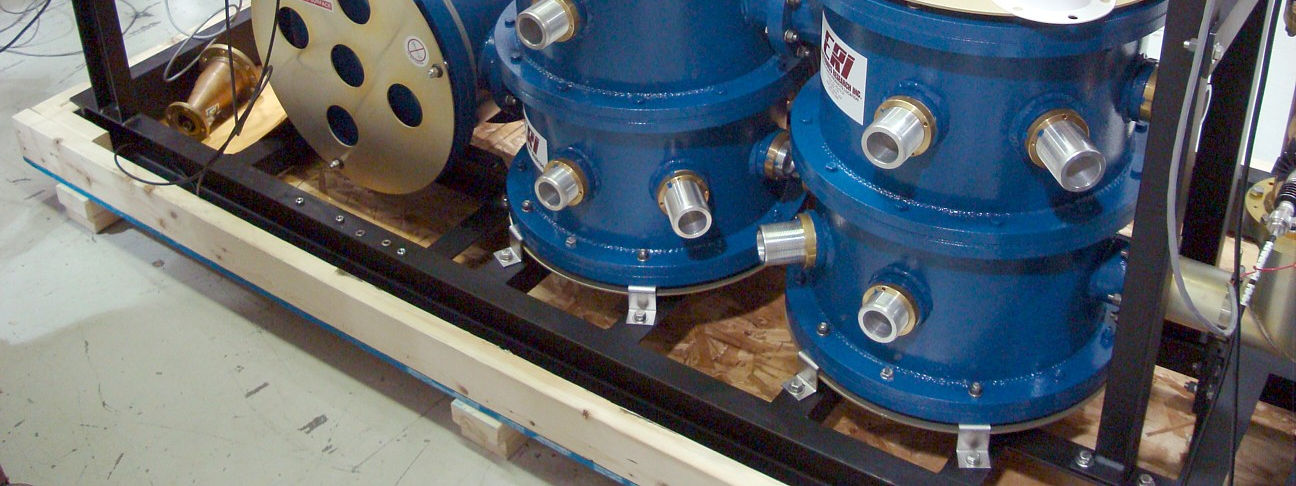

Axcera-HU5000BTD FCC Equipment Authorization Report External Photos November 2009 2-1 2. EXTERNAL PHOTOS 2.1 Front view, complete HU5000BTD Transmitter with Exciter & Axciter Modulator in Control Cabinet (left) and RF Amplifier Cabinet (right) Axcera-HU5000BTD FCC Equipment Authorization Report External Photos November 2009 2-2 2.2 Rear view, complete Axcera-HU5000BTD Transmitter Axcera-HU5000BTD FCC Equipment Authorization Report External Photos November 2009 2-3 2.3 Front View, External Axciter Digital Modulator 2.4 Rear View, External Axciter Digital Modulator 2.5 Top View, External Axciter Digital Modulator Axcera-HU5000BTD FCC Equipment Authorization Report External Photos November 2009 2-4 2.6 Side View, Bandpass Filter

Axcera-HU5000BTD FCC Equipment Authorization Report ID Label/Location Info November 2009 1-1 1. ID LABEL/LOCATION INFO 1.1 Rear Panel FCC Label 1.2 Rear Panel Manufacturer’s Label Axcera-HU5000BTD FCC Equipment Authorization Report ID Label/Location Info November 2009 1-2 1.3 Rear view, complete Axcera-HU5000BTD Transmitter with FCC ID and Manufacturer’s Label

Axcera-HU5000BTD FCC Equipment Authorization Report Internal Photos November 2009 6-1 6. INTERNAL PHOTOS 6.1 Front view – Exciter Chassis Assembly - Empty 6.2 Side view – Axciter Upconverter Assembly (Exciter) - Used with Axciter Modulator Axcera-HU5000BTD FCC Equipment Authorization Report Internal Photos November 2009 6-2 6.3 Side view – Axciter Downconverter Assembly (Exciter) - Used with Axciter Modulator 6.4 Side view - Control / Power Supply Assembly (Exciter) Axcera-HU5000BTD FCC Equipment Authorization Report Internal Photos November 2009 6-3 6.5 Side view - Power Amplifier Assembly (Exciter) 6.6 Front view – Exciter Chassis Assembly – Populated Axcera-HU5000BTD FCC Equipment Authorization Report Internal Photos November 2009 6-4 6.7 Top view – External Axciter Digital Modulator Axcera-HU5000BTD FCC Equipment Authorization Report Internal Photos November 2009 6-5 6.8 Front view – 4-Way Splitter Assembly x2 (RF Amplifier Cabinet) 6.9 Side view - Power Amplifier Assembly x8 (RF Amplifier Cabinet) Axcera-HU5000BTD FCC Equipment Authorization Report Internal Photos November 2009 6-6 6.10 Rear view – 8-Way Combiner Assembly (RF Amplifier Cabinet) 6.11 Side view – PA Power Supply Assembly x2 (RF Amplifier Cabinet) Axcera-HU5000BTD FCC Equipment Authorization Report Internal Photos November 2009 6-7 6.12 Front view – AC Power Supply Assembly x2 (RF Amplifier Cabinet) 6.13 Front view – Load Regulator Assembly (RF Amplifier Cabinet)

Axcera-HU5000BTD FCC Equipment Authorization Report Operational Description November 2009 8-1 8. OPERATIONAL DESCRIPTION  MODEL AxceraHU5000BTD 8.1 General Description The HU5000BTD is a complete 5000watt UHF solidstate, digital transmitter. It operates at a nominal visual output power of 5000 watts average. 8.2 Technical Specifications Type of Emission ...................................................................... 6M00K1D Frequency Range ..................................................... 722 MHz to 728 MHz Output Power .........................................................5000 watts average 8.3 Performance Specifications Operating Frequency Range .............................................. 722 to 728MHz RF output  Nominal: Power ............................................................ 5000 watts average Impedance..................................................................... 50 ohms Connector ....................................................................31/8” EIA Regulation of Output ......................................................................... 3% SignaltoNoise Ratio (SNR) ........................................... 27 dB or better Carrier Frequency Stability ........................................................±1000 Hz Out of Band: Compliant with Part 27 FCC Mask Data Interface: Input Rate..................................................... 19.39 Mbps, 6 MHz Channel Input Interface.................................................................... SMPTE 310M Electrical Requirements Power Line Voltage .....................................................230 volts, 50/60 Hz Power Consumption............................................................. 28,000 watts Environmental Maximum Altitude ................................................................... 8,500 feet Operational Temperature Range ........................................... 0°C to +45°C Axcera-HU5000BTD FCC Equipment Authorization Report Operational Description November 2009 8-2 Mechanical Dimensions: Width ........................................................................... 47 inches Depth ........................................................................... 50 inches Height .......................................................................... 79 inches 8.4. System Overview Each Innovator HX Series UHF transmitter system consists of an Exciter/Driver System Control Cabinet and one or more RF Power Amplifier (PA) Cabinets each of which has a maximum power output of 5 kW DTV. The Exciter/Driver System Control Cabinet contains a computer with a touch screen, keyboard and mouse and a UPS power supply. Also part of the exciter/driver cabinet are an HX Series Driver/Amplifier Assembly and an Axciter Modulator. An external Dual Peak Detector Board generates a forward and a reflected power sample for metering purposes in the driver/amplifier assembly. A Serial LoopThru board is part of the cabinet assembly and provides system serial interface connection to both the Axciter and the Driver/Amplifier Assembly. A relay is also part of the cabinet assembly and is used to switch the prefiler and postfilter samples to the Axciter Modulator for use by the Adaptive Digital Equalization. NOTE: Refer to the separate Axciter Modulator Instruction Manual for more detailed information on the Axciter Modulator Tray and the Upconverter and Downconverter Modul…

Text truncated - open the document above for the full version.
