OUSLHV100AT100-Watt VHF High Band Transmitter

Instruction Manual Innovator ® HX Series Analog VHF High Band Transmitter AXCERA 103 FREEDOM DRIVE • P.O. BOX 525 • LAWRENCE, PA 15055-0525 USA (724) 873-8100 • FAX (724) 873-8105 www.axcera.com • [email protected] Innovator ® HX Series Analog VHF Transmitter Table of Contents HX Series, Rev. 0 i August 2, 2006 TABLE OF CONTENTS CHAPTER 1 INTRODUCTION SECTION PAGE 1.1 Manual Overview...................................................................................1-1 1.2 Assembly Designators............................................................................1-1 1.3 Safety..................................................................................................1-2 1.4 Contact Information...............................................................................1-2 1.5 Material Return Procedure......................................................................1-2 1.6 Limited One-Year Warranty for Axcera Products........................................1-3 CHAPTER 2 SYSTEM DESCRIPTION AND REMOTE CONTROL CONNECTIONS 2.0 System Overview..................................................................................2-1 2.1 Exciter/Amplifier Chassis Assembly.........................................................2-1 2.1.1 Modulator Module.........................................................................2-2 2.1.2 IF Processor Module.....................................................................2-3 2.1.3 Upconverter Module......................................................................2-4 2.1.4 Control & Monitoring/Power Supply Module.....................................2-6 2.1.5 VHF Power Amplifier Module..........................................................2-7 2.1.5 VHF Power Amplifier Module..........................................................2-7 2.1.6 RF Output....................................................................................2-8 2.2 Control and Status.................................................................................2-8 2.2.1 Front Panel LCD Display Screens....................................................2-8 2.3 System Operation..................................................................................2-8 2.3.1 Principles of Operation..................................................................2-9 2.4 Maintenance.......................................................................................2-10 2.5 Customer Remote Connections.......................................................2-11 CHAPTER 3 SITE CONSIDERATIONS, INSTALLATION AND SETUP PROCEDURES 3.1 Site Considerations................................................................................3-1 3.2 Unpacking & Installing the Transmitter....................................................3-4 3.2.1 AC Input.....................................................................................3-5 3.3 Setup and Operation..............................................................................3-5 3.3.1 Input Connections........................................................................3-5 3.4 Initial Turn On.......................................................................................3-6 3.4.1 Exciter/Driver Front Panel LED Indicators........................................3-6 3.4.1.1 Modulator Module LEDs on Front Panel..................................3-6 3.4.1.2 IF Processor Module LEDs on Front Panel...............................3-7 3.4.1.3 Upconverter Module LEDs on Front Panel...............................3-7 3.4.1.4 Controller Module LEDs on Front Panel..................................3-7 3.4.1.5 Power Amplifier Module LEDs on Front Panel..........................3-7 3.4.2 Front Panel Screens for the Exciter/Amplifier Chassis Assembly.........3-7 3.4.3 Operation Procedure...................................................................3-15 CHAPTER 4 CIRCUIT DESCRIPTIONS 4.0 Exciter/Driver Chassis Assembly.............................................................4-1 4.1 Modulator Module..................................................................................4-1 4.1.1 Analog Modulator Board................................................................4-1 4.1.1.1 Mono, Balanced Audio Input.................................................4-1 4.1.1.2 Stereo, Composite Audio Input.............................................4-1 Innovator ® HX Series Analog VHF Transmitter Table of Contents HX Series, Rev. 0 ii August 2, 2006 TABLE OF CONTENTS (continued) SECTION PAGE 4.1.1.3 SAP/PRO, Subcarrier Audio Input..........................................4-2 4.1.1.4 Audio Modulation of the 4.5 MHz VCO ..................................4-2 4.1.1.5 Phase Lock Loop (PLL) Circuit...............................................4-2 4.1.1.6 Main Video Signal Path (Part 1 of 2)......................................4-3 4.1.1.7 Delay Equalizer Circuits.......................................................4-3 4.1.1.8 Sync Tip Clamp Circuit.........................................................4-4 4.1.1.9 Main Video Signal Path (Part 2 of 2)......................................4-5 4.1.1.10 45.75 MHz Oven Oscillator Circuit.......................................4-5 4.1.1.11 Visual Modulator Circuit.....................................................4-6 4.1.1.12 Aural Modulator Circuit......................................................4-6 4.1.1.13 Visual IF loop thru path......................................................4-6 4.1.1.14 Voltage Requirements........................................................4-7 4.2 IF Processor Module...............................................................................4-7 4.2.1 IF Processor Board.......................................................................4-7 4.2.1.1 Modulator Selected..............................................................4-7 4.2.1.2 External Modulated IF Selected.............................................4-7 4.2.1.3 Main IF Si…

Text truncated - open the document above for the full version.

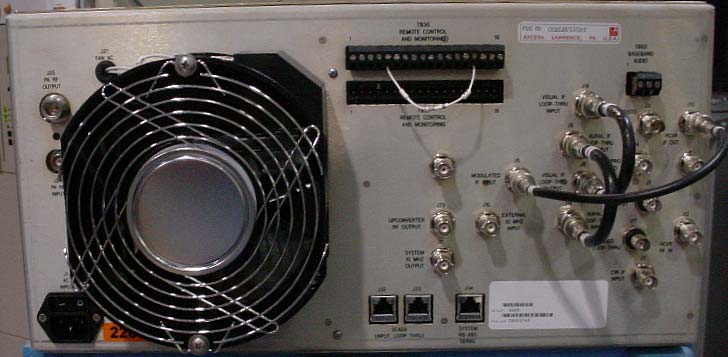

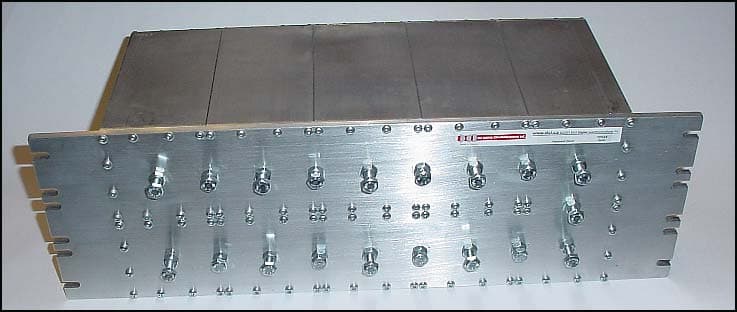

Axcera-LHV100AT FCC Type Acceptance Report External Photos August 2006 2-1 2. EXTERNAL PHOTOS 2.1 Front view, complete Axcera LHV100AT Transmitter 2.2 Rear view, complete Axcera LHV100AT Transmitter with FCC ID Label and Manufacturer’s Label Axcera-LHV100AT FCC Type Acceptance Report External Photos August 2006 2-2 2.3 Top view, Output Bandpass Filter Assembly

Axcera-LHV100AT FCC Type Acceptance Report ID Label/Location Info August 2006 1. ID LABEL/LOCATION INFO 1.1 Front Panel FCC Label 1.2 Rear Panel Manufacturer’s Label Axcera-LHV100AT FCC Type Acceptance Report ID Label/Location Info August 2006 1.3 Rear view, complete Axcera LHV100AT Transmitter with FCC ID Label and Manufacturer’s Label

Axcera-LHV100AT FCC Type Acceptance Report ID Label/Location Info August 2006 1-1 1. ID LABEL/LOCATION INFO 1.1 Rear Panel FCC Label 1.2 Rear Panel Manufacturer’s Label Axcera-LHV100AT FCC Type Acceptance Report ID Label/Location Info August 2006 1-2 1.3 Rear view, complete Axcera LHV100AT Transmitter with FCC ID Label and Manufacturer’s Label

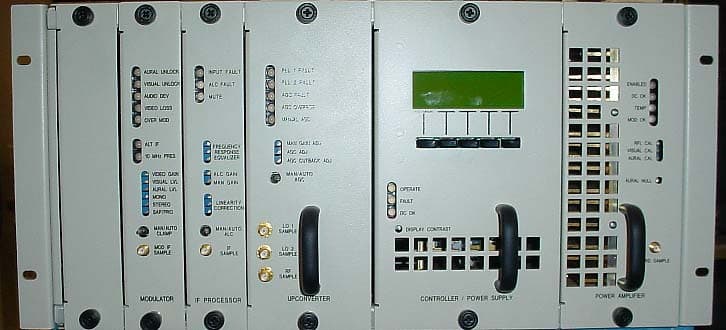

Axcera-LHV100AT FCC Type Acceptance Report Internal Photos August 2006 6-1 6. INTERNAL PHOTOS 6.1 Front View, Chassis Assembly 6.2 Side View, Modulator Module 6.2 Rear View, IF Processor Module Axcera-LHV100AT FCC Type Acceptance Report Internal Photos August 2006 6-2 6.3 Side View, IF Processor Module 6.4 Side View, Upconverter Module Axcera-LHV100AT FCC Type Acceptance Report Internal Photos August 2006 6-3 6.5 Side View, Control/Power Supply Module 6.6 Side View, Power Amplifier Module

Axcera-LHV100AT FCC Type Acceptance Report Operational Description August 2006 8-1 8. OPERATIONAL DESCRIPTION - MODEL Axcera-LHV100AT 8.1 General Description The LHV100AT is a complete 100-watt VHF high-band solid-state, internally diplexed television transmitter. It operates at a nominal visual output power of 100 watts peak sync and an average aural output power of 10 watts, at an A/V ratio of 10 dB, 10% sound. 8.2 Technical Specifications Type of Emissions: Visual .......................................................................... 5M75C3F Aural ............................................................................250KF3E Frequency Range....................... 174 MHz to 216 MHz (any 6-MHz channel) Output Power Visual .......................................................... 100 watts peak sync Aural ................................................................ 10 watts average Maximum Power Rating Visual .........................................................100 watts peak visual Aural ........................................................ 10 watts average aural Power Consumption ................................................................ 840 watts 8.3 Performance Specifications Visual Performance Operating Frequency Range ...................................... 174 MHz to 216 MHz RF output - Nominal: Power .......................................................... 100 watts peak sync Impedance .................................................................... 50 ohms Connector ....................................................................... Type N Visual Sideband Response: -1.25 MHz and below ........................................................... -20B -0.75 to -0.5 MHz..................................................... +0.5, -2.0dB -0.5 MHz to +3.58 MHz....................................................±0.5 dB 3.58 MHz to 4.18 MHz.............................................. +0.5, -1.0 dB Variation of Frequency Response with Brightness...........................±0.5 dB Differential Phase ............................................................................ ±3° Incidental Phase Modulation.............................................................. ±3° Differential Gain .............................................................................. 5% Low Frequency Linearity ................................................................... 5% Intermodulation Products .............................................. -52 dB (red field) Output Variation (Over 1 Frame) ....................................................... 2% Regulation of Output........................................................................ 3% Axcera-LHV100AT FCC Type Acceptance Report Operational Description August 2006 8-2 Signal-to-Noise Ratio ................................................................. 55 dB 2t K-Factor.................................................................................. 2% Harmonic Radiation .....................................................................-60 dB Spurious (>3 MHz from channel edge) ...........................................-50 dB Carrier Frequency Stability....................................................... ±1000 Hz Aural Performance Frequency Deviation Capability (Transmitters) ............................. ±75 kHz Distortion .....................................................................................0.5% FM Noise ....................................................................................-60 dB AM Noise ....................................................................................-55 dB Visual to Aural Separation ......................................... 4.5 MHz, ±100 Hz Composite Audio Input (Multi-channel sound - Transmitters) Input Level ........................................................1V peak, nominal Input Impedance.......................................... 75 ohms, unbalanced Frequency Range: ±0.1 dB Response.................................................50 Hz to 50 kHz ±0.5 dB Response ............................................30 Hz to 120 kHz Monaural Audio Input (Transmitters): Input Level ............................................................ 0 to +10 dBm Input Impedance............................................ 600 ohms, balanced Frequency Range (±0.5 dB resp.) ..........................30 Hz to 15 kHz Pre-emphasis..................................................................... 75 uS Subcarrier Audio Input (Transmitters): Input Level ........................................................1V peak, nominal Input Impedance.......................................... 75 ohms, unbalanced Frequency Range (±0.5 dB resp.) ...................... 20 kHz to 120 kHz Electrical Requirements Power Line Voltage .............................................117/230 volts, 50/60 Hz Power Consumption ................................................................ 840 watts Environmental Maximum Altitude ..................................................................8,500 feet Operational Temperature Range ...........................................0°C to +50°C Mechanical Dimensions: Width ..........................................................................19 inches Depth ..........................................................................23 inches Height....................................................................... 8.75 inches Weight ..............................................................................45 lbs Axcera-LHV100AT FCC Type Acceptance Report Operational Description August 2006 8-3 8.4. System Overview The LHV100AT is made up of the trays listed in Table 8-1. Table 8-1. LHV100AT Major Trays and Assemblies ASSEMBLY DESIGNATOR TRAY/ASSEMBLY NAME PART NUMBER Exciter Driver Chassis Assembly, HX Series 1307715 (110 VAC) A11 Backplane Board, Axciter 1307307 A2 Modulator Module 1305420 A3 IF Processor Module 1305421 A5 VHF/U…

Text truncated - open the document above for the full version.

Axcera-LHV100AT FCC Type Acceptance Report Parts List/Tune-up Info August 2006 7-1 7. PARTS LIST/TUNE-UP INFO 7.1 Parts List The transmitter, can be subdivided as follows: Transmitter Tray: ƒ Modulator Module ƒ IF Processor Module ƒ L.O. / Upconverter Module ƒ Control & Monitoring / Power Supply Module ƒ Power Amplifier Module 7.2 Tune-up Information The LHV100AT transmitter was aligned at the factory and should not require additional alignments to achieve normal operation. 7.2.1 Transmitter Chassis Assembly This transmitter takes the baseband audio and video inputs or, if the (Optional) 4.5-MHz composite input kit is purchased, either a single composite video + 4.5-MHz input or separate baseband video and audio inputs, and converts them to the desired VHF On Channel RF Output at the systems output power level. 7.2.2 Modulator Module Assembly Note: Not present in Translator systems. The Modulator Assembly has adjustments for video levels and audio modulation levels, and other related parameters. Connect an NTSC base-band video test signal input (1 Vpk-pk) to the transmitter video input jack J7 on the rear of the tray. Jacks J7 and J17 are loop-through connected; the J17 jack can be used as a video source for another transmitter. Connect a base-band audio input (+10 dBm) to the balanced audio input terminal block TB02-1 [+], TB02-2 [-], and TB02-3 [ground] or, if stereo/composite audio is provided, connect it to BNC jack J3, the composite audio input jack. Verify that all LEDs located on the front panel of the Modulator are Green. The following details the meaning of each LED: AURAL UNLOCK (DS5) – Red Indicates that 4.5 MHz Aural IF is unlocked from the 45.75 MHz visual IF. VISUAL UNLOCK (DS6) – Red Indicates that the 45.75 MHz visual IF is unlocked from the 10 MHz reference. AUDIO OVER DEVIATION (DS4) – Red Indicates that the input Audio level is too high. VIDEO LOSS (DS1) – Red Indicates that the input Video level is too low. OVER MODULATION (DS3) – Red Indicates that the input Video level is too high. Axcera-LHV100AT FCC Type Acceptance Report Parts List/Tune-up Info August 2006 7-2 ALTERNATE IF (DS7) – Red Indicates that an external 45.75 MHz IF is not present to the modulator. 10 MHz PRESENT (DS2) – Red Indicates that an external 10 MHz reference in not present to the modulator. Look at the front panel LCD meter on the Control/Power Supply Module Assembly. Set the LCD screen to the Modulator Details video output level screen, the screen indicates active video from 0 to 1 Vpk-pk. The normal video input level is 1 Vpk-pk on the front panel screen. If this reading is not at the proper level, the overall video level can be changed by adjusting the VIDEO LEVEL control R42 on the front panel of the Modulator to the 1 Vpk- pk level on the front panel screen. Switch the LCD display to the Modulator Details screen that indicates the AUDIO DEVIATION (modulation level) of the signal from 0 to 100 kHz. MONO SET UP: The modulator was factory set for a ±25-kHz deviation with a mono, balanced, audio input of +10 dBm. If the reading is not at the correct level, adjust the MONO Audio Gain pot R110, located on the front panel of the modulator, as necessary, to attain the ±25-kHz deviation on the front panel screen. STEREO SET UP: The modulator was factory set for a ±75-kHz deviation with a stereo, composite, audio input of 1 Vpk-pk. If this reading is not correct, adjust the STEREO Audio Gain pot R132, located on the front panel of the modulator, as necessary, for the ±75-kHz deviation. SECONDARY AUDIO SET UP: NOTE: Remove any stereo or mono audio modulation input to the transmitter during the set up of the secondary audio. The modulator was factory set for a ±15-kHz deviation with a secondary audio input of 1 Vpk-pk. If this reading is not correct, adjust the SAP/PRO Audio Gain pot R150, located on the front panel of the modulator, as necessary, for the ±15-kHz deviation. 7.2.3 If Processor Module Assembly Verify that all red LEDs located on the IF Processor front panel are extinguished. The following details the meaning of each LED when illuminated: • DS1 (input fault) – Indicates that either abnormally low or no visual IF is present at the input of the IF Processor module. • DS2 (ALC fault) – Indicates that the ALC circuit is unable to maintain the signal level requested by the ALC reference. This is normally due to excessive attenuation in the linearity signal path or the IF phase corrector signal path, or that switch SW1 is in the Manual ALC Gain position. • DS4 (Mute) – Indicates that a Mute command is present to the system. Switch the transmitter to Standby. The ALC is muted when the transmitter is in Standby. Switch the transmitter to Operate. Verify that all LEDs located on the front panel of the visual Upconverter are Green. The following details the meaning of each LED: PLL 1 Fault (DS1) - Displays the status of the 1 GHz PLL, Green locked or Red unlocked Axcera-LHV100AT FCC Type Acceptance Report Parts List/Tune-up Info August 2006 7-3 PLL 2 Fault (DS2) - Displays status of the 1.1-1.9 GHz PLL, Green locked or Red unlocked AGC Fault (DS7) – NOT USED IN THIS CONFIGURATION. AGC Override (DS3) - Displays status of AGC cutback, either Green normal drive level, no cutback, or Red cutback, too much drive level to driver module. Manual AGC (DS6) - Displays status of the control of the AGC level, either Green, in AGC, AGC Adj. using R6 or Amber, in manual, Man Gain Adj. using R7. 7.2.4 VHF/UHF Upconverter Module Assembly Switch the transmitter to Operate. Verify that all LEDs located on the front panel of the Upconverter are Green. The following details the meaning of each LED: PLL 1 Fault (DS1) - Displays the status of the 1 GHz PLL, Green locked or Red unlocked PLL 2 Fault (DS2) - Displays status of the 1.1-1.9 GHz PLL, Green locked or Red unlocked AGC Fault (DS7) - Displays status of AGC, Green normal or Red out of range AGC Override (DS3) - Displays status of AGC cutback, either Green normal d…

Text truncated - open the document above for the full version.
