OUSLL200ATC200-Watt, 1.6 GHz DVB-H Transmitter

ProTelevision Technologies A/S Marielundvej 16 DK-2730 Herlev Denmark PT 5780 DVB-T Modulator (ASIC) Instruction Manual Trade Mark of the DVB Digital Video Broadcasting Project PROTELEVISION technologies An ISO 9001 Certified Company PT 5780 DVB-T Modulator, Instruction Manual: Total number of pages: 95 Copyright  2003 ProTelevision Technologies A/S, Denmark All Rights Reserved Printed in Denmark 2003-08-25 Revision: 3.11 Publication number: 9499 493 12611 PT 5780 DVB-T Modulator ProTelevision Technologies Contents Instruction Manual Revision 3.11 i Contents 1 SAFETY..................................................................................................................1-1 1.1 INTRODUCTION........................................................................................................1-1 1.2 SAFETY PRECAUTIONS.............................................................................................1-1 1.3 CAUTION AND WARNING STATEMENTS........................................................................1-1 1.4 IMPAIRED SAFETY PROTECTION.................................................................................1-2 1.4.1 Technical Specifications..............................................................................1-2 1.4.2 Equipment Ratings......................................................................................1-3 1.5 ELECTROSTATIC SENSITIVE DEVICES..........................................................................1-3 1.6 SYMBOLS...............................................................................................................1-4 2 INTRODUCTION AND APPLICATIONS...........................................................2-1 2.1 APPLICATIONS.........................................................................................................2-1 2.1.1 Block Diagram (PT 5780 features)................................................................2-3 2.2 TRANSMISSION MODES SUPPORTED...........................................................................2-3 2.3 TRANSPORT STREAM INPUTS.....................................................................................2-4 2.4 ALARM CIRCUITS.....................................................................................................2-6 2.5 OPERATION............................................................................................................2-6 2.6 FREQUENCY REFERENCES........................................................................................2-6 2.7 TEST FACILITIES......................................................................................................2-7 3 INSTALLATION.....................................................................................................3-1 3.1 INITIAL INSPECTION..................................................................................................3-1 3.2 SAFETY INSTRUCTION..............................................................................................3-1 3.2.1 Earthing......................................................................................................3-1 3.3 MAINS VOLTAGE CORD AND FUSES............................................................................3-1 3.4 RACK MOUNTING.....................................................................................................3-2 3.5 CLEANING..............................................................................................................3-2 3.6 CONFIGURATION......................................................................................................3-3 3.6.1 Wiring schemes for RS 232 (handshake not implemented)............................3-3 3.6.2 Alarms........................................................................................................3-3 3.6.3 Mute...........................................................................................................3-4 3.6.4 Reset.........................................................................................................3-4 3.7 ACCESS TO AND REPLACEMENT OF PARTS..................................................................3-4 3.7.1 Safety.........................................................................................................3-4 3.7.2 Access to the Units......................................................................................3-4 4 OPERATING INSTRUCTIONS...........................................................................4-1 4.1 FRONT PANEL.........................................................................................................4-1 4.1.1 Front Panel Indicators..................................................................................4-1 4.1.2 Front Panel Controls (The menu system)......................................................4-1 4.1.3 Front Panel Display.....................................................................................4-3 4.2 REAR PANEL...........................................................................................................4-3 4.2.1 Rear Panel Connections..............................................................................4-3 4.3 MENU SYSTEM – DESCRIPTION AND OPERATION..........................................................4-5 4.3.1 Power Up...................................................................................................4-5 4.3.2 Operating Menu System Chart.....................................................................4-6 4.3.3 Status Menu System...................................................................................4-6 4.3.3.1 Description of Status Display Windows...........................................4-7 PT 5780 DVB-T Modulator ProTelevision Technologies Contents Instruction Manual Revision 3.11 ii 4.3.4 Configuration Menu System.......................................................................4-11 4.3.4.1 Top-level configuration menu access....…

Text truncated - open the document above for the full version.

INSTRUCTION MANUAL (Preliminary) INNOVATOR LX SERIES 1.67 GHz 200W DVB-H TRANSMITTER AXCERA, LLC 103 FREEDOM DRIVE P.O. BOX 525 LAWRENCE, PA 15055-0525 USA (724) 873-8100 • FAX (724) 873-8105 www.axcera.com • [email protected] 1.67 GHz 200 Watt Single Output Transmitter Chapter 1, Introduction LL200ATC, Rev. 0 1-1 Chapter 1 Introduction 1.1 Manual Overview This manual provides descriptions of the transmitter and associated equipment along with the set up and operating procedures. It is important that you read all of the instructions, especially the safety information in this chapter, before you begin operating the unit. This instruction manual is divided into five chapters and supporting appendices. Chapter 1, Introduction, contains information on the assembly numbering system used in the manual, safety, contact information, return procedures, and warranties. Chapter 2, System Description, includes overview of entire transmitter system. Chapter 3, Circuit Descriptions, contains circuit level descriptions for boards and board level components in the transmitter. Chapter 4, Transmitter Tuning Procedure, provides information on adjusting the system for optimal operation. Appendix A contains system specifications. Appendix B contains Site Drawings. Appendix C contains a list of Modules and Site ID. Appendix D Site Acceptance Document. 1.2 Assembly Designators Axcera has assigned assembly numbers, Ax designations such as A1, where x=1,2,3...etc, to all assemblies, modules, and boards in the system. These designations are referenced in the text of this manual and shown on the drawings provided in the appendices. The cables that connect between the boards within a tray or assembly and that connect between the trays, racks and cabinets are labeled using Brady markers. Figure 1-1 is an example of a Brady marked cable. There may be as few as two or as many as four Markers on any one cable. These Brady markers are read starting furthest from the connector. If there are four Brady Markers, this marker is the transmitter number such as transmitter 1 or Transmitter 2. The next or the furthest Brady Marker is the rack or cabinet number on an interconnect cable or the board number within a tray. The next number on an interconnect cable is the Tray location or number. The Brady marker closest to the connector is the Jack or Connector number on an interconnect cable or the jack or connector number on the board within a tray. Figure 1-1 Brady Marker Identification Drawing 1.67 GHz 200 Watt Single Output Transmitter Chapter 1, Introduction LL200ATC, Rev. 0 1-2 1.3 Safety The 1.67 GHz transmitter systems manufactured by Axcera are designed to be easy to use and repair while providing protection from electrical and mechanical hazards. Please review the following warnings and familiarize yourself with the operation and servicing procedures before working on the transmitter system. Read All safety Instructions – All of the safety instructions should be read and understood before operating this equipment. Retain Manuals – The manuals for the transmitter should be retained at the transmitter site for future reference. Axcera provides two sets of manuals for this purpose; one set can be left at the office while one set can be kept at the site. Heed all Notes, Warnings, and Cautions – All of the notes, warnings, and cautions listed in this safety section and throughout the manual must be followed. Follow Operating Instructions – All of the operating and use instructions for the transmitter should be followed. Cleaning – Unplug or otherwise disconnect all power from the equipment before cleaning. Do not use liquid or aerosol cleaners. Use a damp cloth for cleaning. Ventilation – Openings in the cabinet and module front panels are provided for ventilation. To ensure the reliable operation of the driver/transmitter, and to protect the unit from overheating, these openings must not be blocked. Servicing – Do not attempt to service this product yourself until becoming familiar with the equipment. If in doubt, refer all servicing questions to qualified Axcera service personnel. Replacement Parts – When replacement parts are used, be sure that the parts have the same functional and performance characteristics as the original part. Unauthorized substitutions may result in fire, electric shock, or other hazards. Please contact the Axcera Technical Service Department if you have any questions regarding service or replacement parts. 1.4 Contact Information The Axcera Field Service Department can be contacted by phone at (724) 873- 8100 or by fax at (724) 873-8105. Before calling Axcera, please be prepared to supply the Axcera technician with answers to the following questions. This will save time and help ensure the most direct resolution to the problem. 1. What are the Customers’ Name and call letters? 2. What are the model number and type of transmitter? 3. How long has the transmitter been on the air? (Approximately when was the transmitter installed.) 4. What are the symptoms being exhibited by the transmitter? Include the current control/power supply LCD readings and the status of LEDs on the front panels of the modules. If possible, include the control/power supply LCD readings before the problem occurred. 1.5 Material Return Procedure To insure the efficient handling of equipment or components that have been returned for repair, Axcera requests that each returned item be accompanied by a Material Return Authorization Number (MRA#). The MRA# can be obtained from any Axcera Field Service Engineer by contacting the Axcera Field Service Department at (724) 873-8100 or by fax at (724) 873-8105. This procedure applies to all items sent to the Field 1.67 GHz 200 Watt Single Output Transmitter Chapter 1, Introduction LL200ATC, Rev. 0 1-3 Service Department regardless of whether the item was originally manufactured by Axcera. When equipment is sent to the field on loan, an MRA# is included with the unit. The MRA# is intended to b…

Text truncated - open the document above for the full version.

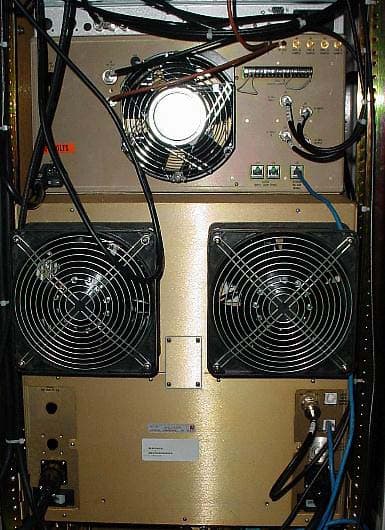

Axcera-LL200ATC FCC Type Acceptance Report External Photos March 2005 2-1 2. EXTERNAL PHOTOS 2.1 Front view, complete LL200ATC Transmitter w/Pro-Television Modulator, Model PT-5780 Axcera-LL200ATC FCC Type Acceptance Report External Photos March 2005 2-2 2.2 Rear view, complete Axcera-LL200AT Transmitter, w/Pro-Television Modulator, Model PT-5780 Axcera-LL200ATC FCC Type Acceptance Report External Photos March 2005 2-3 2.3 Rear view, Bandpass Filter Axcera-LL200ATC FCC Type Acceptance Report External Photos March 2005 2-4 2.4 Front view, Pro-Television DVB-T/H Modulator, Model PT-5780 2.5 Rear view, Pro-Television DVB-T/H Modulator, Model PT-5780

Axcera-LL200ATC FCC Type Acceptance Report ID Label/Location Info March 2005 1-1 1. ID LABEL/LOCATION INFO 1.1 Rear Panel FCC Label 1.2 Rear Panel Manufacturer’s Label Axcera-LL200ATC FCC Type Acceptance Report ID Label/Location Info March 2005 1-2 1.3 Rear view, complete Axcera-LL200ATC Transmitter with FCC Label and Manufacturer’s Label

Axcera-LL200ATC FCC Type Acceptance Report ID Label/Location Info March 2005 1-1 1. ID LABEL/LOCATION INFO 1.1 Rear Panel FCC Label 1.2 Rear Panel Manufacturer’s Label Axcera-LL200ATC FCC Type Acceptance Report ID Label/Location Info March 2005 1-2 1.3 Rear view, complete Axcera-LL200ATC Transmitter with FCC Label and Manufacturer’s Label

Axcera-LL200ATC FCC Type Acceptance Report Internal Photos March 2005 6-1 6. INTERNAL PHOTOS 6.1 Front view – Chassis Assembly (Driver) 6.2 Side view - Metering Assembly (Driver) Axcera-LL200ATC FCC Type Acceptance Report Internal Photos March 2005 6-2 6.3 Side view - Upconverter Assembly (Driver) 6.4 Side view - Control / Power Supply Assembly (Driver) Axcera-LL200ATC FCC Type Acceptance Report Internal Photos March 2005 6-3 6.5 Side view - Power Amplifier Assembly (Driver) Axcera-LL200ATC FCC Type Acceptance Report Internal Photos March 2005 6-4 6.6 Front view – Chassis Assembly (External Power Amplifier) 6.7 Side view - Power Amplifier Assembly (External Power Amplifier) Axcera-LL200ATC FCC Type Acceptance Report Internal Photos March 2005 6-5 6.8 Side view – Power Supply Assembly (External Power Amplifier)

Axcera-LL200ATC FCC Type Acceptance Report Operational Description March 2005 8-1 8. OPERATIONAL DESCRIPTION - MODEL Axcera-LL100ATC 8.1 General Description The LL200ATC is a complete 200-watt solid-state, DVB-H transmitter. It operates at a nominal output power of 200 watts (average). 8.2 Technical Specifications Type of Emission ....................................................................5M00W7D Frequency Range.................................................1670 MHz to 1675 MHz Output Power Rating ................................................... 200 watts average 8.3 Performance Specifications Operating Frequency Range .................................. 1670 MHz to 1675 MHz RF output - Nominal: Power ............................................................. 200 watts average Impedance .................................................................... 50 ohms Connector..................................................................... 7/8” EIA Standard ....................................................................................DVB-H Modulation..........................................................QPSK, 16 QAM, 64 QAM IFFT Length .......................................................................... 2K, 4K, 8K Protection Interval .................................................1/4, 1/8, 1/16 & 1/32 Code Rate ........................................................ 1/2, 2/3, 3/4, 5/6, & 7/8 Frequency Stability .................................................................... 5 x 10 -7 w/Precise Frequency Option............................................. 1 x 10 -10 Regulation of RF Output Power .......................................................... 3% Shoulder Attenuation ..................................................... -35 dB or better Phase Noise .........................................................<-85 dBc/Hz @ 100 Hz Inputs .............................................................. Serial data inputs (ASI), Parallel Data Input (SPI), High Priority, LVDS Electrical Requirements Power Line Voltage................................................... 230 volts, 50/60 Hz Power Consumption .............................................................. 2250 watts Environmental Maximum Altitude ..................................................................8,500 feet Operational Temperature Range ......................................... -5°C to +50°C Axcera-LL200ATC FCC Type Acceptance Report Operational Description March 2005 8-2 Mechanical Dimensions: Width ..........................................................................22 inches Depth ..........................................................................34 inches Height..........................................................................55 inches Weight ............................................................................ 410 lbs Axcera-LL200ATC FCC Type Acceptance Report Operational Description March 2005 8-3 8.4. System Overview The LL200ATC (1304937) is made up of the trays listed in Table 8-1. Table 8-1. LL200ATC Major Trays and Assemblies MAJOR ASSEMBLY DESIGNATOR TRAY/ASSEMBLY NAME DRAWING NUMBER A1 DVB-T /H Modulator Model PT-5780 A2 Driver Assembly 1305021 A3 External Amplifier Assembly 1305863 8.4.1 DVB-T Modulator Tray/Driver Tray/External Amplifier Tray The LL200ATC is a complete DVB-H transmitter capable of operating at an output power of 200 watts (average). Functionally, the LL200ATC is comprised of a modulator (Pro- Television, Model 5780) and driver/amplifier tray. The 36 MHz IF signal from the modulator is applied to the input of the driver/amplifier which provides spectral shaping of the IF signal in accordance with Occupied Bandwidth requirements of the Rules and Regulations. The modulator receives a serial bit stream, consisting of multiplexed MPEG-2 transport streams, translates the signal to a QAM or QPSK format, converts the digital information to analog, and modulates the signal to IF (36 MHz). The modulator tray’s IF output is routed to the driver/amplifier tray for IF signal processing, upconversion to the 1670-1675 MHz band, and final amplification. The driver/amplifier tray utilizes ALC circuitry for automatic level control of the output signal to maintain a constant power level. Both modulator and driver/amplifier trays are 19-inch rack mount assemblies and can be supplied with or without a cabinet. Both trays are supplied complete with cables and cabinet slides. The output of the DVB-T/H Modulator Tray is connected to the Driver Tray (driver), which drives the input to the External Amplifier Tray. 8.4.1.1 Metering Module (Driver) This assembly has circuitry that is used to measure the average power of up to four RF inputs. Each RF input is split on the Metering Board (1304922), with some of the signal being applied to an average power detector, and the rest of the signal sent to the front panel sample to allow the operator to monitor the RF signal with his own test equipment. The output of each detector is sent to the transmitter's system control via the Backplane that the assembly plugs into. 8.4.1.2 L.O. / Upconverter Module (Driver) This assembly converts either one or two separate 36 MHz IF signals to either one or two RF outputs at a frequency of 1670-1675 MHz. It contains an Upconverter Control board (1304780), an LO Generator board (1304940) and either one or two Upconverter boards (1304929). The description below is for one half of the upconverter. The IF and upconverter paths can be duplicated to provide two outputs when needed. The second IF path is always present, but not used in single output upconverters. A second Upconverter board is added for dual output transmitters. Axcera-LL200ATC FCC Type Acceptance Report Operational Description March 2005 8-4 An IF Signal centered at 36 MHz at a level of 0 dBm average is applied to the Upconverter Control board. A sample is applied to a peak detector, which checks for the…

Text truncated - open the document above for the full version.

Axcera-LL200ATC FCC Type Acceptance Report Operational Description March 2005 8-1 8. OPERATIONAL DESCRIPTION - MODEL Axcera-LL200ATC 8.1 General Description The LL200ATC is a complete 200-watt solid-state, DVB-H transmitter. It operates at a nominal output power of 200 watts (average). 8.2 Technical Specifications Type of Emission ....................................................................5M00W7D Frequency Range.................................................1670 MHz to 1675 MHz Output Power Rating ................................................... 200 watts average 8.3 Performance Specifications Operating Frequency Range .................................. 1670 MHz to 1675 MHz RF output - Nominal: Power ............................................................. 200 watts average Impedance .................................................................... 50 ohms Connector..................................................................... 7/8” EIA Standard ....................................................................................DVB-H Modulation..........................................................QPSK, 16 QAM, 64 QAM IFFT Length .......................................................................... 2K, 4K, 8K Protection Interval .................................................1/4, 1/8, 1/16 & 1/32 Code Rate ........................................................ 1/2, 2/3, 3/4, 5/6, & 7/8 Frequency Stability .................................................................... 1 x 10 -6 w/Precise Frequency Option............................................. 1 x 10 -10 Regulation of RF Output Power .......................................................... 3% Shoulder Attenuation ..................................................... -35 dB or better Phase Noise .........................................................<-85 dBc/Hz @ 100 Hz Inputs .............................................................. Serial data inputs (ASI), Parallel Data Input (SPI), High Priority, LVDS Electrical Requirements Power Line Voltage................................................... 230 volts, 50/60 Hz Power Consumption .............................................................. 2250 watts Environmental Maximum Altitude ..................................................................8,500 feet Operational Temperature Range ......................................... -5°C to +50°C Axcera-LL200ATC FCC Type Acceptance Report Operational Description March 2005 8-2 Mechanical Dimensions: Width ..........................................................................22 inches Depth ..........................................................................34 inches Height..........................................................................55 inches Weight ............................................................................ 410 lbs Axcera-LL200ATC FCC Type Acceptance Report Operational Description March 2005 8-3 8.4. System Overview The LL200ATC (1304937) is made up of the trays listed in Table 8-1. Table 8-1. LL200ATC Major Trays and Assemblies MAJOR ASSEMBLY DESIGNATOR TRAY/ASSEMBLY NAME DRAWING NUMBER A1 DVB-T /H Modulator Model PT-5780 A2 Driver Assembly 1305021 A3 External Amplifier Assembly 1305863 8.4.1 DVB-T Modulator Tray/Driver Tray/External Amplifier Tray The LL200ATC is a complete DVB-H transmitter capable of operating at an output power of 200 watts (average). Functionally, the LL200ATC is comprised of a modulator (Pro- Television, Model 5780) and driver/amplifier tray. The 36 MHz IF signal from the modulator is applied to the input of the driver/amplifier which provides spectral shaping of the IF signal in accordance with Occupied Bandwidth requirements of the Rules and Regulations. The modulator receives a serial bit stream, consisting of multiplexed MPEG-2 transport streams, translates the signal to a QAM or QPSK format, converts the digital information to analog, and modulates the signal to IF (36 MHz). The modulator tray’s IF output is routed to the driver/amplifier tray for IF signal processing, upconversion to the 1670-1675 MHz band, and final amplification. The driver/amplifier tray utilizes ALC circuitry for automatic level control of the output signal to maintain a constant power level. Both modulator and driver/amplifier trays are 19-inch rack mount assemblies and can be supplied with or without a cabinet. Both trays are supplied complete with cables and cabinet slides. The output of the DVB-T/H Modulator Tray is connected to the Driver Tray (driver), which drives the input to the External Amplifier Tray. 8.4.1.1 Metering Module (Driver) This assembly has circuitry that is used to measure the average power of up to four RF inputs. Each RF input is split on the Metering Board (1304922), with some of the signal being applied to an average power detector, and the rest of the signal sent to the front panel sample to allow the operator to monitor the RF signal with his own test equipment. The output of each detector is sent to the transmitter's system control via the Backplane that the assembly plugs into. 8.4.1.2 L.O. / Upconverter Module (Driver) This assembly converts either one or two separate 36 MHz IF signals to either one or two RF outputs at a frequency of 1670-1675 MHz. It contains an Upconverter Control board (1304780), an LO Generator board (1304940) and either one or two Upconverter boards (1304929). The description below is for one half of the upconverter. The IF and upconverter paths can be duplicated to provide two outputs when needed. The second IF path is always present, but not used in single output upconverters. A second Upconverter board is added for dual output transmitters. Axcera-LL200ATC FCC Type Acceptance Report Operational Description March 2005 8-4 An IF Signal centered at 36 MHz at a level of 0 dBm average is applied to the Upconverter Control board. A sample is applied to a peak detector, which checks for the…

Text truncated - open the document above for the full version.

Axcera-LL200ATC FCC Type Acceptance Report Parts List/Tune-up Info March 2005 7-1 7. PARTS LIST/TUNE-UP INFO 7.1 Parts List The transmitter, can be subdivided as follows: DVB-T/H Modulator Tray (See modulator manual for tune-up info) Driver Tray: ƒ Metering Module ƒ L.O. / Upconverter Module ƒ Control & Monitoring / Power Supply Module ƒ Power Amplifier Module External Amplifier Tray: • Power Amplifier Module (Qty of 2) • Power Supply Module (Qty of 1) • 2-Way Gysel 7.2 Tune-up Information The LL200ATC transmitter was aligned at the factory and should not require additional alignments to achieve normal operation. 7.2.1 Setting up Manual Gain Turn the Manual Gain Pot on the front panel of the Upconverter full CCW. Switch the Auto/Manual Gain Switch to the left (Manual) Gradually turn the manual gain pot clockwise while monitoring the output power on a power meter connected to the output of the transmitter is 100%. 7.2.2 Power Calibration Connect a Power meter to the output sample of the transmitter. Note the Insertion loss from the output to the sample port. Enter that offset into the Power meter's Offset Rel function, and set the reference frequency to 1670 MHz. Navigate to the Transmitter Setup Menu on the System Controller and enter that menu. Scroll down until the A Output Power Adjust screen is reached. Use the Up/down Arrows to adjust power to desired output power. Scroll down to the A Output Power Cal screen. Adjust Power Calibration until meter reads 100%. 7.2.3 Setting up AGC Step 1: Navigate to the Transmitter Setup Menu on the System Controller and enter that menu. Scroll down until the A Output Power Adjust screen is reached. Use the Up/down Arrows to adjust power to 100%. (Power Calibration must have been done first) Step 2: Scroll down further to Inner Loop A Gain menu is reached. Increase the Inner Axcera-LL200ATC FCC Type Acceptance Report Parts List/Tune-up Info March 2005 7-2 Loop Gain while watching the output power. Keep increasing until the output power begins to drop. Note the setting on Inner Loop gain, and reduce the setting by 10%. Example: The Inner Loop Gain setting where power begins to move is 210. Reduce the setting by 21 to 189. NOTE: If adjusting the Inner Loop gain causes the power to rise immediately, then the AGC has been running on Inner Loop Gain, not Outer Loop Gain. Go back to step 1, reduce the power to 50%, then go to step 2 and reduce the Inner Loop A Gain until the power stops rising or you have reached 110%, whichever comes first. If you reach 110%, go. Repeat as many times as you need to until the Inner Loop does not affect power. Once the power stops rising when Inner Loop Gain Continue to lower the Inner Loop gain further by 20%, then go back to step 1 a final time. Bring the power back up to 100% and go to step 2 one final time. 7.2.4 Overdrive Go to the Transmitter Setup Menu, and scroll down to the A Output Power Adjust screen. Turn the Output power up to 10%. Then scroll down to the A Overdrive screen and lower the Overdrive setting until power just starts to drop. Go back to the A Output Power Adjust screen and reduce the power to 100%. 7.2.5 Reflected Power Calibration Connect a Power meter to the Reflected sample of the transmitter. Note the Insertion loss from the output to the sample port. Enter that offset into the Power meter's Offset Rel function, and set the reference frequency to 1670 MHz. Navigate to the Transmitter Setup Menu on the System Controller and enter that menu. Scroll down until the A Output Power Adjust screen is reached. Use the Up/down Arrows to adjust power to 20% of the desired output power. Swap the forward and reflected power cables on the transmitter's output coupler. Scroll down to the A Output Power Cal screen. Adjust Power Calibration until meter reads 20%. Return cables to their correct posit…
