OUSLU4000AT4000-Watt UHF Transmitter

Axcera-LU4000AT FCC Type Acceptance Report Users Manual April 2004 5-1 5. USER'S MANUAL The user's manual for the Axcera-LU4000AT system is provided as separate PDF files.

INSTRUCTION MANUAL INNOVATOR LX SERIES UHF Analog Driver/Transmitter AXCERA, LLC 103 FREEDOM DRIVE P.O. BOX 525 LAWRENCE, PA 15055-0525 USA (724) 873-8100 • FAX (724) 873-8105 www.axcera.com • [email protected] UHF Analog Driver/Transmitter Table of Contents LX Series, Rev. 0 October 31, 2003 i TABLE OF CONTENTS SECTION PAGE CHAPTER 1 INTRODUCTION 1.1 Manual Overview................................................................................... 1-1 1.2 Assembly Designation Numbers .............................................................. 1-1 1.3 Safety .................................................................................................. 1-1 1.4 Maintenance ......................................................................................... 1-2 1.5 Material Return Procedure ...................................................................... 1-2 1.6 Limited One-Year Warranty for Axcera Products ....................................... 1-3 CHAPTER 2 SYSTEM DESCRIPTION & REMOTE CONTROL CONNECTIONS 2.1 System Overview ................................................................................. 2-1 2.1.1 Modulator Module (not used in a translator system)......................... 2-1 2.1.2 IF Processor Module ..................................................................... 2-3 2.1.3 LO/Upconverter Module ................................................................ 2-5 2.1.4 Control & Monitoring/Power Supply Module ..................................... 2-7 2.1.5 Power Amplifier Module, 10-100W transmitter................................. 2-8 2.1.5.1 Driver Amplifier Module, used with high power transmitters..... 2-9 2.1.6 RF Output Assemblies................................................................. 2-11 2.2 Control and Status .............................................................................. 2-11 2.2.1 Front Panel LCD Display Screen ................................................... 2-11 2.3 System Operation ............................................................................... 2-12 2.3.1 Principles of Operation ................................................................ 2-12 2.4 Customer Remote Connections ............................................................. 2-14 CHAPTER 3 SITE CONSIDERATIONS, INSTALLATION AND SETUP PROCEDURES 3.1 Site Considerations................................................................................ 3-1 3.2 Unpacking the Chassis w/Modules, bandpass and trap filters...................... 3-4 3.3 Installing the Chassis w/Modules and filters ............................................. 3-4 3.4 AC Input .............................................................................................. 3-5 3.5 Setup and Operation.............................................................................. 3-5 3.5.1 Input Connections ........................................................................ 3-5 3.5.2 Front Panel Screens for the Exciter/Amplifier Chassis Assembly ........ 3-7 3.5.3 Initial Turn On ........................................................................... 3-14 CHAPTER 4 CIRCUIT DESCRIPTIONS 4.1 Modulator Module (not used in a translator system) .................................. 4-1 4.1.1 Analog Modulator Board................................................................ 4-1 4.2 IF Processor Module .............................................................................. 4-6 4.2.1 IF Processor Board ....................................................................... 4-6 4.3 LO/Upconverter Module ....................................................................... 4-11 4.3.1 UHF Generator Board ................................................................. 4-12 4.3.2 UHF Filters ................................................................................ 4-13 4.3.3 LO/Upconverter Board ................................................................ 4-13 4.4 Control Monitoring/Power Supply Module ............................................... 4-17 4.4.1 Power Protection Board............................................................... 4-17 4.4.2 Control Board ............................................................................ 4-18 4.4.3 Switch Board ............................................................................. 4-20 4.4.4 Switching Power Supply Assembly ............................................... 4-20 UHF Analog Driver/Transmitter Table of Contents LX Series, Rev. 0 October 31, 2003 ii TABLE OF CONTENTS - (Continued) SECTION PAGE 4.5 Power Amplifier Module Assembly used in 10-100 Watt transmitters......... 4-21 4.5.1 1-Watt Amplifier Module Assembly ............................................... 4-21 4.5.2 1-Watt UHF Amplifier Board ........................................................ 4-21 4.5.3 40-Watt UHF Amplifier Assembly ................................................. 4-21 4.5.4 UHF Module Assembly, RF Module Pallet ....................................... 4-22 4.5.5 Coupler Board Assembly ............................................................. 4-23 4.5.6 Amplifier Control Board............................................................... 4-23 4.5.7 Band-pass and Trap Filter ........................................................... 4-25 4.6 OR Driver Amplifier Module Assembly used in high power transmitters...... 4-25 4.6.1 1-Watt Amplifier Module Assembly ............................................... 4-25 4.6.2 1-Watt UHF Amplifier Board ........................................................ 4-26 4.6.3 40-Watt UHF Amplifier Assembly ................................................. 4-26 4.6.4 Coupler Board Assembly ............................................................. 4-26 4.6.5 Amplifier Control Board............................................................... 4-27 CHAPTER 5 DETAILED ALIGNMENT PROCEDURES 5.1 Module Replacement.............................................…

Text truncated - open the document above for the full version.

INSTRUCTION MANUAL Innovator LX Series Power Amplifier Assembly AXCERA, LLC 103 FREEDOM DRIVE P.O. BOX 525 LAWRENCE, PA 15055-0525 USA (724) 873-8100 • FAX (724) 873-8105 www.axcera.com • [email protected] LX Series Power Amplifier Assembly Table of Contents LX Series, Rev. 0 November 25, 2003 i TABLE OF CONTENTS CHAPTER 1 INTRODUCTION SECTION PAGE 1.1 Manual Overview................................................................................... 1-1 1.2 Assembly Designation Numbers .............................................................. 1-1 1.3 Safety .................................................................................................. 1-1 1.4 Maintenance ......................................................................................... 1-2 1.5 Material Return Procedure ...................................................................... 1-2 1.6 Limited One-Year Warranty for Axcera Products ....................................... 1-3 CHAPTER 2 SYSTEM DESCRIPTION & REMOTE CONTROL CONNECTIONS 2.1 LX Series Power Amplifier Assembly Overview ......................................... 2-1 2.1.1 Power Amplifier Module, 250 Watt ................................................. 2-1 2.1.2 Power Supply Module Assembly ..................................................... 2-3 2.1.3 Front Panel LCD Display Screens.................................................... 2-3 2.2 System Operation ................................................................................. 2-3 2.2.1 Principles of Operation .................................................................. 2-4 2.3 Customer Remote Connections......................................................... 2-5 CHAPTER 3 SITE CONSIDERATIONS, INSTALLATION AND SETUP PROCEDURES 3.1 Site Considerations................................................................................ 3-1 3.2 Unpacking the Chassis w/Modules, bandpass and trap filters...................... 3-4 3.3 Installing the Chassis w/Modules and filters ............................................. 3-4 3.4 AC Input .............................................................................................. 3-5 3.5 Setup and Operation.............................................................................. 3-5 3.5.1 Input Connections ........................................................................ 3-5 3.5.2 Front Panel Screens for the Exciter/Amplifier Chassis Assembly ........ 3-7 3.5.3 Initial Turn On ........................................................................... 3-14 CHAPTER 4 CIRCUIT DESCRIPTIONS 4.1 Power Amplifier Module.......................................................................... 4-1 4.1.1 UHF Phase/Gain Board.................................................................. 4-1 4.1.2 150 Watt Driver Pallet Assembly .................................................... 4-1 4.1.3 150 Watt Driver, Dual Output Board............................................... 4-1 4.1.4 UHF Module Assembly, RF Module Pallet, Philips .............................. 4-2 4.1.5 2 Way UHF Combiner Assembly ..................................................... 4-2 4.1.6 Amplifier Control Board................................................................. 4-3 4.2 Power Supply Assembly ......................................................................... 4-5 CHAPTER 5 DETAILED ALIGNMENT PROCEDURES 5.1 Module Replacement.............................................................................. 5-1 5.1.1 Initial Test Setup.......................................................................... 5-1 5.2 Innovator LX Series Exciter/Amplifier Chassis Assembly ............................ 5-2 5.2.1 Linearity Correction Adjustment..................................................... 5-3 5.2.2 Frequency Response Delay Equalization Adjustment ........................ 5-4 5.2.3 Calibration of Forward Output Power Level...................................... 5-4 5.2.4 Calibration of Reflected Output Power Level .................................... 5-5 5.3 Bandpass Filter Assembly....................................................................... 5-5 LX Series Power Amplifier Assembly Table of Contents LX Series, Rev. 0 November 25, 2003 ii TABLE OF CONTENTS - (Continued) 5.4 UHF Trap Filter Assembly ....................................................................... 5-5 5.4.1 The Effects of Tuning the Output Trap Filter .................................... 5-6 APPENDICES APPENDIX A INNOVATOR LX SERIES SPECIFICATIONS APPENDIX B DRAWINGS AND PARTS LISTS LX Series Power Amplifier Assembly Table of Contents LX Series, Rev. 0 iii LIST OF FIGURES FIGURE PAGE 3-1 1 kW Minimum Ventilation Configuration .......................................... 3-4 3-2 Front and Rear View Reconnection Drawing ...................................... 3-5 3-3 Rear View of LX Series Transmitter .................................................. 3-6 4-1 UHF Amplifier Module, 250 Watts ..................................................... 4-2 5-1 Typical Red Field Spectrum ............................................................. 5-4 LX Series Power Amplifier Assembly Table of Contents LX Series, Rev. 0 iv LIST OF TABLES TABLE PAGE 2-1 LX Series Power Amplifier Assemblies............................................... 2-1 2-2 Power Amplifier Status Indicators .................................................... 2-3 2-3 Power Amplifier Control Adjustments................................................ 2-3 2-4 Power Amplifier Sample .................................................................. 2-3 2-5 Pioneer Chassis Customer Remote Connections ........................ 2-5 3-1 Rear Chassis Connections for LX Series Transmitter ........................... 3-6 3-2 Menu 01 Splash Screen #1 ............................................................. 3-7 3-3 Menu 02 Splash Screen #2 ............................................................. 3-7 3-4 M…

Text truncated - open the document above for the full version.

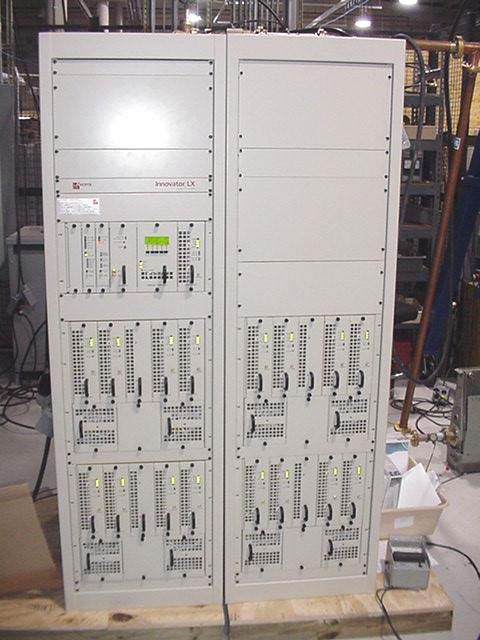

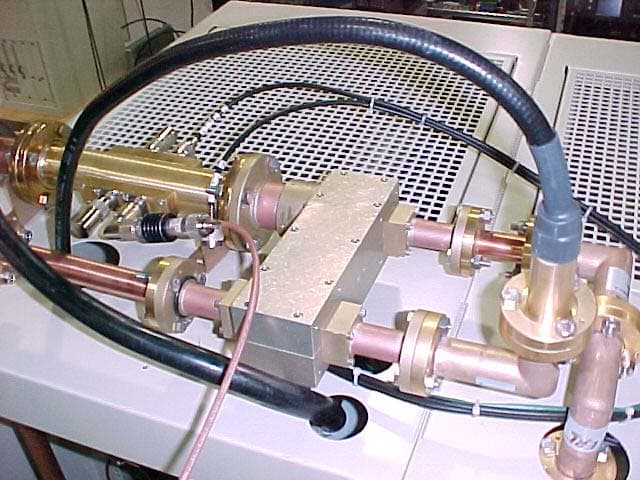

ADC-LU4000AT FCC Type Acceptance Report External Photos April 2004 2-1 2. EXTERNAL PHOTOS 2.1 Front view, complete LU4000AT Transmitter ADC-LU4000AT FCC Type Acceptance Report External Photos April 2004 2-2 2.2 Rear view, complete Axcera-LU4000AT Transmitter ADC-LU4000AT FCC Type Acceptance Report External Photos April 2004 2-3 2.3 Top view, Axcera-LU4000AT Transmitter (Cabinet Combiner & Coupler)

Axcera-LU4000AT FCC Type Acceptance Report ID Label/Location Info April 2004 1-1 1. ID LABEL/LOCATION INFO 1.1 Front Panel FCC Label 1.2 Rear Panel Manufacturer’s Label Axcera-LU4000AT FCC Type Acceptance Report ID Label/Location Info April 2004 1-2 1.3 Front view, complete Axcera-LU4000AT Transmitter with FCC Label Axcera-LU4000AT FCC Type Acceptance Report ID Label/Location Info April 2004 1-3 1.4 Rear view, Axcera-LU4000AT Transmitter with Manufacturer’s Label.

ADC-LU4000AT FCC Type Acceptance Report External Photos April 2004 2-1 2. EXTERNAL PHOTOS 2.1 Front view, complete LU4000AT Transmitter ADC-LU4000AT FCC Type Acceptance Report External Photos April 2004 2-2 2.2 Rear view, complete Axcera-LU4000AT Transmitter ADC-LU4000AT FCC Type Acceptance Report External Photos April 2004 2-3 2.3 Top view, Axcera-LU4000AT Transmitter (Cabinet Combiner & Coupler)

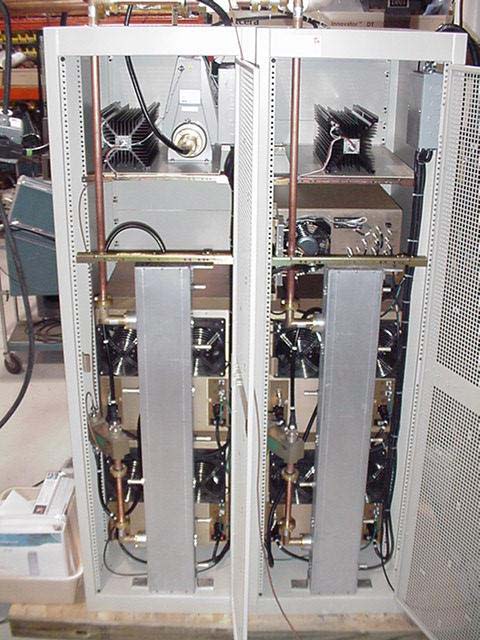

Axcera-LU4000AT FCC Type Acceptance Report Internal Photos April 2004 6-1 6. INTERNAL PHOTOS 6.1 Front view – Chassis Assembly (Exciter) 6.2 Side view - Modulator Assembly (Exciter) Axcera-LU4000AT FCC Type Acceptance Report Internal Photos April 2004 6-2 6.3 Side view - IF Processor Assembly (Exciter) 6.4 Side view - L.O. Upconverter Assembly (Exciter) Axcera-LU4000AT FCC Type Acceptance Report Internal Photos April 2004 6-3 6.5 Side view - Control / Power Supply Assembly (Exciter) 6.6 Side view - Power Amplifier Assembly (Exciter) Axcera-LU4000AT FCC Type Acceptance Report Internal Photos April 2004 6-4 6.7 Front view – Chassis Assembly (External Power Amplifier) 6.8 Side view - Power Amplifier Assembly (External Power Amplifier) Axcera-LU4000AT FCC Type Acceptance Report Internal Photos April 2004 6-5 6.9 Side view – Power Supply Assembly (External Power Amplifier) 6.10 Side view – 4-Way Combiner Assembly (External Power Amplifier)

Axcera-LU4000AT FCC Type Acceptance Report Operational Description April 2004 8-1 8. OPERATIONAL DESCRIPTION - MODEL Axcera-LU2000AT 8.1 General Description The LU4000AT is a complete 4000-watt UHF solid-state, internally diplexed television transmitter. It operates at a nominal visual output power of 4000 watts peak sync and an average aural output power of 400 watts, at an A/V ratio of 10 dB, 10% sound. 8.2 Technical Specifications Type of Emissions: Visual .......................................................................... 5M75C3F Aural ............................................................................250KF3E Frequency Range....................... 470 MHz to 860 MHz (any 6-MHz channel) Output Power Visual .........................................................4000 watts peak sync Aural .............................................................. 400 watts average Maximum Power Rating Visual ....................................................... 4000 watts peak visual Aural ...................................................... 400 watts average aural Power Consumption ............................................................13,500 watts 8.3 Performance Specifications Visual Performance Operating Frequency Range ...................................... 470 MHz to 860 MHz RF output - Nominal: Power .........................................................4000 watts peak sync Impedance .................................................................... 50 ohms Connector..................................................................... 7/8” EIA Visual Sideband Response: -1.25 MHz and below ........................................................... -20B -0.75 to -0.5 MHz..................................................... +0.5, -2.0dB -0.5 MHz to +3.58 MHz....................................................±0.5 dB 3.58 MHz to 4.18 MHz.............................................. +0.5, -1.0 dB Variation of Frequency Response with Brightness...........................±0.5 dB Differential Phase ............................................................................ ±3° Incidental Phase Modulation.............................................................. ±3° Differential Gain .............................................................................. 5% Low Frequency Linearity ................................................................... 5% Intermodulation Products .............................................. -52 dB (red field) Output Variation (Over 1 Frame) ....................................................... 2% Regulation of Output........................................................................ 3% Axcera-LU4000AT FCC Type Acceptance Report Operational Description April 2004 8-2 Signal-to-Noise Ratio ................................................................. 55 dB 2t K-Factor.................................................................................. 2% Harmonic Radiation .....................................................................-60 dB Spurious (>3 MHz from channel edge) ...........................................-50 dB Carrier Frequency Stability....................................................... ±1000 Hz Aural Performance Frequency Deviation Capability (Transmitters) ............................. ±75 kHz Distortion .....................................................................................0.5% FM Noise ....................................................................................-60 dB AM Noise ....................................................................................-55 dB Visual to Aural Separation ......................................... 4.5 MHz, ±100 Hz Composite Audio Input (Multi-channel sound - Transmitters) Input Level ........................................................1V peak, nominal Input Impedance.......................................... 75 ohms, unbalanced Frequency Range: ±0.1 dB Response.................................................50 Hz to 50 kHz ±0.5 dB Response ............................................30 Hz to 120 kHz Monaural Audio Input (Transmitters): Input Level ............................................................ 0 to +10 dBm Input Impedance............................................ 600 ohms, balanced Frequency Range (±0.5 dB resp.) ..........................30 Hz to 15 kHz Pre-emphasis..................................................................... 75 uS Subcarrier Audio Input (Transmitters): Input Level ........................................................1V peak, nominal Input Impedance.......................................... 75 ohms, unbalanced Frequency Range (±0.5 dB resp.) ...................... 20 kHz to 120 kHz Electrical Requirements Power Line Voltage................................................... 230 volts, 50/60 Hz Power Consumption ............................................................13,500 watts Environmental Maximum Altitude ..................................................................8,500 feet Operational Temperature Range ...........................................0°C to +50°C Mechanical Dimensions: Width ..........................................................................44 inches Depth ..........................................................................34 inches Height..........................................................................76 inches Weight ......................................................................... 1,030 lbs Axcera-LU4000AT FCC Type Acceptance Report Operational Description April 2004 8-3 8.4. System Overview The LU4000AT (1304206) is made up of the trays listed in Table 8-1. Table 8-1. LU4000AT Major Trays and Assemblies MAJOR ASSEMBLY DESIGNATOR TRAY/ASSEMBLY NAME DRAWING NUMBER A1 UHF Exciter Assembly 1302065 A2 External Amplifier Assembly 1304206 A3 External Amplifier Assembly 1304206 A4 External Amplifier Assembly 1304206 8.4.1 Exciter T…

Text truncated - open the document above for the full version.

Axcera-LU4000AT FCC Type Acceptance Report Operational Description April 2004 8-1 8. OPERATIONAL DESCRIPTION - MODEL Axcera-LU4000AT 8.1 General Description The LU4000AT is a complete 4000-watt UHF solid-state, internally diplexed television transmitter. It operates at a nominal visual output power of 4000 watts peak sync and an average aural output power of 400 watts, at an A/V ratio of 10 dB, 10% sound. 8.2 Technical Specifications Type of Emissions: Visual .......................................................................... 5M75C3F Aural ............................................................................250KF3E Frequency Range....................... 470 MHz to 860 MHz (any 6-MHz channel) Output Power Visual .........................................................4000 watts peak sync Aural .............................................................. 400 watts average Maximum Power Rating Visual ....................................................... 4000 watts peak visual Aural ...................................................... 400 watts average aural Power Consumption ............................................................13,500 watts 8.3 Performance Specifications Visual Performance Operating Frequency Range ...................................... 470 MHz to 860 MHz RF output - Nominal: Power .........................................................4000 watts peak sync Impedance .................................................................... 50 ohms Connector..................................................................... 7/8” EIA Visual Sideband Response: -1.25 MHz and below ........................................................... -20B -0.75 to -0.5 MHz..................................................... +0.5, -2.0dB -0.5 MHz to +3.58 MHz....................................................±0.5 dB 3.58 MHz to 4.18 MHz.............................................. +0.5, -1.0 dB Variation of Frequency Response with Brightness...........................±0.5 dB Differential Phase ............................................................................ ±3° Incidental Phase Modulation.............................................................. ±3° Differential Gain .............................................................................. 5% Low Frequency Linearity ................................................................... 5% Intermodulation Products .............................................. -52 dB (red field) Output Variation (Over 1 Frame) ....................................................... 2% Regulation of Output........................................................................ 3% Axcera-LU4000AT FCC Type Acceptance Report Operational Description April 2004 8-2 Signal-to-Noise Ratio ................................................................. 55 dB 2t K-Factor.................................................................................. 2% Harmonic Radiation .....................................................................-60 dB Spurious (>3 MHz from channel edge) ...........................................-50 dB Carrier Frequency Stability....................................................... ±1000 Hz Aural Performance Frequency Deviation Capability (Transmitters) ............................. ±75 kHz Distortion .....................................................................................0.5% FM Noise ....................................................................................-60 dB AM Noise ....................................................................................-55 dB Visual to Aural Separation ......................................... 4.5 MHz, ±100 Hz Composite Audio Input (Multi-channel sound - Transmitters) Input Level ........................................................1V peak, nominal Input Impedance.......................................... 75 ohms, unbalanced Frequency Range: ±0.1 dB Response.................................................50 Hz to 50 kHz ±0.5 dB Response ............................................30 Hz to 120 kHz Monaural Audio Input (Transmitters): Input Level ............................................................ 0 to +10 dBm Input Impedance............................................ 600 ohms, balanced Frequency Range (±0.5 dB resp.) ..........................30 Hz to 15 kHz Pre-emphasis..................................................................... 75 uS Subcarrier Audio Input (Transmitters): Input Level ........................................................1V peak, nominal Input Impedance.......................................... 75 ohms, unbalanced Frequency Range (±0.5 dB resp.) ...................... 20 kHz to 120 kHz Electrical Requirements Power Line Voltage................................................... 230 volts, 50/60 Hz Power Consumption ............................................................13,500 watts Environmental Maximum Altitude ..................................................................8,500 feet Operational Temperature Range ...........................................0°C to +50°C Mechanical Dimensions: Width ..........................................................................44 inches Depth ..........................................................................34 inches Height..........................................................................76 inches Weight ......................................................................... 1,030 lbs Axcera-LU4000AT FCC Type Acceptance Report Operational Description April 2004 8-3 8.4. System Overview The LU4000AT (1304206) is made up of the trays listed in Table 8-1. Table 8-1. LU4000AT Major Trays and Assemblies MAJOR ASSEMBLY DESIGNATOR TRAY/ASSEMBLY NAME DRAWING NUMBER A1 UHF Exciter Assembly 1302065 A2 External Amplifier Assembly 1304206 A3 External Amplifier Assembly 1304206 A4 External Amplifier Assembly 1304206 8.4.1 Exciter T…

Text truncated - open the document above for the full version.

Axcera-LU4000AT FCC Type Acceptance Report Parts List/Tune-up Info April 2004 7-1 7. PARTS LIST/TUNE-UP INFO 7.1 Parts List The transmitter, can be subdivided as follows: Exciter Tray: ƒ Modulator Module ƒ IF Processor Module ƒ L.O. / Upconverter Module ƒ Control & Monitoring / Power Supply Module ƒ Power Amplifier Module External Amplifier Trays (Qty of 4): • 4-Way Splitter (Qty of 4) • Power Amplifier Module (Qty of 16) • Power Supply Module (Qty of 8) • 4-Way Combiner (Qty of 4) 7.2 Tune-up Information The LU4000AT transmitter was aligned at the factory and should not require additional alignments to achieve normal operation. 7.2.1 Exciter/Amplifier Chassis Assembly This transmitter takes the baseband audio and video inputs or, if the (Optional) 4.5-MHz composite input kit is purchased, either a single composite video + 4.5-MHz input or separate baseband video and audio inputs, and converts them to the desired UHF On Channel RF Output at the systems output power level. 7.2.2 Modulator Module Assembly Note: Not present in Translator systems. The Modulator Assembly has adjustments for video levels and audio modulation levels, and other related parameters. Connect an NTSC baseband video test signal input (1 Vpk-pk) to the transmitter video input jack J7 on the rear of the tray. Jacks J7 and J17 are loop-through connected; the J17 jack can be used as a video source for another transmitter. Connect a baseband audio input (+10 dBm) to the balanced audio input terminal block TB02-1 [+], TB02-2 [-], and TB02-3 [ground] or, if stereo/composite audio is provided, connect it to BNC jack J3, the composite audio input jack. Verify that all LEDs located on the front panel of the Modulator are Green. The following details the meaning of each LED: AURAL UNLOCK (DS5) – Red Indicates that 4.5 MHz Aural IF is unlocked from the Nominal 45.75 MHz visual IF. VISUAL UNLOCK (DS6) – Red Indicates that the Nominal 45.75 MHz visual IF is unlocked from the 10 MHz reference. Axcera-LU4000AT FCC Type Acceptance Report Parts List/Tune-up Info April 2004 7-2 AUDIO OVER DEVIATION (DS4) – Red Indicates that the input Audio level is too high. (±75 kHz max) VIDEO LOSS (DS1) – Red Indicates that the input Video level is too low. OVER MODULATION (DS3) – Red Indicates that the input Video level is too high. ALTERNATE IF (DS7) – Red Indicates that an external Nominal 45.75 MHz IF is not present to the modulator. 10 MHz PRESENT (DS2) – Red Indicates that an external 10 MHz reference is not present to the modulator. Look at the front panel LCD meter on the Control/Power Supply Module Assembly. Set the LCD screen to the Modulator Details video output level screen, the screen indicates active video from 0 to 1 Vpk-pk. The normal video input level is 1 Vpk-pk on the front panel screen. If this reading is not at the proper level, the overall video level can be changed by adjusting the VIDEO LEVEL control R42 on the front panel of the Modulator to the 1 Vpk- pk level on the front panel screen. Note: An NTSC or FCC composite signal should be used for video metering calibration. Switch the LCD display to the Modulator Details screen that indicates the AUDIO DEVIATION (modulation level) of the signal up to 75 kHz. Mono Set-up: The modulator was factory set for a ±25-kHz deviation with a mono, balanced, audio input of +10 dBm. If the reading is not at the correct level, adjust the MONO Audio Gain pot R110, located on the front panel of the modulator, as necessary, to attain the ±25-kHz deviation on the front panel screen. Stereo Set-up: The modulator was factory set for a ±75-kHz deviation with…
