OUSLU6000AL6000-Watt UHF Translator

INSTRUCTION MANUAL Innovator, LX Series UHF Analog Driver/Transmitter/Translator AXCERA, LLC 103 FREEDOM DRIVE P.O. BOX 525 LAWRENCE, PA 15055-0525 USA (724) 873-8100 • FAX (724) 873-8105 www.axcera.com • [email protected] UHF Analog Driver/Transmitter/Translator Table of Contents LX Series, Rev. 3 December 5, 2005 i TABLE OF CONTENTS CHAPTER 1 INTRODUCTION SECTION PAGE 1.1 Manual Overview............................................................................1-1 1.2 Assembly Designators......................................................................1-1 1.3 Safety...........................................................................................1-2 1.4 Contact Information.....................................................................1-2 1.5 Material Return Procedure.................................................................1-2 1.6 Limited One Year Warranty for Axcera Products.....................................1-3 CHAPTER 2 SYSTEM DESCRIPTION, MAINTENANCE & REMOTE CONTROL CONNECTIONS System Overview...........................................................................2-1 2.0 (Optional) Exciter Switcher Tray........................................................2-2 2.1 Exciter/Amplifier Chassis Assembly....................................................2-2 2.1.1 Receiver Module (not used in a transmitter system)......................2-2 2.1.2 Modulator Module (may not be used in a translator system)............2-4 2.1.3 IF Processor Module................................................................2-5 2.1.4 VHF/UHF Upconverter Module...................................................2-7 2.1.5 Control & Monitoring/Power Supply Module..................................2-9 2.1.6 Exciter PA Module used in 10-100W Xmitters. or Drvrs above 2kW..2-10 2.1.6.1 Driver Amplifier Module, used with 1kW or 2kW transmitters.2-12 2.1.7 RF Output Assemblies.............................................................2-14 2.2 Control and Status.........................................................................2-14 2.2.1 Front Panel LCD Display Screen................................................2-14 2.3 System Operation..........................................................................2-14 2.3.1 Principles of Operation............................................................2-14 2.4 Maintenance.................................................................................2-17 2.5 Customer Remote Connections...................................................2-17 CHAPTER 3 SITE CONSIDERATIONS, INSTALLATION AND SETUP PROCEDURES 3.1 Site Considerations..........................................................................3-1 3.2 Unpacking the Chassis w/Modules, bandpass and trap filters....................3-5 3.3 Installing the Chassis w/Modules and filters..........................................3-5 3.4 AC Input.......................................................................................3-6 3.5 Setup and Operation........................................................................3-7 3.5.1 Input Connections..................................................................3-7 3.5.2 Initial Turn On.......................................................................3-9 3.5.2.1 (Optional) Receiver Module LEDs on Front Panel...................3-9 3.5.2.2 Modulator Module LEDs on Front Panel...............................3-9 3.5.2.3 IF Processor Module LEDs on Front Panel...........................3-10 3.5.2.4 VHF/UHF Upconverter Module LEDs on Front Panel..............3-10 3.5.2.5 Controller Module LEDs on Front Panel..............................3-10 3.5.2.6 Power Amplifier or Driver Module LEDs on Front Panel..........3-10 3.5.3 Front Panel Screens for the (Optional) Exciter Switcher Assembly....3-10 3.5.4 Front Panel Screens for the Exciter/Amplifier Chassis Assembly......3-13 3.5.5 Operation Procedure..............................................................3-22 CHAPTER 4 CIRCUIT DESCRIPTIONS 4.0 (Optional) Exciter Switcher Tray (Used with dual exciter system)..............4-1 UHF Analog Driver/Transmitter/Translator Table of Contents LX Series, Rev. 3 December 5, 2005 ii TABLE OF CONTENTS - (Continued) SECTION PAGE 4.0.1 Exciter Switcher Control Board..................................................4-1 4.1 (Optional) Receiver Module (not used in a transmitter system).................4-1 4.1.1 IF ALC Board.........................................................................4-1 4.1.2 UHF or VHF Mixer/PLL Board.....................................................4-2 4.1.3 UHF, VHF LB or VHF HB Preamplifier Board..................................4-2 4.2 Modulator Module (may not be used in a translator system)....................4-3 4.2.1 Analog Modulator Board...........................................................4-3 4.2.1.1 Mono, Balanced Audio Input.............................................4-3 4.2.1.2 Stereo, Composite Audio Input.........................................4-3 4.2.1.3 SAP/PRO, Subcarrier Audio Input......................................4-4 4.2.1.4 Audio Modulation of the 3.4 MHz VCO ................................4-4 4.2.1.5 Phase Lock Loop (PLL) Circuit...........................................4-4 4.2.1.6 Main Video Signal Path (Part 1 of 2)...................................4-5 4.2.1.7 Delay Equalizer Circuits...................................................4-5 4.2.1.8 Sync Tip Clamp Circuit....................................................4-6 4.2.1.9 Main Video Signal Path (Part 2 of 2)...................................4-6 4.2.1.10 45.75 MHz Oven Oscillator Circuit....................................4-6 4.2.1.11 Visual Modulator Circuit.................................................4-7 4.2.1.12 Aural Modulator Circuit..................................................4-7 4.2.1.13 Combining the 45.75 MHz & 41.25 MHz IF Signals..............4-8 4.2.1.14 Voltage Requirements....................…

Text truncated - open the document above for the full version.

INSTRUCTION MANUAL Innovator LX Series Analog Power Amplifier Assembly AXCERA, LLC 103 FREEDOM DRIVE P.O. BOX 525 LAWRENCE, PA 15055-0525 USA (724) 873-8100 • FAX (724) 873-8105 www.axcera.com • [email protected] LX Series Power Amplifier Assembly Table of Contents LX Series, Rev. 1 March 2, 2005 i TABLE OF CONTENTS CHAPTER 1 INTRODUCTION SECTION PAGE 1.1 Manual Overview............................................................................1-1 1.2 Assembly Designation Numbers.........................................................1-1 1.3 Safety...........................................................................................1-2 1.4 Contact Information.....................................................................1-2 1.5 Material Return Procedure.................................................................1-2 1.6 Limited One Year Warranty for Axcera Products.....................................1-3 CHAPTER 2 AMPLIFIER ASSEMBLY DESCRIPTION, MAINTENANCE & REMOTE CONTROL CONNECTIONS 2.1 LX Series Power Amplifier Chassis Assembly Overview...........................2-1 2.1.1 Power Amplifier Chassis Configurations.......................................2-3 2.1.1.1 250 Watt Power Amplifier Chassis Configuration...................2-3 2.1.1.2 500 Watt Power Amplifier Chassis Configuration...................2-3 2.1.1.3 1 kW Power Amplifier Chassis Configuration........................2-3 2.1.2 System Configurations.............................................................2-3 2.1.2.1 250W, 500W or 1kW System Configurations........................2-4 2.1.2.2 2 kW System Configuration..............................................2-4 2.1.2.3 3 kW System Configuration..............................................2-5 2.1.2.4 4 kW System Configuration..............................................2-5 2.1.2.5 5 kW System Configuration..............................................2-6 2.1.2.6 6 kW System Configuration..............................................2-6 2.1.3 Power Amplifier Module Assembly, 250W.....................................2-8 2.1.4 Power Supply Module Assembly................................................2-10 2.1.5 Front Panel LCD Display Screens..............................................2-10 2.2 System Operation..........................................................................2-10 2.2.1 Principles of Operation............................................................2-10 2.3 Maintenance.................................................................................2-12 2.4 Customer Remote Connections...................................................2-12 CHAPTER 3 SITE CONSIDERATIONS, INSTALLATION AND SETUP PROCEDURES 3.1 Site Considerations..........................................................................3-1 3.2 Unpacking the Chassis w/Modules, bandpass and trap filters....................3-5 3.3 Installing the Chassis w/Modules and filters..........................................3-5 3.4 AC Input.......................................................................................3-6 3.5 Setup and Operation........................................................................3-7 3.5.1 Input Connections..................................................................3-7 3.5.2 Initial Turn On.......................................................................3-9 3.5.2.1 Receiver Module LEDs on Front Panel.................................3-9 3.5.2.2 Modulator Module LEDs on Front Panel...............................3-9 3.5.2.3 IF Processor Module LEDs on Front Panel...........................3-10 3.5.2.4 Upconverter Module LEDs on Front Panel...........................3-10 3.5.2.5 Controller Module LEDs on Front Panel..............................3-10 3.5.2.6 Power or Driver Amplifier Module LEDs on Front Panel..........3-10 3.5.3 Front Panel Screens for the (Optional) Exciter Switcher Tray..........3-10 3.5.4 Front Panel Screens for the Exciter/Amplifier Chassis Assembly......3-13 3.5.5 Operation Procedure..............................................................3-22 LX Series Power Amplifier Assembly Table of Contents LX Series, Rev. 1 March 2, 2005 ii TABLE OF CONTENTS - (Continued) SECTION PAGE CHAPTER 4 CIRCUIT DESCRIPTIONS 4.1 Power Amplifier Module....................................................................4-1 4.1.1 UHF Phase/Gain Board.............................................................4-1 4.1.2 150 Watt Driver Pallet Assembly................................................4-2 4.1.3 150 Watt Driver, Dual Output Board...........................................4-2 4.1.4 UHF Module Assembly, RF Module Pallet, Philips...........................4-2 4.1.5 2 Way UHF Combiner Assembly.................................................4-3 4.1.6 Amplifier Control Board............................................................4-3 4.2 Power Supply Assembly....................................................................4-5 CHAPTER 5 DETAILED ALIGNMENT PROCEDURES 5.1 Module Replacement........................................................................5-1 5.1.1 Initial Test Setup....................................................................5-1 5.2 Innovator LX Series Exciter/Driver Chassis Assembly..............................5-1 5.2.1 (Optional) Receiver Module Assembly.........................................5-2 5.2.2 Modulator Module Assembly......................................................5-2 5.2.3 IF Processor Module Assembly..................................................5-3 5.2.4 VHF/UHF Upconverter Module Assembly......................................5-3 5.2.5 Setting up the Drive Level of the Transmitter...............................5-4 5.2.6 Changing the Channel on the Transmitter....................................5-4 5.2.7 Frequency Response Delay Equalization Adjustment......................5-4 5.2.8 Linearity Correction Adjustment................................................5-5 …

Text truncated - open the document above for the full version.

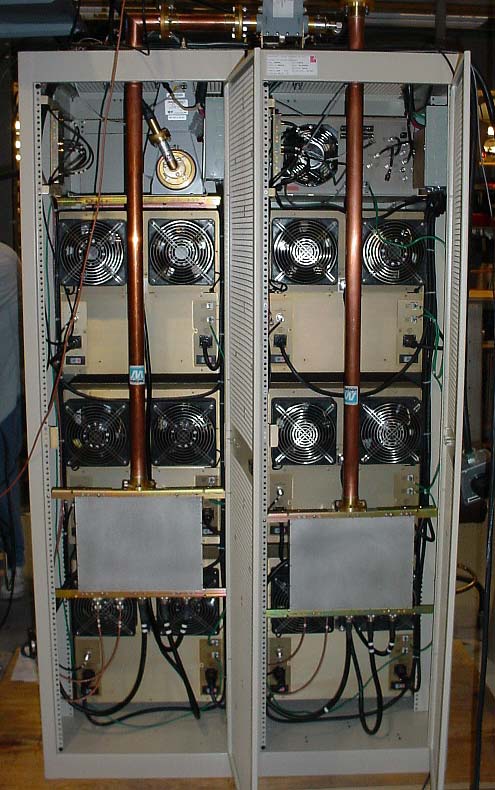

Axcera-LU6000AL FCC Type Acceptance Report External Photos October 2005 2-1 2. EXTERNAL PHOTOS 2.1 Front view, complete LU6000AL Translator Axcera-LU6000AL FCC Type Acceptance Report External Photos October 2005 2-2 2.2 Rear view, complete Axcera-LU6000AL Translator Axcera-LU6000AL FCC Type Acceptance Report External Photos October 2005 2-3 2.3 Rear view, Axcera-LU6000AL Transmitter (Bandpass Filter)

Axcera-LU6000AL FCC Type Acceptance Report ID Label/Location Info October 2005 1-1 1. ID LABEL/LOCATION INFO 1.1 Front Panel FCC Label 1.2 Rear Panel Manufacturer’s Label Axcera-LU6000AL FCC Type Acceptance Report ID Label/Location Info October 2005 1-2 1.3 Rear view, complete Axcera-LU6000AL Translator with FCC Label Axcera-LU6000AL FCC Type Acceptance Report ID Label/Location Info October 2005 1-3 1.4 Rear view, Axcera-LU6000AL Translator with Manufacturer’s Label

Axcera-LU6000AL FCC Type Acceptance Report Internal Photos October 2005 6-1 6. INTERNAL PHOTOS 6.1 Front view – Chassis Assembly (Exciter) 6.2 Side view - Receiver Assembly (Exciter) Axcera-LU6000AL FCC Type Acceptance Report Internal Photos October 2005 6-2 6.3 Side view - IF Processor Assembly (Exciter) 6.4 Side view - L.O. Upconverter Assembly (Exciter) Axcera-LU6000AL FCC Type Acceptance Report Internal Photos October 2005 6-3 6.5 Side view - Control / Power Supply Assembly (Exciter) 6.6 Side view - Power Amplifier Assembly (Exciter) Axcera-LU6000AL FCC Type Acceptance Report Internal Photos October 2005 6-4 6.7 Front view – Chassis Assembly (External Power Amplifier) 6.8 Side view - Power Amplifier Assembly (External Power Amplifier) Axcera-LU6000AL FCC Type Acceptance Report Internal Photos October 2005 6-5 6.9 Side view – Power Supply Assembly (External Power Amplifier) 6.10 Side view – 4-Way Combiner Assembly (External Power Amplifier)

Axcera-LU6000AL FCC Type Acceptance Report Operational Description October 2005 8-1 8. OPERATIONAL DESCRIPTION - MODEL Axcera-LU6000AL 8.1 General Description The LU6000AL is a complete 6000-watt UHF solid-state, internally diplexed television translator. It operates at a nominal visual output power of 6000 watts peak sync and an average aural output power of 600 watts, at an A/V ratio of 10 dB, 10% sound. 8.2 Technical Specifications Type of Emissions: Visual .......................................................................... 5M75C3F Aural ............................................................................250KF3E Frequency Range....................... 470 MHz to 860 MHz (any 6-MHz channel) Output Power Visual .........................................................6000 watts peak sync Aural .............................................................. 600 watts average Maximum Power Rating Visual ....................................................... 6000 watts peak visual Aural ...................................................... 600 watts average aural Power Consumption ............................................................19,900 watts 8.3 Performance Specifications Visual Performance Operating Frequency Range ...................................... 470 MHz to 860 MHz RF output - Nominal: Power .........................................................6000 watts peak sync Impedance .................................................................... 50 ohms Connector .................................................................. 3 1/8” EIA Visual Sideband Response: -1.25 MHz and below ........................................................... -20B -0.75 to -0.5 MHz..................................................... +0.5, -2.0dB -0.5 MHz to +3.58 MHz....................................................±0.5 dB 3.58 MHz to 4.18 MHz.............................................. +0.5, -1.0 dB Variation of Frequency Response with Brightness...........................±0.5 dB Differential Phase ............................................................................ ±3° Incidental Phase Modulation.............................................................. ±3° Differential Gain .............................................................................. 5% Low Frequency Linearity ................................................................... 5% Intermodulation Products .............................................. -52 dB (red field) Output Variation (Over 1 Frame) ....................................................... 2% Regulation of Output........................................................................ 3% Signal-to-Noise Ratio ................................................................. 55 dB Axcera-LU6000AL FCC Type Acceptance Report Operational Description October 2005 8-2 2t K-Factor.................................................................................. 2% Harmonic Radiation .....................................................................-60 dB Spurious (>3 MHz from channel edge) ...........................................-50 dB Carrier Frequency Stability....................................................... ±1000 Hz Noise Figure w/Input Preamp .................................................3 dB (Max.) Input Dynamic Range (no Preamp) .................................. --60 to -15 dBm Aural Performance RF Output – Nominal Power......................................................................... 600 watts Impedance .................................................................... 50 ohms Connector .................................................................. 3 1/8” EIA Electrical Requirements Power Line Voltage................................................... 230 volts, 50/60 Hz Power Consumption ............................................................19,900 watts Environmental Maximum Altitude ..................................................................8,500 feet Operational Temperature Range ...........................................0°C to +50°C Mechanical Dimensions: Width ..........................................................................44 inches Depth ..........................................................................34 inches Height..........................................................................76 inches Weight ......................................................................... 1,330 lbs 8.4. System Overview The LU6000AL (1306589) is made up of the (8) trays listed in Table 8-1. Table 8-1. LU6000AL Major Trays and Assemblies MAJOR ASSEMBLY DESIGNATOR TRAY/ASSEMBLY NAME DRAWING NUMBER A1 UHF Exciter 1303268 A2, A3, A4, A5, A6, A7 External Amplifier Assembly 1303828 The (A2) UHF Exciter can operate using a 45.75 MHz IF carrier from either the (A1) Receiver tray’s output, or that from a Modulator tray. Both of these carriers must be diplexed with a 41.25 MHz aural carrier, at an A/V ratio not to exceed –10dB. Axcera-LU6000AL FCC Type Acceptance Report Operational Description October 2005 8-3 8.4.1 Exciter Tray (Driver)/External Amplifier Tray The input to the Exciter Tray is a modulated Internally Diplexed IF signal. This signal is connected to the input of the IF Processor Module. The output of the Exciter Tray (driver) drives the input to the External Amplifier Tray. 8.4.2.1 Receiver Module (Driver) The UHF/VHF Receiver converts a low level RF input signal to an IF frequency of 44 MHz, filters off any unwanted out of band energy, and normalizes the level so that it can be applied to the IF processor assembly. It consists of three boards. The RF input is applied first to the UHF/VHF preamplifier board, which filters off out of channel energy and amplifies the input signal. The RF output is applied to the Mixer/PLL board, which converts the signal down to an IF frequency of 44 MHz. The IF output is applied to the IF ALC board, which amplifies the signal…

Text truncated - open the document above for the full version.

Axcera-LU6000AL FCC Type Acceptance Report Parts List/Tune-up Info October 2005 7-1 7. PARTS LIST/TUNE-UP INFO 7.1 Parts List The translator, can be subdivided as follows: Exciter Tray: • Receiver Module • IF Processor Module • L.O. / Upconverter Module • Control & Monitoring / Power Supply Module • Power Amplifier Module External Amplifier Trays: • 4-Way Splitter (Qty of 6) • Power Amplifier Module (Qty of 24) • Power Supply Module (Qty of 12) • 4-Way Combiner (Qty of 6) 7.2 Tune-up Information The LU6000AL translator was aligned at the factory and should not require additional alignments to achieve normal operation. The UHF/VHF Receiver converts a low level RF input signal to an IF frequency of 44 MHz, filters off any unwanted out of band energy, and normalizes the level so that it can be applied to the IF processor assembly. It consists of three boards. The RF input is applied first to the UHF/VHF preamplifier board, which filters off out of channel energy and amplifies the input signal. The RF output is applied to the Mixer/PLL board, which converts the signal down to an IF frequency of 44 MHz. The IF output is applied to the IF ALC board, which amplifies the signal, filters off any unwanted out of band energy and controls its own IF gain to make sure that the IF output level is constant. There is also a provision to apply +12V to the RF input center conductor to power an external preamplifier. 7.2.1 Exciter/Amplifier Chassis Assembly The exciter/amplifier chassis assembly operates using an external IF input from an external receiver tray. The IF source connects to J6, the modulated IF Input jack, on the rear of the chassis assembly, which is cabled to the IF Processor Module. On the LCD Display, located on the Controller/Power Supply Module, push the button to switch the translator to Operate. The setup of the RF output includes adjustments to the drive level of the Power Amplifier, the adjustment of the linearity and phase predistortion to compensate for any nonlinear response of the Power Amplifier on the front panel of the IF Processor module. Verify that all red LEDs located on the IF Processor front panel are extinguished. The following details the meaning of each LED when illuminated: Axcera-LU6000AL FCC Type Acceptance Report Parts List/Tune-up Info October 2005 7-2 • DS1 (input fault) – Indicates that either abnormally low or no IF is present at the input of the module. • DS2 (ALC fault) – Indicates that the ALC circuit is unable to maintain the signal level requested by the ALC reference. This is normally due to excessive attenuation in the linearity signal path or the IF phase corrector signal path, or that switch SW1 is in the Manual ALC Gain position. • DS4 (Mute) – Indicates that a Mute command is present to the system. Switch the translator to Standby. The ALC is muted when the translator is in Standby. To monitor the ALC, preset R3, manual gain adjust, on the front panel of the Upconverter module, fully CCW. Move switch SW1, Auto/Man AGC, on the front panel of the Upconverter module, to the Manual position. Place the translator in Operate. Adjust the ALC GAIN pot on the front panel of the IF Processor to obtain +0.8 VDC on the LCD Display on the Controller/Power Supply in the ALC screen. Move the MAN/AUTO ALC switch back to Auto, which is the normal operating position. To adjust the AGC Cutback setting, raise the output power of the translator to 110%. Adjust R2, AGC Cutback, located on the front panel, CCW until the LED DS1, AGC Cutback, just starts to flash. Return the output power of the translator to 100%. 7.2.2 Linearity Correction Adjustment As shipped, the exciter was preset to include amplitude and phase pre-distortion. The pre- distortion was adjusted to approximately compensate the corresponding non-linear distortions of the Power Amplifier. NOTE: On the IF processor board inside the module the correction enable/disable jumper W12 on J30 will be in the Enable position, on pins 2 & 3. Set up a spectrum analyzer with 100 kHz resolution bandwidth and 100 kHz video bandwidth to monitor the intermodulation products of the RF output signal of the Power Amplifier. There are three Linearity Corrector stage adjustments located on the front panel of the IF Processor Module. The adjustments are threshold settings that are adjusted as needed to correct for any amplitude or phase intermod problems. Adjust the top linearity correction adjustment R211 threshold cut in for the in phase amplitude distortion pre- correction that is needed. Next adjust the middle linearity correction adjustment R216 threshold cut in also for the in phase amplitude distortion pre-correction that is needed. Finally adjust the bottom linearity correction adjustment R231 threshold cut in for the quadrature phase distortion pre-correction that is needed. The above pots are adjusted for the greatest separation between the peak visual carrier and the intermod products. 7.2.3 Frequency Response Delay Equalization Adjustment The procedure for performing a frequency response delay equalization adjustment for the translator is described in the following steps: The center frequency for the first stage is 45 MHz. Adjust R103, the top frequency response equalizer pot, located on the front panel of the IF Processor Module, for the best depth of frequency response correction at 45 MHz. The center frequency for the second stage is 43.5 MHz. Adjust R106, the middle Axcera-LU6000AL FCC Type Acceptance Report Parts List/Tune-up Info October 2005 7-3 frequency response equalizer pot, located on the front panel of the IF Processor Module, for the best depth of frequency response correction at 43.5 MHz. The center frequency for the second stage is 42 MHz. Adjust R274, the bottom frequency response equalizer pot, located on the front panel of the IF Processor Module, for the best depth of frequency response correction at 42 MHz. After the three delay attenuation equalizers have been adjusted, fine tune, as needed, fo…

Text truncated - open the document above for the full version.

5 5 4 4 3 3 2 2 1 1 DD CC BB AA +12V +12V +12V +12V Axcera REV ECO DATEAPV TITLE THIS PRINT IS THE PROPERTY OF AXCERA, IT SHALL NOT BE COPIED WITHOUT PERMISSION MATERIAL FINISH DWN CHK REL SCALESHEET REV REV ECO DATE APV DWG. NO. --- ----- ----- 1303901A0 SCH, HIGH BAND VHF PREAMPLIFIER (1303878) DB 2/10/04 D1 OF 1 2/26/04DB 2/26/04DB Spiral Inductor 39nH: Track width 15 mils 3 turns Outside dimensions 300mils Rectangular 39nH50nH50nH Filter 1 InputFilter 1 Output Preamp InputPreamp Output Filter 2 Output Filter 2 Input Spiral Inductor 50 nH: Track width 15 mils 3.5 turns Outside dimensions 300mils Rectangular GND +12V GND KEY DC ON CENTER PIN GND Notes: BD Material is FR-4 30 mils Q3 NE856M02 E 1 B 2 C 4 1 C21 18 pF R13 1.21K 1/10W 1% R10 NOT USED J2 1 2 3 C12 .001 L2 220 nH J6 SMA L14 130 nH R7 562 1/10W 1% J4 SMA L5 220 nH L12 43 nH L20 NOT USED J5 SMA C28 NOT USED L3 43 nH R1 3.01K 1/10W 1% L8 100 nH W1 L7 130 nH R15 NOT USED J7 SMA C17 .001 R14 10 1/10W 1% C25 .8-10pF C14 .001 L15 130 nH R6 7.32K 1/10W 1% L13 43 nH L21 NOT USED C23 100 pF C18 .001 J3 SMA C13 .001 C5 .8-10pF L9 100 nH C15 .001 R11 1.21K 1/10W 1% C19 12 pF C16 47 pF L6 130 nH C24 100 pF C27 .8-10pF L10 35.5 nH C6 NOT USED R16 NOT USED C4 .001 C8 NOT USED L16 35.5 nH C30 1.8-10pF R8 562 1/10W 1% R12 10 1/10W 1% L18 NOT USED C2 .001 J1 1 2 3 4 5 6 C9 0.6 pF R4 225 1/10W 1% C7 .8-10pF C3 .001 C20 18 pF R3 225 1/10W 1% J8 SMA C26 NOT USED R9 NOT USED L11 35.5 nH C22 .001 L1 220 nH R2 3.01K 1/10W 1% C11 .001 C29 0.6 pF L17 35.5 nH Q1 BS170 R5 7.32K 1/10W 1% C10 1.8-10pF Q2 NE856M02 E 1 B 2 C 4 1 L19 NOT USED C1 .001 L4 43 nH 5 5 4 4 3 3 2 2 1 1 DD CC BB AA +12V+12V -12V +12V -12V +12V +5Vanalog +12V+12V +12V +12V +12V+12V +12V -12V -12V -12V -12V -12V -12V +5Vdigital +5Vanalog +8V +12V +8V +12V+12V -12V-12V +12V Serial- Serial+ ALCFLT THRESH ALCREFOUT ALCFLT ALCREFIN REMOTE ALC FLT REMOTE ALC FLT IFOUT IFOUT REMOTE PLL FLT ALCFLT A Axcera REV ECO DATEAPV TITLE THIS PRINT IS THE PROPERTY OF AXCERA, IT SHALL NOT BE COPIED WITHOUT PERMISSION MATERIAL FINISH DWN CHK REL SCALESHEET REV REV ECO DATE APV DWG. NO. --- ----- ----- 1304011 C0 SCH, IF DB 3/10/04 D1 OF 2 3/15/04DB ALC BOARD (LX) (1304003) 3/15/04DB SYSTEM -12V DC CIRCUIT 1 SYSTEM +12V DC CIRCUIT 5 INTERLOCK PLL LOCK IND. ALC Level Adjust IF Input EXT. 10MHz INPUT 10 MHz ALC FAULT RF IN SPARE SPARE SPARE IF OUT GND GND GND SERIAL + SERIAL - SPARE DELETED C30, C67, C71, C72, C79, CR1, CR5, L8, L9, L13, Q1, Q2, R15, R18, R21, R24. R32 WAS 10K. U4 AND U6 WERE MAV-11. ADDED C87, C88, J13, R76, R77. C73 WAS CONNECTED TO L13 & CR1.U1 PIN 6 WAS CONNECTED TO CR5 & C30. U9 PINS 6 AND 7 CONNECTIONS WERE REVERSED. (CR) C0 20111547 CHANGED R70 FROM 4.7K TO 6.19K, C25 FROM 100pF TO 1uF, R27 FROM 150K TO 499K, R30 FROM 10K TO 30.1K & R35 FROM 4.75K TO 15K. REMOVED L19. ADD CR10, R78 & R79. JKF DB11/9/04 U1A TLO74 + 3 - 2 1- 11 + 4 C59 .001 C66 .001 R20 110 1W R5 165 1/10W 1% + C13 47 20V U7A TLO74 + 3 - 2 1- 11 + 4 C73 .001 L10 .1uH C81 .001 C25 1 UF 16V T1 T1-1 64 13 5 2 J3 1 2 3 R77 68.1 1/10W 1% C57 .001 C61 .001 R16 10 1/10W 1% J13 SMA C49 .1 R12 562 1/10W 1% R28 562 1/10W 1% C68 .001 U3 MAV-11 1 3 2 4 C65 .001 FL1 41 - 47 MHz RF IN 3 GND 2 RF OUT- 1 RF IN- 4 GND 5 RF OUT 6 J4 1 2 3 R11 1.5K 1/10W 1% J5 SMA L6 .47uH R37 10K 1/10W 1% C47 .1 C26 100 pF CR4 5082-2811 U1C TLO74 + 10 - 9 8- 11 + 4 R30 30.1K 1/10W 1% C51 .1 C58 .001 C88 .001 C75 .001 C74 .001 C82 .001 R14 681 1/10W 1% R22 154 1/10W 1% R32 470K R3 10 1/10W 1% R2 10 1/10W 1% R6 165 1/10W 1% CR3 1N914 C62 .001 R1 10 1/10W 1% U11 LM317MDT ADJ 1 Vout 2 Vin 3 U7D TLO74 + 12 - 13 14- 11 + 4 C78 .001 Q4 2N7002LT1 1 3 2 TP2 + C45 10 35V U13 2-61100-4735 O/P 1 Sense 2 Shtdn 3 GND 4 Error 5 Vtap 6 Fdbk 7 I/P 8 U4 ERA-5 1 3 2 4 C60 .001 S EC P RI T3 T4-1 1 CT 2 34 NC 5 6 R71 100K 1/16W C87 .001 L7 .47uH R26 2.21K 1/10W 1% Q3 2N7002LT1 1 3 2 R70 6.19K 1/10W 1% L3 .1uH L2 .1uH J6 SMA L1 .1uH C80 .001 C76 .001 DS1 1 3 2 R76 332 1/10W 1% R17 10 1/10W 1% CR2 1N914 R78 20K 1/10W 1% R23 1K 1/10W 1% L4 270 nH T2 T1-1 64 13 5 2 C63 .001 R4 562 1/10W 1% C69 .001 C27 47 pF CR6 1N914 L5.47uH R69 1K 1/16W L12 270 nH U5 MAV-11 1 3 2 4 R38 10K 1/10W …
