OV9BSSPWZCR6Two Position switch for periodic TX applications

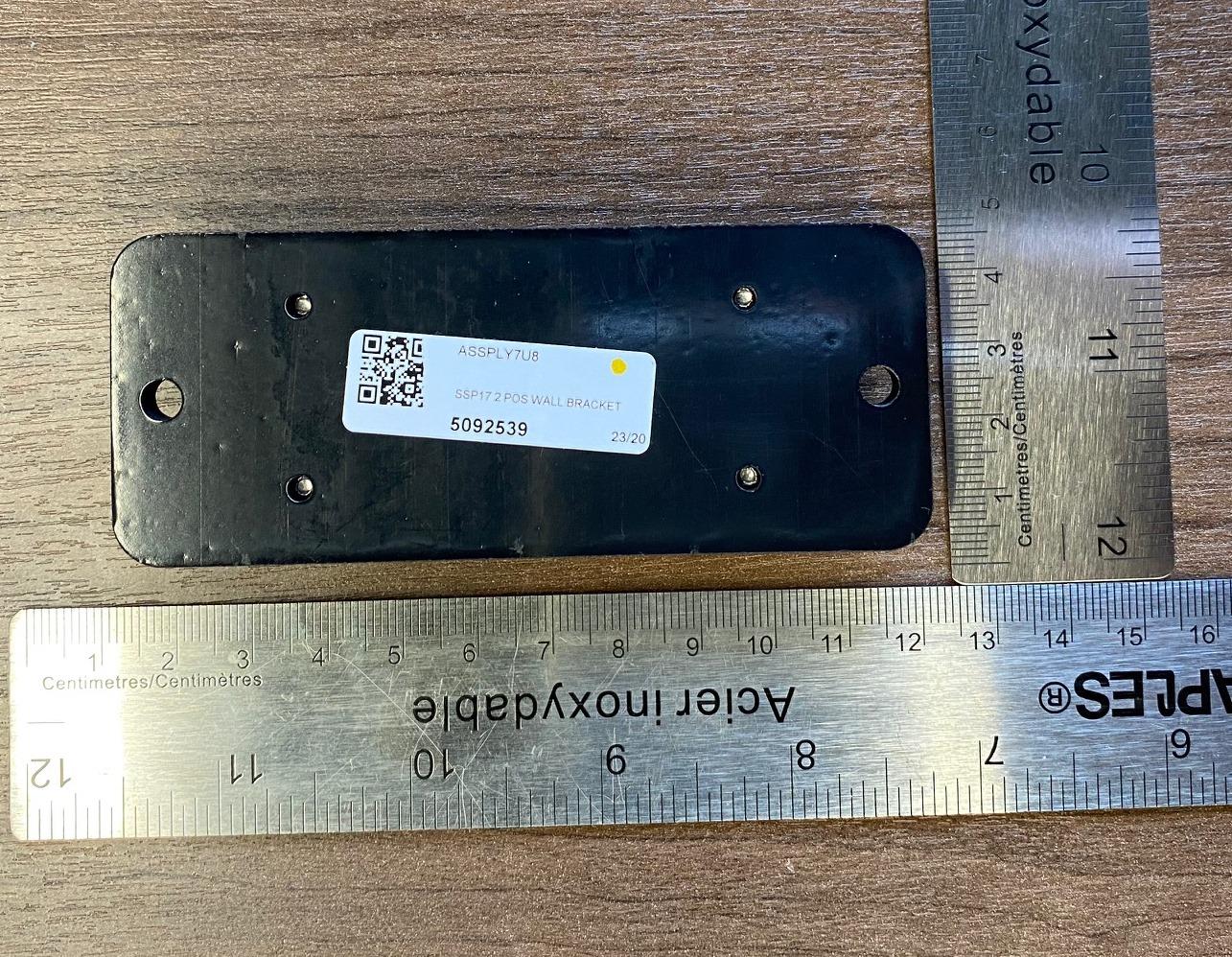

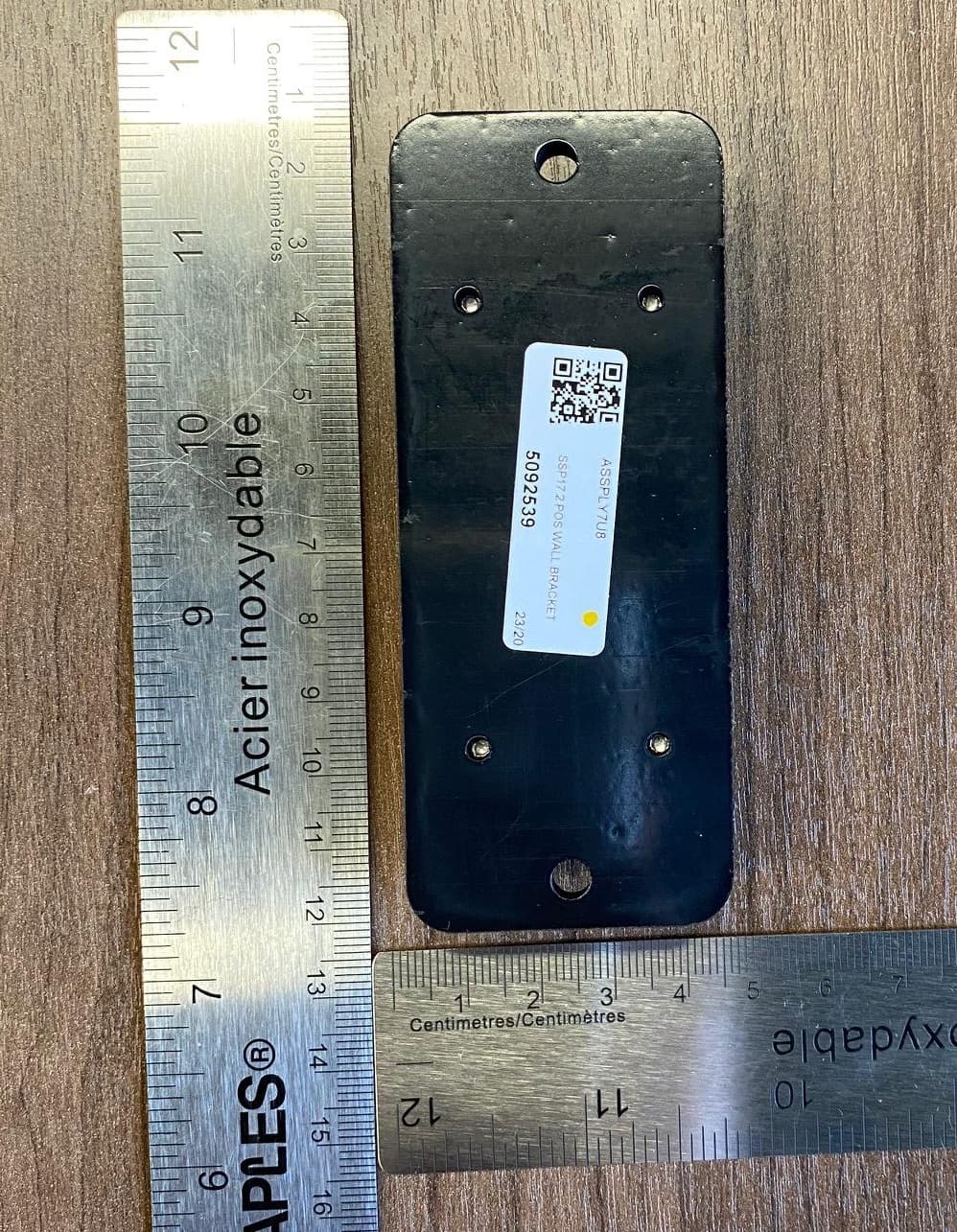

FCC ID: OV9BSSPWZCR6 IC: 10245A-BSSPWZCR6 EUT External Photo Top: FCC ID: OV9BSSPWZCR6 IC: 10245A-BSSPWZCR6 EUT External Photo Bottom FCC ID: OV9BSSPWZCR6 IC: 10245A-BSSPWZCR6 EUT External Photo Side 1: FCC ID: OV9BSSPWZCR6 IC: 10245A-BSSPWZCR6 EUT External Photo Side 2: FCC ID: OV9BSSPWZCR6 IC: 10245A-BSSPWZCR6 EUT External Photo Side 3: Side 4:

FCC ID: OV9BSSPWZCR6 FCC RF Exposure Evaluation 1 The Device is a mobile Two Position switch for periodic TX applications. Two Position switch is suitable for commercial and residential indoor application. Two Position switch is evaluated for RF radiation exposure according to the provisions of FCC §2.1091, MPE guidelines identified in FCC §1.1310 and FCC KDB 447498:2015. Limits for General Population/Uncontrolled Exposure: 47 CFR 1.1310 Table 1 (B) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency range (MHz) Electric field strength (V/m) Magnetic field strength (A/m) Power density (mW/cm 2 ) Averaging time (minutes) 0.3-1.34 614 1.63 *100 30 1.34-30 824/f 2.19/f *180/f 2 30 30-300 27.5 0.073 0.2 30 300-1,500 f/1500 30 1.500-100.000 1.0 30 Where f is in MHz The worst-case scenario is provided at 431.06 MHz. The maximum power density exposure is: S = 0.287 mW/cm 2 , for uncontrolled exposure Measured Radiated field strength is for fundamental frequencies 431.06 MHz and 433.06 MHz Frequency (MHz) Measured Radiated Peak Field Strength (E ) (dBμv/m) Radiated EIRP EIRP(dBm)=[E(dBμV/m) − 95.3] EIRP (mW) 431.06 85.04 -10.26 0.0942 433.06 84.33 -10.97 0.0800 Worst Case scenario As per Tune Procedure absolute max TX power Transmit power (dBm) Transmit antenna Gain (dBi) EIRP (dBm) EIRP (mW) 10 -6 4 2.512 FCC ID: OV9BSSPWZCR6 FCC RF Exposure Evaluation 2 Using worst case scenario, the highest calculated EIRP value for the pulsed transmitter was rounded up to 2.5 mW. Using the highest transmitted power general equation, at a distance of 20 cm S = EIRP / ( 4πR 2 ) Where: S, power density in ‘mW/cm 2 ’ EIRP, Effective Isotropic Radiated Power in ‘mW’ R, distance to the center of the radiation of the antenna in ‘cm’ The RF exposure from the radio is less than the limit specified as shown below and meets the exemption criteria. 0.000497359 mW/cm 2 = (2.5 mW) / (4 x π x 20²) S = 0.0005 mW/cm 2 <<< 0.287 mW/cm 2 (max limit) The manufacturer manual specified a minimum safe distance of 20 cm.

This report shall not be reproduced, except in full, without prior written approval of MPB Technologies Page 1 of 38 Test Report Prepared By: Electronics Test Centre 27 East Lake Hill Airdrie, Alberta Canada T4A 2K3 [email protected] http://www.etc-mpb.com Telephone: 1-403-912-0037 ETC Report #: s22e20a247-FCC Release 1 Test Dates: September 16, 17 and 19, 2020 November 20, 2020 Date: Date: 2020-12-02 EMC testing of the Spyder Controls Corporation Two Position Switch in accordance with FCC Part 15.231, ANSI C63.10-2013. FCC ID: OV9BSSPWZCR6 Tested by: Imran Akram, Janet Mijares Prepared for: Spyder Controls Corporation 7102 - 52 St. #10 Lacombe, Alberta Canada T4L 1Y9 Telephone: 1-(403) 782-9738 _________________________ _________________________ Imran Akram Marc Rousseau [email protected] [email protected] EMC Technologist QA Manager Electronics Test Centre (Airdrie) Electronics Test Centre (Airdrie) Test Sample: Two Position Switch FCC ID: OV9BSSPWZCR6 FCC Part 15.231(e) Report #: s22e20a247-FCC Release 1 This report shall not be reproduced, except in full, without prior written approval of MPB Technologies Page 2 of 38 REVISION RECORD ISSUE DATE AUTHOR REVISIONS DRAFT 1 2020-09-22 I. Akram Initial draft submitted for review. DRAFT 2 2020-11-12 I. Akram Added FCC ID and Serial# DRAFT3 2020-11-20 I. Akram Format Change Release 1 2020-12-02 M. Rousseau Sign off Test Sample: Two Position Switch FCC ID: OV9BSSPWZCR6 FCC Part 15.231(e) Report #: s22e20a247-FCC Release 1 This report shall not be reproduced, except in full, without prior written approval of MPB Technologies Page 3 of 38 TABLE OF CONTENTS 1.0 INTRODUCTION 5 1.1 Scope .........................................................................................................................5 1.2 Applicant ....................................................................................................................5 1.3 Test Sample Description ............................................................................................5 1.4 General Test Conditions and Assumptions ...............................................................5 1.5 Scope of Testing ........................................................................................................6 1.5.1 Test Methodology..........................................................................................6 1.5.2 Variations in Test Methodology .....................................................................6 1.5.3 Test Sample Verification, Configuration & Modifications ..............................6 1.5.4 Uncertainty of Measurement: ........................................................................6 2.0 TEST CONCLUSION 7 2.1 AC Power Line Conducted Emissions: Transmit Mode .............................................8 2.2 Channel Occupied Bandwidth ....................................................................................9 2.2.1 Test Methodology:.........................................................................................9 2.2.2 Deviations From The Standard: ....................................................................9 2.2.3 Test Equipment .............................................................................................9 2.2.4 Test Sample Verification, Configuration & Modifications ..............................9 2.2.5 Summary of test Results / Plots: .................................................................10 2.3 Duty Cycle Correction Factor ...................................................................................12 2.3.1 Test Methodology: ANSI C63.10-2013 Clause 11.6(b) ...............................12 2.3.2 Deviations From The Standard: ..................................................................12 2.3.3 Test Equipment ...........................................................................................12 2.3.4 Test Sample Verification, Configuration & Modifications ............................13 2.3.5 Summary of test Results / Plots: .................................................................13 Duty Cycle Calculation .............................................................................................13 2.4 Transmission Time ..................................................................................................16 2.4.1 Test Methodology:.......................................................................................16 2.4.2 Deviations From The Standard: ..................................................................16 2.4.3 Test Equipment ...........................................................................................16 2.5.4 Test Sample Verification, Configuration & Modifications ............................16 2.4.5 Summary of test Results / Plots: .................................................................17 Screen Captures from the spectrum analyzer: Transmission time ..........................18 2.5 EUT Positioning Assessment...................................................................................19 2.5.1 Test Methodology:.......................................................................................19 2.5.2 Deviations From The Standard: ..................................................................19 2.5.4 Test Equipment ...........................................................................................20 2.5.5 Test Sample Verification, Configuration & Modifications ............................20 2.6 Radiated Spurious Emissions ..................................................................................21 2.6.1 Test Methodology: ANSI C63.10-2013, Clause 6.6.4 .................................23 2.6.2 Deviations From The Standard: ..................................................................23 2.6.3 Test Equipment ...........................................................................................24 2.6.4 Test Sample Verification, Configuration & Modif…

Text truncated - open the document above for the full version.

FCC ID: OV9BSSPWZCR6 IC: 10245A-BSSPWZCR6 EUT Test Setup Photo Radiated Emission Test Setup Radio Testing: Radiated Emission 30 MHz to 1 GHz Test Setup: FCC ID: OV9BSSPWZCR6 IC: 10245A-BSSPWZCR6 EUT Test Setup Photo Radiated Emission 1 GHz – 5 GHz Test Setup: FCC ID: OV9BSSPWZCR6 IC: 10245A-BSSPWZCR6 EUT Test Setup Photo Z-Axises FCC ID: OV9BSSPWZCR6 IC: 10245A-BSSPWZCR6 EUT Test Setup Photo X-Axis’s FCC ID: OV9BSSPWZCR6 IC: 10245A-BSSPWZCR6 EUT Test Setup Photo Y-Axis’s
