OV9BSSPWZIPARF Fob for periodic TX applications

USER MANUAL FOR RF FOB Label RF FOB IC: 10245A-BSSPWZIPA FCC ID: OV9BSSPWZIPA Important Information FCC Notice to Users This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. (2) Spyder Controls has not approved any changes or modification to this device by the user. Any changes or modification could void the user's authority to operate the equipment. Industry Canada Notice to Users This device complies with Industry Canada's license-exempt RSSs. Operation is subject to the following two conditions: (1) This device may not cause interference; and (2) This device must accept any interference, including interference that may cause undesired operation of the devices. Le présent appareil est conforme aux CNR d’Industrie Canada applicables aux appareils radio exempts de licence. L’exploitation est autorisée aux deux conditions suivantes: (1) l’appareil ne doit pas produire de brouillage; (2) l’utilisateur de l’appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d’en compromettre le fonctionnement. 2 of 3 Operation RF FOB 8 button switch panel features an integrated 400 Mhz Transmitter that wirelessly sends messages to a receiver device. Each RF FOB has a green “Transmit LED” located at the center of the RF FOB. This LED should turn on whenever a button is being pressed or held, indicating that the RF FOB is transmitting. The messages sent out by each RF FOB has a unique identifier which is used to distinguish them from one another. The message sent out when pressing a button also indicates which button is being pressed to allow the receiving device to perform a unique action for each button. The wireless receiver device only acknowledges messages from RF FOB that are paired with it. RF FOB transmission is indicated by the Transmit LED. To pair RF FOB 8 button switch panel with the receiving device, put the receiving device into pairing mode, and pair the RF FOB to the receiving device, following the instructions for the receiver device. Transmitting Not Transmitting Transmit LED Page 3 of 3 Troubleshooting If the RF FOB is not operating as expected, watch the Transmit LED and press one of the buttons to see if it comes on. If the LED does not come on, check the power source. Replace the CR2032 battery and try operating the RF FOB again. If the Transmit LED still does not turn on when pressing a button after troubleshooting the power source, the RF FOB has failed and needs to be replaced. If the RF FOB does not operate as expected but the Transmit LED does come on when pressing one of the buttons, there is likely a problem with the receiver device. Refer to the documentation of the receiver device being used for more detailed instructions on troubleshooting and pairing procedures. CR2032 Battery

Federal Communications Commission Authorization and Evaluation Division 1435 Oakland Mills Road Columbia, MD 21046 Date: October 22, 2020 SUBJECT: FCC Application for FCC ID: OV9BSSPWZIPA To Whom It May Concern: We, the undersigned, hereby authorize Marc Rousseau at Electronics Test Centre – Airdrie (MPB Technologies Inc.) on our behalf, to apply to the Federal Communications Commission on our equipment. Any and all acts carried out by Electronics Test Center – Airdrie (MPB Technologies Inc.) on our behalf shall have the same effect as acts of our own. This is to advise that we are in full compliance with the Anti-Drug Abuse Act. We, the applicant, are not subject to a denial of federal benefits pursuant to Section 5301 of the Anti-Drug Act of 1988, 21 USC853a, and no party to the application is subject to a denial of federal benefits pursuant to that section. Sincerely, Curtis Letniak President Spyder Controls Corp.

Federal Communications Commission Authorization and Evaluation Division 1435 Oakland Mills Road Columbia, MD 21046 Date: October 15, 2020 Subject: Confidentiality Request regarding application for certification of FCC ID: OV9BSSPWZIPA Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request to hold permanently confidential the information accompanying this application as outlined below: Exhibit Type File Name Block Diagram BSSPWZIPA_BlkDia Schematics BSSPWZIPA_Sch Part List BSSPWZIPA_PartList Operational Description BSSPWZIPA_OpDesc Tune up BSSPWZIPA_TunProc The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation not listed above will not be made before the date of the Grant for this application. Sincerely, Curtis Letniak President Spyder Controls Corp.

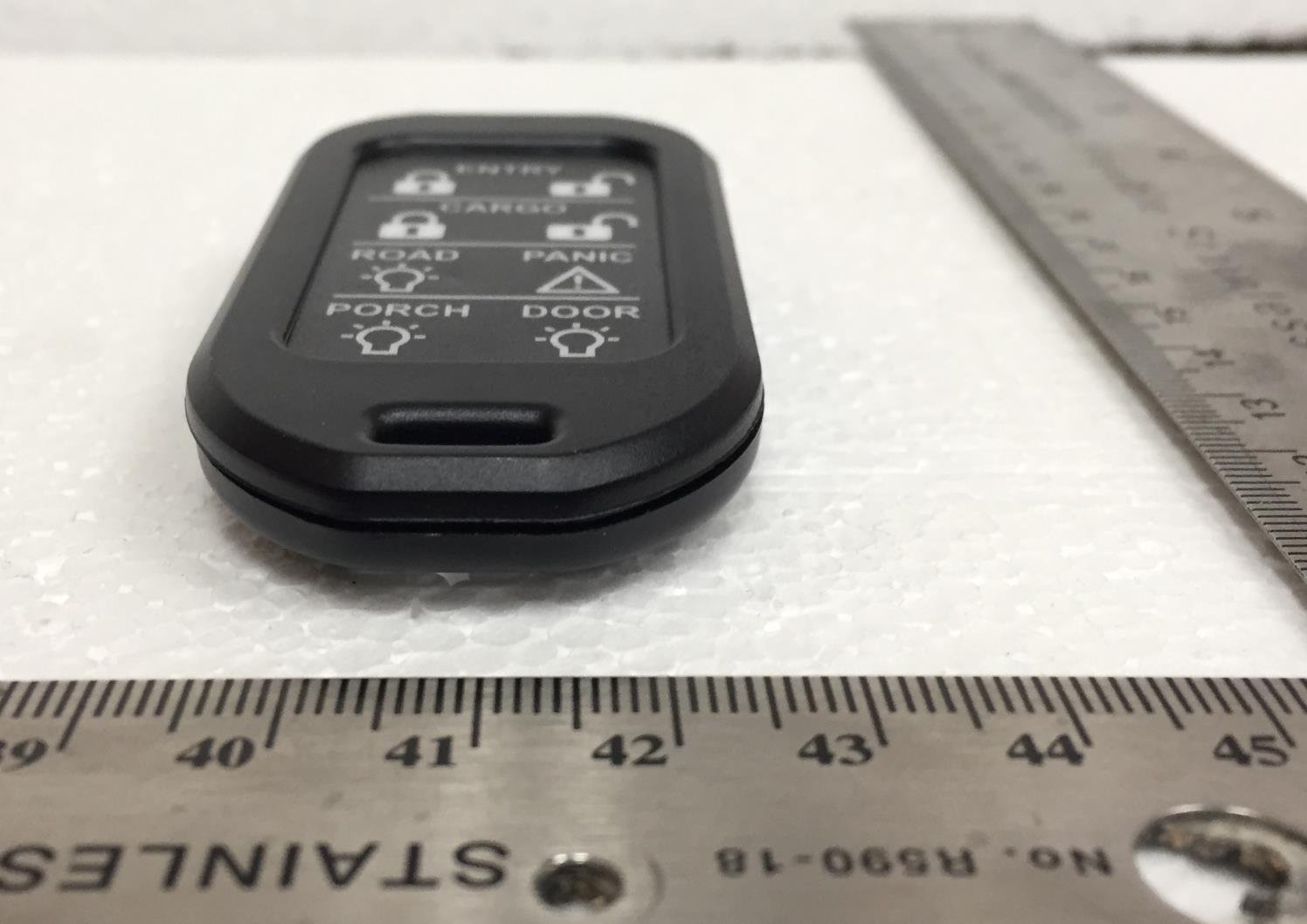

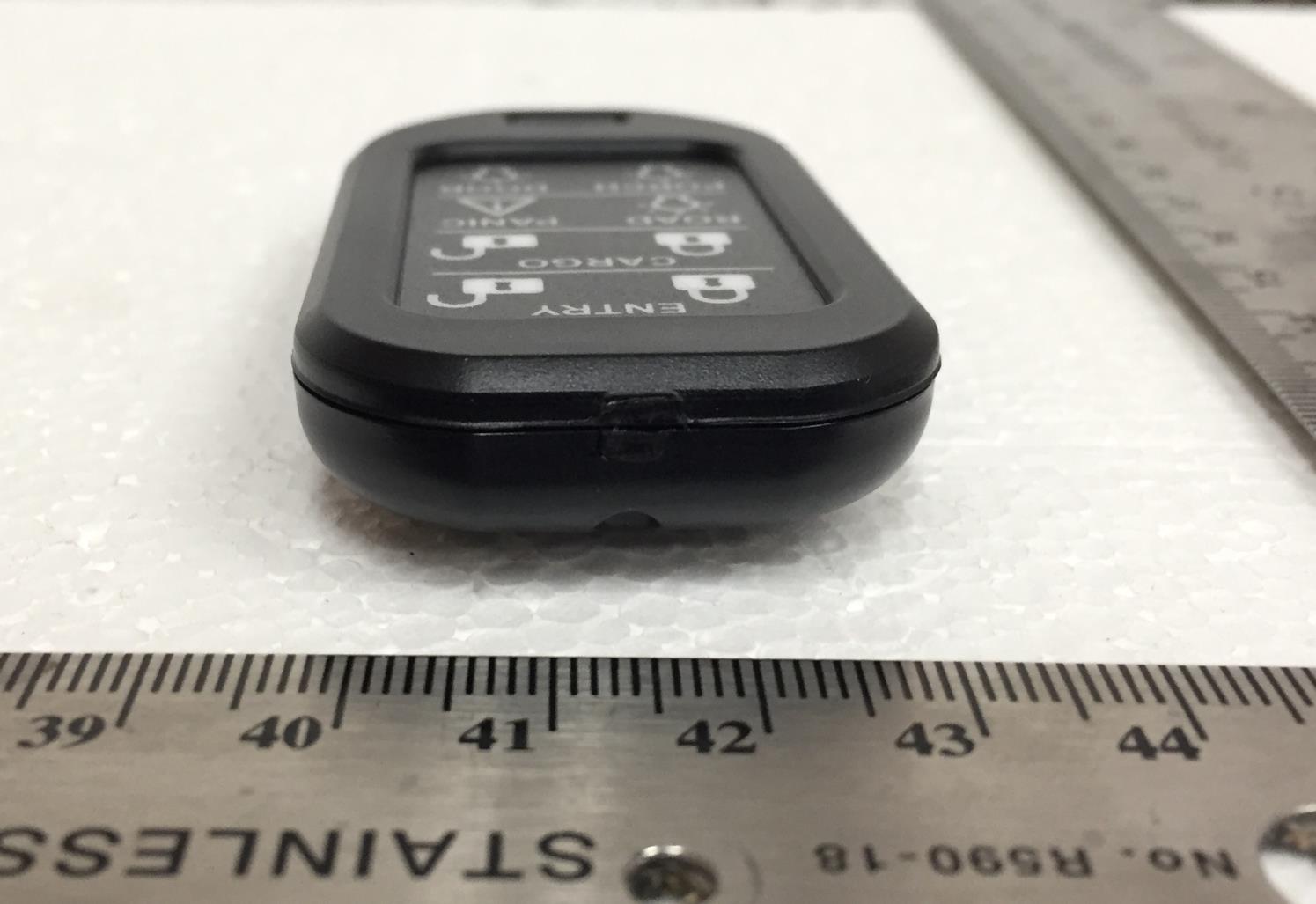

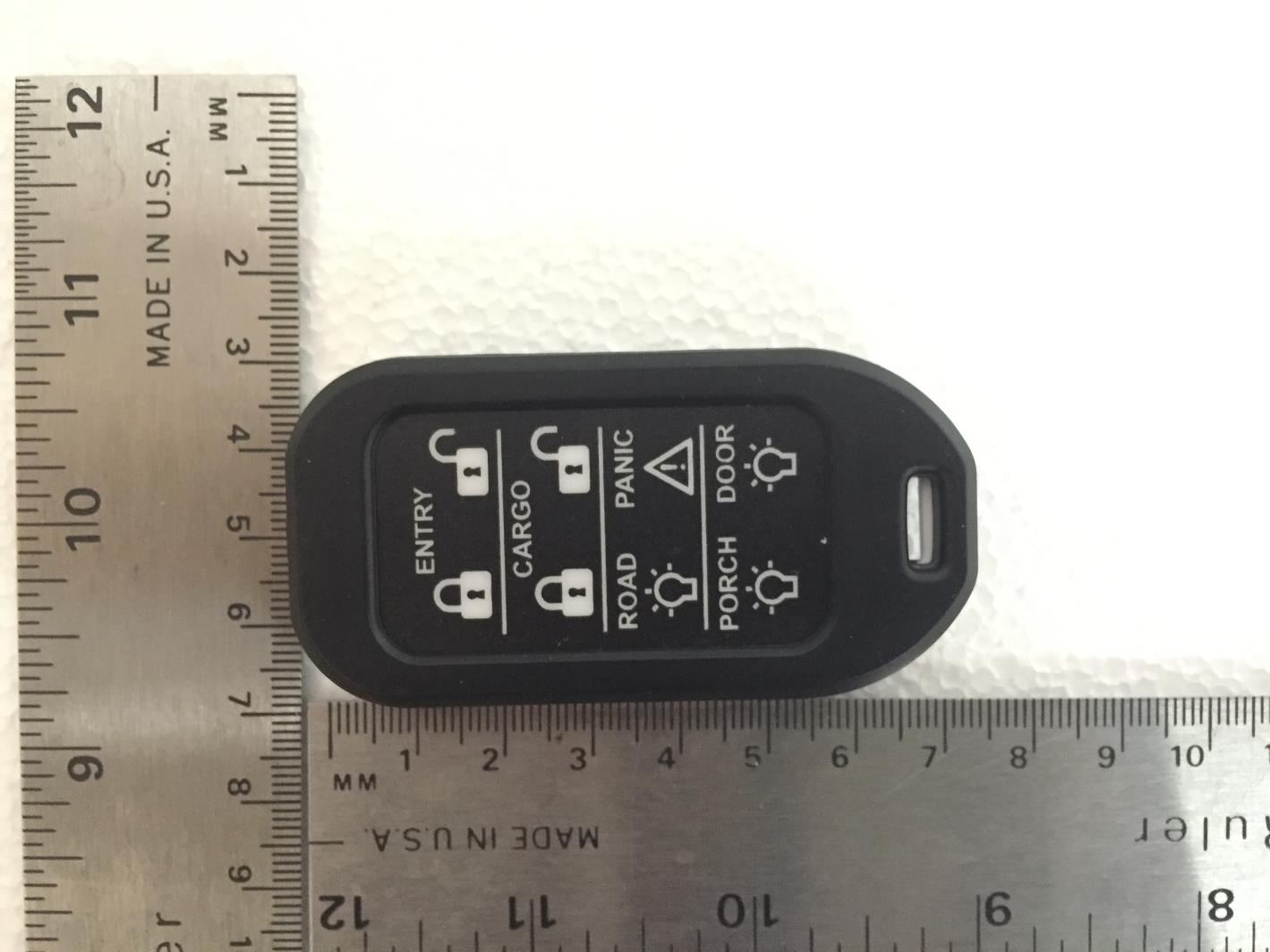

FCC ID: OV9BSSPWZIPA IC: 10245A-BSSPWZIPA EUT External Photo Top: FCC ID: OV9BSSPWZIPA IC: 10245A-BSSPWZIPA EUT External Photo Bottom FCC ID: OV9BSSPWZIPA IC: 10245A-BSSPWZIPA EUT External Photo Side 1: FCC ID: OV9BSSPWZIPA IC: 10245A-BSSPWZIPA EUT External Photo Side 2: FCC ID: OV9BSSPWZIPA IC: 10245A-BSSPWZIPA EUT External Photo Side 3: Note the PCB assembly is located in the middle of the enclosure Side 4:

FCC ID: OV9BSSPWZIPA IC: 10245A-BSSPWZIPA RF FOB Label & Location Label Location: Label: RF FOB IC: 10245A-BSSPWZIPA FCC ID: OV9BSSPWZIPA Label Location

FCC ID: OV9BSSPWZIPA IC: 10245A-BSSPWZIPA EUT Internal Photo Internal assembly Key Pad Top Cover FCC ID: OV9BSSPWZIPA IC: 10245A-BSSPWZIPA EUT Internal Photo Cover and Keypad removed Base enclosure FCC ID: OV9BSSPWZIPA IC: 10245A-BSSPWZIPA EUT Internal Photo PCBA bottom view (NO Battery) FCC ID: OV9BSSPWZIPA IC: 10245A-BSSPWZIPA EUT Internal Photo PCBA bottom view (With Battery) FCC ID: OV9BSSPWZIPA IC: 10245A-BSSPWZIPA EUT Internal Photo Radio PCBA top view FCC ID: OV9BSSPWZIPA IC: 10245A-BSSPWZIPA EUT Internal Photo Distance between Antenna trace and enclosure Antenna Trace Antenna Trace

FCC ID: OV9BSSPWZIPA FCC RF Exposure Evaluation 1 The Device is a Portable RF Fob for periodic TX applications. RF fob is suitable for commercial and residential application. RF fob is evaluated for RF radiation exposure according to the provisions of FCC §2.1093, MPE guidelines identified in FCC §1.1310 and FCC KDB 447498:2015. §2.1093 Radiofrequency radiation exposure evaluation: portable devices. (b) For purposes of this section, a portable device is defined as a transmitting device designed to be used so that the radiating structure(s) of the device is/are within 20 centimeters of the body of the user. (c)(1) Portable devices that operate in the Cellular Radiotelephone Service pursuant to part 22 of this chapter; the Personal Communications Service (PCS) pursuant to part 24 of this chapter; the Satellite Communications Services pursuant to part 25 of this chapter; the Miscellaneous Wireless Communications Services pursuant to part 27 of this chapter; the Upper Microwave Flexible Use Service pursuant to part 30 of this chapter; the Maritime Services (ship earth station devices only) pursuant to part 80 of this chapter; the Specialized Mobile Radio Service, the 4.9 GHz Band Service, and the 3650 MHz Wireless Broadband Service pursuant to part 90 of this chapter; the Wireless Medical Telemetry Service (WMTS), the Medical Device Radiocommunication Service (MedRadio), and the 76-81 GHz Band Radar Service pursuant to subparts H, I, and M of part 95 of this chapter, respectively; unlicensed personal communication service, unlicensed NII devices and millimeter-wave devices authorized under §§15.255(f), 15.257(g), 15.319(i), and 15.407(f) of this chapter; and the Citizens Broadband Radio Service pursuant to part 96 of this chapter are subject to routine environmental evaluation for RF exposure prior to equipment authorization or use. (2) All other portable transmitting devices are categorically excluded from routine environmental evaluation for RF exposure prior to equipment authorization or use, except as specified in §§1.1307(c) and 1.1307(d) of this chapter. As per FCC KDB 447498:2015 clauses 4.3 General SAR test exclusion guidance. 4.3.1. Standalone SAR test exclusion considerations a) For 100 MHz to 6 GHz and test separation distances ≤ 50 mm, the 1-g and 10-g SAR test exclusion thresholds are determined by the following: [(max. power of channel, including tune-up tolerance, mW) / (min. test separation distance, mm)] · [√f(GHz)] ≤ 3.0 for 1-g SAR, and ≤ 7.5 for 10-g extremity SAR, where f (GHz) is the RF channel transmit frequency in GHz SAR Test Exclusion Thresholds Table at Selected Frequencies and Test Separation Distances for 100 MHz – 6 GHz and ≤ 50 mm (The equation and threshold in 4.3.1 must be applied to determine SAR test exclusion.) MHz 5 10 15 20 25 mm 150 39 77 116 155 194 SAR Test Exclusion Threshold (mW) 300 27 55 82 110 137 450 22 45 67 89 112 835 16 33 49 66 82 900 16 32 47 63 79 1500 12 24 37 49 61 1900 11 22 33 44 54 2450 10 19 29 38 48 3600 8 16 24 32 40 5200 7 13 20 26 33 5400 6 13 19 26 32 5800 6 12 19 25 31 FCC ID: OV9BSSPWZIPA FCC RF Exposure Evaluation 2 Measured Radiated field strength for fundamental frequencies 431.06 MHz and 433.06 MHz Frequency (MHz) Radiated RF Peak Field Strength (E ) (dBμv/m) Radiated EIRP EIRP(dBm)=[E(dBμV/m) − 95.3] (dBm) EIRP (mW) 431.06 90.33 -4.97 0.318 433.06 90.10 -5.20 0.302 As per Tuning procedure the absolute maximum power of the chip is capable is “+10 dBm “and TX antenna gain is -6 dBi. So calculated Worse Case EIRP is EIRP(dBm) = Max. Tx Power (dBm) + Antenna Gain (dBi) EIRP(dBm) = [10 (dBm)] + [- 6 (dBi)] EIRP(dBm) = 4 (dBm) = 2.5mW Calculations: Worse Power= 2.5 mW Distance= 5 mm Frequencies= 431.06 MHz (0.43106 GHz) and 433.06 MHz (0.43306 GHz) [(2.5 mW / 5 mm)] x [√ (0.43106 GHz)] ≤ 3.0 for 1-g SAR, and ≤ 7.5 for 10-g extremity SAR 0.33 <<<<< 3.0 (1-g SAR Limit) => SAR test excluded for 1g and 10g SAR tests [(2.5 mW / 5 mm)] x [√ (0.43306 GHz)] ≤ 3.0 for 1-g SAR, and ≤ 7.5 for 10-g extremity SAR 0.33 <<<<< 3.0 (1-g SAR Limit) => SAR test excluded for 1g and 10g SAR tests

This report shall not be reproduced, except in full, without prior written approval of MPB Technologies Page 1 of 40 Test Report Prepared By: Electronics Test Centre 27 East Lake Hill Airdrie, Alberta Canada T4A 2K3 [email protected] http://www.etc-mpb.com Telephone: 1-403-912-0037 ETC Report #: s22e20a247-FCC Release 2 Test Dates: September 16, 17,18 and 19, 2020 Date: Date: 2020-12-15 EMC testing of the Spyder Controls Corporation RF Fob is performed in accordance with FCC Part 15.231, ANSI C63.10-2013. FCC ID: OV9BSSPWZIPA Tested by: Imran Akram, Janet Mijares Prepared for: Spyder Controls Corporation 7102 – 52 St. #10 Lacombe, Alberta Canada T4L 1Y9 Telephone: 1-403-782-9738 _________________________ _________________________ Imran Akram Marc Rousseau [email protected] [email protected] EMC Technologist QA Manager Electronics Test Centre (Airdrie) Electronics Test Centre (Airdrie) Test Sample: RF Fob FCC ID: OV9BSSPWZIPA FCC Part 15.231 Report #: s22e20a247-FCC Release 2 This report shall not be reproduced, except in full, without prior written approval of MPB Technologies Page 2 of 40 REVISION RECORD ISSUE DATE AUTHOR REVISIONS DRAFT 1 2020-09-21 I. Akram Initial draft submitted for review. DRAFT 2 2020-11-12 I. Akram Updated Serial# and FCC ID Release 1 2020-12-09 M. Rousseau Sign off Release 2 2020-12-15 M. Rousseau Correct customer address Test Sample: RF Fob FCC ID: OV9BSSPWZIPA FCC Part 15.231 Report #: s22e20a247-FCC Release 2 This report shall not be reproduced, except in full, without prior written approval of MPB Technologies Page 3 of 40 TABLE OF CONTENTS 1.0 INTRODUCTION 5 1.1 Scope.......................................................................................................... 5 1.2 Applicant ..................................................................................................... 5 1.3 Test Sample Description ............................................................................. 5 1.4 General Test Conditions and Assumptions ................................................. 5 1.5 Scope of Testing ......................................................................................... 6 1.5.1 Test Methodology ............................................................................ 6 1.5.2 Variations in Test Methodology ....................................................... 6 1.5.3 Test Sample Verification, Configuration & Modifications .................. 6 1.5.4 Uncertainty of Measurement: ........................................................... 6 2.0 TEST CONCLUSION 7 2.1 AC Power Line Conducted Emissions: Transmit Mode ............................... 8 2.2 Periodic Operation Characteristics .............................................................. 9 2.2.1 Test Methodology: ........................................................................... 9 2.2.2 Deviations From The Standard: ....................................................... 9 2.2.3 Test Equipment ............................................................................. 10 2.2.4 Test Sample Verification, Configuration & Modifications ................ 10 2.2.5 Summary of test Results / Plots:.................................................... 10 2.3 Channel Occupied Bandwidth ................................................................... 14 2.3.1 Test Methodology: ANSI C63.10-2013 .......................................... 14 2.3.2 Deviations From The Standard: ..................................................... 14 2.3.3 Test Equipment ............................................................................. 14 2.3.4 Test Sample Verification, Configuration & Modifications ................ 14 2.3.5 Summary of test Results / Plots:.................................................... 15 2.4 Duty Cycle Correction Factor .................................................................... 17 2.4.1 Test Methodology: ANSI C63.10-2013 Clause 11.6(b) .................. 17 2.4.2 Deviations From The Standard: ..................................................... 17 2.4.3 Test Equipment ............................................................................. 17 2.4.4 Test Sample Verification, Configuration & Modifications ................ 18 2.4.5 Summary of test Results / Plots:.................................................... 18 2.5 EUT Positioning Assessment .................................................................... 21 2.5.1 Test Methodology: ......................................................................... 21 2.5.2 Deviations From The Standard: ..................................................... 21 2.5.4 Test Equipment ............................................................................. 22 2.5.5 Test Sample Verification, Configuration & Modifications ................ 22 2.6 Radiated Spurious Emissions ................................................................... 23 2.6.1 Test Methodology: ANSI C63.10-2013, Clause 6.6.4 .................... 25 2.6.2 Deviations From The Standard: ..................................................... 25 2.6.3 Test Equipment ............................................................................. 26 2.6.4 Test Sample Verification, Configuration & Modifications ................ 26 2.6.5 Radiated Emissions Data: ............................................................. 27 Test Sample: RF Fob FCC ID: OV9BSSPWZIPA FCC Part 15.231 Report #: s22e20a247-FCC Release 2 This report shall not be reproduced, except in full, without prior written approval of MPB Technologies Page 4 of 40 2.8 RF Exposure ............................................................................................. 38 3.0 TEST FACILITY 39 3.1 Location .................................................................................................... 39 3.2 Grounding Plan ......................................................................................... 39 3.3 Power Supply ................…

Text truncated - open the document above for the full version.

FCC ID: OV9BSSPWZIPA IC: 10245A-BSSPWZIPA EUT Test Setup Photo Radiated Emission Test Setup for Radio testing: Radiated Emission 30 MHz to 1 GHz Test Setup: FCC ID: OV9BSSPWZIPA IC: 10245A-BSSPWZIPA EUT Test Setup Photo Radiated Emission 1 GHz – 5 GHz Test Setup: FCC ID: OV9BSSPWZIPA IC: 10245A-BSSPWZIPA EUT Test Setup Photo Z-Axis FCC ID: OV9BSSPWZIPA IC: 10245A-BSSPWZIPA EUT Test Setup Photo X-Axis FCC ID: OV9BSSPWZIPA IC: 10245A-BSSPWZIPA EUT Test Setup Photo Y-Axis
