OVF-C4700Cellular/PCS WCDMA/GSM/GPRS/EDGE phone with Bluetooth

C4700 User Guide Touchscreen Mobile Phone 1 Table of Contents Introduction .......................................................... 2 For Your Safety ................................................... 3 Getting Started .................................................... 4 Call Functions .................................................... 12 Contacts ............................................................ 14 Call Log ............................................................. 17 Calendar ............................................................ 17 Multimedia ......................................................... 18 Messaging ......................................................... 22 Games ............................................................... 24 Internet .............................................................. 24 Profiles ............................................................... 26 Tools .................................................................. 26 Camera .............................................................. 26 My files .............................................................. 28 Settings .............................................................. 28 Care and Maintenance ...................................... 32 © 2010 by Compal Communications Inc. All rights reserved No part of this publication may be reproduced, stored in a retrieval system or transmitted in any form or by any means(electronic, mechanical, photocopying, recording or otherwise) without prior written permission from Compal Communi- cations Inc. 2 Introduction Thank you for choosing the product. The C4700 is a touchscreen mobile phone features a 2.8 inch screen with 240*320 resolution, a 2-megapixel camera/camcorder, and Bluetooth for handsfree devices. This is also a quad-phone supporting the four global standard GSM frequencies of 850/ 2100 MHz, so you do not worry about that whether or not your phone will work in a different country. As you explore your C4700 mobile phone, use this guide to find out more useful information. Now get your SIM card and enjoy your new C4700 mobile phone! 3 For Your Safety Read and understand all the following guidelines before using the product. Breaking the rules may be dangerous or illegal. • Use only approved battery and charger. Do not connect incompatible products. Using other types of batteries or chargers may damage the phone and void the warranty. • Turn off the phone before inserting or removing the battery and memory card. • Keep the battery and the phone dry and away from water or any other liquids as it may cause a short circuit. • Keep the battery out of the reach of children. • Do not dispose of the battery by fire or with hazardous or flammable materials. • Do not use a hand-held phone while driving, except in the case of emergency. • Do not use the phone in areas where its use is prohibited. Switch the phone OFF near medical equipment, in aircraft, and at the refueling point. • Do not take apart or attempt to service the phone yourself. 4 Getting Started Phone at a glance 1Earphone jack8Speaker 2Earpiece9Camera lens 3Touch screen10 Volume keys 4Menu key 11 USB charge/sync connector 5Call key10 Volume keys 6Power/End key12 Back cover 7Microphone13 Camera key 2 3 1 9 10 11 13 12 5 4 8 6 7 5 SIM card The SIM (Subscriber Identity Module) card, which contains your subscription details, is provided by your network operator. Install the SIM card, battery and memory card Always turn off your phone and disconnect the charger before installing or replacing the SIM card, battery, and memory card. 1. Slide the back cover downward to release and remove the cover. Important! Keep your SIM card in a safe place when you are not using it. The SIM card can be easily damaged by scratching, bending, or exposing it to static electricity, water, or dirt. 6 2. Locate the SIM card slot and insert the SIM card with its gold contacts facing down and its cut- off corner facing out the card slot. Make sure the card is securely inserted. 3. If necessary, locate the memory card slot and insert the memory card with its gold contacts facing down as shown. Make sure the card is securely inserted. 4. Insert the battery with the correct polarity. Then gently press down to secure the battery. 5. Slide the back cover into place. To remove the SIM card, memory card, and battery, 1. Make sure the phone is turned off. 2. Remove the back cover. 3. Lift out the battery from the notches at the bottom of the battery compartment as shown. 7 4. Gently press on the SIM card and slide it out of its slot. 5. Gently press on the memory card and slide it out of its slot. Charge the battery 1. Make sure the battery is installed properly in your phone. 2. Connect the AC charger and the phone using the supplied USB sync cable. 3. Plug in the AC charger to an electrical outlet to start charging the battery. An icon in the upper-right corner of the Main screen shows battery charging status. When charging is complete, a full battery icon () appears on the screen. Disconnect the phone and the charger from the electrical outlet. Important! The rechargeable Lithium-ion battery is not charged when shipped. Before you start using your phone, it is recommended that you install and fully charge the battery. 8 Low battery indicator When the battery power is low, you will find a blinking empty battery icon () at the top of the Main screen. The phone will sound an alert and display a low-battery warning message. In this condition, you should immediately charge the battery, otherwise the phone may be turned off automatically. Turn your phone on and off To turn the phone on, press and hold the Power/End key until the display lights up. If you have set up phone and SIM card password, the phone may prompt you to enter your password to unlock your phone or SIM card. To turn off the phone, press and hold the Power/End key for a few seconds. NOTE Your phone can be charged via a comp…

Text truncated - open the document above for the full version.

Kyocera Communications, Inc 10300 Campus Point Drive, San Diego, California 92121, United States Tel: 858 882 2000 ; Fax: 858 882 2010 Date: July 25, 2010 Federal Communications Commission Authorization and Evaluation Division 1435 Oakland Mills Road Columbia, MD 21046 SUBJECT: FCC Application for FCC ID: OVF-C4700 To Whom It May Concern: We, Kyocera Communications, Inc, hereby attest to the fact that we will apply the Declaration of Conformity procedure to the class B computer peripheral portion of this composite filing. Sincerely yours, C. K. Li Director of Regulatory Engineering

Kyocera Communications, Inc. 10300 Campus Point Drive, San Diego, California 92121, United States Tel: 858 882 2000 ; Fax: 858 882 2010 Date: October 5, 2010 Statement We, Kyocera Communications, Inc., states that our device, FCC ID: OVF-C4700, hereby declared that we will satisfy for the power ranges which tune up procedure mentioned when products producing. Sincerely yours, _______________ C. K. Li Director of Regulatory Engineering

SCS-F18: Project and Product Certification Representative Authorization Letter Page 1 of 2 Rev 2.0 2206 Ringwood Avenue San Jose, CA 95131 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Project and Product Certification Representative Authorization Letter Reason for Amendment (current / obsolete) Revision History Approved Date From To Initial Release (current) 1.0 1.0 August 9, 2010 SCS-F18: Project and Product Certification Representative Authorization Letter Page 2 of 2 Rev 2.0 Sporton International Inc. August 9, 2010 To: SIEMIC, INC. 2206 Ringwood Avenue, San Jose, CA 95131 USA Dear Sir/Madam, Re: Project and Product Certification Representative Authorization Letter We, _Sporton International Inc._hereby authorize SIEMIC, INC. to act as a Certification Body for certifying for the following project(s): Product description: Cellular/PCS WCDMA/GSM/GPRS/EDGE phone with Bluetooth Model name: C4700 We affirm that between SIEMIC and __Sporton Internationl Inc.___, any difference in understanding, including test plan, measurement methods, applicable standards and relevant procedures and processes have been resolved prior to commencement of testing activities. Sincerely, Client’s signature: Client’s name / title: Roy Wu Contact information / address: No.52, HwaYa 1st Rd., Kwei-Shan Hsiang, Taoyuan Hsien 333, Taiwan, R.O.C.

Kyocera Communications, Inc 10300 Campus Point Drive, San Diego, California 92121, United States Tel: 858 882 2000 ; Fax: 858 882 2010 Date: July 25, 2010 Power of Attorney To whom it may concern, Please be notified that I, C. K. Li, have designated Roy Wu in Sporton International Inc. as the person being responsible for this project and to sign the form 731 and other documentation. Any and all acts carried out by Roy Wu in Sporton International Inc., on the matters of relating to all processes required in the FCC approval and any communication needed with the national authority, shall have the same legal authority as acts on our own behalf. We further certifies that neither the applicant nor any party to this application, as defined in 47 CFR Ch. 1.2002 (b), is subject to a denial to Federal benefits, that include FCC benefits, pursuant to section 5301 of the Anti-Drug Abuse Act of 1998, 21 U.S.C. 835(a). This authorization is limited to the product of as following: FCC ID: OVF-C4700 If you have any acknowledgement and response, please send it to Sporton International Inc. directly. Should you have any questions or comments regarding this matter, please have my best attention. Sincerely yours, Contact Person: C. K. Li Company: Kyocera Communications, Inc TEL: 858 882 2000 FAX: 858 882 2010 E-mail: [email protected]

1/1 Kyocera Communications, Inc 10300 Campus Point Drive, San Diego, California 92121, United States Tel: 858 882 2000 ; Fax: 858 882 2010 Date: July 25, 2010 Federal Communications Commission Authorization and Evaluation Division RE : Certification Application FCC ID : OVF-C4700 To Whom It May Concern, Pursuant to sections 0.457 and 0.459 of CFR 47 and to avoid premature release of sensitive information prior to marketing or release of the product to the public, the applicant requests the following documents contained in this certification application be temporarily withheld from public disclosure for an initial period of 180 days: ‹ External Photos (file: C4700_ExtPho.pdf) ‹ Internal Photos (file: C4700_IntPho.pdf) ‹ Test Setup Photos (file: C4700_Tsup.pdf) ‹ User Manual (file: C4700_UserMan.pdf) The application contains technical information, which Kyocera Communications, Inc deems to be trade secrets and proprietary. If made public, the information might be used to the disadvantage of the applicant in the market place. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application Sincerely, C. K. Li Director of Regulatory Engineering

Rev. 1/1/03 Kyocera Communications, Inc 10300 Campus Point Drive, San Diego, California 92121, United States Tel: 858 882 2000 ; Fax: 858 882 2010 Date: July 25, 2010 Federal Communications Commission Authorization and Evaluation Division Confidentiality Request regarding application for certification of FCC ID: OVF-C4700 Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: Schematics (file: C4700_Schem.pdf) Block Diagram (file: C4700_BlkDia.pdf) Parts List (file: C4700_PartsLst.pdf) Operation Description (file: C4700_OpDes.pdf) Tune up Procedure (file: C4700_TunPro.pdf) The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, ________________________ C. K. Li Director of Regulatory Engineering

Kyocera Communications, Inc 10300 Campus Point Drive, San Diego, California 92121, United States Tel: 858 882 2000 ; Fax: 858 882 2010 Date: July 25, 2010 Statement We, Kyocera Communications, Inc, states that our device, FCC ID: OVF-C4700, has no space to put the label except the battery compartment of this device. The label will put under the battery compartment and it is visible to the users as they purchase the products and install the battery. Sincerely yours, _______________ C. K. Li Director of Regulatory Engineering

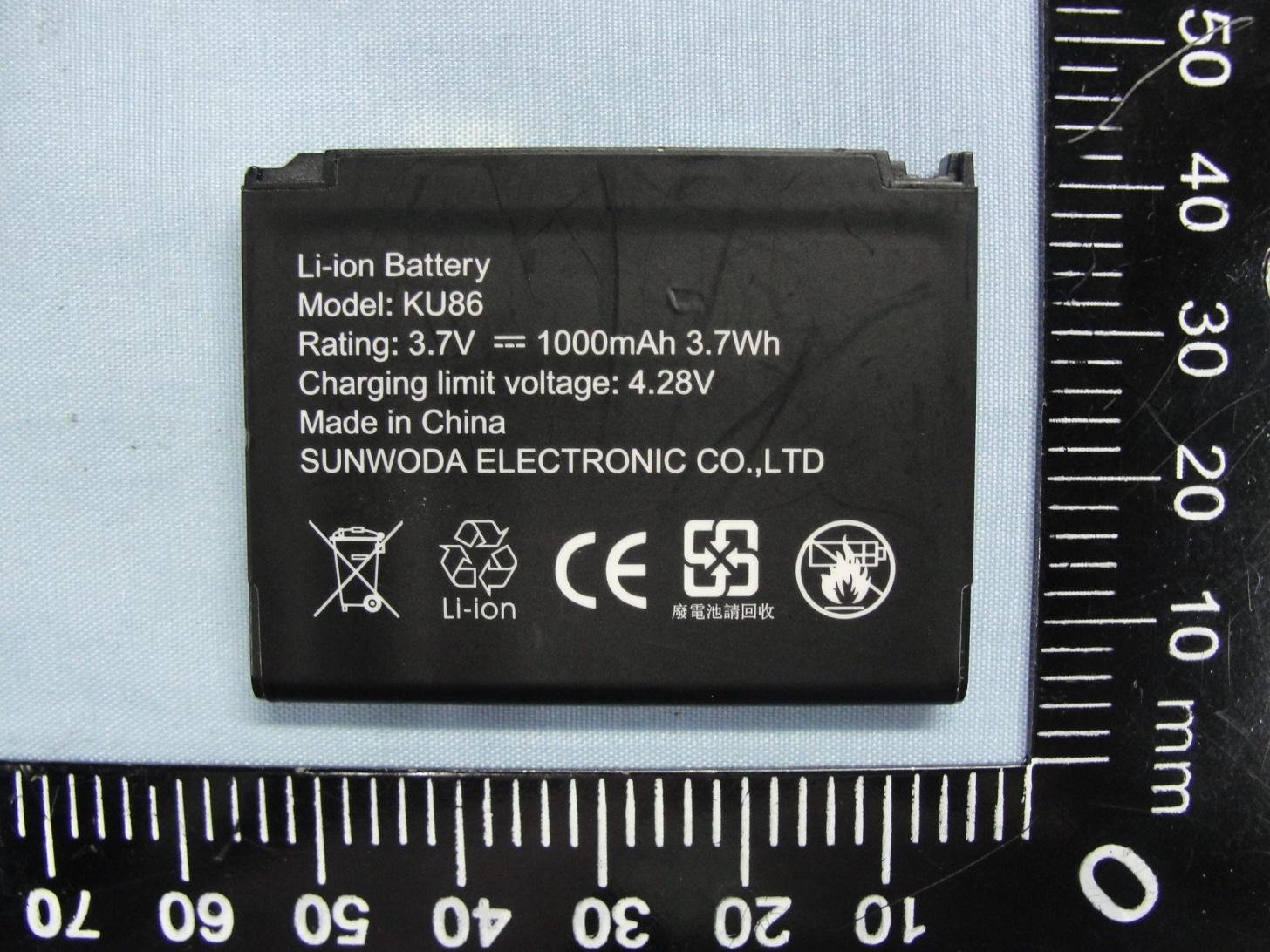

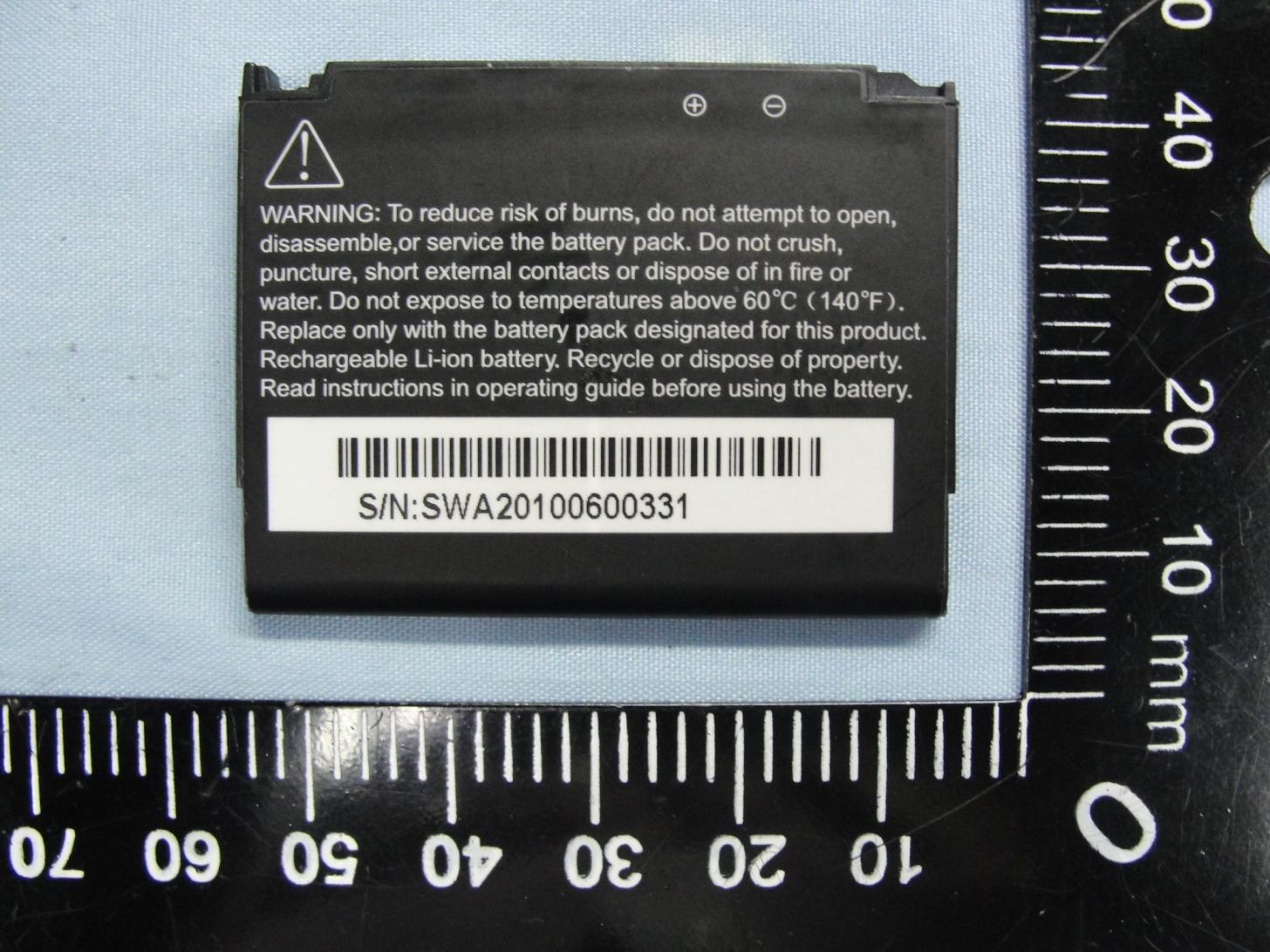

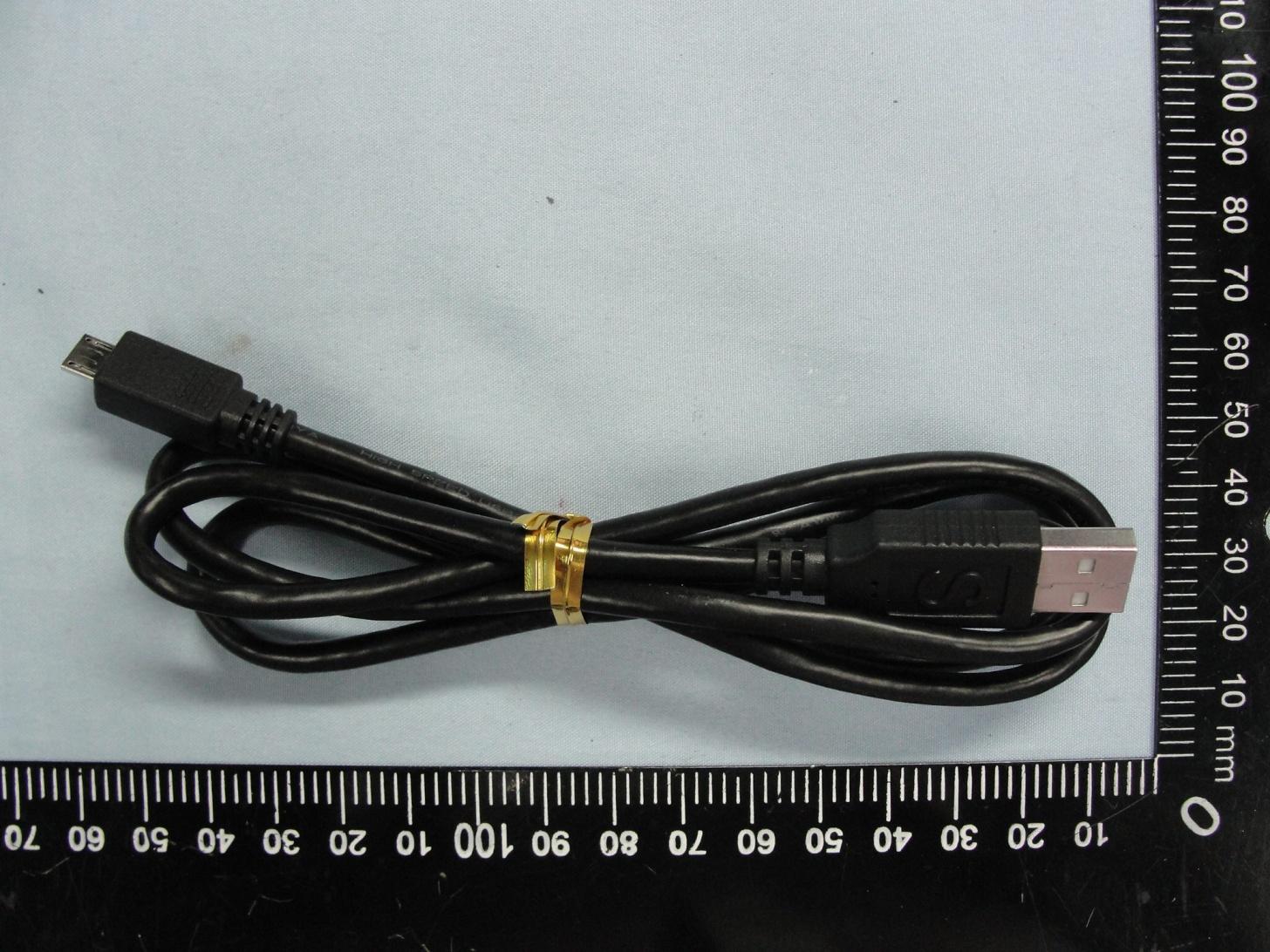

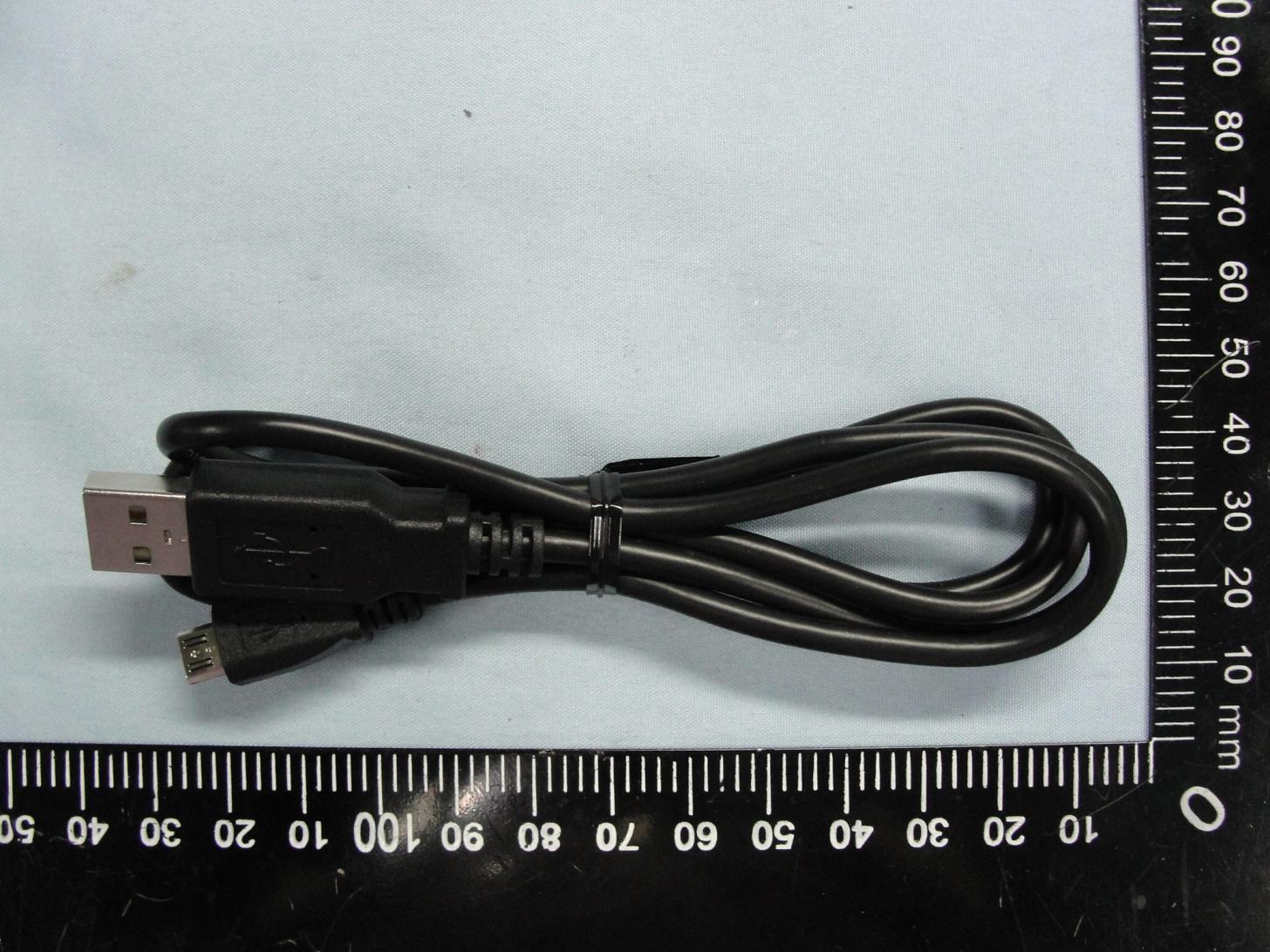

Photographs of EUT Report No.: EP072003 Brand Name: Kyocera / Model Name: C4700 SPORTON INTERNATIONAL INC. Page Number : 1 of 31 TEL : 886-3-327-3456 Report Issued Date : Aug. 06, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : OVF-C4700 1. External Photograph of EUT Photographs of EUT Report No.: EP072003 Brand Name: Kyocera / Model Name: C4700 SPORTON INTERNATIONAL INC. Page Number : 2 of 31 TEL : 886-3-327-3456 Report Issued Date : Aug. 06, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : OVF-C4700 Photographs of EUT Report No.: EP072003 Brand Name: Kyocera / Model Name: C4700 SPORTON INTERNATIONAL INC. Page Number : 3 of 31 TEL : 886-3-327-3456 Report Issued Date : Aug. 06, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : OVF-C4700 Photographs of EUT Report No.: EP072003 Brand Name: Kyocera / Model Name: C4700 SPORTON INTERNATIONAL INC. Page Number : 4 of 31 TEL : 886-3-327-3456 Report Issued Date : Aug. 06, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : OVF-C4700 Photographs of EUT Report No.: EP072003 Brand Name: Kyocera / Model Name: C4700 SPORTON INTERNATIONAL INC. Page Number : 5 of 31 TEL : 886-3-327-3456 Report Issued Date : Aug. 06, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : OVF-C4700 Photographs of EUT Report No.: EP072003 Brand Name: Kyocera / Model Name: C4700 SPORTON INTERNATIONAL INC. Page Number : 6 of 31 TEL : 886-3-327-3456 Report Issued Date : Aug. 06, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : OVF-C4700 720510 Photographs of EUT Report No.: EP072003 Brand Name: Kyocera / Model Name: C4700 SPORTON INTERNATIONAL INC. Page Number : 7 of 31 TEL : 886-3-327-3456 Report Issued Date : Aug. 06, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : OVF-C4700 List of Accessory: Specification of Accessory AC Adapter Brand Name Kyocera Model Name LSD-D05I55 Power Rating I/P:100-240Vac, 50-60Hz, 0.2A; O/P: 5Vdc, 550mA DC Power Cord Type 1.4 meter non-shielded cable without ferrite core Battery Brand Name Kyocera Model Name C4700BAT Power Rating 3.7Vdc, 1000mAh Type Li-ion Earphone Brand Name Galien Model Name HF-KY03D-01 Signal Line Type 1.4 meter non-shielded cable without ferrite core USB Cable 1 Brand Name Salom Model Name DCD-1176 Signal Line Type 1 meter shielded cable without ferrite core USB Cable 2 Brand Name Salom Model Name DCD-1169 Signal Line Type 1 meter shielded cable without ferrite core LCD Panel Brand Name Wintek Model Name WD-R2432W-EFLW Camera Brand Name Abico Model Name CP26F205 Remark: For accessories equipped with this EUT, please refer to the following photos. 2. Photograph of Accessory Photographs of EUT Report No.: EP072003 Brand Name: Kyocera / Model Name: C4700 SPORTON INTERNATIONAL INC. Page Number : 8 of 31 TEL : 886-3-327-3456 Report Issued Date : Aug. 06, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : OVF-C4700 Photographs of EUT Report No.: EP072003 Brand Name: Kyocera / Model Name: C4700 SPORTON INTERNATIONAL INC. Page Number : 9 of 31 TEL : 886-3-327-3456 Report Issued Date : Aug. 06, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : OVF-C4700 Photographs of EUT Report No.: EP072003 Brand Name: Kyocera / Model Name: C4700 SPORTON INTERNATIONAL INC. Page Number : 10 of 31 TEL : 886-3-327-3456 Report Issued Date : Aug. 06, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : OVF-C4700 Photographs of EUT Report No.: EP072003 Brand Name: Kyocera / Model Name: C4700 SPORTON INTERNATIONAL INC. Page Number : 11 of 31 TEL : 886-3-327-3456 Report Issued Date : Aug. 06, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : OVF-C4700 Photographs of EUT Report No.: EP072003 Brand Name: Kyocera / Model Name: C4700 SPORTON INTERNATIONAL INC. Page Number : 12 of 31 TEL : 886-3-327-3456 Report Issued Date : Aug. 06, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : OVF-C4700 Photographs of EUT Report No.: EP072003 Brand Name: Kyocera / Model Name: C4700 SPORTON INTERNATIONAL INC. Page Number : 13 of 31 TEL : 886-3-327-3456 Report Issued Date : Aug. 06, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : OVF-C4700 Photographs of EUT Report No.: EP072003 Brand Name: Kyocera / Model Name: C4700 SPORTON INTERNATIONAL INC. Page Number : 14 of 31 TEL : 886-3-327-3456 Report Issued Date : Aug. 06, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : OVF-C4700 Photographs of EUT Report No.: EP072003 Brand Name: Kyocera / Model Name: C4700 SPORTON INTERNATIONAL INC. Page Number : 15 of 31 TEL : 886-3-327-3456 Report Issued Date : Aug. 06, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : OVF-C4700 USB Cable 1 Photographs of EUT Report No.: EP072003 Brand Name: Kyocera / Model Name: C4700 SPORTON INTERNATIONAL INC. Page Number : 16 of 31 TEL : 886-3-327-3456 Report Issued Date : Aug. 06, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : OVF-C4700 720510 USB Cable 2

Elaine C. 1:1 07.08.10 IMEI Label IMEI Label KU86 IMEI Label Water Indicator Label 3mm WIL WIL 44.00mm R0.5 29.00mm Model Number IMEI Barcode IMEI Number Carrier P/N Barcode Carrier Part Number Kyocera Logo Text Defined Country of Origin FCC ID Logo FCC ID Year/Week Text Defined

Photographs of EUT Report No.: EP072003 Brand Name: Kyocera / Model Name: C4700 SPORTON INTERNATIONAL INC. Page Number : 17 of 31 TEL : 886-3-327-3456 Report Issued Date : Aug. 06, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : OVF-C4700 3. Internal Photograph of EUT Photographs of EUT Report No.: EP072003 Brand Name: Kyocera / Model Name: C4700 SPORTON INTERNATIONAL INC. Page Number : 18 of 31 TEL : 886-3-327-3456 Report Issued Date : Aug. 06, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : OVF-C4700 Photographs of EUT Report No.: EP072003 Brand Name: Kyocera / Model Name: C4700 SPORTON INTERNATIONAL INC. Page Number : 19 of 31 TEL : 886-3-327-3456 Report Issued Date : Aug. 06, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : OVF-C4700 Photographs of EUT Report No.: EP072003 Brand Name: Kyocera / Model Name: C4700 SPORTON INTERNATIONAL INC. Page Number : 20 of 31 TEL : 886-3-327-3456 Report Issued Date : Aug. 06, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : OVF-C4700 Photographs of EUT Report No.: EP072003 Brand Name: Kyocera / Model Name: C4700 SPORTON INTERNATIONAL INC. Page Number : 21 of 31 TEL : 886-3-327-3456 Report Issued Date : Aug. 06, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : OVF-C4700 Photographs of EUT Report No.: EP072003 Brand Name: Kyocera / Model Name: C4700 SPORTON INTERNATIONAL INC. Page Number : 22 of 31 TEL : 886-3-327-3456 Report Issued Date : Aug. 06, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : OVF-C4700 Photographs of EUT Report No.: EP072003 Brand Name: Kyocera / Model Name: C4700 SPORTON INTERNATIONAL INC. Page Number : 23 of 31 TEL : 886-3-327-3456 Report Issued Date : Aug. 06, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : OVF-C4700 Photographs of EUT Report No.: EP072003 Brand Name: Kyocera / Model Name: C4700 SPORTON INTERNATIONAL INC. Page Number : 24 of 31 TEL : 886-3-327-3456 Report Issued Date : Aug. 06, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : OVF-C4700 Photographs of EUT Report No.: EP072003 Brand Name: Kyocera / Model Name: C4700 SPORTON INTERNATIONAL INC. Page Number : 25 of 31 TEL : 886-3-327-3456 Report Issued Date : Aug. 06, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : OVF-C4700 Photographs of EUT Report No.: EP072003 Brand Name: Kyocera / Model Name: C4700 SPORTON INTERNATIONAL INC. Page Number : 26 of 31 TEL : 886-3-327-3456 Report Issued Date : Aug. 06, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : OVF-C4700 Photographs of EUT Report No.: EP072003 Brand Name: Kyocera / Model Name: C4700 SPORTON INTERNATIONAL INC. Page Number : 27 of 31 TEL : 886-3-327-3456 Report Issued Date : Aug. 06, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : OVF-C4700 Photographs of EUT Report No.: EP072003 Brand Name: Kyocera / Model Name: C4700 SPORTON INTERNATIONAL INC. Page Number : 28 of 31 TEL : 886-3-327-3456 Report Issued Date : Aug. 06, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : OVF-C4700 Photographs of EUT Report No.: EP072003 Brand Name: Kyocera / Model Name: C4700 SPORTON INTERNATIONAL INC. Page Number : 29 of 31 TEL : 886-3-327-3456 Report Issued Date : Aug. 06, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : OVF-C4700 Bluetooth Antenna Photographs of EUT Report No.: EP072003 Brand Name: Kyocera / Model Name: C4700 SPORTON INTERNATIONAL INC. Page Number : 30 of 31 TEL : 886-3-327-3456 Report Issued Date : Aug. 06, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : OVF-C4700 GPS Antenna Photographs of EUT Report No.: EP072003 Brand Name: Kyocera / Model Name: C4700 SPORTON INTERNATIONAL INC. Page Number : 31 of 31 TEL : 886-3-327-3456 Report Issued Date : Aug. 06, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : OVF-C4700 720510 WWAN Antenna

SPORTON INTERNATIONAL INC. Page Number : 1 of 35 TEL : 886-3-327-3456 Report Issued Date : Aug. 06, 2010 FAX : 886-3-328-4978 Report Version : Rev. 02 FCC ID : OVF-C4700 FCC SAR Test Report Report No. : FA072003 FCC SAR Test Report APPLICANT : Kyocera Communications, Inc. EQUIPMENT : Cellular/PCS WCDMA/GSM/GPRS/EDGE phone with Bluetooth BRAND NAME : Kyocera MODEL NAME : C4700 FCC ID : OVF-C4700 STANDARD : FCC 47 CFR Part 2 (2.1093) IEEE C95.1-1999 IEEE 1528-2003 FCC OET Bulletin 65 Supplement C (Edition 01-01) The product was received on Jul. 20, 2010 and completely tested on Jul. 30, 2010. We, SPORTON INTERNATIONAL INC., would like to declare that the tested sample has been evaluated in accordance with the procedures and shown the compliance with the applicable technical standards. The test results in this report apply exclusively to the tested model / sample. Without written approval of SPORTON INTERNATIONAL INC., the test report shall not be reproduced except in full. Reviewed by: Roy Wu / Manager SPORTON INTERNATIONAL INC. No. 52, Hwa Ya 1 st Rd., Hwa Ya Technology Park, Kwei-Shan Hsiang, Tao Yuan Hsien, Taiwan, R.O.C. SPORTON INTERNATIONAL INC. Page Number : 2 of 35 TEL : 886-3-327-3456 Report Issued Date : Aug. 06, 2010 FAX : 886-3-328-4978 Report Version : Rev. 02 FCC ID : OVF-C4700 FCC SAR Test Report Report No. : FA072003 Table of Contents Revision History ................................................................................................................................................................ 3 1. Statement of Compliance .......................................................................................................................................... 4 2. Administration Data ................................................................................................................................................... 5 2.1 Testing Laboratory ............................................................................................................................................ 5 2.2 Applicant ........................................................................................................................................................... 5 2.3 Manufacturer .................................................................................................................................................... 5 2.4 Application Details ............................................................................................................................................ 5 3. General Information ................................................................................................................................................... 6 3.1 Description of Device Under Test (DUT) ........................................................................................................... 6 3.2 Product Photos ................................................................................................................................................. 7 3.3 Applied Standards ............................................................................................................................................ 8 3.4 Device Category and SAR Limits ..................................................................................................................... 8 3.5 Test Conditions ................................................................................................................................................. 8 3.5.1 Ambient Condition .................................................................................................................................. 8 3.5.2 Test Configuration ................................................................................................................................... 8 4. Specific Absorption Rate (SAR) ...............................................................................................................................10 4.1 Introduction ......................................................................................................................................................10 4.2 SAR Definition .................................................................................................................................................10 5. SAR Measurement System .......................................................................................................................................11 5.1 E-Field Probe...................................................................................................................................................12 5.1.1 E-Field Probe Specification ...................................................................................................................12 5.1.2 E-Field Probe Calibration .......................................................................................................................13 5.2 Data Acquisition Electronics (DAE) ..................................................................................................................13 5.3 Robot ...............................................................................................................................................................13 5.4 Measurement Server .......................................................................................................................................14 5.5 Phantom ..........................................................................................................................................................15 5.6 Device Holder ..................................................................................................................................................16 5.7 Data Storage and Evaluation ...........................................................................................................................18 5.7.1 Data Storag…

Text truncated - open the document above for the full version.

Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2010/7/30 System Check_Head_835MHz_100730 DUT: Dipole 835 MHz Communication System: CW; Frequency: 835 MHz;Duty Cycle: 1:1 Medium: HSL_850_100730 Medium parameters used: f = 835 MHz; σ = 0.921 mho/m; ε r = 41.3; ρ = 1000 kg/m 3 DASY5 Configuration: - Probe: ET3DV6 - SN1788; ConvF(6.3, 6.3, 6.3); Calibrated: 2009/9/23 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn778; Calibrated: 2009/9/18 - Phantom: SAM-Back; Type: QD 000 P40 C; Serial: TP-1383 - Measurement SW: DASY5, V5.0 Build 125; SEMCAD X Version 13.4 Build 125 Pin=100mW/Area Scan (61x61x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 1.05 mW/g Pin=100mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 34.9 V/m; Power Drift = -0.015 dB Peak SAR (extrapolated) = 1.42 W/kg SAR(1 g) = 0.971 mW/g; SAR(10 g) = 0.634 mW/g Maximum value of SAR (measured) = 1.05 mW/ g 0 dB = 1.05mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2010/7/30 System Check_Body_835MHz_100730 DUT: Dipole 835 MHz Communication System: CW; Frequency: 835 MHz;Duty Cycle: 1:1 Medium: MSL_850_100730 Medium parameters used: f = 835 MHz; σ = 0.963 mho/m; ε r = 54.6; ρ = 1000 kg/m 3 DASY5 Configuration: - Probe: ET3DV6 - SN1788; ConvF(6.08, 6.08, 6.08); Calibrated: 2009/9/23 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn778; Calibrated: 2009/9/18 - Phantom: SAM - Front; Type: SAM; Serial: TP-1446 - Measurement SW: DASY5, V5.0 Build 125; SEMCAD X Version 13.4 Build 125 Pin=100mW/Area Scan (61x61x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 0.967 mW/g Pin=100mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 32.9 V/m; Power Drift = -0.018 dB Peak SAR (extrapolated) = 1.29 W/kg SAR(1 g) = 0.894 mW/g; SAR(10 g) = 0.588 mW/g Maximum value of SAR (measured) = 0.970 mW/g 0 dB = 0.970mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2010/7/30 System Check_Head_1900MHz_100730 DUT: Dipole 1900 MHz Communication System: CW; Frequency: 1900 MHz;Duty Cycl…

Text truncated - open the document above for the full version.
