OVF-K5501Single Band CDMA Cellular Phone with Bluetooth

User Guide1 user guide Luno ™ S2100 DRAFT 2 Luno S2100 User Guide This manual is based on the production version of the Kyocera S2100 phone. Software changes may have occurred after this printing. Kyocera reserves the right to make changes in technical and product specifications without prior notice. The Kyocera Communications Inc. (“KCI”) products described in this manual may include copyrighted KCI and third party software stored in semiconductor memories or other media. Laws in the United States and other countries preserve for KCI and third party software providers certain exclusive rights for copyrighted software, such as the exclusive rights to distribute or reproduce the copyrighted software. Accordingly, any copyrighted software contained in the KCI products may not be modified, reverse engineered, distributed or reproduced in any manner not permitted by law. Furthermore, the purchase of the KCI products shall not be deemed to grant—either directly or by implication, estoppel, or otherwise—any license under the copyrights, patents, or patent applications of KCI or any third party software provider, except for the normal, non-exclusive royalty-free license to use that arises by operation of law in the sale of a product. Kyocera is a registered trademark of Kyocera Corporation. Brick Attack and Race 21 are trademarks of Kyocera Wireless Corp. QUALCOMM is a registered trademark of QUALCOMM Incorporated. Openwave is a trademark of Openwave Systems Incorporated. eZiText is a registered trademark of Zi Corporation. TransFlash is a trademark of SanDisk Corporation. Bluetooth trademarks are owned by Bluetooth SIG, Inc. and used by Kyocera Communications Inc. under license. All other trademarks are the property of their respective owners. Copyright © 2010 Kyocera Corporation. All rights reserved. Ringer Tones Copyright © 2000-2010 Kyocera Corporation. 82-A6238-1EN, Rev. 001 FCC Notice This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. To maintain compliance with FCC RF exposure guidelines, if you wear a phone on your body, use the Kyocera Communications Inc. (KCI) supplied and approved accessory designed for this product. Using accessories that are not supplied or approved by KCI may violate FCC RF exposure guidelines. Other accessories used with this device for body-worn operations must not contain any metallic components and must provide at least 15 mm separation distance including the antenna and the user’s body. THIS MODEL PHONE MEETS THE GOVERNMENT’S REQUIREMENTS FOR EXPOSURE TO RADIO WAVES. Your wireless phone is a radio transmitter and receiver. It is designed and manufactured to not exceed the emission limits for exposure to radio frequency (RF) energy set by the Federal Communications Commission of the U.S. Government. These limits are part of comprehensive guidelines and establish permitted levels of RF energy for the general population. The guidelines are based on standards that were developed by independent scientific organizations through periodic and thorough evaluation of scientific studies. The standards include a substantial safety margin designed to assure the safety of all persons, regardless of age and health. The exposure standard for wireless mobile phones employs a unit of measurement known as the Specific Absorption Rate, or SAR. The SAR limit set by the FCC is 1.6 W/kg.* Tests for SAR are conducted using standard operating positions specified by the FCC with the phone transmitting at its highest certified power level in all tested frequency bands. Although the SAR is determined at the highest certified power level, the actual SAR level of the phone while operating can be well below the maximum value. This is because the phone is DRAFT User Guide3 designed to operate at multiple power levels so as to use only the power required to reach the network. In general, the closer you are to a wireless base station antenna, the lower the power output. Before a phone model is available for sale to the public, it must be tested and certified to the FCC that it does not exceed the limit established by the government-adopted requirement for safe exposure. The tests are performed in positions and locations (e.g., at the ear and worn on the body) as required by the FCC for each model. Body-worn measurements differ among phone models, depending upon availability of accessories and FCC requirements. While there may be differences between the SAR levels of various phones and at various positions, they all meet the government requirement for safe exposure. The FCC has granted an Equipment Authorization for this model phone with all reported SAR levels evaluated as in compliance with the FCC RF emission guidelines. The highest reported SAR values of this phone are: PCS mode (Part 24): Head: 1.52 W/kg; Body-worn: 1.04 W/kg SAR information on this model phone is on file with the FCC and can be found under the Display Grant section www.fcc.gov/oet/ea/fccid after searching on the FCC ID: OVF-K5501. Additional information on SAR can be found on the Cellular Telecommunications and Internet Association (CTIA) web-site at www.ctia.org. * In the United States and Canada, the SAR limit for mobile phones used by the public is 1.6 watts/kg (W/kg) averaged over one gram of tissue. Bluetooth® Certification For information about S2100 Bluetooth Certification, visit the Bluetooth Qualification Program Web site at www.bluetooth.org/tpg/listings.cfm. Caution The user is cautioned that changes or modifications not expressly approved by the party responsible for compliance could void the warranty and user’s authority to operate the equipment. Optimize your Phone’s Performance Use the instructions in this guide to learn how to optimize the performance and life of your phone and batter…

Text truncated - open the document above for the full version.

KYOCERA COMMUNICATIONS, INC. 10300 Campus Point Drive San Diego, CA 92121 Kyocera Communications, Inc. Proprietary/Confidential 1 of 2 Date: 6/15/2010 Federal Communications Commission c/o Compliance Certification Services Certification Division 47173 Benicia Street Fremont, CA 94538 To whom it may concern: We, the undersigned, hereby authorize the Comptest Services LLC and hereafter referred to as Comptest, to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by Comptest on our behalf shall have the same effect as acts of our own. We, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). In authorizing Comptest as our agent, we still recognize that we are responsible to: a) comply with the relevant provisions of the certification program; b) make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c) make claims regarding certification only in respect of the scope for which certification has been granted; d) do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; e) upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; KYOCERA COMMUNICATIONS, INC. 10300 Campus Point Drive San Diego, CA 92121 Kyocera Communications, Inc. Proprietary/Confidential 2 of 2 f) use certification only to indicate the products are certified as being in conformity with specified standards; g) endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; h) ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; i) keep a record of all complaints made known to the us relating to the product’s compliance with requirements of the relevant standard and to make these records available to the Certification Division when requested; j) take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; k) document the actions taken. This authorization is valid until further written notice from the applicant. Sincerely Yours, ____________________________ C. K. Li Director, Design Center Kyocera Corporation c/o Kyocera Communications, Inc. (KCI) 10300 Campus Point Drive San Diego, CA 92121

Date: 7/16/10 Compliance Certification Services Certification Division 47173 Benicia Street Fremont, CA 94538, USA To whom it may concern: I, the undersigned, hereby authorize Ms. Claire Hoque/Application Examiner of Compliance Engineering Services, Inc., d.b.a. Compliance Certification Services and hereafter referred to as CCS, to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by Ms. Claire Hoque of CCS on our behalf shall have the same effect as acts of our own. I, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). In authorizing CCS as our agent, we still recognize that we are responsible to: a) comply with the relevant provisions of the certification program; b) make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c) make claims regarding certification only in respect of the scope for which certification has been granted; d) do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; e) upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; f) use certification only to indicate the products are certified as being in conformity with specified standards; g) endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; h) ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; i) keep a record of all complaints made known to the us relating to the product’s compliance with requirements of the relevant standard and to make these records available to the Certification Division when requested; j) take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; k) document the actions taken. This authorization is valid until further written notice from the applicant. Sincerely Yours, Tina To, Account Representative CompTest Services, LLC

FCC ID: OVF-K5501 October 25, 2010 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, Maryland 21046 Re: Application for Cellular Transceiver Certification To Whom It May Concern: Kyocera Wireless Corporation (KWC) herein submits the Application for Equipment Authorization (FCC Form 731) and Exhibits for Certification of a Cellular Transceiver, FCC ID: OVF-K5501. Applicant: Kyocera Communications, Inc. 10300 Campus Point Drive San Diego, CA 92121-1522 Manufacture: Kyocera Communications, Inc. 10300 Campus Point Drive San Diego, CA 92121 The equipment is for mobile station cellular system use. The OVF-K5501 is in full compliance with all parts of EIA/TIA/IS-98-B&D Mobile Station-Land Station Compatibility Specification, issue July 2000 and March 2001, and also in full compliance with all parts of ANSI J-STD-08, Recommended Minimum Performance Requirements for 1.8 to 2 GHz Code Division Multiple Access (CDMA) Personal Stations, issue July 1996. Please contact me at Tel: (858) 882-2137 or Email: [email protected] if there are any questions or if any additional information is needed. Thuy To Senior Regulatory Engineer Kyocera Communications, Inc. Cover Letter 1 Model: K55-01

FCC ID: OVF-K5501 October 25, 2010 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, Maryland 21046 Re: Request of Confidentiality for FCC ID: OVF-K5501 To Whom It May Concern: Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules (CFR 47), Kyocera Communications, Inc. (KCI) hereby requests confidential and treatment of information accompanying this Application. The materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. We are also requesting Short-Term Confidentiality as outlined in Public Notice DA 04-1705. This provision will give KCI Temporary Confidentiality of commercially sensitive information prior to product launch. The requested Confidential and Temporary Confidential exhibits are listed in table 1 below: Table 1. Confidential and Short-Term Confidential Exhibit Description 1A, 1B Operation Descriptions, Tune-up Procedure 2 Block diagrams 3 Schematics Confidential 4 Parts Lists 5 Instruction Manual 7 External Photos 8 Internal Photos 9E SAR Test Setup Photos 11B EMC Test Setup Photos 12D HAC RF Test Setup Photos Short-Term Confidential 13E T-Coil Test Setup Photos The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this Application. Sincerely, Thuy To Senior Regulatory Engineer Kyocera Communications, Inc. Kyocera Communications, Inc. Page 1 of 1 Model: K55-01

Chris Harvey From: Claire Hoque [[email protected]] Sent: Friday, November 05, 2010 2:40 PM To: Chris Harvey; Chris Harvey -TCB Cc: Neena Jain Subject: answer 10U13454 questions: Kyocera Communications, Inc., FCC ID: OVF-K5501, Assessment NO.: AN10T1081 & AN10T1082, Notice#1 Importance: High Attachments: Exhibit 4_OVF-K5501_Bluetooth Report.pdf Page 1 of 2answer 10U13454 questions: Kyocera Communications, Inc., FCC ID: OVF-K5501, Asse ... 11/5/2010 Hi Chris, Pls see our answer and pls issue grant on defer date No.8, 2010 A1) I have attached the correct value 0.5dBi on the Bluetooth Conducted Report. A2) The schematic has the CELL and AWS components labeled as NC=Not Connected meaning those components are not installed. This phone does not have AWS capabilities only PCS. The Block Diagram does not have the AWS TX Module and has the TX B terminal terminated (just as CELL) to show that AWS capabilites are not supported. Thanks, Claire Hoque UL CCS 47173 Benicia Street Fremont, CA 94538, USA Tel: (510) 771-1123 Fax: (510) 661-0888 1) I have attached the correct value 0.5dBi on the Bluetooth Conducted Report. 2) The schematic has the CELL and AWS components labeled as NC=Not Connected meaning those components are not installed. This phone does not have AWS capabilities only PCS. The Block Diagram does not have the AWS TX Module and has the TX B terminal terminated (just as CELL) to show that AWS capabilites are not supported. Regards, Neena -----Original Message----- From: Claire Hoque Sent: Friday, November 05, 2010 10:45 AM To: Neena Jain Subject: pls address 10U13454 questions: Kyocera Communications, Inc., FCC ID: OVF-K5501, Assessment NO.: AN10T1081 & AN10T1082, Notice#1 -----Original Message----- From: Chris Harvey Sent: Friday, November 05, 2010 10:35 AM To: Thu Chan Cc: Chris Harvey -TCB; Claire Hoque Subject: Kyocera Communications, Inc., FCC ID: OVF-K5501, Assessment NO.: AN10T1081 & AN10T1082, Notice#1 Dear Thu & Claire, You are listed as the Technical Contact for the above referenced TCB application. The following item(s) need(s) to be resolved before the review can be continued: 1. The Bluetooth Conducted RF Report states on page 3 of 32 that the peak gain is 0.0 dBi, but then states 0.5dBi on page 4. The radiated RF report states 0.5dBi gain. Please confirm which is correct and update the exhibits accordingly. 2. The PCS Schematics and Block Diagram show the capability of AWS operations. The Schematics have many components that are tagged with an NC, which is likely to mean Not Connected, but please confirm. Please confirm if this device is capable of AWS band operations and provide compliance measurements if capable or update exhibits to show the actual capabilities if not capable of AWS. The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information within 30 days of the original e-mail date may result in application dismissal and forfeiture of the filing fee. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the e-mail address listed below the name of the sender. Revised documentation should not be emailed, but instead should be submitted through "Add Attachment" function at the UL-CCS website. Please have your Assessment Number and FCC ID/IC Certification number handy. You may use the following link: https://cert.ccsemc.com/filing/ Best regards, Chris Harvey [email protected] No virus found in this message. Checked by AVG - www.avg.com Version: 10.0.1153 / Virus Database: 424/3239 - Release Date: 11/05/10 Page 2 of 2answer 10U13454 questions: Kyocera Communications, Inc., FCC ID: OVF-K5501, Asse ... 11/5/2010

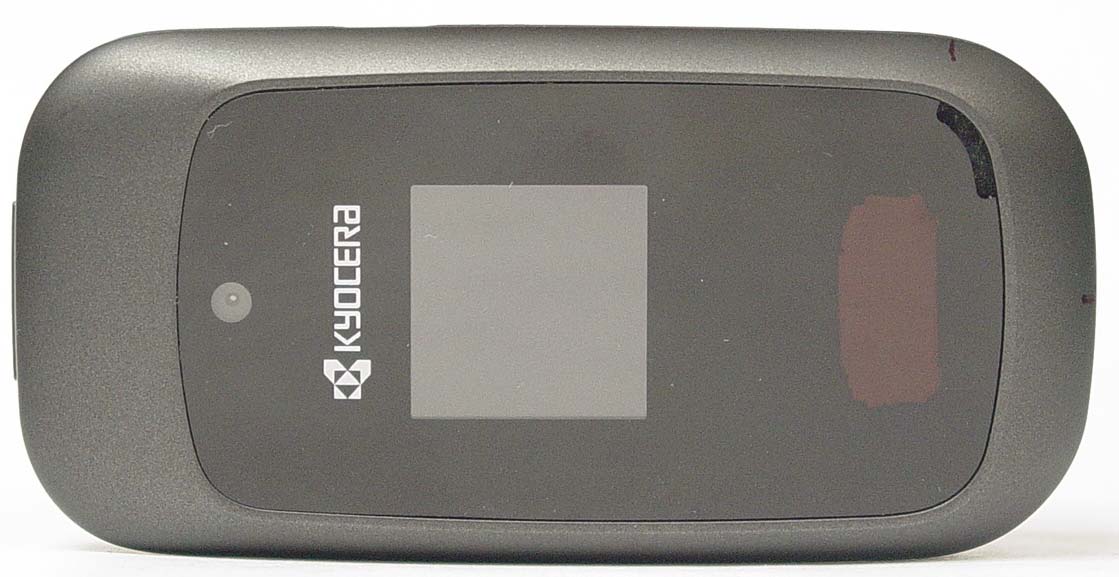

FCC ID: OVF-K5501 External Photos Page 1 of 2 Model: K55-01 Exhibit 7: External Photos FCC ID: OVF-K5501 External Photos Page 2 of 2 Model: K55-01

FCC ID: OVF-K5501 Label Information Page 1 of 2 Model: K55-01 Exhibit 6: ID Label Format Location Phone back view Battery compartment FCC Label FCC ID: OVF-K5501 Label Information Page 2 of 2 Model: K55-01 FCC declaration statement Kyocera Wireless Corp. complies with FCC rules Part 2.925(d) that the label shall be permanently affixed to the equipment and shall be readily visible to the purchaser at the time of purchase: 1) This cellular phone has limited label space on the exterior of the unit. The FCC ID label is placed in the battery compartment. 2) The batteries for these devices are designed for easy removal and that the labels will be visible whenever the batteries are removed for charging or replacement. The phone will be market without the battery installed.

FCC ID: OVF-K5501 Internal Photos Page 1 of 5 Model: K55-01 Exhibit 8: Internal Photos FCC ID: OVF-K5501 Internal Photos Page 2 of 5 Model: K55-01 FCC ID: OVF-K5501 Internal Photos Page 3 of 5 Model: K55-01 FCC ID: OVF-K5501 Internal Photos Page 4 of 5 Model: K55-01 FCC ID: OVF-K5501 Internal Photos Page 5 of 5 Model: K55-01

FCC ID: OVF-K5501 SAR Report Page 1 of 19 Model: K55-01 SAR Test Report on Single-Band CDMA Cellular Phone FCC Part 24 Certification FCC ID: OVF-K5501 MODEL: K55-01 DATE: Oct 23, 2010 STATEMENT OF COMPLIANCE Kyocera Communications, Inc. declares under its sole responsibility that the product, FCC ID: OVF-K5501 to which this declaration relates, is in conformity with the appropriate General Population/Uncontrolled RF exposure standards, recommendations and guidelines. It also declares that the product was tested in accordance with the appropriate measurement standards, guidelines and recommended practices. Any deviations from these standards, guidelines and recommended practices are noted: NONE. Date of Test: Oct 01, 2010 to Oct 05, 2010 Test performed by: Kyocera Communications, Inc. 10300 Campus Point Drive San Diego, CA 92121 Report Prepared and Reviewed by: Thuy To, Senior Regulatory Engineer Report Approved by: C.K. Li, Director of Regulatory Engineering FCC ID: OVF-K5501 SAR Report Page 2 of 19 Model: K55-01 Table of Contents 1 INTRODUCTION.............................................................................................................................................................. 3 2 EQUIPMENT UNDER TEST (EUT) ............................................................................................................................... 3 3 PRODUCT DESCRIPTION ............................................................................................................................................. 4 4 ACCESSORIES: ................................................................................................................................................................ 4 5 SAR TEST RESULT SUMMARY ................................................................................................................................... 5 5.1 MAXIMUM RESULTS FOUND DURING SAR EVALUATION.............................................................................................. 5 5.2 HEAD CONFIGURATION................................................................................................................................................. 5 5.3 BODY WORN CONFIGURATION...................................................................................................................................... 5 5.4 MEASUREMENT UNCERTAINTY..................................................................................................................................... 5 6 TEST CONDITIONS......................................................................................................................................................... 6 6.1 AMBIENT CONDITIONS.................................................................................................................................................. 6 6.2 RF CHARACTERISTICS OF THE TEST SITE....................................................................................................................... 6 6.3 TEST SIGNAL, FREQUENCIES AND OUTPUT POWER....................................................................................................... 6 6.3.1 CDMA2000 Test conditions ................................................................................................................................. 6 6.4 DEVICE TEST CONDITIONS............................................................................................................................................ 8 6.5 MULTIPLE TRANSMITTERS AND ANTENNAS SAR EVALUATIONS.................................................................................. 8 6.5.1 Test requirement determination: .......................................................................................................................... 8 6.6 SAR TESTS IN MOUTH AND JAW REGIONS OF THE SAM PHANTOM............................................................................. 9 7 DESCRIPTION OF THE TEST EQUIPMENT ........................................................................................................... 10 7.1 DOSIMETRIC SYSTEM.................................................................................................................................................. 10 7.2 ADDITIONAL EQUIPMENT NEEDED IN VALIDATION...................................................................................................... 11 7.3 TISSUE STIMULANTS NEED AWS AND BLUETOOTH LIQUID........................................................................................ 11 7.4 PHANTOMS DESCRIPTION............................................................................................................................................ 11 7.5 ISOTROPIC E-FIELD PROBE.......................................................................................................................................... 12 8 SYSTEM VALIDATION ................................................................................................................................................ 13 9 DESCRIPTION OF THE TEST PROCEDURE........................................................................................................... 14 9.1 TEST POSITIONS.......................................................................................................................................................... 14 9.1.1 Initial Ear Position............................................................................................................................................. 14 9.1.2 Cheek Position.................................................................................................................................................... 15 9.1.3 Tilt Position ........................................................................................................................................................ 15 9.1.4 Body Worn Configuration ...........................................................…

Text truncated - open the document above for the full version.

FCC ID: OVF-K5501 SAR Plots Validation Page 1 of 6 Model: K55-01 Date: 10/4/2010 Test Laboratory: Kyocera 1900MHz Validation @ 20dBm Probe 3035, DAE 675 and Dipole 5d003_100410 Communication System: CW, Frequency: 1900 MHz, Duty Cycle: 1:1 Medium: HSL1900,Medium parameters used (interpolated): f = 1900 MHz; σ = 1.45 mho/m; ε r = 39.1; ρ = 1000 kg/m 3 Phantom: SAM 12,Phantom section: Flat Section DASY4 Configuration: Probe: ES3DV3 - SN3035, ConvF(5, 5, 5), Calibrated: 9/9/2010 Sensor-Surface: 4mm (Mechanical Surface Detection), Electronics: DAE4 Sn675,Calibrated: 4/21/2010 Measurement SW: DASY4, V4.7 Build 80 Postprocessing SW: SEMCAD, V1.8 Build 186 Temperature: Room T = 21.8 +/- 1 deg C, Liquid T = 22.0 +/- 1 deg C 1900MHz Validation @20dBm/Area Scan (61x61x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 4.94 mW/g 1900MHz Validation @20dBm/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 51.2 V/m; Power Drift = -0.010 dB Peak SAR (extrapolated) = 7.44 W/kg SAR(1 g) = 4.08 mW/g; SAR(10 g) = 2.12 mW/g Maximum value of SAR (measured) = 4.62 mW/g 0 dB = 4.94mW/g FCC ID: OVF-K5501 SAR Plots Validation Page 2 of 6 Model: K55-01 FCC ID: OVF-K5501 SAR Plots Validation Page 3 of 6 Model: K55-01 Date: 10/5/2010 Test Laboratory: Kyocera 1900MHz Validation @ 20dBm Probe 3035, DAE 675 and Dipole 5d003_100510 Communication System: CW, Frequency: 1900 MHz, Duty Cycle: 1:1 Medium: HSL1900,Medium parameters used (interpolated): f = 1900 MHz; σ = 1.44 mho/m; ε r = 38.9; ρ = 1000 kg/m 3 Phantom: SAM 12,Phantom section: Flat Section DASY4 Configuration: Probe: ES3DV3 - SN3035, ConvF(5, 5, 5), Calibrated: 9/9/2010 Sensor-Surface: 4mm (Mechanical Surface Detection), Electronics: DAE4 Sn675,Calibrated: 4/21/2010 Measurement SW: DASY4, V4.7 Build 80 Postprocessing SW: SEMCAD, V1.8 Build 186 Temperature: Room T = 21.8 +/- 1 deg C, Liquid T = 22.0 +/- 1 deg C 1900MHz Validation @20dBm/Area Scan (61x61x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 4.83 mW/g 1900MHz Validation @20dBm/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 39.7 V/m; Power Drift = 0.081 dB Peak SAR (extrapolated) = 7.46 W/kg SAR(1 g) = 4.1 mW/g; SAR(10 g) = 2.13 mW/g Maximum value of SAR (measured) = 4.57 mW/g 0 dB = 4.83mW/g FCC ID: OVF-K5501 SAR Plots Validation Page 4 of 6 Model: K55-01 FCC ID: OVF-K5501 SAR Plots Validation Page 5 of 6 Model: K55-01 Date: 10/1/2010 Test Laboratory: Kyocera S2100 1900MHz Validation (in Muscle), Probe #3035, DAE #675, Dipole #5d003_100110 Communication System: CW, Frequency: 1900 MHz, Duty Cycle: 1:1 Medium: M1900,Medium parameters used (interpolated): f = 1900 MHz; σ = 1.53 mho/m; ε r = 52.3; ρ = 1000 kg/m 3 Phantom: SAM 12,Phantom section: Flat Section DASY4 Configuration: Probe: ES3DV3 - SN3035, ConvF(4.5, 4.5, 4.5), Calibrated: 9/9/2010 Sensor-Surface: 4mm (Mechanical Surface Detection), Electronics: DAE4 Sn675,Calibrated: 4/21/2010 Measurement SW: DASY4, V4.7 Build 80 Postprocessing SW: SEMCAD, V1.8 Build 186 Temperature: Room T = 21.8 +/- 1 deg C, Liquid T = 22.0 +/- 1 deg C 1900MHz Validation @20dBm/Area Scan (61x61x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 4.90 mW/g 1900MHz Validation @20dBm/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 56.8 V/m; Power Drift = -0.106 dB Peak SAR (extrapolated) = 7.10 W/kg SAR(1 g) = 4.11 mW/g; SAR(10 g) = 2.18 mW/g Maximum value of SAR (measured) = 4.65 mW/g 0 dB = 4.90mW/g FCC ID: OVF-K5501 SAR Plots Validation Page 6 of 6 Model: K55-01

FCC ID: OVF-K5501 SAR Plots (Head) Page 1 of 12 Model: K55-01 Appendix B1: SAR Distribution Plots (Head) PCS FCC ID: OVF-K5501 SAR Plots (Head) Page 2 of 12 Model: K55-01 Date: 10/4/2010 Test Laboratory: Kyocera FCC S2100 PCS Left_100410 Communication System: CDMA-1900, Frequency: 1851.25 MHz, Duty Cycle: 1:1 Medium: HSL1900,Medium parameters used (interpolated): f = 1851.25 MHz; σ = 1.45 mho/m; ε r = 39.1; ρ = 1000 kg/m 3 Phantom: SAM 12,Phantom …

Text truncated - open the document above for the full version.
