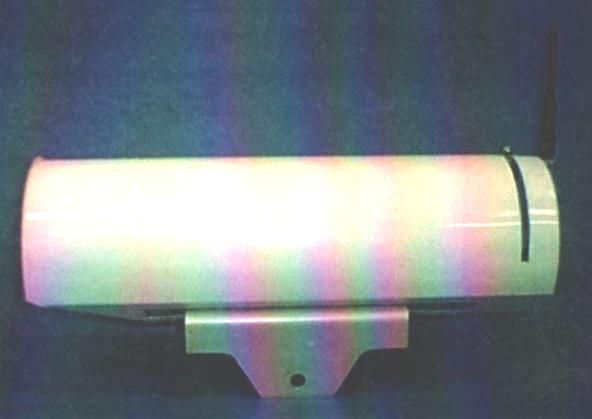

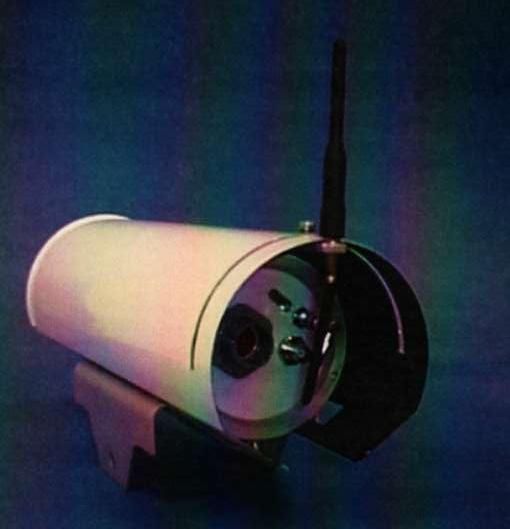

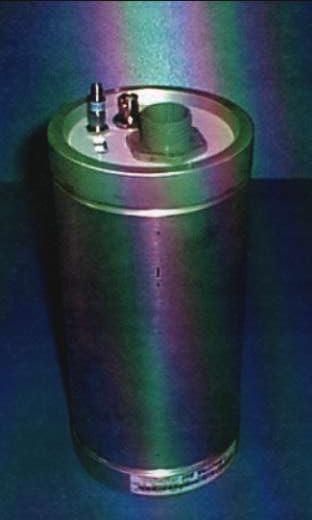

OVHCAM-RZ3WWireless Camera

ITERIS

Click to zoom

Application Details

Equipment Class: DXX - Part 15 Low Power Communication Device Transmitter
Date of Grant: Feb 17, 2000
Application Purpose: Original Equipment
Date of Application: Jan 27, 2000
Equipment Note: Wireless Camera
Frequency Range: 2481.00000000 - 2481.00000000
Company: ITERIS
Country: United States

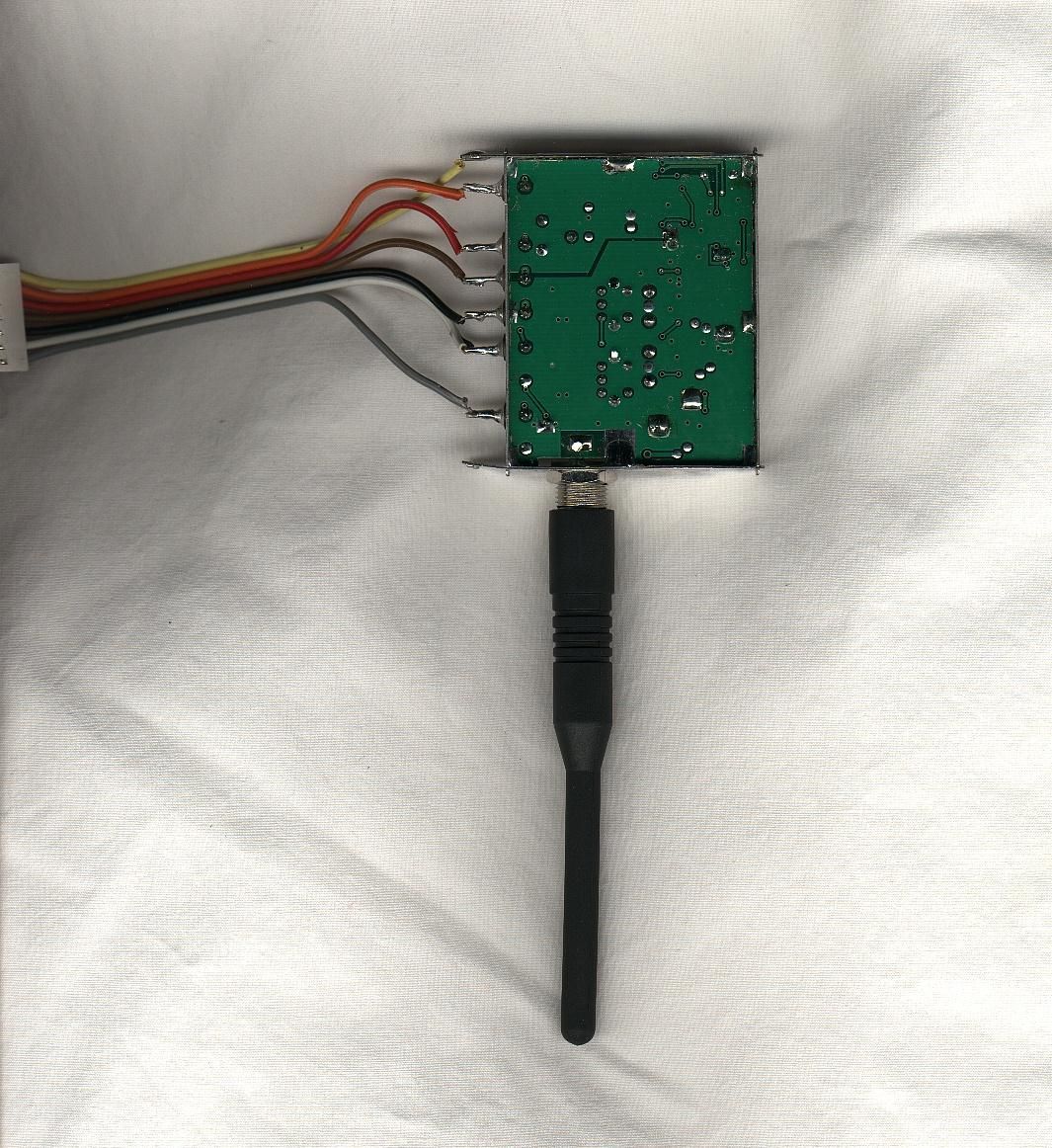

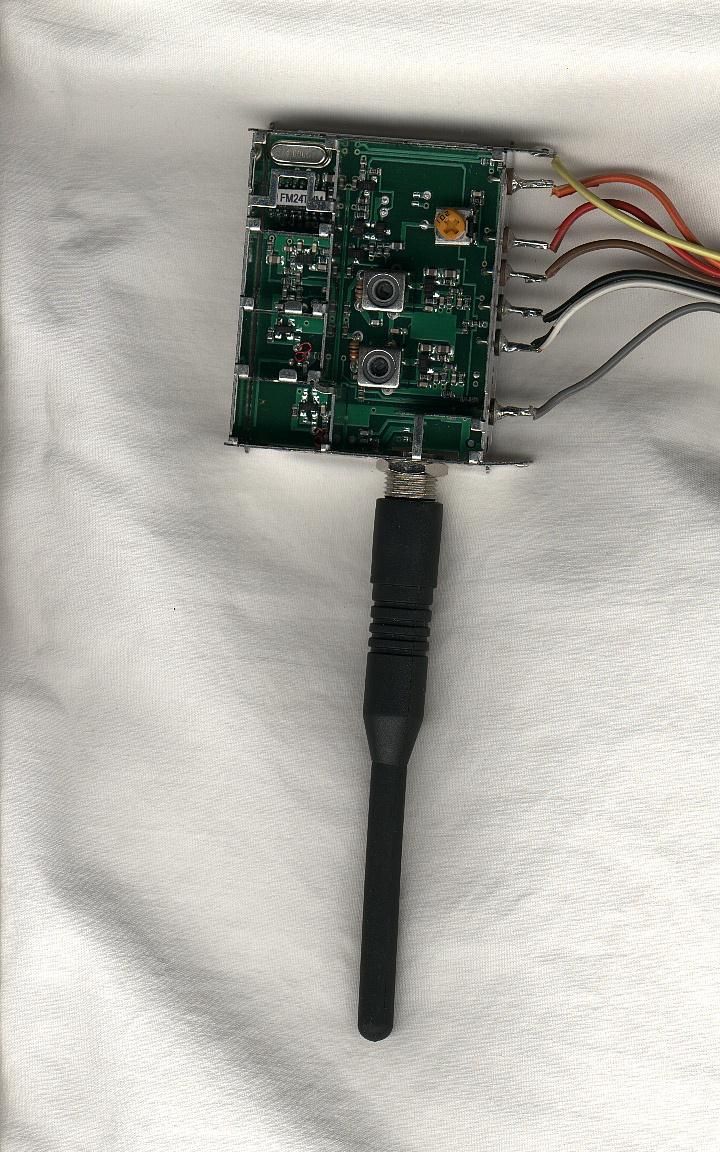

Documents & Files

Select a file to view

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

ID Label/Location Info

FCC ID Label: Label Location: Vantage Mobile Cam FCC ID: OVHCAM-RZ3W This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference including interference that may cause undesired operation. Label Location

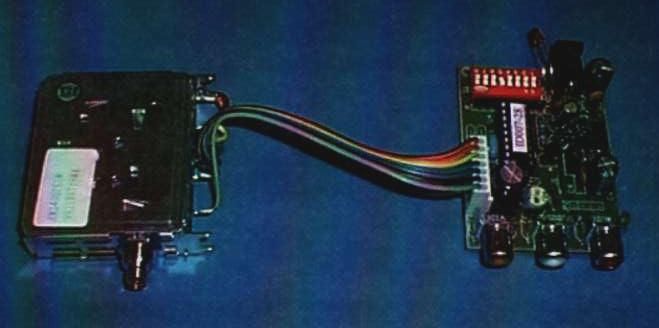

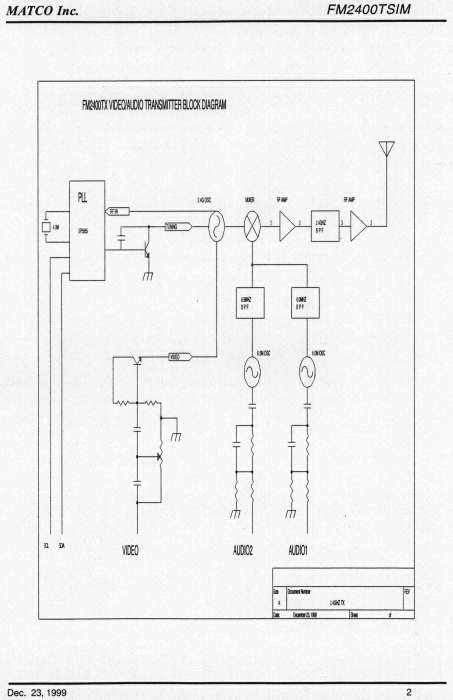

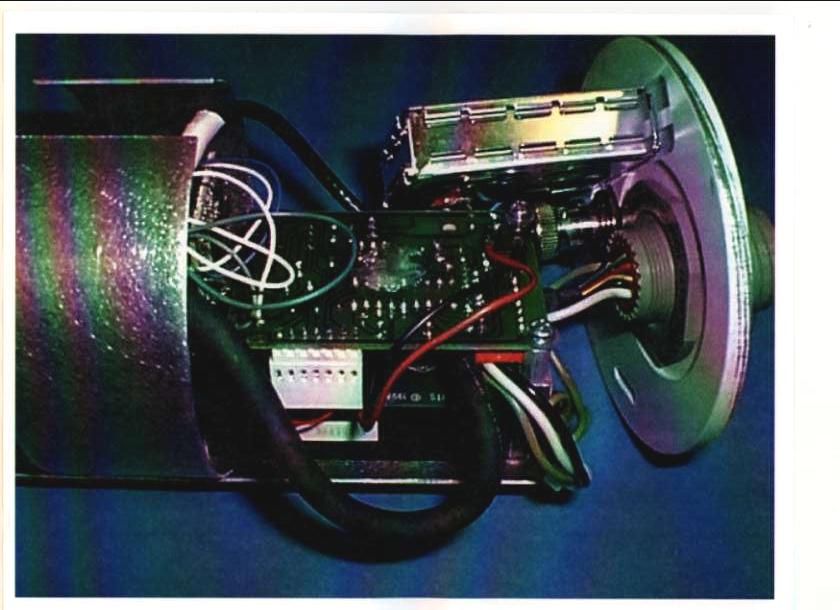

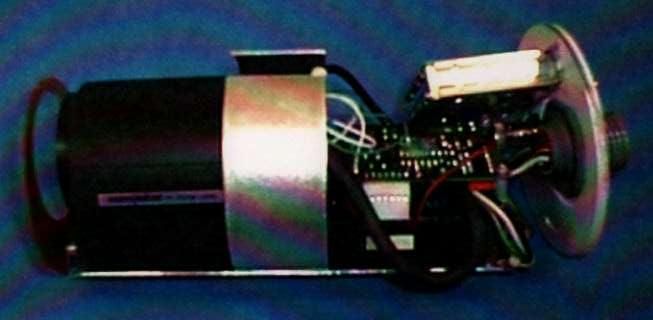

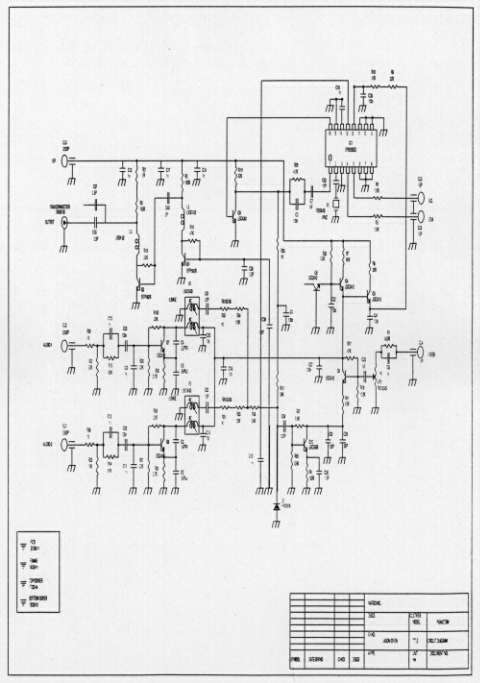

Parts List/Tune Up Info

> > ------------------------------------------------------------------------ > > Matco Inc. > > > > FM2400 Revised: December 23.1999 > > Bill of materials December 23, 1999 Revision: > > Bill of materials December 23, 1999 > > > > ItemQty Reference Part name Sign > > ---------------------------------------------------------------------------- > > 001 4 CJ4, CJ5, CJ6, CJ32 CC150-00 15P > > 002 1 R1 RC821-00 820R > > 003 10 C8,C9,C10,C11,C12,C13 CC102-00 1n > > C14,C15,C16,C17 > > 004 2 C23,C7 CB105-00 1uF 0805 > > 005 1 R13 RC124-00 120K > > 006 2 R17,R16 RC473-00 47K > > 007 2 R11,R10 RC100-00 10R > > 008 1 C30 CC101-00 100P > > 009 1 Q10 TC007-00 2SC3356 R24/R25 > > 010 3 R4,R2,R3 RC151-00 150R > > 011 2 R27,R26 RC562-00 5.6K > > 012 1 D1 DV006-00 HVU316-TRU > > 013 8 C27,C2,C22,C25,C26,C28 CC104-00 100n > > 0130 C1,C41 > > 014 2 R12,R18 RC393-00 39K > > 015 3 R33,R28,R36 RC102-00 1K > > 016 1 R29 RC472-00 4.7K > > 017 1 R9 RC220-00 22R > > 018 2 R5,R6 RC101-00 100R > > 019 1 R8 RC390-00 39R > > 020 1 R7 RC910-00 91R > > 021 1 R32 RC222-00 2.2K > > 022 2 Q1,Q2 TC011-00 BFP182R > > 023 7 R111,R19,R20,R21,R22,R23 RC223-00 22K R100 > > 024 2 R34,R35 RC104-00 100K > > 025 1 C31 CC200-00 20P > > 026 3 C18,C19,C20 CC103-00 10n > > 027 1 C4 CB220-TH 22P > > 028 2 C6,C5 CB390-UJ 39P > > 029 1 C3 CB180-TH 18P TH > > 030 2 R31,R30 RC272-00 2.7K > > 031 1 R14 RC913-00 91K > > 032 1 R25 RC153-00 15K > > 033 1 R15 RC823-00 82K > > 034 3 CJ2,CJ1,CJ3 CJ202-12 2000P > > 035 2 L2,L3 LV501-22 AL0.4*1.4*1.5 > > 036 1 R21 RC000-00 OR > > 037 1 SMA CONNECTOR 5M007-00 SMA CONNECTOR > > 038 1 PCB 3D056-11 FM VIDEO/AUDIO TXPCB > > 039 1 FRAME 1A002-11 70M FRAME (F CONNECTOR) > > 040 1 TOP COVER 1T002-14 WCOVER > > 041 1 BOTTOM COVER 1B002-12 70M BOTTOM COVER > > 042 6 Q4,Q3,Q5,Q6,Q7,Q8 TC005-00 TR 2SC2412KT146R-K > > 043 1 Q9 TC013-00 2SC4081R T106-K > > 044 1 IC1 IM011-00 SP5055GS > > 045 4 C37,C34,C35,C38 CCR50-00 0.5P > > 046 1 X1 FX004-00 H4.0000D4 > > 047 2 IF1,IF2 LK013-00 > > 048 2 R50,R51 RA102-08 1K > > 049 1 VR1 RV102-05 1KR 5mm F637V > > 051 1 C33 CC100-00 10P > > 052 2 C39,C36 CC1R5-00 1.5P > > 053 1 C29 CC560-00 56P > > -------------------------------------------------------------------------------

Test Report

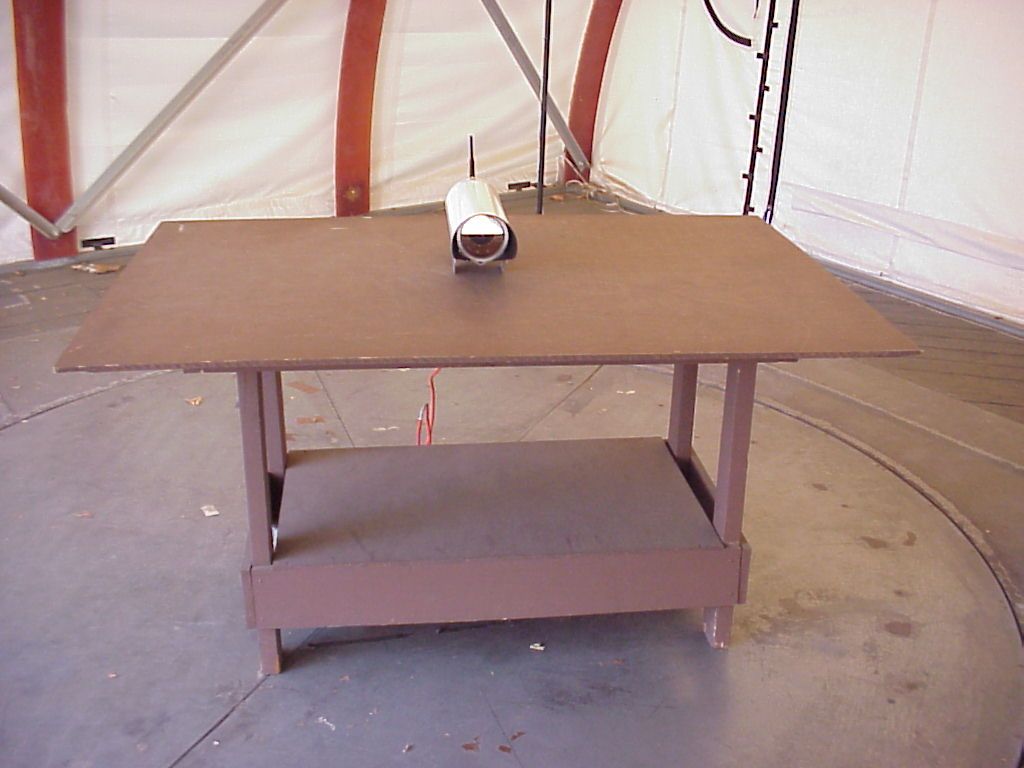

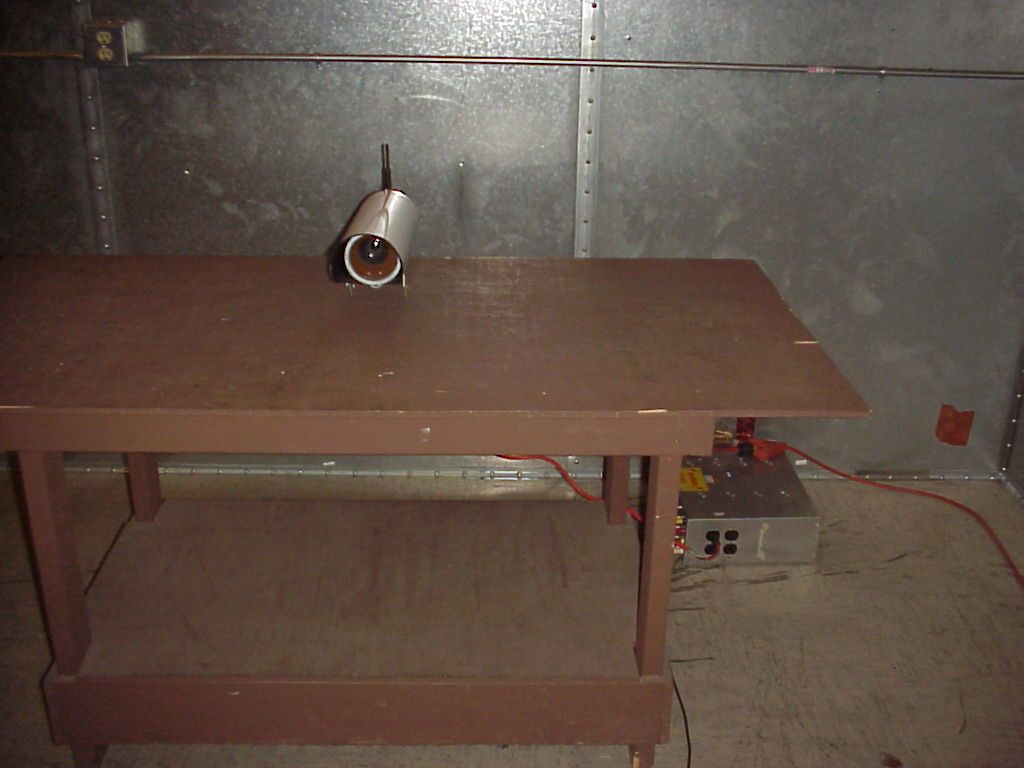

Garwood Laboratories, Inc. - World Compliance Division Electromagnetic Compatibility Document No. FR1318EUT: Vantage Wireless CameraDate: 01/27/001 of 22 EMC Measurement / Technical Report FCC Test Specification : Certification for FCC Part 15, Subpart C §15.249 Manufacturer : ITERIS Equipment Under Test : Vantage Wireless Camera Model CAM-RZ3W Test Report No. : FR1318 Purchase Order No. : T40797 Document History RevisionIssue DateAffected Pages Description of Modifications Revised By Approved By N/C27 January 2000 Initial release Garwood Laboratories, Inc. - World Compliance Division Electromagnetic Compatibility Document No. FR1318EUT: Vantage Wireless CameraDate: 01/27/002 of 22 EMC Measurement / Technical Report Document No. FR1318 From Garwood Laboratories, Inc. World Compliance Division Test for ITERIS Vantage Wireless Camera Model No. CAM-RZ3W Test PersonnelTest Dates Eric Nguyen – Lead EMC EngineerDecember 20, 1999 Test Facility Address City, State, Zip Code Phone Fax Garwood Laboratories, Inc. 565 Porter Way Placentia, CA 92870 (714) 572-2027 (714) 572-2025 This report may be reproduced in full, partial reproduction may only be made with the written consent of the laboratory. The results in this report apply only to the equipment tested. This report may not be used to claim product endorsement by NVLAP or any agency of the U.S. government. Garwood Laboratories, Inc. - World Compliance Division Electromagnetic Compatibility Document No. FR1318EUT: Vantage Wireless CameraDate: 01/27/003 of 22 TABLE OF CONTENTS (This document contains a total of 22 pages [excluding] attachments.) MEASUREMENT / TECHNICAL REPORT SUMMARY ............................................................................ 4 1. GENERAL INFORMATION................................................................................................................... 5 1.1 Product Description ...................................................................................................... 5 1.2 Related Submittal(s)/ Grant(s) ...................................................................................... 5 1.3 Tested System Description ............................................................................................ 5 1.4 Test Methodology .......................................................................................................... 6 1.5 Test Facility................................................................................................................... 7 2. PRODUCT LABELING.......................................................................................................................... 8 2.1 FCC ID Label................................................................................................................8 2.2 Location of Label on EUT............................................................................................. 8 2.3 Information to the User ................................................................................................. 8 3. SYSTEM TEST CONFIGURATION ....................................................................................................... 9 3.1 Justification ................................................................................................................... 9 3.2 EUT Exercise Software/Equipment ............................................................................... 9 3.3 Special Accessories ....................................................................................................... 9 3.4 Equipment Modifications .............................................................................................. 9 3.5 Configuration of Tested System .................................................................................. 10 3.6 Details of Tested System.............................................................................................. 10 4. BLOCK DIAGRAM(S) OF EUT........................................................................................................... 11 5. TEST MEASUREMENT PHOTOS ....................................................................................................... 12 6. TEST DATA .......................................................................................................................................... 14 6.1 Conducted Emissions Limits ....................................................................................... 14 6.2 Conducted Emissions Results...................................................................................... 14 6.3 General Radiated Emissions Requirements ................................................................ 15 6.4 General Radiated Emissions Results........................................................................... 15 6.5 Field Strength Requirements for Intentional Radiators .............................................. 16 6.6 Summary Table for Highest Field Strength Levels for an Intentional Radiator ......... 17 6.7 Field Strength Calculation .......................................................................................... 18 APPENDIX A - TEST EQUIPMENT USED ........................................................................................... 19 APPENDIX B - SUPPLEMENTAL TEST DATA .................................................................................... 20 ATTACHMENTS .........................................................................................................................…

Text truncated - open the document above for the full version.
