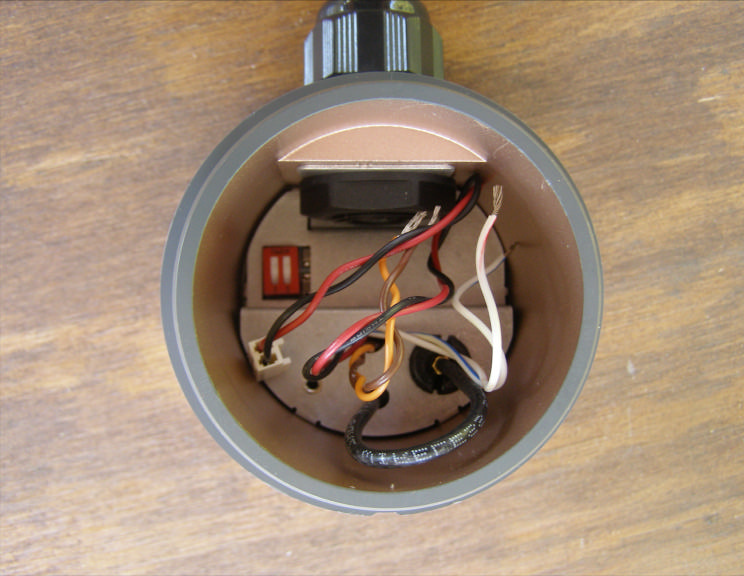

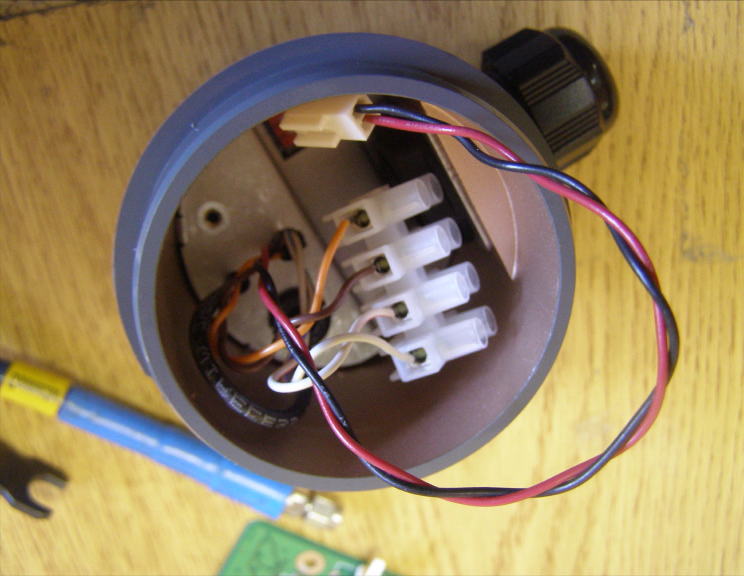

OVHCAM-VC2WWireless Module Assembly

Installation and User Manual 493486201 Rev B December 2009 I FCC Statement This equipment has been tested and found to comply with the limits for a class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and the receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. The user is cautioned that changes and modifications made to the equipment without the approval of manufacturer could void the user’s authority to operate this equipment. FCC RF Exposure Statement CAUTION: To comply with FCC RF exposure compliance requirements, a separation distance of at least 20 cm must be maintained between the antenna of this device and all persons. II Table of Contents 1 Introduction .......................................................................................................................................... 1 1.1 VersiCam Wireless System Overview ............................................................................................ 2 1.2 Features and Benefits ................................................................................................................... 4 2 System Installation Information ............................................................................................................ 5 2.1 System Requirements ................................................................................................................... 5 2.2 Tools and Equipment .................................................................................................................... 5 3 System Installation ................................................................................................................................ 7 3.1 The Camera Processor Unit ........................................................................................................... 7 3.1.1 Camera Processor Unit Mounting ................................................................................................ 8 3.1.2 Camera Processor Power Requirements ................................................................................... 16 3.1.3 Camera Processor Unit Wire Terminations ............................................................................... 16 3.2 The Base Station Unit .................................................................................................................. 20 3.2.1 Base Station Unit Mounting ....................................................................................................... 20 3.2.2 Base Station Unit Wire Terminations ......................................................................................... 21 3.3 The ICC‐2W Module .................................................................................................................... 24 3.3.1 ICC‐2W Module Configuration Switches .................................................................................... 26 3.3.2 ICC‐2W Module Wire Terminations ........................................................................................... 27 3.3.3 ICC‐2W Module AC Power Requirements .................................................................................. 30 3.3.4 ICC‐2W Module Installation ....................................................................................................... 31 4.0 System Setup....................................................................................................................................... 32 4.1 Installing the software .................................................................................................................. 33 4.2 VersiCam Wireless Console ............................................................................................................... 39 4.3 Network Setup Tool .......................................................................................................................... 40 4.4 VersiLAM ‐ Camera Setup Tool ......................................................................................................... 42 4.5 System Setup and Operation (VRAS) ................................................................................................ 45 4.6 VersiCam Wireless Software Upgrade Tool ...................................................................................... 48 5 VersiCam Options ............................................................................................................................... 49 5.1 Output Configuration ........................................................................................................................ 49 6 Firmware Release Notes ..................................................................................................................... 50 7 Maintenance ....................................................................................................................................... 51 8 Vantage Equipment Repair ................................................................................................................. 52 9 Technical Information ......................................…

Text truncated - open the document above for the full version.

From: Scott McCutchan [[email protected]] Sent: Friday, December 11, 2009 1:08 PM To: '[email protected]'; '[email protected]'; 'Jeff Klinger' Subject: FCC ID: OVHCAM-VC2W Mr. Fujimoto: In order for processing of this certification application (FCC ID: OVHCAM-VC2W) to continue, the following issue(s) will have to be addressed: 1) Please indicate the type of modulation employed by the device. 2) Please indicate compliance with the voltage variation requirements contained in section 15.31(e) of the FCC rules. 3) The user’s manual must contain the information to the user contained in section 15.21 of the FCC rules. 4) The devices uses a standard connector for the antenna, and the application claims that the device requires professional installation. Please provide the following, in order justify professional installation: - Application (or intended use) of the device. - Installation requirements - Method of marketing the device 5) The power output stated in the Theory of Operation (operational description), does not match the power output listed in the test report and the application form. 6) The block diagram submitted is not sufficient. As per section 2.1033(b)(5) of the FCC rules, the block diagram must show “the frequency of all oscillators used in the device. The signal path and frequency shall be indicated at each block. The tuning range(s) and intermediate frequency(ies) shall be indicated at each block.” 7) The user’s manual must contain a statement similar to the following in a conspicuous location: CAUTION: To comply with FCC RF exposure compliance requirements, a separation distance of at least 20 cm must be maintained between the antenna of this device and all persons The item(s) indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information within 60 days of the original e-mail date may result in application dismissal and forfeiture of the filing fee. Also, please note that partial responses increase processing time and should not be submitted. Please upload responses and/or exhibits to the electronic filing website. Your correspondence number is OVHCAM-VC2W. Best regards, Scott McCutchan Operations Manager Compatible Electronics TCB

Correspondence by Project Project Number: Correspondence Number Memo OVHCAM-VC2W 1) Please indicate the type of modulation employed by the device Response: Please see the Revised Theory Of Operation 2) Please indicate compliance with the voltage variation requirements contained in section 15.31(e) of the FCC rules. Response: The voltage variation requirements exhibit has been uploaded. 3) The user’s manual must contain the information to the user contained in section 15.21 of the FCC rules. Response: Please See the Revised Owner’s Manual. 4) The devices uses a standard connector for the antenna, and the application claims that the device requires professional installation. Please provide the following, in order justify professional installation: - Application (or intended use) of the device. - Installation requirements - Method of marketing the device Response: Please see the Marketing-Installation Exhibit that addresses the above issues. 5) The power output stated in the Theory of Operation (operational description), does not match the power output listed in the test report and the application form. Response: Please see the Revised Theory Of Operation 6) The block diagram submitted is not sufficient. As per section 2.1033(b)(5) of the FCC rules, the block diagram must show “the frequency of all oscillators used in the device. The signal path and frequency shall be indicated at each block. The tuning range(s) and intermediate frequency(ies) shall be indicated at each block.” Response: Please see the revised block diagram with the added frequencies. Please note there is no details of the inside block because this all integrated into the Texas Instrument CC2480 which conforms to the IEEE802.15.4 standard. This portion of the radio is extracted from the data sheet of CC2480 and is attached also. 7) The user’s manual must contain a statement similar to the following in a conspicuous location: CAUTION: To comply with FCC RF exposure compliance requirements, a separation distance of at least 20 cm must be maintained between the antenna of this device and all persons Response: Please see the Revised Owners Manual.

MPE Calculations For RF Exposure Requirements Wireless Module Model: 493473801 Page 1 of 1 MAXIMUM PERMISSIBLE EXPOSURE FOR SUBPART C 2.4 GHz BAND Calculations Power density at the specific separation: S = PG/(4R 2 π) S = (45.19 * 1.64) / (4 * 20 2 * π) S = 0.014744034 mW/cm 2 (at 20 cm) Limit = 1 mW/cm 2 where S = Maximum power density (mW/cm 2 ) P = Power input to the antenna (mW) – 16.55 dBm G = Numeric power gain of the antenna R = distance to the center of the radiation of the antenna (20 cm = limit for MPE) The maximum permissible exposure (MPE) for the general population is 1 mW/cm 2 . The power density at 1 cm does not exceed the 1 mW/cm 2 . Therefore, the exposure condition is compliant with FCC rules. The numeric gain (G) of the antenna with a gain specified in dB is determined by: G = Log -1 (dB antenna gain/10) G = Log -1 (2.15 dBi/10) G = 1.64

Report Number: B90903D1 FCC Part 15 Subpart B and FCC Section 15.247 Test Report Wireless Module Assembly P/N: 493473801 Brea Division 114 Olinda Drive Brea, CA 92823 (714) 579-0500 Agoura Division 2337 Troutdale Drive Agoura, CA 91301 (818) 597-0600 Silverado Division 19121 El Toro Road Silverado, CA 92676 (949) 589-0700 Lake Forest Division 20621 Pascal Way Lake Forest, CA 92630 (949) 587-0400 Page 1 of 22 FCC PART 15, SUBPART B and C TEST REPORT for WIRELESS MODULE ASSEMBLY P/N: 493473801 Prepared for ITERIS, INC. 1700 CARNEGIE AVENUE, SUITE 100 SANTA ANA, CALIFORNIA 92705 Prepared by:_____________________ KYLE FUJIMOTO Approved by:____________________ MICHAEL CHRISTENSEN COMPATIBLE ELECTRONICS INC. 114 OLINDA DRIVE BREA, CALIFORNIA 92823 (714) 579-0500 DATE: OCTOBER 6, 2009 REPORT APPENDICES TOTAL BODY A B C D E PAGES 22 2 2 2 15 47 90 This report shall not be reproduced except in full, without the written approval of Compatible Electronics. Report Number: B90903D1 FCC Part 15 Subpart B and FCC Section 15.247 Test Report Wireless Module Assembly P/N: 493473801 Brea Division 114 Olinda Drive Brea, CA 92823 (714) 579-0500 Agoura Division 2337 Troutdale Drive Agoura, CA 91301 (818) 597-0600 Silverado Division 19121 El Toro Road Silverado, CA 92676 (949) 589-0700 Lake Forest Division 20621 Pascal Way Lake Forest, CA 92630 (949) 587-0400 Page 2 of 22 TABLE OF CONTENTS Section / Title PAGE GENERAL REPORT SUMMARY 4 SUMMARY OF TEST RESULTS 5 1. PURPOSE 6 2. ADMINISTRATIVE DATA 7 2.1 Location of Testing 7 2.2 Traceability Statement 7 2.3 Cognizant Personnel 7 2.4 Date Test Sample was Received 7 2.5 Disposition of the Test Sample 7 2.6 Abbreviations and Acronyms 7 3. APPLICABLE DOCUMENTS 8 4. DESCRIPTION OF TEST CONFIGURATION 9 4.1 Description of Test Configuration - EMI 9 4.1.1 Cable Construction and Termination 10 5. LISTS OF EUT, ACCESSORIES AND TEST EQUIPMENT 11 5.1 EUT and Accessory List 11 5.2 EMI Test Equipment 12 6. TEST SITE DESCRIPTION 13 6.1 Test Facility Description 13 6.2 EUT Mounting, Bonding and Grounding 13 7. CHARACTERISTICS OF THE TRANSMITTER 14 7.1 Channel Number and Frequencies 14 7.2 Antenna Gain 14 8. TEST PROCEDURES 15 8.1 RF Emissions 15 8.1.1 Conducted Emissions Test 15 8.1.2 Radiated Emissions (Spurious and Harmonics) Test 16 8.2 6 dB Bandwidth 18 8.3 Peak Output Power 19 8.4 RF Antenna Conducted Test 19 8.5 RF Band Edges 20 8.6 Spectral Density Test 21 9. CONCLUSIONS 22 Report Number: B90903D1 FCC Part 15 Subpart B and FCC Section 15.247 Test Report Wireless Module Assembly P/N: 493473801 Brea Division 114 Olinda Drive Brea, CA 92823 (714) 579-0500 Agoura Division 2337 Troutdale Drive Agoura, CA 91301 (818) 597-0600 Silverado Division 19121 El Toro Road Silverado, CA 92676 (949) 589-0700 Lake Forest Division 20621 Pascal Way Lake Forest, CA 92630 (949) 587-0400 Page 3 of 22 LIST OF APPENDICES APPENDIX TITLE A Laboratory Recognitions B Modifications to the EUT C Additional Models Covered Under This Report D Diagrams, Charts, and Photos • Test Setup Diagrams • Radiated and Conducted Emissions Photos • Antenna and Effective Gain Factors E Data Sheets LIST OF FIGURES FIGURE TITLE 1 Conducted Emissions Test Setup 2 Plot Map And Layout of Test Site – 3 Meters Report Number: B90903D1 FCC Part 15 Subpart B and FCC Section 15.247 Test Report Wireless Module Assembly P/N: 493473801 Brea Division 114 Olinda Drive Brea, CA 92823 (714) 579-0500 Agoura Division 2337 Troutdale Drive Agoura, CA 91301 (818) 597-0600 Silverado Division 19121 El Toro Road Silverado, CA 92676 (949) 589-0700 Lake Forest Division 20621 Pascal Way Lake Forest, CA 92630 (949) 587-0400 Page 4 of 22 GENERAL REPORT SUMMARY This electromagnetic emission test report is generated by Compatible Electronics Inc., which is an independent testing and consulting firm. The test report is based on testing performed by Compatible Electronics personnel according to the measurement procedures described in the test specifications given below and in the "Test Procedures" section of this report. The measurement data and conclusions appearing herein relate only to the sample tested and this report may not be reproduced without the written permission of Compatible Electronics, unless done so in full. This report must not be used to claim product endorsement by NVLAP or any other agency of the U.S. Government. Device Tested: Wireless Module Assembly P/N: 493473801 S/N: P100092261615 Product Description: See Expository Statement. Modifications: There were no modifications made to the EUT during the testing. Manufacturer: Iteris, Inc. 1700 Carnegie Avenue, Suite 100 Santa Ana, California 92705 Test Dates: August 13 and September 3, 2009 Test Specifications : EMI requirements CFR Title 47, Part 15, Subpart B; and Subpart C, sections 15.205, 15.209, and 15.247 Test Procedure: ANSI C63.4: 2003 Test Deviations: The test procedure was not deviated from during the testing. Report Number: B90903D1 FCC Part 15 Subpart B and FCC Section 15.247 Test Report Wireless Module Assembly P/N: 493473801 Brea Division 114 Olinda Drive Brea, CA 92823 (714) 579-0500 Agoura Division 2337 Troutdale Drive Agoura, CA 91301 (818) 597-0600 Silverado Division 19121 El Toro Road Silverado, CA 92676 (949) 589-0700 Lake Forest Division 20621 Pascal Way Lake Forest, CA 92630 (949) 587-0400 Page 5 of 22 SUMMARY OF TEST RESULTS TEST DESCRIPTION RESULTS 1 Conducted RF Emissions, 150 kHz – 30 MHz Complies with the Class B limits of CFR Title 47, Part 15, Subpart B; and CFR Title 47, Part 15, Subpart C, section 15.207. Highest reading in relation to spec limit: 44.69 dBuV/m @ 0.385 MHz (*Uc = 0.63 dB) 2 Spurious Radiated RF Emissions, 10 kHz – 25000 MHz Complies with the Class B limits of CFR Title 47, Part 15, Subpart B; and CFR Title 47, Part 15, Subpart C, section 15.247(d) Highest reading in relation to spec limit: 40.09 dBuV/m @ 384.058 MHz (*Uc = 2.23 dB) 3 Fundamental and Emissions produced by the intentional radiator in non-restricted bands, 10 kHz – 25000 MH…

Text truncated - open the document above for the full version.

HOW THE EUT MEETS THE REQUIREMENTS OF 15.31 (e) FOR THE ITERIS, INC. WIRELESS MODULE ASSEMBLY P/N: 493473801 The fundamental was maximized on the Lab D test site using a normal test setup (EUT connected to the ICC-2W Shelf Mount Assembly P/N: 493474401 via a 7.6 meter cable) with the ICC-2W Shelf Mount Assembly P/N: 493474401 connected directly to the AC public mains (115 Vac). Next, the ICC-2W Shelf Mount Assembly P/N: 493474401 was then connected to the Staco Energy Products Variable Auto Transformer Model: 3PN1010. The Variable Auto Transformer allows the Vac input to be varied. The AC input was then dropped to 85% (97.75 Vac) and raised to 115% (132.25 Vac). The actual AC input was measured using a calibrated Fluke Multimeter Model: 87, Serial Number: 956410240, Calibration Due Date: May 28, 2010. The fundamental was then verified again to see that the amplitude did not change. Test Result: The EUT does NOT change amplitude at the fundamental when the AC input voltage is varied between 85% and 115% of the input nominal rated supply voltage.
