OW9ATR434PAutotag Base Station

Nortech International (Pty) Ltd P O Box 409932A Wiganthorpe Road Willowton Hub Pietermaritzburg Pietermaritzburg 3201 South Africa 3200 South AfricaReg. No. 98/10951 Tel: (033) 345 3456Int. Tel: +27 33 345 3456 Fax: (033) 394 6449Int. Fax: +27 33 394 6449 [email protected] .co.za AUTOTAG-P USER MANUAL NORTECH INTERNATIONAL (PTY) LTD All rights reserved Copyright  1999 Document No: 708UM0210-01 Date of issue: October 1999 This document is for information only and unless otherwise indicated, is not to form part of any contract. In accordance with the manufacturer’s policy of continually updating and improving design, specifications contained herein are subject to alteration without notice. APPROVALS Originator L. Grove / M.T. Maggs Checked:______________________________ Date: __________________ Engineering Manager:_____________________________ Approved:______________________________ Date: __________________ Marketing:_____________________________ Checked and approved:______________________________ Date: __________________ Date: dd/mm/yyRevCRN No. 22/07/98000451 15/09/99010640 708UM0210-01 October 1999Autotag-P User ManualPage: 2 of 35 Table of Contents 1.INTRODUCTION...........................................................................................................................4 2.TECHNICAL DATA.......................................................................................................................6 2.1.System Parameters................................................................................................................6 2.2.Autotag-P Base Station ATR430P series................................................................................6 2.2.1.Electrical...........................................................................................................................6 2.2.2.Mechanical.......................................................................................................................6 2.2.3.Environmental..................................................................................................................6 2.2.4.RF Channel......................................................................................................................6 2.2.5.Communications...............................................................................................................7 2.2.6Relay Outputs...................................................................................................................7 2.3.Autotag-P Tag Transponder AT430P......................................................................................8 2.3.1.Electrical...........................................................................................................................8 2.3.2.Mechanical.......................................................................................................................8 2.3.3.Environmental..................................................................................................................8 2.3.4. RF Channel......................................................................................................................8 2.3.5. Code................................................................................................................................9 2.4.Autotag-P Tag with Proximity Transponder.............................................................................9 3.FCC REGULATIONS..................................................................................................................10 4.OPERATING PRINCIPLES.........................................................................................................11 4.1.Radio Frequency Communications: Important concepts.......................................................11 4.1.2.Reflection and absorption...............................................................................................12 4.1.3.Noding and nulls.............................................................................................................12 4.1.4.Radiation pattern............................................................................................................13 4.2.Autotag-P Communications Architecture...............................................................................14 4.3.Coding..................................................................................................................................14 4.3.132 Bit User Data (Tag only)............................................................................................14 4.3.216 Bit Installer Code.......................................................................................................15 4.3.38 Bit Distributor / OEM Code..........................................................................................15 4.3.432 Bit Mask (Base Station Only).....................................................................................15 4.4R.F. Communications between Base Station and Tag..........................................................15 4.4.1.Poll from the Base Station..............................................................................................15 4.4.2Response from the Tag..................................................................................................15 4.4.3Acknowledge from the Base Station...............................................................................15 4.5.Communication Protocol Options..........................................................................................16 4.5.1Wiegand Communication Protocol..................................................................................16 4.5.2Clock&Data Communication Protocol.............................................................................16 4.5.3RS-232 – Autotag-P Point-to-point Communication Protocol..........................................17 4.5.4RS-485 – Nortech …

Text truncated - open the document above for the full version.

AUTOTAG-P BASE-STATION (ATR430P Series) INSTALLATION GUIDE This guide covers the following units: ATR431P115V AC Base-Station Unit ATR432P230V AC Base-Station Unit ATR434P12-24V DC Base-Station Unit 1.EQUIPMENT REQUIRED 3mm Allen keyM4 x 20mm machine screwsPower cable 3mm flat screwdriverM4 nutsScreened Communications Cable Side-cuttersM4 washers (wide) 2.GENERAL DESCRIPTION The base-station is a robust, weatherproof device capable of being mounted outdoors and withstanding wide temperature / humidity ranges (-40°C to +70°C, 0 - 98% RH). The casing is constructed of an ABS plastic, which is impact- and UV-resistant. O-ring seals are incorporated to ensure minimal ingress of water and dust. (Cable access is via knockouts in the base.) Access to the electronics is via screws hidden behind clip-in panels on the front cover. The unit may be either wall, pole or gantry mounted. It must be positioned so that it ‘looks into’ the vehicle. Figure 1. Positioning 708LF0211-01 October 1999Autotag-P Base-Station Installation LeafletPage 1 of 8 8 m max. Pole and wall Mount Loop Boom Vehicle Nortech International (Pty) Ltd P O Box 409932A Wiganthorpe Road Willowton HubPietermaritzburg Pietermaritzburg3201 South Africa 3200 South AfricaReg No. 98/1095 Tel: (033) 345 3456Int Tel: +27 33 345 3456 Fax: (033) 394 6449Int Fax: +27 33 394 6449 Email: [email protected]: www.nortech.co.za 708LF0211-01 October 1999Autotag-P Base-Station Installation LeafletPage 8 of 8 3. MOUNTING Wall mounting: Wall mounting is possible when the wall is within the specified range of the furthest side of the vehicles to be monitored. The presence of metal re-inforcing in the wall has negligible effect on the operation of the base-station. 1. Determine the area in which the unit must detect. The base-station unit should be placed facing the middle of this area (Figure 1) 2. Unclip the two screw covers. Remove screws and front cover. 3. Knockouts are provided on the base. Remove the appropriate knockouts, including that of the cable access hole. 4. Route power and communications cables through the cable access hole. 5. Bolt base to wall via knockouts. 6. Connect cables according to wiring diagram (see Section 3). 7. Before applying power: Set the DIP switches according to the type of installation required. If the ‘triggered’ setting is to be used, ensure the arming input is connected and that the trigger system (e.g. loop detector) is functioning. 8. Apply power. The RED LED should be illuminated. 9. Holding a tag in front of the unit should cause the GREEN LED to flash and a beep to be heard. This indicates that the base-station is receiving code from the tag. NB:The PCB does NOT need to be unscrewed from the front cover at any point. Doing so will result in the warranty being voided. Pole or gantry mounting: 1. When mounting on a pole, ensure that the flange has a minimum diameter of 120 mm 2. A hole in the centre of the flange with min. diameter of 30 mm will allow for hidden cable access. 3. Ensure that the unit faces the window area of the vehicles to be monitored. 4. Mounting instructions are the same as for the above. 6. FCC REGULATIONS When this system is used in the United States of America, only the following models may be used: AUTOTAG-P BASE STATION MODELS FT NumberPart NumberVoltageProtocol 708FT0233ATR434P-C212-24V DCClock & Data / Wiegand and RS-232 708FT0234ATR434P-C212-24V DC Clock & Data / Wiegand and RS-232 (McGann) AUTOTAG-P TRANSPONDER MODELS FT NumberPart Number Model 708FT0210AT430PProgrammable Tag 708FT0211AT430PProgrammable Tag (McGann) User in the United States of America. Please note the following important caution:- 708LF0211-01 October 1999Autotag-P Base-Station Installation LeafletPage 2 of 8708LF0211-01 October 1999Autotag-P Base-Station Installation LeafletPage 7 of 8 Changes or modifications to this product not expressly approved by Nortech International (Pty) Ltd, in writing, could void the user’s authority to operate the product. If there is more than one Base-Station in proximity to another, it is not desirable for multiple Base-Stations to read the same tag. The ID’s of the base stations must be set to different values. The ID’s are set with dip-switch SW1, allowance has been made for 16 different ID’s. Dip Switch 1 Configuration SW1: Address/IDSW1-5SW1-4SW1-3SW1-2SW1-1 0ONONONONON 1ONONONONOFF 2ONONONOFFON 3ONONONOFFOFF 4ONONOFFONON 5ONONOFFONOFF 6ONONOFFOFFON 7ONONOFFOFFOFF 8ONOFFONONON 9ONOFFONONOFF 10ONOFFONOFFON 11ONOFFONOFFOFF 12ONOFFOFFONON 13ONOFFOFFONOFF 14ONOFFOFFOFFON 15ONOFFOFFOFFOFF 16OFFONONONON 17OFFONONONOFF 18OFFONONOFFON 19OFFONONOFFOFF 20OFFONOFFONON 21OFFONOFFONOFF 22OFFONOFFOFFON 23OFFONOFFOFFOFF 24OFFOFFONONON 25OFFOFFONONOFF 26OFFOFFONOFFON 27OFFOFFONOFFOFF 28OFFOFFOFFONON 29OFFOFFOFFONOFF 30OFFOFFOFFOFFON 31OFFOFFOFFOFFOFF Further literature on Autotag: Autotag-P User Manual708UM0210 Autotag-P Tag Installation Guide708LF0210 Autotag-P Data Sheet708DS0210 Autotag-P Programming Station User Manual708UM0201 4.LAYOUT OF MAIN BOARD 708LF0211-01 October 1999Autotag-P Base-Station Installation LeafletPage 6 of 8 708LF0211-01 October 1999Autotag-P Base-Station Installation LeafletPage 3 of 8 5.WIRING DETAIL CN76 Way Pluggable Screw Terminal PINWiegand FunctionClock & Data Function 1Triggered InputTriggered Input (Arming) 2Not UsedCard Present 3DATA 1Data 4DATA 0Clock 5As per table belowAs per table below 6As per table belowAs per table below CN7 6 Way Pluggable Screw Terminal PINRS232 FunctionRS485 Function 1As per table aboveAs per table above 2As per table aboveNot Used 3As per table aboveRS485 TX Active 4As per table aboveNot Used 5RS232 TXRS485 B 6RS232 TXRS485 A CN56 Way Pluggable Screw Terminal PINFUNCTION 1Signal Ground 2External Indicator Output – Green 3External Indicator Output – Red 4External Indicator Input – Green 5External Indicator Input – Red 6SYNC CN25 Way Pluggable Screw Terminal PINFUNCTION 1Relay Normally Open 2Relay Normally Closed 3Relay Common 4DC Power …

Text truncated - open the document above for the full version.

Directors: R W Keeble (Managing), B A Lee (Financial), BJ Gnodde, B Moshal Nortech International (Pty) Ltd 32A Wiganthorpe Road Pietermaritzburg 3201 South Africa Reg. No. 98/1095 Tel: (033) 3453456 P O Box 4099 Int. Tel: +27 33 3453456Willowton Hub Telefax: +27 33 39464493200 South Africa Website: http://www.nortech.co.za The Chief Office of Engineering and Technology Federal Communications Committee 445 12th St SW. Washington DC 20554 Authorization of Underwriters Laboratories Inc. as Agent Dear Sir I hereby authorize Underwriters Laboratories Inc. to act for and on behalf of Nortech International (Pty) Ltd. as agent for registration of the Nortech AutoTag system with the FCC. I hope that this meets your approval. Kind Regards Gerrit J Loubser Engineering Manager Nortech International

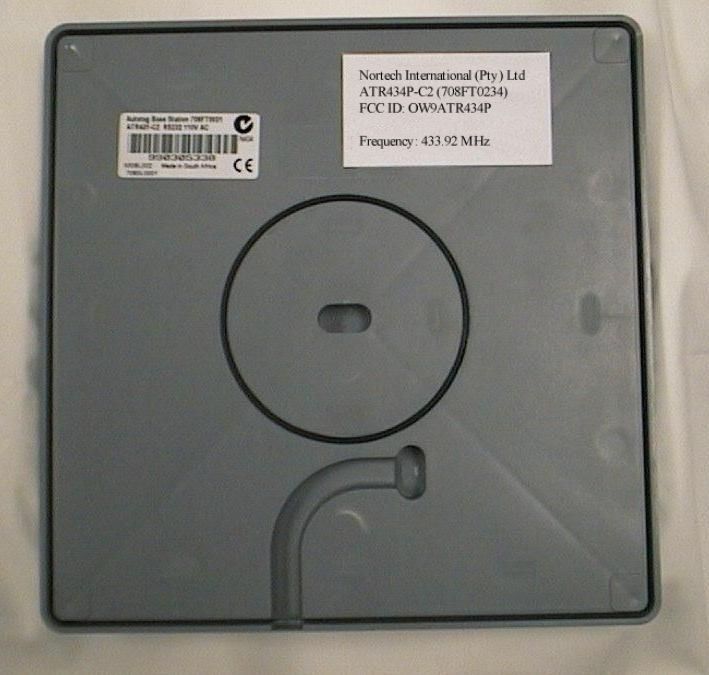

BASE STATION FCC ID LABEL Nortech International (Pty) Ltd ATR434P-C2 (708FT0234) FCC ID: OW9ATR434P Frequency: 433.92 MHz

AUTOTAG SERVICE AND ALLIGNMENT PROCEDURES Both the Base Station and the Tag units are NOT field serviceable items and as such all service and alignment will be carried out at the factory. The units will undergo the same procedures as a production unit. See the PRODUCTION TEST PROCEDURES, section R. PARTS LIST FOR BASE STATION Used Part Type Designator Footprint Description ==== ============ ==================== ================== ================================================= 2 706MD0009 HS1 HS2 HEATSINK-706MD0009 Heatsink TO-220 1 708AW0001_02 PCB1 PCB_FOR_BOM PCB AUTOTAG Base- station MAIN PCB 1 708MD0001 H2 HOUSING-708MD0001 Housing - AUTOTAG Base Station Cover 1 708MD0002 H1 HOUSING-708MD0002 Housing - AUTOTAG Base Station Base 2 708MD0003 H3 H4 HOUSING-708MD0003 Housing - AUTOTAG Base Station Screw Cover 1 708SA0002 SA1 708SA0002 SUB-ASSEMBLY AUTOTAG B/S ANTENNA 1 CAP033108 C67 CE-5/13/21MM/H Capacitor 1000uF Radial Electrolytic 35V 20% 3 CAP093106 C43 C72 C73 CE-2.0/5.0MM Capacitor Electrolytic Radial 10uF 35V 2 CAP982103 C75 C76 CAPLS.6-L18-W5 Capacitor 10nF 250Vac Y2 15.24mm 1 CAP985683 C74 CAPLS.6-L19-W8 Capacitor 68nF 250Vac X2 15.24mm 1 CTR020301 J1 SMB_V_PLUG CONNECTOR SMB JACK CO- AXE PCB VERT 1 CTR030201 CN1 CTR030201 Connector 3 Way Plugable Header 1 CTR031901 CN3 CTR031901 Connector - 3 Way Plugable Screw Terminal 1 CTR050201 CN2 CTR050201 Connector 5 Way Plugable Header 1 CTR051901 CN4 CTR051901 Connector - 5 Way Plugable Screw Terminal 2 CTR060294 CN5 CN7 CTR060294 Connector 6 Way Plugable Header 2 CTR061904 CN6 CN8 CTR061904 Connector - 6 Way Plugable Screw Terminal 1 CXL206775 X2 XTAL-HC49LP Crystal Parallel Resonant 50 PPM CL= 12pF 2 CXL291200 X1 X4 XTAL-HC49LP Crystal 12M00Hz Series Resonant 30 PPM CL= 30 pF 1 DID041240 D8 LED-3MM-V Diode LED 3mm RED diffused Preformed 000CF0004 1 DID04124A D6 LED-3MM-V Diode LED 3mm GREEN diffused Preformed 000CF0004 2 FER022221 F1 F2 EMI-FILT EMI FILTER Murata DSS306-351Y5S221M100 1 INC28317A U8 TO-220/H1 IC LM317AT Adjustable Positive Voltage Regulator 1 INC287805 U6 TO-220/H1 IC 5V Fixed Voltage Regulator TO-220 1 MIE09TB05 BZ1 BUZZER BUZZER 5V INTERNAL DRIVE OD=12mm 1 MIE290001 BT1 BTY-CR2032/1HME CR2032/1HME 3V Lithium Battery 44 Not Used BM1 BT2 BTH1 C11 C6 TEST-HOLE C8 FD1 FD2 FD3 FD4 JP1 JP2 P1 P2 P3 P4 POT3 R47 R48 R76 TP1 TP10 TP11 TP12 TP13 TP14 TP15 TP16 TP17 TP18 TP19 TP2 TP20 TP21 TP22 TP4 TP5 TP6 TP7 TP8 TP9 U13 U16 X3 1 POT041102 POT2 VR3A RESISTOR PRESET 1K0 SINGLE TURN 1/4W 1 POT041103 POT1 VR3A RESISTOR PRESET 10K SINGLE TURN 1/4W 2 RES261103 RN1 RN2 RES-SIP-9P Resistor Network 9 PIN 1 COMMON & 8 RESISTORS 1 RLY404323 K1 RLY4243AZ Relay 8 Amp 5V Coil SPDT - V23061 1 SC0033103 C51 C0805-W Capacitor 10nF Ceramic 10% 28 SC0033104 C16 C19 C20 C21 C22 C0805-W Capacitor 100nF Ceramic X7R 10% C23 C24 C25 C27 C28 C30 C32 C34 C35 C52 C56 C57 C59 C60 C61 C62 C63 C64 C77 C82 C83 C84 C92 6 SC0036220 C49 C50 C86 C87 C90 C0805-W Capacitor 22pF Ceramic 10% C91 3 SC10132P2 C13 C33 C4 C0805-W Capacitor 2p2F Ceramic NPO +/- 0.25pF 4 SC1023100 C10 C2 C41 C7 C0805-W Capacitor 10pF Ceramic NPO 5% 5 SC1023101 C18 C31 C39 C65 C89 C0805-W Capacitor 100pF Ceramic NPO 5% 1 SC1023150 C70 C0805-W Capacitor 15pF Ceramic NPO 5% 2 SC1023151 C40 C93 C0805-W Capacitor 150pF Ceramic NPO 5% 8 SC1023221 C1 C12 C29 C3 C45 C0805-W Capacitor 220pF Ceramic NPO 5% C54 C55 C58 3 SC1023330 C37 C38 C42 C0805-W Capacitor 33pF 50V Ceramic NPO 5% 2 SC1023471 C46 C80 C0805-W Capacitor 470pF Ceramic NPO 5% 9 SC1033102 C14 C17 C26 C44 C48 C0805-W Capacitor 1n0F NPO Ceramic 10% C66 C68 C79 C85 2 SC2232105 C53 C78 C-TANTA-R Capacitor 1u0F 16V Tantalum 10% 3 SC4140106 C69 C81 C88 C1206-W Capacitor 10uF 10V Ceramic Y5V 20% 5 SCT151007 C15 C36 C47 C5 C9 SCT4 CAPACITOR TRIMMER 2 - 6pF SMD 1 SCT500200 C71 SCT500200 Capacitor Ceramic Trimmer 5 to 20pF SMD 3 SD0014004 D11 D24 D27 DMELF-W Diode General Purpose 1N4004 1 SD0200001 D16 SOT-23-W DIODE PIN HSMP3810 SOT23 2 SD0200002 D1 D12 SOT-23-W DIODE SIGNAL BAT18 SOT23 1 SD0485819 D13 DMELF-W Diode Schottky 1 Amp ??V - SM5819 1 SD0510001 D14 3518 DIODE VARACTOR SM1104- 35 4pF to 11pF 1 SD0690001 D15 SMDF Diode Bridge 1 Amp ??? V SMD 2 SD1690002 D2 D3 SMB-BI-W TRANZORB Bipolar 15V 600W - SMBJ15CA 1 SD1690003 D22 SMB-BI-W TRANZORB Bipolar 33V 600W - SMBJ33CA 7 SD169J50A D10 D17 D19 D20 D21 SMB-W TRANZORB 600W SMBJ5.0A D4 D9 4 SD170AS16 D18 D23 D25 D26 SOT-23-W DIODE SIGNAL BAS16 SOT23 1 SI0028001 U7 SO-8-W IC Adjustable POS LDO Voltage Reg LP2951 2 SI0213001 U14 U15 SO-16-W IC 8-Input Multiplexer 74HC151 2 SI0351001 U19 U4 SOIC28W-W IC PIC16C63A-20I/SO 8 BIT uCONTROLLER 1 SI0500232 U1 SOIC16W-W IC RS232 Transceiver MAX202E 2 SI0500485 U17 U2 SO-8-W IC RS485 Half Duplex Transceiver 1 SI1028785 U10 SOT-89-W IC 5V Positive Voltage Regulator TA78L05F 1 SI1792001 U9 QSOP24 IC ASK RF RECEIVER KESRX01 3 SI2069001 U11 U3 U5 11-4C1 IC Optocoupler TLP 181 SMD 2 SI2187001 U12 U18 SO8/SO8W-W IC I2C EEPROM 8Kx8 24LC64-I/SM or SN 4 SL0002331 L13 L14 L15 L16 L0805-W Inductor Air core 330nH SMD 2 SL0002680 L11 L5 L1010-W Inductor 68nH Air core SMD 6 SL0020180 L1 L2 L6 L7 L8 L9 L0805-W Inductor Air core 18nH SMD 2 SL0020270 L3 L4 L1010-W Inductor Air core 27nH SMD 1 SO2043392 Y2 QCC-8 SAW Resonator 433.92 MHz 1-port SMD 1 SR0001183 R63 R0805-W Resistor 18K 1/8W 1% Thick Film Chip 6 SR0001272 R28 R45 R53 R54 R59 R0805-W Resistor 2K7 1/8W 1% Thick Film Chip R60 1 SR0001332 R64 R0805-w Resistor 3K3 1/8W 1% Thick Film Chip 10 SR0001471 R11 R15 R21 R22 R3 R0805-W Resistor 470R 1/8W 1% Thick Film Chip R57 R58 R62 R7 R9 3 SR0003000 R49 R50 R51 R0805-W Resistor 0R 1/8W Thick Film Chip 3 SR0003101 R29 R32 R40 R0805-W Resistor 100R 1/8W Thick Film Chip 2 SR0003102 R12 R23 R0805-W Resistor 1K0 1/8W Thick Film Chip 5% 23 SR0003103 R1 R16 R17 R18 R24 R0805-W Resistor 10K 1/8W Thick Film Chip R25 R26 R27 R30 R35 R38 R4 R46 R6 R65 R66 R67 R68 R71 R72 R73 R77 R8 1 SR0003123 R34 R0805-W Resistor 12K 1/8W Thick Film Chip 12 SR0003472 R13 R19 R2 R20 R41 R08…
