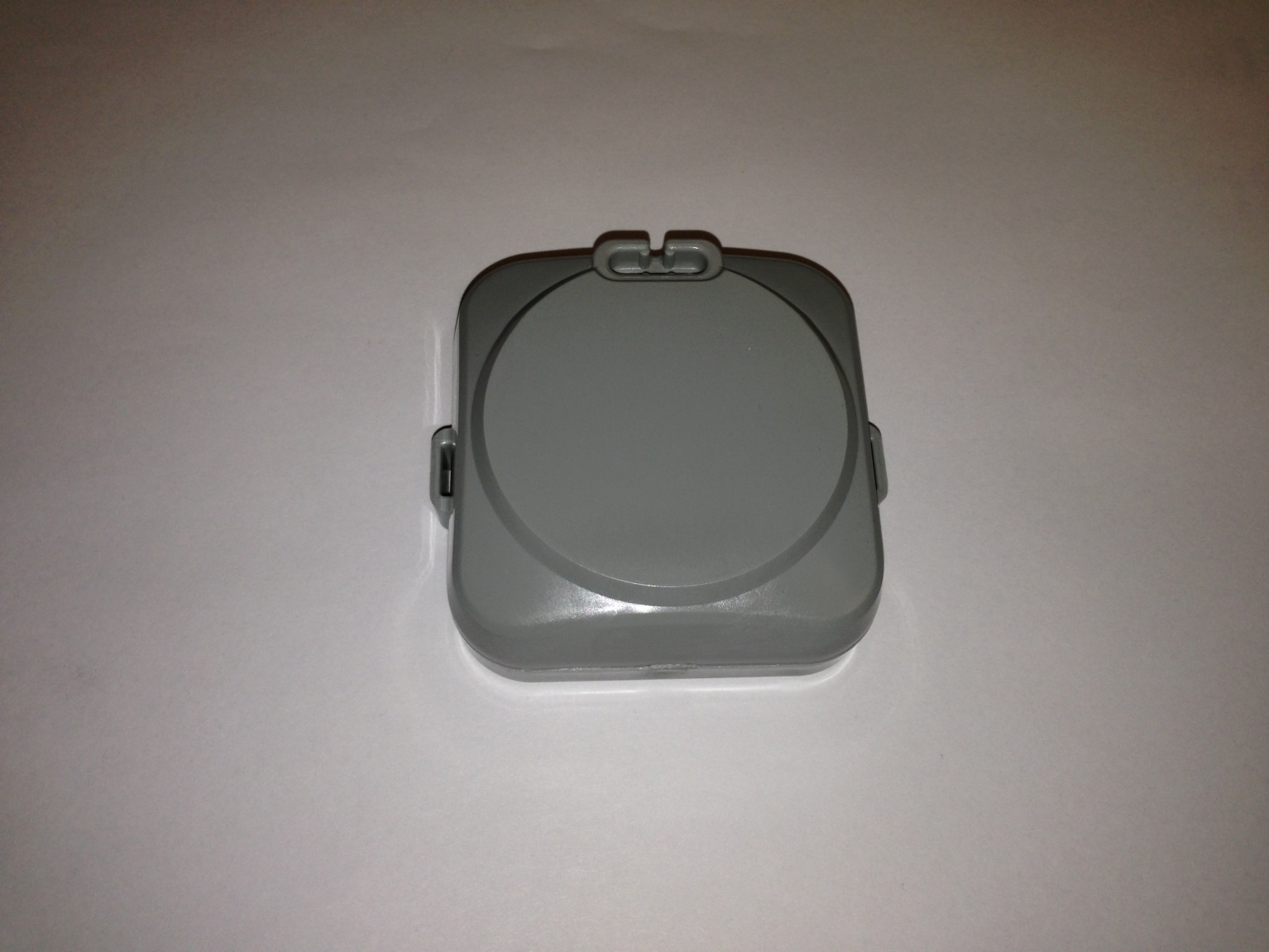

OWA00GT0Battery Powered GPS Tracking Device

GT0 User, Safety and Regulatory Guide Guide Revision v130710a Geoforce Inc. Part Numbers: XS-GT0 and XS-GT0-W July 2013 © Geoforce Inc., All Rights Reserved - version 130710a 2 GT0 User, Safety and Regulatory Guide | Geoforce Inc. Table of Contents GT0 Installation and Mounting Guide .................................................................................................................. 3 Mechanical Mounting ............................................................................................................................. 3 VHB Adhesive Mounting ......................................................................................................................... 3 Temporary and Fastener Free Mounting ................................................................................................ 3 GT0 Installation Drawing ...................................................................................................................................... 4 GT0 Mounting Hardware Examples ..................................................................................................................... 5 GT0 Maintenance ................................................................................................................................................. 6 Appendix A: Shipping and Transport Guidance ................................................................................................... 7 Transport Codes ...................................................................................................................................... 7 Lithium Battery Regulatory Information ................................................................................................. 7 Appendix B: Wireless/Environmental Regulatory Guidance ............................................................................... 8 RF Radiation Exposure Statement .......................................................................................................... 8 RF/Environmental Certifications ............................................................................................................. 8 Regulatory Notices .................................................................................................................................. 8 Appendix C: Safety Regulatory Guidance .......................................................................................................... 10 Hazloc Regulatory Notices .................................................................................................................... 10 Disposal Notices .................................................................................................................................... 10 Appendix D: General Notices ............................................................................................................................. 11 Appendix E: Supporting Documentation ........................................................................................................... 12 About Geoforce: Geoforce is a privately held company that was founded in 2007 by oil and gas veterans who directly understood the dire need for a better way to manage the high-value, mobile, remote, mission-critical assets of companies in the industry, but unlike other oil hands, also had the technological know-how to fill that need. Our intuitive, reliable and scalable technology, developed through our extensive oil and gas industry experience, provides you with on-demand access to unique operational insight. Geoforce provides asset management solutions utilizing a blend of GPS, RFID and other wireless technologies accessible via customizable web-based software and enterprise grade web services. With the largest satellite asset tracking deployment in the oilfield, Geoforce is proven to increase efficiency, transparency and profits. © Geoforce Inc., All Rights Reserved - version 130710a 3 GT0 User, Safety and Regulatory Guide | Geoforce Inc. GT0 Installation and Mounting Guide Step 1: Selecting a Mounting Location To ensure ideal performance please consider the following: 1. Select a mounting location that provides the best view of the sky. 2. A horizontal mounting position (lying flat, facing skyward). 3. Mount on the flattest and hardest surface possible. 4. Select a mounting location that isolates the GT0 from damage. 5. Recommended mounting area size is 7”L x 4”W. 6. Thoroughly clean the mounting area. Step 2: Record the Asset and GT0 Serial Numbers 1. Record the GT0 serial number. 2. Record the asset serial number (on which the GT0 was installed). 3. Send this information to your Geoforce account administrator. Step 3: Selecting a Mounting Method Mechanical Mounting Utilizing the optional metal mounting bezel Socket-Head Cap Screws (1/4” or 6mm bolt diameter) For installations that can be drilled and tapped and do not have access to the back side of the mounting surface. Hex-Head Cap Screws (1/4” or 6mm bolt diameter) For installations that have access to the back side of the mounting surface for securing a nut or bolt. Self-drilling Sheet-metal Screws (1/4” or 6mm diameter) For installations with thinner mounting surfaces where a quicker install is needed. It is recommended to use fasteners made of a material that resists corrosion and environmental weathering such as stainless steel. VHB Adhesive Mounting For installations that are isolated from abuse, extreme weather and temperatures the GT0 has pre-installed pads of VHB adhesive tape that can be used to “peel and stick” to any clean surface above 50F (10C). Using VHB REQUIRES installing to the Geoforce VHB installation guide process. Temporary and Fastener Free Mounting Metal straps and “Zip-ties” (1/4” or 6mm strap width) For installations that are quick and temporary or that may require a simple mechanical backup for VHB installations. Step 4: Initializing the GT0 Remove RED magnet lanyard from GT0 to begin servi…

Text truncated - open the document above for the full version.

Date: 5-16-2013 RE: CONFIDENTIALITY REQUEST FOR GEOFORCE GT-0, FCC ID: OWA00GT0, ZBR002 To Whom It May Concern: This letter serves as an official request for confidentiality under sections 0.457 and 0.459 of CFR 47. We have requested that these items be required to be submitted with this application be permanently withheld from public review: 1. System Block Diagram 2. System Schematics and PCB Layouts 3. Theory of Operation, Technical Description 4. Parts Lists/BOM’s All items listed here are proprietary and confidential to Geoforce Inc. Please contact me if there is any information you may need. Sincerely, Brandon Taylor Chief Hardware Architect

Date: 5-15-2013 RE: Short Term Confidentiality Request For GEOFORCE GT-0, FCCID: OWA00GT0, ZBR002 To Whom It May Concern: In accordance with sections 0.457 and 0.459 of CFR 47, Geoforce Inc. requests short-term Confidentiality of following sections of this application for a period of 180 days after grant is issued. 1. Test setup photos 2. External photos 3. Internal photos 4. User’s Manual These documents contain detailed system and equipment descriptions and related information about the product, which Geoforce Inc. considers to be proprietary, confidential, and a custom design and otherwise, would not release to the general public. Since this design is a basis from which future technological products will evolve, Geoforce Inc. feels that this information would be of benefit to its competitors, and that the disclosure of the information in these documents would give our competitors an unfair advantage in the market. Please contact me if there is any information you may need. Sincerely, Brandon Taylor Chief Hardware Architect

Letter of Agency I appoint Intertek Testing Services NA Inc. to act on our behalf in front of the Federal Communications Commission with respect to all matters relating to certification of equipment under the FCC rules until further notice. I further certify that no party (as defined in 1.2002 of CFR 47, 1995) to this application, including myself, is subject to denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C.,853A. Equipment: Geoforce GT-0 Battery Powered GPS Tracking Device Dated this 16 th day of May, 2013. Signature Brandon Taylor Name Chief Hardware Architect Title Geoforce Inc. Company 972-546-3878 Telephone

ASSEMBLED IN USA | DOM: 99/99/9999 FCC ID: OWA00GT0 | CONTAINS FCC ID: ZBR002 IC ID: 10540A-00GT0 | CONTAINS IC ID: 9540A-002 0979 Model: GT0 Serial No. 2-9 9 9 9 9 9 9 N23156 2-9999999

This report is for the exclusive use of Intertek's Client and is provided pursuant to the agreement between Intertek and its Client. Intertek's responsibility and liability are limited to the terms and conditions of the agreement. Intertek assumes no liability to any party, other than to the Client in accordance with the agreement, for any loss, expense or damage occasioned by the use of this report. Only the Client is authorized to permit copying or distribution of this report and then only in its entirety. Any use of the Intertek name or one of its marks for the sale or advertisement of the tested material, product or service must first be approved in writing by Intertek. The observations and test results in this report are relevant only to the sample tested. This report by itself does not imply that the material, product, or service is or has ever been under an Intertek certification program. EMC Report for Geoforce on the GT-0 FCCID: OWA00GT0 ICID: 10540A-00GT0 Page 1 of 45 1809 10 th St. # 400 Plano TX 75074 Telephone: 972-202-8800 Facsimile: 972-202-8801 www.intertek-etlsemko.com TEST REPORT Report Number: 101178721DAL-001 Project Number: G101178721 Report Issue Date: May 20th, 2013 Product Name: GT-0 2.4GHz BLE Battery Powered GPS Tracking Device FCCID: OWA00GT0 ICID: 10540A-00GT0 Standards: CFR47 FCC Part 15 Subpart C 15.247:2013 RSS 210*Issue 8 December 2010 Tested by: Client: Intertek Testing Services NA, Inc. 1809 10 th ST #400 Plano, TX 75074 Geoforce, Inc. 750 Canyon Drive Suite 140 Coppell, TX 75019 Report prepared by Report reviewed by Shawn K McGuinness EMC Engineer Nicholas Abbondante Transmitter Staff Engineer Intertek Report Number: 101178721DAL-001 Issued: 05/20/2013 EMC Report for Geoforce on the GT-0 FCCID: OWA00GT0 ICID: 10540A-00GT0 Page 2 of 45 TABLE OF CONTENTS 1 Introduction and Conclusion .............................................................................................................. 3 2 Test Summary ...................................................................................................................................... 3 3 Peak Conducted Power ....................................................................................................................... 6 4 Occupied Bandwidth ........................................................................................................................... 8 5 Power Spectral Density/Conducted Spurious Emissions .............................................................. 15 6 Duty Cycle Determination (FCC 15A - 15.35(c)) .............................................................................. 23 7 Radiated Spurious Emissions (Transmitter) ................................................................................... 28 8 Radiated Spurious Emissions (Receiver) ........................................................................................ 43 9 AC Power Line Conducted Emissions ............................................................................................. 43 10 RF Exposure Evaluation ................................................................................................................ 43 11 Measurement Uncertainty .............................................................................................................. 44 12 Revision History ............................................................................................................................. 45 Intertek Report Number: 101178721DAL-001 Issued: 05/20/2013 EMC Report for Geoforce on the GT-0 FCCID: OWA00GT0 ICID: 10540A-00GT0 Page 3 of 45 1 Introduction and Conclusion The tests indicated in section 2 were performed on the product constructed as described in section 3. The remaining test sections are the verbatim text from the actual data sheets used during the investigation. These test sections include the test name, the specified test method, a list of the actual test equipment used, documentation photos, results and raw data. No additions, deviations, or exclusions have been made from the standard(s) unless specifically noted. Based on the results of our investigation, we have concluded the product tested complied with the requirements of the standard(s) indicated. The results obtained in this test report pertain only to the item(s) tested. The INTERTEK-Dallas is located at 1809 10 th St. # 400, Plano TX 75074. The radiated emission test site is a 3-meter semi-anechoic chamber. The chamber meets the characteristics of CISPR 16-1 and ANSI C63.4. For measurements, a remotely controlled flush-mount metal-top turntable is used to rotate the EUT a full 360 degrees. A remote controlled non-conductive antenna mast is used to scan the antenna height from one to four meters. The test site is listed with the FCC under registration number 485103. The test site is listed with Industry Canada under site number IC 6018A-1. 2 Test Summary Page Test full name FCC Reference IC Reference Result 6 Peak Conducted Power § 15.247(b)(3)(4) RSS-210 (A8.4) Pass 8 Occupied Bandwidth § 15.247(a)(2) RSS-210 (A8.2), RSS-GEN (4.6.1) Pass 18 Power Spectral Density and Conducted Spurious Emissions § 15.247(e) RSS-210 (A8.5) Pass 20 Duty Cycle Determination FCC 15A - 15.35(c) RSS-210 (4.5) Pass 26 Radiated Spurious Emissions (Transmitter) 15.205 in restricted bands, all others <-30dBc § 15.247(c)/15.209 RSS-210 (2.2) Pass 36 Radiated Spurious Emissions (Receiver) see note 1 § 15.109 RSS-Gen (6.1) N/A (1) 33 AC Power Line Conducted Emissions § 15.107, § 15.207 RSS-Gen (7.2.4) N/A (2) Note 1: Receivers operating above 960 MHz are exempt from FCC and IC evaluation Note 2: This device is powered by 4 AA Batteries. Intertek Report Number: 101178721DAL-001 Issued: 05/20/2013 EMC Report for Geoforce on the GT-0 FCCID: OWA00GT0 ICID: 10540A-00GT0 Page 4 of 45 Description of Equipment under Test Equipment Under Test Manufacturer Geoforce Model Number GT-0 Serial Number 23005032 FCC Identifier OWA00GT0 IC…
