OWDTR-0008-APanther 300P UHF-H (470-512 MHz)

360 Herndon Parkway Suite 1400 Herndon, VA 20170 http://www.rheintech.com Com-Net Ericsson Critical Radio Systems, Inc. Page 43 of 51 Panther 300P UHF-H (470-512MHz) FCC ID: OWDTR-0008-A Work Order: 2000497 (REV2) 19 OPERATOR’S MANUAL MM101027V1 R1A Operator’s Manual PANTHER   300P Portable Radio 2 TABLE OF CONTENTS Page SAFETY TRAINING INFORMATION ................. 3 SAFE PRACTICE INFORMATION ................. 8 OPERATING RULES AND REGULATIONS................. 12 INTRODUCTION ............... 17 CONTROLS AND INDICATORS .................... 18 P ANTHER 300P RADIO INDICATORS .................... 23 BASIC OPERATION.......... 25 SELECTIVE SIGNALING... 28 PROGRAMMABLE PTT FUNCTIONS ..................... 31 CLONING .......................... 33 BATTERY OPERATION .... 34 The software contained in this device is copyrighted by Com-Net Ericsson Critical Radio Systems, Inc. Unpublished rights are reserved under the copyright laws of the United States. NOTICE! This manual is published by Com-Net Ericsson Critical Radio Systems, Inc., without any warranty. Improvements and changes to this manual necessitated by typographical errors, inaccuracies of current information, or improvements to programs and/or equipment, may be made by Com-Net Ericsson Critical Radio Systems, Inc., at any time and without notice. Such changes will be incorporated into new editions of this manual. No part of this manual may be reproduced or transmitted in any form or by any means, electronic or mechanical, including photocopying and recording, for any purpose, without the express written permission of by Com-Net Ericsson Critical Radio Systems, Inc. Copyright © 2000 Com-Net Ericsson Critical Radio Systems, Inc. All rights reserved. 3 SAFETY TRAINING INFORMATION Your Com-Net Ericsson radio generates RF electromagnetic energy during transmit mode. This radio is designed for and classified as “Occupational Use Only” meaning it must be used only during the course of employment by individuals aware of the hazards and the ways to minimize such hazards. This radio is NOT intended for use by the “General Population” in an uncontrolled environment. This radio has been tested and complies with the FCC RF exposure limits for “Occupational Use Only.” In addition, your Com- Net Ericsson radio complies with the following Standards and Guidelines with regard to RF energy and electromagnetic energy levels and evaluation of such levels for exposure to humans: WARNING 4 • FCC OET Bulletin 65 Edition 97-01 Supplement C, Evaluating Compliance with FCC Guidelines for Human Exposure to Radio Frequency Electromagnetic Fields. • American National Standards Institute (C95.1 – 1992), IEEE Standard for Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz. • American National Standards Institute (C95.3 – 1992), IEEE Recommended Practice for the Measurement of Potentially Hazardous Electromagnetic Fields – RF and Microwave. CAUTION To ensure that your exposure to RF electromagnetic energy is within the FCC allowable limits for occupational use, always adhere to the following guidelines: 5 • DO NOT operate the radio without a proper antenna attached, as this may damage the radio and may also cause you to exceed FCC RF exposure limits. A proper antenna is the antenna supplied with this radio by Com-Net Ericsson or an antenna specifically authorized by Com-Net Ericsson for use with this radio. • DO NOT transmit for more than 50% of total radio use time (“50% duty cycle”). Transmitting more than 50% of the time can cause FCC RF exposure compliance requirements to be exceeded. The radio is transmitting when the “TX” LED on top of the radio is lit. You can cause the radio to transmit by pressing the “PTT” button. • ALWAYS use Com-Net Ericsson authorized accessories (antennas, batteries, belt clips, speaker/mics, etc). Use of unauthorized accessories may cause the FCC Occupational/ Controlled Exposure RF compliance requirements to be exceeded. 6 • ALWAYS keep the device and its antenna at least 2.0 cm (0.8 inch) away from the body and 5 cm (2 inches) from the face when transmitting to ensure FCC RF exposure compliance requirements are not exceeded. This radio has been tested for RF exposure compliance at a distance of 1.3 cm from the body and 4.0 cm from the face for a worse case scenario. However, to provide the recipients of your transmission the best sound quality, hold the antenna at least 5 cm (2 inches) from mouth, and slightly off to one side. The information listed above provides the user with the information needed to make him or her aware of a RF exposure, and what to do to assure that this radio operates within the FCC RF exposure limits of this radio. 7 Electromagnetic Interference/Compatibility During transmissions, your Com- Net Ericsson radio generates RF energy that can possibly cause interference with other devices or systems. To avoid such interference, turn off the radio in areas where signs are posted to do so. DO NOT operate the transmitter in areas that are sensitive to electromagnetic radiation such as hospitals, aircraft, and blasting sites. 8 SAFE PRACTICE INFORMATION The operator of any land mobile radio should be aware of certain hazards common to the operation of radio transmitters. A list of several possible hazards is given: 1. Explosive Atmospheres - Areas with potentially explosive atmosphere are often, but not always, clearly marked. These may be fueling areas, such as gas stations, fuel or chemical transfer or storage facilities, and areas where the air contains chemicals or particles, such as grain, dust, or metal powders. Sparks in such areas could cause an explosion or fire resulting in bodily injury or even death. Turn OFF your radio when in any area with a potentially explosive atmosphere. It is rare, but not impossible that the radio or its accessories could generate sparks. 9 2. Electronics Systems - RF energy from your portable radio may affect some electronic eq…

Text truncated - open the document above for the full version.

360 Herndon Parkway Suite 1400 Herndon, VA 20170 http://www.rheintech.com Com-Net Ericsson Critical Radio Systems, Inc. Page 41 of 51 Panther 300P UHF-H (470-512MHz) FCC ID: OWDTR-0008-A Work Order: 2000497 (REV2) 18 BLOCK DIAGRAM Figure 1 – PANTHER 300P Logic Block Diagram 360 Herndon Parkway Suite 1400 Herndon, VA 20170 http://www.rheintech.com Com-Net Ericsson Critical Radio Systems, Inc. Page 42 of 51 Panther 300P UHF-H (470-512MHz) FCC ID: OWDTR-0008-A Work Order: 2000497 (REV2) Figure 2 – PANTHER 300P RF Block Diagram

12 PAGE 1 of 1 PREPARED BY: PHONE: DATE: REV. DOCUMENT INFO: Bryan McWatters (804) 385-2146 2/26/2001 A BM022601-1 Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 To Whom It May Concern: Please be advised that Com-Net Ericsson authorizes Rhein Tech Laboratories, Inc. to submit applications on our behalf until otherwise notified. All correspondence concerning such application should be directed to myself at the address or numbers found below. We certify that we are not subject to denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug abuse ACT of 1988, U.S.C. 682 and as defined in 47 CFR Part 1 §1.2002(b). Best Regards, Signature Bryan McWatters Mgr. Engineering Regulatory Com-NetEricsson 3315 Old Forest Road Lynchburg VA, 24501 804-385-2146 Cell 804-258-6615 Fax 804-385-2195 [email protected] [email protected] 22 PAGE 2 of 1 PREPARED BY: PHONE: DATE: REV. DOCUMENT INFO: Bryan McWatters (804) 385-2146 2/26/2001 A BM022601-1

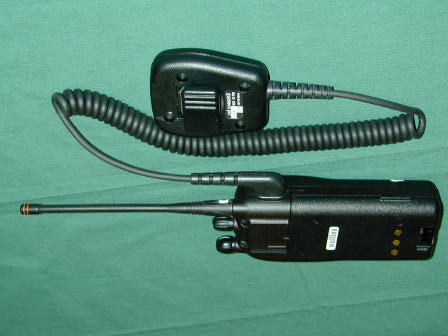

360 Herndon Parkway Suite 1400 Herndon, VA 20170 http://www.rheintech.com Com-Net Ericsson Critical Radio Systems, Inc. Page 51 of 51 Panther 300P UHF-H (470-512MHz) FCC ID: OWDTR-0008-A Work Order: 2000497 (REV2) 23 EXTERNAL PHOTOGRAPHS 360 Herndon Parkway Suite 1400 Herndon, VA 20170 http://www.rheintech.com Com-Net Ericsson Critical Radio Systems, Inc. Page 52 of 51 Panther 300P UHF-H (470-512MHz) FCC ID: OWDTR-0008-A Work Order: 2000497 (REV2)

360 Herndon Parkway Suite 1400 Herndon, VA 20170 http://www.rheintech.com Com-Net Ericsson Critical Radio Systems, Inc. Page 34 of 51 Panther 300P UHF-H (470-512MHz) FCC ID: OWDTR-0008-A Work Order: 2000497 (REV2) 14 LABEL INFORMATION PRODUCT SPECIFICATION21(24) Uppgjord (även faktaansvarig om annan) - Prepared (also subject responsible if Nr - No. LY/EUS/LT/AE/SP/MSF(804) 592-62021301-KRD 103 153 Uen Dokansv/Godk - Doc Kontr - Checked Datum - Date Rev File LY/EUS/LT/AE/SP (M.S. FULK)2000-06-23PC4See Below The top terminal is A-. The middle terminal is the Smart Battery Data port The bottom terminal is A+. COM-NET ERICSSON KRD 103 150/X RXX SER# 9XXXXXX CANADA: TR-XXX 3636XXXXXX FCC ID: OWDTR-0008-A LABEL RECESSES IN BACK COVER (BATTERY PACK REMOVED FOR CLARITY) SAR LABEL 4/1424-KRD 103 153 REGULATORY LABEL 3/1424-KRD 103 153 PRODUCT NAME LABEL 2/1424-KRD 103 153

360 Herndon Parkway Suite 1400 Herndon, VA 20170 http://www.rheintech.com Com-Net Ericsson Critical Radio Systems, Inc. Page 46 of 51 Panther 300P UHF-H (470-512MHz) FCC ID: OWDTR-0008-A Work Order: 2000497 (REV2) 22 INTERNAL PHOTOGRAPHS 360 Herndon Parkway Suite 1400 Herndon, VA 20170 http://www.rheintech.com Com-Net Ericsson Critical Radio Systems, Inc. Page 47 of 51 Panther 300P UHF-H (470-512MHz) FCC ID: OWDTR-0008-A Work Order: 2000497 (REV2) 360 Herndon Parkway Suite 1400 Herndon, VA 20170 http://www.rheintech.com Com-Net Ericsson Critical Radio Systems, Inc. Page 48 of 51 Panther 300P UHF-H (470-512MHz) FCC ID: OWDTR-0008-A Work Order: 2000497 (REV2) 360 Herndon Parkway Suite 1400 Herndon, VA 20170 http://www.rheintech.com Com-Net Ericsson Critical Radio Systems, Inc. Page 49 of 51 Panther 300P UHF-H (470-512MHz) FCC ID: OWDTR-0008-A Work Order: 2000497 (REV2) 360 Herndon Parkway Suite 1400 Herndon, VA 20170 http://www.rheintech.com Com-Net Ericsson Critical Radio Systems, Inc. Page 50 of 51 Panther 300P UHF-H (470-512MHz) FCC ID: OWDTR-0008-A Work Order: 2000497 (REV2)

360 Herndon Parkway Suite 1400 Herndon, VA 20170 http://www.rheintech.com Com-Net Ericsson Critical Radio Systems, Inc. Page 36 of 51 Panther 300P UHF-H (470-512MHz) FCC ID: OWDTR-0008-A Work Order: 2000497 (REV2) 16 PRODUCT DESCRIPTION CIRCUIT ANALYSIS The UHF – High split PANTHER 300P (KRD 103 153/4) is a 6-channel, dual-conversion, super- heterodyne FM land mobile radio transceiver operating in the 470 – 512 MHz band. It is designed to meet FCC regulatory requirements and the land mobile radio industry standard TIA/EIA-603. Refer to the Logic and RF Diagrams in Figure 1, and Figure 2, respectively. RECEIVER RECEIVER FRONT END The receiver front end comprises the following stages: • The transmitter Low Pass Filter, • A transmit/receive switch controlled by the switching of PIN diodes, • The first Band Pass Filter, • An RF low noise amplifier (LNA), and • A second Band Pass Filter, and a double-balanced first mixer (DBM). These filters, RF LNA, and DBM are designed to provide appropriate filtering to minimize reception of undesired receive signals and provide the appropriate noise figure to allow reception of desired results. Receiver spurious response, sensitivity, and intermodulation performance are greatly affected by the design of the RX front end. The first Local Oscillator (L.O.) signal for the first mixer is generated in the Voltage Controlled Oscillator (VCO) module and amplified in a Local Oscillator amplifier to provide the optimum L.O. drive level to the first mixer. Since this L.O. drive signal is low side injection and the desired first IF frequency is 55.05 MHz, the frequency range of the first L.O. signals are 414.950 – 456.950 MHz. RECEIVER BACK END The back end of the receiver is a dual-conversion receiver with a first IF frequency at 55.05 MHz and a second IF frequency at 450 kHz. The receiver back end has the following stages: • The first IF crystal filter, • A low noise IF amplifier, • A second IF crystal filter, and • A receiver IF/amplifier/limiter IC. 360 Herndon Parkway Suite 1400 Herndon, VA 20170 http://www.rheintech.com Com-Net Ericsson Critical Radio Systems, Inc. Page 37 of 51 Panther 300P UHF-H (470-512MHz) FCC ID: OWDTR-0008-A Work Order: 2000497 (REV2) These stages provide the desired adjacent channel selectivity, receiver spurious response performance, and demodulation of the analog FM receive signals. The back end has been designed to provide switchable selectivity performance for either 12.5 kHz or 25 kHz channel spaced equipment. This is accomplished by selection of either a wide or narrow 450 kHz ceramic filter. Channel spacing is programmable on a per-channel basis. The receiver IF/amplifier/limiter IC takes the incoming receive signal and mixes it down to the secondary IF frequency 450 kHz. The second L.O. drive signal is normally a low side injection 54.600 MHz signal derived from the synthesizer IC. (An optional 55.500 MHz high side injection signal can be synthesized for improved receiver self-quieting performance on certain frequencies). The FM detector is a quadrature detector that provides recovered receive audio. TRANSMITTER The transmitter is an FM, 4-watt rated transmitter. It can be programmed on a per-channel basis for either 4 or 1 watts. The initial drive level for the transmitter is the VCO. The VCO frequency range is 470 – 512 MHz. The VCO output is amplified in a pre-driver and a driver stage and then input as the drive signal into the Power Amplifier (PA) module. The PA module amplifies the drive signal to approximately 5 watts. The PA output power then is transmitted through a directional coupler that is used for detecting forward power, the transmit/receive switch, and finally the TX Low Pass Filter. The TX Low Pass Filter properly attenuates the harmonics of the desired carrier to meet FCC TX conducted spurious specifications of ≤20 dBm. The losses through the post-PA stages reduce the output power to a nominal 4 watts. This level is established by the setting of RF power tracking data in the Maintenance software application. (Note: RF power is set ONLY by qualified trained land mobile radio technicians.) Regulating the voltage to the PA and PA driver section through pass transistor Q404 controls the transmitter output power. The forward power feedback loop and the microprocessor power set level control the pass transistor. The forward power is sensed using a forward coupler in conjunction with an RF rectifier and a LPF. The microprocessor power set level is determined by the power tracking data table stored in memory. SYNTHESIZER The heart of the synthesizer design is the use of a dual serial input Phase-Locked-Loop Frequency Synthesizer IC (similar to Fujitsu MB15U10). A Temperature Compensated Crystal Oscillator (TCXO) provides the reference frequency for the synthesizer. The TCXO is a 16.8 MHz oscillator, ±2.5 ppm from -30°C to +60°C. The TCXO and the output of the VCO are divided down and phase compared at 6.25 kHz. The synthesizer hardware, along with the radio software, allows TX and RX frequencies to be synthesized every 12.5 kHz over the band split range. The error voltage provided at the output of the phase detector is filtered by a loop filter to provide a correction voltage to the VCO to set either transmit frequency or receiver L.O. frequency on channel. The loop filter also minimizes spurious input to the VCO. The microprocessor controls whether the loop filter is in a narrow or wide bandwidth. Wide bandwidth allows faster switching of synthesizer frequencies; narrow bandwidth optimizes transmit or receive Hum and Noise performance. 360 Herndon Parkway Suite 1400 Herndon, VA 20170 http://www.rheintech.com Com-Net Ericsson Critical Radio Systems, Inc. Page 38 of 51 Panther 300P UHF-H (470-512MHz) FCC ID: OWDTR-0008-A Work Order: 2000497 (REV2) BASEBAND PROCESSING Baseband processing is primarily controlled by an Audio Signal Processor (ASP) IC (similar to an AKM AK2344). Recovered receive audio from the FM demodulat…

Text truncated - open the document above for the full version.

360 Herndon Parkway Suite 1400 Herndon, VA 20170 http://www.rheintech.com Com-Net Ericsson Critical Radio Systems, Inc. Page 35 of 51 Panther 300P UHF-H (470-512MHz) FCC ID: OWDTR-0008-A Work Order: 2000497 (REV2) 15 BILL OF MATERIALS (PARTS LIST)

360 Herndon Parkway Suite 1400 Herndon, VA 20170 http://www.rheintech.com Com-Net Ericsson Critical Radio Systems, Inc. Page 44 of 51 Panther 300P UHF-H (470-512MHz) FCC ID: OWDTR-0008-A Work Order: 2000497 (REV2) 20 SAR TEST REPORT CELLTECH RESEARCH INC. Test Report S/N: 022001-65OWD 1955 Moss Court, Kelowna, Date(s) of Tests: February 26 & March 13, 2001 B.C. CANADA V1Y 9L3 _________________________________________________________________________________________________________ © 2001 Celltech Research Inc. CERTIFICATE OF COMPLIANCE SAR EVALUATION This wireless mobile and/or portable device has been shown to be compliant for localized Specific Absorption Rate (SAR) for controlled environment/occupational exposure limits specified in ANSI/IEEE Std. C95.1-1992 and had been tested in accordance with the measurement procedures specified in ANSI/IEEE Std. C95.3-1999. I attest to the accuracy of data. All measurements were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Celltech Research Inc. certifies that no party to this application has been denied FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). Shawn McMillen General Manager Celltech Research Inc. Test Lab: CELLTECH RESEARCH INC. Testing and Engineering Lab 1955 Moss Court Kelowna, B.C. Canada V1Y 9L3 Phone: 250 - 860-3130 Fax: 250 - 860-3110 Toll Free: 1-877-545-6287 e-mail: [email protected] web site: www.globuswireless.com Applicant Information: Com-Net Ericsson Critical Radio Systems 3315 Old Forest Road, Room 2-300 Lynchburg, VA 24501 Attn: Mr. Bryan McWatters Manager, Engineering Regulatory FCC ID: OWDTR-0008-A Model(s): Panther 300P EUT Type: Portable UHF-H PTT Radio Transceiver Modulation: FM Tx Frequency Range: 470 - 512MHz Max. RF Output Power: 4.0 Watts (Conducted) No. of Channels: 6 FCC Rule Part(s): 2.1093; ET Docket 96-326 CELLTECH RESEARCH INC. Test Report S/N: 022001-65OWD 1955 Moss Court, Kelowna, Date(s) of Tests: February 26 & March 13, 2001 B.C. CANADA V1Y 9L3 _________________________________________________________________________________________________________ © 2001 Celltech Research Inc. TABLE OF CONTENTS 1.0 INTRODUCTION.................................................................. 1 2.0 DESCRIPTION OF EUT.......................................................... 1 3.0 SAR MEASUREMENT SYSTEM ............................................. 2 4.0 MEASUREMENT SUMMARY.................................................. 3-5 5.0 SAR LIMITS........................................................................ 6 6.0 DETAILS OF SAR EVALUATION............................................ 7 7.0 EVALUATION PROCEDURES................................................. 8 8.0 SYSTEM VALIDATION.......................................................... 8 9.0 SIMULATED EQUIVALENT TISSUES...................................... 9 10.0 TISSUE PARAMETERS......................................................... 9 11.0 SYSTEM SPECIFICATIONS.................................................... 10 12.0 TEST EQUIPMENT LIST........................................................ 11 13.0 MEASUREMENT UNCERTAINTIES........................................ 12 14.0 REFERENCES...................................................................... 13 APPENDIX A - SAR MEASUREMENT DATA........................................ 14 APPENDIX B - DIPOLE VALIDATION................................................ 15 APPENDIX C - PROBE CALIBRATION............................................... 16 APPENDIX D - TEST SETUP PHOTOGRAPHS..................................... 17 CELLTECH RESEARCH INC. Test Report S/N: 022001-65OWD 1955 Moss Court, Kelowna, Date(s) of Tests: February 26 & March 13, 2001 B.C. CANADA V1Y 9L3 _________________________________________________________________________________________________________ © 2001 Celltech Research Inc. COM-NET ERICSSON Model: PANTHER 300P 1 Portable UHF PTT Radio Transceiver (470-512 MHz) 1.0 INTRODUCTION This measurement report shows compliance of the COM-NET ERICSSON Model: PANTHER 300P Portable UHF PTT Radio Transceiver FCC ID: OWDTR-0008-A with the regulations and procedures specified in FCC Part 2.1093, ET Docket 96-326 Rules (controlled exposure) for mobile and portable devices. The test procedures, as described in American National Standards Institute C95.1-1992 (1), FCC OET Bulletin 65-1997 were employed. A description of the product and operating configuration, detailed summary of the test results, methodology and procedures used in the evaluation, equipment used, and the various provisions of the rules are included within this test report. 2.0 DESCRIPTION of Equipment Under Test (EUT) Rule Part(s) FCC 2.1093; ET Docket 96.326 Modulation FM EUT Type Portable UHF-H PTT Radio Transceiver Tx Frequency Range 470-512 MHz Model No.(s) Panther 300P Max. RF Output Power 4.0 Watts (Conducted) Serial No. Pre-production Power Supply Ericsson Inc. 7.5V Nickel Cadmium Battery Antenna Type I Helical Stubby Antenna Length I 69 mm Antenna Type G λ/4 Whip Antenna Length G 162 mm CELLTECH RESEARCH INC. Test Report S/N: 022001-65OWD 1955 Moss Court, Kelowna, Date(s) of Tests: February 26 & March 13, 2001 B.C. CANADA V1Y 9L3 _________________________________________________________________________________________________________ © 2001 Celltech Research Inc. COM-NET ERICSSON Model: PANTHER 300P 2 Portable UHF PTT Radio Transceiver (470-512 MHz) 3.0 SAR MEASUREMENT SYSTEM Celltech Research SAR measurement facility utilizes the Dosimetric Assessment System (DASY™) manufactured by Schmid & Partner Engineering AG (SPEAG™) of Zurich, Switzerland. The DASY system is comprised of the robot controller, computer, near-field probe, probe alignment sensor, and the generic twin phantom containing b…

Text truncated - open the document above for the full version.

360 Herndon Parkway Suite 1400 Herndon, VA 20170 http://www.rheintech.com Com-Net Ericsson Critical Radio Systems, Inc. Page 40 of 51 Panther 300P UHF-H (470-512MHz) FCC ID: OWDTR-0008-A Work Order: 2000497 (REV2) 17 SCHEMATICS

Engineering and Testing for EMC and Safety Compliance 360 Herndon Parkway, Suite 1400 Herndon, VA 20170 Phone: 703-689-0368; Fax: 703-689-2056; Metro: 703-471-6441 TYPE CERTIFICATION REPORT Com-Net Ericsson Critical Radio Systems, Inc. 3315 Old Forest Road P.O. Box 2000 Lynchburg, VA 24501 804-385 2580 (Bryan McWatters) MODEL: Panther 300P UHF -H (470-512MHz) FCC ID: OWDTR-0008-A January 8, 2001 STANDARDS REFERENCED FOR THIS REPORT PART 2: 1999 FREQUENCY ALLOCATIONS AND RADIO TREATY MATTERS; GENERAL RULES AND REGULATIONS PART 15: 1999 §15.109: RADIATED EMISSIONS LIMITS PART 22: 1998 PUBLIC MOBILES SERVICES PART 74: 1998 LOW POWER AUXILIARY STATION PART 90: 1998 PRIVATE LAND MOBILE RADIO SERVICES PART 95 (A): 1998 GENERAL MOBILE RADIO SERVICES ANSI C63.4-1992 STANDARD FORMAT MEASUREMENT/TECHNICAL REPORT PERSONAL COMPUTER AND PERIPHERALS ANSI/TIA/EIA603- 1992 LAND MOBILE FM OR PM COMMUNICATIONS EQUIPMENT MEASUREMENT AND PERFORMANCE STANDARDS ANSI/TIA/EIA 603-1-1998 ADDENDUM TO ANSI/TIA/EIA 603-1992 FCC Rules Parts Frequency Range Output Power (W) Freq. Tolerance Emission Designator 22, 74, 90, 95 (A) 470-512 MHz 4.2 2.5 ppm 11K0F3E 22, 74, 90, 95 (A) 470-512 MHz 4.2 2.5 ppm 16K0F3E 22, 74, 90, 95 (A) 470-512 MHz 1.1 2.5 ppm 11K0F3E 22, 74, 90, 95 (A) 470-512 MHz 1.1 2.5 ppm 16K0F3E REPORT PREPARED BY: Test Engineer: Daniel Baltzell Administrative Writer: Melissa Fleming Document Number: 2000497 No part of this report may be reproduced without the full written approval of Rhein Tech Laboratories, Inc. 360 Herndon Parkway Suite 1400 Herndon, VA 20170 http://www.rheintech.com Com-Net Ericsson Critical Radio Systems, Inc. Page 2 of 51 Panther 300P UHF-H (470-512MHz) FCC ID: OWDTR-0008-A Work Order: 2000497 (REV2) TABLE OF CONTENTS 1 GENERAL INFORMATION................................................................................................................................. 4 1.1 TEST FACILITY...................................................................................................................................................... 4 1.2 RELATED SUBMITTAL(S)/GRANT(S) .................................................................................................................... 4 1.3 CONFORMANCE STATEMENT...............................................................................................................................5 1.4 TESTED SYSTEM DETAILS.................................................................................................................................... 6 1.5 CONFIGURATION OF TESTED SYSTEM................................................................................................................. 6 1.6 FIELD STRENGTH CALCULATION......................................................................................................................... 7 1.7 CONDUCTED MEASUREM ENT...............................................................................................................................8 1.8 RADIATED MEASUREMENT.................................................................................................................................. 8 2 FCC RULES AND REGULATIONS PART 2 §2.1046 (A): RF POWER OUTPUT: CONDUCTED....... 9 2.1 TEST PROCEDURE................................................................................................................................................. 9 2.2 TEST DATA........................................................................................................................................................... 9 2.3 TEST EQUIPMENT.................................................................................................................................................. 9 3 PART 2.1046 (A) RF POWER OUTPUT: RADIATED - ERP....................................................................... 10 3.1 TEST PROCEDURE...............................................................................................................................................10 3.2 TEST DATA.........................................................................................................................................................11 3.3 TEST EQUIPMENT................................................................................................................................................11 4 FCC RULES AND REGULATIONS PART 2 §2.1051: SPURIOUS EMISSIONS AT ANTENNA TERMINALS .................................................................................................................................................................. 12 4.1 TEST PROCEDURE...............................................................................................................................................12 4.2 TEST DATA.........................................................................................................................................................12 4.3 TEST EQUIPMENT................................................................................................................................................13 5 FCC RULES AND REGULATIONS PART 2 §2.1053 (A): FIELD STRENGTH OF SPURIOUS RADIATION ................................................................................................................................................................... 14 5.1 TEST PROCEDURE...............................................................................................................................................14 5.2 TEST DATA.........................................................................................................................................................14 5.3 TEST EQUIPMENT................................................................................................................................................14 6 FCC RULES AND REGULATIONS PART 2 §2.1049 (C) (1): OCCUPIED BANDWIDTH................... 15 6.1 TEST PROCEDURE....................…

Text truncated - open the document above for the full version.

Engineering and Testing for EMC and Safety Compliance 360 Herndon Parkway, Suite 1400 Herndon, VA 20170 Phone: 703-689-0368; Fax: 703-689-2056; Metro: 703-471-6441 TYPE CERTIFICATION REPORT Com-Net Ericsson Critical Radio Systems, Inc. 3315 Old Forest Road P.O. Box 2000 Lynchburg, VA 24501 804-385 2580 (Bryan McWatters) MODEL: Panther 300P UHF -H (470-512MHz) FCC ID: OWDTR-0008-A January 8, 2001 STANDARDS REFERENCED FOR THIS REPORT PART 2: 1999 FREQUENCY ALLOCATIONS AND RADIO TREATY MATTERS; GENERAL RULES AND REGULATIONS PART 15: 1999 §15.109: RADIATED EMISSIONS LIMITS PART 22: 1998 PUBLIC MOBILES SERVICES PART 74: 1998 LOW POWER AUXILIARY STATION PART 90: 1998 PRIVATE LAND MOBILE RADIO SERVICES ANSI C63.4-1992 STANDARD FORMAT MEASUREMENT/TECHNICAL REPORT PERSONAL COMPUTER AND PERIPHERALS ANSI/TIA/EIA603- 1992 LAND MOBILE FM OR PM COMMUNICATIONS EQUIPMENT MEASUREMENT AND PERFORMANCE STANDARDS ANSI/TIA/EIA 603-1-1998 ADDENDUM TO ANSI/TIA/EIA 603-1992 FCC Rules Parts Frequency Range Output Power (W) Freq. Tolerance Emission Designator 22, 74, 90 470-512 MHz 4.2 2.5 ppm 11K0F3E 22, 74, 90 470-512 MHz 4.2 2.5 ppm 16K0F3E 22, 74, 90 470-512 MHz 1.1 2.5 ppm 11K0F3E 22, 74, 90470-512 MHz 1.1 2.5 ppm 16K0F3E REPORT PREPARED BY: Test Engineer: Daniel Baltzell Administrative Writer: Melissa Fleming Document Number: 2000497 No part of this report may be reproduced without the full written approval of Rhein Tech Laboratories, Inc. 360 Herndon Parkway Suite 1400 Herndon, VA 20170 http://www.rheintech.com Com-Net Ericsson Critical Ra…
