OWDTR-0012-E700M 800 MHz Mobile Radio

Installation Manual MM101259V1 R1A J AGUAR ô 725M Mobile Radio 2 TABLE OF CONTENTS SAFETY INFORMATION....................................................................... 3 SAFETY TRAINING INFORMATION.................................................. 4 INTRODUCTION ..................................................................................... 6 UNPACKING AND CHECKING EQUIPMENT .................................. 7 PLANNING THE INSTALLATION ..................................................... 10 EQUIPMENT REQUIRED .................................................................... 12 INSTALLATION .................................................................................... 13 RUNNING CABLES......................................................................... 13 Power Cable .............................................................................. 14 Accessory Cable ........................................................................ 15 Ignition Sense (All Applications) .............................................. 17 Control Cable (Remote Mount Only) ........................................ 19 CONTROL UNIT MOUNTING ....................................................... 19 SPEAKER ......................................................................................... 21 MICROPHONE HANGER AND/OR HOOKSWITCH MOUNTING21 SIREN & LIGHT............................................................................... 22 RADIO MOUNTING AND FINAL HOOK-UP ............................... 23 Front Mount............................................................................... 23 Remote Mount Installation ........................................................ 25 DUAL CONTROL UNITS ..................................................................... 29 PRE-INSTALLATION PROGRAMMING PROCEDURE WITH PC PROGRAMMER - FRONT MOUNT ............................................... 29 PRE-INSTALLATION PROGRAMMING PROCEDURE WITH PC PROGRAMMER - REMOTE MOUNT............................................ 32 INSTALLATION INSTRUCTIONS FOR FRONT MOUNT DUAL CONTROL UNITS............................................................................ 35 INSTALLATION INSTRUCTIONS FOR REMOTE MOUNT DUAL CONTROL UNITS............................................................................ 37 FIELD PROGRAMMING WITH PC PROGRAMMER ñ DUAL CONTROL UNITS............................................................................ 41 Field Programming Procedure for Front Mount Dual Control Units .......................................................................................... 41 Field Programming Procedure for Remote Mount Dual Control Units .......................................................................................... 43 DUAL RADIO UNITS ............................................................................ 46 PRE-INSTALLATION PROGRAMMING PROCEDURE WITH PC PROGRAMMER ñ DUAL RADIO UNITS...................................... 46 This manual is published by M/A-COM Private Radio Systems, Inc., without any warranty. Improvements and changes to this manual necessitated by typographical errors, inaccuracies of current information, or improvements to programs and/or equipment, may be made by M/A-COM Private Radio Systems, Inc., at any time and without notice. Such changes will be incorporated into new editions of this manual. No part of this manual may be reproduced or transmitted in any form or by any means, electronic or mechanical, including photocopying and recording, for any purpose, without the express written permission of M/A-COM Private Radio Systems, Inc. Copyright© 2001 M/A-COM Private Radio Systems, Inc. All rights reserved. 3 SAFETY INFORMATION The operator of any mobile radio should be aware of certain hazards common to the operation of vehicular radio transmissions. A list of several possible hazards is given: 1. Explosive Atmospheres - Just as it is dangerous to fuel a vehicle with the motor running, similar hazards exist when operating a mobile radio, be sure to turn the radio off while fueling the vehicle. Do not carry containers of fuel in the trunk of the vehicle if the radio is mounted in the trunk. 2. Interference to Vehicular Electronics Systems - Electronic fuel injection systems, electronic anti-skid braking systems, electronic cruise control systems, etc., are typical electronic systems that may malfunction due to the lack of protection from radio frequency energy present when transmitting. If the vehicle contains such equipment, consult the dealer and enlist their aid in determining the expected performance of electronic circuits when the radio is transmitting. 3. Dynamite Blasting Caps - Dynamite blasting caps may be caused to explode by operating a radio within 500 feet of the blasting caps. Always obey the "Turn Off Two-Way Radios" signs posted where dynamite is being used. When transporting blasting caps in your vehicle: A. Carry the blasting caps in a closed metal box with a soft lining. B. Leave the radio OFF whenever the blasting caps are being put into or removed from the vehicle. 4. Liquefied Petroleum (LP) Gas Powered Vehicles - Mobile radio installations in vehicles powered by liquefied petroleum gas with the LP gas container in the trunk or other sealed-off space within the interior of the vehicle must conform to the National Fire Protection Association standard (NFPA) 58 requiring: A. The space containing the radio equipment shall be isolated by a seal from the space containing the LP gas container and its fittings. B. Outside filling connections shall be used for the LP gas container. C. The LP gas container shall be vented to the outside of the vehicle. 4 SAFETY TRAINING INFORMATION WARNING Your M/A-COM radio generates RF electromagnetic energy during transmit mode. This radio is designed for and classified as ìOccupational Use Only,î meaning it must be used only during the course of employment by individuals aware of the hazards and the …

Text truncated - open the document above for the full version.

Installation Manual MM101013V1 R1A J AGUAR TM 725M MOBILE RADIO & CONTROL UNIT MOTORCYCLE INSTALLATION 2 NOTICE Repairs to this equipment should be made only by an authorized service technician or at a facility designated by the supplier. Any repairs, alterations or substitutions of recommended parts made by the user to this equipment not approved by the manufacturer could void the user’s authority to operate the equipment in addition to the manufacturers warranty. The software contained in this device is copyrighted by M/A-COM Private Radio Systems, Inc. Unpublished rights are reserved under the copyright laws of the United States. This manual is published by M/A-COM Private Radio Systems, Inc. , without any warranty. Improvements and changes to this manual necessitated by typographical errors, inaccuracies of current information, or improvements to programs and/or equipment, may be made by M/A- COM Private Radio Systems, Inc. , at any time and without notice. Such changes will be incorporated into new editions of this manual. No part of this manual may be reproduced or transmitted in any form or by any means,. electronic or mechanical, including photocopying and recording, for any purpose, without the express written permission of M/A-COM Private Radio Systems, Inc. NOTICE Copyright  2001 M/A-COM Private Radio Systems, Inc. All rights reserved. 3 Table of Contents SAFETY TRAINING INFORMATION.........................................................4 TRANSMITTER HAZARDS ........................................................................5 SAFE DRIVING RECOMMENDATIONS...................................................6 GENERAL INFORMATION ..........................................................................8 RELATED DOCUMENTATION..................................................................8 OPTIONS AND ACCESSORIES....................................................................9 VENDOR DROP SHIP OPTIONS................................................................9 External Headset Options..........................................................................9 HARDWARE KITS.....................................................................................10 USER SUPPLIED EQUIPMENT................................................................14 POWER CONSIDERATIONS ....................................................................14 RF Power Adjustments ...........................................................................14 INSTALLATION............................................................................................17 TOOLS REQUIRED ...................................................................................17 EQUIPMENT INSTALLATION.................................................................17 Assembling & Installing the Weather Resistant Case Assembly.............17 Harley-Davidson Installation ..................................................................19 RADIO MOUNTING BRACKETS.............................................................19 CONTROL UNIT MOUNTING ...................................................................22 Control Unit And Mic Hanger Installation..............................................22 SPEAKER MOUNTING .............................................................................23 CABLE ROUTING......................................................................................26 Power and Control Cables.......................................................................26 Option Cable ...........................................................................................26 Typical Harley-Davidson Installation .....................................................27 CABLE CONNECTIONS ...........................................................................31 Power Cable ............................................................................................31 Control Cable ..........................................................................................31 Ignition Switch Option............................................................................32 Accessory Cable......................................................................................32 ANTENNA INSTALLATION.....................................................................32 General ....................................................................................................32 Typical Motorcycle Mount Antenna Installation ....................................34 FINAL CHECKS AND CONNECTIONS ....................................................35 HEADSET INSTALLATION (OPTION)....................................................35 Headset Operation...................................................................................36 4 SAFETY TRAINING INFORMATION WARNING Your M/A-COM J AGUAR ™ 725M Mobile Radio generates RF electromagnetic energy during transmit mode. This radio is designed for and classified as “Occupational Use Only,” meaning it must be used only during the course of employment by individuals aware of the hazards and the ways to minimize such hazards. This radio is not intended for use by the “General Population” in an uncontrolled environment. This radio has been tested and complies with the FCC RF exposure limits for “Occupational Use Only.” In addition, your M/A-COM radio complies with the following Standards and Guidelines with regard to RF energy and electromagnetic energy levels and evaluation of such levels for exposure to humans: • FCC OET Bulletin 65 Edition 97-01 Supplement C, Evaluating Compliance with FCC Guidelines for Human Exposure to Radio Frequency Electromagnetic Fields. • American National Standards Institute (C95.1-1992), IEEE Standard for Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz. • American National Standards Institute (C95.3-1992), IEEE Recommended Practice for the Measurement of Potentially Hazar…

Text truncated - open the document above for the full version.

AD Function 1: RX Demodulation FM(Voice),C4FM, IMBE,AMPF,AEGIS CQPSK Function 2: 2'nd IF Filter Band width Function 3: Noise Squelch, Signaling squelch Function 4: CG DECODE CTCSS, CDCSS, STE Function 5: Signaling DECODE GE-STAR,DTMF,EDACS PREAMP+ XDATAIN XDATAOUT CTS OUT2 IGN SEN FPROG RTS INP1 RSSI/REFDET OUT1 INP2 DA1 Controller ASIC (HILLARY) SCK- SDT- PLLENB- PLLFST1- PLLFST2- PLL DATA CONTROL TX POWER CONTRO L EXTRX SEG1 SEG2 SEG3 VCO SHIFT CONTROL PLLLOCK- PLL LOCK DETECT VCOENB- DPTT+ LOOP FIL CONTROL SP AMP RXVCOSLC Function 1: TX modulaation Signal genarate FM(Voice),C4FM, IMBE,AEGIS Function 2: CG ENCODE CTCSS, CDCSS, STE Function 3: Signaling ENCODE GE-STAR, DTMF, EDACS RS485 RS232 RS485+ RS485- RQST Q+ 5V REG MIXED SIGNL ASIC (PATTI) LPF CODEC HST/DSP INTERFACE FWDDET Mute RX MUTE DA2, DA3 SWA+ MIC HI FET SW EXT MIC SEG4 RX SAMPLE SERIAL CONTROL 3.3V REG 3.3V for DSP TYPE3 SRAM 128k x 16bit DSPCLK (19.2MHz) DSP FLASH EEPROM 2M x 8bit SRAM 512k x 2 x 8bit S/N ROM EEPROM 2k x 8bit ADDRESS DATA SCL SDA S/N_ROM ORCC/LCC CUTST SDATA SONOFF HORNRING SPKR1,SPKR2 LPF I+ I- Q- THERM AD 5V for LOGIC 5V REG 5V for ANALOG 1.5V REG 1.5V for DSP SPLTSW- TXENB+ W/N APCREF DPTT+ BPFCONT +5V GND BPF_H/L RS485ENB VOL HI IGN A+ RESET RESET- 1'st IF Amp1 1'st IF Fil2 RXIF+ (450kHz) 2'nd OSC 2'nd Mixer IF IC SA647DK IF AMP LOGAMP SW BPF Wide BPF NAR SW BPF IF AMP LOGAMP 1'stIF Fil1 ATT IF SECTION IF JAGUAR 700M A/L & IF BLOCK DIAGRAM 11.12.2001 DSPCLK1 ATT 0dB RX FRONT END CONTROL RX VCO SELECT AFC MD0 RESET_CH HKSW CTL ON TYPE2 TYPE1 PS- 9V REG 9V REG 9V for TX 9V for LOGIC 9V for RF 9V for IF SW BPF C4FM SW C4FMSEL RXIF- (450kHz) FET SW SWA+2 for SP AMP POWER CONTROL POWER_SENSE POWER_LATCH REFDET RSSI TCXO 19.2MHz 19.2MHz ATT 1'stIF Amp2 DELTA MODUL ATOR 5V REG TYPE3 TX CONTROL C/H Interface New C/H Interface PC Interface External Interface A+

BLOCK DIAGRAM of JAGUAR700M(800MHz) RF/SYNTHE Unit TG-0038L 1/1 DOUBLERAMP OSC for RX OSC for TX Tank Tank AMPBPF Loop Filter SW PLL IC LOCKDET SCK+ SDT+ PLLENB+ PLLFST2-PLLFST1- AMP AMP ATT ATT AMP ATT Q- I+ SWA+ DPTT+ VCOENB+ RXVCOSLC SEG1 SCK+ SDT+ PLLENB+ PLLFST1- PLLFST2- 19.2M PREAMP+ SPLTSW- BPFCONT SEG2 I- Q+ MOD-TONE BPF Digital Modulator Pai/2 Shift + FIL FIL IF DPTT+ DOUBLER AMP DPTT+ DPTT+ PLLLOCK+ SEG4 AMP 19.2M SEG3 ATT ATT +9VRX TYPE2 +9V +5V ATTAMPATT DPTT+ VCOENB+ VCOENB+ DPTT+ DPTT+ ATT BPF 1'st MIX ATT BPFHPF ATT Rx RF IN Tx Loc out SEG1 +3.3V +3.3V SMOOTHING FILTER BUFFER MOD- TONE

LPF R/T SW Power Detector AMP 40W C-Class AMP 18W C-Class AMP 3W C-Class Pre- Driver Module AMP 8dBm A-Class ATT AMP 4dBm A-Class ATT APC AMP APCREF A+ +9VA FWDDET AMP 1W C-Class PA Module TXENB+ ATTATT TXENB+TXENB+TXENB+TXENB+ TXENB+ TYPE1 A+ TEMPSENS REFDET Thermal Detect TX Loc IN BLOCK DIAGRAM of JAGUAR700M(800MHz) TX Unit TM-0266LL 1/1

M/A-COM 3315 Old Forest Rd. Lynchburg, VA 24501 [email protected] Regulatory Manager Telephone: (434) 385-2146 Fax: (434) 385-2146 December 17, 2001 Federal Communications Commission Authorization & Evaluation Division 7435 Oakland Mills Road Columbia Maryland 21046 Attention: Equipment Authorization Branch Subject: Type Acceptance FCC ID: OWDTR-0012-E Members of the Commission M/A Com Private Radio Systems Inc. requests the Type Acceptance of the OWDTR-0012-E mobile transceiver. The OWDTR-0012- E is a trunking mobile radio that operates in the 806-821/851-866 MHz band with a talkaround mode and in the 821-824/866-869 MHz band with NPSPC and talkaround modes. The OWDTR-0012-E has a maximum power rating of about 35 watts conducted. This radio offers a motorcycle kit option, to support the EME safety rules we have evaluated SAR at 20 cm instead of MPE per OET guide 65.

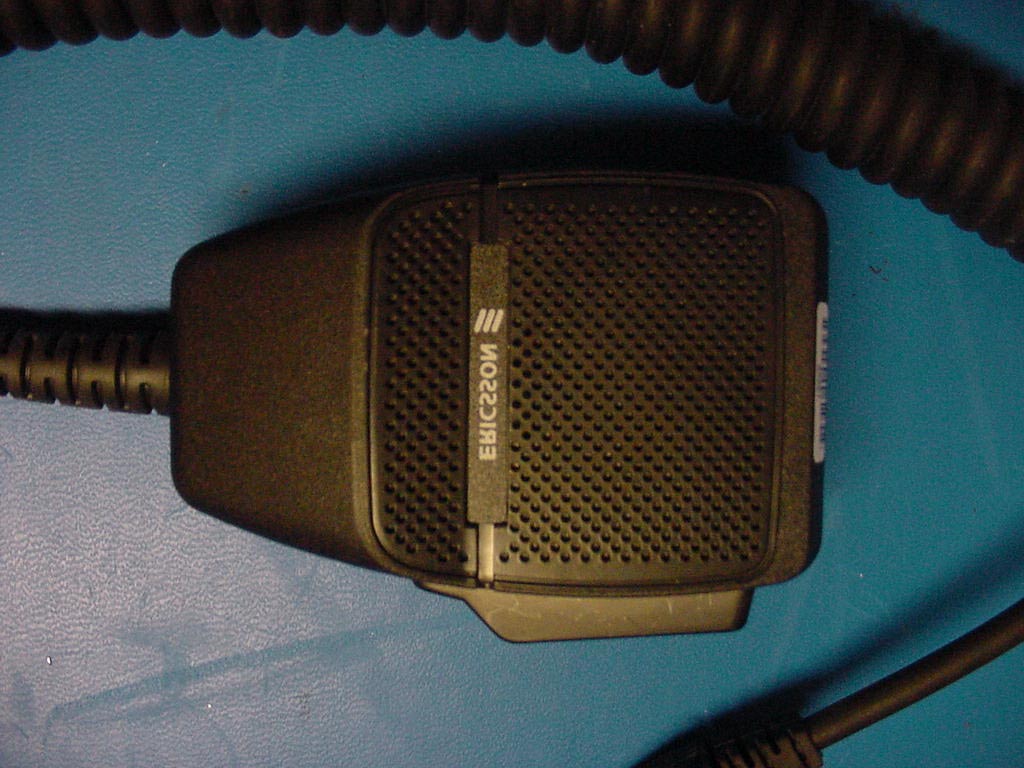

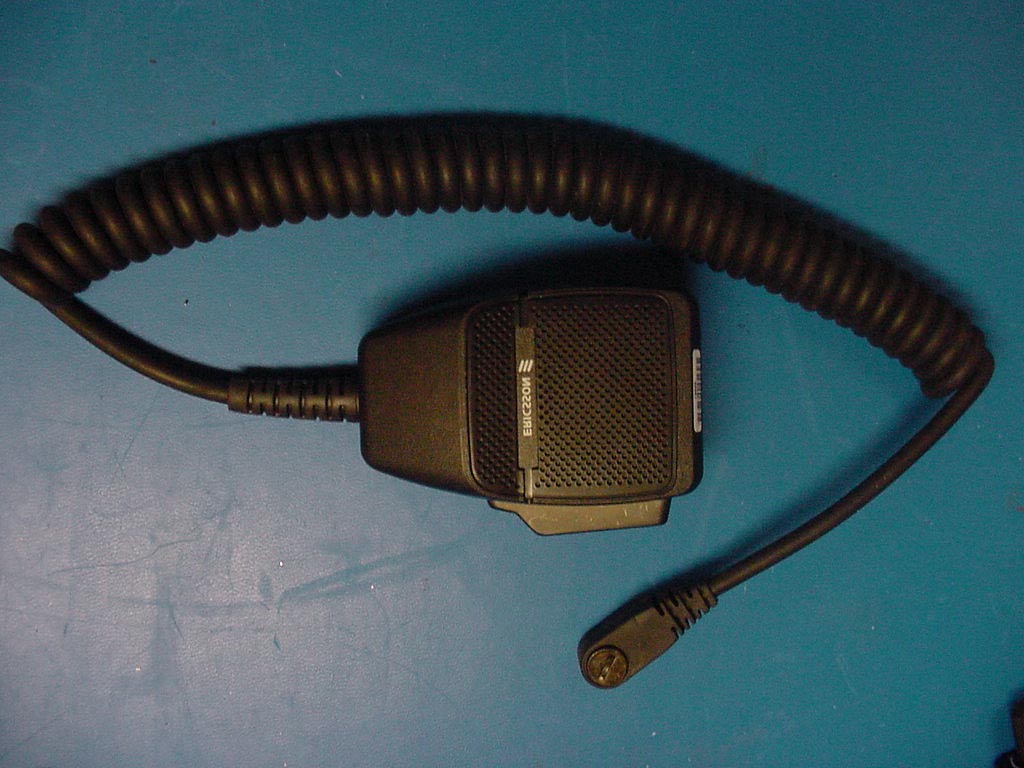

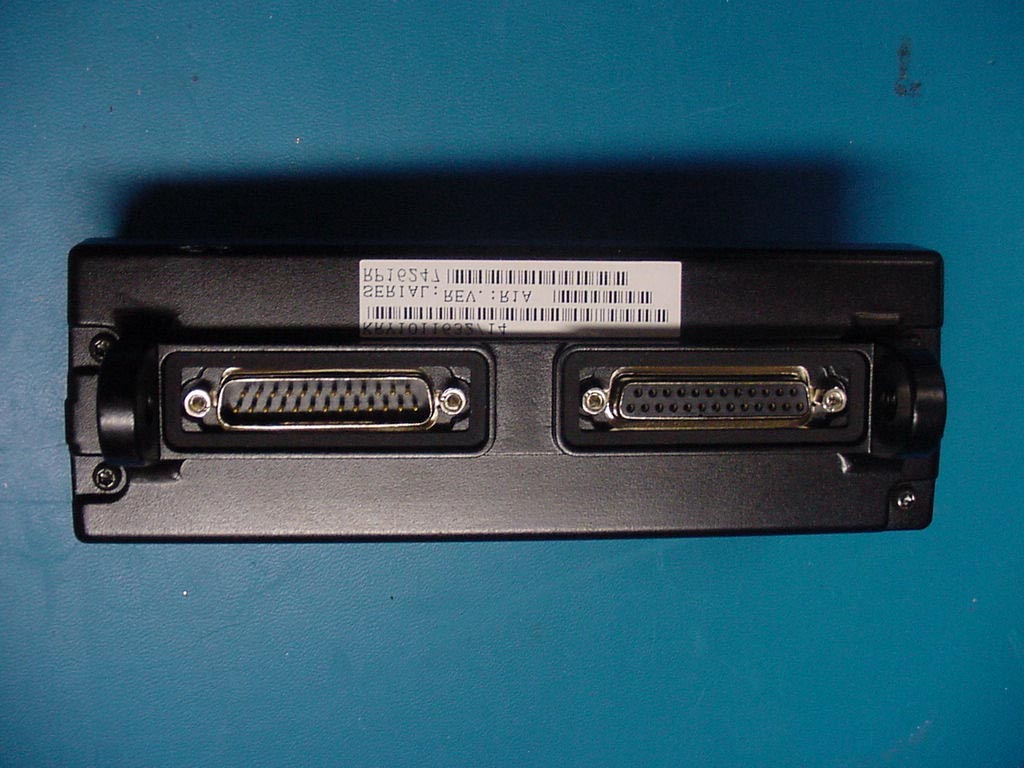

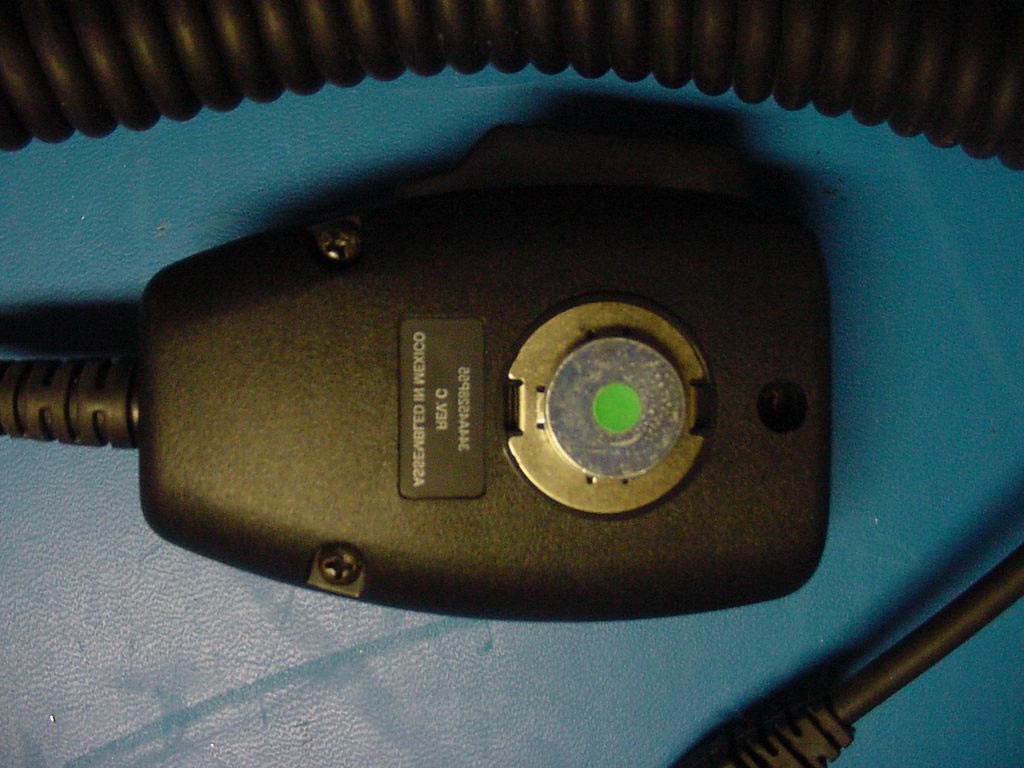

360 Herndon Parkway Suite 1400 Herndon, VA 20170 http://www.rheintech.com FCC And Canadian Certification Report Page 44 of 43 2001267 / QRTL01-083 M/A Com Private Radio Systems, Inc. Jaguar 700M 800 MHz Mobile Radio APPENDIX I: EXTERNAL PHOTOGRAPHS PHOTOGRAPH 5: MICROPHONE FRONT 360 Herndon Parkway Suite 1400 Herndon, VA 20170 http://www.rheintech.com FCC And Canadian Certification Report Page 45 of 43 2001267 / QRTL01-083 M/A Com Private Radio Systems, Inc. Jaguar 700M 800 MHz Mobile Radio PHOTOGRAPH 6: MICROPHONE REAR 360 Herndon Parkway Suite 1400 Herndon, VA 20170 http://www.rheintech.com FCC And Canadian Certification Report Page 46 of 43 2001267 / QRTL01-083 M/A Com Private Radio Systems, Inc. Jaguar 700M 800 MHz Mobile Radio PHOTOGRAPH 7: MICROPHONE WITH CABLE 360 Herndon Parkway Suite 1400 Herndon, VA 20170 http://www.rheintech.com FCC And Canadian Certification Report Page 47 of 43 2001267 / QRTL01-083 M/A Com Private Radio Systems, Inc. Jaguar 700M 800 MHz Mobile Radio PHOTOGRAPH 8: MOBILE FRONT DISPLAY WITH MIC 360 Herndon Parkway Suite 1400 Herndon, VA 20170 http://www.rheintech.com FCC And Canadian Certification Report Page 48 of 43 2001267 / QRTL01-083 M/A Com Private Radio Systems, Inc. Jaguar 700M 800 MHz Mobile Radio PHOTOGRAPH 9: TOP REMOTE DISPLAY WITH CABLE 360 Herndon Parkway Suite 1400 Herndon, VA 20170 http://www.rheintech.com FCC And Canadian Certification Report Page 49 of 43 2001267 / QRTL01-083 M/A Com Private Radio Systems, Inc. Jaguar 700M 800 MHz Mobile Radio PHOTOGRAPH 10: REMOTE DISPLAY FRONT 360 Herndon Parkway Suite 1400 Herndon, VA 20170 http://www.rheintech.com FCC And Canadian Certification Report Page 50 of 43 2001267 / QRTL01-083 M/A Com Private Radio Systems, Inc. Jaguar 700M 800 MHz Mobile Radio PHOTOGRAPH 11: REMOTE DISPLAY REAR 360 Herndon Parkway Suite 1400 Herndon, VA 20170 http://www.rheintech.com FCC And Canadian Certification Report Page 51 of 43 2001267 / QRTL01-083 M/A Com Private Radio Systems, Inc. Jaguar 700M 800 MHz Mobile Radio PHOTOGRAPH 12: MOBILE FRONT WITHOUT DISPLAY PHOTOGRAPH 13: MOBILE REAR

360 Herndon Parkway Suite 1400 Herndon, VA 20170 http://www.rheintech.com FCC And Canadian Certification Report Page 34 of 43 2001267 / QRTL01-083 M/A Com Private Radio Systems, Inc. Jaguar 700M 800 MHz Mobile Radio APPENDIX C: LABEL INFORMATION FCC ID Label 360 Herndon Parkway Suite 1400 Herndon, VA 20170 http://www.rheintech.com FCC And Canadian Certification Report Page 35 of 43 2001267 / QRTL01-083 M/A Com Private Radio Systems, Inc. Jaguar 700M 800 MHz Mobile Radio Label Location

360 Herndon Parkway Suite 1400 Herndon, VA 20170 http://www.rheintech.com FCC And Canadian Certification Report Page 34 of 43 2001267 / QRTL01-083 M/A Com Private Radio Systems, Inc. Jaguar 700M 800 MHz Mobile Radio APPENDIX C: LABEL INFORMATION FCC ID Label 360 Herndon Parkway Suite 1400 Herndon, VA 20170 http://www.rheintech.com FCC And Canadian Certification Report Page 35 of 43 2001267 / QRTL01-083 M/A Com Private Radio Systems, Inc. Jaguar 700M 800 MHz Mobile Radio Label Location

360 Herndon Parkway Suite 1400 Herndon, VA 20170 http://www.rheintech.com FCC And Canadian Certification Report Page 52 of 43 2001267 / QRTL01-083 M/A Com Private Radio Systems, Inc. Jaguar 700M 800 MHz Mobile Radio APPENDIX I: INTERNAL PHOTOGRAPHS PHOTOGRAPH 14: PCB A FRONT PHOTOGRAPH 15: PCB A REAR WITH SHIELDS 360 Herndon Parkway Suite 1400 Herndon, VA 20170 http://www.rheintech.com FCC And Canadian Certification Report Page 53 of 43 2001267 / QRTL01-083 M/A Com Private Radio Systems, Inc. Jaguar 700M 800 MHz Mobile Radio PHOTOGRAPH 16: PCB A REAR WITHOUT SHIELDS PHOTOGRAPH 17: PCB B FRONT 360 Herndon Parkway Suite 1400 Herndon, VA 20170 http://www.rheintech.com FCC And Canadian Certification Report Page 54 of 43 2001267 / QRTL01-083 M/A Com Private Radio Systems, Inc. Jaguar 700M 800 MHz Mobile Radio PHOTOGRAPH 18: PCB B REAR PHOTOGRAPH 19: BOTTOM COVER INSIDE 360 Herndon Parkway Suite 1400 Herndon, VA 20170 http://www.rheintech.com FCC And Canadian Certification Report Page 55 of 43 2001267 / QRTL01-083 M/A Com Private Radio Systems, Inc. Jaguar 700M 800 MHz Mobile Radio PHOTOGRAPH 20: BOTTOM COVER SHIELD 360 Herndon Parkway Suite 1400 Herndon, VA 20170 http://www.rheintech.com FCC And Canadian Certification Report Page 56 of 43 2001267 / QRTL01-083 M/A Com Private Radio Systems, Inc. Jaguar 700M 800 MHz Mobile Radio PHOTOGRAPH 21: BOTTOM INSIDE CASE 360 Herndon Parkway Suite 1400 Herndon, VA 20170 http://www.rheintech.com FCC And Canadian Certification Report Page 57 of 43 2001267 / QRTL01-083 M/A Com Private Radio Systems, Inc. Jaguar 700M 800 MHz Mobile Radio PHOTOGRAPH 22: BOTTOM WITH COVERS 360 Herndon Parkway Suite 1400 Herndon, VA 20170 http://www.rheintech.com FCC And Canadian Certification Report Page 58 of 43 2001267 / QRTL01-083 M/A Com Private Radio Systems, Inc. Jaguar 700M 800 MHz Mobile Radio PHOTOGRAPH 23: DISPLAY UNIT REAR 360 Herndon Parkway Suite 1400 Herndon, VA 20170 http://www.rheintech.com FCC And Canadian Certification Report Page 59 of 43 2001267 / QRTL01-083 M/A Com Private Radio Systems, Inc. Jaguar 700M 800 MHz Mobile Radio PHOTOGRAPH 24: MIC BOARD FRONT 360 Herndon Parkway Suite 1400 Herndon, VA 20170 http://www.rheintech.com FCC And Canadian Certification Report Page 60 of 43 2001267 / QRTL01-083 M/A Com Private Radio Systems, Inc. Jaguar 700M 800 MHz Mobile Radio PHOTOGRAPH 25: MIC BOARD REAR 360 Herndon Parkway Suite 1400 Herndon, VA 20170 http://www.rheintech.com FCC And Canadian Certification Report Page 61 of 43 2001267 / QRTL01-083 M/A Com Private Radio Systems, Inc. Jaguar 700M 800 MHz Mobile Radio PHOTOGRAPH 26: MIC COVER FRONT INSIDE 360 Herndon Parkway Suite 1400 Herndon, VA 20170 http://www.rheintech.com FCC And Canadian Certification Report Page 62 of 43 2001267 / QRTL01-083 M/A Com Private Radio Systems, Inc. Jaguar 700M 800 MHz Mobile Radio PHOTOGRAPH 27: TOP COVER SHIELD 360 Herndon Parkway Suite 1400 Herndon, VA 20170 http://www.rheintech.com FCC And Canadian Certification Report Page 63 of 43 2001267 / QRTL01-083 M/A Com Private Radio Systems, Inc. Jaguar 700M 800 MHz Mobile Radio PHOTOGRAPH 28: TOP INSIDE CASE 360 Herndon Parkway Suite 1400 Herndon, VA 20170 http://www.rheintech.com FCC And Canadian Certification Report Page 64 of 43 2001267 / QRTL01-083 M/A Com Private Radio Systems, Inc. Jaguar 700M 800 MHz Mobile Radio PHOTOGRAPH 29: FRONT COVER INSIDE PHOTOGRAPH 30: MAIN BOARD FRONT WITH LCD 360 Herndon Parkway Suite 1400 Herndon, VA 20170 http://www.rheintech.com FCC And Canadian Certification Report Page 65 of 43 2001267 / QRTL01-083 M/A Com Private Radio Systems, Inc. Jaguar 700M 800 MHz Mobile Radio PHOTOGRAPH 31: MAIN BOARD REAR WITH SHIELD PHOTOGRAPH 32: MAIN BOARD REAR WITHOUT SHIELD PHOTOGRAPH 33: REAR COVER INSIDE 360 Herndon Parkway Suite 1400 Herndon, VA 20170 http://www.rheintech.com FCC And Canadian Certification Report Page 66 of 43 2001267 / QRTL01-083 M/A Com Private Radio Systems, Inc. Jaguar 700M 800 MHz Mobile Radio PHOTOGRAPH 34: SECOND BOARD FRONT PHOTOGRAPH 35: SECOND BOARD REAR 360 Herndon Parkway Suite 1400 Herndon, VA 20170 http://www.rheintech.com FCC And Canadian Certification Report Page 67 of 43 2001267 / QRTL01-083 M/A Com Private Radio Systems, Inc. Jaguar 700M 800 MHz Mobile Radio PHOTOGRAPH 36: SHIELD FRONT PHOTOGRAPH 37: SHIELD REAR 360 Herndon Parkway Suite 1400 Herndon, VA 20170 http://www.rheintech.com FCC And Canadian Certification Report Page 68 of 43 2001267 / QRTL01-083 M/A Com Private Radio Systems, Inc. Jaguar 700M 800 MHz Mobile Radio PHOTOGRAPH 38: THIRD BOARD FRONT PHOTOGRAPH 39: THIRD BOARD REAR

Ueda Japan Radio Co., Ltd File: JAGUAR700 Audio_Logic Block Circuit Analysis.doc Rev. 1.0 Subject: Circuit Analysis of Audio/Logic Block 1/3 DESCRIPTION The Audio Logic Block combines functions of audio signal processing and Audio Logic Block. Programming and personality information is stored in FLASH and EEPROM memory on the Audio Logic Block. Electrical interfaces are achieved between this Block and the Transmitter Block, the Receiver Block, the Synthesizer Block. All radio control signals originate or terminate on the Audio Logic Block. Two microcomputers share the processing load. Control signals are connected through a high speed digital link with the Control unit, either through the control unit, making possible either front or remote control for the radio. The same link also makes possible dual radio or dual control unit configuration. An RS-232 compatible digital link is available at the option interface, to facilitate programming or Radio Data Interface to Mobile Digital terminals. This Block also generates Type 99, Channel Guard, GE-Star, C4FM, EDACS and DTMF signals if so programmed. The Audio Logic Block consists of the following control logic and audio circuits. l CONTROLLER ASIC: HILLARY (IC701) l Flash EPROM (IC702) l SRAM (IC703, IC704) l EEPROM (IC706) l MIXED SIGNAL ASIC: PATTI (IC801) l Voltage Regulator (IC941, IC942, IC943, IC951, IC952, IC953, IC954) l Audio Amplifier (IC802) l DSP (IC901) l RS-485 (IC708) l RS-232 (IC707) l Reset Circuit (IC710) l Address Decoder (IC705) l Serial Number ROM (IC709) l Bilateral Switch (IC803) Ueda Japan Radio Co., Ltd File: JAGUAR700 Audio_Logic Block Circuit Analysis.doc Rev. 1.0 Subject: Circuit Analysis of Audio/Logic Block 2/3 CIRCUIT ANALYSIS CONTROLLER ASIC: HILLARY (IC701) The main microcomputer circuit in the JAGUAR700M radio consists of Hillary IC701, EEPROM IC706, Flash EEPROM IC702, SRAM IC703 and IC704 . This circuitry tuns at a 19.2 MHz rate determined by crystal XU701. l Controlling the PATTI, FLASH EEPROM , SRAM and DSP. l Loading data to the frequency synthesizer. l Fetching and processing the PTT, monitor, channel, selection and volume control. l Controlling the radio circuit. l Decoding the squelch l Encoding/Decoding the Channel Guard and Digital Channel Guard. l Controlling the loading interface for the radio data. (channel number and signaling FLASH EPROM (IC702) This memory contains the software to control the microprocessor. This Flash EPROM has a storage capacity of 2 M x 8 bits. SRAM (IC703, IC704) This SRAM has a storage capacity of 1M x 8 bits. The memory is available for variable, buffers, etc. EEPROM (IC706) This EEPROM has a storage capacity of 16 K bits. The memory contains the user configurable parameters that must be maintained through a power cycle. The EEPROM is used for storing tracking data, variable personalities. The data mainly consists of the following: l Channel Frequency Data l Channel Guard/Digital Channel Guard Data l TX power, TX Modulation Data l Squelch Data l Display Data, etc. MIXED SIGNAL ASIC,PATTI (IC801) PATTI has three major functions. That provides functions as follows: l Fast digitizer l Voice CODEC l DAC’s Ueda Japan Radio Co., Ltd File: JAGUAR700 Audio_Logic Block Circuit Analysis.doc Rev. 1.0 Subject: Circuit Analysis of Audio/Logic Block 3/3 Voltage Regulators (IC941,IC942,IC943,IC951,IC952,IC953 and IC954) Voltage regulators IC951 and IC952 each generate a 5 Vdc for the System Control board and IF section. Voltage regulator IC953 and IC954 each generate a 9 Vdc for the RF/SYNTHE Unit and TX Unit. Voltage regulators IC943 generate a 3.3 Vdc for the DSP. Voltage regulators IC942 generate a 1.8 Vdc(1.5Vdc at New DSP) for the DSP. Audio Amplifier (IC802) The audio amplifier is located between the ASIC and speaker. Amplifier IC802 amplifies the output signal of the ASIC(IC801) to the level adequate for driving speaker. DSP (IC901) The DSP interfaces with Controller ASIC,HILLARY. RS-485 (IC708) This is a high speed differential tri-state bus/line transceiver designed to meet the requirements of EIA standard RS-485 specification. Control Unit Interface. RS-232 (IC707) The IC consists of line driver/receivers designed to meet the requirements of EIA standard RS-232 specifications. The IC707 is located between the radio unit and the ORCC connector. Reset Circuit (IC710) This is an active low reset IC which includes a delay time generating circuit. Delay time can be set up by externally using a capacitor. The function of this IC is to accurately reset the system after detecting voltage at the time of switching power on and instantaneous power off. Address Decoder (IC705) This circuit decode of address of SRAM. The memory map is as follows; H’00000-H’7FFFF : SRAM(IC703) H’80000-H’FFFFF : SRAM(IC704) Serial Number ROM (IC709) The Serial Number ROM is a electronic registration number that provides an absolutely unique identity which can be determined with minimal electronic interface. The IC consists of a factory-lasered, 64bit ROM that includes a unique 48bit serial number, an 8bit CRC, and an 8bit Family code (01h). Bilateral Switch (IC803) This Bilateral switches use in order to control a voice line. When a control signal becomes “H”, a voice line becomes Pass State.

Ueda Japan Radio Co., Ltd File: JAGUAR700M 800 Receiver Block Circuit Analysis.doc Rev. 1.0 Subject: Circuit Analysis of JAGUAR700M 800MHz Receiver Block 1 of 1 Circuit Analysis of JAGUAR700M 800MHz Receiver Block (RF Block:TG-0038LR, IF Block: TC-0135EK) 1, Receiver Circuit The FM dual-conversion super heterodyne receiver is designed for operation in the 851-870MHz frequency range. The Receiver has intermediate frequencies (IF) of 82.2MHz and 450KHz. Adjacent channel selectivity is obtained by using two band pass filters, a 82.2MHz crystal filter and a 450KHz ceramic filter. The FM-detector is Quadrature discriminator. 1-1. Receiver Front-end A RF signal from antenna is coupled though the low pass filters, antenna switch and band pass filter FL201 to the input of low noise amplifier TR201. The output of TR201 is coupled through band pass filter FL202 to input of 1’st Mixer TR203. These band pass filter provides front End selectivity. 1-2. 1’st Mixer The 1’st Mixer is a Transistor-Mixer (TR203), that converts a RF signal the 851-870MHz range to 82.2MHz 1’st IF frequency. In the mixer stage, a RF signal from the Front-end RF filter is applied to the input of the Transistor-Mixer. The 1'st Mixer is output to A/L & IF BOARD from J202. 1-3. 1’st IF The 1’st IF that was output from J202 of RF/SYN BOARD is input to J1301 of A/L & IF BOARD. The 82.2MHz 1’st IF …
